  1. VENUE & FIELD LAYOUT

  2. Why do we do a field inspection? We must ensure that at each competition the field conforms to the basic requirements as regulated by the World Archery rule books. By doing so we guarantee consistency, thus ensuring that each archer competes under equal conditions and that they are able to achieve their best possible results no matter where they are in the world.

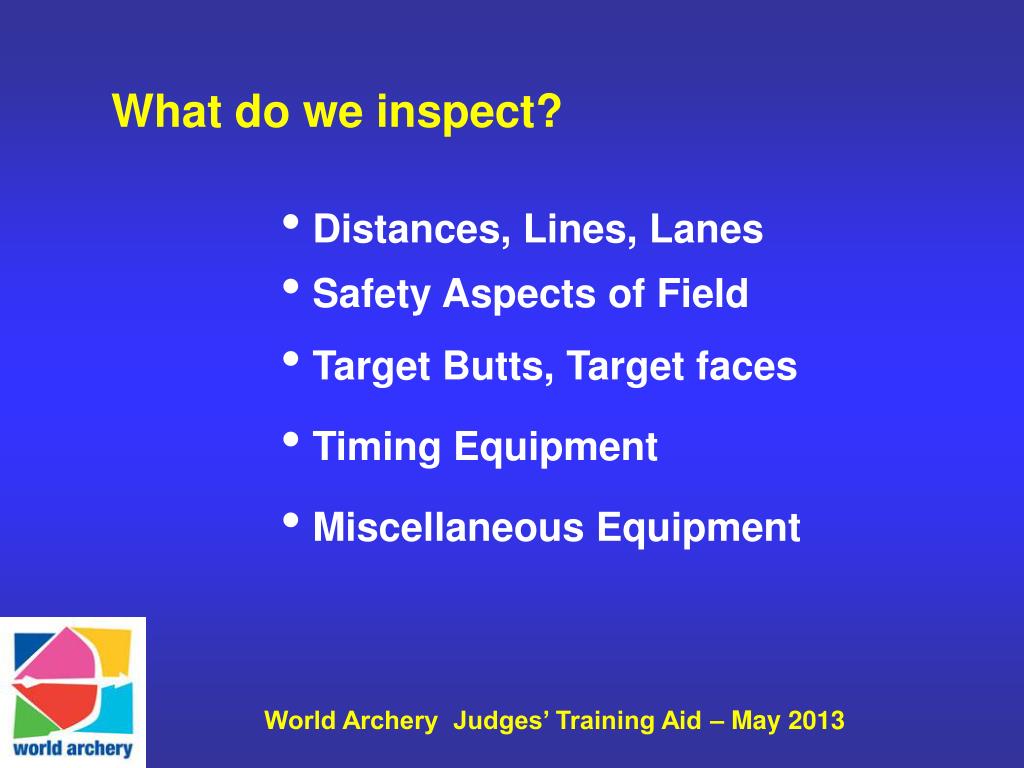

  3. What do we inspect? • Distances, Lines, Lanes • Safety Aspects of Field • Target Butts, Target faces • Timing Equipment • Miscellaneous Equipment

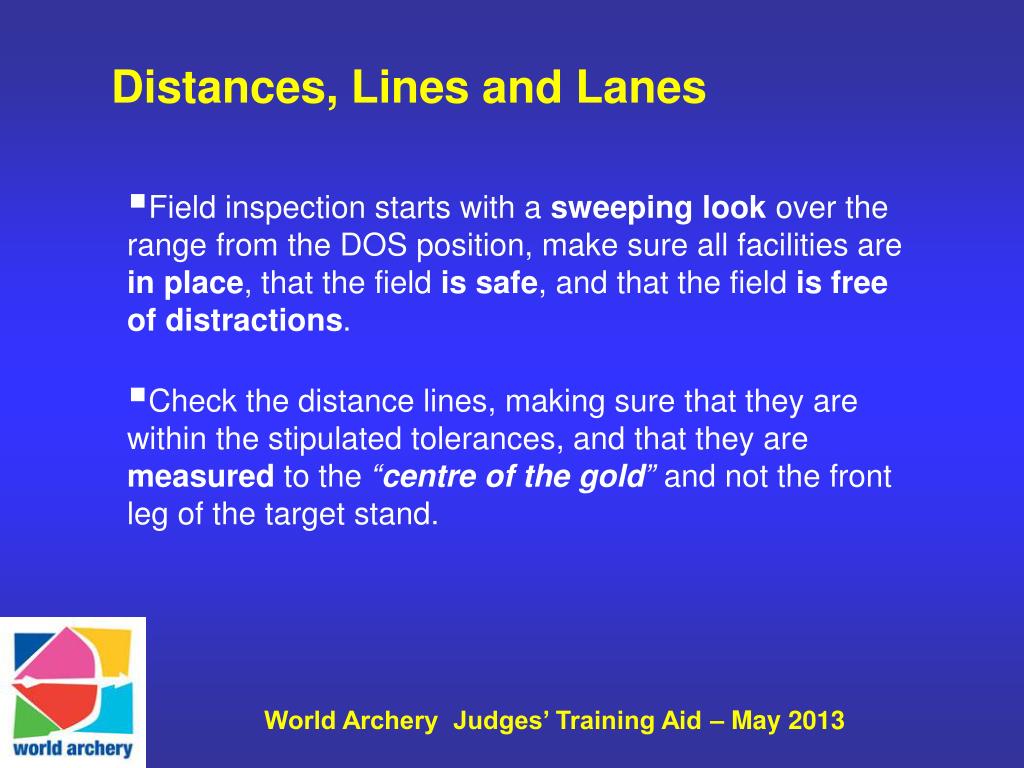

  4. Distances, Lines and Lanes • Field inspection starts with a sweeping look over the range from the DOS position, make sure all facilities are in place, that the field is safe, and that the field is free of distractions. • Check the distance lines, making sure that they are within the stipulated tolerances, and that they are measured to the “centre of the gold” and not the front leg of the target stand.

  5. Typical field layout

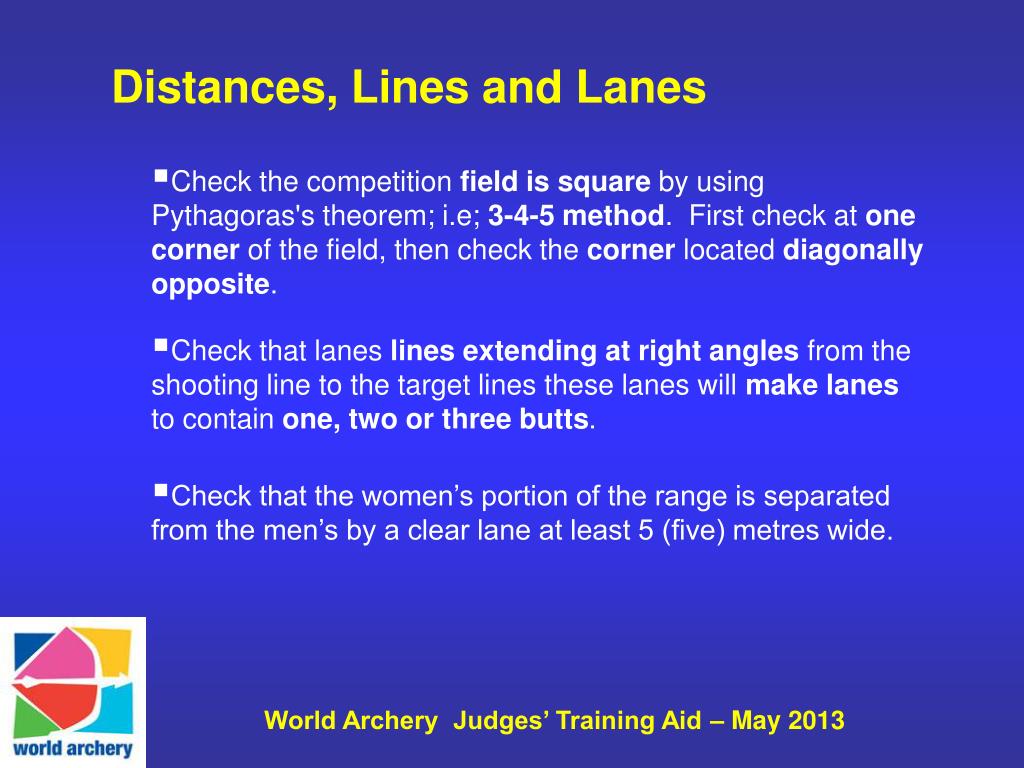

  6. Distances, Lines and Lanes • Check the competition field is square by using Pythagoras's theorem; i.e; 3-4-5 method. First check at one corner of the field, then check the corner located diagonally opposite. • Check that lanes lines extending at right angles from the shooting line to the target lines these lanes will make lanes to contain one, two or three butts. • Check that the women’s portion of the range is separated from the men’s by a clear lane at least 5 (five) metres wide.

  7. Always check opposite corners of the field 5 4 3 Squaring out the field of Play

  8. Distances, Lines and Lanes • Check the distance between the waiting line and the shooting line, which should be not less than 5 (five metres) • Check the distance between the shooting line and the 3m line, which should be 3 (three metres), making sure that it is fully visibly from the shooting line. Measure from the middle of shooting line to the further end of the 3m line.

  9. Typical field layout for outdoor archery tournaments

  10. Distances, Lines and Lanes • Make sure that the centre of each target butt is clearly indicated on the shooting line. • When two or moreathletes are shooting at the same target butt at the same time, the shooting positions will be marked on the shooting line. • A minimum space of 80cm per athlete will be guaranteed. • When athletes in wheel chairs are competing, additional space will be necessary on the shooting line.

  11. Safety Aspects of the Field • Check all aspects of safety in accordance with the recommendations of WA Rule Book 2, these include; • Barriers must be placed at least 20m away from the ends of the targets at 90m • The minimum distance of 10m should be kept at the ends of the shooting line • The run off distance at the end of the field should not be less than 50m, this may be reduced if an adequate backstop, e.g. efficient netting, soil bank or similar device is erected.

  12. Safety barriers should be used to separate athlete from spectators. Field security and safety

  13. Target Butt • The size of the buttress whether round or square must be at least 124cm in any direction. • Make sure that the target butts are firmly attached to supports, which must be pegged securely in the ground.

  14. Target Butt • Each target butt will have a number, 30cm tall, black figures on a yellow background, alternating with yellow figures on a black background. • Target numbers will be fixedabove or below the centre of each target butt, they must be clear of the target face, and visible from the shooting line.

  15. Target Butt • Each target butt should be set at an angle of between 10 to 15 degrees from the vertical, all target butts must be set up at the same angle. • When all the target faces have been fixed to the butts, a visualinspection should confirm that the height of the centres of the gold in a line of target butts on the range should look straight at all times.

  16. Target Faces • There are five types of FITA Outdoor Target Faces: • 122 cm target face • 80 cm target face • 80 cm – centre ( multiple setup with 10 - 5 score zones) mandatory for FITA Outdoor Target World Championships • 80 cm – centre (multiple setup with 10 – 6 score zones)( will be discontinued in 2015) • Academic Round Hit/Miss

  17. Target Faces • Tolerance of measurements • The target face will be measured using each diameter of each separate circle enclosing each of the scoring zones. • The width of the dividing linesbetween each scoring zone will not exceed 2mm. • The tolerance on the scoring zones X,10,9,and 8 is +/- 1mm. • +/- 2mm for other scoring zones. • The centre of the target is termed ”the pinhole” denoted by a cross, 4mm in overall dimension with a line not exceed in 1mmin width.

  18. 80cm face – dimensional tolerances

  19. Target Faces • Competition target faces should be licensed by World Archery, the license should be clearly visible in one of the corners of the printed face. • The colours used in printing of World Archery licensed target faces are very specific and are specified using the pantone scale of colours (ref 7.2.2.2 Bk 2)

  20. Target Faces • It is important when carrying out the inspection of the target faces that several samples are extracted from the stock held for the competition, and checked for colour consistency through the batch. If there are different batches then we also check colours between batches. • Do not allowdifferent coloured targets from different batches or different suppliers to be used for the same class on the same target line. • The position of the target face, when fixed to the buttress, will be positioned such that the centre of the gold of a single target arrangement will be 130cm measured vertically from the ground, having a tolerance of +/-5cm. • In the case of multiple target layouts, three or four, there are maximum and minimum heights and horizontal space indications.

  21. 30m & 50m m target setup for four face configuration

  22. 30m & 50m m target set up for three face configuration

  23. Timing Equipment • During the initial inspection it is important to verify that the timing devices are functioning properly and that they are visible from the shooting line. • Check the synchronisation of the acoustic signals with the visual signals, of the different coloured lights. • Digital numbers must be at least 20cm high and should be visible from the shooting line • The timing and visual devices are to be placed to the sides of the field, visible to all archers from the shooting line. They should be placed forward of the 30m target line.

  24. Miscellaneous Equipment • Competitors numbers • AB/CD, CD/AB device for indicating the order of shooting • Windsocks to be placed on both sides of the field and one in the middle when the field is split by a dividing lane. The height of the windsock should be between 2.5m and 3.5m above the ground. • Wind flags of any light material, of an easily visible colour, such as yellow or red, should be placed above the centre of the butt, 40cm above the top of the butt or target number. The flags will measure not more than 30cm and not less than 25cm in any direction.

  25. Miscellaneous Equipment • An Audio system and wireless radios for use by the Judges during the competition. • Blinds for use in the Finals round by the Judges, scorers and athlete’s agent • Chairs and shelter from the weather for the Judges should be placed along the waiting line during the qualification and elimination rounds.
