CHAPTER 4: IMPERFECTIONS IN SOLIDS

CHAPTER 4: IMPERFECTIONS IN SOLIDS. ISSUES TO ADDRESS. • What are the solidification mechanisms?. • What types of defects arise in solids?. • Can the number and type of defects be varied and controlled?. • How do defects affect material properties?. • Are defects undesirable?.

Download Presentation

CHAPTER 4: IMPERFECTIONS IN SOLIDS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. CHAPTER 4:IMPERFECTIONS IN SOLIDS ISSUES TO ADDRESS... • What are the solidification mechanisms? • What types of defects arise in solids? • Can the number and type of defects be varied and controlled? • How do defects affect material properties? • Are defects undesirable?

  2. nuclei grain structure crystals growing liquid Imperfections in Solids • Solidification- • result of casting of molten material( metals and alloys) • the size and shape of the structure depends on the cooling rate • 2 steps • Nuclei form • Nuclei grow to form crystals – grain structure • Start with a molten material – all liquid • Crystals grow until they meet each other

  3. Polycrystalline Materials Grain Boundaries • regions between crystals • transition from lattice of one region to that of the other • slightly disordered • low density in grain boundaries • high mobility • high diffusivity • high chemical reactivity

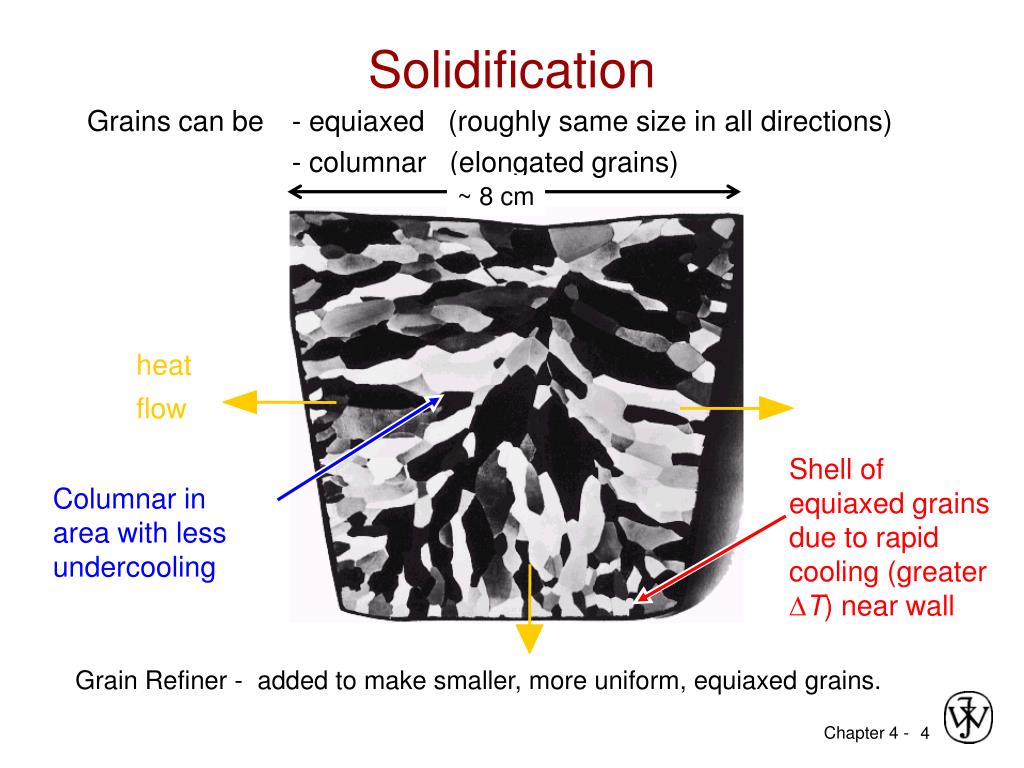

  4. ~ 8 cm Solidification Grains can be - equiaxed (roughly same size in all directions) - columnar (elongated grains) heat flow Shell of equiaxed grains due to rapid cooling (greater T) near wall Columnar in area with less undercooling Grain Refiner - added to make smaller, more uniform, equiaxed grains.

  5. Imperfections in Solids There is no such thing as a perfect crystal. • What are these imperfections? • Why are they important? Many of the important properties of materials are due to the presence of imperfections.

  6. Types of Imperfections Point defects • Vacancy atoms • Interstitial atoms • Impurities defects ( for solid solution) • Line defects ( dislocation) • Edge dislocation • Screw dislocation • mixed dislocation

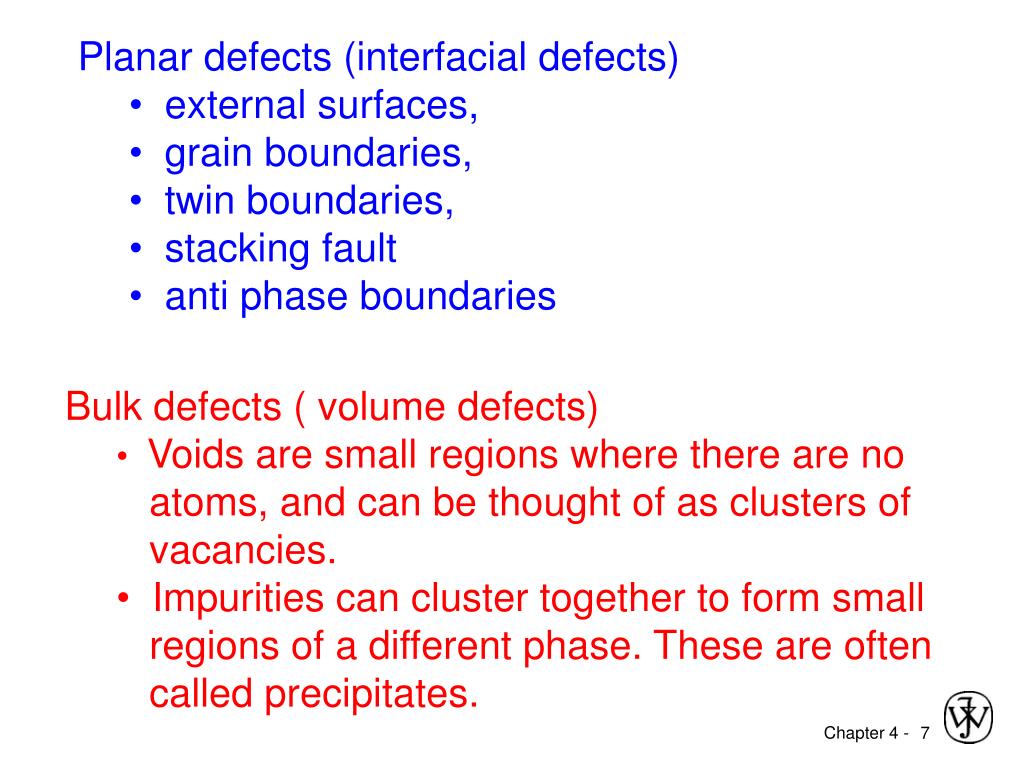

  7. Planar defects (interfacial defects) • external surfaces, • grain boundaries, • twin boundaries, • stacking fault • anti phase boundaries • Bulk defects ( volume defects) • Voids are small regions where there are no • atoms, and can be thought of as clusters of • vacancies. • Impurities can cluster together to form small • regions of a different phase. These are often • called precipitates.

  8. Point Defects Vacancy distortion of planes self- interstitial distortion of planes • Vacancies: -vacant atomic sites in a structure. • Self-Interstitials: -"extra" atoms positioned between atomic sites.

  9. Impurities defects: Substitutional or interstitial - Substitutional : impurity atoms type A substitutional atoms type B in structure - Interstitial : atoms type A fill the voids or interstices among the atoms type B substit interstitial

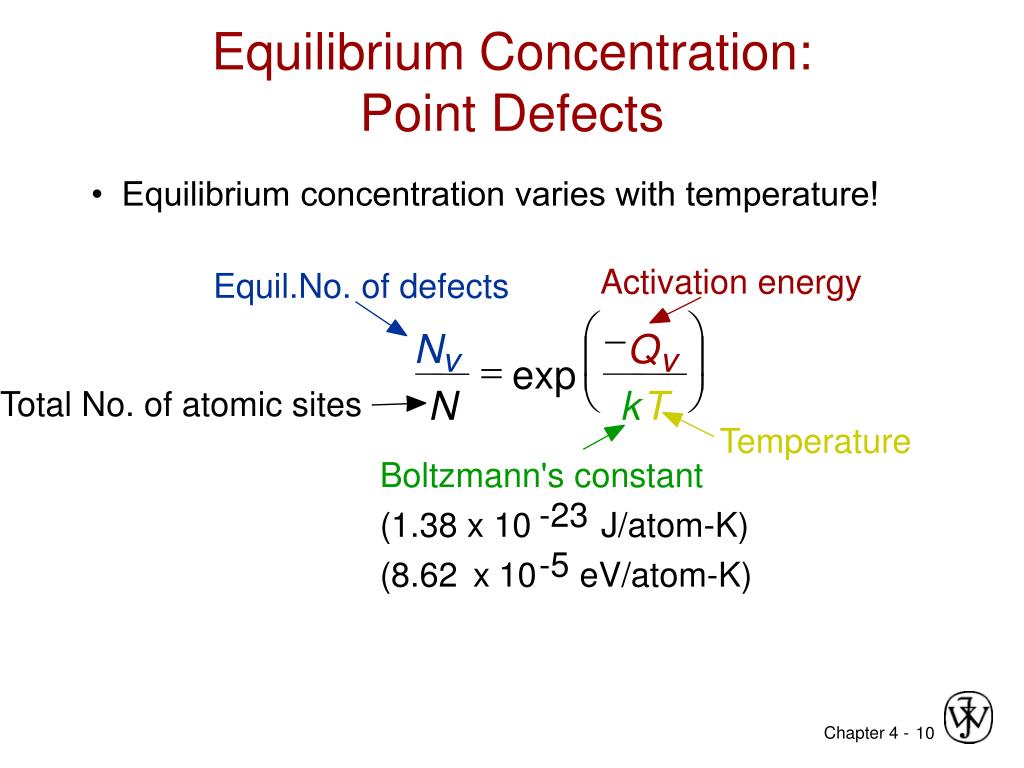

  10. Equilibrium Concentration:Point Defects • Equilibrium concentration varies with temperature! Activation energy Equil.No. of defects æ ö - N Q ç ÷ v v = ç ÷ exp è ø N k T Total No. of atomic sites Temperature Boltzmann's constant -23 (1.38 x 10 J/atom-K) -5 (8.62 x 10 eV/atom-K)

  11. Measuring Activation Energy æ ö - N Q ç ÷ v v ç ÷ exp = è ø N k T • Measure this... • Replot it... slope N N v v ln N N - Q /k v exponential dependence! T 1/ T defect concentration • We can get Qv from an experiment.

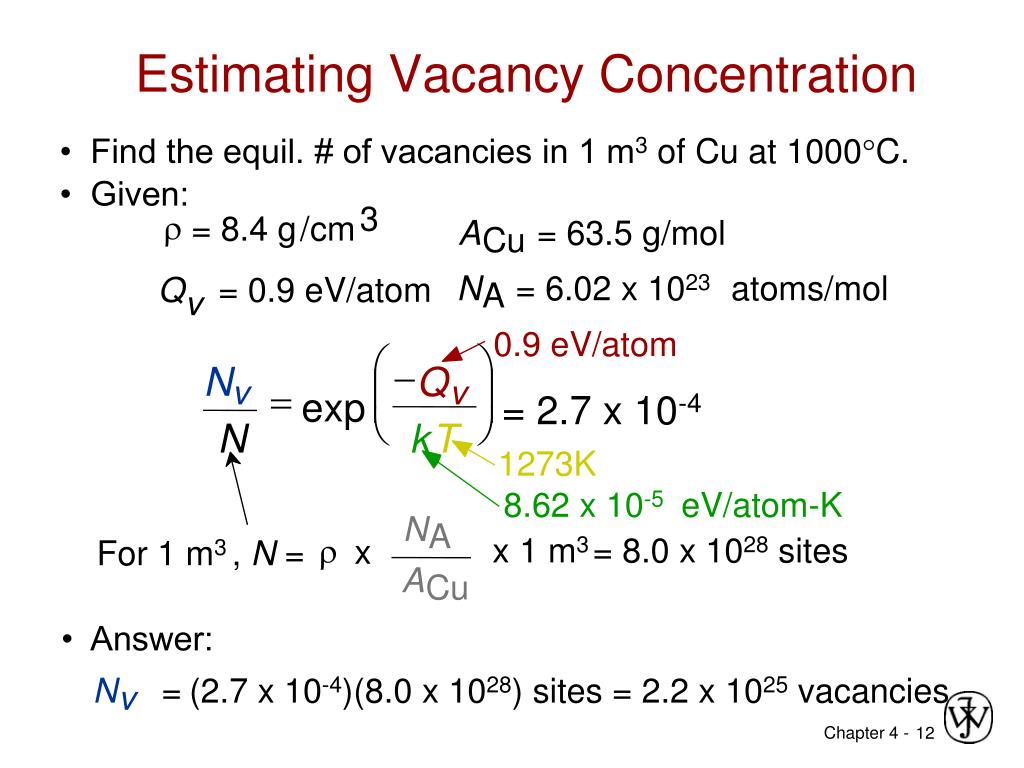

  12. Estimating Vacancy Concentration 0.9 eV/atom æ ö - N Q ç ÷ v v = ç ÷ exp = 2.7 x 10-4 è ø N k T 1273K 8.62 x 10-5 eV/atom-K N A r x 1 m3 = 8.0 x 1028 sites x For 1 m3 , N = A Cu • Answer: N = (2.7 x 10-4)(8.0 x 1028) sites = 2.2 x 1025 vacancies v • Find the equil. # of vacancies in 1 m3 of Cu at 1000C. • Given: 3 r = 8.4 g / cm A = 63.5 g/mol Cu N = 6.02 x 1023 atoms/mol Q = 0.9 eV/atom A v

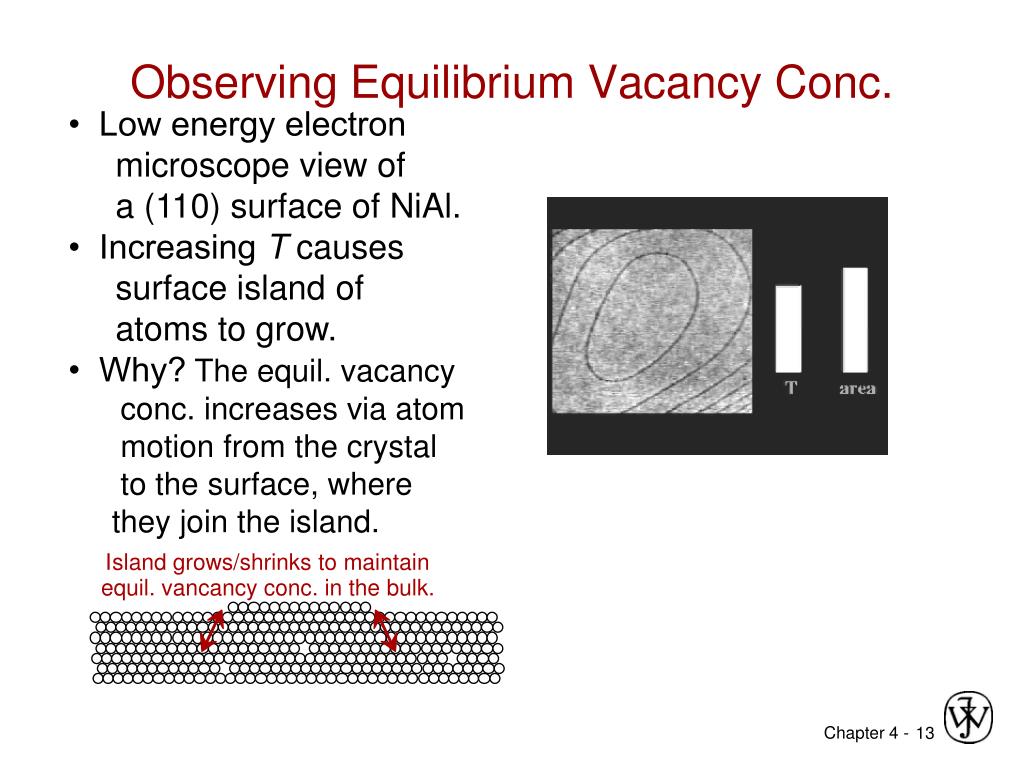

  13. Observing Equilibrium Vacancy Conc. I sland grows/shrinks to maintain equil. vancancy conc. in the bulk. • Low energy electron microscope view of a (110) surface of NiAl. • Increasing T causes surface island of atoms to grow. • Why? The equil. vacancy conc. increases via atom motion from the crystal to the surface, where they join the island.

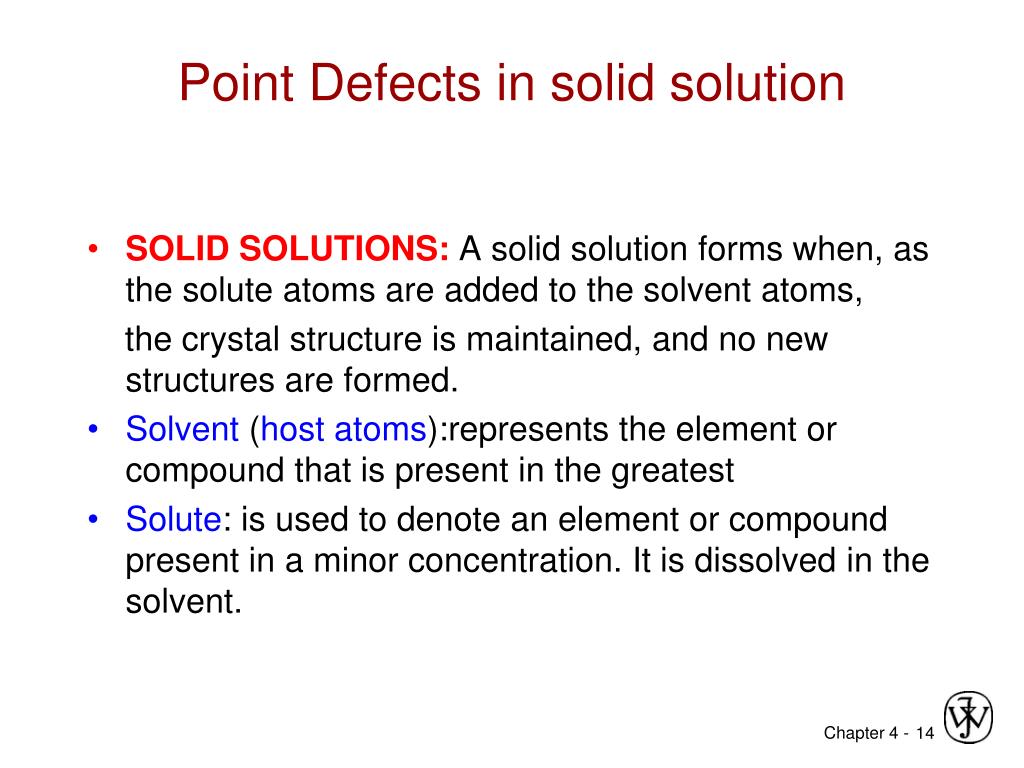

  14. Point Defects in solid solution • SOLID SOLUTIONS: A solid solution forms when, as the solute atoms are added to the solvent atoms, the crystal structure is maintained, and no new structures are formed. • Solvent (host atoms):represents the element or compound that is present in the greatest • Solute: is used to denote an element or compound present in a minor concentration. It is dissolved in the solvent.

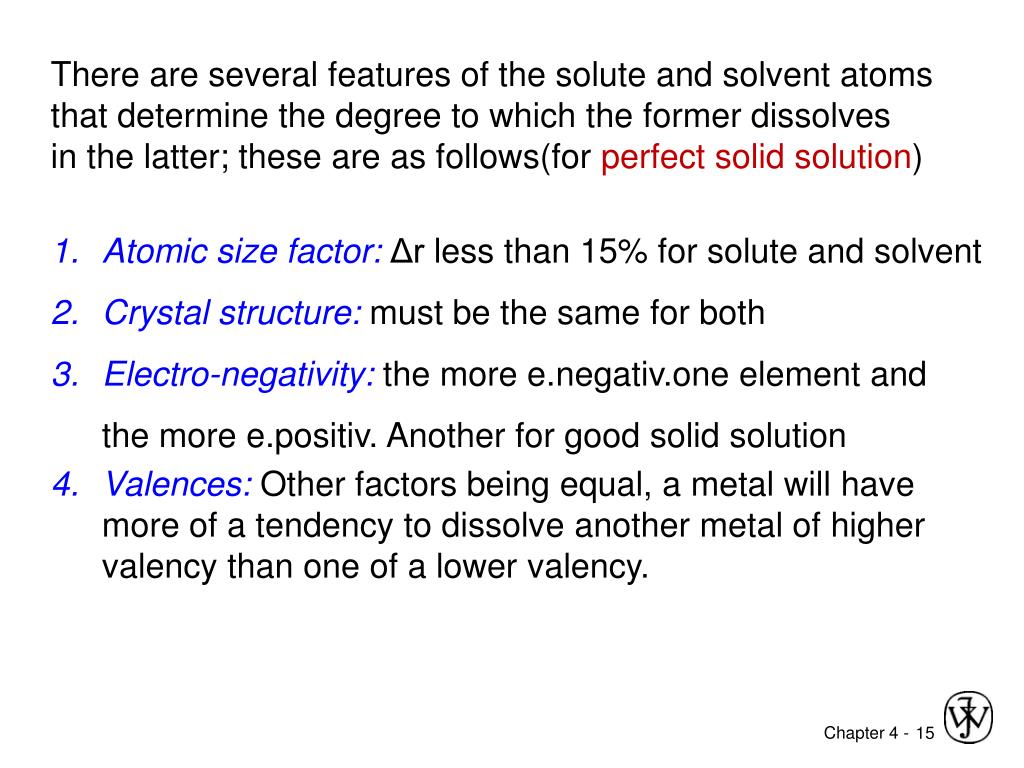

  15. There are several features of the solute and solvent atoms that determine the degree to which the former dissolves in the latter; these are as follows(for perfect solid solution) Atomic size factor: Δr less than 15% for solute and solvent Crystal structure: must be the same for both Electro-negativity: the more e.negativ.one element and the more e.positiv. Another for good solid solution Valences: Other factors being equal, a metal will have more of a tendency to dissolve another metal of higher valency than one of a lower valency.

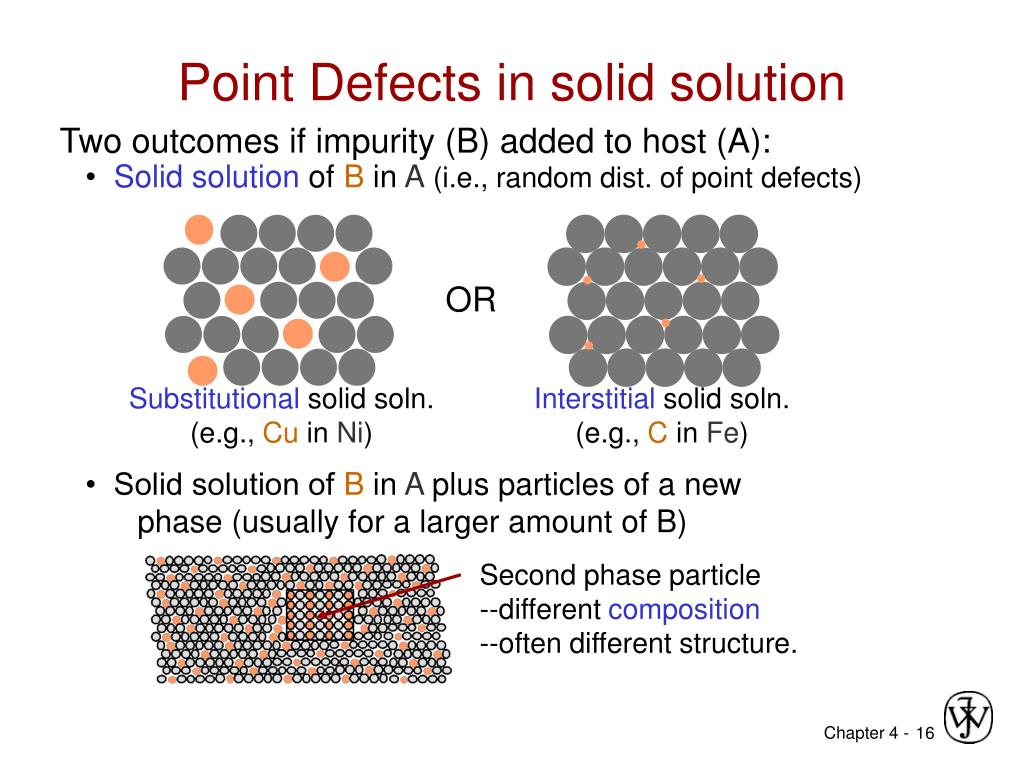

  16. Point Defects in solid solution Two outcomes if impurity (B) added to host (A): • Solid solution of B in A (i.e., random dist. of point defects) OR Substitutional solid soln. (e.g., Cu in Ni) Interstitial solid soln. (e.g., C in Fe) • Solid solution of B in A plus particles of a new phase (usually for a larger amount of B) Second phase particle --different composition --often different structure.

  17. Imperfections in Solids Conditions for substitutional solid solution (S.S.) • W. Hume – Rothery rule • 1. ( atomic size factor) r(atomic radius) < 15% • 2. Proximity in periodic table • i.e., similar electronegativities • 3. Same crystal structure for pure metals of both atoms type • 4. Valency • ex. of substitu. solid solution copper and nickel

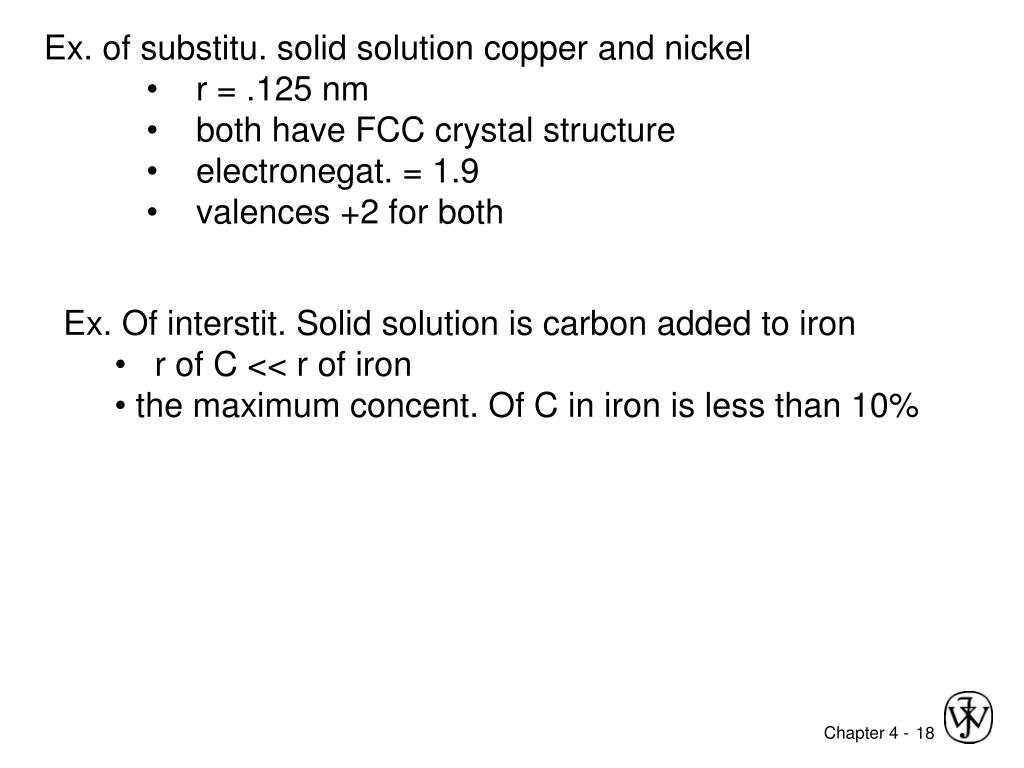

  18. Ex. of substitu. solid solution copper and nickel • r = .125 nm • both have FCC crystal structure • electronegat. = 1.9 • valences +2 for both • Ex. Of interstit. Solid solution is carbon added to iron • r of C << r of iron • the maximum concent. Of C in iron is less than 10%

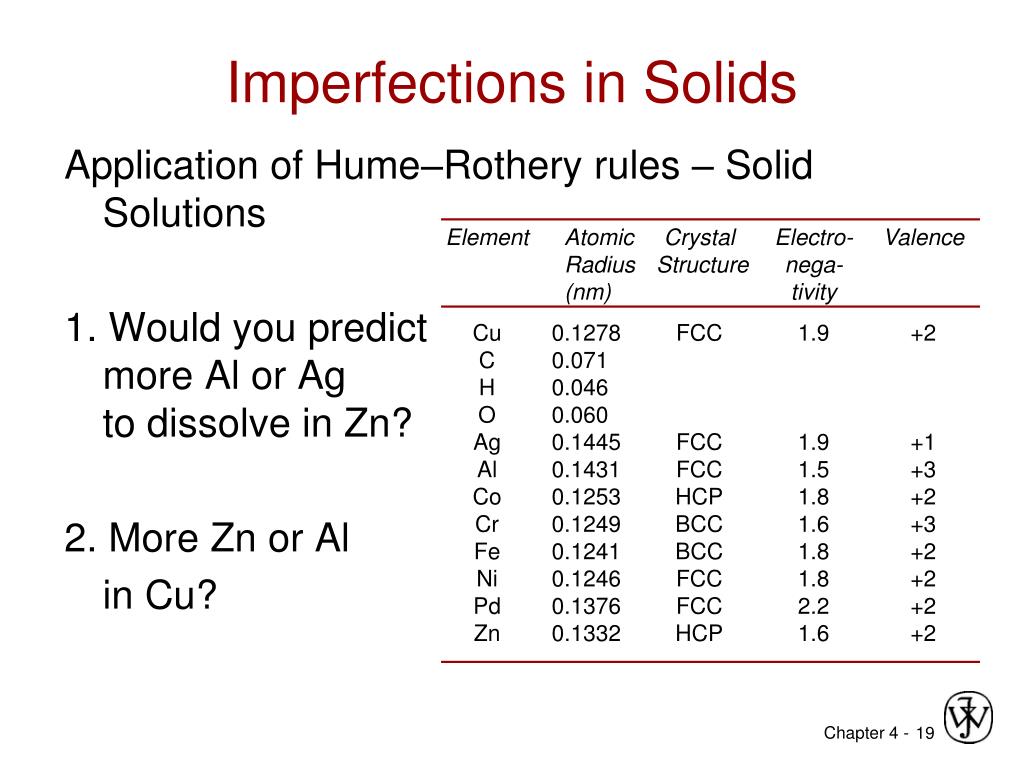

  19. Element Atomic Crystal Electro- Valence Radius Structure nega- (nm) tivity Cu 0.1278 FCC 1.9 +2 C 0.071 H 0.046 O 0.060 Ag 0.1445 FCC 1.9 +1 Al 0.1431 FCC 1.5 +3 Co 0.1253 HCP 1.8 +2 Cr 0.1249 BCC 1.6 +3 Fe 0.1241 BCC 1.8 +2 Ni 0.1246 FCC 1.8 +2 Pd 0.1376 FCC 2.2 +2 Zn 0.1332 HCP 1.6 +2 Imperfections in Solids Application of Hume–Rothery rules – Solid Solutions 1. Would you predictmore Al or Ag to dissolve in Zn? 2. More Zn or Al in Cu?

  20. atom percent nm1 = number of moles of component 1 Imperfections in Solids • Specification of composition( or concentration of alloy in terms of its constituent elements) • weight percent m1 = mass of component 1

  21. problem • What is the composition , in atom percent of an alloy that contains 33 g copper and 47 g zinc? Solution: first becomes necessary to compute the number of moles of both Cu and Zn, Thus, the number of moles of Cu is just Likewise, for Zn

  22. now also

  23. problem2 • What is the composition, in atom percent, of an alloy that consists of 5.5 wt% Pb and 94.5 wt% Sn(tin)? • Solution:

  24. Line Defects Dislocations: • are line defects, • slip between crystal planes result when dislocations move, • produce permanent (plastic) deformation. Schematic of Zinc (HCP): • before deformation • after tensile elongation slip steps

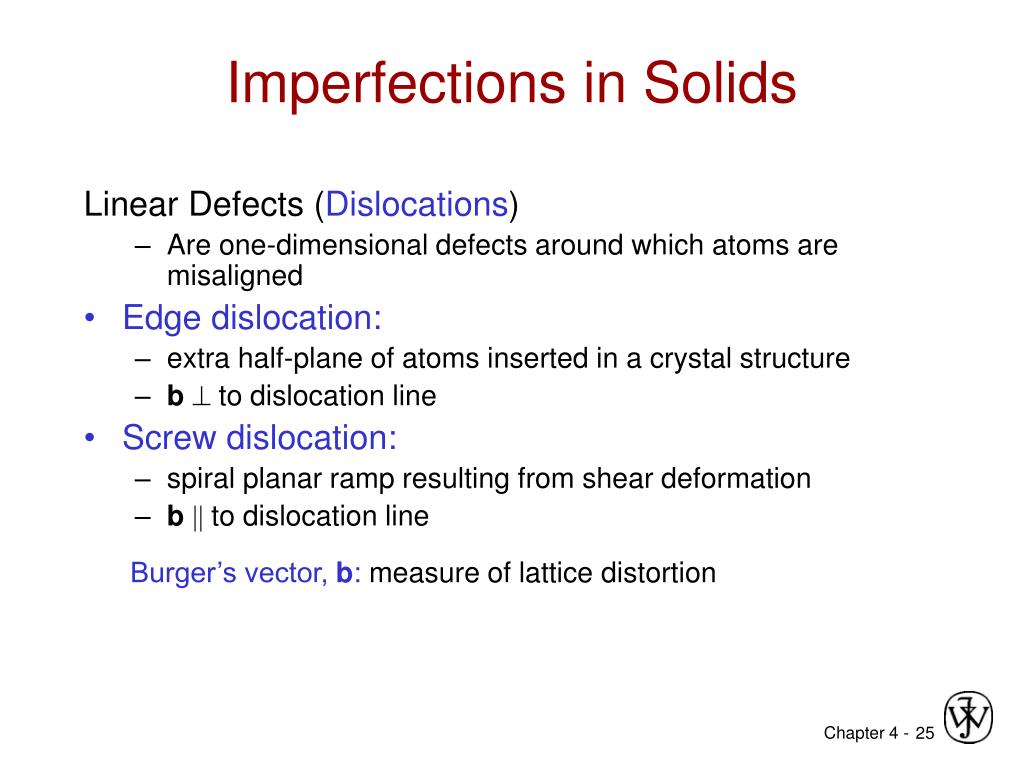

  25. Imperfections in Solids Linear Defects (Dislocations) • Are one-dimensional defects around which atoms are misaligned • Edge dislocation: • extra half-plane of atoms inserted in a crystal structure • b to dislocation line • Screw dislocation: • spiral planar ramp resulting from shear deformation • b to dislocation line Burger’s vector, b: measure of lattice distortion

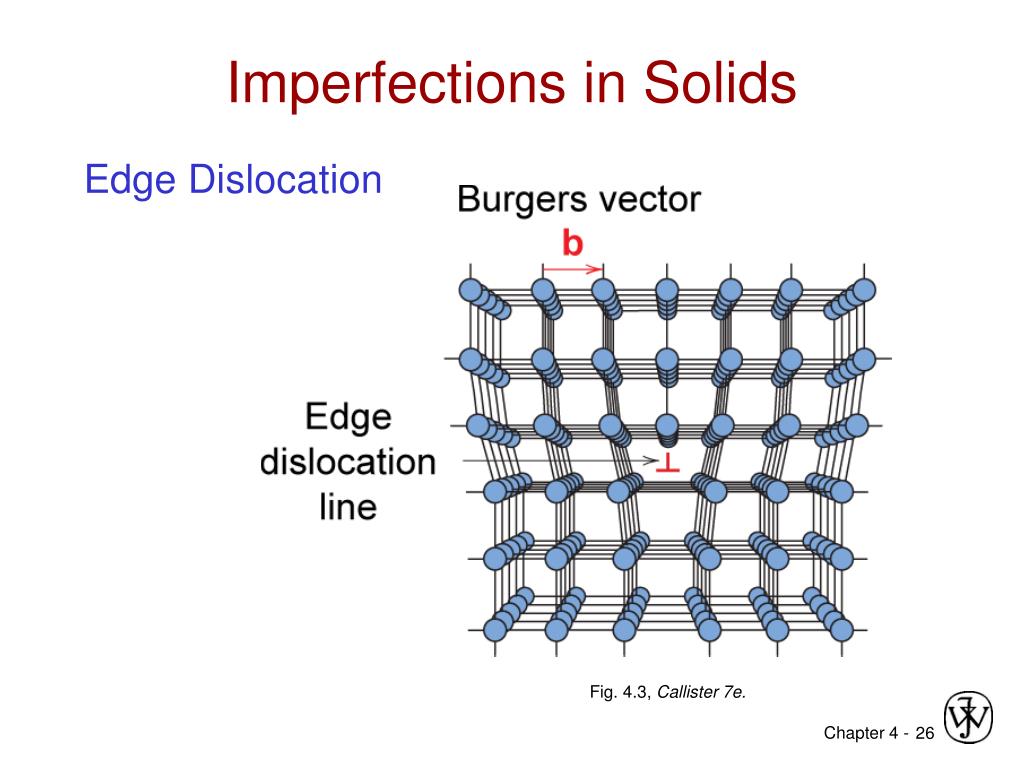

  26. Imperfections in Solids Edge Dislocation Fig. 4.3, Callister 7e.

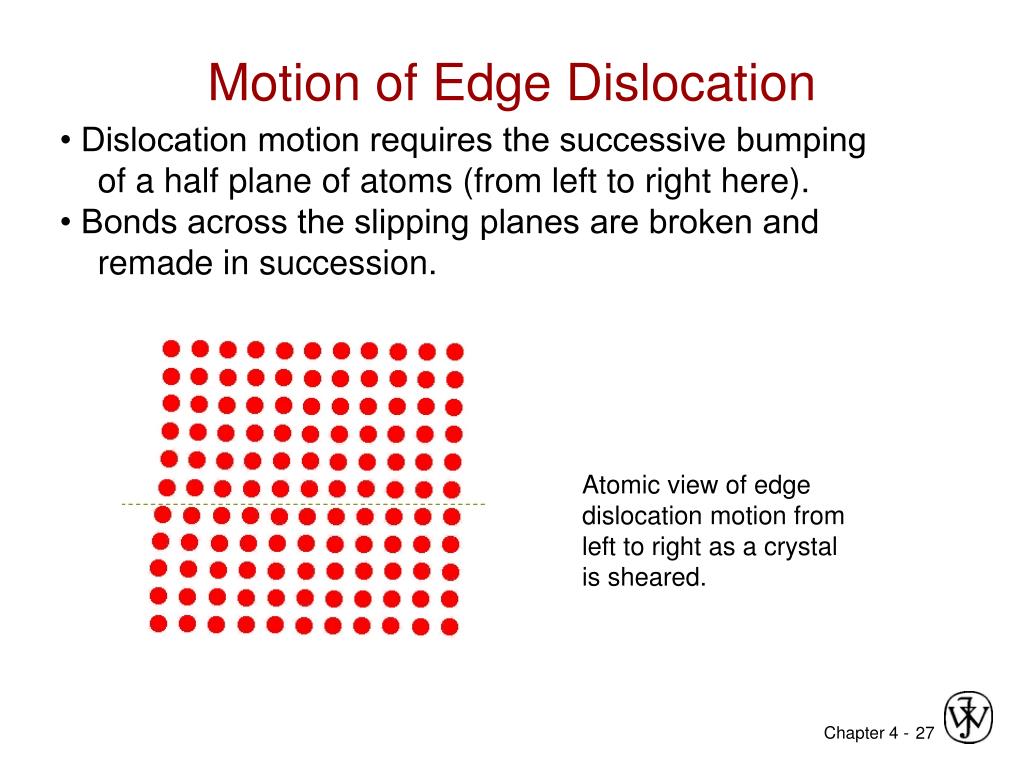

  27. Motion of Edge Dislocation • Dislocation motion requires the successive bumping of a half plane of atoms (from left to right here). • Bonds across the slipping planes are broken and remade in succession. Atomic view of edge dislocation motion from left to right as a crystal is sheared.

  28. Imperfections in Solids Screw Dislocation Screw Dislocation b Dislocation line (b) Burgers vector b (a)

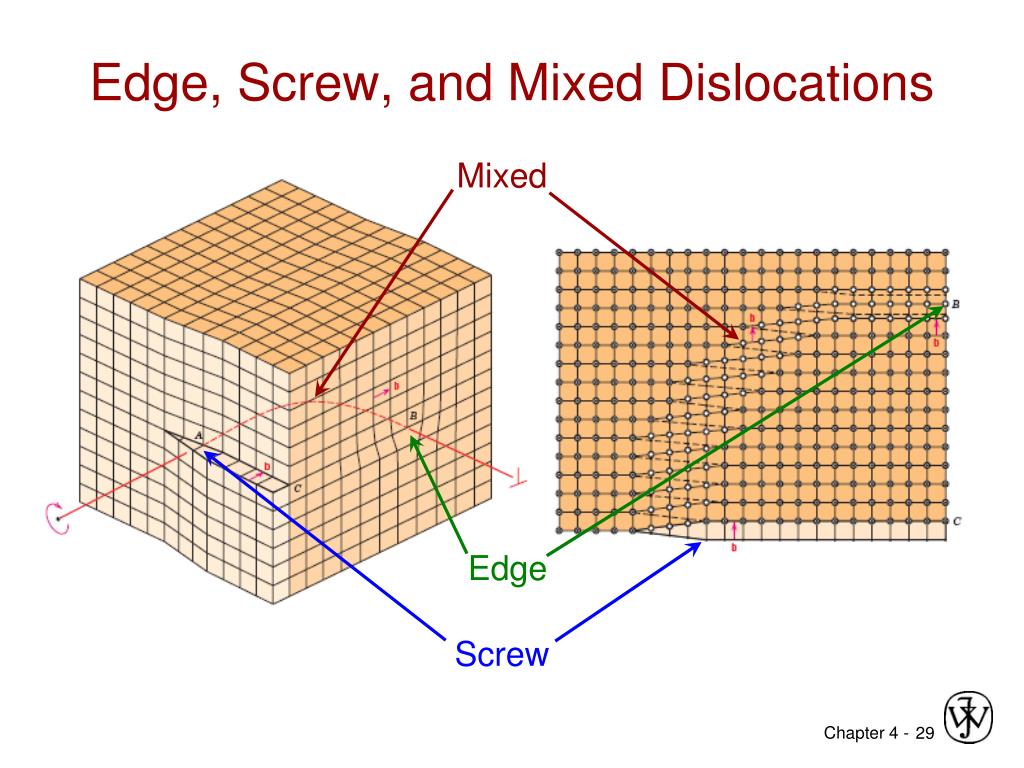

  29. Mixed Edge Screw Edge, Screw, and Mixed Dislocations

  30. Imperfections in Solids Dislocations are visible in electron micrographs

  31. Dislocations & Crystal Structures • Structure: close-packed planes & directions are preferred. view onto two close-packed planes. close-packed directions close-packed plane (bottom) close-packed plane (top) • Comparison among crystal structures: FCC: many close-packed planes/directions; HCP: only one plane, 3 directions; BCC: none • Specimens that were tensile tested. Mg (HCP) tensile direction Al (FCC)

  32. Surface energy

  33. Planar (interfacial)Defects in Solids • External surfaces one of most obvious boundaries, along which the crystal structure terminates. Surface atoms are not bonded to the maximum number of nearest neighbors, and are therefore in a higher energy state than the atoms at interior positions • Grain boundaries occur where the crystallographic direction of the lattice abruptly changes. This usually occurs when two crystals begin growing separately and then meet.

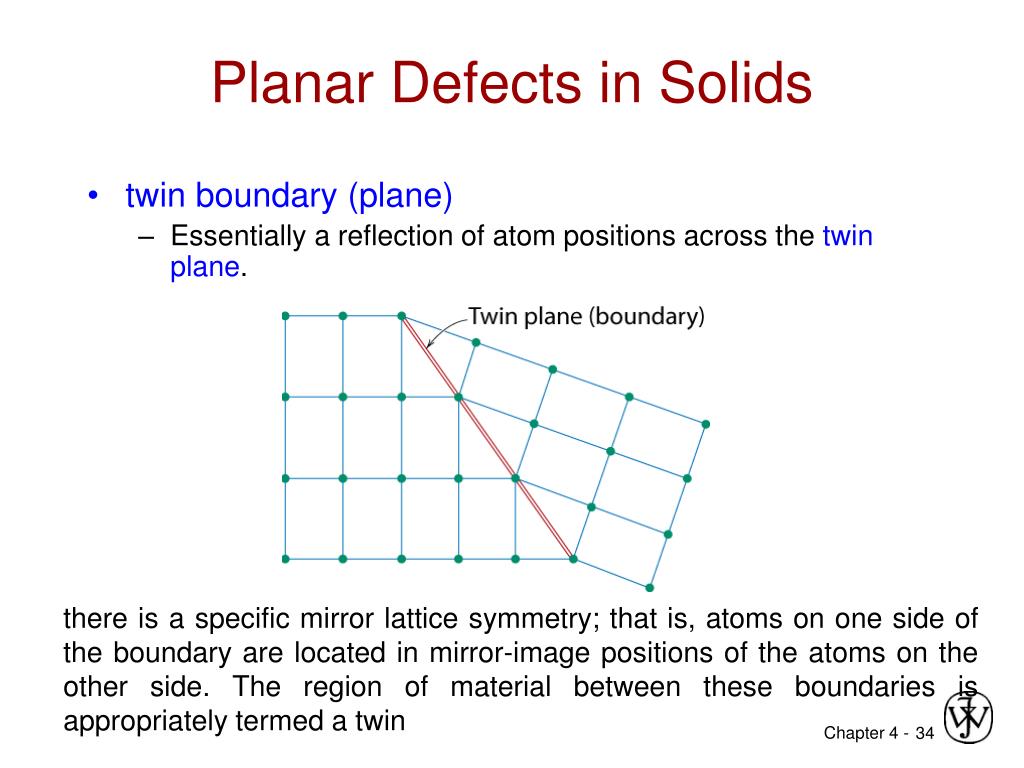

  34. Planar Defects in Solids • twin boundary (plane) • Essentially a reflection of atom positions across the twin plane. there is a specific mirror lattice symmetry; that is, atoms on one side of the boundary are located in mirror-image positions of the atoms on the other side. The region of material between these boundaries is appropriately termed a twin

  35. Stacking faults: occur in a number of crystal structures, but the common example is in close-packed structures. Face centered cubic (FCC) structures differ from hexagonal close packed (HCP) structures only in stacking order • For FCC metals an error in ABCABC packing sequence • Ex: ABCABABC Anti phase boundaries: occur in ordered alloys: in this case, the crystallographic direction remains the same, each side of the boundary has an opposite phase: For example if the ordering is usually ABABABAB, an anti phase boundary takes the form of ABABBABA

  36. problem • For each of the following stacking sequences found in FCC metals, cite the type of planar defect that exists: • …..A B C A B C B A C B A • ……A B C A B C B C A B C

  37. Solution: The interfacial defect that exists for this stacking sequence is a twin boundary, which occurs at the indicated position The stacking sequence on one side of this position is mirrored on the other side b) The interfacial defect that exists within this FCC stacking sequence is a stacking fault, which occurs between the two lines. Within this region, the stacking sequence is HCP.

  38. Bulk(volume) defects • These include pores, cracks, foreign inclusions, and other phases. They are normally introduced during processing and fabrication steps • Voids are small regions where there are no atoms, and can be thought of as clusters of vacancies. • Impurities can cluster together to form small regions of a different phase. These are often called precipitates.

  39. Microscopic Examination • Crystallites (grains) and grain boundaries. Vary considerably in size. Can be quite large • ex: Large single crystal of diamond • ex: Aluminum light garbage can see the individual grains • Crystallites (grains) can be quite small (mm or less) – necessary to observe with a microscope.

  40. Microscopic Examination Several important applications of micro-structural examinations are as follows: • To ensure that the association between the properties and structure ( and defects ) are properly understood • To predict the properties of materials once these relationship have been established • To design the alloys with new property combinations • To determine whether or not a material has been correctly heat treated • To ascertain the mode of mechanical fracture

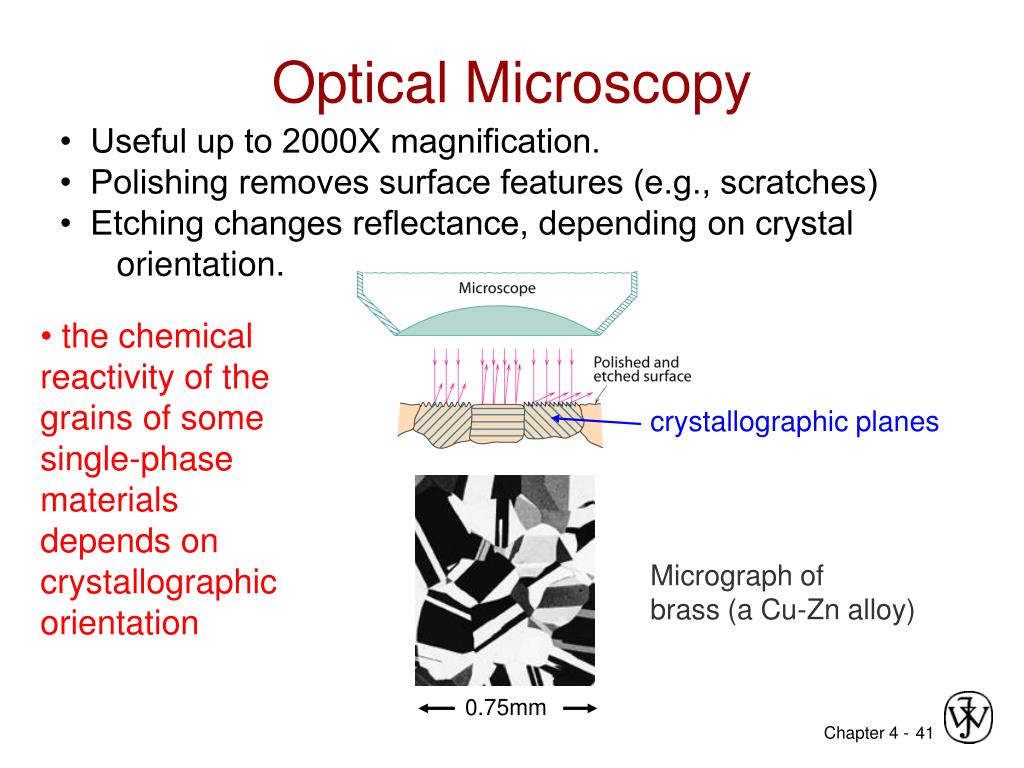

  41. Optical Microscopy 0.75mm • Useful up to 2000X magnification. • Polishing removes surface features (e.g., scratches) • Etching changes reflectance, depending on crystal orientation. • the chemical reactivity of the grains of some single-phase materials depends on crystallographic orientation crystallographic planes Micrograph of brass (a Cu-Zn alloy)

  42. Optical Microscopy polished surface surface groove grain boundary (a) Fe-Cr alloy (b) Grain boundaries... • are imperfections, • are more susceptible to etching, • may be revealed as dark lines, • change in crystal orientation across boundary.

  43. Optical Microscopy • Polarized light • metallographic scopes often use polarized light to increase contrast • Also used for transparent samples such as polymers

  44. Microscopy Optical resolution ca. 10-7 m = 0.1 m = 100 nm For higher resolution need higher frequency • X-Rays? Difficult to focus. • Electrons • wavelengths ca. 3 pm (0.003 nm) • (Magnification - 1,000,000X) • Atomic resolution possible • Electron beam focused by magnetic lenses.

  45. Scanning Tunneling Microscopy(STM) • Atoms can be arranged and imaged! Carbon monoxide molecules arranged on a platinum (111) surface. Iron atoms arranged on a copper (111) surface. These Kanji characters represent the word “atom”.

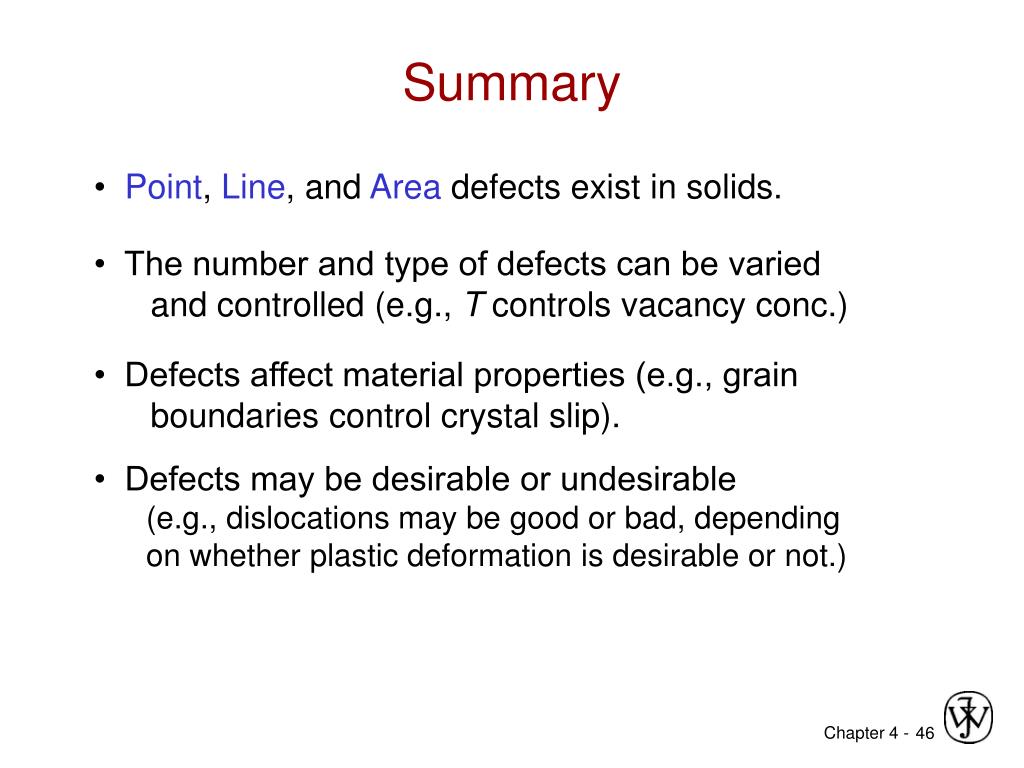

  46. Summary • Point, Line, and Area defects exist in solids. • The number and type of defects can be varied and controlled (e.g., T controls vacancy conc.) • Defects affect material properties (e.g., grain boundaries control crystal slip). • Defects may be desirable or undesirable (e.g., dislocations may be good or bad, depending on whether plastic deformation is desirable or not.)
