  1. THE GENOME • DESCRIBE THE MAIN FEATURES OF THE HUMAN GENOME INCLUDING DETAILS OF AT LEAST ONE SPECIFIC CHROMOSOME • ELAINE WHITFIELD

  2. THE HUMAN GENOME The human genome actually consists of two genomes: - complex nuclear genome - simple mitochondrial genome

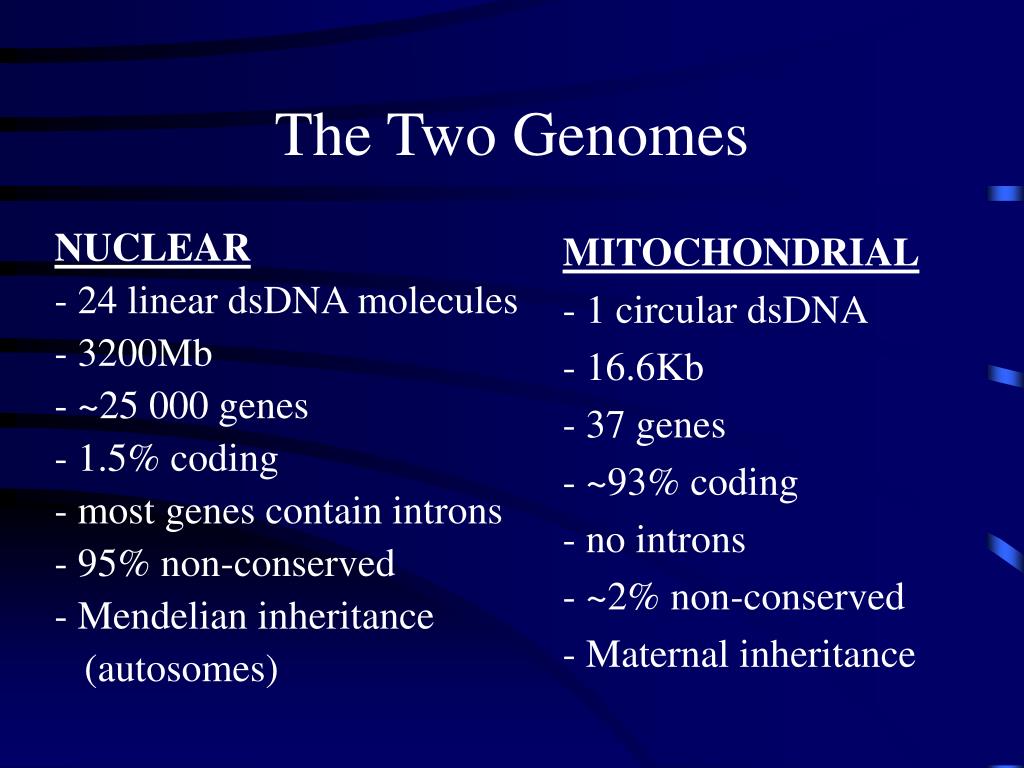

  3. NUCLEAR - 24 linear dsDNA molecules - 3200Mb - ~25 000 genes - 1.5% coding - most genes contain introns - 95% non-conserved - Mendelian inheritance (autosomes) MITOCHONDRIAL - 1 circular dsDNA - 16.6Kb - 37 genes - ~93% coding - no introns - ~2% non-conserved - Maternal inheritance The Two Genomes

  4. The Human Nuclear Genome • 1.5% coding (highly conserved) • 3% other highly conserved (e.g. enhancers, silencers) • ~45% transposon-based repeats • ~6.6% heterochromatin • ~44% other non-conserved (e.g. introns)

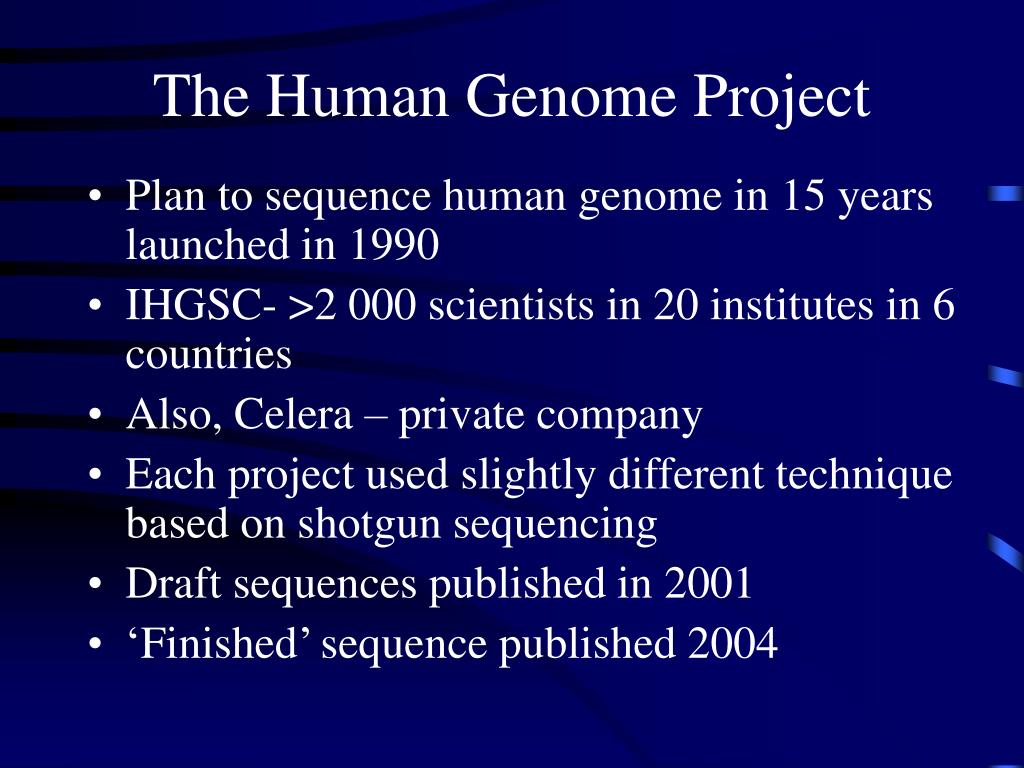

  5. The Human Genome Project • Plan to sequence human genome in 15 years launched in 1990 • IHGSC- >2 000 scientists in 20 institutes in 6 countries • Also, Celera – private company • Each project used slightly different technique based on shotgun sequencing • Draft sequences published in 2001 • ‘Finished’ sequence published 2004

  6. The Human Genome Project • Anonymous donor provided samples • Hierarchical or whole genome shotgun sequencing performed • Data analysed by sophisticated software packages (PHRED & PHRAP) • 1 000 nucleotides per second continuous throughput • Draft sequence assembled • Accuracy of 99.999% • Fill in gaps • Analyse & interpret data

  7. Hierarchical Shotgun Sequencing

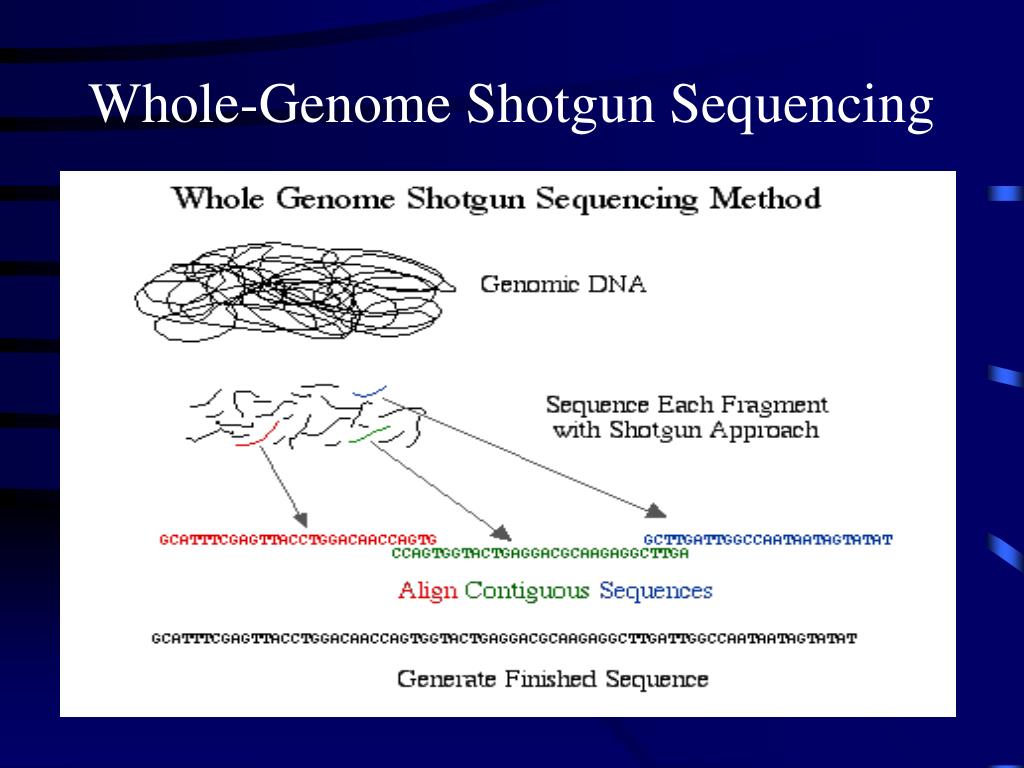

  8. Whole-Genome Shotgun Sequencing

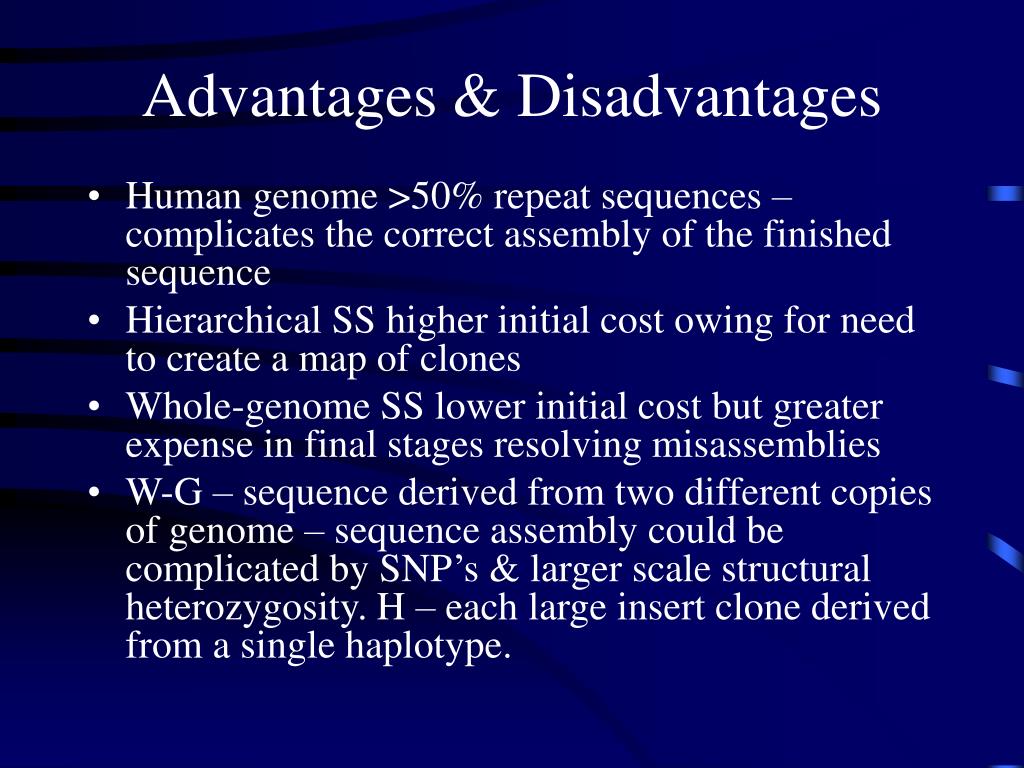

  9. Advantages & Disadvantages • Human genome >50% repeat sequences – complicates the correct assembly of the finished sequence • Hierarchical SS higher initial cost owing for need to create a map of clones • Whole-genome SS lower initial cost but greater expense in final stages resolving misassemblies • W-G – sequence derived from two different copies of genome – sequence assembly could be complicated by SNP’s & larger scale structural heterozygosity. H – each large insert clone derived from a single haplotype.

  10. Major Findings of HGP • Fewer genes than expected (draft sequence predictions – IHGSC- 30-40 000 Celera- 26-38 000) • Final sequence prediction IHGSC- 20-25 000 • 90% of genes encode polypeptides • 10% of genes are RNA genes (rRNA, tRNA, snRNA, snoRNA) • Great deal of alternative splicing >50% genes produce >1 mRNA • Gene distribution – GC rich densely packed with genes with small introns, GC poor few genes with large introns • Gene birth – retrotransposition, tandem duplication, segmental duplications • Horizontal gene transfer – >200 proteins with homologous to bacterial proteins

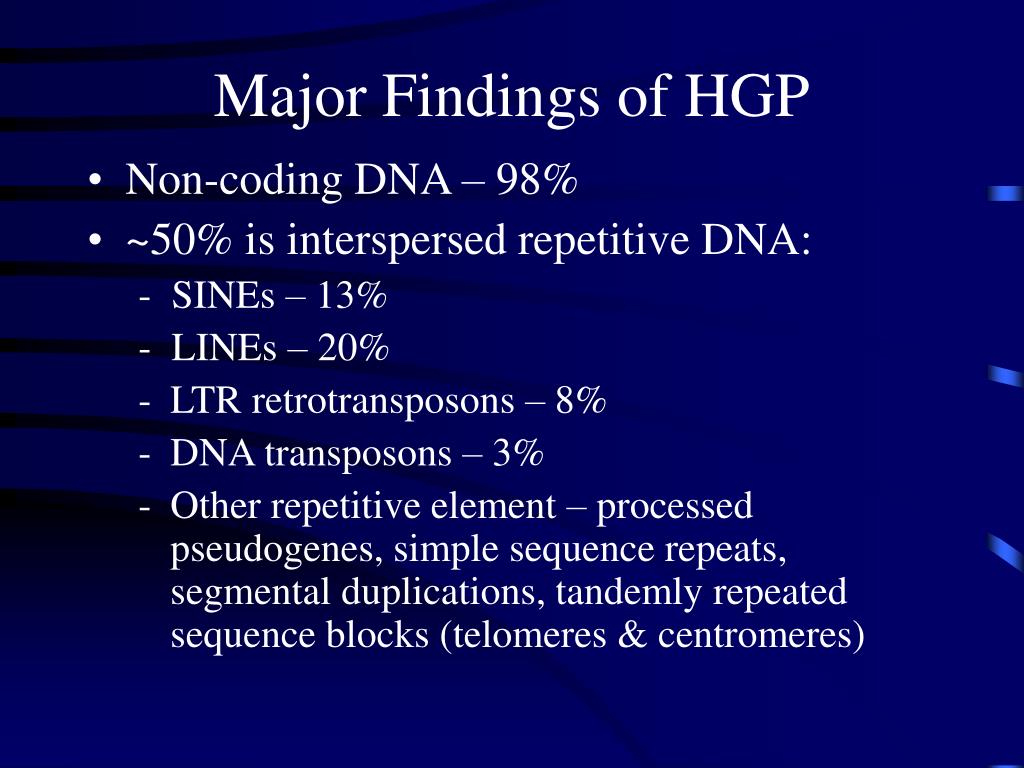

  11. Major Findings of HGP • Non-coding DNA – 98% • ~50% is interspersed repetitive DNA: - SINEs – 13% - LINEs – 20% • LTR retrotransposons – 8% • DNA transposons – 3% • Other repetitive element – processed pseudogenes, simple sequence repeats, segmental duplications, tandemly repeated sequence blocks (telomeres & centromeres)

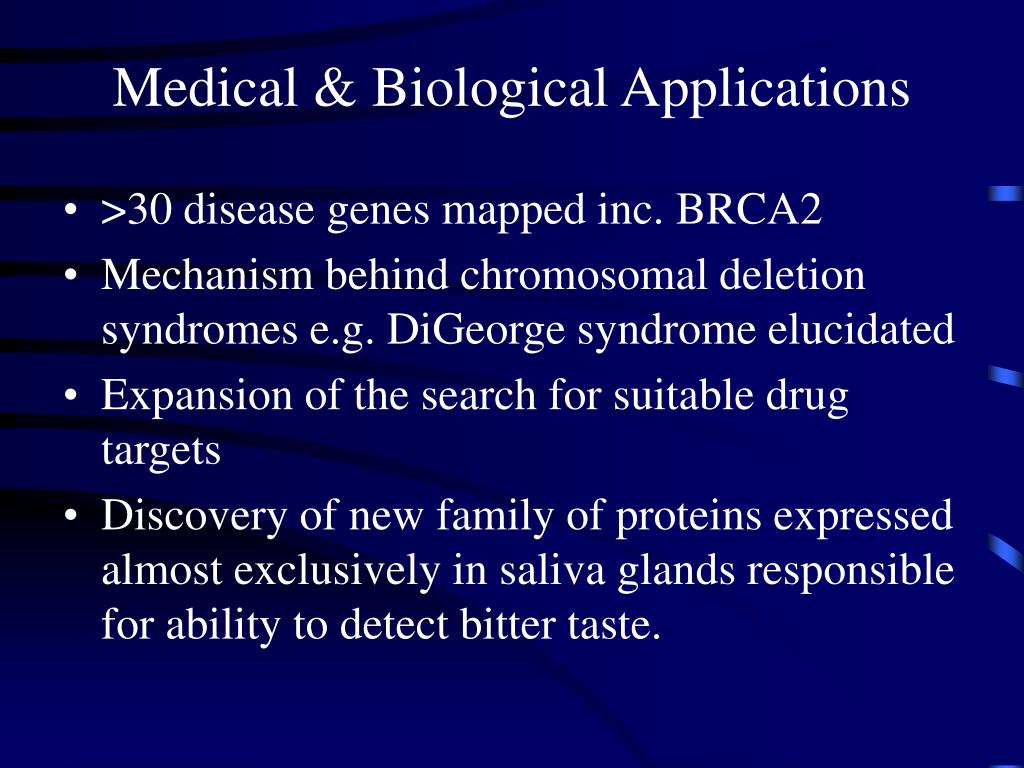

  12. Medical & Biological Applications • >30 disease genes mapped inc. BRCA2 • Mechanism behind chromosomal deletion syndromes e.g. DiGeorge syndrome elucidated • Expansion of the search for suitable drug targets • Discovery of new family of proteins expressed almost exclusively in saliva glands responsible for ability to detect bitter taste.

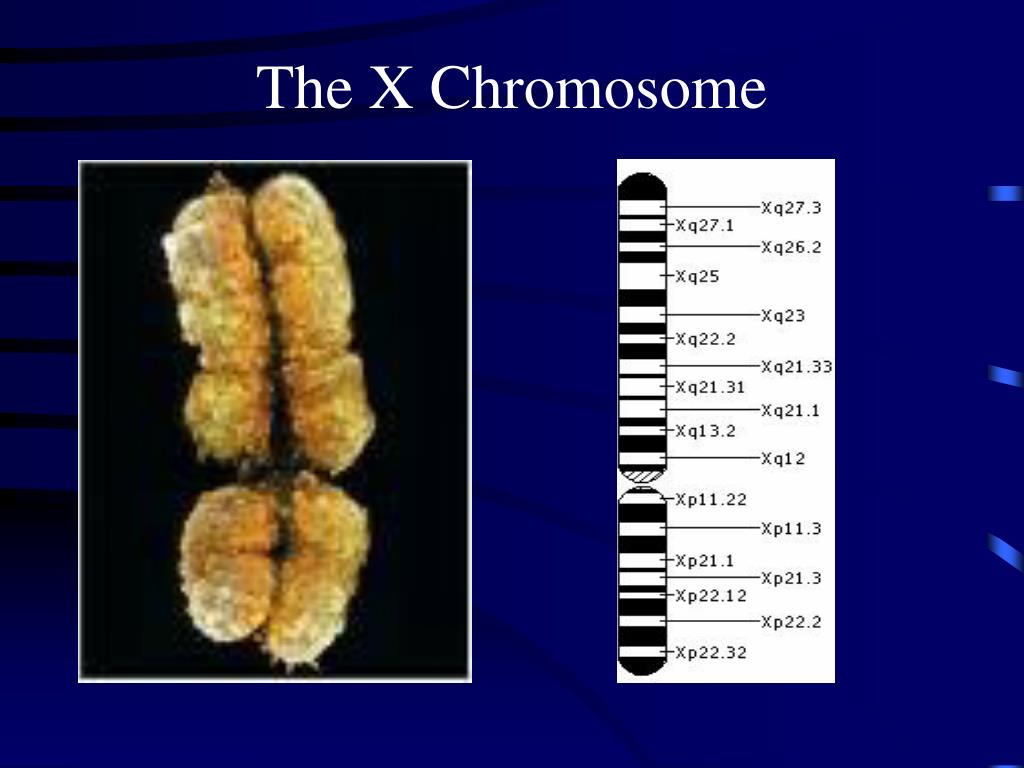

  13. The X Chromosome

  14. The X Chromosome • 155Mb in length • Gene-poor, highly enriched in interspersed repeats, with a low G+C content (39%) compared with genome average (41%) • 1 098 genes (699 known, 132 novel coding sequences, 166 novel transcripts, 101 putative transcripts) • 700 pseudogenes

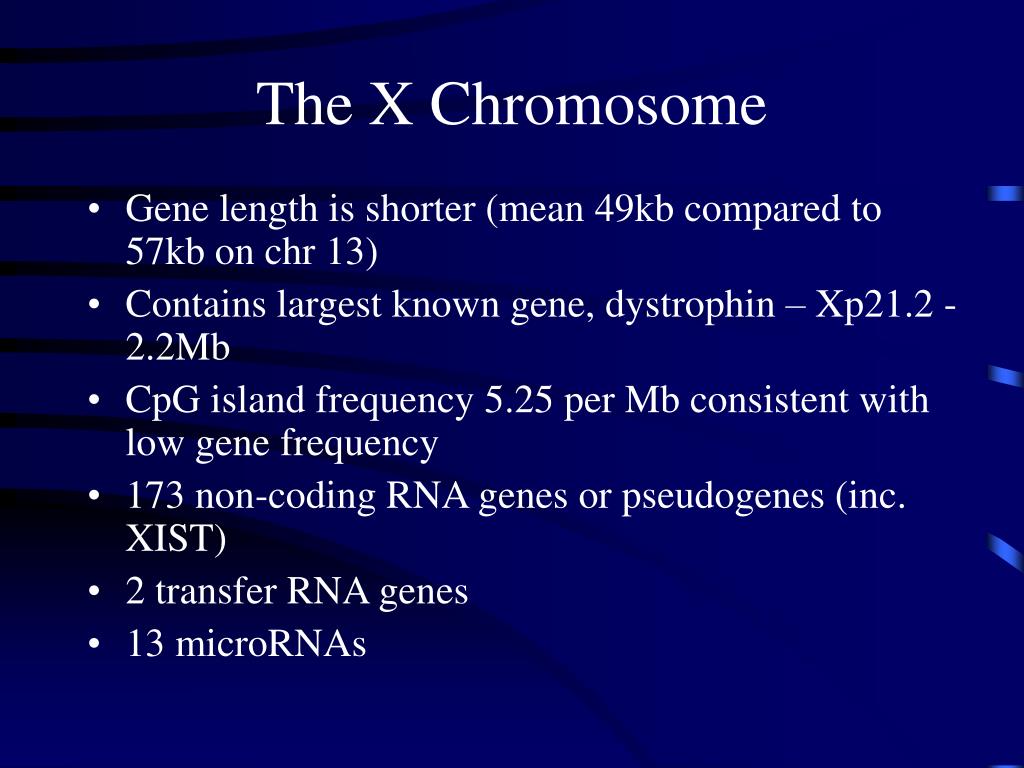

  15. The X Chromosome • Gene length is shorter (mean 49kb compared to 57kb on chr 13) • Contains largest known gene, dystrophin – Xp21.2 - 2.2Mb • CpG island frequency 5.25 per Mb consistent with low gene frequency • 173 non-coding RNA genes or pseudogenes (inc. XIST) • 2 transfer RNA genes • 13 microRNAs

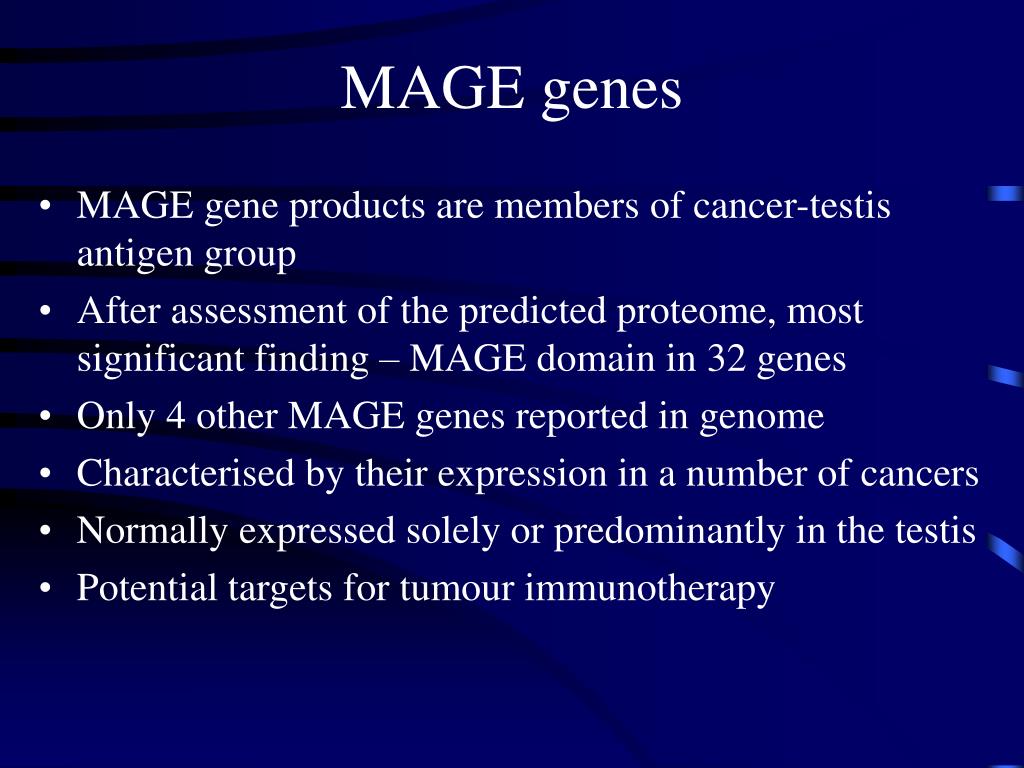

  16. MAGE genes • MAGE gene products are members of cancer-testis antigen group • After assessment of the predicted proteome, most significant finding – MAGE domain in 32 genes • Only 4 other MAGE genes reported in genome • Characterised by their expression in a number of cancers • Normally expressed solely or predominantly in the testis • Potential targets for tumour immunotherapy

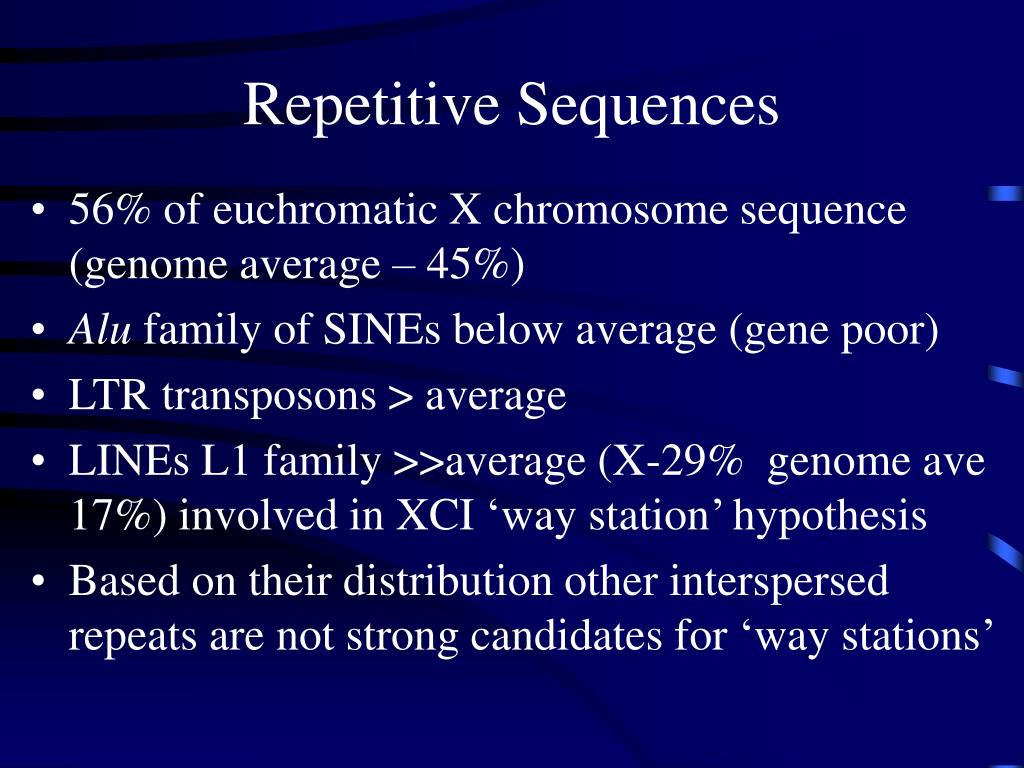

  17. Repetitive Sequences • 56% of euchromatic X chromosome sequence (genome average – 45%) • Alu family of SINEs below average (gene poor) • LTR transposons > average • LINEs L1 family >>average (X-29% genome ave 17%) involved in XCI ‘way station’ hypothesis • Based on their distribution other interspersed repeats are not strong candidates for ‘way stations’

  18. Evolution of the human X chromosome • Ohno proposed in 1967 that mammalian sex chromosomes evolved from an autosome pair • Autosomal origin is illustrated by alignment of the human X and chicken whole sequences • 30 regions of homology between human Xq and the end of chicken 4p • Most of human Xp (inc PAR1) matches a single block of chicken 1q

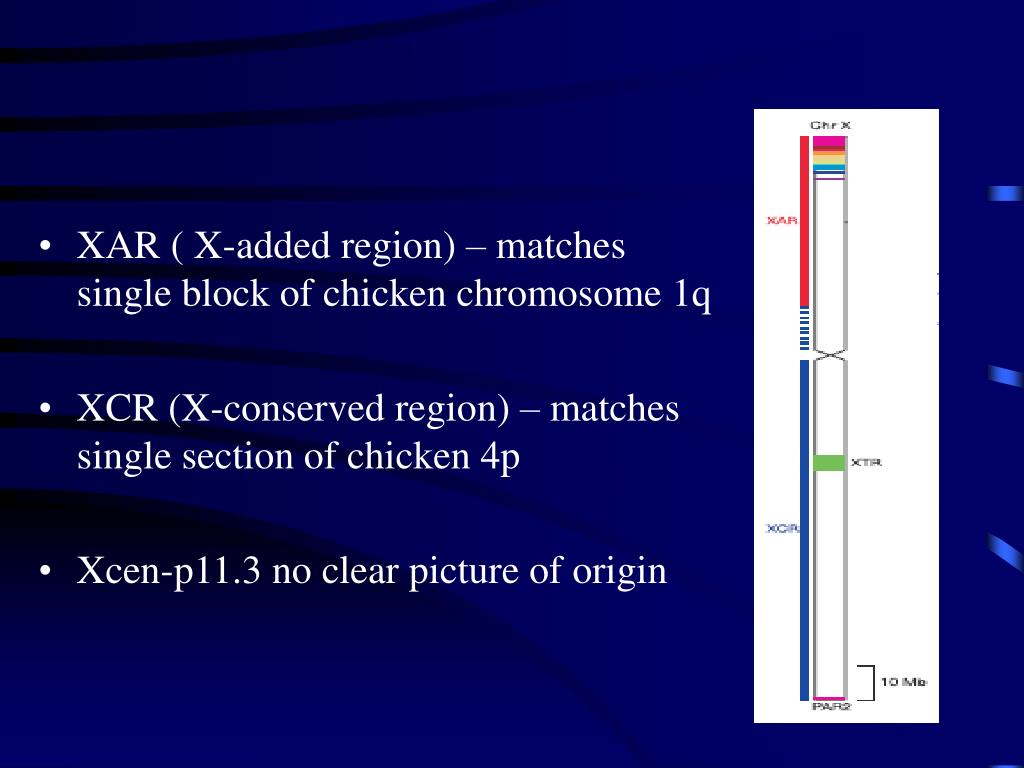

  19. XAR ( X-added region) – matches single block of chicken chromosome 1q • XCR (X-conserved region) – matches single section of chicken 4p • Xcen-p11.3 no clear picture of origin

  20. Medical Genetics & the X chromosome • Disproportionate number of disease conditions are associated with the X chromosome (4% of genes & 10 % of mendelian diseases) • Due to phenotypic consequence of a recessive mutation in males (if no Y counterpart) • Molecular basis of 168 X-linked phenotypes has been determined ( X sequencing has aided this process for 43) • 16 genes associated with non-syndromic X-linked mental retardation.

  21. The Next Steps:Genetic Variation Mapping • 2005 – HapMap project published - public database of common variation in the human genome: more than one million SNPs for which accurate and complete genotypes have been obtained in 269 DNA samples from four populations • 2006 – Copy number variant map from the same individuals used in HapMap project

  22. The Next Steps • To develop a definitive catalogue of protein coding genes (the proteome) using comparative genomics to align the human genome with the genomes of other animals • To sequence the remaining 20% of the genome which lies within heterochromatin, the gene-poor highly repetitive sequence – requires new technology to tackle this region
