OD3 Connector

OD3 Connector. FEATURES AND BENEFITS INCLUDE Rugged IP67 rated anodized metal enclosure F-3000™ (LC compatible) SFF connector system Integrated caps on the connectors and shutters in the adaptors provide both laser eye safety and end face protection

dagan
Download Presentation

OD3 Connector

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

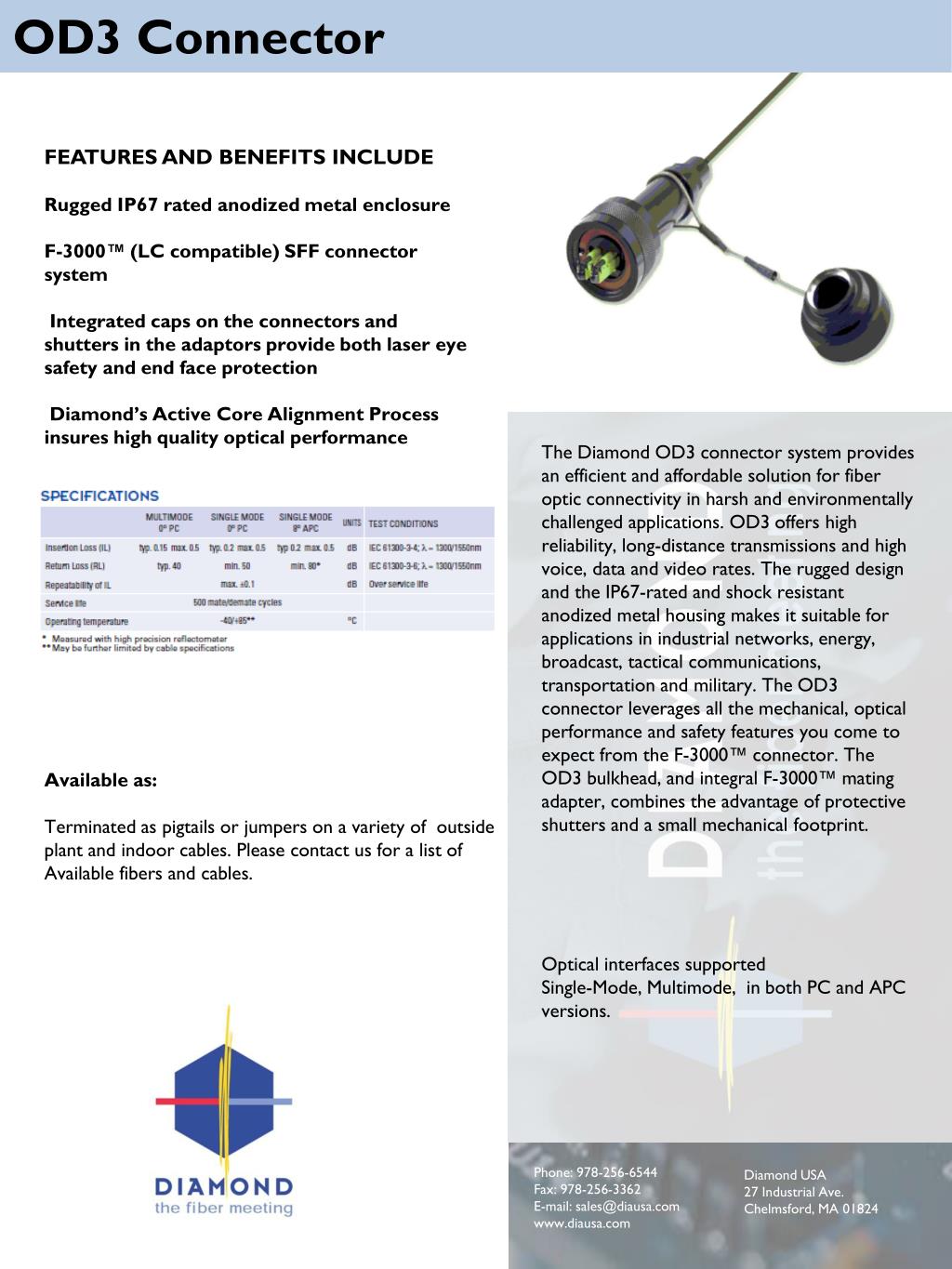

  1. OD3 Connector FEATURES AND BENEFITS INCLUDE Rugged IP67 rated anodized metal enclosure F-3000™ (LC compatible) SFF connector system Integrated caps on the connectors and shutters in the adaptors provide both laser eye safety and end face protection Diamond’s Active Core Alignment Process insures high quality optical performance The Diamond OD3 connector system provides an efficient and affordable solution for fiber optic connectivity in harsh and environmentally challenged applications. OD3 offers high reliability, long-distance transmissions and high voice, data and video rates. The rugged design and the IP67-rated and shock resistant anodized metal housing makes it suitable for applications in industrial networks, energy, broadcast, tactical communications, transportation and military. The OD3 connector leverages all the mechanical, optical performance and safety features you come to expect from the F-3000™ connector. The OD3 bulkhead, and integral F-3000™ mating adapter, combines the advantage of protective shutters and a small mechanical footprint. Optical interfaces supported Single-Mode, Multimode, in both PC and APC versions. Available as: Terminated as pigtails or jumpers on a variety of outside plant and indoor cables. Please contact us for a list of Available fibers and cables. Phone: 978-256-6544 Fax: 978-256-3362 E-mail: sales@diausa.com www.diausa.com Diamond USA 27 Industrial Ave. Chelmsford, MA 01824

  2. OD3 Connector Phone: 978-256-6544 Fax: 978-256-3362 E-mail: sales@diausa.com www.diausa.com Diamond USA 27 Industrial Ave. Chelmsford, MA 01824
