Syntax

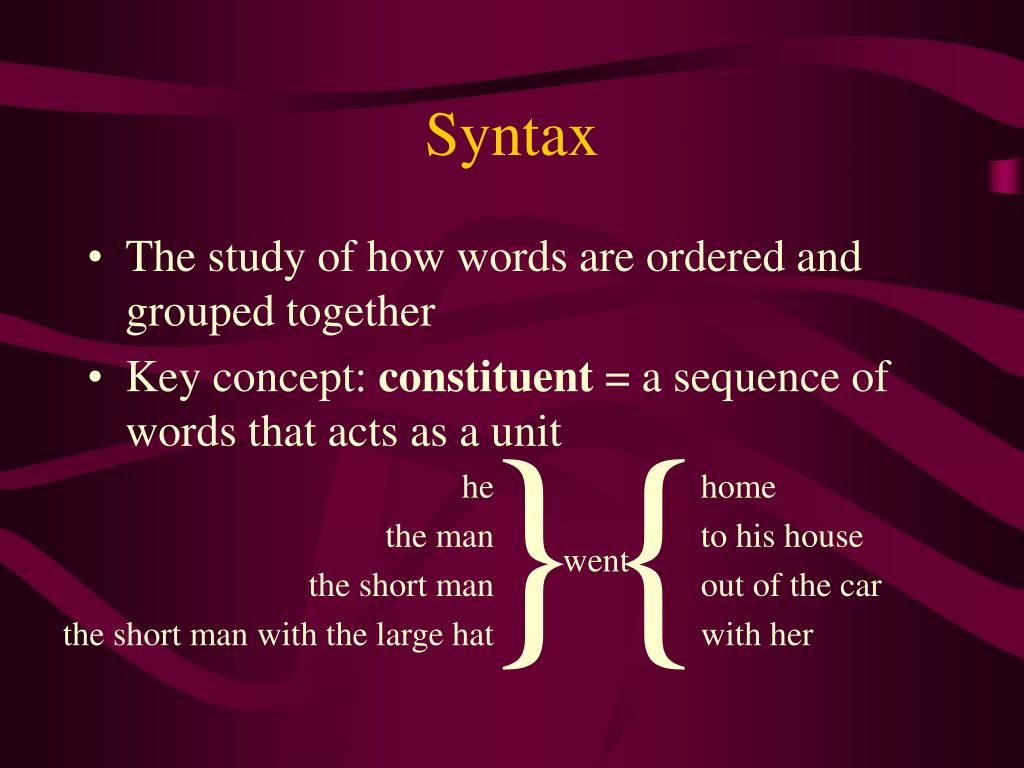

1. Syntax • The study of how words are ordered and grouped together • Key concept: constituent = a sequence of words that acts as a unit } {

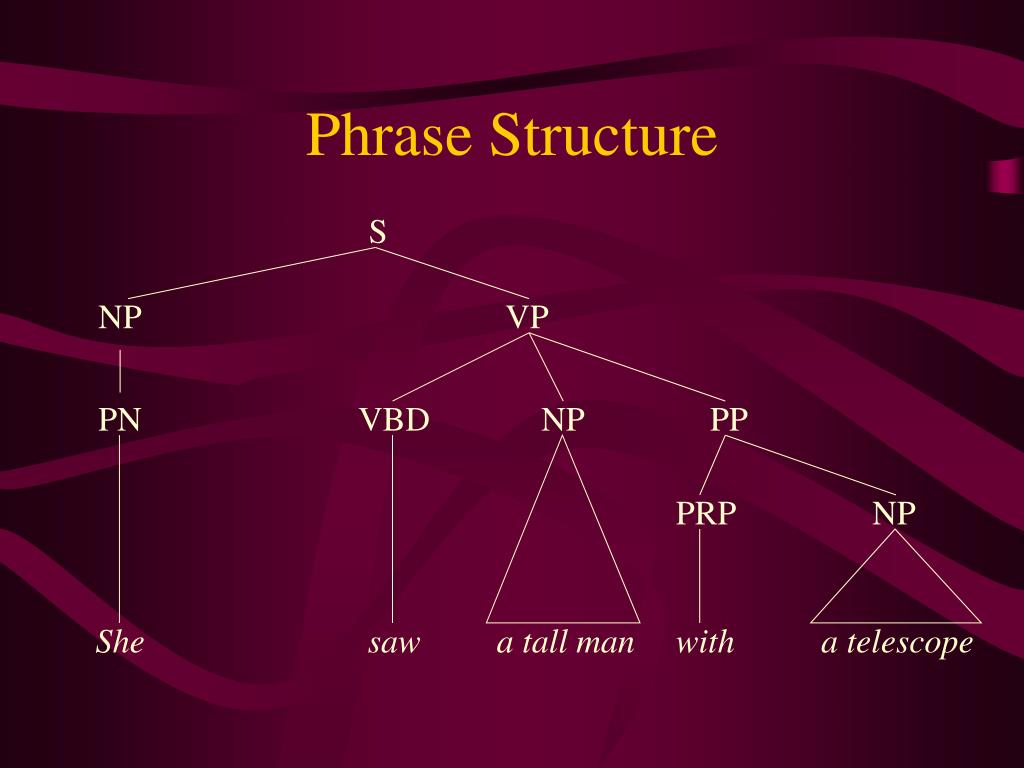

2. Phrase Structure S NP VP PN VBD NP PP PRP NP She saw a tall man with a telescope

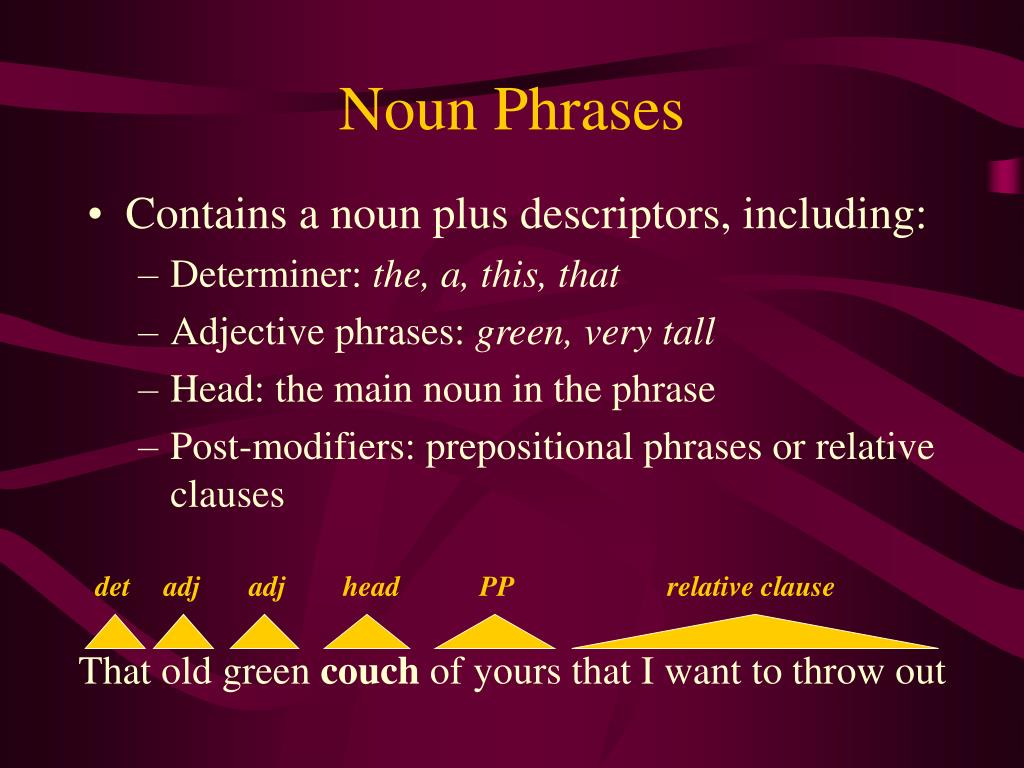

3. det adj adj head PP relative clause That old green couch of yours that I want to throw out Noun Phrases • Contains a noun plus descriptors, including: • Determiner: the, a, this, that • Adjective phrases: green, very tall • Head: the main noun in the phrase • Post-modifiers: prepositional phrases or relative clauses

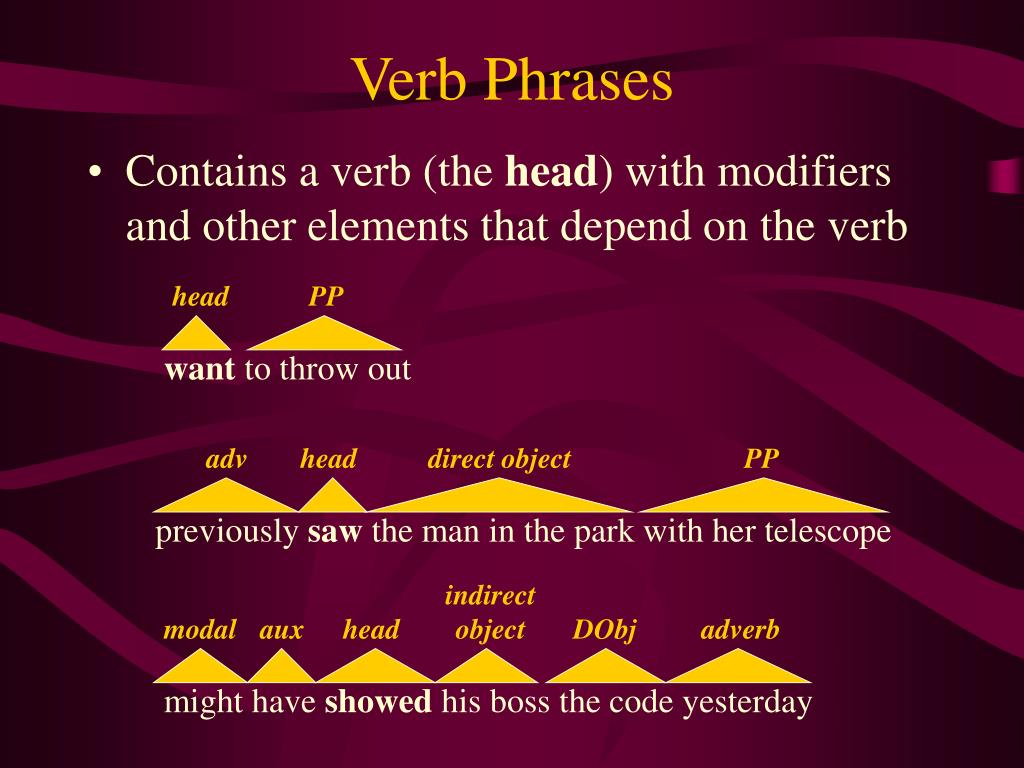

4. head PP want to throw out adv head direct object PP previously saw the man in the park with her telescope indirect object modal aux head DObj adverb might have showed his boss the code yesterday Verb Phrases • Contains a verb (the head) with modifiers and other elements that depend on the verb

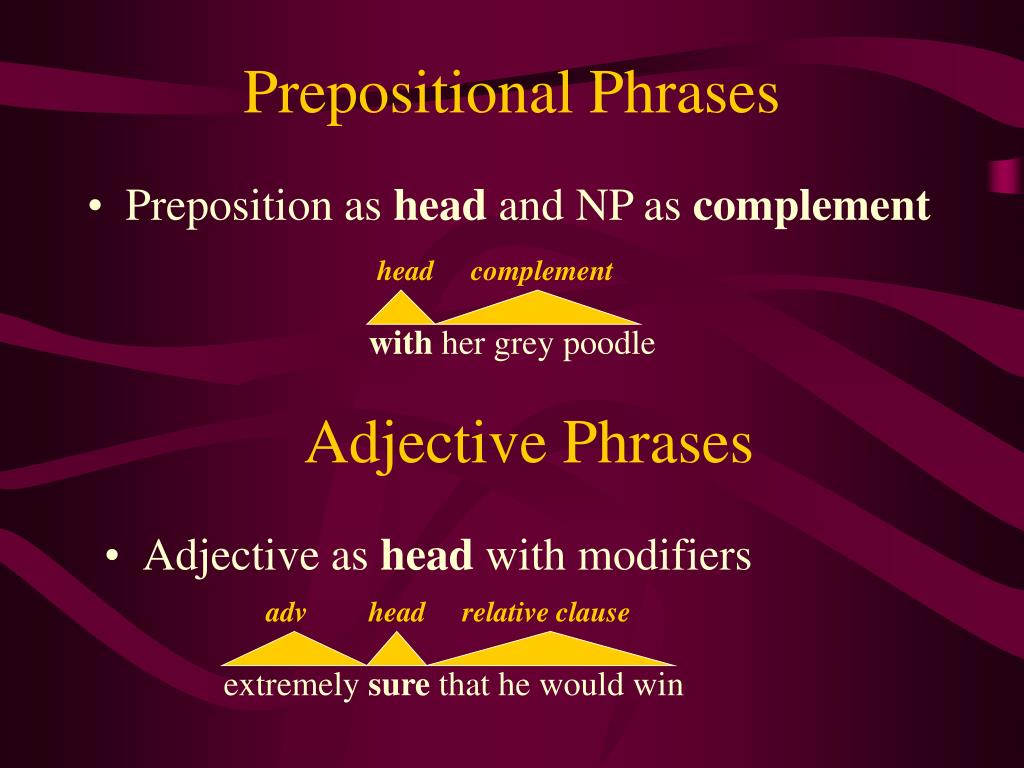

5. Adjective Phrases • Adjective as head with modifiers adv head relative clause extremely sure that he would win Prepositional Phrases • Preposition as head and NP as complement head complement with her grey poodle

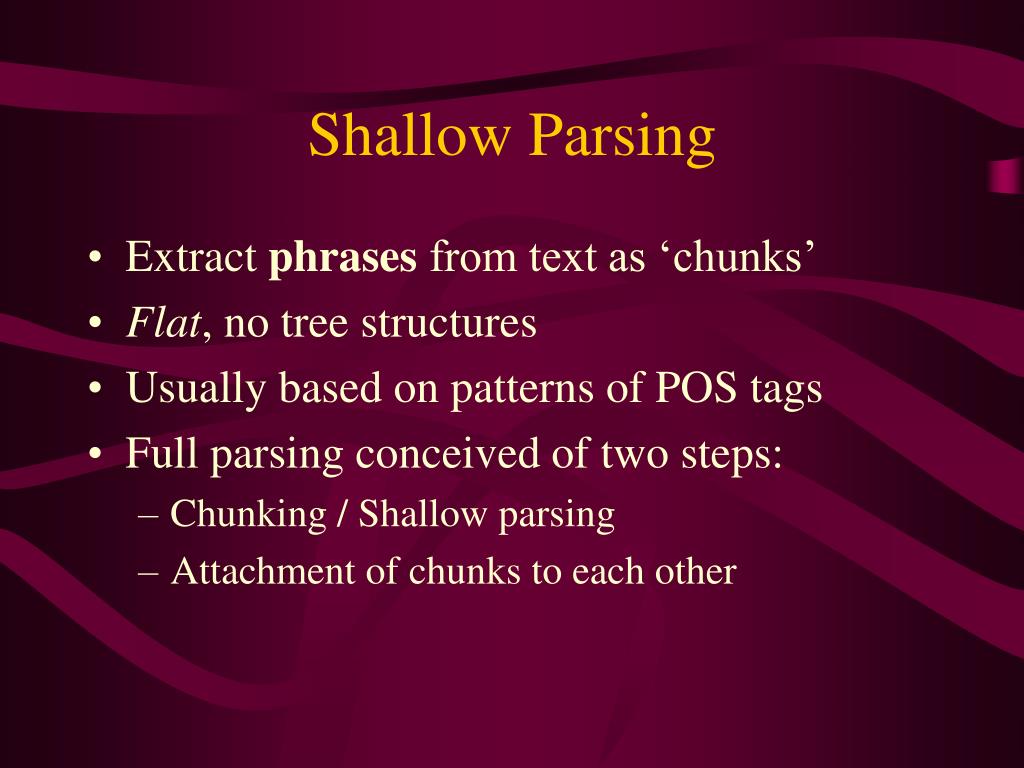

6. Shallow Parsing • Extract phrases from text as ‘chunks’ • Flat, no tree structures • Usually based on patterns of POS tags • Full parsing conceived of two steps: • Chunking / Shallow parsing • Attachment of chunks to each other

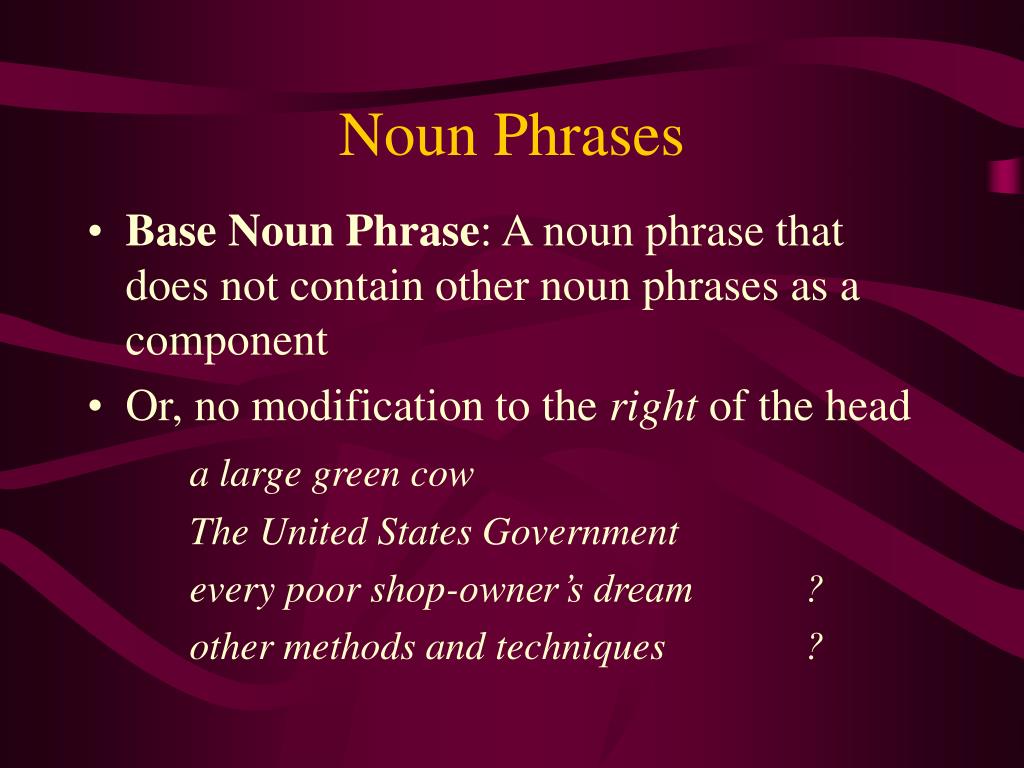

7. Noun Phrases • Base Noun Phrase: A noun phrase that does not contain other noun phrases as a component • Or, no modification to the right of the head a large green cow The United States Government every poor shop-owner’s dream ? other methods and techniques ?

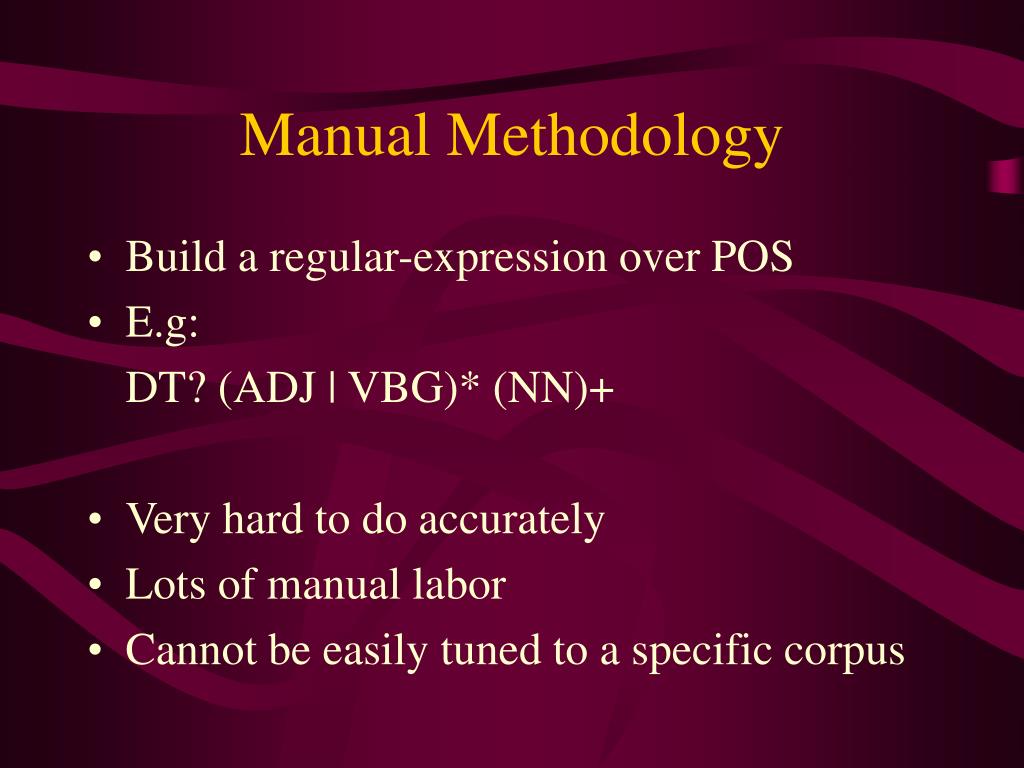

8. Manual Methodology • Build a regular-expression over POS • E.g: DT? (ADJ | VBG)* (NN)+ • Very hard to do accurately • Lots of manual labor • Cannot be easily tuned to a specific corpus

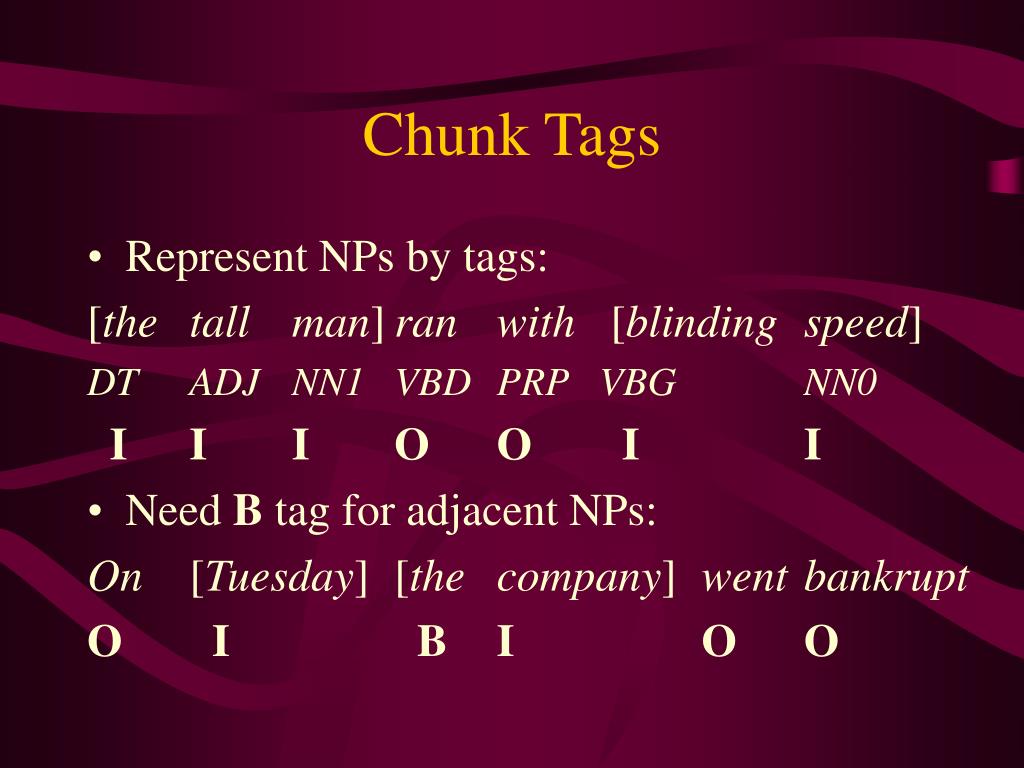

9. Chunk Tags • Represent NPs by tags: [the tall man] ran with [blinding speed] DT ADJ NN1 VBD PRP VBG NN0 I I I O O I I • Need B tag for adjacent NPs: On [Tuesday][the company] went bankrupt O I B I O O

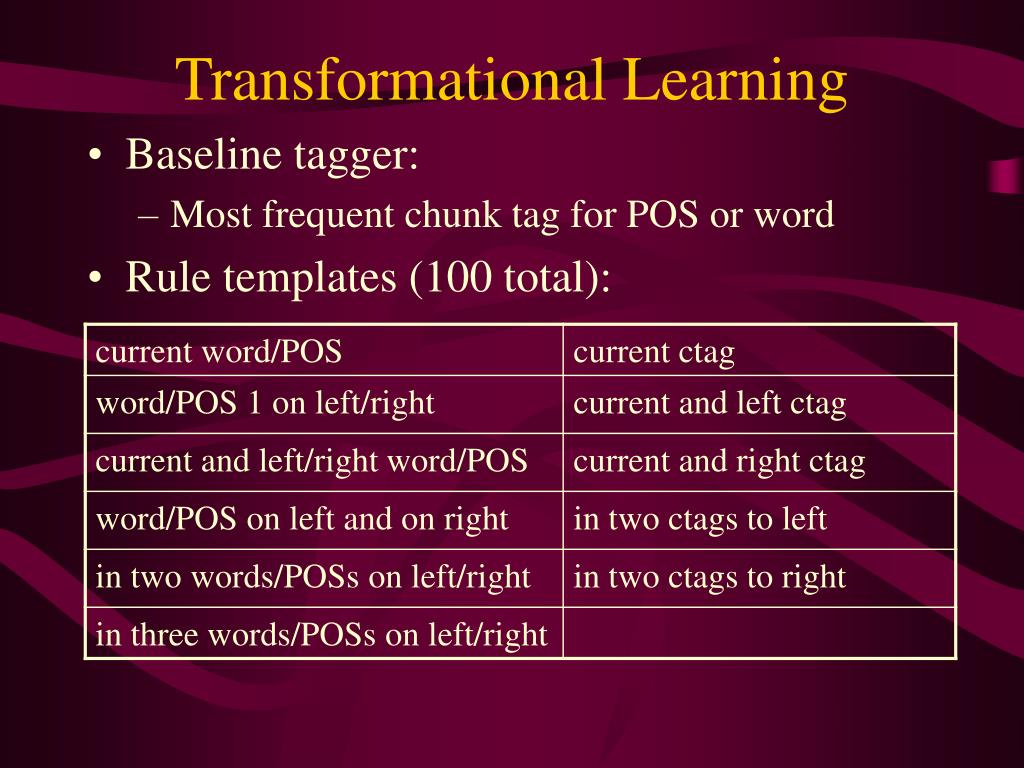

10. Transformational Learning • Baseline tagger: • Most frequent chunk tag for POS or word • Rule templates (100 total):

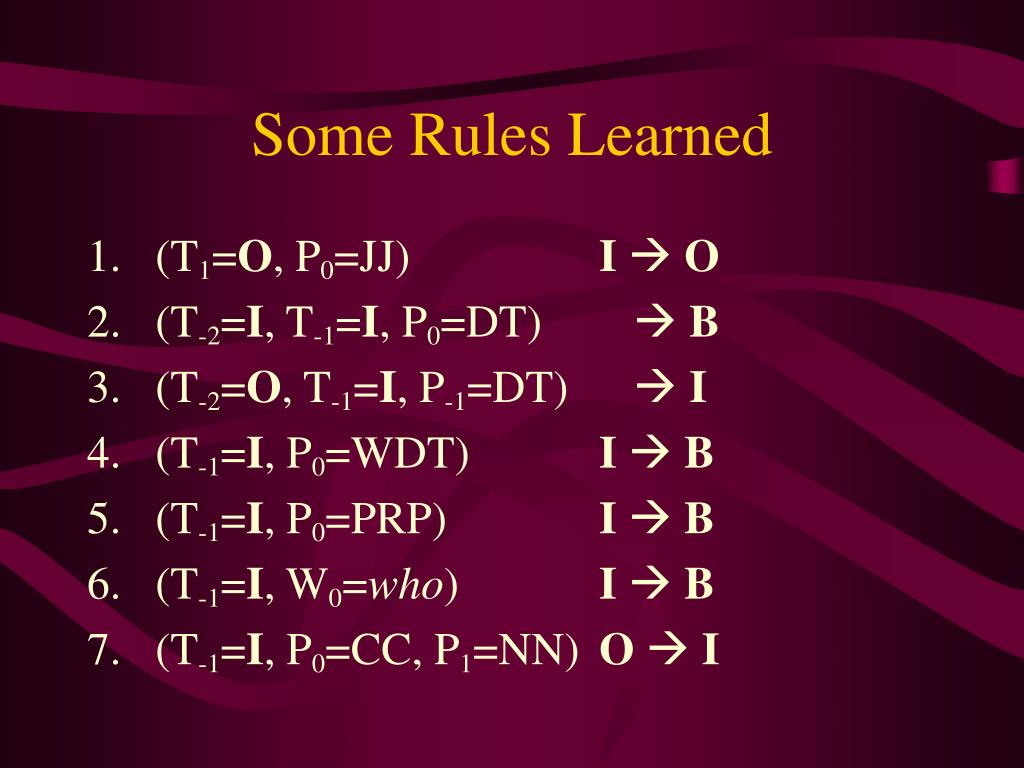

11. Some Rules Learned • (T1=O, P0=JJ) I O • (T-2=I, T-1=I, P0=DT)  B • (T-2=O, T-1=I, P-1=DT)  I • (T-1=I, P0=WDT) I  B • (T-1=I, P0=PRP) I  B • (T-1=I, W0=who) I  B • (T-1=I, P0=CC, P1=NN) O  I

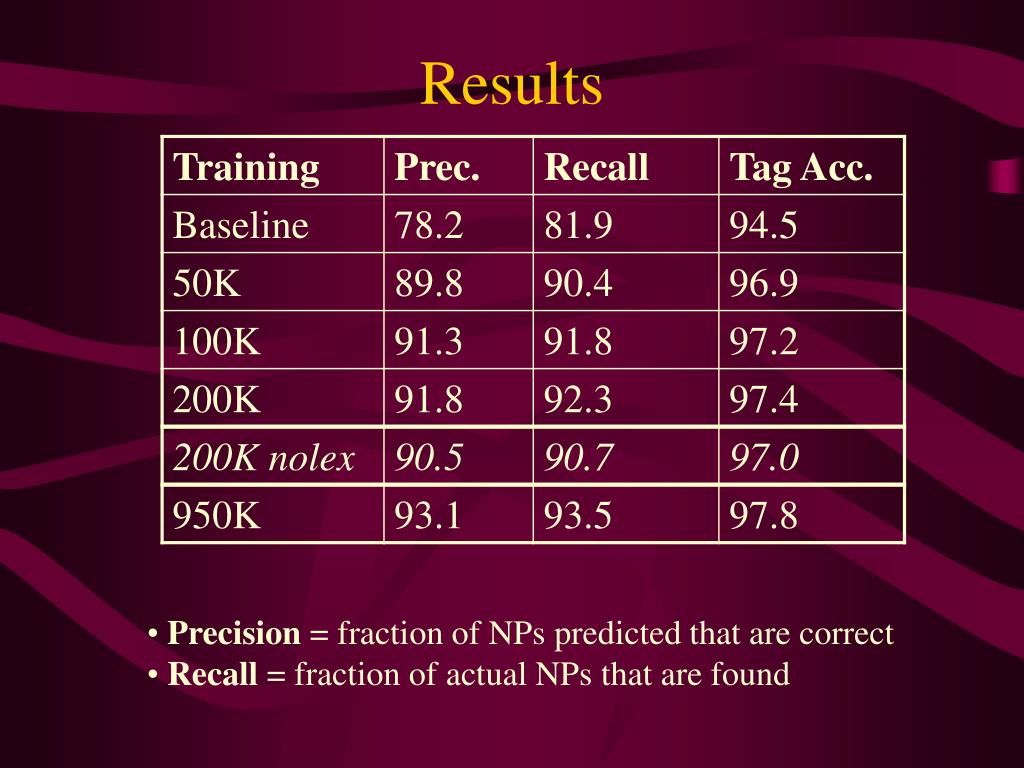

12. Results • Precision = fraction of NPs predicted that are correct • Recall = fraction of actual NPs that are found

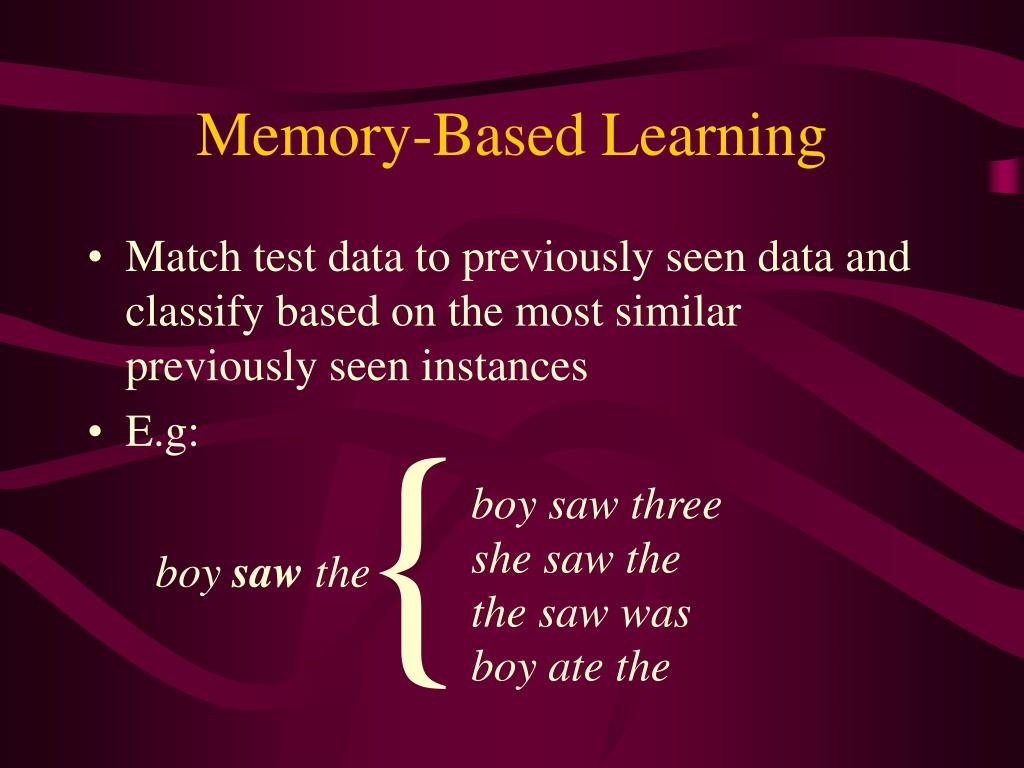

13. Memory-Based Learning • Match test data to previously seen data and classify based on the most similar previously seen instances • E.g: { boy saw three she saw the boy saw the the saw was boy ate the

14. k-Nearest Neighbor (kNN) • Find k most similar training examples • Let them ‘vote’ on the correct class for the test example • Weight neighbors by distance from test • Main problem: defining ‘similar’ • Shallow parsing – overlap of words and POS • Use feature weighting...

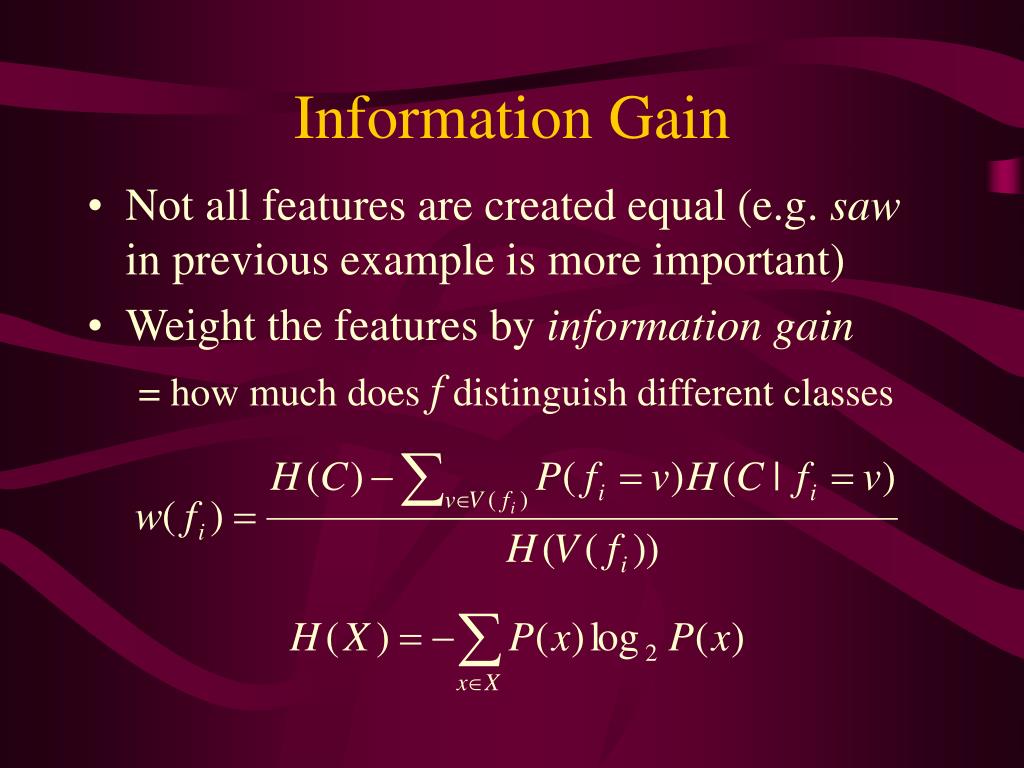

15. Information Gain • Not all features are created equal (e.g. saw in previous example is more important) • Weight the features by information gain = how much does f distinguish different classes

16. low information gain high information gain C2 C1 C4 C3

17. Base Verb Phrase • Verb phrase not including NPs or PPs [NP Pierre VinkenNP] , [NP 61 yearsNP] old , [VP will soon be joiningVP] [NP the boardNP] as [NP anonexecutive directorNP] .

18. Results • Context: 2 words and POS on left and 1 word and POS on right

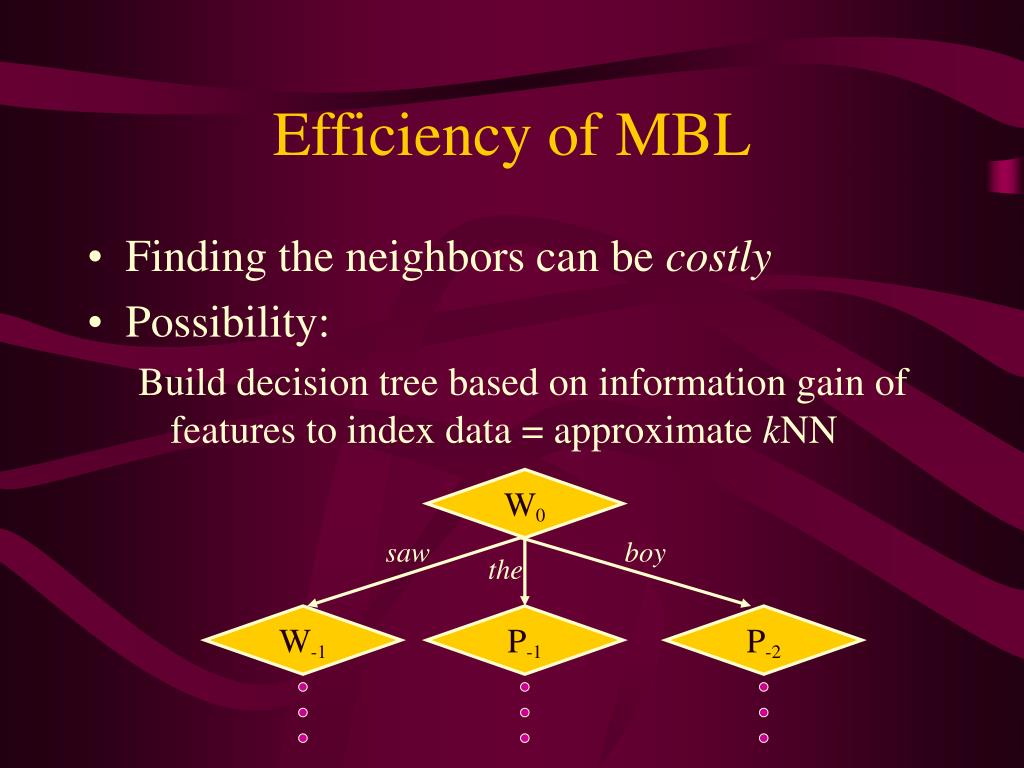

19. Efficiency of MBL • Finding the neighbors can be costly • Possibility: Build decision tree based on information gain of features to index data = approximate kNN W0 saw boy the W-1 P-1 P-2

20. MBSL • Memory-based technique relying on sequential nature of the data • Use “tiles” of phrases in memory to “cover” a new candidate (and context), and compute a tiling score ADJ NN1 NP] PRP [NP DT ADJ [NP DT ADJ NN1 PRP [NPDT NN1 NP] PRP VBD PRP [[ DT ADJ NN1 ]] PRP NN1 went to the white house for dinner

21. Tile Evidence • Memory: • [NP DT NN1 NP] VBD [NP DT NN1 NN1 NP] [NP NN2 NP] . • [NP ADJ NN2 NP] AUX VBG PRP [NP DT ADJ NN1 NP] . • Some tiles: • [NP DT pos=3 neg=0 • [NP DT NN1 pos=2 neg=0 • DT NN1 NP] pos=1 neg=1 • NN1 NP] pos=3 neg=1 • NN1 NP] VBD pos=1 neg=0 • Score tile t by ft(t) = pos / total, • Only keep tiles that pass a threshhold ft(t) > 

22. [NP DT ADJ PRP [NPDT NN1 NP] PRP VBD PRP [[ DT ADJ NN1 ]] PRP NN1 Covers • Tile t1connects to t2 in a candidate if: • t2 starts after t1 • there is no gap between them (may be overlap) • t2 ends after t1 • A sequence of tiles covers a candidate if • each tile connects to the next • the tiles collectively match the entire candidate including brackets and maybe some context

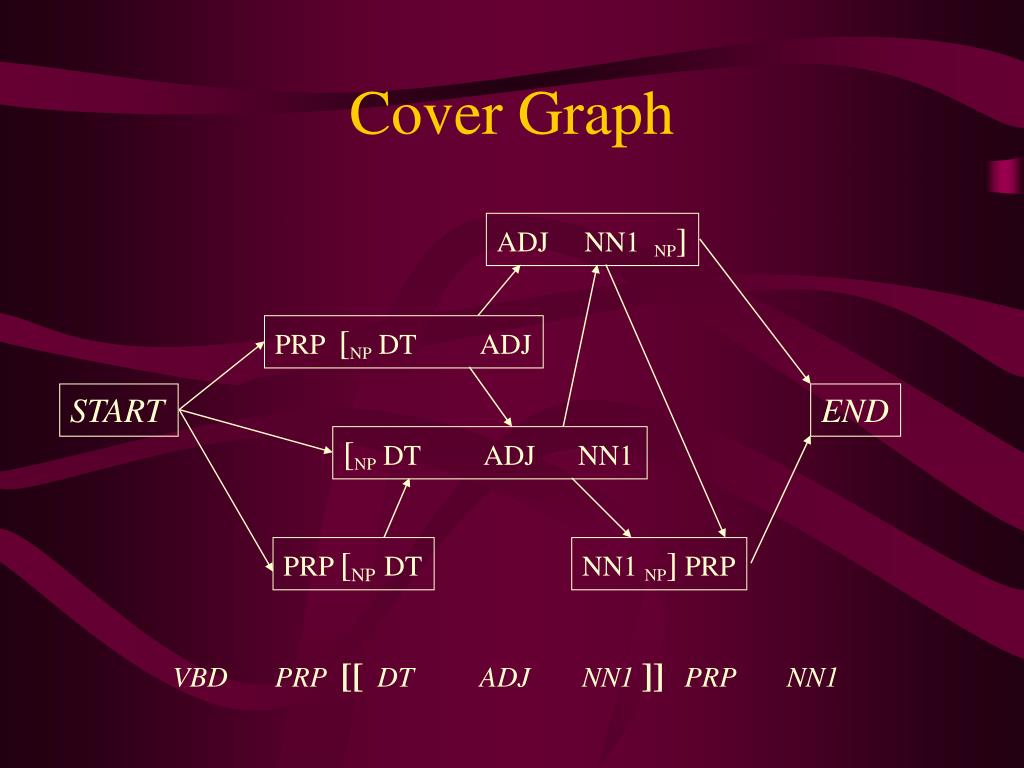

23. Cover Graph ADJ NN1 NP] PRP [NP DT ADJ START END [NP DT ADJ NN1 PRP [NPDT NN1 NP] PRP VBD PRP [[ DT ADJ NN1 ]] PRP NN1

24. Measures of ‘Goodness’ • Number of different covers • Size of smallest cover (fewest tiles) • Maximum context in any cover (left + right) • Maximum overlap of tiles in any cover • Grand total positive evidence divided by grand total positive+negative evidence Combine these measures by linear weighting

25. Scoring a Candidate CandidateScore(candidate, T) • G CoverGraph(candidate, T) • Compute statistics by DFS on G • Compute candidate score as linear function of statistics Complexity (O(l) tiles in candidate of length l): • Creating the cover graph is O(l2) • DFS is O(V+E)=O(l2)

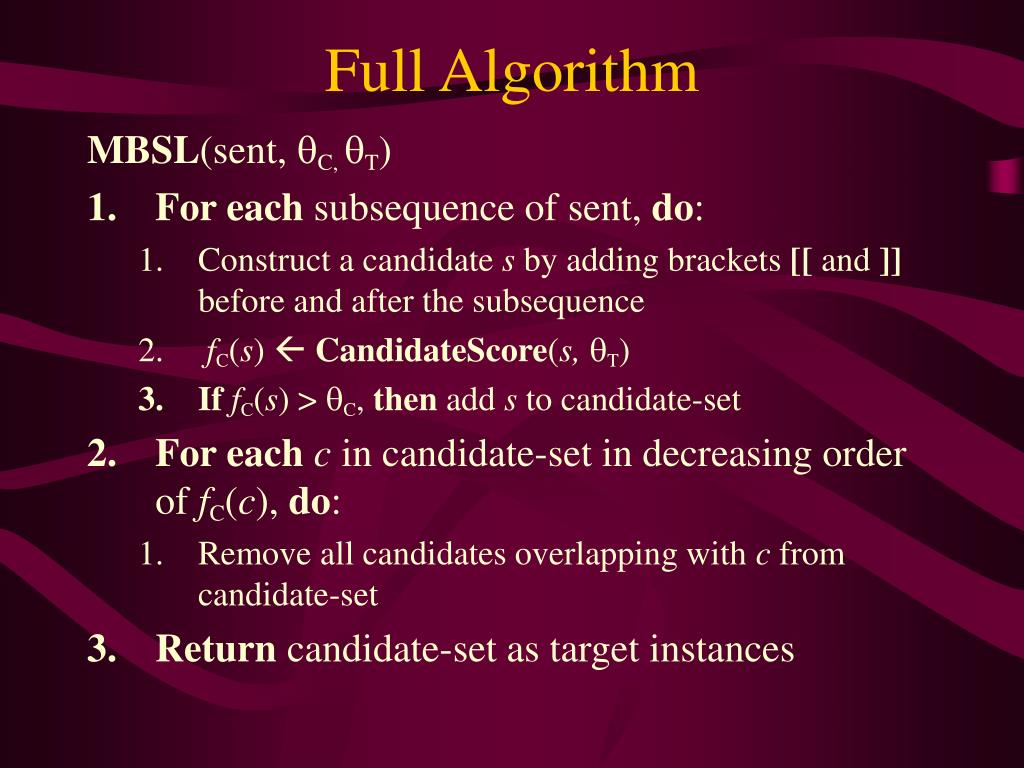

26. Full Algorithm MBSL(sent, C, T) • For each subsequence of sent, do: • Construct a candidate s by adding brackets [[ and ]] before and after the subsequence • fC(s) CandidateScore(s, T) • IffC(s) > C, then add s to candidate-set • For eachc in candidate-set in decreasing order of fC(c), do: • Remove all candidates overlapping with c from candidate-set • Return candidate-set as target instances

27. Results
