Presentation Transcript


Hydrology l.jpg

Hydrology

The flow or movement of water


Hydrologic cycle l.jpg

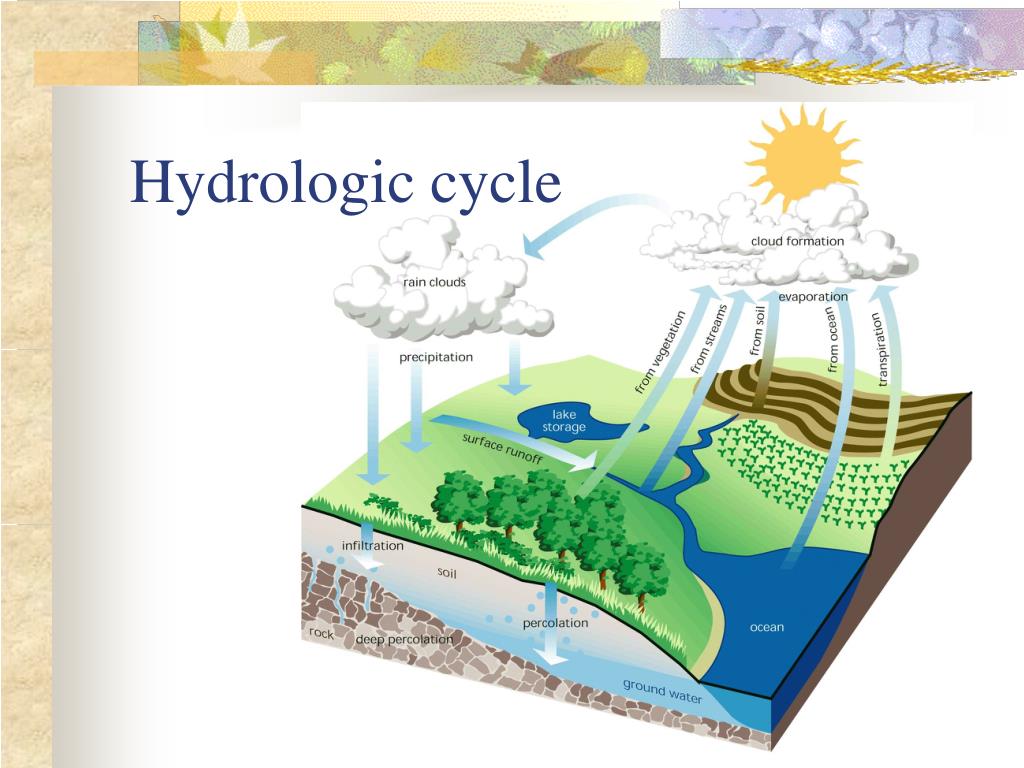

Hydrologic cycle


Surface runoff l.jpg

Surface Runoff

  • Surface hydrology focuses primarily on streams and their channels


Measuring flow l.jpg

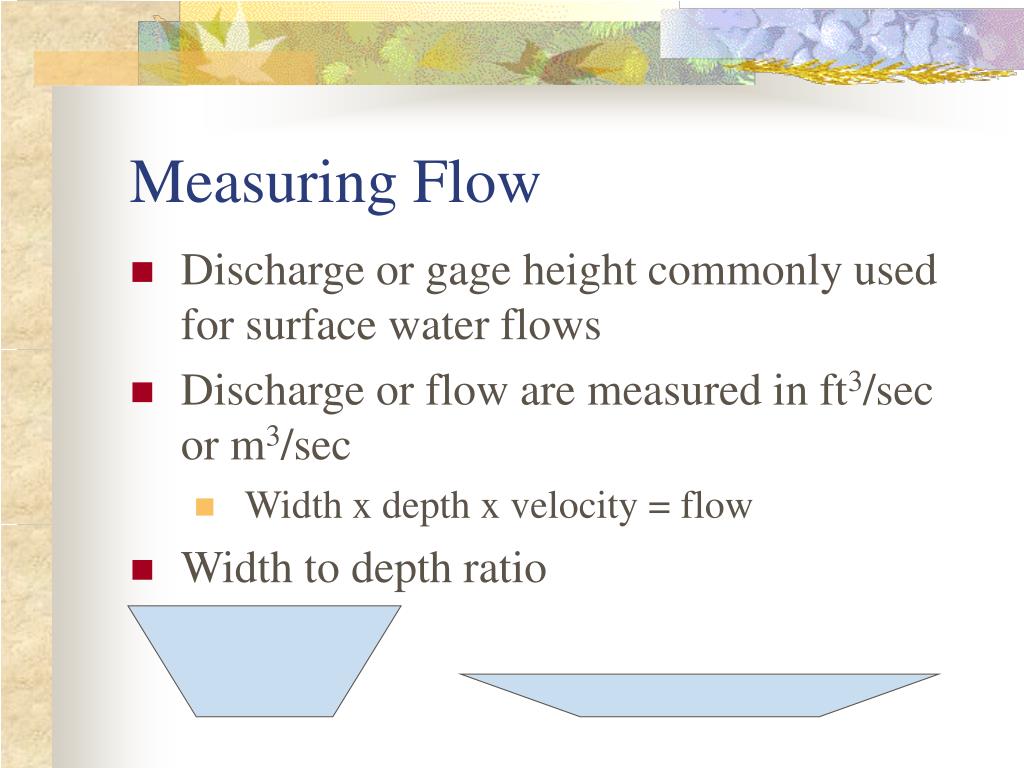

Measuring Flow

  • Discharge or gage height commonly used for surface water flows

  • Discharge or flow are measured in ft3/sec or m3/sec

    • Width x depth x velocity = flow

  • Width to depth ratio


Hydrographs l.jpg

Hydrographs

  • Graph of a stream’s discharge over time

  • “Real-time” and historical data may be available through Water Resources Dept, your local watermaster or USGS

    • http://waterdata.usgs.gov/nwis

  • Water Year = Oct - Sept


Annual hydrograph l.jpg

Annual Hydrograph

10/7/01 is when flow begins to increase above 10 cfs


Peak flows l.jpg

Peak Flows

  • Watermaster has determined 1,873 cfs to be “flood stage” for this site

  • Gales Creek exceeded this level 4 times in water year 2001

  • Highest discharge for year = 4,622 csf on 1/8/02


Multi year hydrograph l.jpg

Jan-02

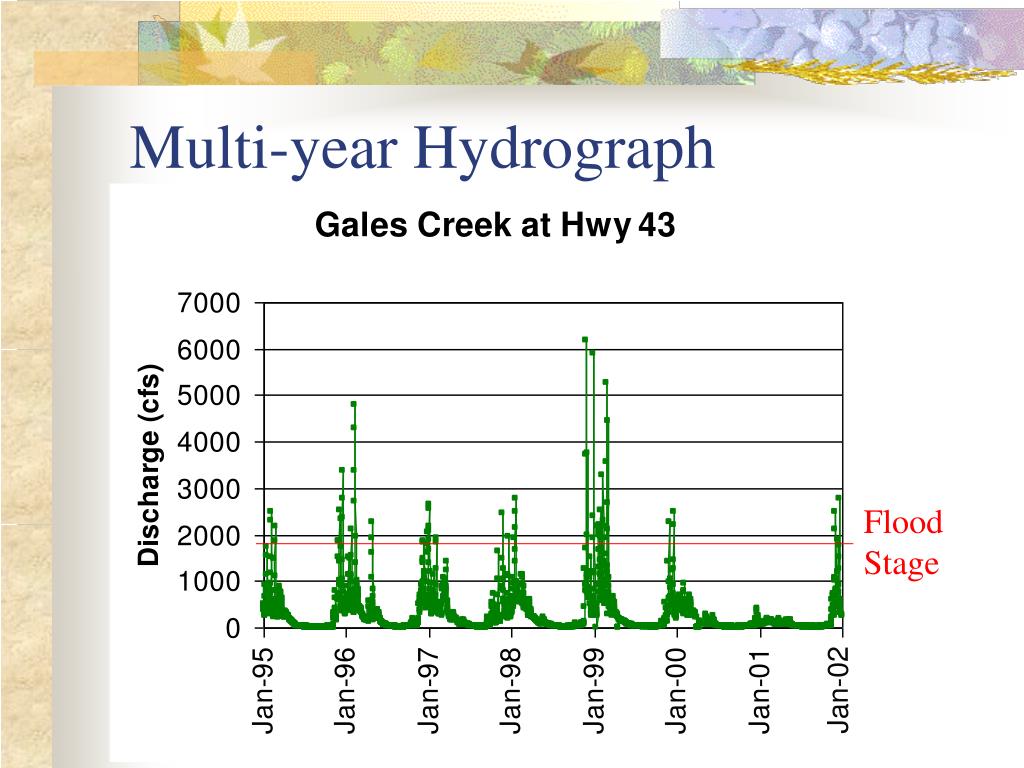

Multi-year Hydrograph

Flood Stage


Flood frequency l.jpg

Flood Frequency

  • Gales Creek appears to reach “flood stage” at least once per year (except 2001)

  • 1999 appears to have highest discharge for the 8 years we have data for – even higher than 1996

  • What makes a 100-year flood?


Flood frequency10 l.jpg

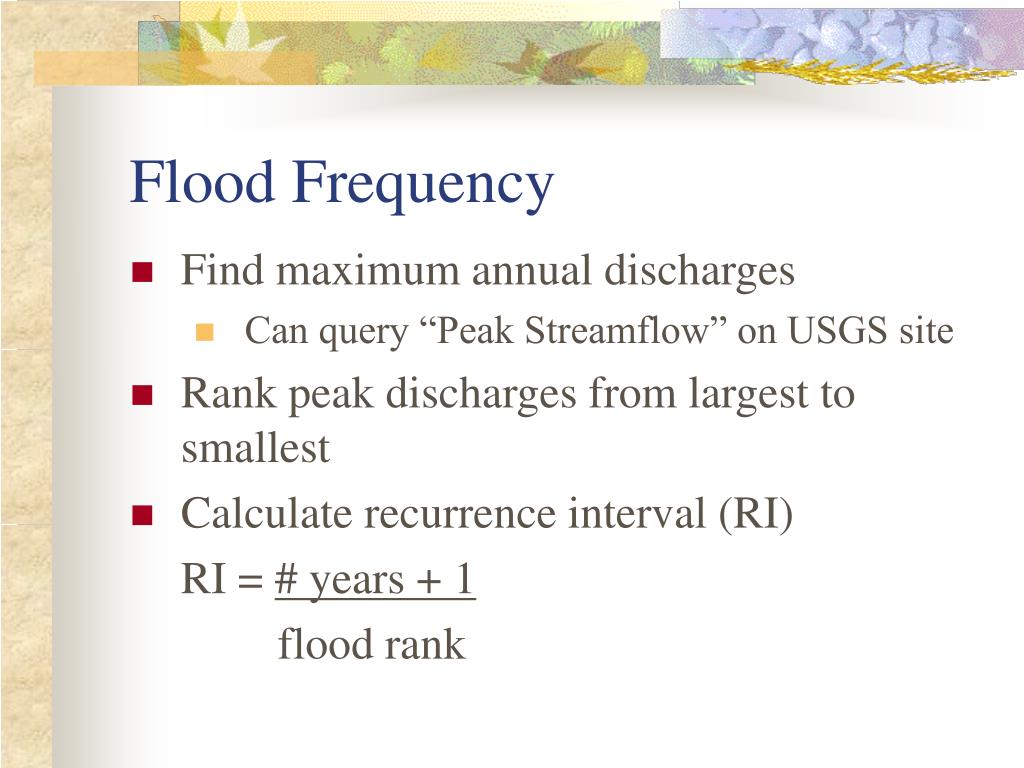

Flood Frequency

  • Find maximum annual discharges

    • Can query “Peak Streamflow” on USGS site

  • Rank peak discharges from largest to smallest

  • Calculate recurrence interval (RI)

    RI = # years + 1

    flood rank


Gales creek peak streamflow l.jpg

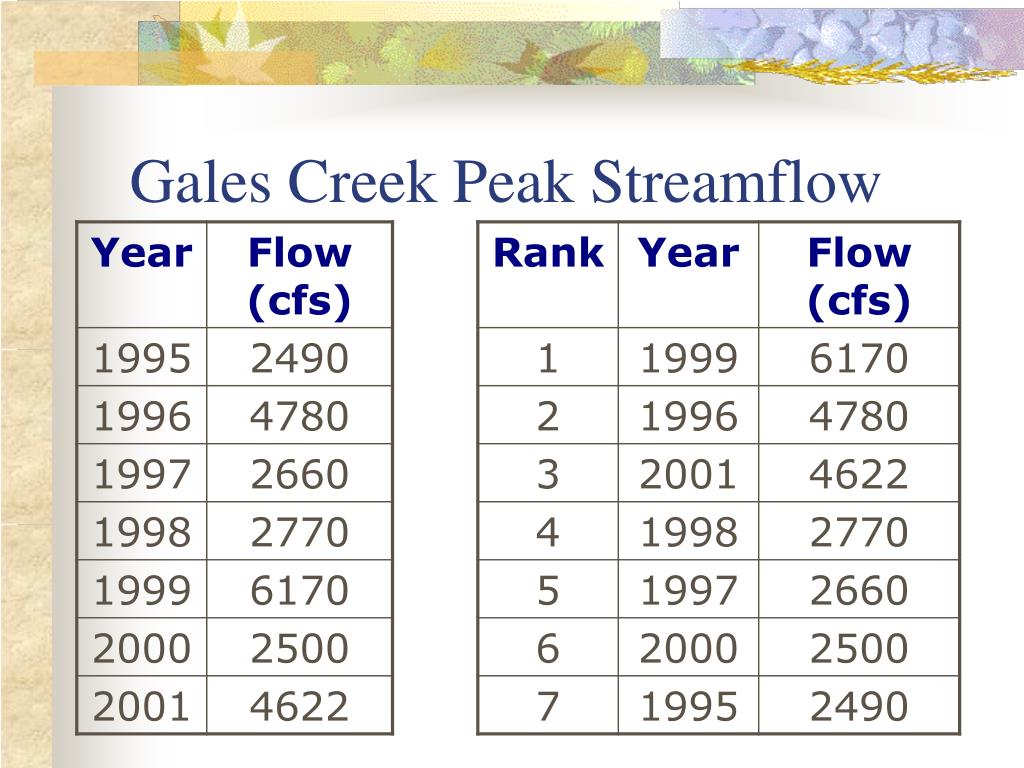

Gales Creek Peak Streamflow


Recurrence interval l.jpg

Recurrence Interval

  • Recurrence Interval

    = # years + 1

    flood rank

    = 7 + 1 = 4

    2

    For Gales Creek, 1996 was a “4-year flood”


100 year flood l.jpg

100-Year Flood

  • Requires 99 years of data

  • Only the largest flood during that 100 year period would be a “100-year flood”

  • Very few sites with 100 years of data

  • The Flood of 1996 was far from a 100-year event


Slide14 l.jpg

1996

1862 is the Historic Peak for this site


Flood recurrence at albany l.jpg

Flood Recurrence at Albany

= 117 + 1 = 3.5

34

For the Willamette in Albany, 1996 was a “3-4 year flood”


Flood recurrence at portland l.jpg

Flood Recurrence at Portland

= 29 + 1 = 30

1

For the Willamette in Portland, 1996 was a “30-year flood”


Stream channel l.jpg

Stream Channel

  • The energy from gradient can alter the

    • Sinuosity

    • Entrenchment

    • Width to Depth Ratio

      of a stream channel below bankfull


Determining bankfull channel l.jpg

Determining “Bankfull” channel

  • Top of point bar

  • Change in vegetation

  • Topographic break in slope

  • Staining or change in substrate material or size

  • Change in nature or amount of debris deposits


Entrenchment l.jpg

Entrenchment

  • Vertical containment

  • Estimated as:

    Width of stream at 2x bankfull depth

    Width at bankfull

Width @ 2x Bankfull Depth

(Floodprone Width)

Width @ Bankfull


Entrenchment23 l.jpg

Entrenchment

Entrenchment of 1.0 means the floodprone width = bankfull width


Width to depth ratio l.jpg

Width to Depth Ratio

  • Width / Depth at Bankfull


Width to depth l.jpg

Width to Depth

As the width to depth ratio increases, the stream gets wider and shallower.


Sinuosity l.jpg

Sinuosity

  • Is stream straight or does it meander?

  • How much longer would channel be if it were stretched into a straight line?

  • Estimated as:

    Channel length

    Straight length


Sinuosity28 l.jpg

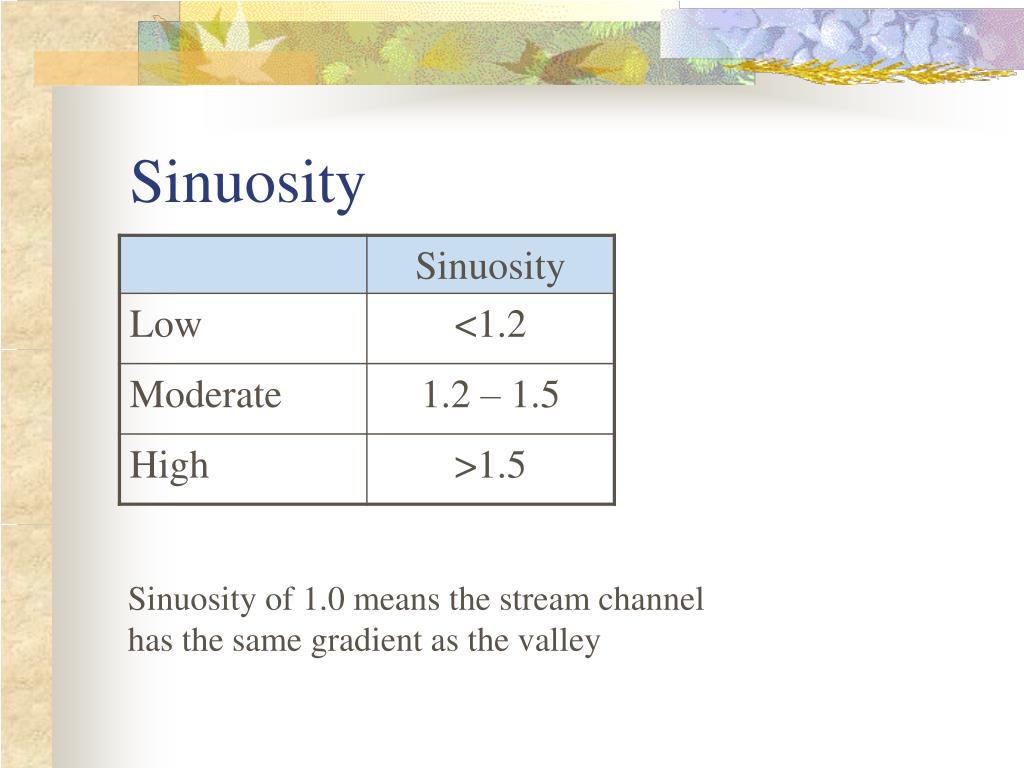

Sinuosity

Sinuosity of 1.0 means the stream channel has the same gradient as the valley


Gradient l.jpg

Gradient

  • Channel slope (Rise over Run)

  • Can be difficult to measure, estimate by characteristics:


Rosgen stream classification l.jpg

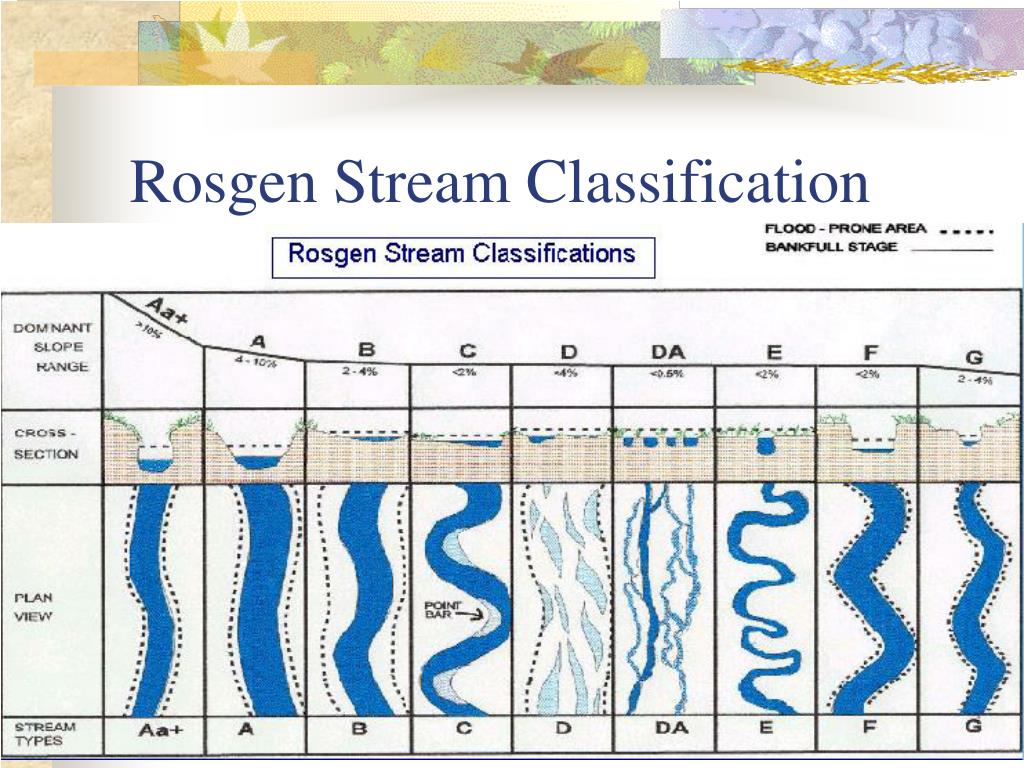

Rosgen Stream Classification
