Welcome!. Contents. Introduction TKSE-Project Software for worker guidance Applications User interface Features Limitations News for the upcoming version Other Projects. 2. Introduction Overview. Haller + Erne GmbH Soft- and hardware development since 1987 6 employees

cullen-randall
Download Presentation

Welcome!

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

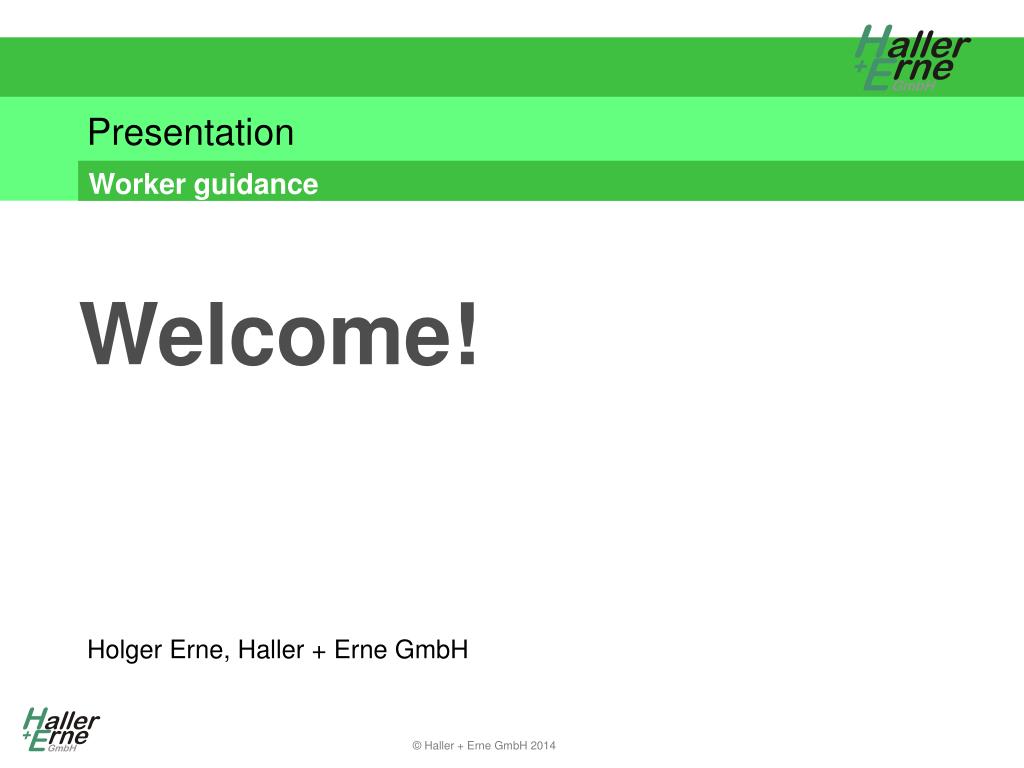

  1. Welcome!

  2. Contents • Introduction • TKSE-Project • Software forworkerguidance • Applications • User interface • Features • Limitations • News fortheupcomingversion • Other Projects 2

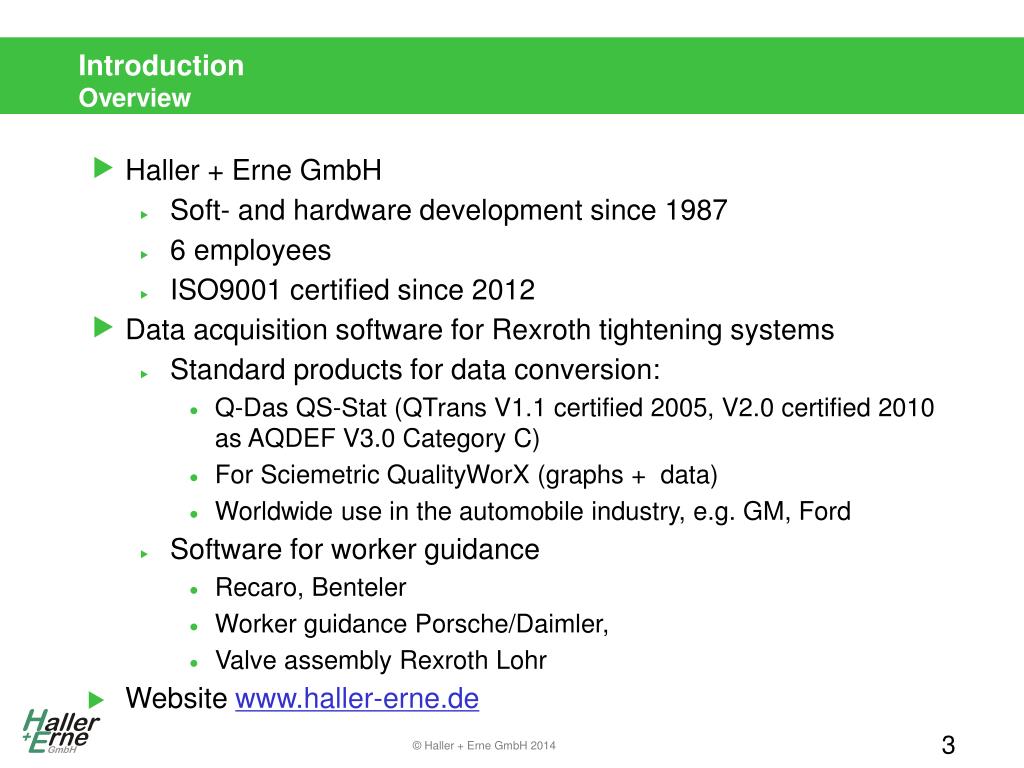

  3. IntroductionOverview • Haller + Erne GmbH • Soft- andhardwaredevelopmentsince 1987 • 6 employees • ISO9001 certifiedsince 2012 • Data acquisitionsoftwarefor Rexroth tighteningsystems • Standard productsfordataconversion: • Q-Das QS-Stat (QTrans V1.1 certified 2005, V2.0 certified 2010 as AQDEF V3.0 Category C) • ForSciemetricQualityWorX (graphs + data) • Worldwide use in the automobile industry, e.g. GM, Ford • Software forworkerguidance • Recaro, Benteler • Worker guidance Porsche/Daimler, • Valveassembly Rexroth Lohr • Website www.haller-erne.de 3

  4. IntroductionAreas ofactivity • Soft- andhardwareforindustrialcontrolandcommunication • Standard solutionsandcustomer-specificsolutions • Development: project-relatedsolutionsandengineering • Software forcollectingprocessdata, convertingandarchiving • Accessoriesfor Rexroth tighteningsystems • Hardware (e. g. socket trays) • Software PC/KG‘s (data-, protocolconverter, processcontrol) • Internal firmware (VxWorks) fortighteningsystems (IPM, PLUS) • IndraLogicapplicationsandmodules (e. g. Modbus-master fortighteningsystems)

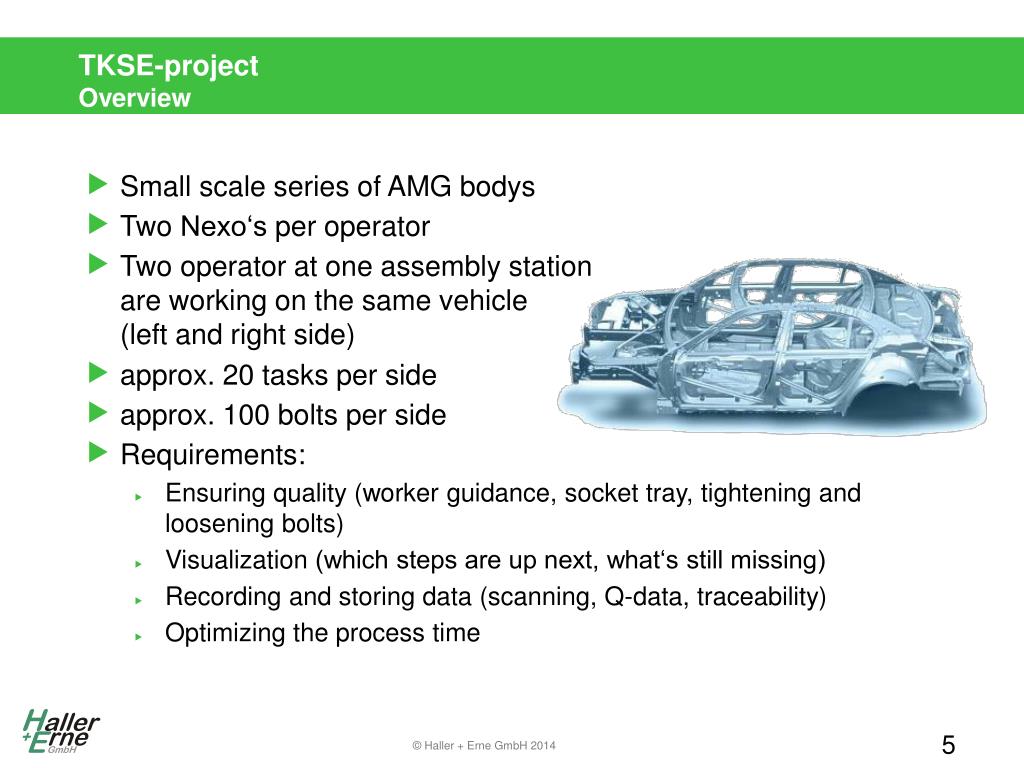

  5. TKSE-projectOverview • Small scaleseriesof AMG bodys • TwoNexo‘s per operator • Twooperator at oneassemblystationareworking on the same vehicle (leftandrightside) • approx. 20 tasks per side • approx. 100 bolts per side • Requirements: • Ensuring quality (worker guidance, socket tray, tightening and loosening bolts) • Visualization (which steps are up next, what‘s still missing) • Recording and storing data (scanning, Q-data, traceability) • Optimizing the process time 5

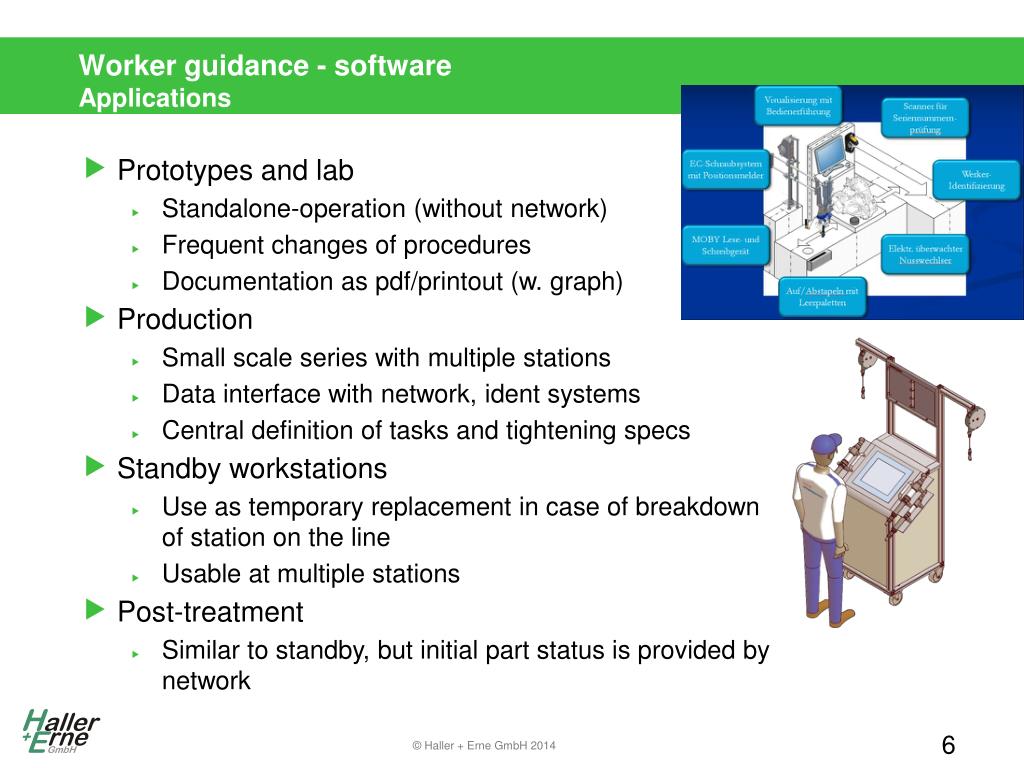

  6. Worker guidance - softwareApplications • Prototypes and lab • Standalone-operation (without network) • Frequent changes of procedures • Documentation as pdf/printout (w. graph) • Production • Small scale series with multiple stations • Data interface with network, ident systems • Central definition of tasks and tightening specs • Standby workstations • Use as temporary replacement in case of breakdown of station on the line • Usable at multiple stations • Post-treatment • Similar to standby, but initial part status is provided by network 6

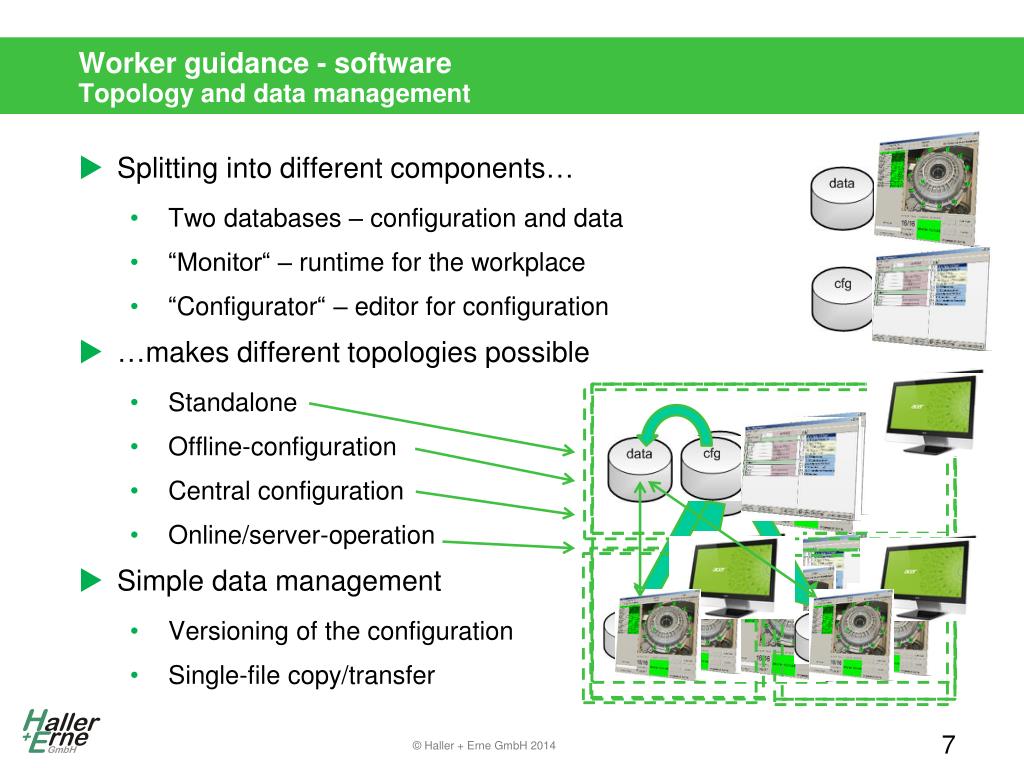

  7. Worker guidance - softwareTopologyanddatamanagement • Splitting into different components… • Twodatabases – configurationanddata • “Monitor“ – runtimefortheworkplace • “Configurator“ – editorforconfiguration • …makes different topologiespossible • Standalone • Offline-configuration • Central configuration • Online/server-operation • Simple datamanagement • Versioningoftheconfiguration • Single-file copy/transfer

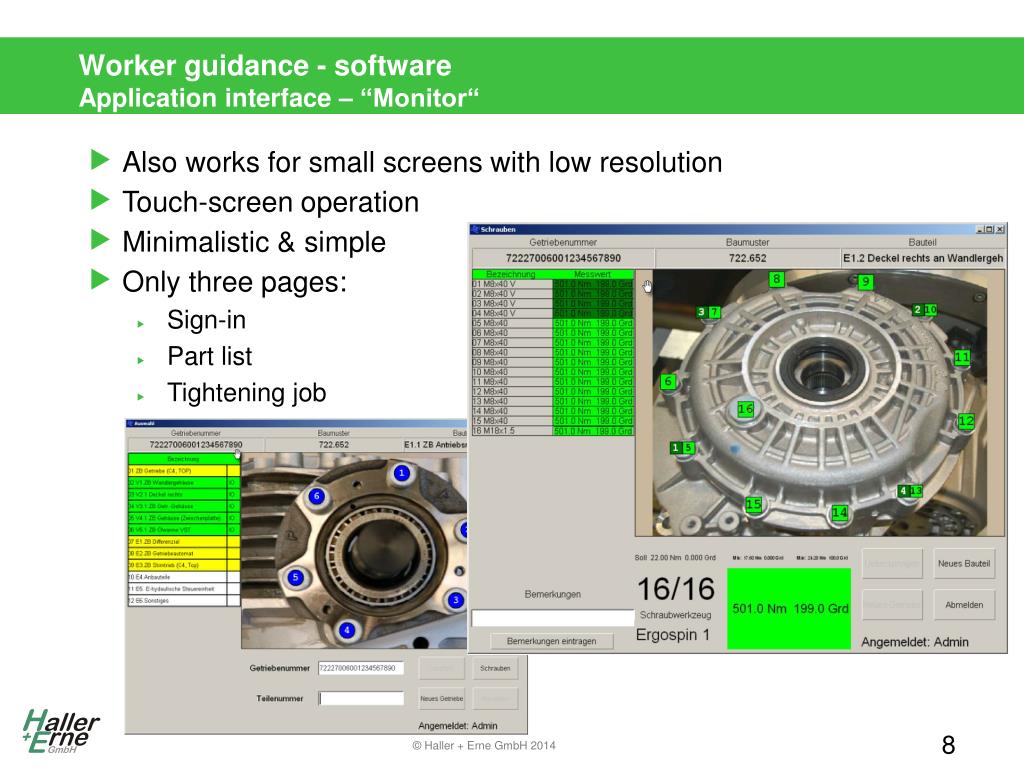

  8. Worker guidance - softwareApplicationinterface – “Monitor“ • Also worksforsmallscreenswithlowresolution • Touch-screen operation • Minimalistic & simple • Onlythreepages: • Sign-in • Part list • Tighteningjob 8

  9. Worker guidance - softwareApplicationinterface – “Monitor“ Job selection Current job Job status Visualization of job state Job selection by clicking (touch) Input: barcode scanner or keyboard Actions 9

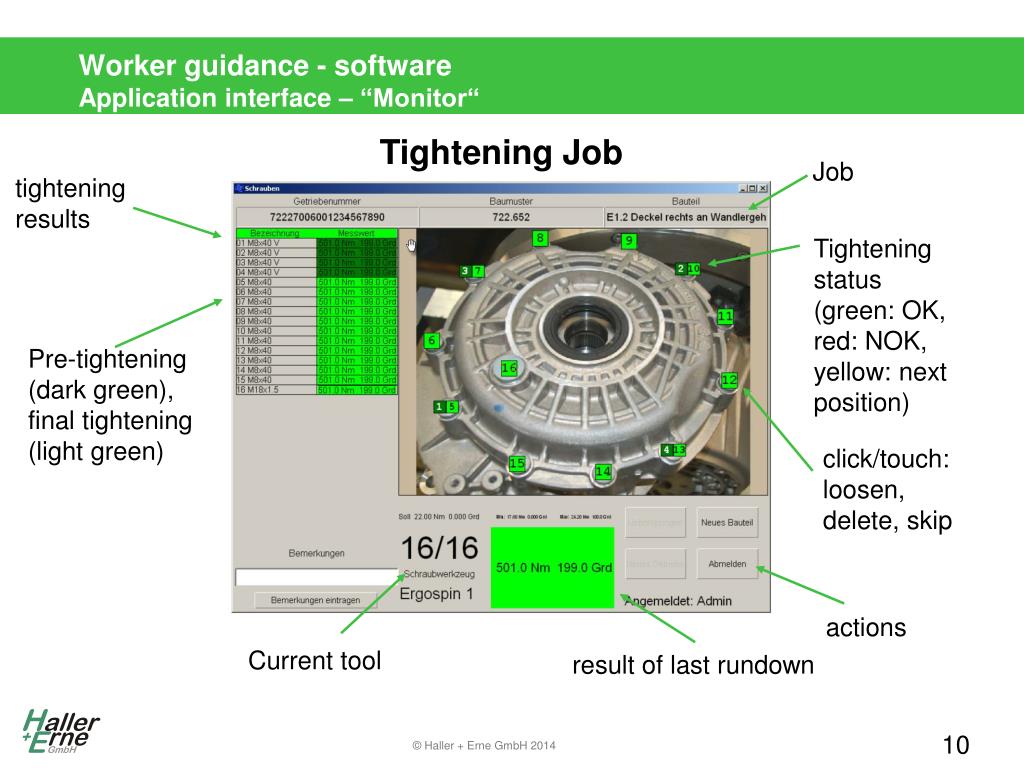

  10. Worker guidance - softwareApplicationinterface – “Monitor“ Tightening Job Job tightening results Tightening status (green: OK, red: NOK, yellow: next position) Pre-tightening (dark green), final tightening (light green) click/touch: loosen, delete, skip actions Current tool result of last rundown 10

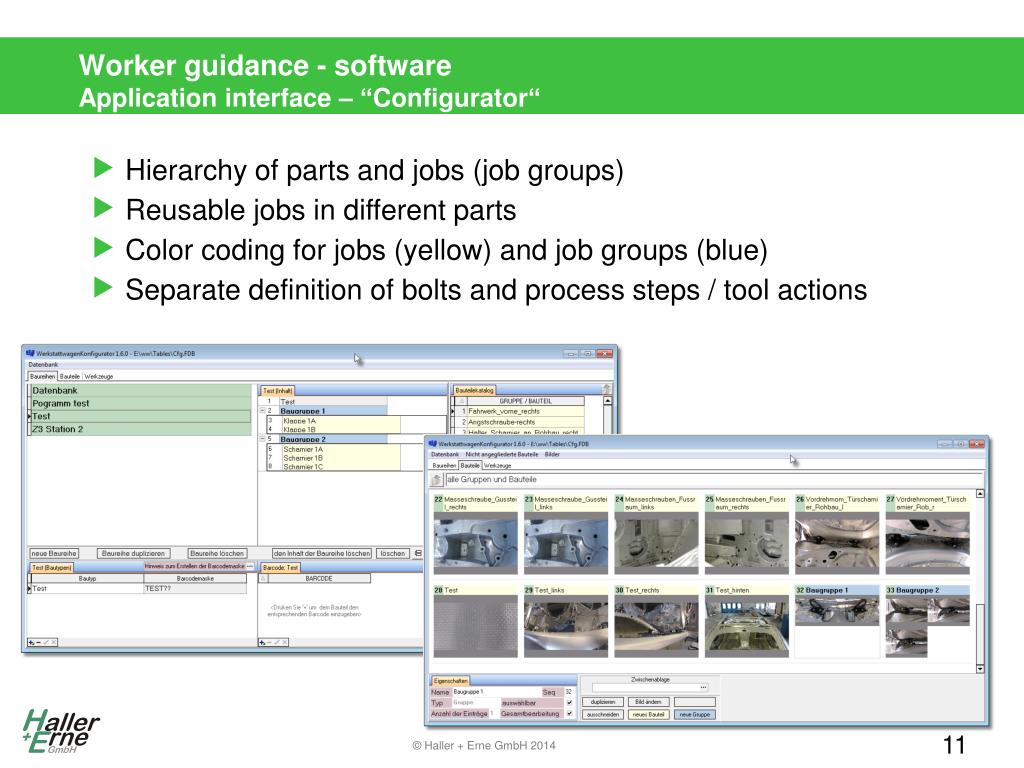

  11. Worker guidance - softwareApplicationinterface – “Configurator“ • Hierarchyofpartsandjobs (jobgroups) • Reusablejobs in different parts • Color codingforjobs(yellow) andjobgroups (blue) • Separate definitionofboltsandprocesssteps / toolactions 11

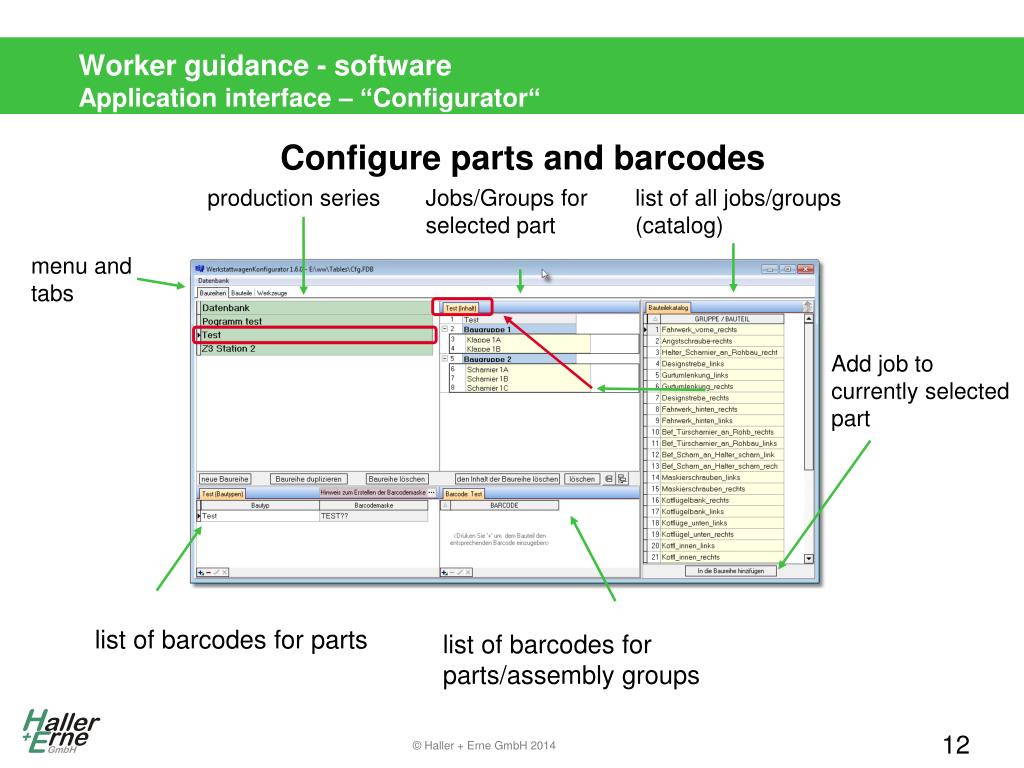

  12. Worker guidance - softwareApplicationinterface – “Configurator“ Configurepartsandbarcodes production series Jobs/Groups for selected part list of all jobs/groups (catalog) menu and tabs Add job to currently selected part list of barcodes for parts list of barcodes for parts/assembly groups 12

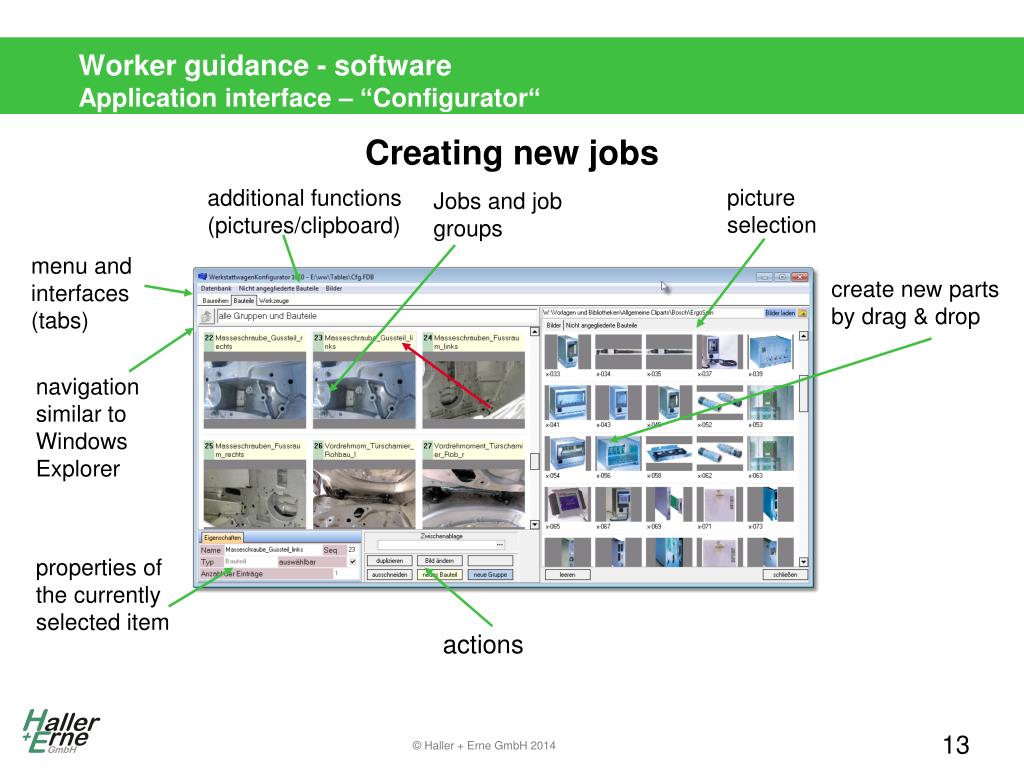

  13. Worker guidance- softwareApplicationinterface – “Configurator“ Creatingnewjobs picture selection additional functions (pictures/clipboard) Jobs and job groups menu and interfaces (tabs) create new parts by drag & drop navigation similar to Windows Explorer properties of the currently selected item actions 13

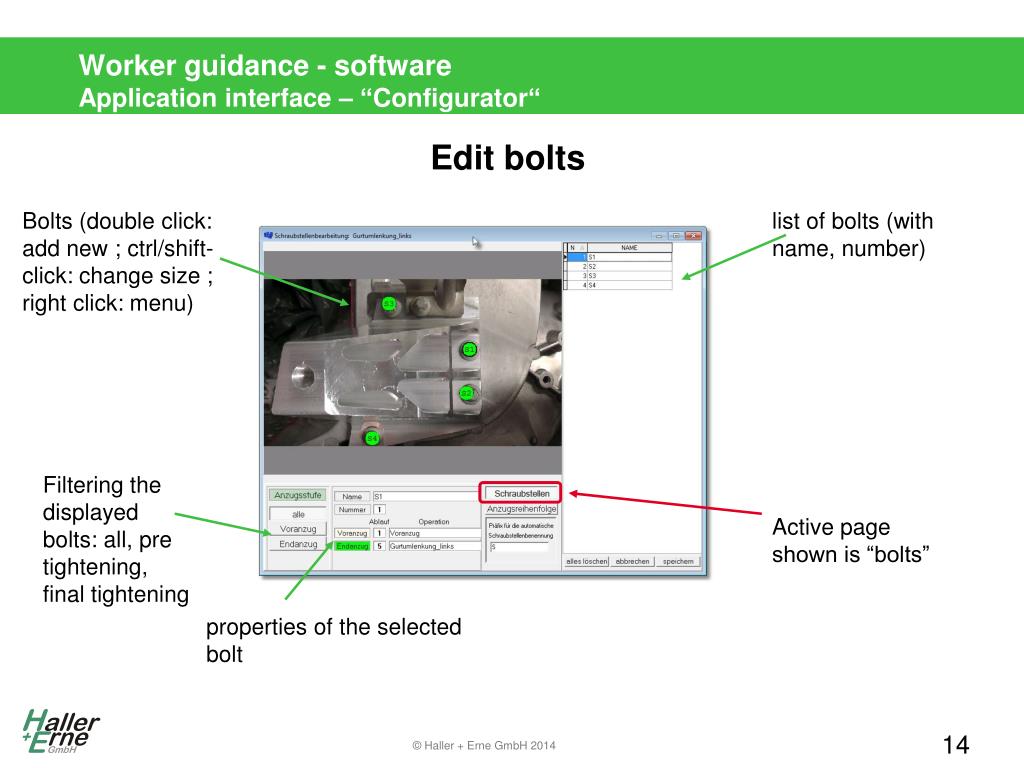

  14. Worker guidance - softwareApplicationinterface – “Configurator“ Edit bolts Bolts (double click: add new ; ctrl/shift-click: change size ; right click: menu) list of bolts (with name, number) Filtering the displayed bolts: all, pre tightening, final tightening Active page shown is “bolts” properties of the selected bolt 14

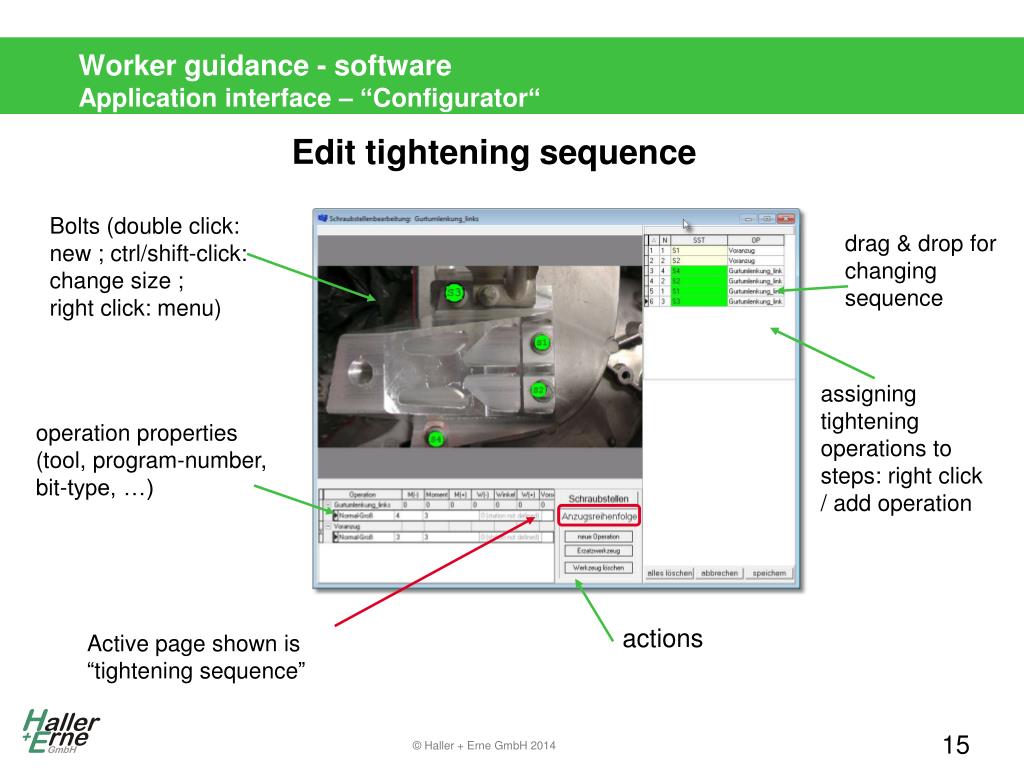

  15. Worker guidance - softwareApplicationinterface – “Configurator“ Edit tighteningsequence Bolts (double click: new ; ctrl/shift-click: change size ; right click: menu) drag & drop for changing sequence assigning tightening operations to steps: right click / add operation operation properties (tool, program-number, bit-type, …) actions Active page shown is “tightening sequence” 15

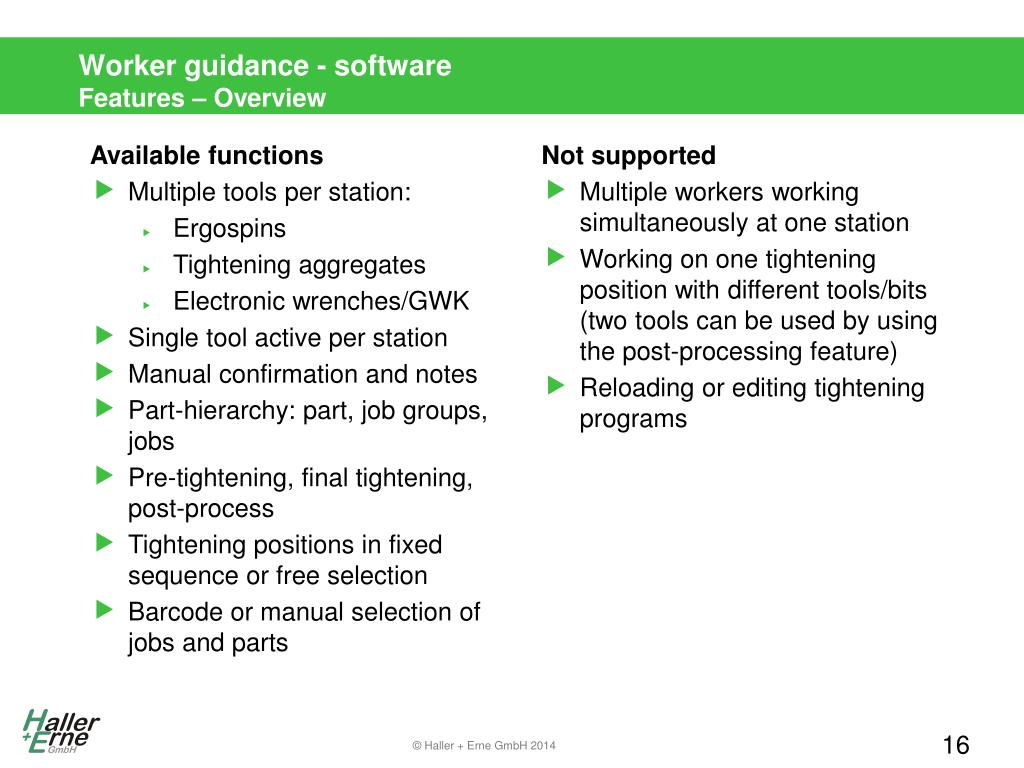

  16. Worker guidance - softwareFeatures – Overview • Available functions • Multiple tools per station: • Ergospins • Tightening aggregates • Electronic wrenches/GWK • Single tool active per station • Manual confirmation and notes • Part-hierarchy: part, job groups, jobs • Pre-tightening, final tightening, post-process • Tightening positions in fixed sequence or free selection • Barcode or manual selection of jobs and parts • Not supported • Multiple workers working simultaneously at one station • Working on one tightening position with different tools/bits (two tools can be used by using the post-processing feature) • Reloading or editing tightening programs 16

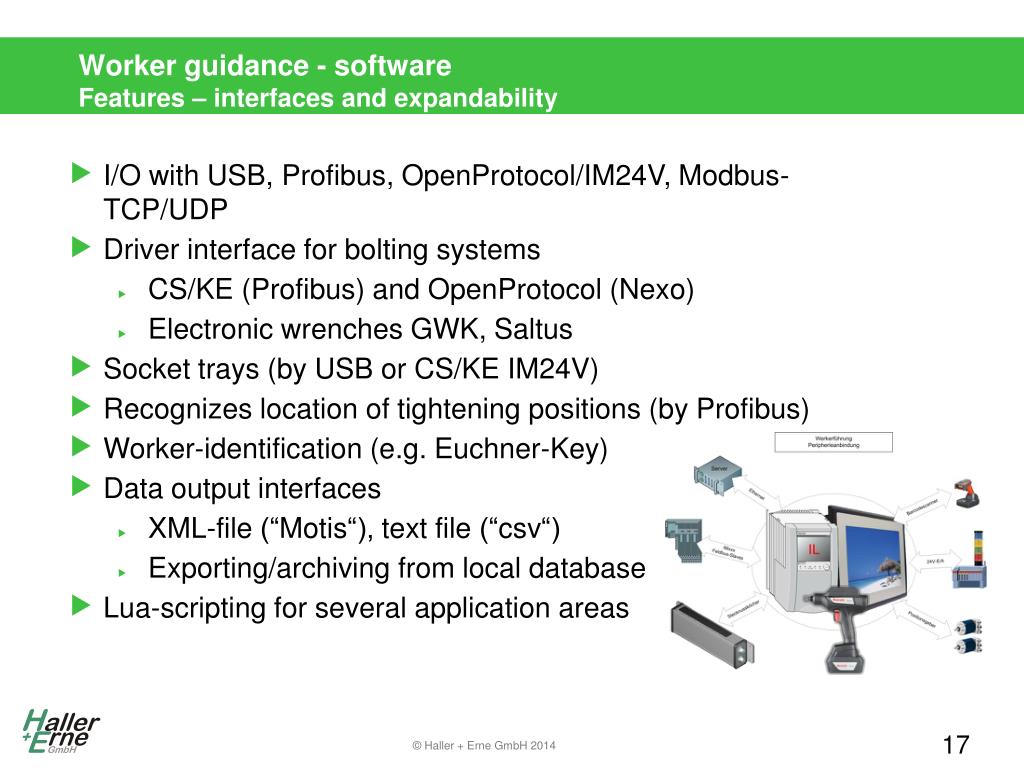

  17. Worker guidance - softwareFeatures – interfacesandexpandability • I/O withUSB, Profibus, OpenProtocol/IM24V, Modbus-TCP/UDP • Driver interfaceforboltingsystems • CS/KE (Profibus) andOpenProtocol (Nexo) • Electronic wrenchesGWK, Saltus • Socket trays(by USB or CS/KE IM24V) • Recognizeslocationoftighteningpositions (byProfibus) • Worker-identification(e.g. Euchner-Key) • Data outputinterfaces • XML-file (“Motis“), textfile(“csv“) • Exporting/archivingfromlocaldatabase • Lua-scripting forseveralapplicationareas 17

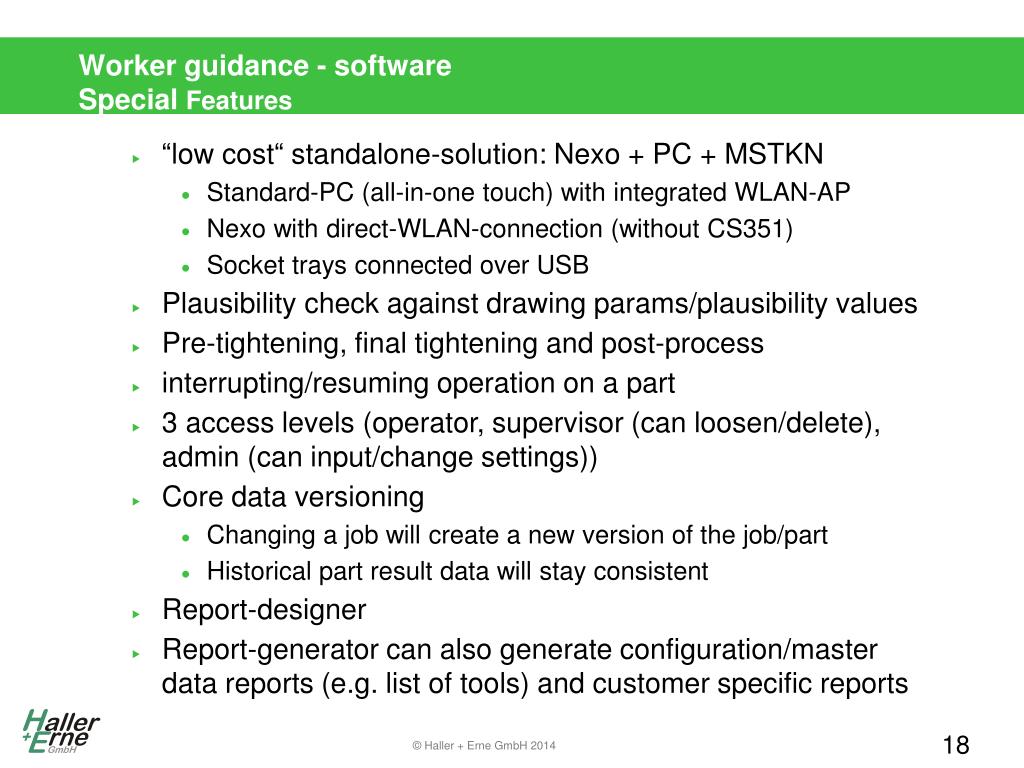

  18. Worker guidance - softwareSpecial Features • “lowcost“ standalone-solution: Nexo + PC + MSTKN • Standard-PC (all-in-onetouch) withintegratedWLAN-AP • Nexowithdirect-WLAN-connection (withoutCS351) • Socket traysconnectedover USB • Plausibility check againstdrawingparams/plausibilityvalues • Pre-tightening, final tighteningand post-process • interrupting/resumingoperation on a part • 3 accesslevels (operator, supervisor (canloosen/delete), admin (caninput/changesettings)) • Core dataversioning • Changing a job will create a newversionofthejob/part • Historical partresultdata will stayconsistent • Report-designer • Report-generator can also generateconfiguration/masterdatareports (e.g. listoftools) andcustomerspecificreports 18

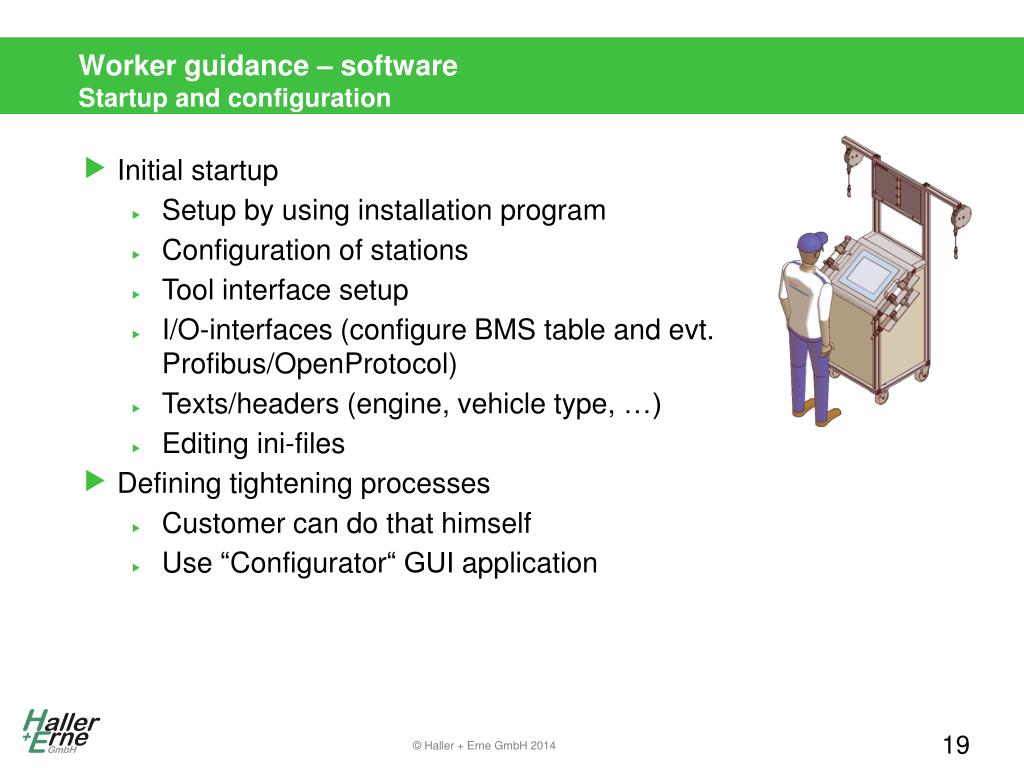

  19. Worker guidance – softwareStartup andconfiguration • Initial startup • Setup byusinginstallationprogram • Configurationofstations • Tool interfacesetup • I/O-interfaces (configure BMS tableandevt. Profibus/OpenProtocol) • Texts/headers (engine, vehicle type, …) • Editingini-files • Definingtighteningprocesses • Customer can do thathimself • Use“Configurator“ GUI application 19

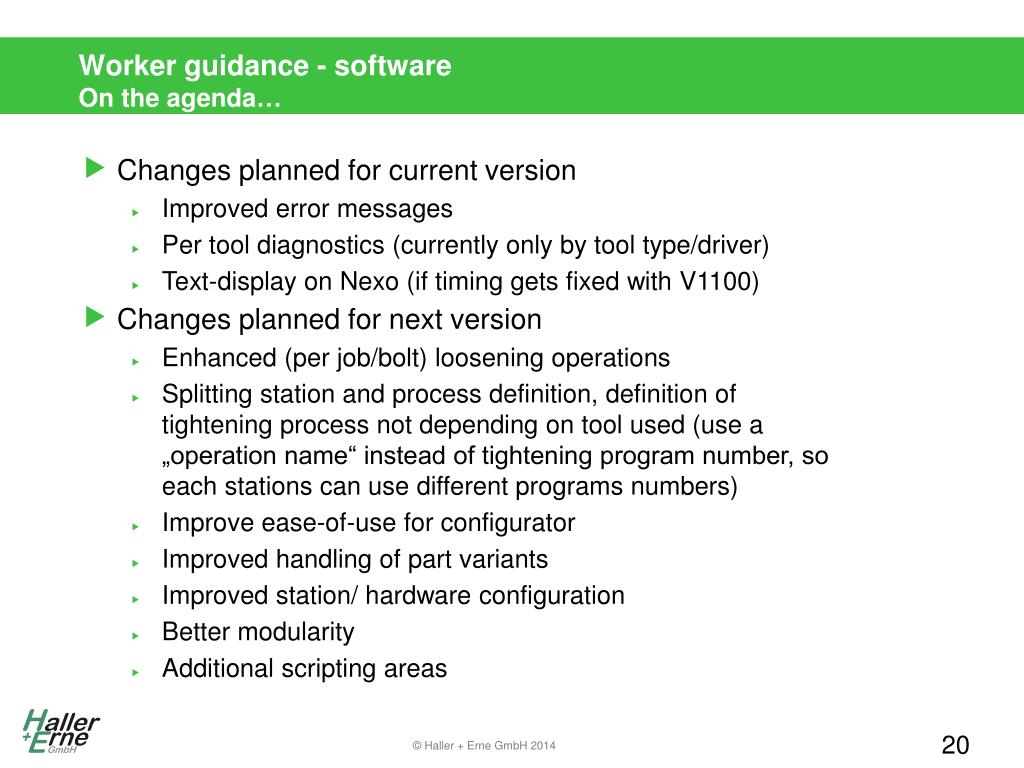

  20. Worker guidance - softwareOn theagenda… • Changes planned for current version • Improved error messages • Per tool diagnostics (currently only by tool type/driver) • Text-display on Nexo (if timing gets fixed with V1100) • Changes planned for next version • Enhanced (per job/bolt) loosening operations • Splitting station and process definition, definition of tightening process not depending on tool used (use a „operation name“ instead of tightening program number, so each stations can use different programs numbers) • Improve ease-of-use for configurator • Improved handling of part variants • Improved station/ hardware configuration • Better modularity • Additional scripting areas 20

  21. Thank you for your attention
