  1. Comparing Squid FilesystemPerformance with Web Polygraph Duane Wessels wessels@squid-cache.org O’Reilly Open Source Convention July 24, 2002

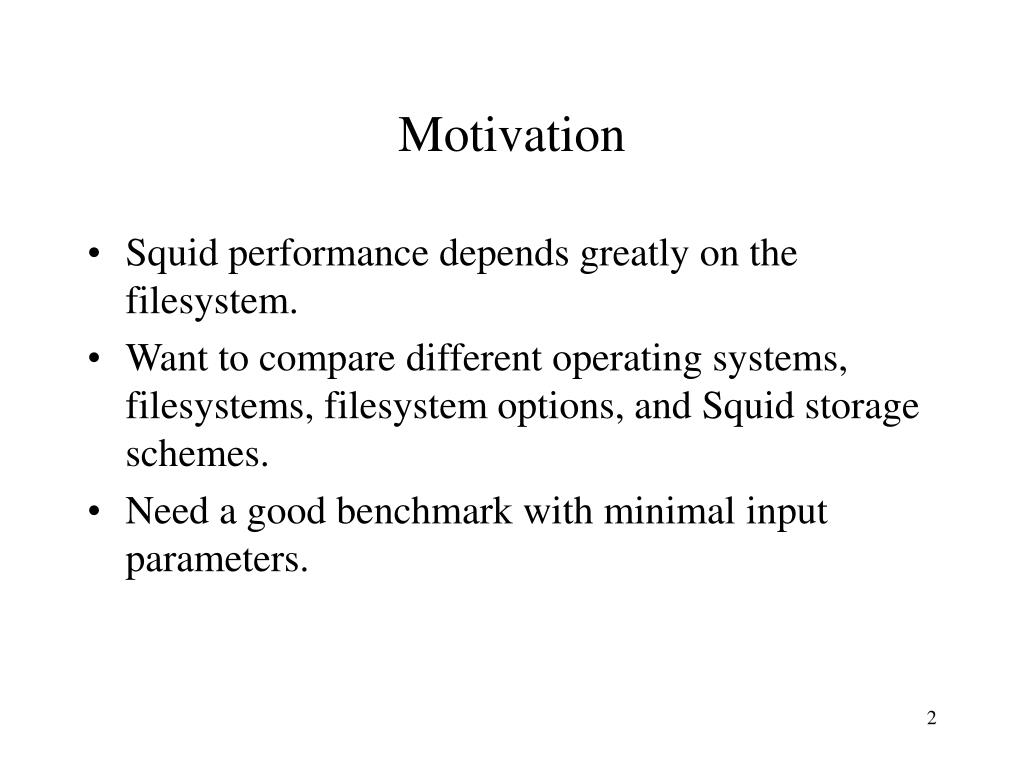

  2. Motivation • Squid performance depends greatly on the filesystem. • Want to compare different operating systems, filesystems, filesystem options, and Squid storage schemes. • Need a good benchmark with minimal input parameters.

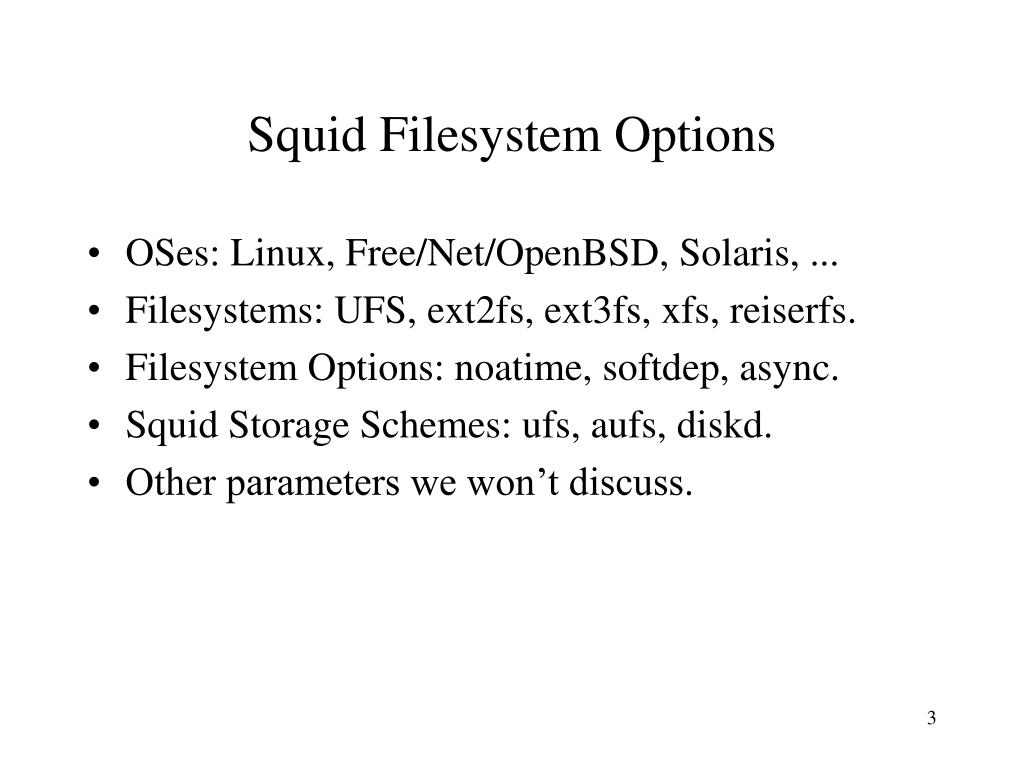

  3. Squid Filesystem Options • OSes: Linux, Free/Net/OpenBSD, Solaris, ... • Filesystems: UFS, ext2fs, ext3fs, xfs, reiserfs. • Filesystem Options: noatime, softdep, async. • Squid Storage Schemes: ufs, aufs, diskd. • Other parameters we won’t discuss.

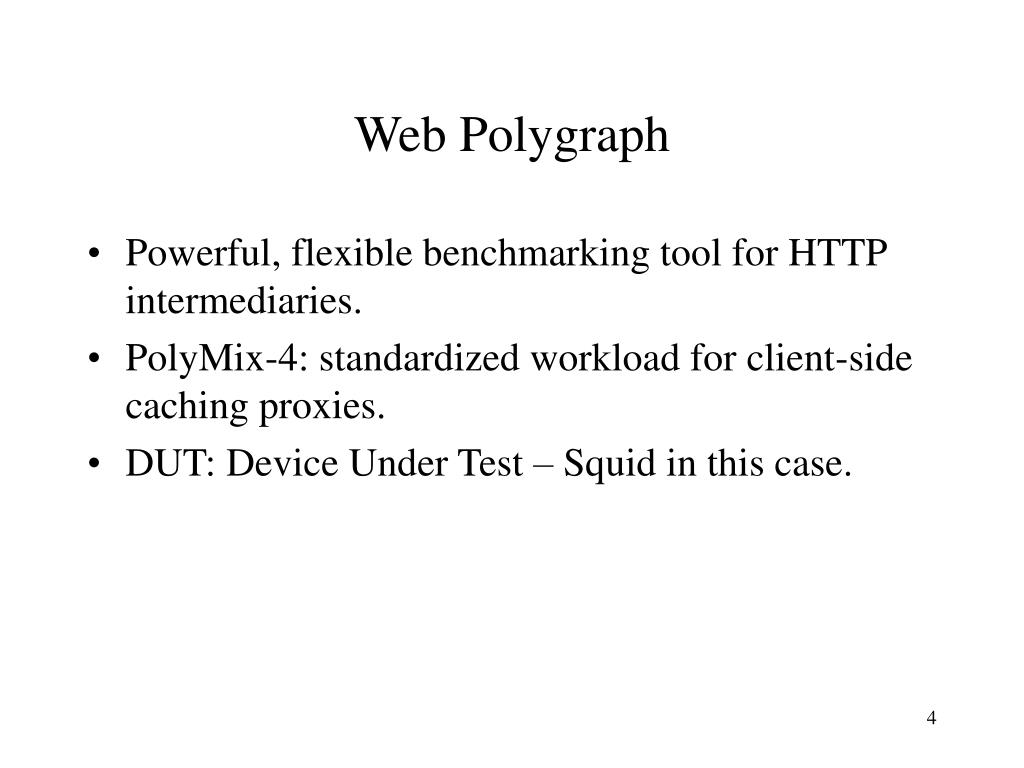

  4. Web Polygraph • Powerful, flexible benchmarking tool for HTTP intermediaries. • PolyMix-4: standardized workload for client-side caching proxies. • DUT: Device Under Test – Squid in this case.

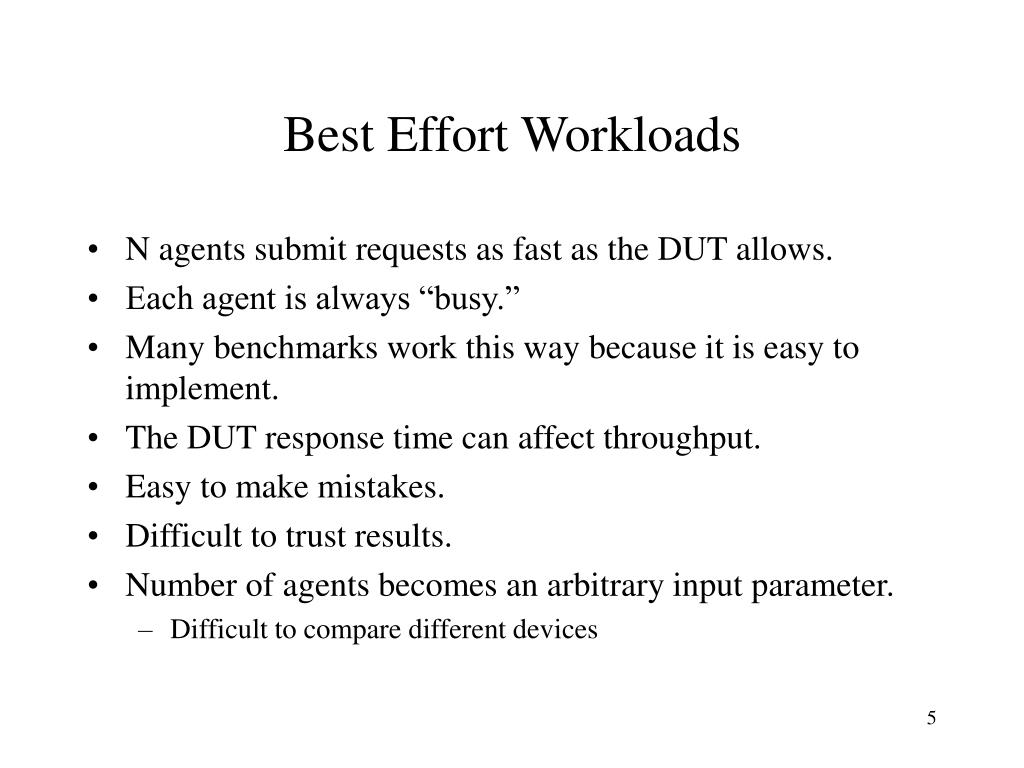

  5. Best Effort Workloads • N agents submit requests as fast as the DUT allows. • Each agent is always “busy.” • Many benchmarks work this way because it is easy to implement. • The DUT response time can affect throughput. • Easy to make mistakes. • Difficult to trust results. • Number of agents becomes an arbitrary input parameter. • Difficult to compare different devices

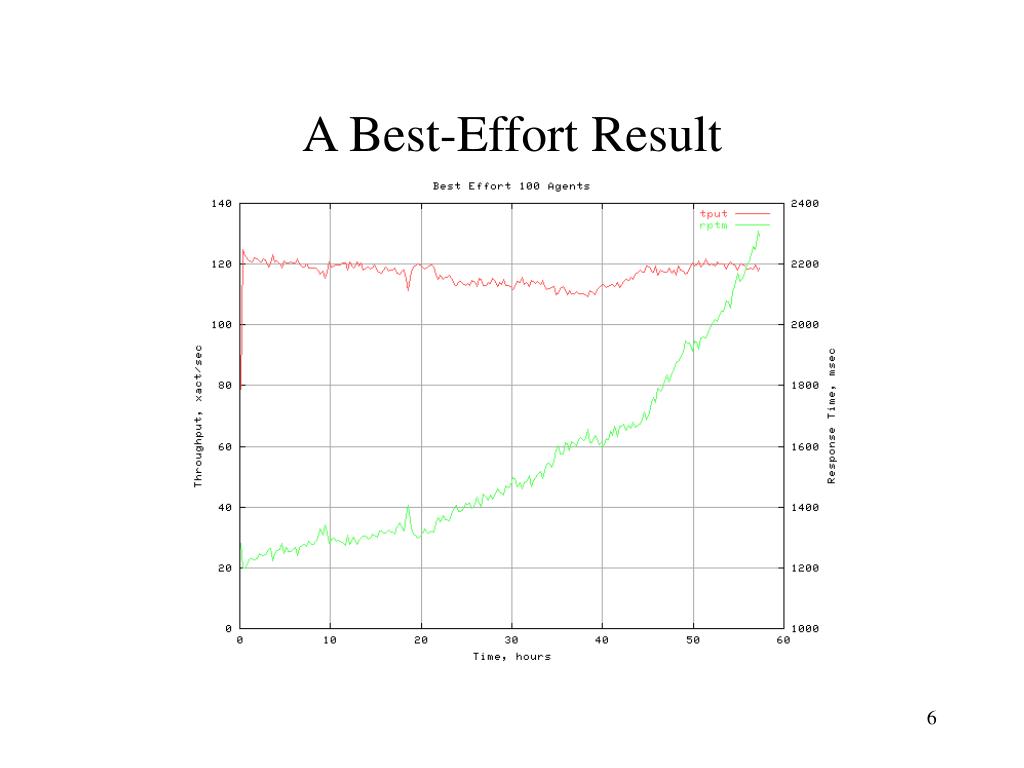

  6. A Best-Effort Result

  7. Constant Mean Throughput Workloads • Agents submit requests at a constant mean rate. • Agents spend some time being idle. • Results are more believable. • Test may fail after running for a long time. • Hard to find the ideal, peak throughput. • Throughput is an input parameter.

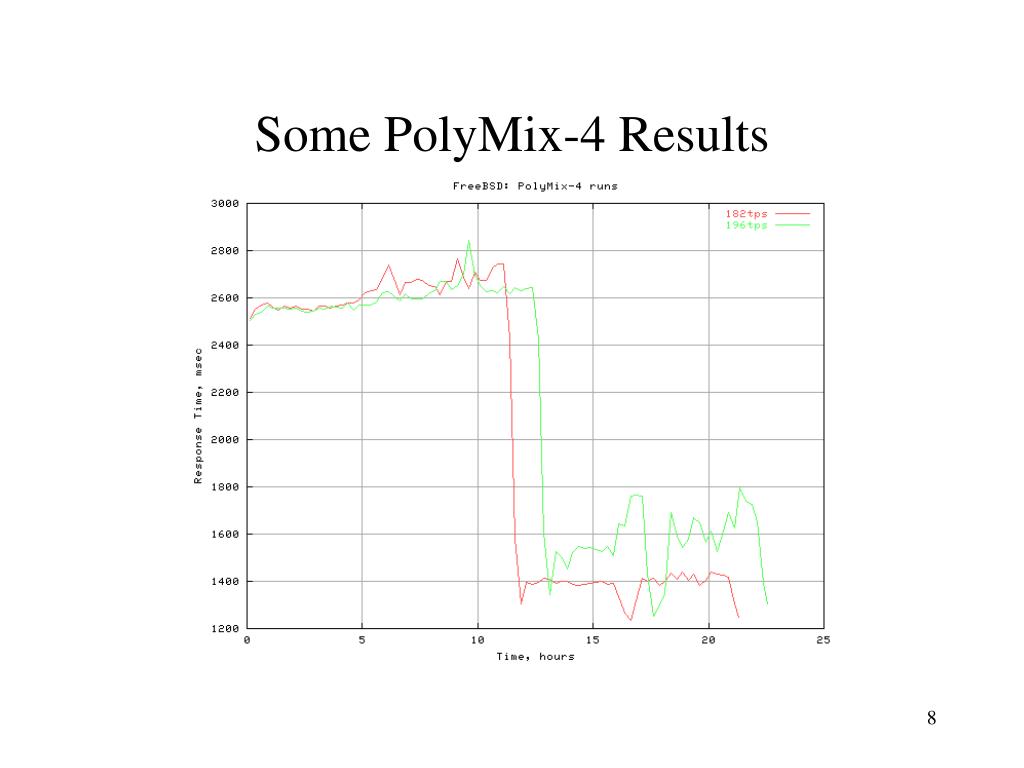

  8. Some PolyMix-4 Results

  9. Constant Response Time Workloads • Offered load varies depending on measured response time. • Otherwise just like constant throughput • Tests are less likely to fail halfway through. • Removes throughput as an input parameter. • Selecting the response time window is tricky. • Sometimes observe response time spikes. • Requires a constant/predictable hit ratio. • Cannot compare to a no-caching workload

  10. The “rptmstat” Workload • Response time window: 1.4 – 1.5 seconds. • Load delta: 1%. • “down” sample rate: 1000 transactions. • “up” sample rate: 2000 transactions. • Workload goal: fill the cache twice. • Adjusts “populous factor” – the number of active agents.

  11. Sample rptmstat Console Output 398.25| i-rptmstat 2715719 89.02 1446 60.38 0 822 fyi: rptmstatDn: 1.47sec rptm requires no load adjustment fyi: rptmstatUp: 1.41sec rptm requires no load adjustment fyi: rptmstatDn: 1.67sec rptm changes load by -1.00% fyi: rptmstatDn: 1.40sec rptm requires no load adjustment fyi: rptmstatUp: 1.54sec rptm requires no load adjustment fyi: rptmstatDn: 1.26sec rptm requires no load adjustment fyi: rptmstatDn: 1.51sec rptm changes load by -1.00% fyi: rptmstatUp: 1.39sec rptm changes load by +1.00% fyi: rptmstatDn: 1.52sec rptm changes load by -1.00%

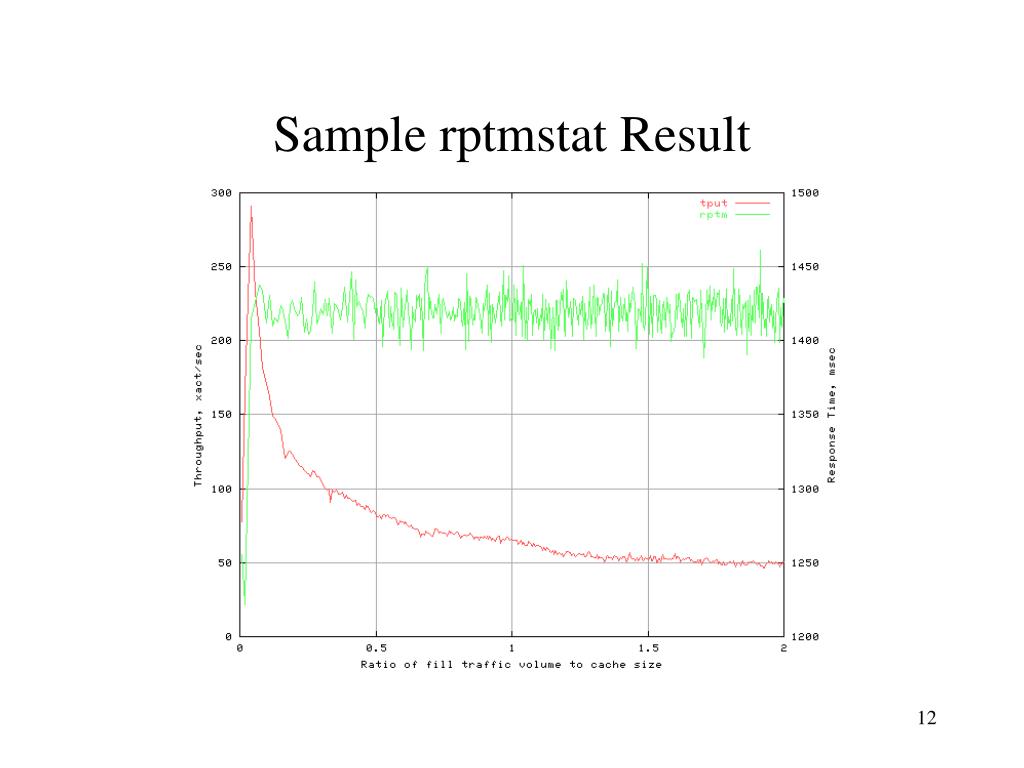

  12. Sample rptmstat Result

  13. The Squid Filesystem Tests • Five different operating systems. • Identical hardware. • Identical Squid source code. • Nearly identical Squid configuration. • Different filesystems, options, storage schemes.

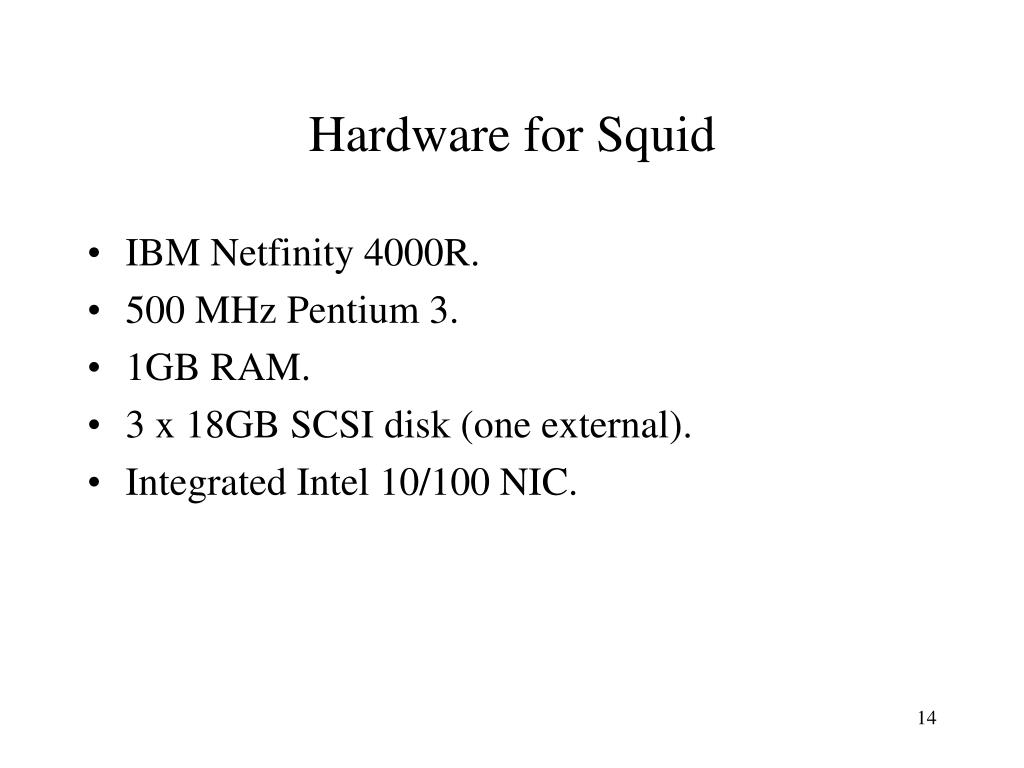

  14. Hardware for Squid • IBM Netfinity 4000R. • 500 MHz Pentium 3. • 1GB RAM. • 3 x 18GB SCSI disk (one external). • Integrated Intel 10/100 NIC.

  15. Squid Configuration • Squid 2.4.STABLE5. • 3 x 7500 MB cache_dir (L1=16, L2=256). • Logging disabled. • Default cache_mem (8MB).

  16. The Linux Box • Linux 2.4.9-13, with SGI XFS_1.0.2 patches • 8192 file descriptors • ./configure –with-aio-threads=32 • Xfsprogs 1.3.13 • Reiserfsprogs 3.x.0j

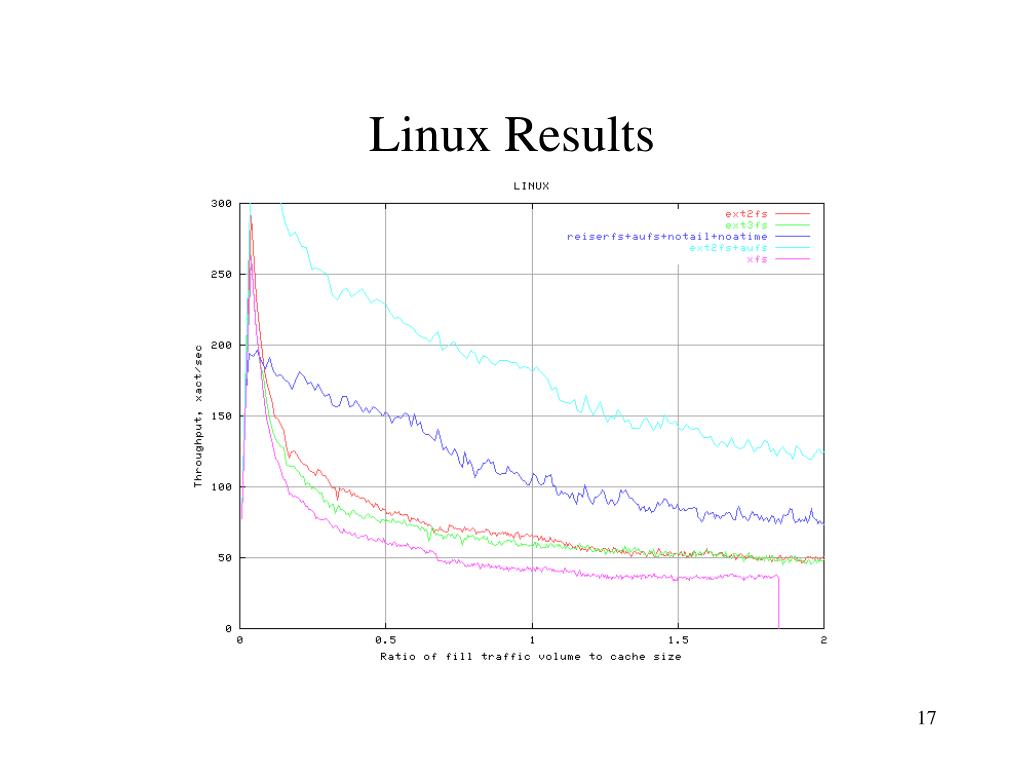

  17. Linux Results

  18. The NetBSD Box • NetBSD 1.5.3_RC1 • MAXFILES=8192 • NMBCLUSTERS=32768

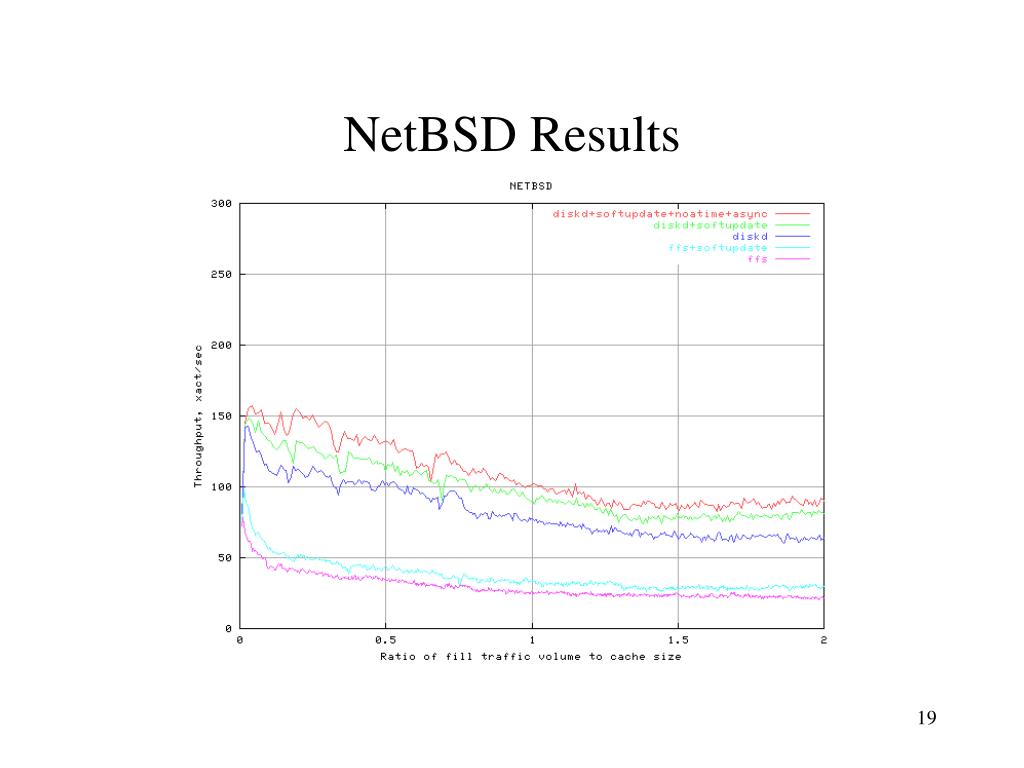

  19. NetBSD Results

  20. The OpenBSD Box • OpenBSD 3.0 • MAXFILES=8192 • Only 4096 per process however • Not an issue – usage is well below this limit • NMBCLUSTERS=32768

  21. OpenBSD Results

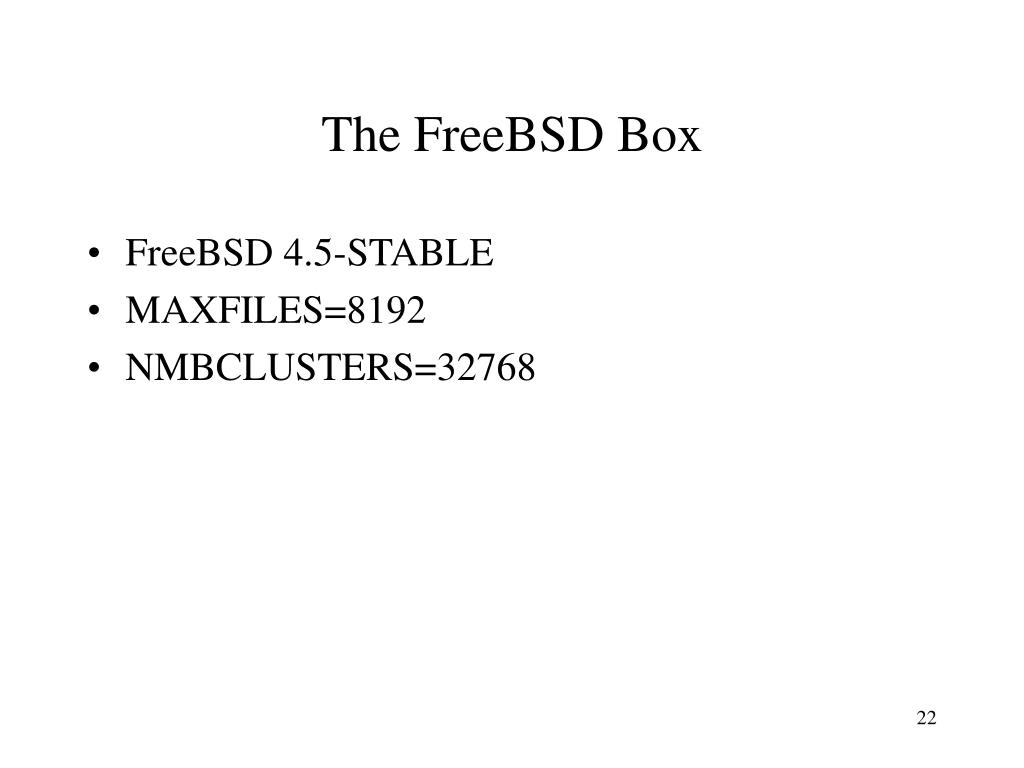

  22. The FreeBSD Box • FreeBSD 4.5-STABLE • MAXFILES=8192 • NMBCLUSTERS=32768

  23. FreeBSD Results

  24. The Solaris Box • Solaris 5.8 for Intel (generic 108592-09) • /etc/system: • rlim_fd_max=8192 • /etc/nsswitch.conf: • hosts: dns files • /etc/nscd.conf: • enable-cache hosts no • newfs –b 4096 –i 6144 … • tunefs –o space …

  25. Solaris Results

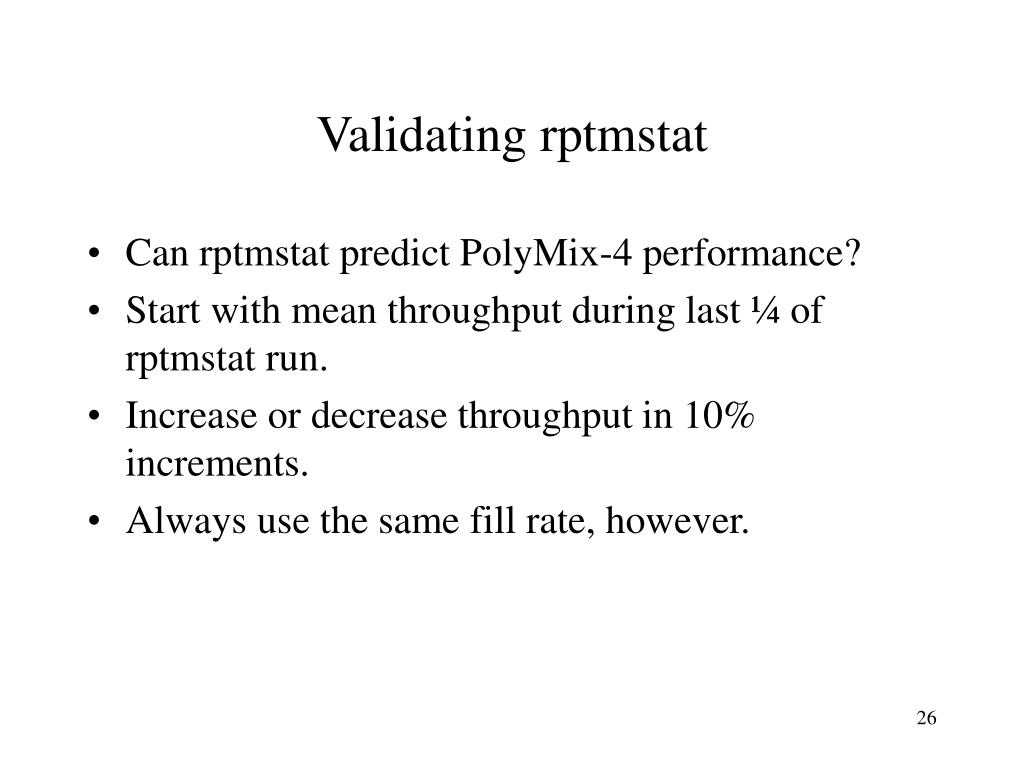

  26. Validating rptmstat • Can rptmstat predict PolyMix-4 performance? • Start with mean throughput during last ¼ of rptmstat run. • Increase or decrease throughput in 10% increments. • Always use the same fill rate, however.

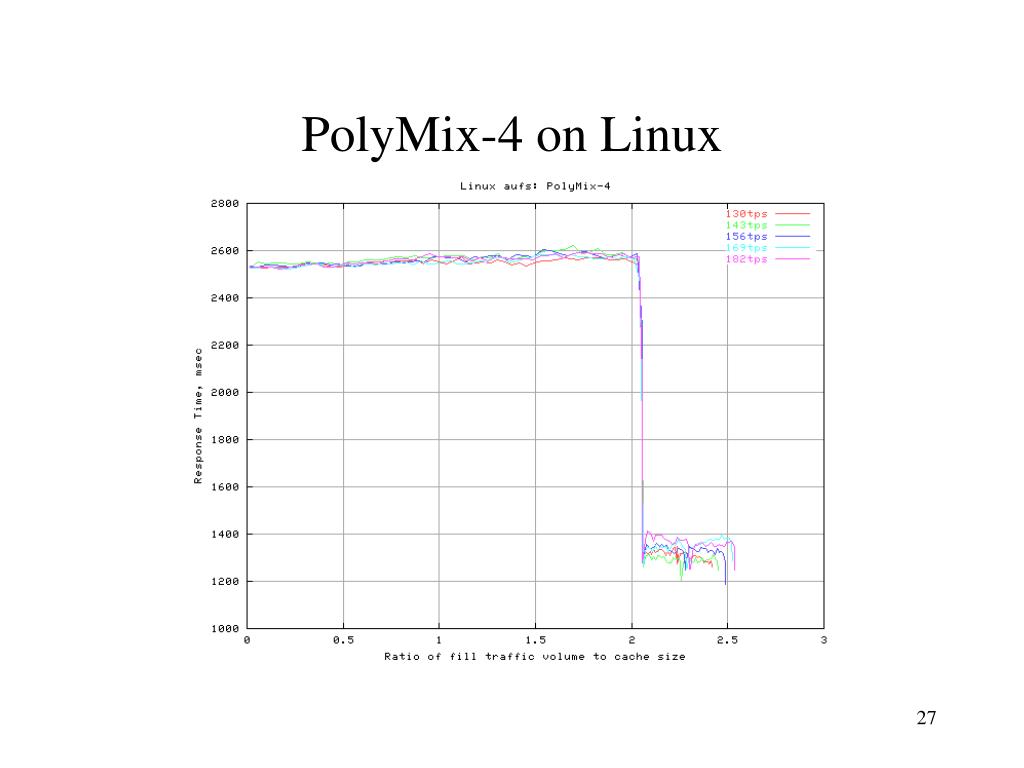

  27. PolyMix-4 on Linux

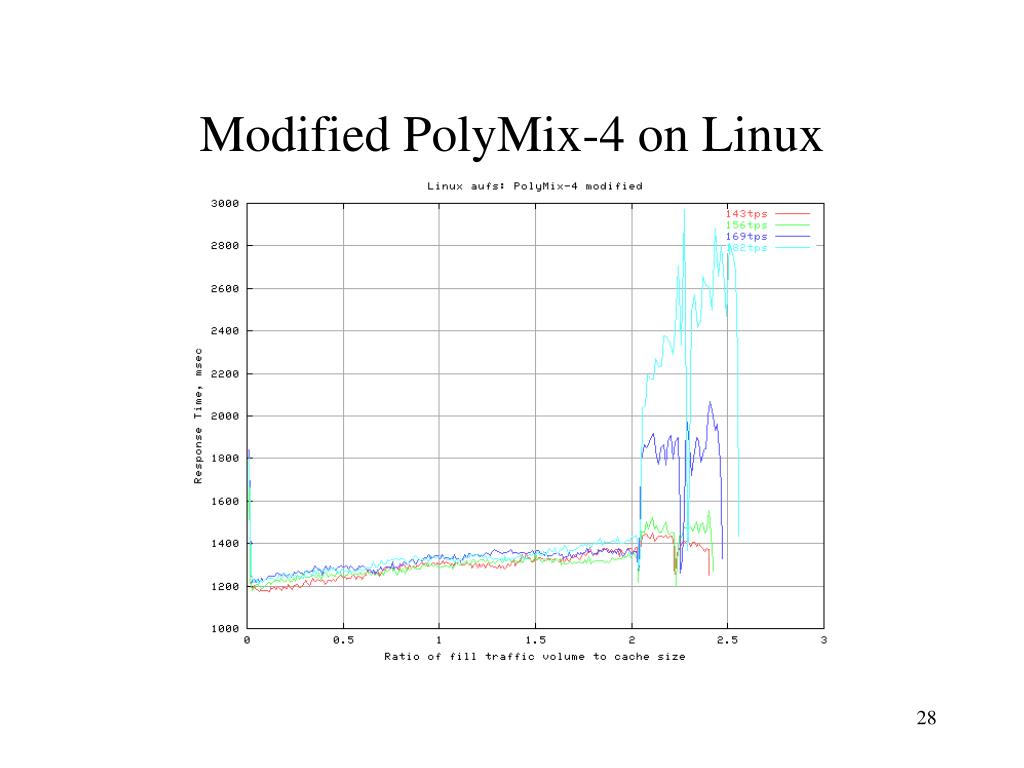

  28. Modified PolyMix-4 on Linux

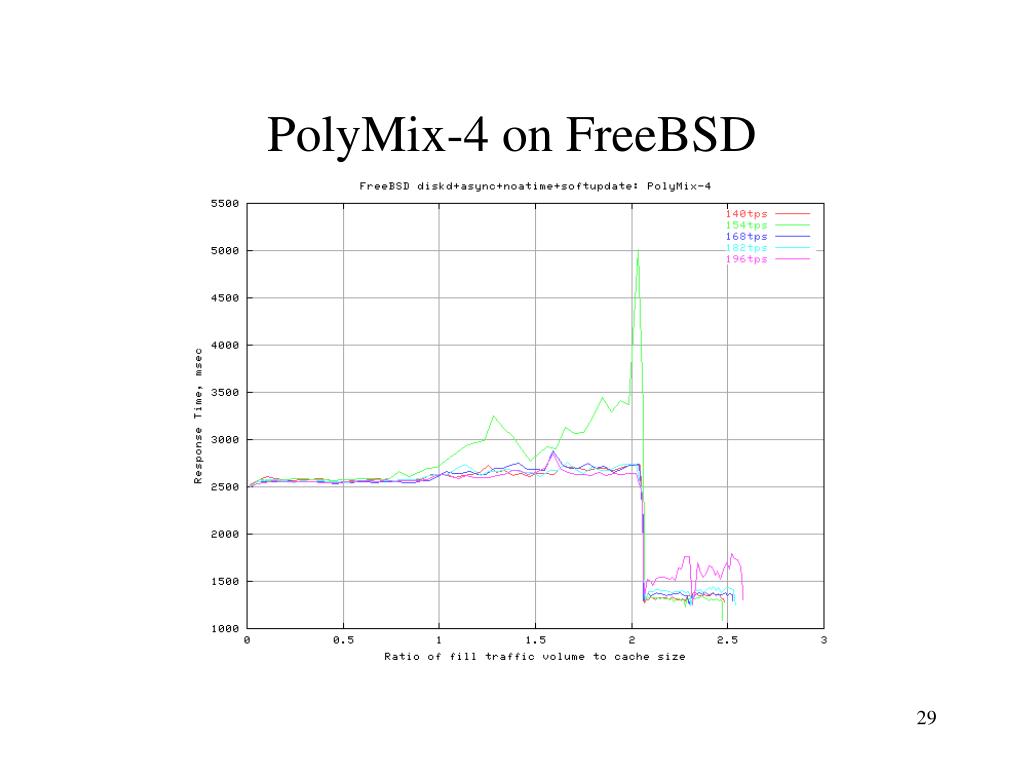

  29. PolyMix-4 on FreeBSD

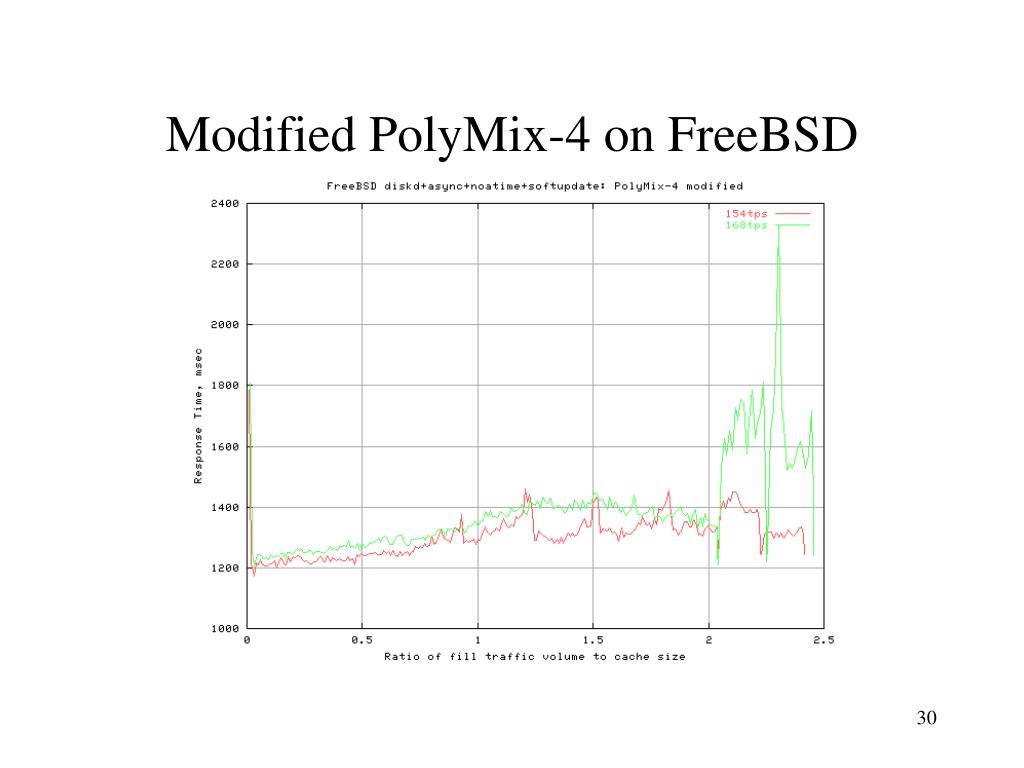

  30. Modified PolyMix-4 on FreeBSD

  31. Conclusions • For Squid, the best performing filesystems are: • FreeBSD: softupdates and diskd storage scheme • Linux: ext2fs and aufs storage scheme • The rptmstat workload does not accurately predict PolyMix-4 peak throughput. • rptmstat is a more difficult workload because DHR is always 60% • rptmstat predicts modified PolyMix-4 performance within 10%.

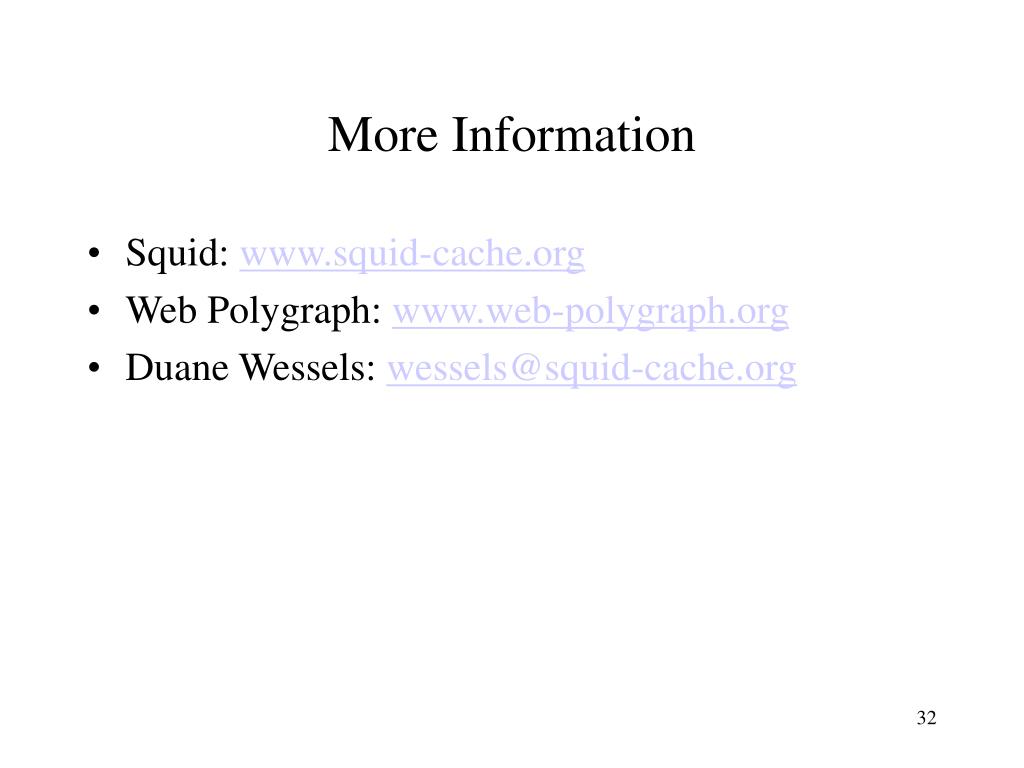

  32. More Information • Squid: www.squid-cache.org • Web Polygraph: www.web-polygraph.org • Duane Wessels: wessels@squid-cache.org
