  1. Welcome!New DynaVox Users

  2. Getting Started!An introduction the DynaVox Series 5 line of products

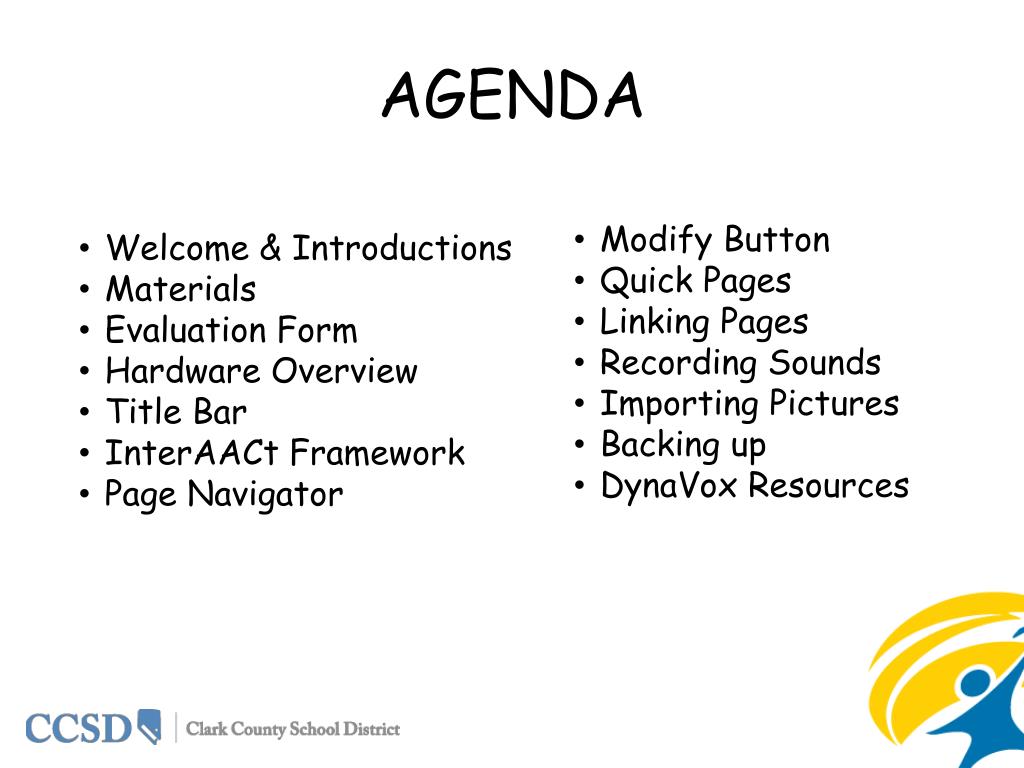

  3. AGENDA • Modify Button • Quick Pages • Linking Pages • Recording Sounds • Importing Pictures • Backing up • DynaVox Resources • Welcome & Introductions • Materials • Evaluation Form • Hardware Overview • Title Bar • InterAACt Framework • Page Navigator

  4. Evaluation Form • Allows us to continually assess and revise our training • Ensures we are able to provide the maximum number of trainings • Turned in before leaving

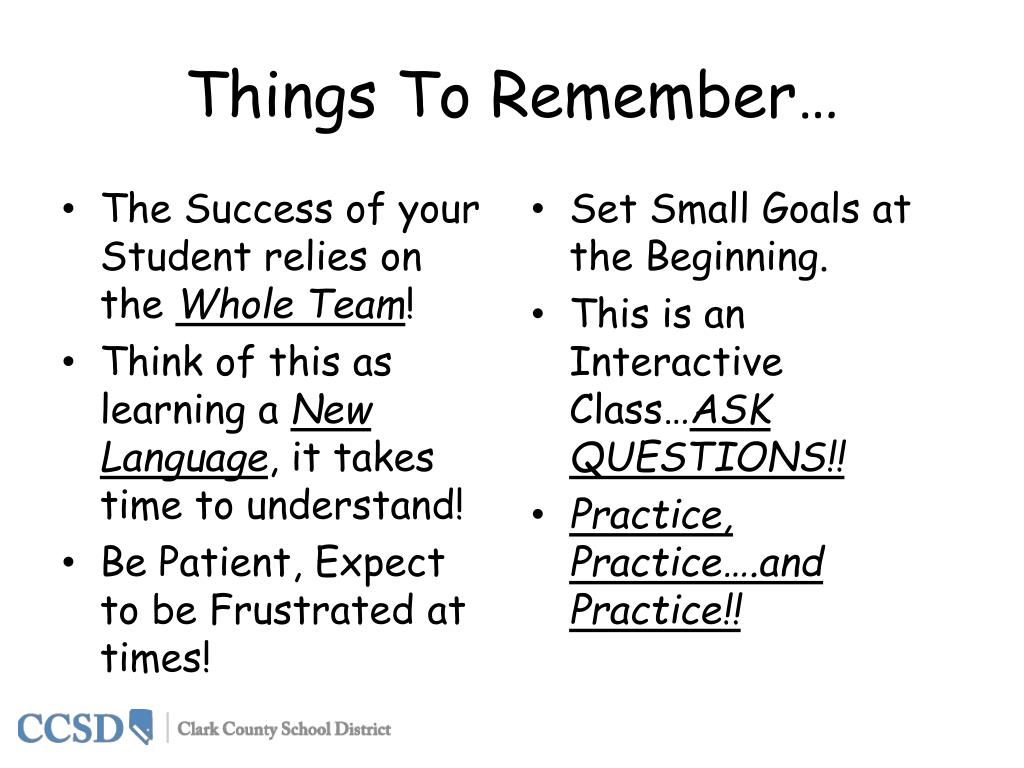

  5. Things To Remember… • The Success of your Student relies on the Whole Team! • Think of this as learning a New Language, it takes time to understand! • Be Patient, Expect to be Frustrated at times! • Set Small Goals at the Beginning. • This is an Interactive Class…ASK QUESTIONS!! • Practice, Practice….and Practice!!

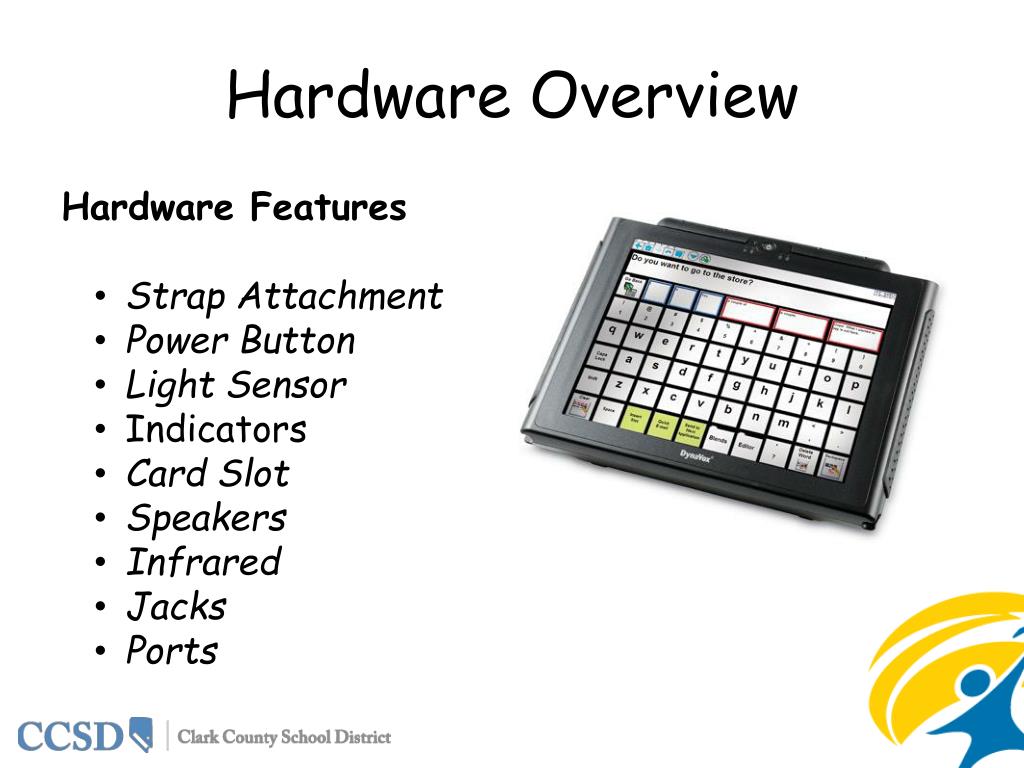

  6. Hardware Overview Hardware Features • Strap Attachment • Power Button • Light Sensor • Indicators • Card Slot • Speakers • Infrared • Jacks • Ports

  7. Battery • Charging • Run time • Proper care • Replacement

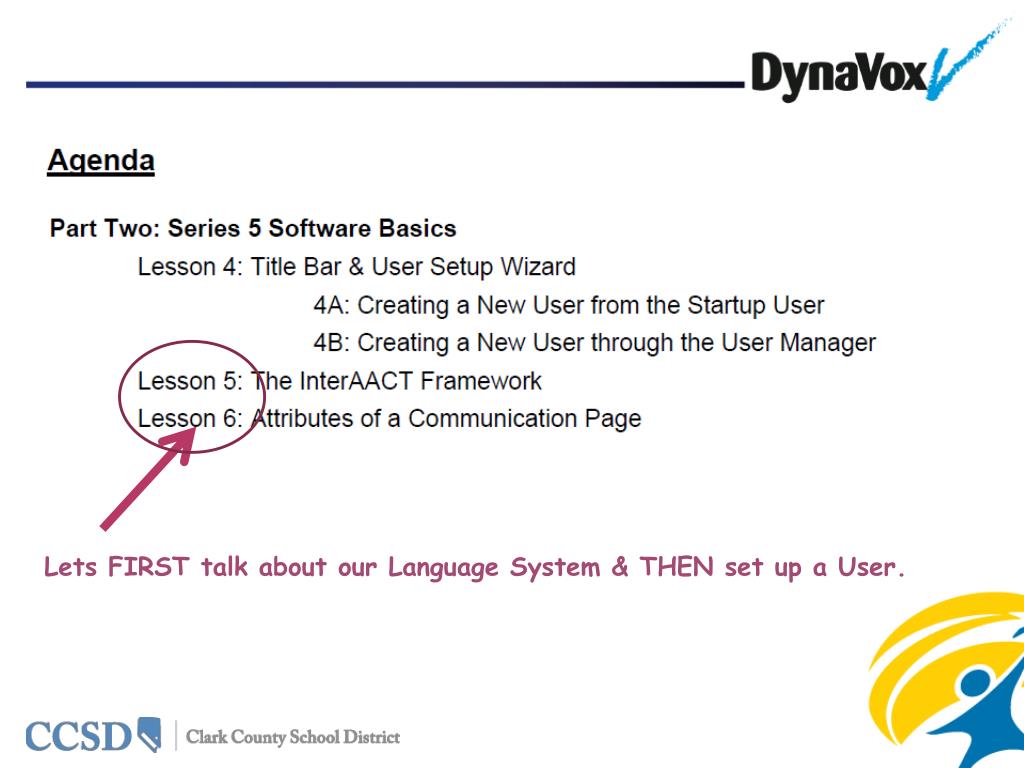

  8. Lets FIRST talk about our Language System & THEN set up a User.

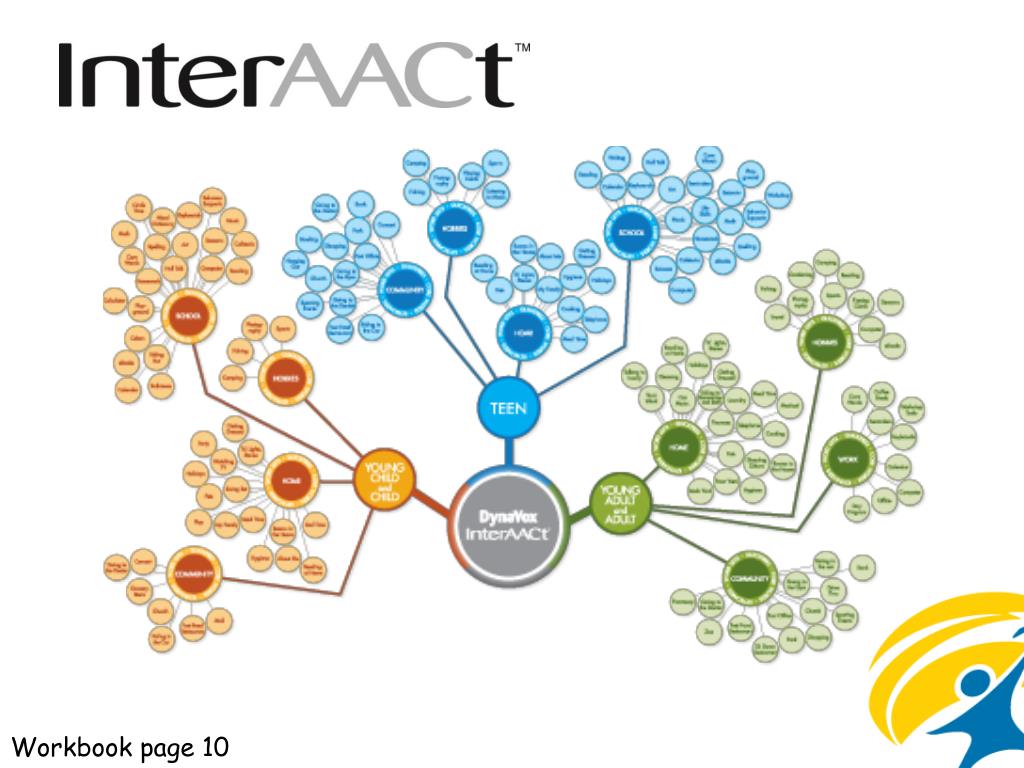

  9. Workbook page 10

  10. An event like a birthday party A standing obligation like the workplace A place like a fishing pond

  11. Attributes of a Communication Page

  12. Title Bar

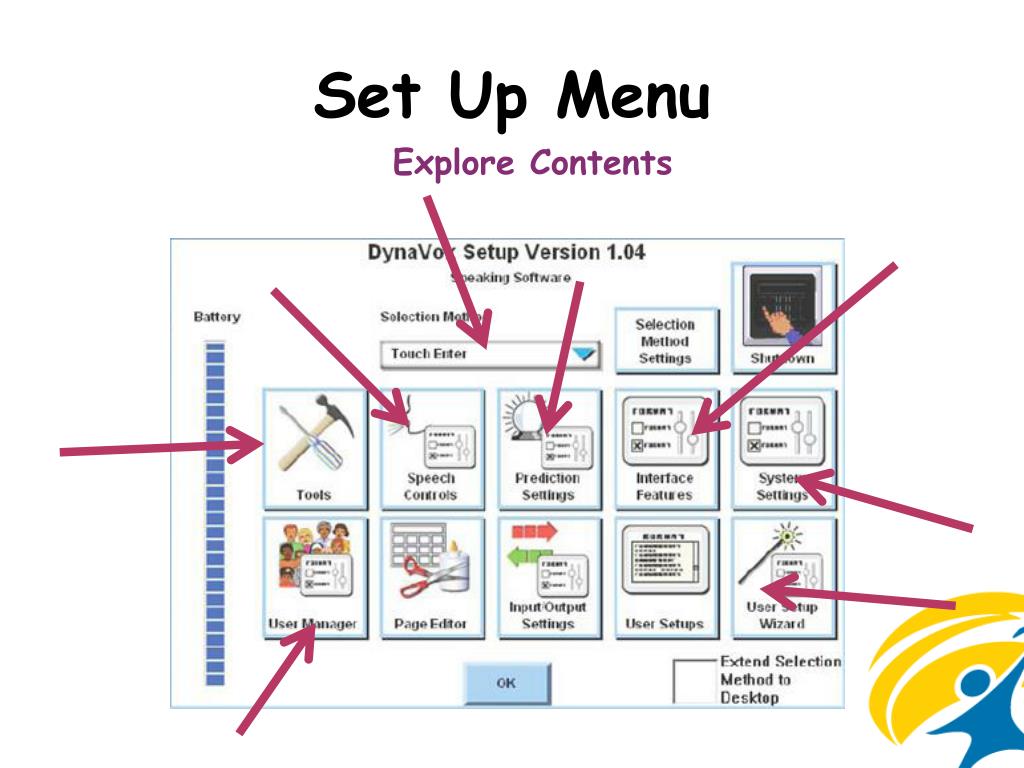

  13. Set Up Menu Explore Contents

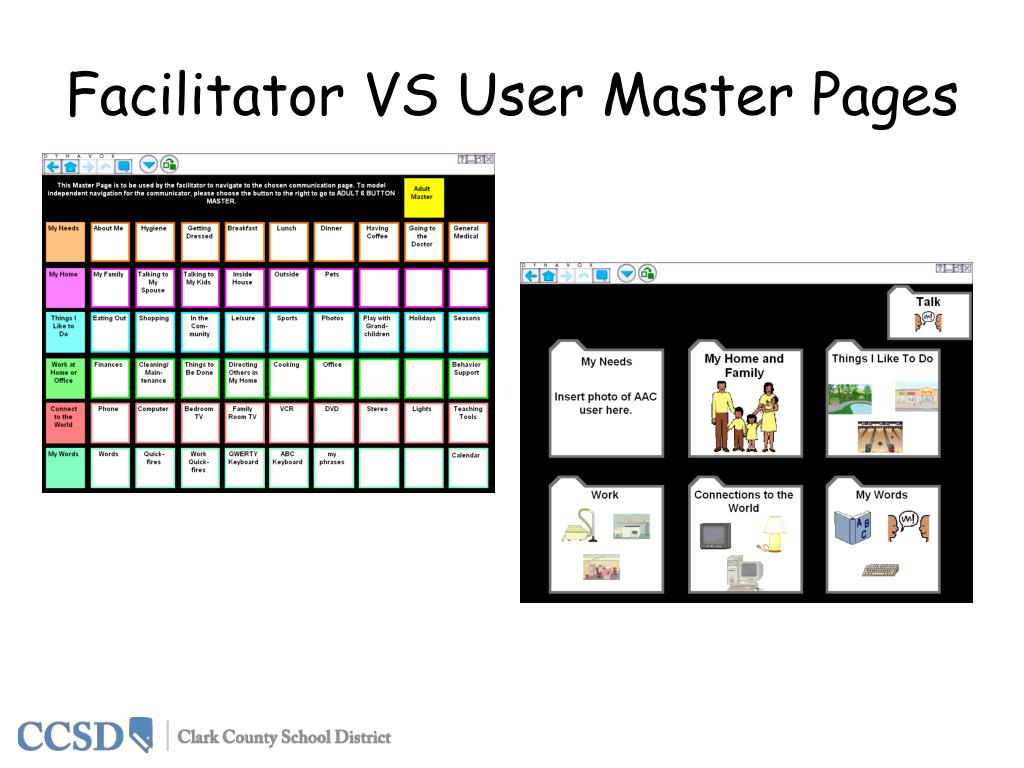

  14. Facilitator VS User Master Pages

  15. Page Navigator

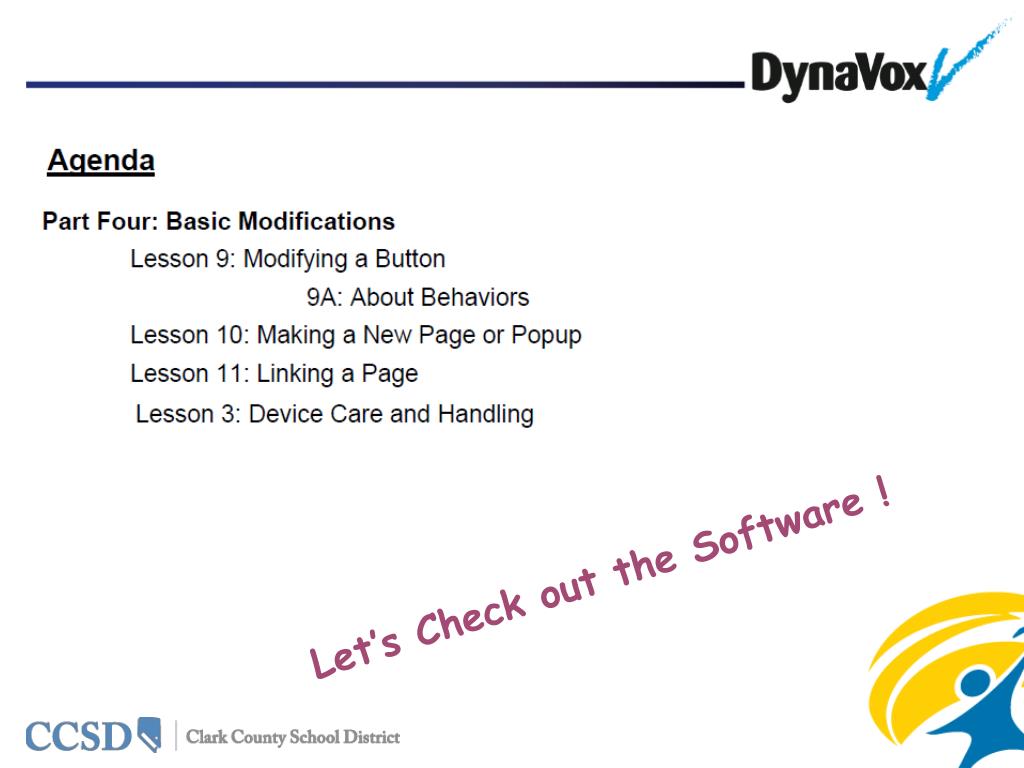

  16. Let’s Check out the Software !

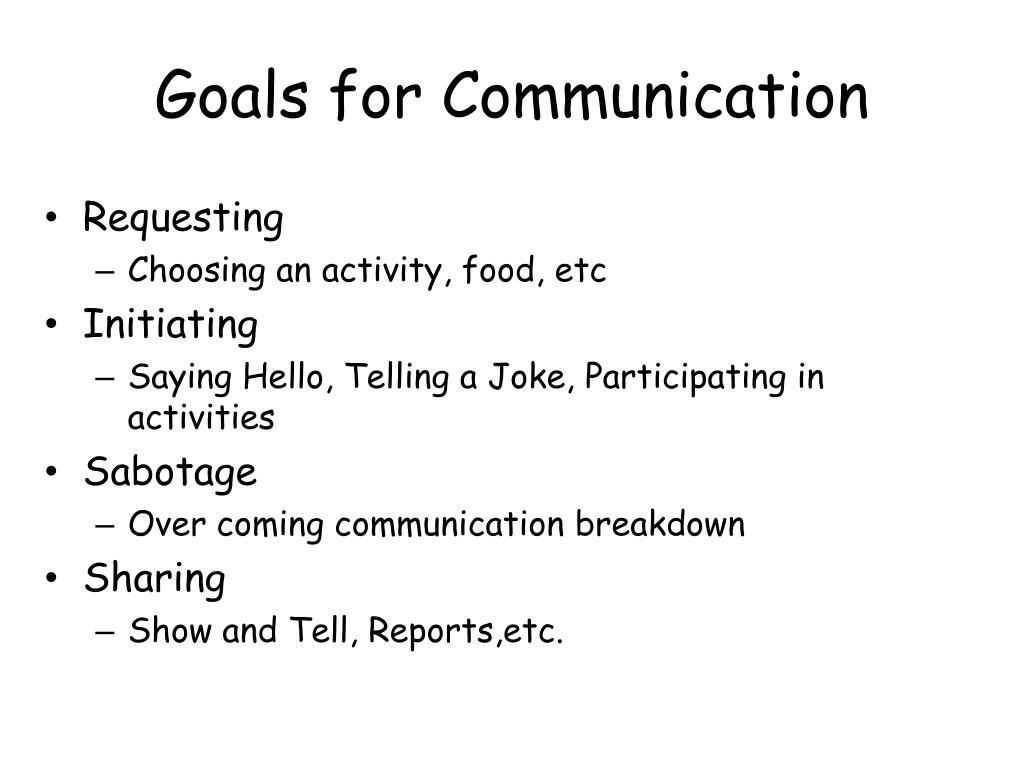

  17. Goals for Communication • Requesting • Choosing an activity, food, etc • Initiating • Saying Hello, Telling a Joke, Participating in activities • Sabotage • Over coming communication breakdown • Sharing • Show and Tell, Reports,etc.

  18. The Modify Button • Adding a Label to a Button • Adding a Text Message to a Button • Adding a New Symbol to a Button

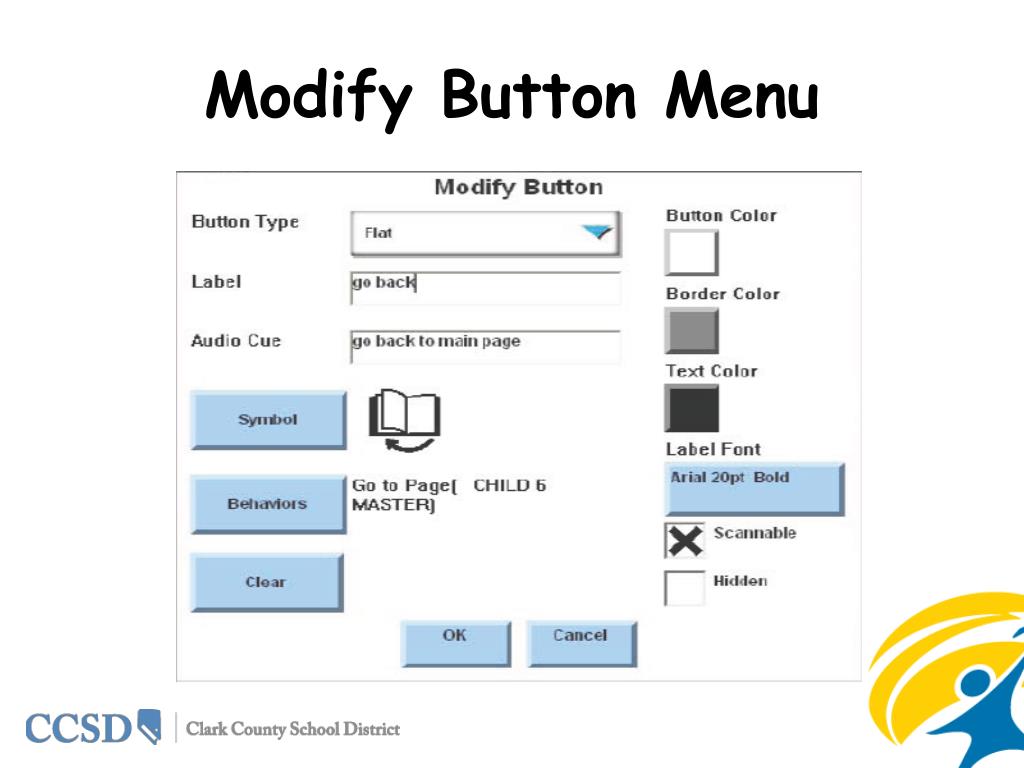

  19. Modify Button Menu

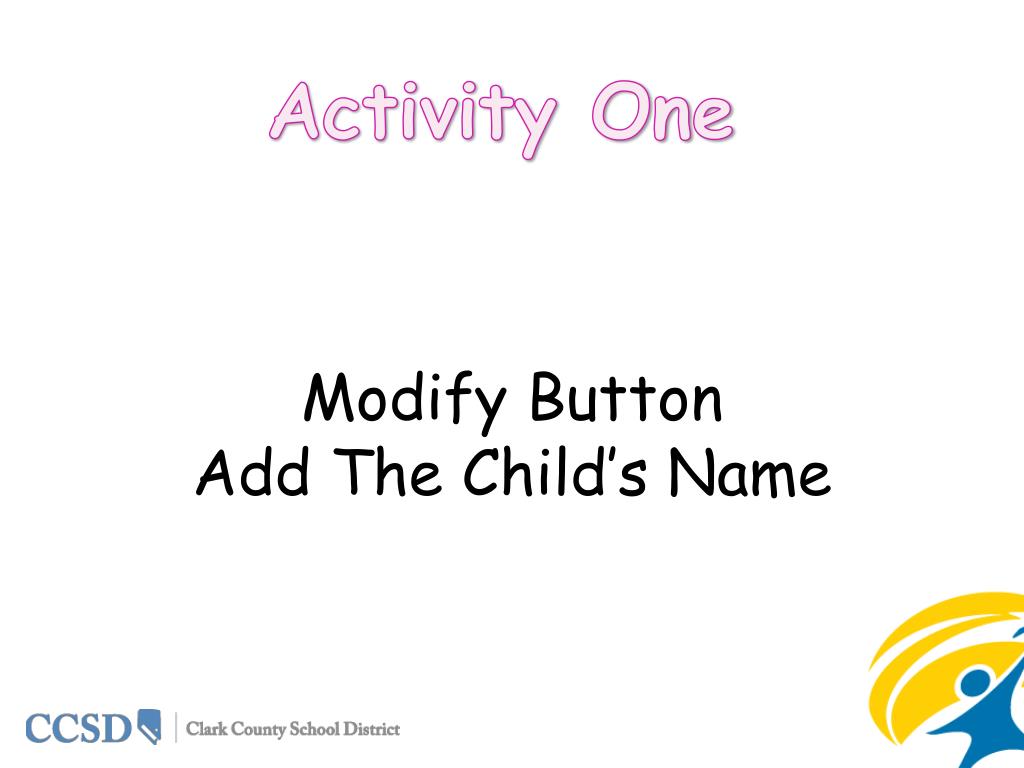

  20. Modify ButtonAdd The Child’s Name Activity One

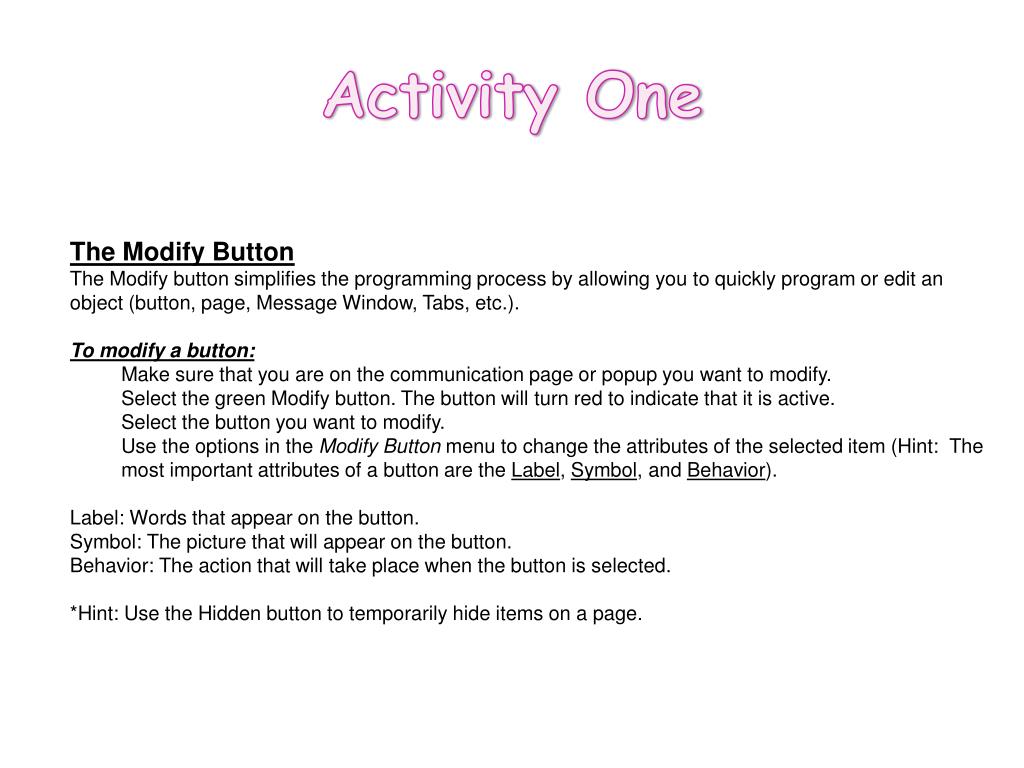

  21. Activity One The Modify Button The Modify button simplifies the programming process by allowing you to quickly program or edit an object (button, page, Message Window, Tabs, etc.). To modify a button: Make sure that you are on the communication page or popup you want to modify. Select the green Modify button. The button will turn red to indicate that it is active. Select the button you want to modify. Use the options in the Modify Button menu to change the attributes of the selected item (Hint: The most important attributes of a button are the Label, Symbol, and Behavior). Label: Words that appear on the button. Symbol: The picture that will appear on the button. Behavior: The action that will take place when the button is selected. *Hint: Use the Hidden button to temporarily hide items on a page.

  22. Swapping A ButtonSwap a button on the “Talk” Page Activity Two

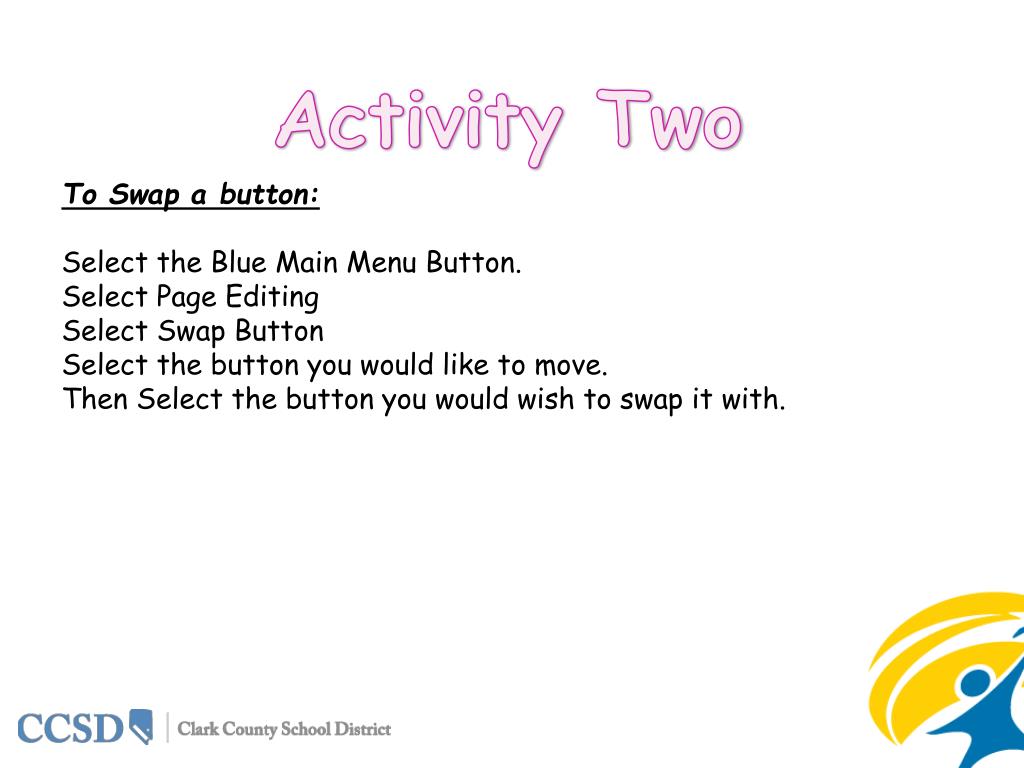

  23. To Swap a button:Select the Blue Main Menu Button. Select Page EditingSelect Swap ButtonSelect the button you would like to move.Then Select the button you would wish to swap it with. Activity Two

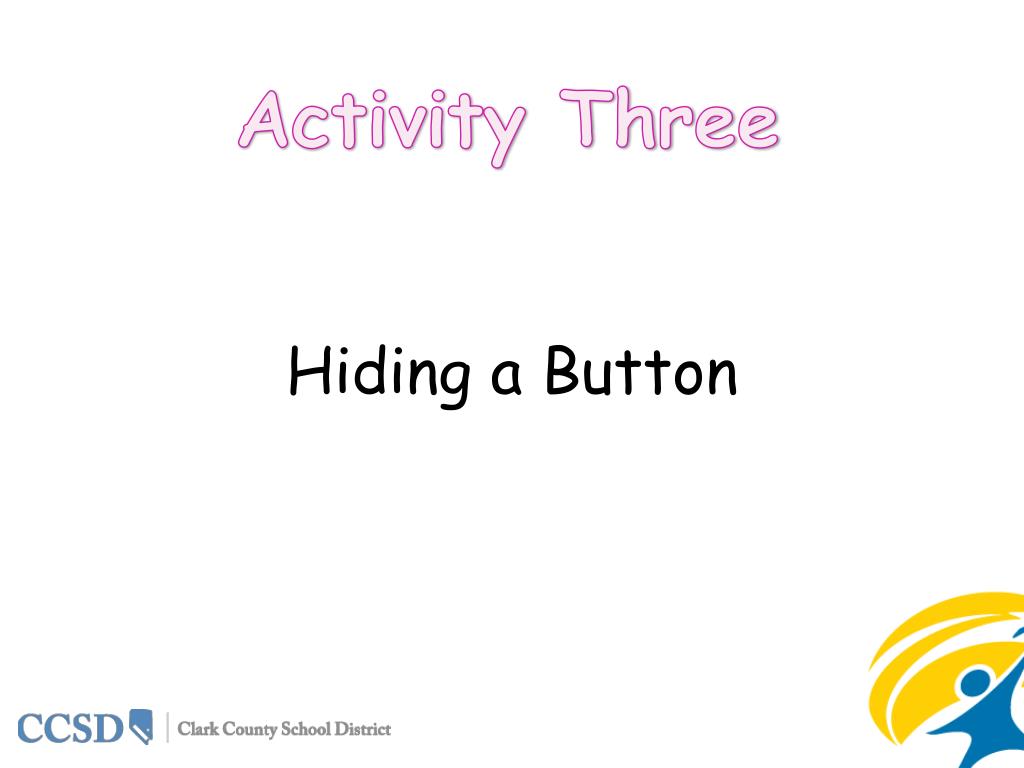

  24. Hiding a Button Activity Three

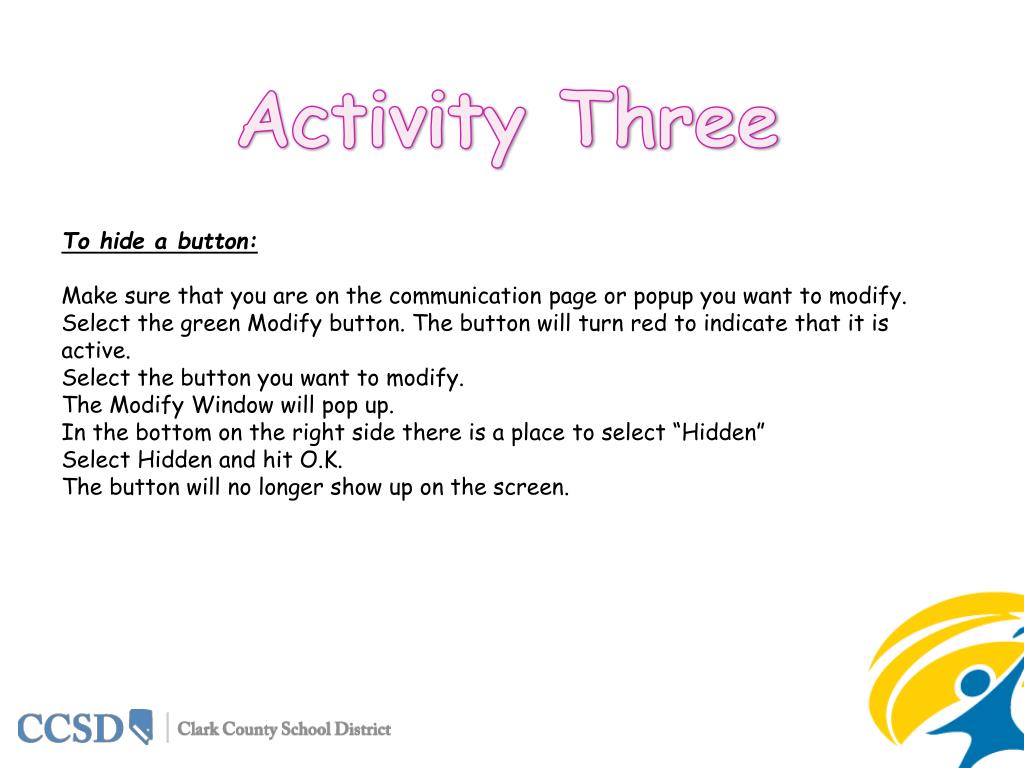

  25. To hide a button:Make sure that you are on the communication page or popup you want to modify.Select the green Modify button. The button will turn red to indicate that it is active.Select the button you want to modify.The Modify Window will pop up. In the bottom on the right side there is a place to select “Hidden” Select Hidden and hit O.K.The button will no longer show up on the screen. Activity Three

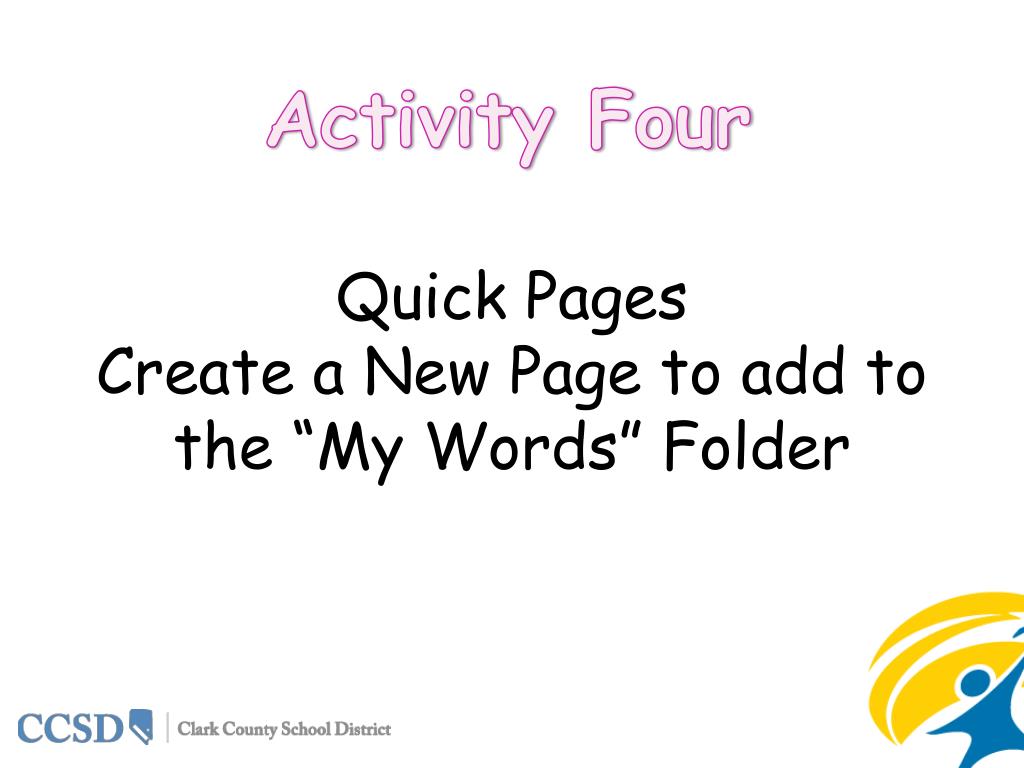

  26. Quick PagesCreate a New Page to add to the “My Words” Folder Activity Four

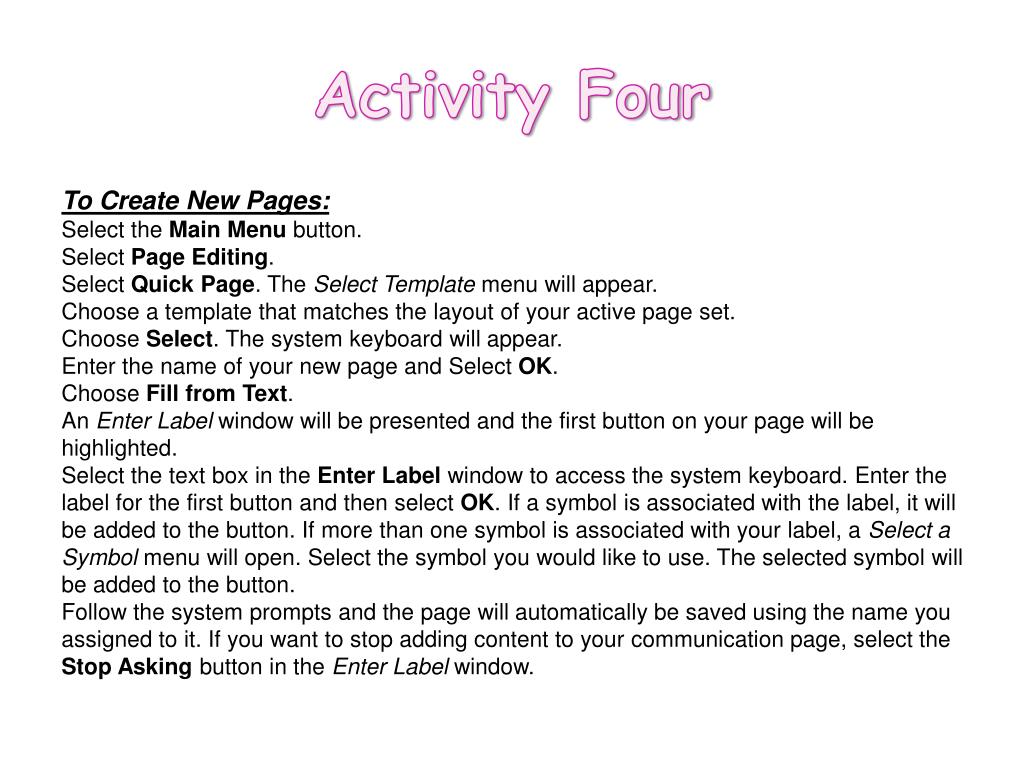

  27. Activity Four To Create New Pages: Select the Main Menu button. Select Page Editing. Select Quick Page. The Select Template menu will appear. Choose a template that matches the layout of your active page set. Choose Select. The system keyboard will appear. Enter the name of your new page and Select OK. Choose Fill from Text. An Enter Label window will be presented and the first button on your page will be highlighted. Select the text box in the Enter Label window to access the system keyboard. Enter the label for the first button and then select OK. If a symbol is associated with the label, it will be added to the button. If more than one symbol is associated with your label, a Select a Symbol menu will open. Select the symbol you would like to use. The selected symbol will be added to the button. Follow the system prompts and the page will automatically be saved using the name you assigned to it. If you want to stop adding content to your communication page, select the Stop Asking button in the Enter Label window.

  28. Linking PagesLink your New Page to “My Words” Activity Five

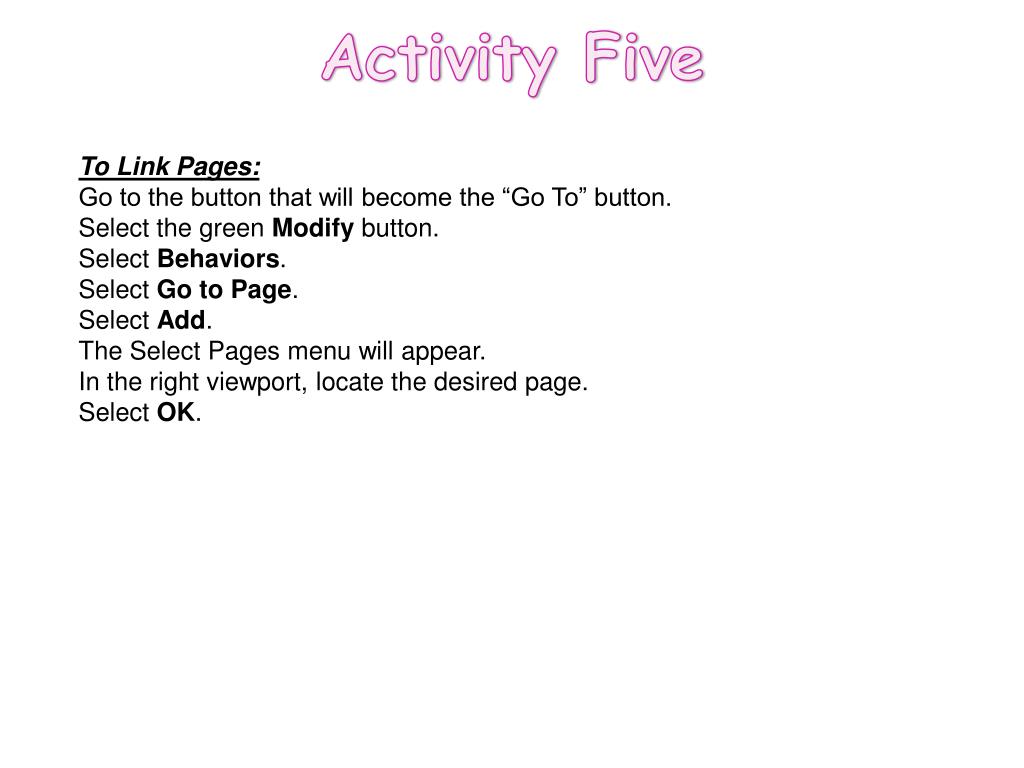

  29. Activity Five To Link Pages: Go to the button that will become the “Go To” button. Select the green Modify button. Select Behaviors. Select Go to Page. Select Add. The Select Pages menu will appear. In the right viewport, locate the desired page. Select OK.

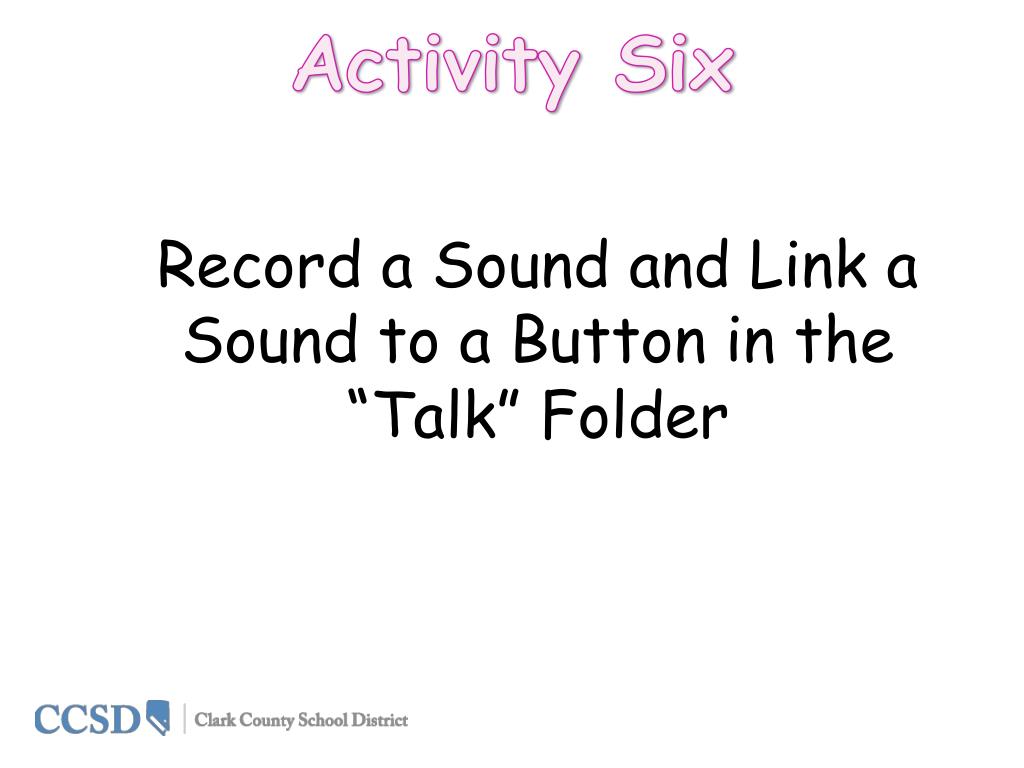

  30. Activity Six Record a Sound and Link a Sound to a Button in the “Talk” Folder

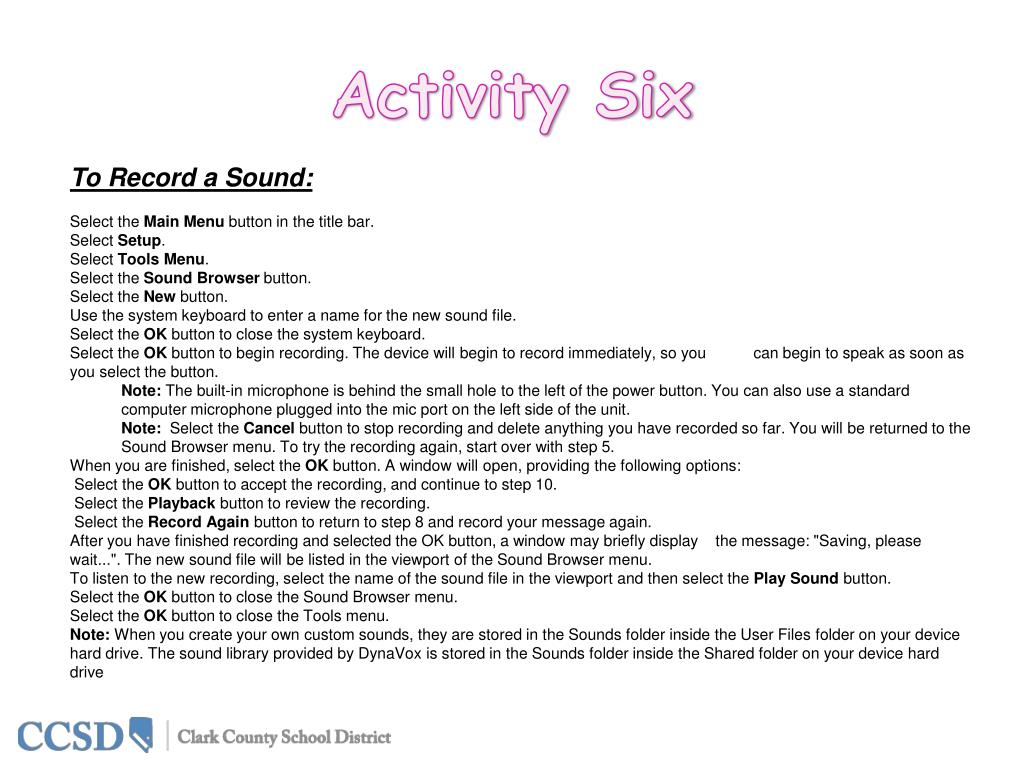

  31. Activity Six • To Record a Sound: • Select the Main Menu button in the title bar. • Select Setup. • Select Tools Menu. • Select the Sound Browser button. • Select the New button. • Use the system keyboard to enter a name for the new sound file. • Select the OK button to close the system keyboard. • Select the OK button to begin recording. The device will begin to record immediately, so you can begin to speak as soon as you select the button. • Note: The built-in microphone is behind the small hole to the left of the power button. You can also use a standard computer microphone plugged into the mic port on the left side of the unit. • Note:  Select the Cancel button to stop recording and delete anything you have recorded so far. You will be returned to the Sound Browser menu. To try the recording again, start over with step 5. • When you are finished, select the OK button. A window will open, providing the following options: • Select the OK button to accept the recording, and continue to step 10. • Select the Playback button to review the recording. • Select the Record Again button to return to step 8 and record your message again. • After you have finished recording and selected the OK button, a window may briefly display the message: "Saving, please wait...". The new sound file will be listed in the viewport of the Sound Browser menu. • To listen to the new recording, select the name of the sound file in the viewport and then select the Play Sound button. • Select the OK button to close the Sound Browser menu. • Select the OK button to close the Tools menu. • Note: When you create your own custom sounds, they are stored in the Sounds folder inside the User Files folder on your device hard drive. The sound library provided by DynaVox is stored in the Sounds folder inside the Shared folder on your device hard drive

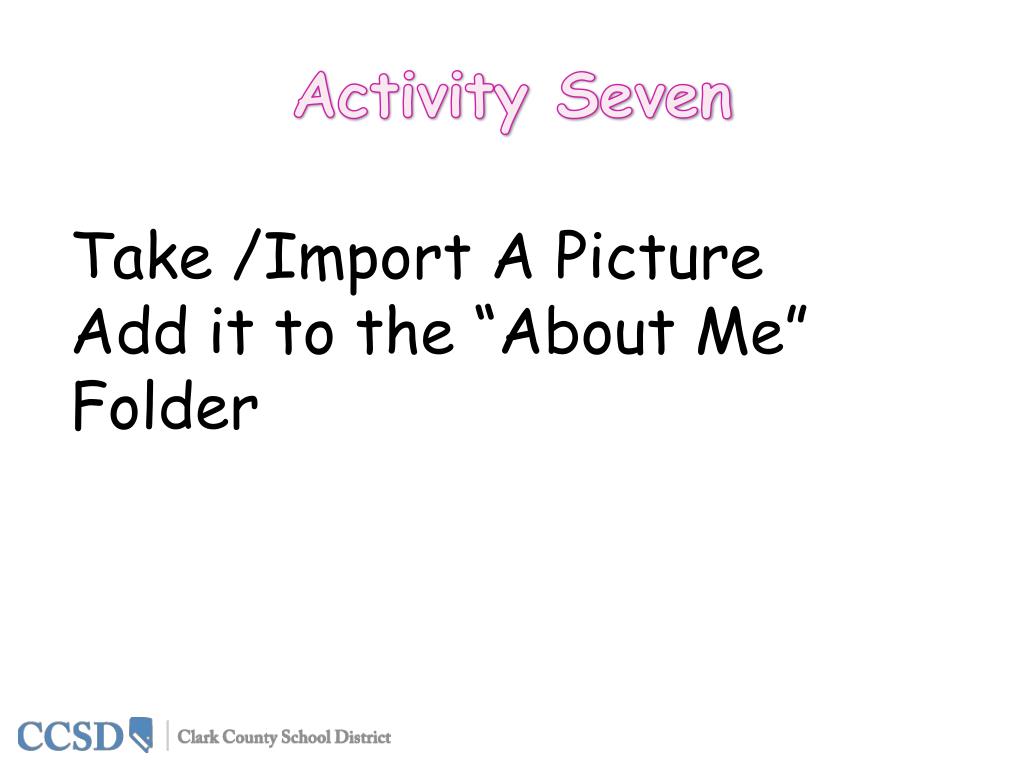

  32. Activity Seven Take /Import A Picture Add it to the “About Me” Folder

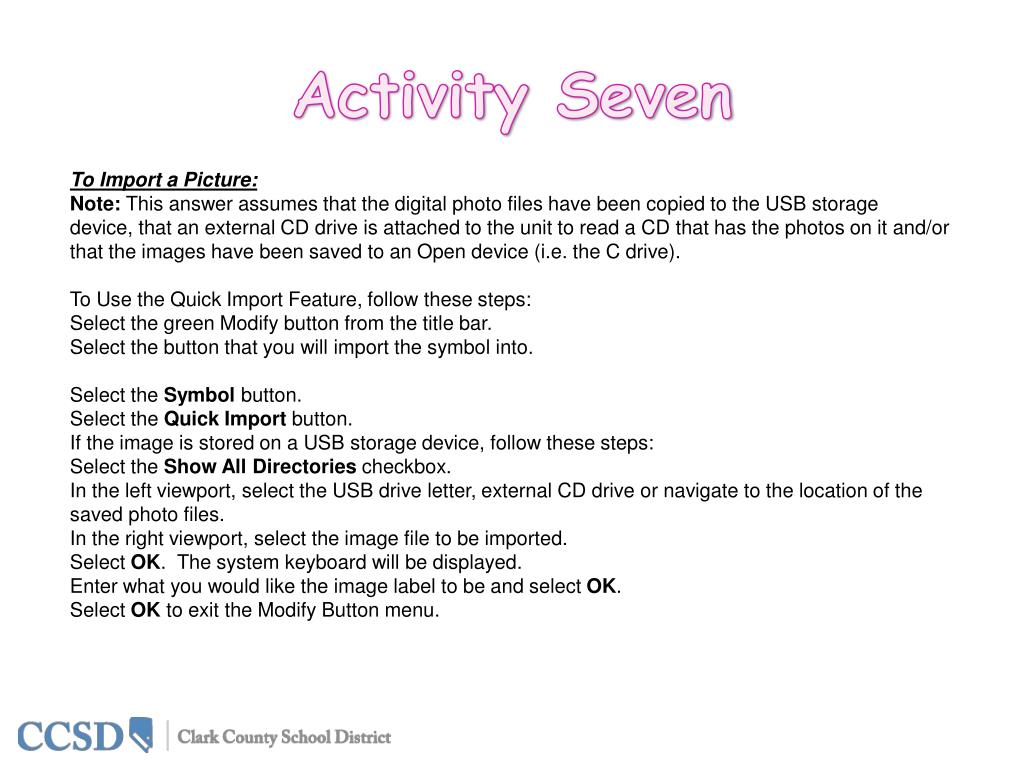

  33. Activity Seven To Import a Picture: Note: This answer assumes that the digital photo files have been copied to the USB storage device, that an external CD drive is attached to the unit to read a CD that has the photos on it and/or that the images have been saved to an Open device (i.e. the C drive). To Use the Quick Import Feature, follow these steps: Select the green Modify button from the title bar. Select the button that you will import the symbol into. Select the Symbol button. Select the Quick Import button.  If the image is stored on a USB storage device, follow these steps: Select the Show All Directories checkbox. In the left viewport, select the USB drive letter, external CD drive or navigate to the location of the saved photo files. In the right viewport, select the image file to be imported. Select OK.  The system keyboard will be displayed. Enter what you would like the image label to be and select OK. Select OK to exit the Modify Button menu.

  34. Backing up Activity Eight

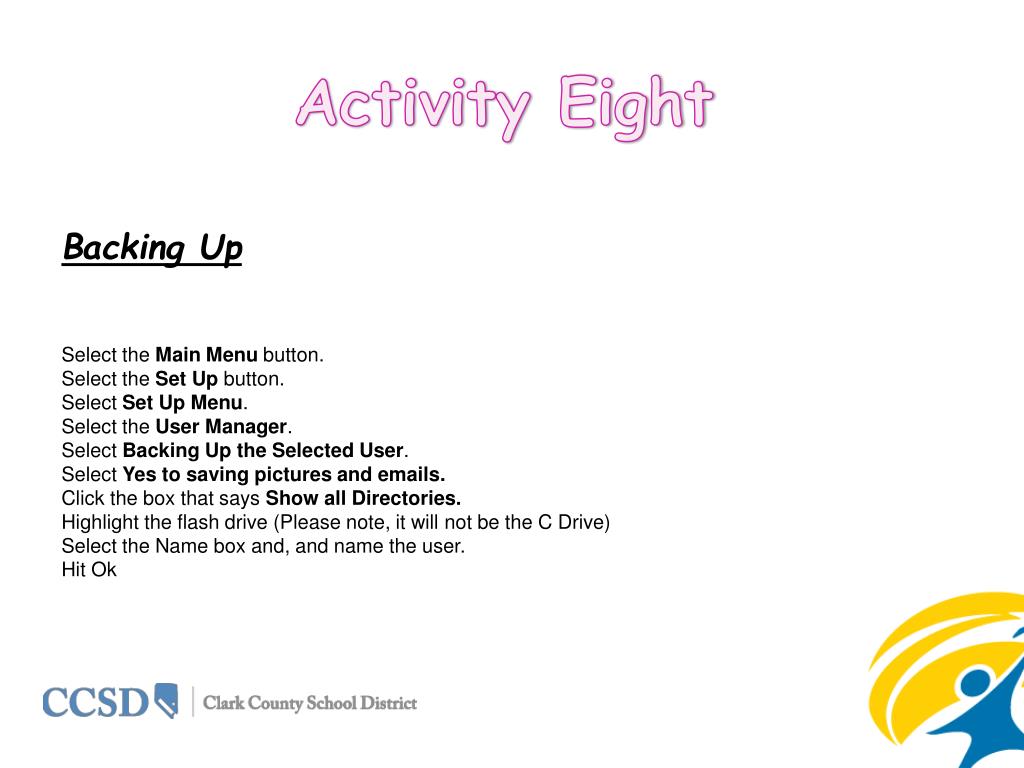

  35. Backing UpSelect the Main Menu button.Select the Set Up button.Select Set Up Menu.Select the User Manager.Select Backing Up the Selected User.Select Yes to saving pictures and emails.Click the box that says Show all Directories.Highlight the flash drive (Please note, it will not be the C Drive)Select the Name box and, and name the user.Hit Ok Activity Eight

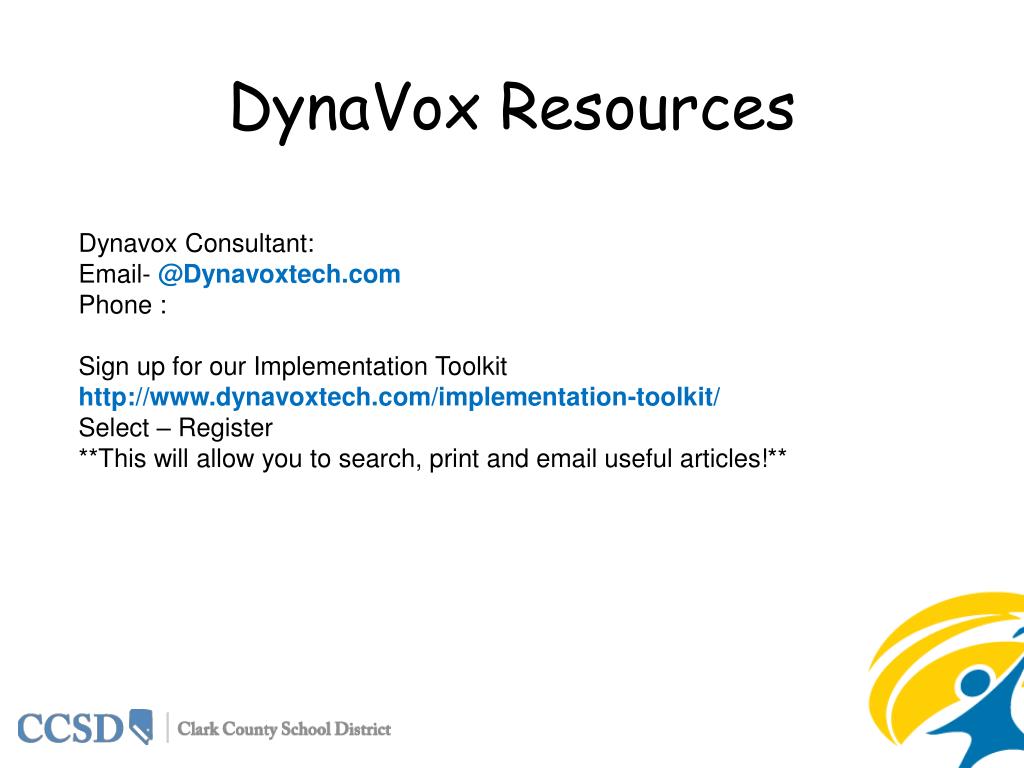

  36. DynaVox Resources Dynavox Consultant: Email- @Dynavoxtech.com Phone : Sign up for our Implementation Toolkit http://www.dynavoxtech.com/implementation-toolkit/ Select – Register **This will allow you to search, print and email useful articles!**

  37. THANK YOU
