  1. ECE 354 Lab 3: Transmitting and Receiving Ethernet Packets

  2. Big Picture Introduction • Transmit and Receive Ethernet packets between two DE2 boards • Implement the 5-layer Internet model • Primarily written in C code • Use a preexisting SOPC system from the DE2_NET project

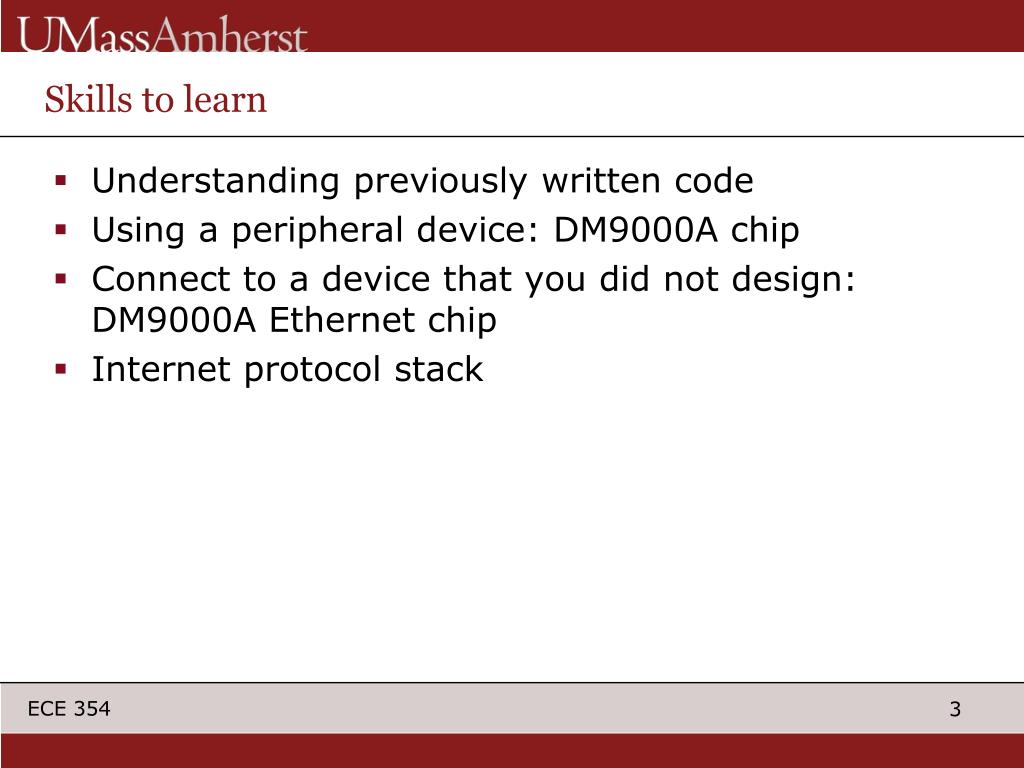

  3. Skills to learn • Understanding previously written code • Using a peripheral device: DM9000A chip • Connect to a device that you did not design: DM9000A Ethernet chip • Internet protocol stack

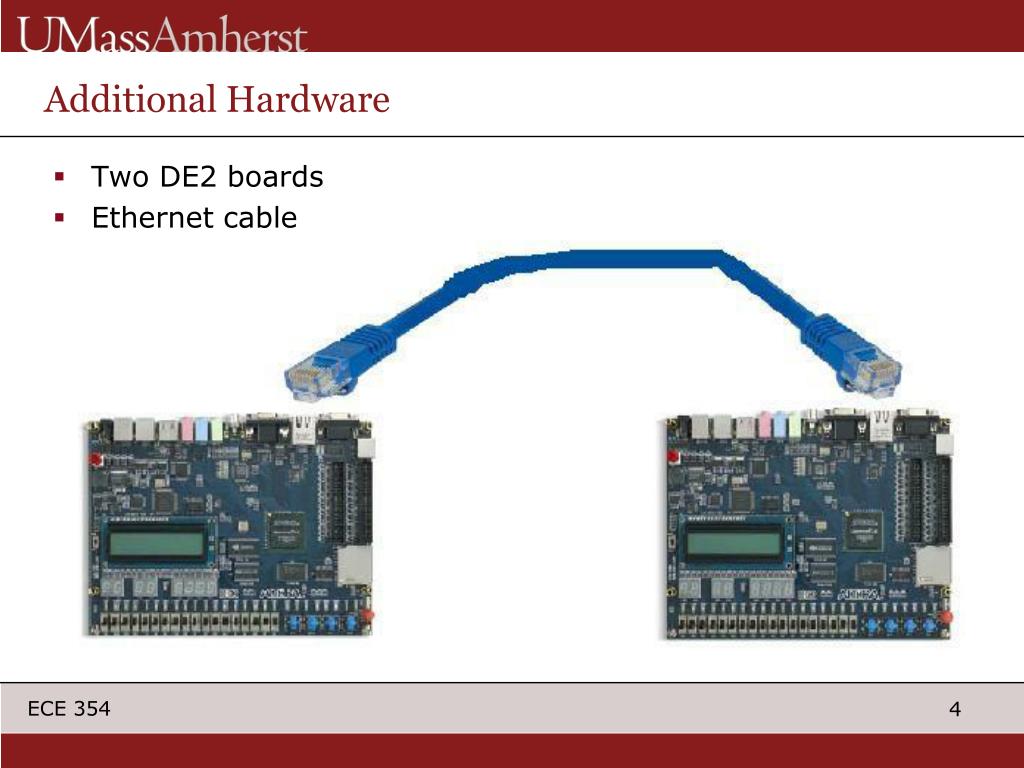

  4. Additional Hardware • Two DE2 boards • Ethernet cable

  5. The Internet protocol stack –as we will use it • Consists of 5 layers: Application, Transport, Network, Link, and Physical layer; ignore Session and Presentation (OSI)

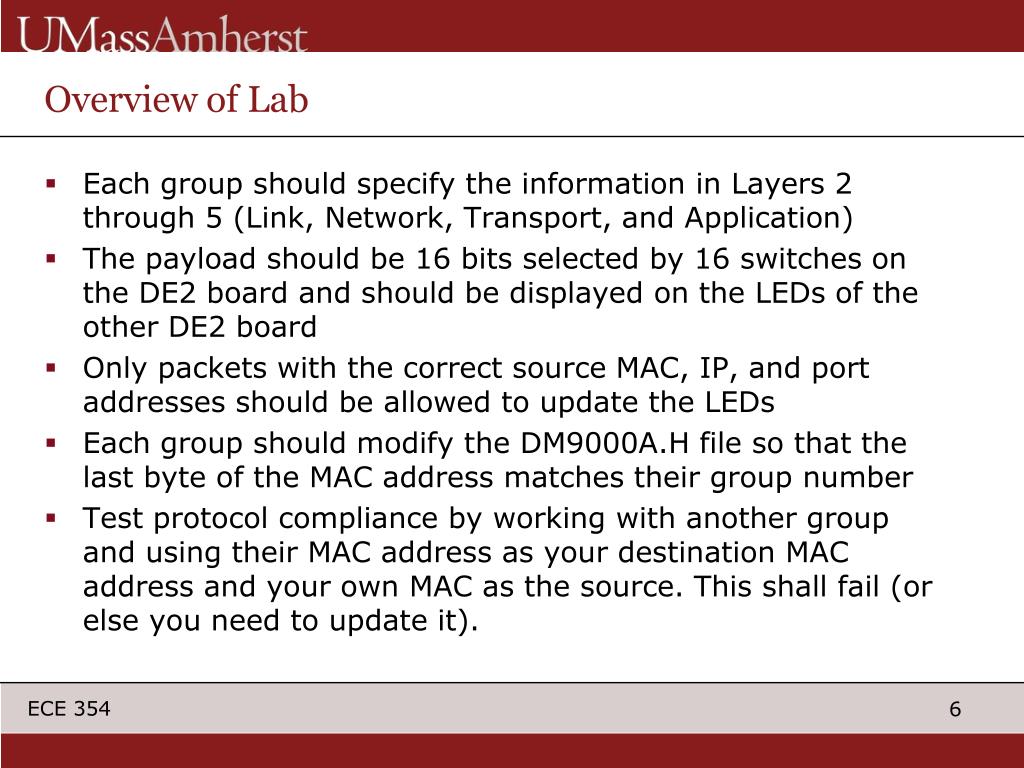

  6. Overview of Lab • Each group should specify the information in Layers 2 through 5 (Link, Network, Transport, and Application) • The payload should be 16 bits selected by 16 switches on the DE2 board and should be displayed on the LEDs of the other DE2 board • Only packets with the correct source MAC, IP, and port addresses should be allowed to update the LEDs • Each group should modify the DM9000A.H file so that the last byte of the MAC address matches their group number • Test protocol compliance by working with another group and using their MAC address as your destination MAC address and your own MAC as the source. This shall fail (or else you need to update it).

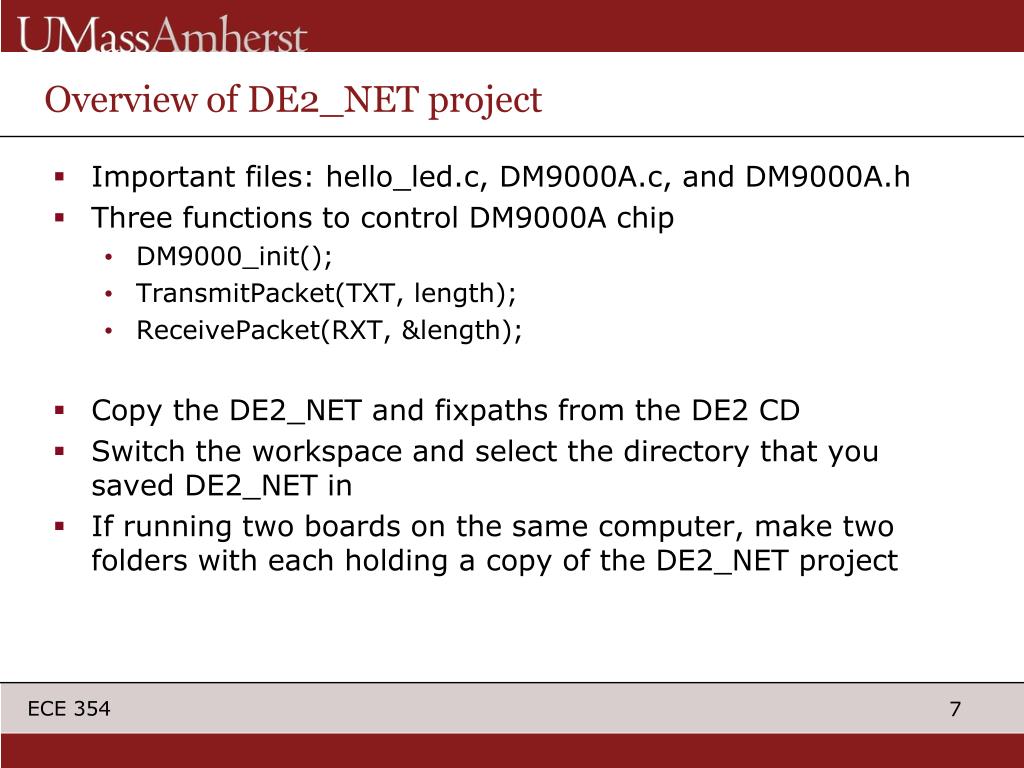

  7. Overview of DE2_NET project • Important files: hello_led.c, DM9000A.c, and DM9000A.h • Three functions to control DM9000A chip • DM9000_init(); • TransmitPacket(TXT, length); • ReceivePacket(RXT, &length); • Copy the DE2_NET and fixpaths from the DE2 CD • Switch the workspace and select the directory that you saved DE2_NET in • If running two boards on the same computer, make two folders with each holding a copy of the DE2_NET project

  8. Layers you will use • Create an Application Layer (5) message (data) by using the sixteen switches on the DE2 board • Encapsulate it into segment at the Transport Layer (4) • Encapsulate the segment in a datagram at the Network Layer (3) • Encapsulate the datagram in a frame at the Link Layer (2) • The frame will be sent over the Physical Layer (1)

  9. User Datagram Protocol (UDP) – Layer 4 (Transport Layer) • The Application Data will be encapsulated within a UDP segment • The Segment Header includes the Source Port, Destination Port, Length of Segment, and Checksum (2 bytes each, total of 8 bytes) • The Source and Destination Port numbers can be determined by the user, but the Length and Checksum will have to be calculated

  10. The Network Layer (3) - IPv4 • The Segment from the Transport Layer will be encapsulated within an IPv4 Datagram • Dominant network layer protocol on the internet • Data-oriented protocol to be used on a packet switched network, such as Ethernet • Note about Checksums: • Begin by first setting the checksum field of the header to zero. • Checksums involve the one’s compliment addition operation. In C take the one’s compliment of a number A by: unsigned int complimentA = ~A

  11. Packet consists of two sections: The parts of each section that you will use in the is lab are: Version: IP packet version (4) Header length (between 5 and 15) Total Length (size of datagram) header and data Identification: uniquely identifying fragments Header checksum Source and Destination address Data IPv4 packet structure

  12. Link Layer (2) – Ethernet Frame • The Datagram from the Network Layer is encapsulated within an Ethernet Frame • The Destination and Source MAC addresses should be set to uniquely identify each DE2 board • Extra credit will be awarded if you perform CRC Checksum, otherwise set it to a value of zero

  13. The Physical Layer (1) • Refers to the network hardware or physical cabling • Provides the means of transmitting raw bits • You can also use a loopback (included with kit) to send packets back your own board

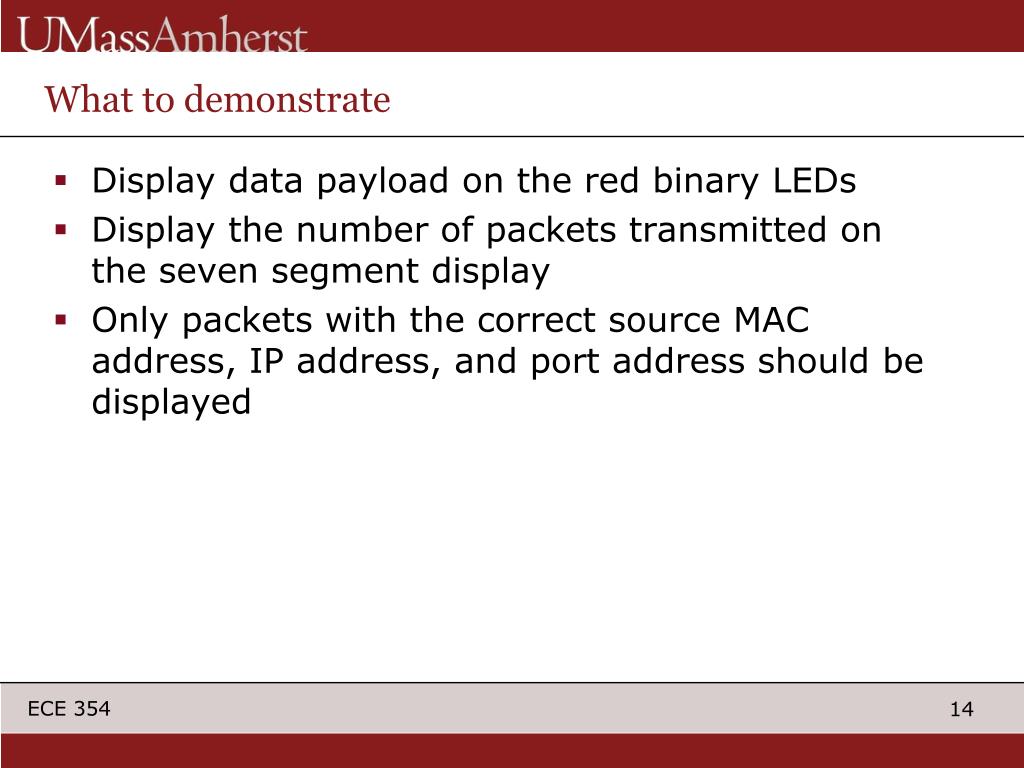

  14. What to demonstrate • Display data payload on the red binary LEDs • Display the number of packets transmitted on the seven segment display • Only packets with the correct source MAC address, IP address, and port address should be displayed

  15. Where does this project lead? • The next Lab (number 4) will put Lab 2 and Lab 3 together • Implement a reliable system

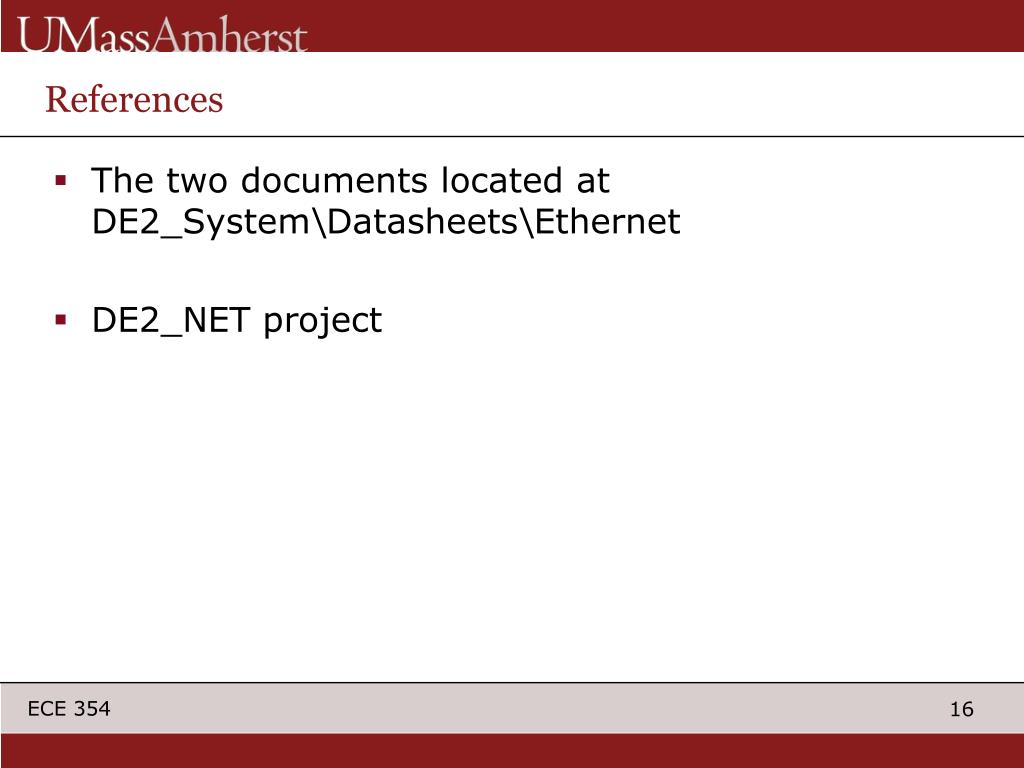

  16. References • The two documents located at DE2_System\Datasheets\Ethernet • DE2_NET project

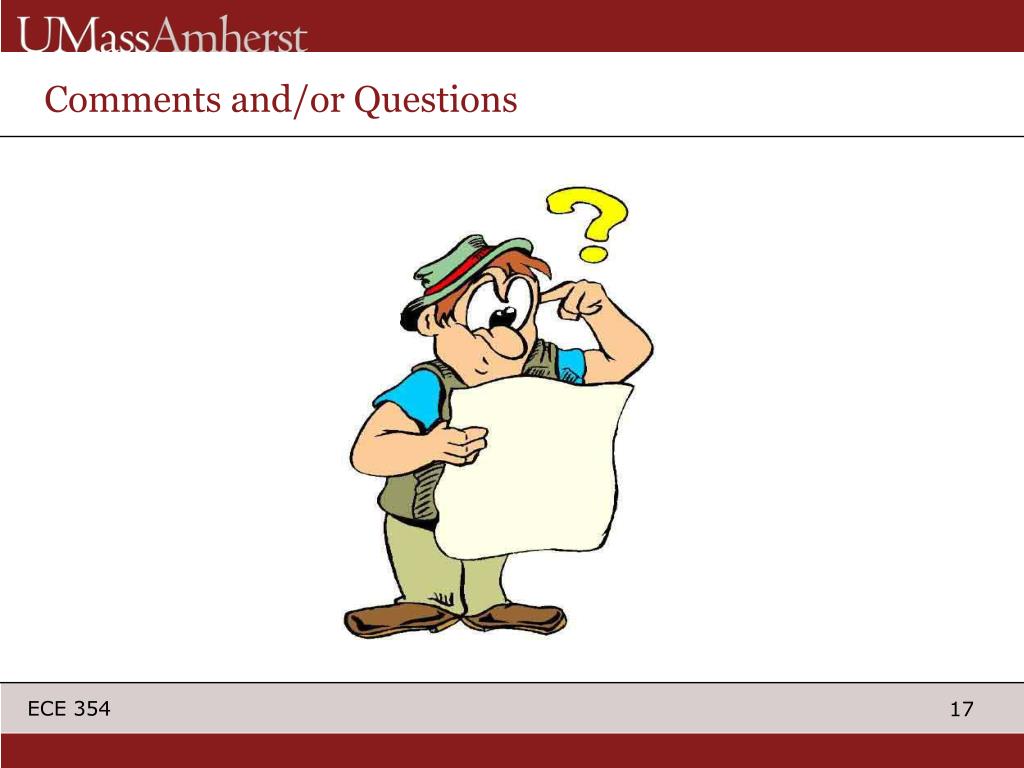

  17. Comments and/or Questions
