  1. Chapter 5 Naming

  2. Giving credit where credit is due: CSCE455/855Distributed Operating Systems • Most of the lecture notes are based on slides by Prof. Jalal Y. Kawash at Univ. of Calgary • Some slides are from Brennen Reynolds at University of California, Davis • I have modified them and added new slides

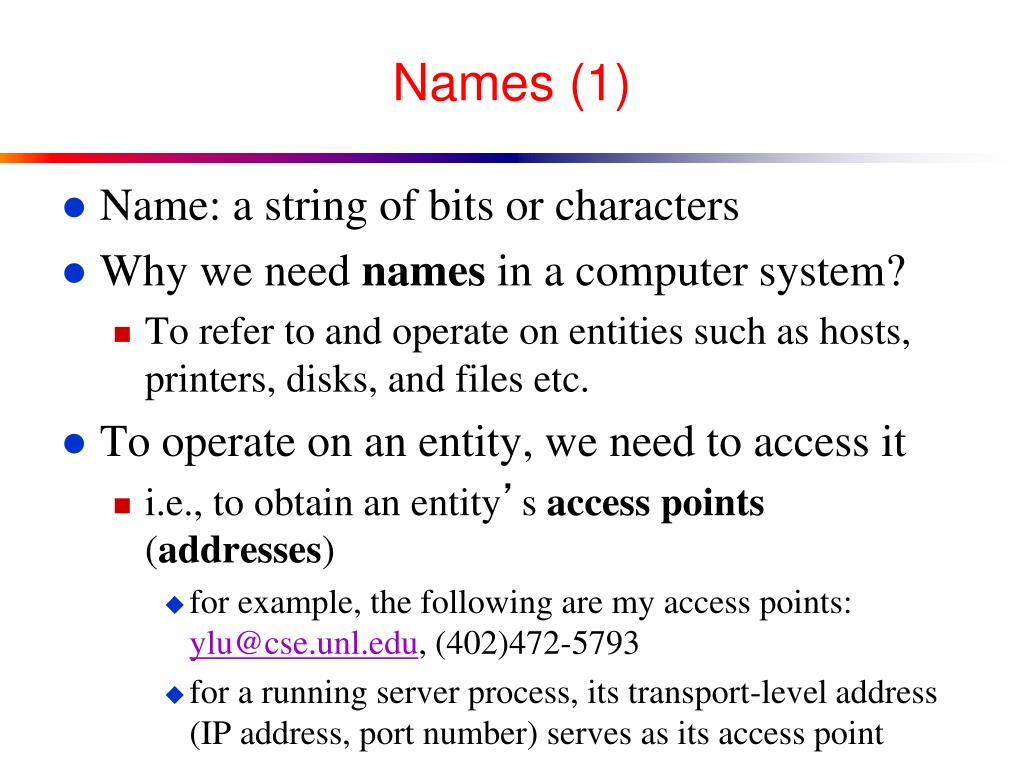

  3. Names (1) • Name: a string of bits or characters • Why we need names in a computer system? • To refer to and operate on entities such as hosts, printers, disks, and files etc. • To operate on an entity, we need to access it • i.e., to obtain an entity’s access points (addresses) • for example, the following are my access points: ylu@cse.unl.edu, (402)472-5793 • for a running server process, its transport-level address (IP address, port number) serves as its access point

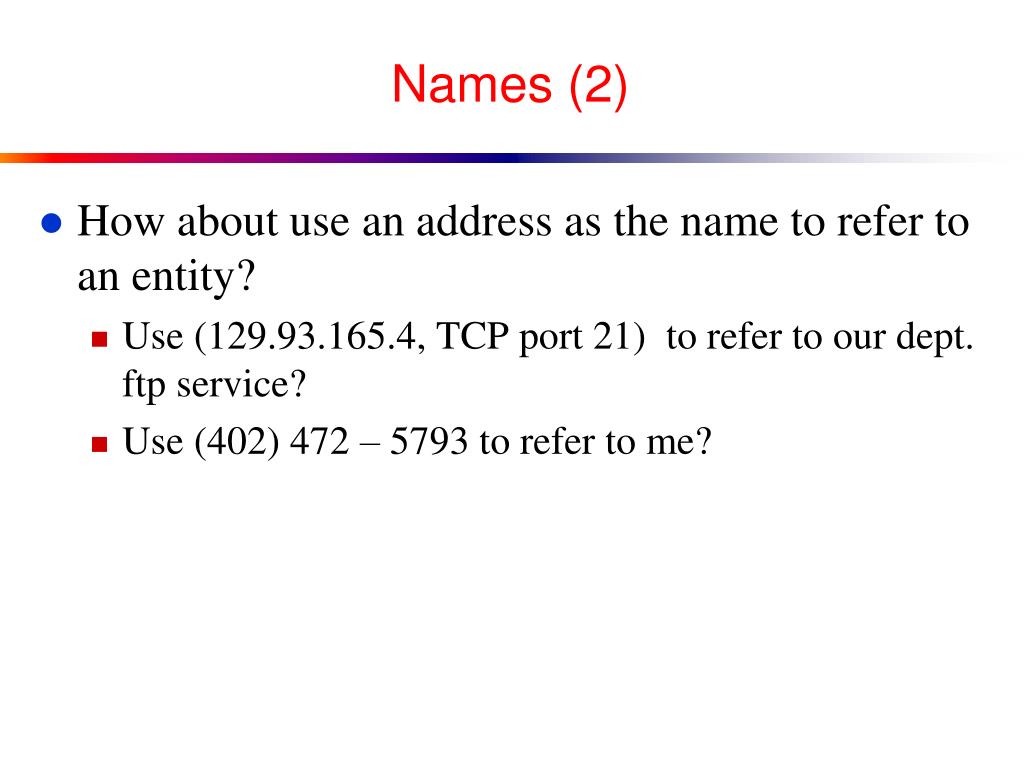

  4. Names (2) • How about use an address as the name to refer to an entity? • Use (129.93.165.4, TCP port 21) to refer to our dept. ftp service? • Use (402) 472 – 5793 to refer to me?

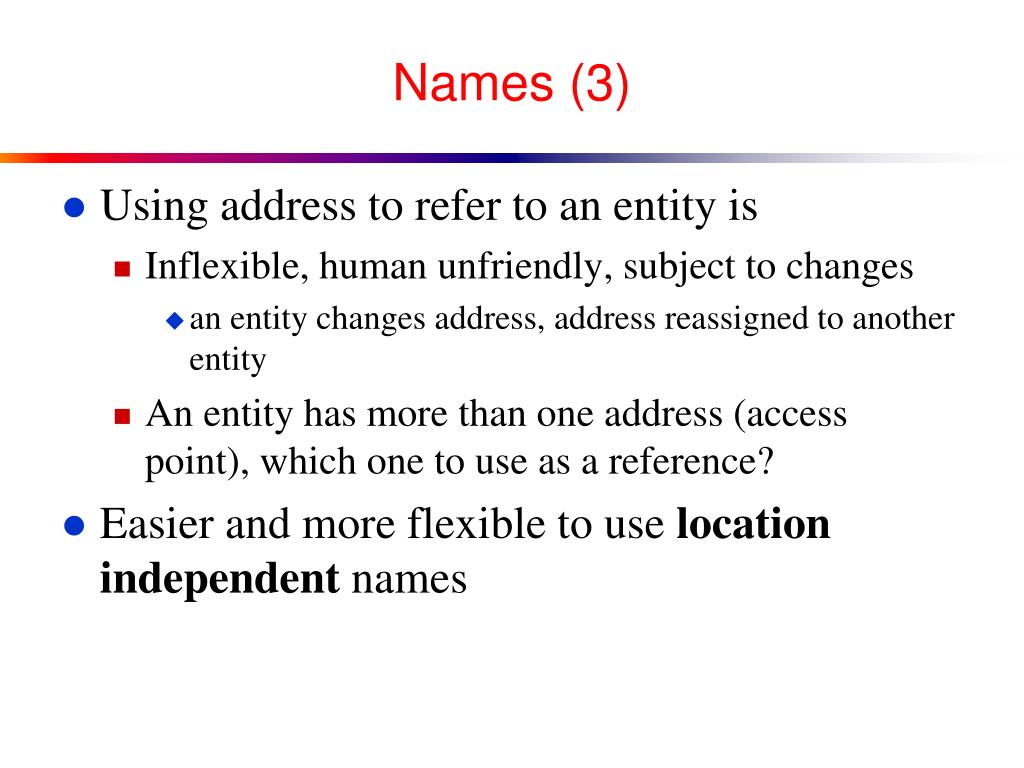

  5. Names (3) • Using address to refer to an entity is • Inflexible, human unfriendly, subject to changes • an entity changes address, address reassigned to another entity • An entity has more than one address (access point), which one to use as a reference? • Easier and more flexible to use location independent names

  6. A Special Type of Name: Identifier • An identifier refers to at most one entity • Each entity is referred to by at most one identifier • An identifier always refers to the same entity (prohibits reusing an identifier) • What could serve as a person’s identifier?

  7. NameTypes • Identifier • unambiguously refers to an entity • Address • access point • Human Friendly Name • a name tailored to be used by humans, often a character string

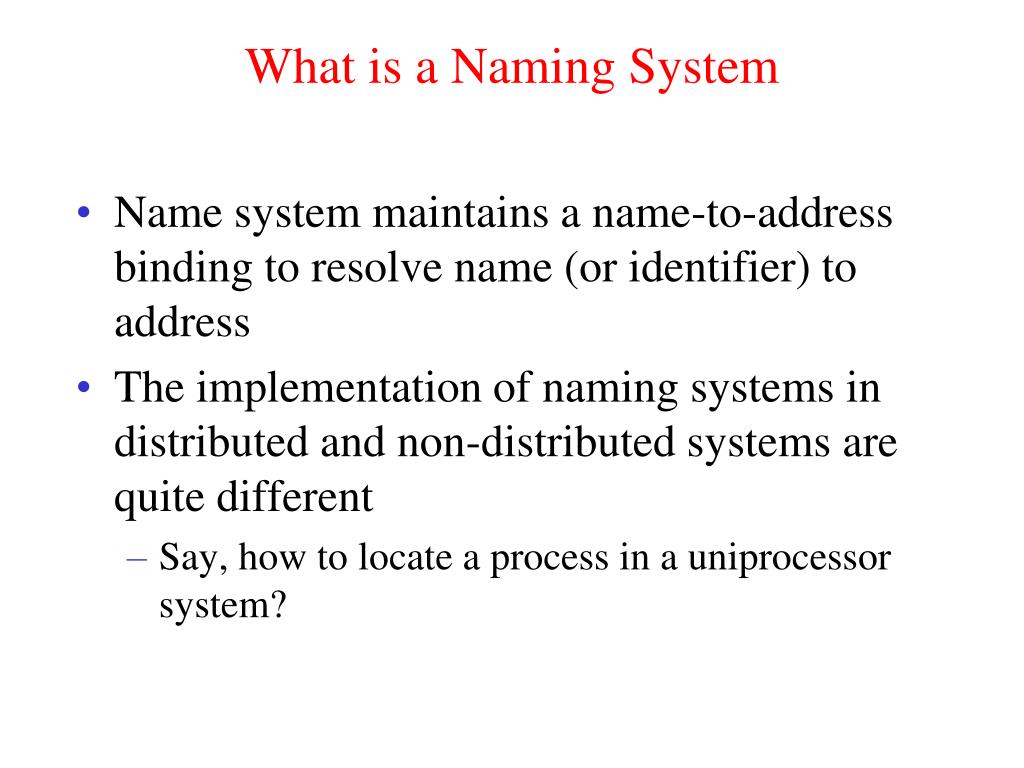

  8. What is a Naming System • Name system maintains a name-to-address binding to resolve name (or identifier) to address • The implementation of naming systems in distributed and non-distributed systems are quite different • Say, how to locate a process in a uniprocessor system?

  9. Naming Systems • Part I: Flat Naming • Resolves identifiers to addresses • Part II: Structured Naming • Resolves structured human-friendly names to addresses • Part III: Attributed-based Naming • Resolves descriptive names to addresses

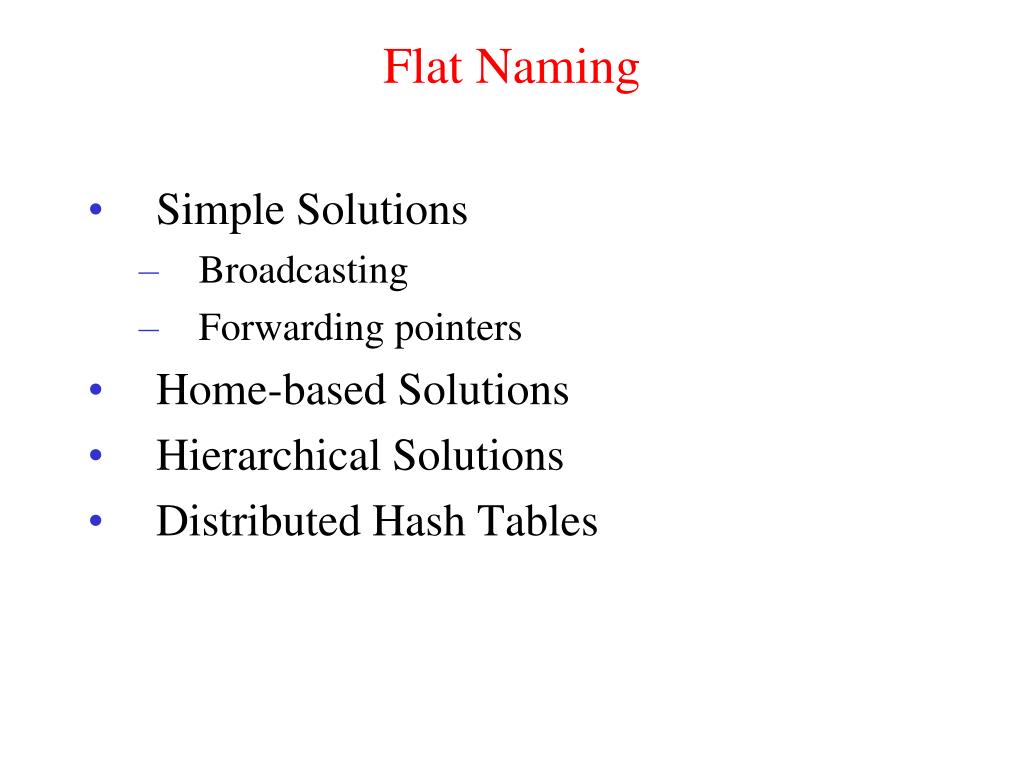

  10. Flat Naming • Simple Solutions • Broadcasting • Forwarding pointers • Home-based Solutions • Hierarchical Solutions • Distributed Hash Tables

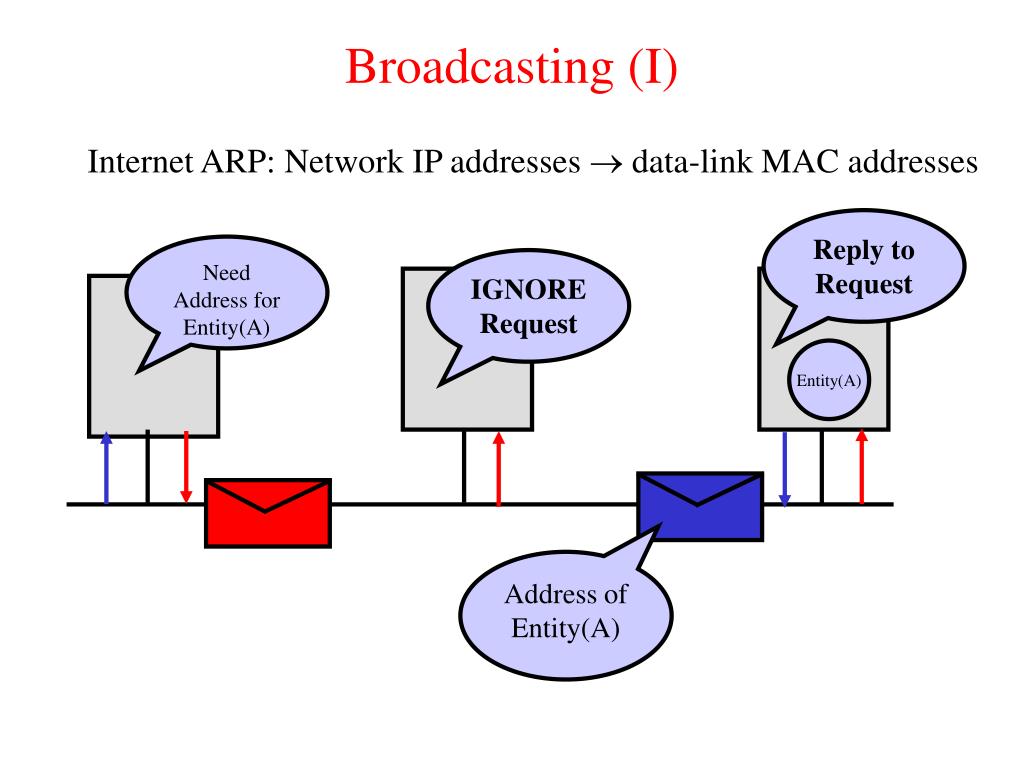

  11. Broadcasting (I) Internet ARP: Network IP addresses  data-link MAC addresses Reply to Request Need Address for Entity(A) IGNORE Request Entity(A) Address of Entity(A)

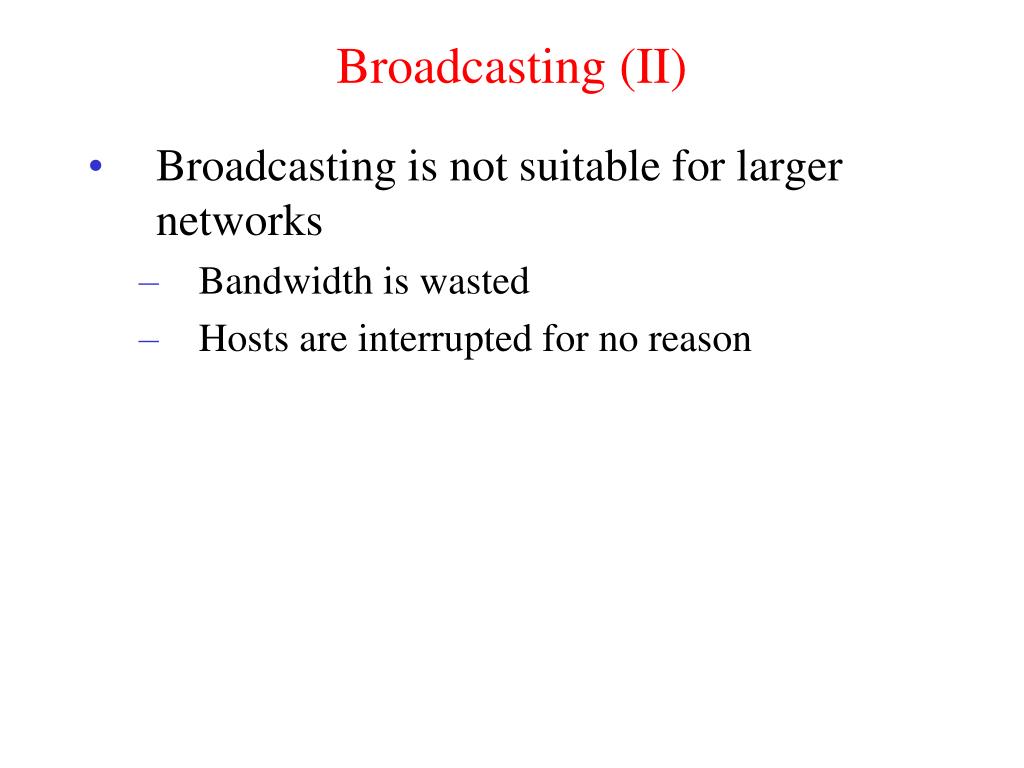

  12. Broadcasting (II) • Broadcasting is not suitable for larger networks • Bandwidth is wasted • Hosts are interrupted for no reason

  13. Forwarding Pointers • A popular method to locate mobile entities • When an entity moves from A to B, it leaves a pointer to B at A • Simple: use traditional naming service to locate A, then follow the pointer chain • Example: postal service • One person moves from Florida  Virginia

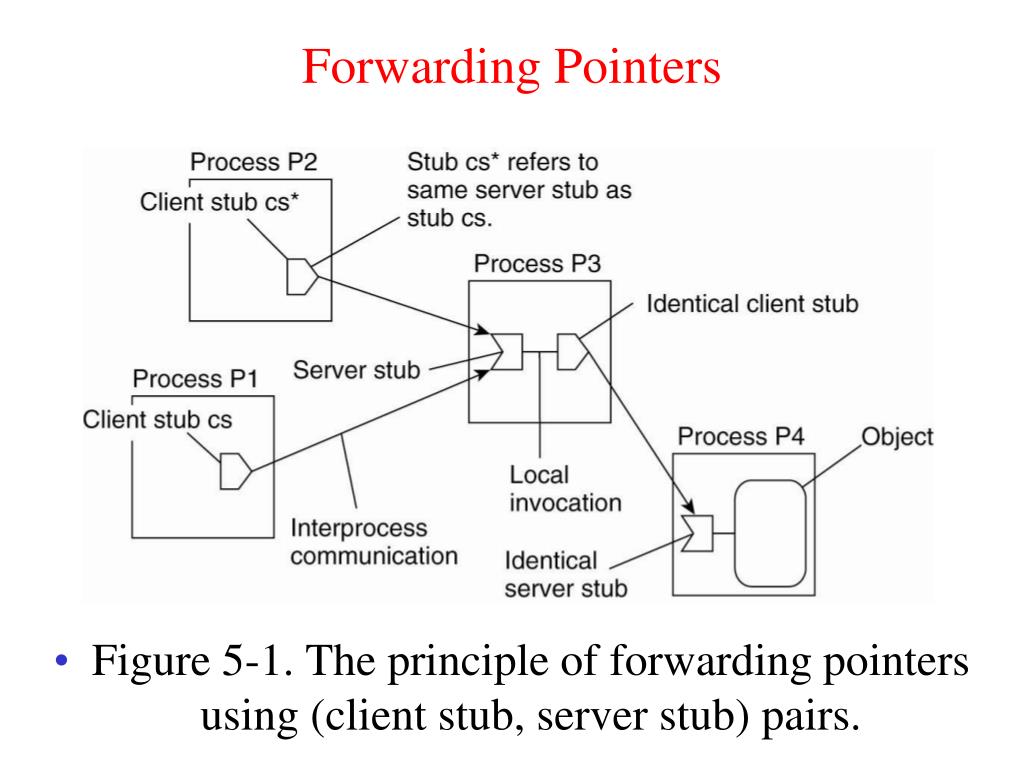

  14. Forwarding Pointers • Figure 5-1. The principle of forwarding pointers using (client stub, server stub) pairs.

  15. Forwarding Pointers • Expensive if chain gets too large • Lost pointer?

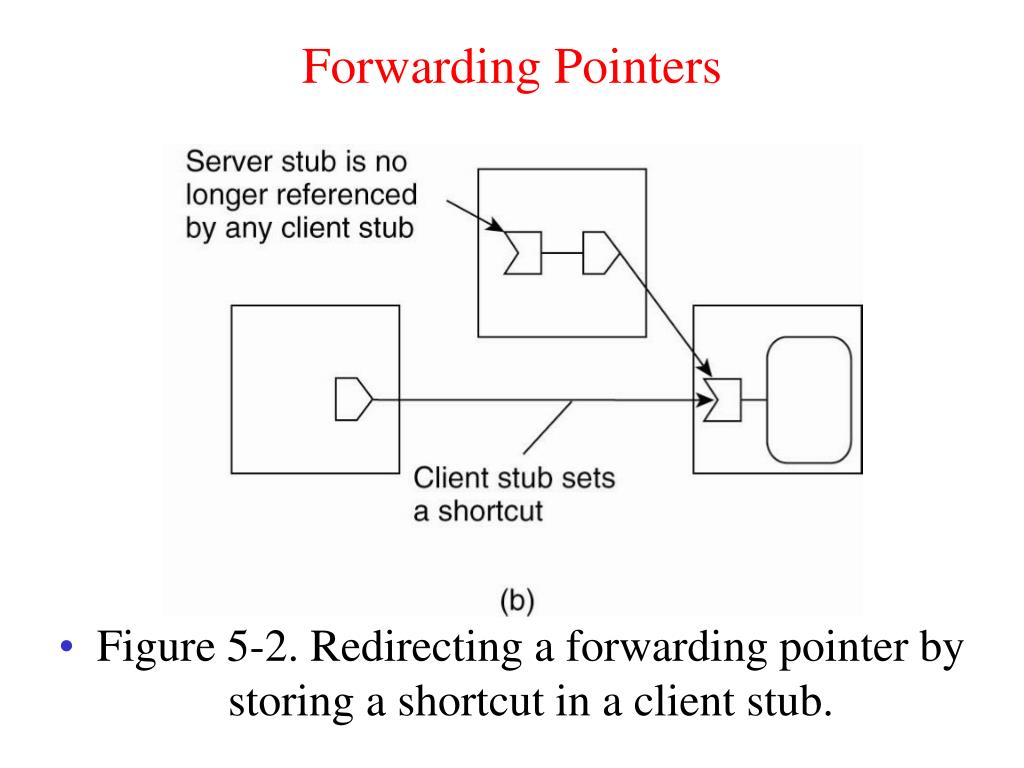

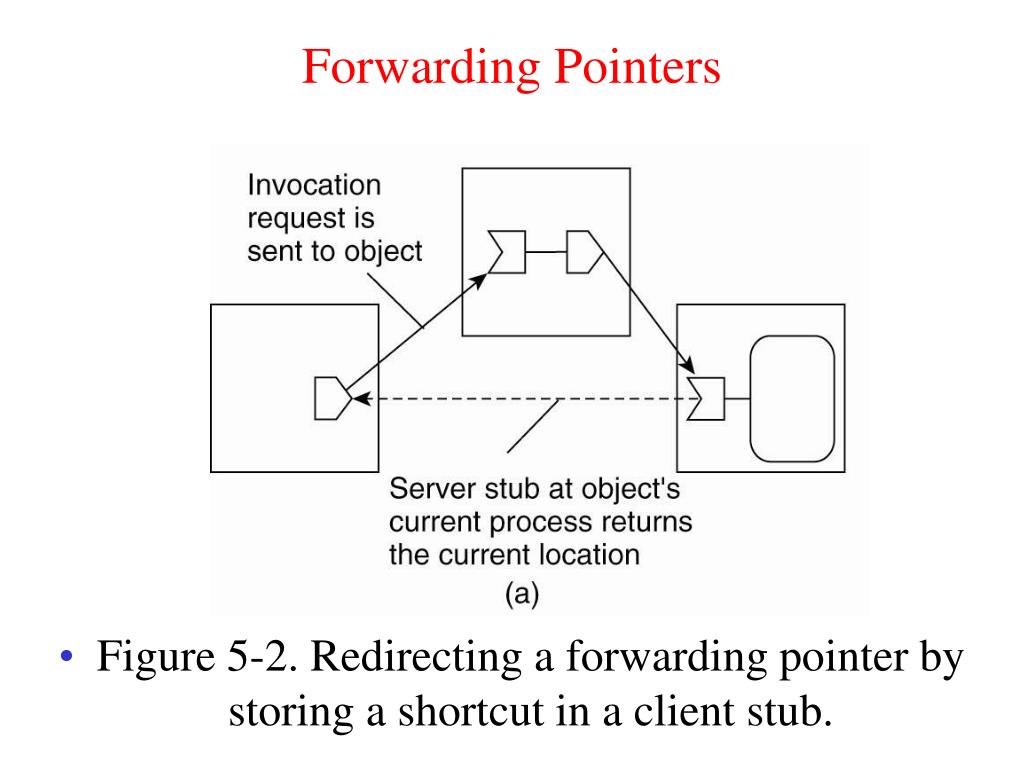

  16. Forwarding Pointers • Figure 5-2. Redirecting a forwarding pointer by storing a shortcut in a client stub.

  17. Forwarding Pointers • Figure 5-2. Redirecting a forwarding pointer by storing a shortcut in a client stub.

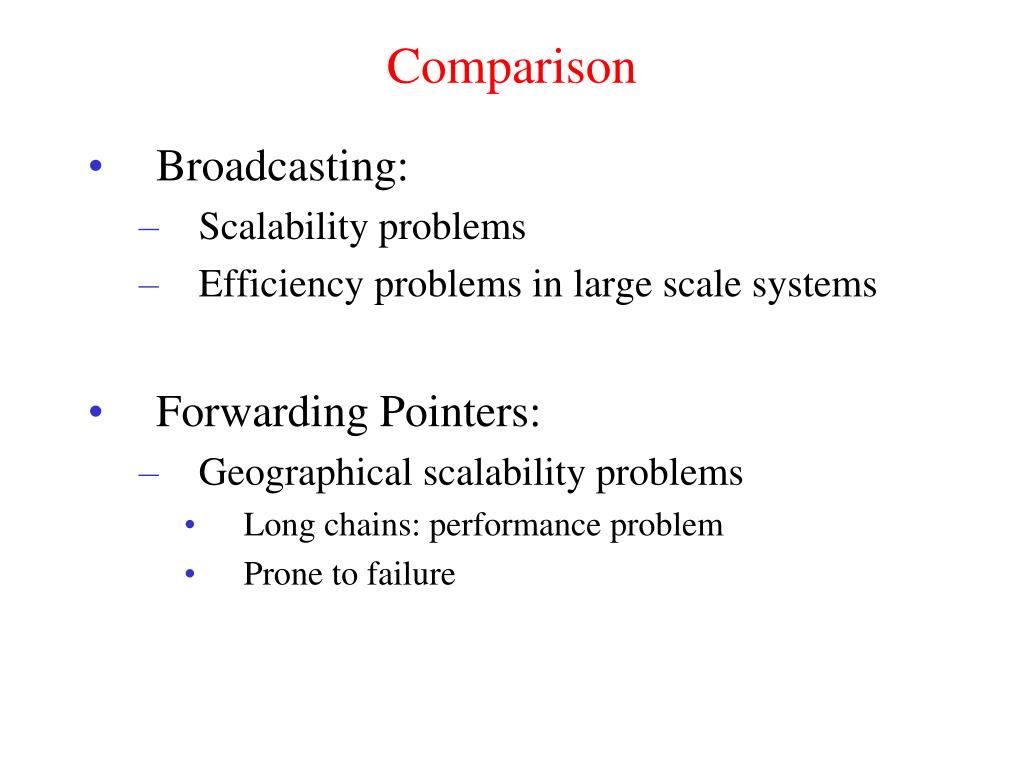

  18. Comparison • Broadcasting: • Scalability problems • Efficiency problems in large scale systems • Forwarding Pointers: • Geographical scalability problems • Long chains: performance problem • Prone to failure

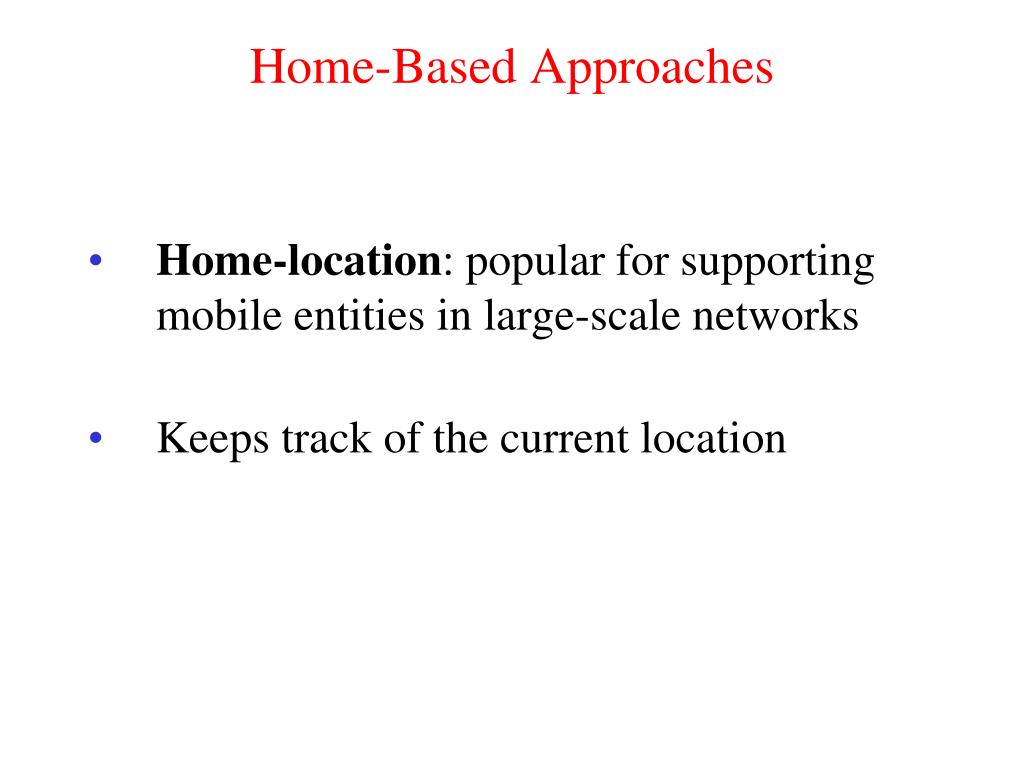

  19. Home-Based Approaches • Home-location: popular for supporting mobile entities in large-scale networks • Keeps track of the current location

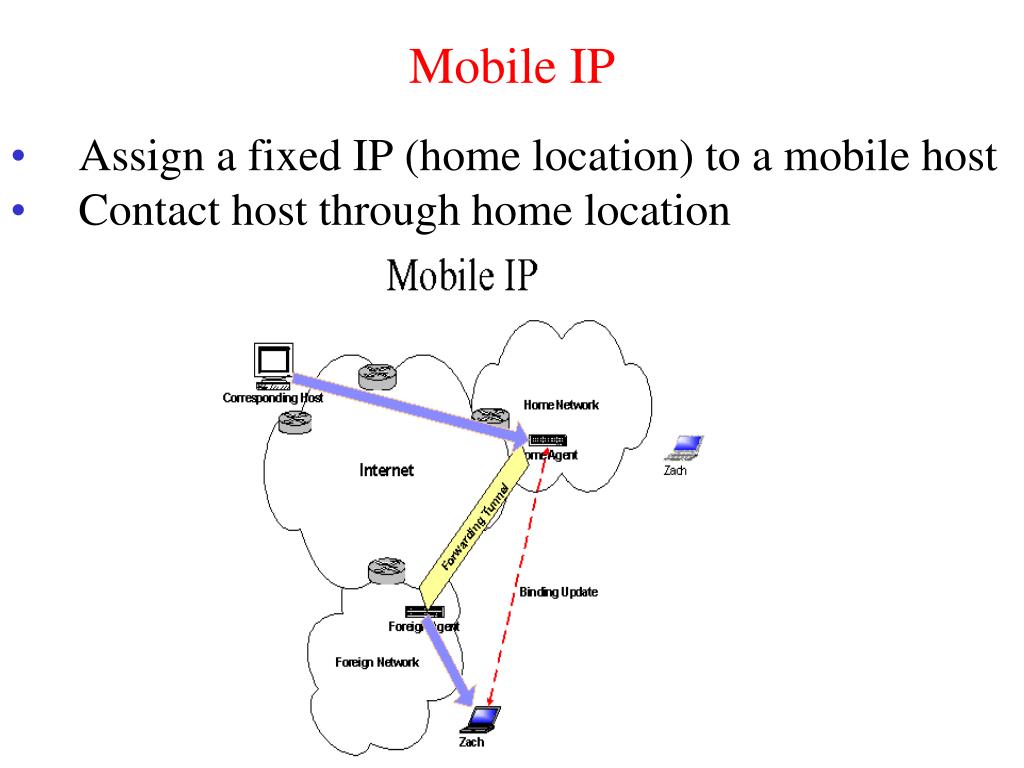

  20. Mobile IP • Assign a fixed IP (home location) to a mobile host • Contact host through home location

  21. Flat Naming • Simple Solutions • Broadcasting • Forwarding pointers • Home-based Solutions • Hierarchical Solutions • Distributed Hash Tables

  22. Hierarchical Approaches Hierarchical organization of a location service into domains, each having an associated directory node.

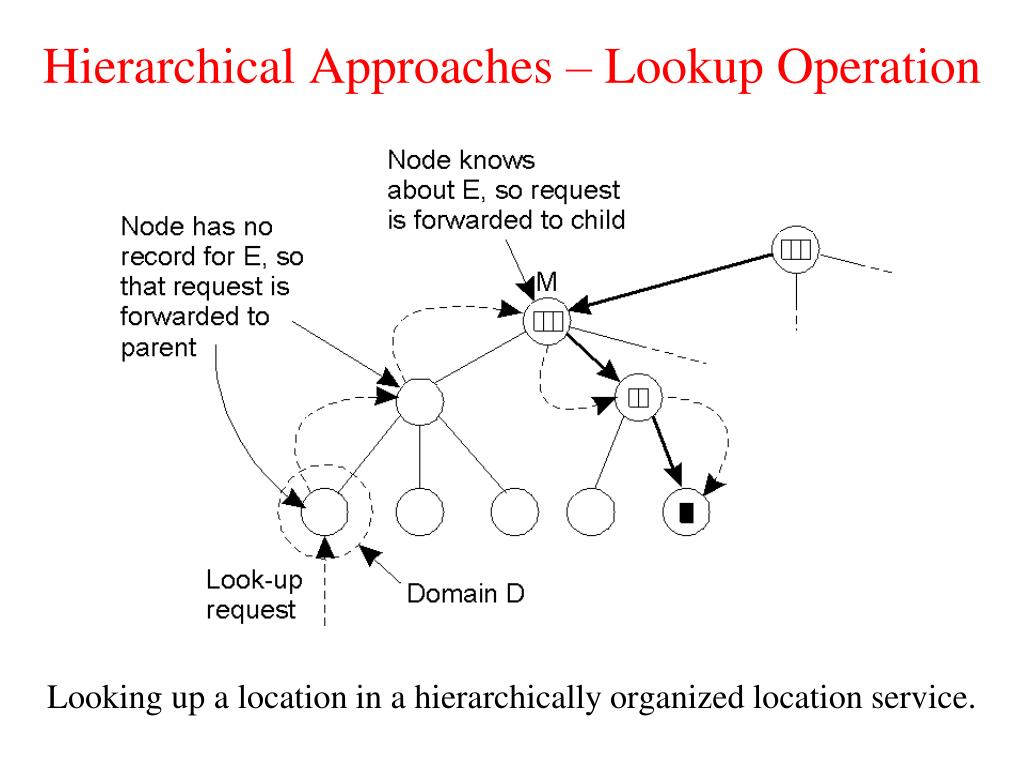

  23. Hierarchical Approaches – Lookup Operation Looking up a location in a hierarchically organized location service.

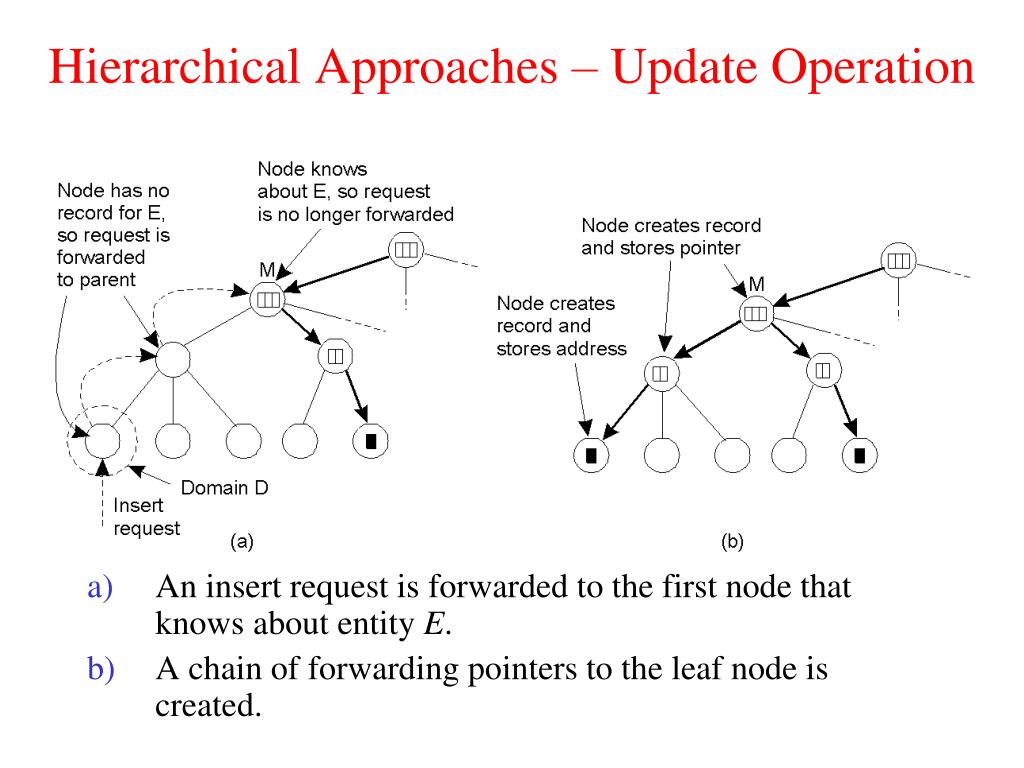

  24. Hierarchical Approaches – Update Operation • An insert request is forwarded to the first node that knows about entity E. • A chain of forwarding pointers to the leaf node is created.

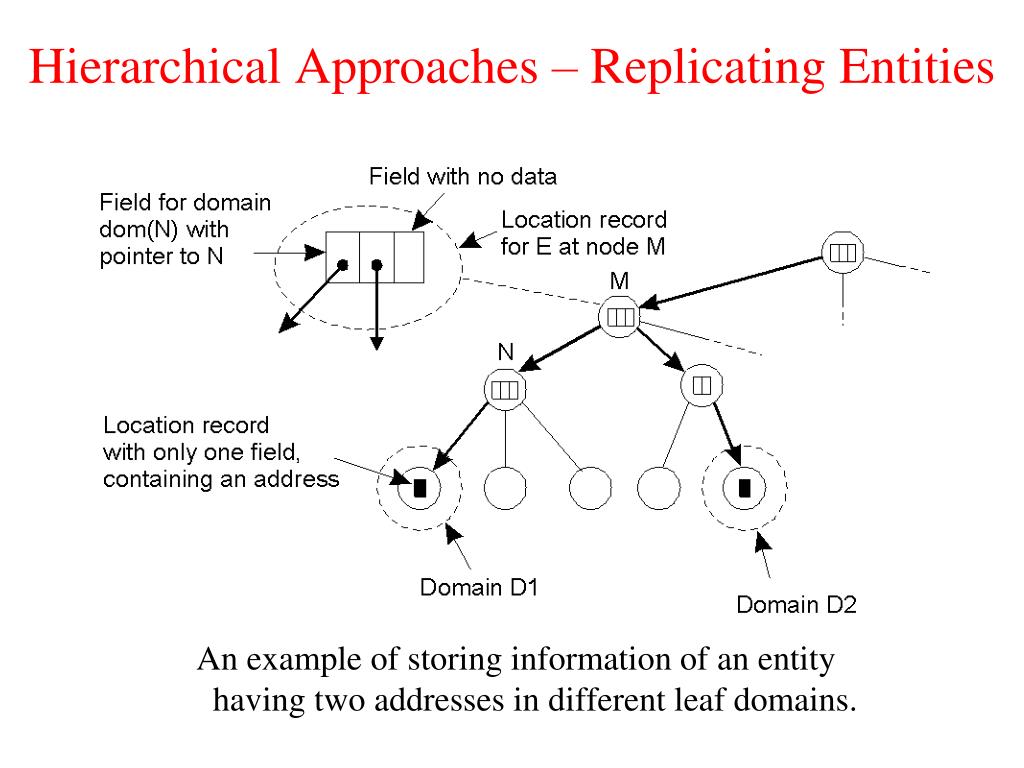

  25. Hierarchical Approaches – Replicating Entities An example of storing information of an entity having two addresses in different leaf domains.

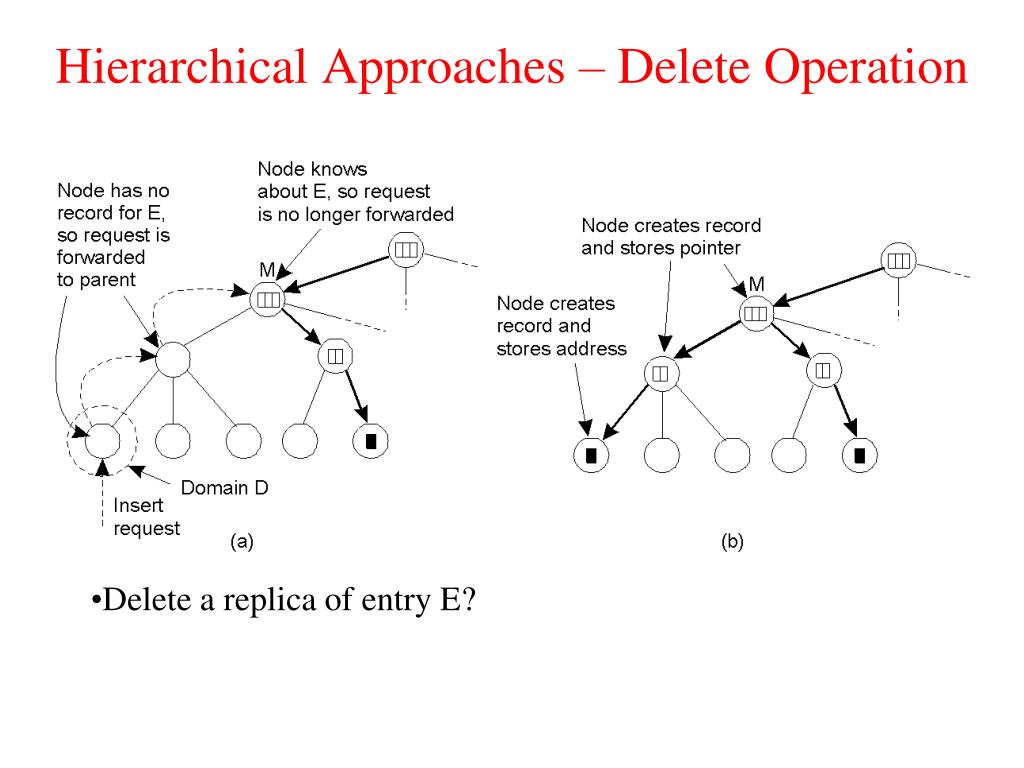

  26. Hierarchical Approaches – Delete Operation • Delete a replica of entry E?

  27. Hierarchical Approaches – Delete Operation • Delete Replica R of Entity E from domain D • Delete pointer from dir(D) to R • If location record of E at dir(D) is empty, delete record • Apply recursively, going up the tree
