1 / 15

Failure Theories – Static Loads

Failure – A part is permanently distorted and will not function properly. A part has been separated into two or more pieces (fracture). Material Strength. S y = Yield strength in tension, S yt = S yc. S ys = Yield strength in shear. S u = Ultimate strength in tension, S ut.

Download Presentation

Failure Theories – Static Loads

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

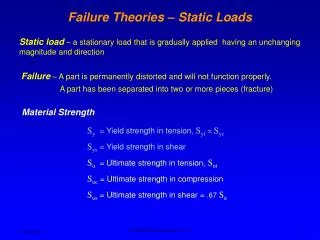

  1. Failure – A part is permanently distorted and will not function properly. A part has been separated into two or more pieces (fracture) Material Strength Sy = Yield strength in tension, Syt = Syc Sys = Yield strength in shear Su = Ultimate strength in tension, Sut Suc = Ultimate strength in compression Sus = Ultimate strength in shear = .67Su Failure Theories – Static Loads Static load – a stationary load that is gradually applied having an unchanging magnitude and direction Mechanical Engineering Dept., SJSU

  2. Brittle material yields very little before fracturing, the yield strength is approximately the same as the ultimate strength in tension. The ultimate strength in compression is much larger than the ultimate strength in tension. Ductile and Brittle Materials A ductile material deforms significantly before fracturing. Ductility is measured by % elongation at the fracture point. Materials with 5% or more elongation are considered ductile. Mechanical Engineering Dept., SJSU

  3. (max)component > ()obtained from a tension test at the yield point Failure  = Sy Sy  Sy = To avoid failure 2 2 (max)component <  = Sy Sy max = n= Safety factor 2 n Design equation  =Sy Failure Theories – Ductile Materials Yield strength of a material is used to design components made of ductile material • Maximum shear stress theory (Tresca 1886) Mechanical Engineering Dept., SJSU

  4. Simple tension test → (Sy)t Hydrostatic state of stress → (Sy)h t h (Sy)h (Sy)t >> Distortion contributes to failure much more than change in volume. h t h Failure Theories – Ductile Materials • Distortion energy theory (von Mises-Hencky) (total strain energy) – (strain energy due to hydrostatic stress) = strain energy due to angular distortion > strain energy obtained from a tension test at the yield point → failure Mechanical Engineering Dept., SJSU

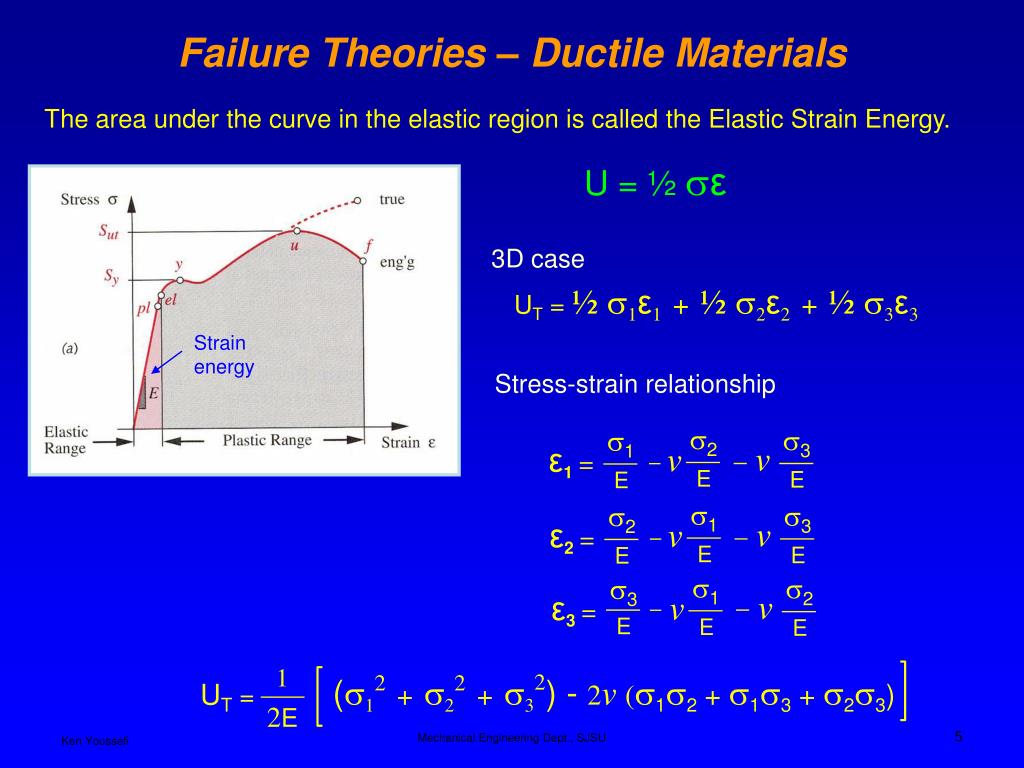

  5. 3 1 3 2 1 E E E E E 3D case UT = ½1ε1+½2ε2+½3ε3 Stress-strain relationship 2 1 v ε1 = E E 2 v v v ε2 = E 1 3 2E v v ε3 = E UT = (12+22+32) - 2v (12 + 13 + 23) Failure Theories – Ductile Materials The area under the curve in the elastic region is called the Elastic Strain Energy. U = ½ ε Strain energy Mechanical Engineering Dept., SJSU

  6. (1) Substitute 1=2=3 = h Simplify and substitute 1+2+3= 3hinto the above equation (1+2+3)2 3h2 (1–2v) Uh = (1–2v) = 2E 6E 1 1 2E 2E Subtract the hydrostatic strain energy from the total energy to obtain the distortion energy 1 + v (2 –3)2 (1 –3)2+ (1 –2)2+ Ud= UT – Uh = 6E Uh = (h2+h2+h2) - 2v (hh + hh+ hh) UT = (12+22+32) - 2v (12 + 13 + 23) (2) Failure Theories – Ductile Materials Distortion strain energy = total strain energy – hydrostatic strain energy Ud = UT – Uh Mechanical Engineering Dept., SJSU

  7. (2 –3)2 (1 –3)2+ ½ (1 –2)2+ < Sy 1 + v (Sy)2 Utest = 2 3E 1 + v (2 –3)2 (1 –3)2+ (1 –2)2+ Ud= UT – Uh = 6E Failure Theories – Ductile Materials Strain energy from a tension test at the yield point 1=Syand 2=3= 0 Substitute in equation (2) (2) To avoid failure, Ud < Utest Mechanical Engineering Dept., SJSU

  8. Sy ′ = n (2 –3)2 (1 –3)2+ ½ (1 –2)2+ < Sy 2 2D case, 3=0 ½  = (12–12+22) < Sy Where  is von Mises stress Design equation Failure Theories – Ductile Materials Mechanical Engineering Dept., SJSU

  9. 32=Sy2 Sys=Sy/ √3 → Sys = .577 Sy Relationship between yield strength in tension and shear If y = 0, then The design equation can be written in terms of the component stresses (due to bending and torsion) 1, 2= x/2 ± [(x)/2]2 + (xy)2 Sy 1/2 (x)2+ 3(xy)2= n Failure Theories – Ductile Materials Pure torsion, = 1= – 2 (12– 2 1+22) = Sy2 Mechanical Engineering Dept., SJSU

  10. Sy ′ = n consider strength, environment, cost, weight, availability, codes and standards, manufacturing process → Sy , Su n Size Weight Cost Sy max = 2n Design Process Distortion energy theory Maximum shear stress theory • Select material: • Choose a safety factor The selection of an appropriate safety factor should be based on the following: • Degree of uncertainty about loading (type, magnitude and direction) • Degree of uncertainty about material strength • Uncertainties related to stress analysis • Consequence of failure; human safety and economics • Type of manufacturing process • Codes and standards Mechanical Engineering Dept., SJSU

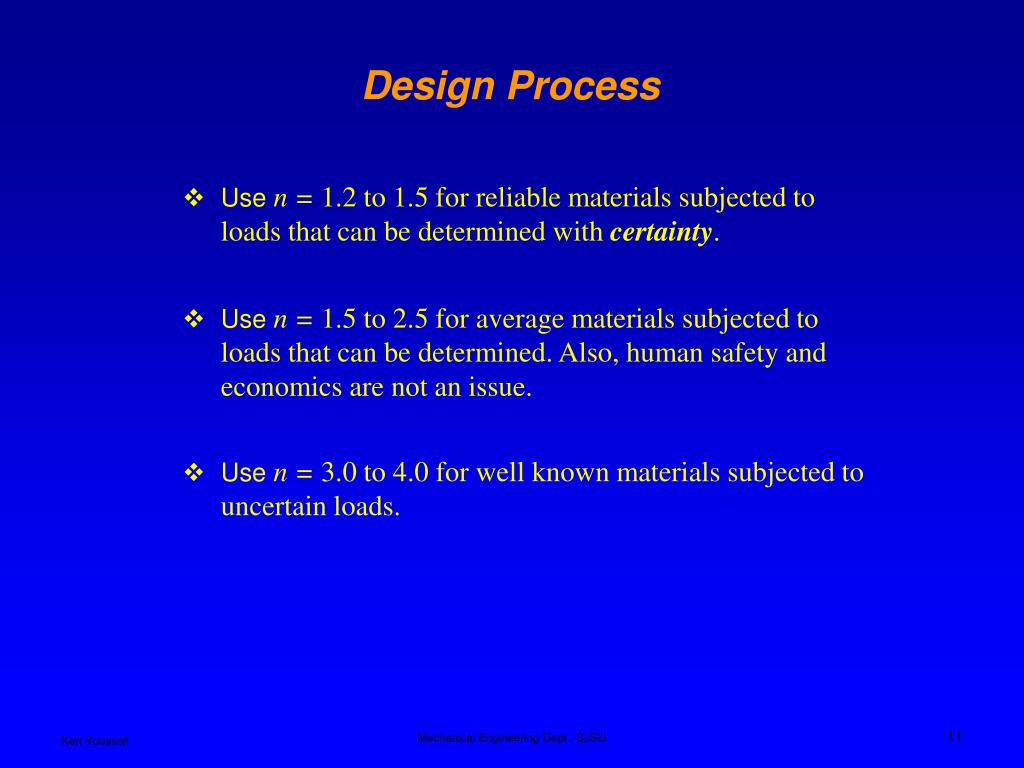

  11. Design Process • Use n = 1.2 to 1.5 for reliable materials subjected to loads that can be determined with certainty. • Use n = 1.5 to 2.5 for average materials subjected to loads that can be determined. Also, human safety and economics are not an issue. • Use n = 3.0 to 4.0 for well known materials subjected to uncertain loads. Mechanical Engineering Dept., SJSU

  12. Sy ′= n • Use appropriate failure theory to calculate the size. Sy max = Distortion energy theory Maximum shear stress theory 2n Design Process - Static load & Ductile material Sy , Su • Select material → • Choose a safety factor, n • Choose a cross section: round, rectangular, hollow, I-beam, C channel, … • Formulate the maximum stresses in the component in terms of size: x, xy • Determine the principal stresses, maximum shear stress and von Mises stress in terms of the size; 1, 2 , max and ′ • Optimize for weight, size, or cost. Mechanical Engineering Dept., SJSU

  13. Sut ≈ Syt • elongation < 5% • Suc >> Sut  Suc 2 1 Sut Stress state  Tension test Compression test Failure envelope The component is safe if the state of stress falls inside the failure envelope. 1 > 2 and3 = 0 Failure Theories – Brittle Materials Characteristics of brittle materials; Perform two tests, one in compression and one in tension, draw the Mohr’s circles for both tests. Mechanical Engineering Dept., SJSU

  14. 2 or3 Sut Sut I Safe Safe Sut Sut 1 Suc Safe II -Sut -Sut Safe III Suc Suc Cast iron data Three design zones Failure Theories – Brittle Materials Modified Coulomb-Mohr theory 2 or3 1 Mechanical Engineering Dept., SJSU

  15. 2>0 and 1> 2 1>0 , Sut Design equation 1= n Zone II 2<0 and 2<Sut 1>0 , Sut 1= Design equation n Zone III 2 1 1 1 2<0 and 2>Sut 1( 1>0 , – – ) = n Sut Suc Suc Design equation Failure Theories – Brittle Materials 2 Zone I Sut I Sut 1 II -Sut III Suc Mechanical Engineering Dept., SJSU

More Related
