  1. The • GCOS Reference • Upper Air Network

  2. What is GRUAN? • GCOS Reference Upper Air Network • Network for ground-based reference observations for climate in the free atmosphere in the frame of GCOS • Currently 16 stations, envisaged to be a network of 30-40 sites across the globe • See www.gruan.org for more detail

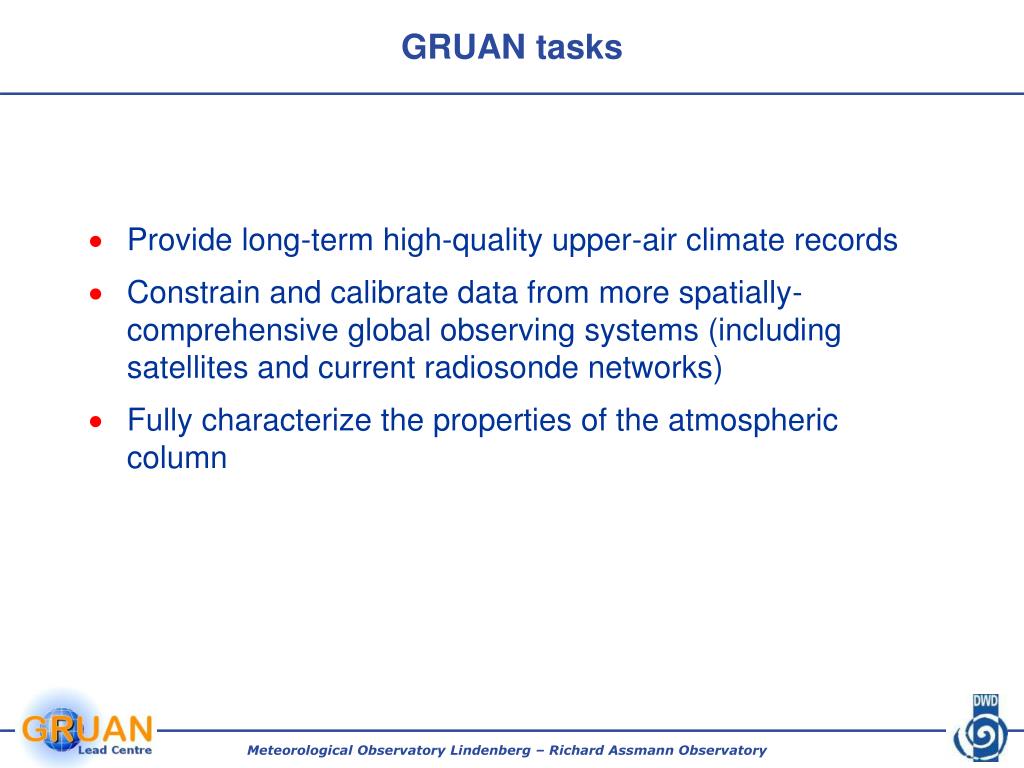

  3. GRUAN tasks • Provide long-term high-quality upper-air climate records • Constrain and calibrate data from more spatially-comprehensive global observing systems (including satellites and current radiosonde networks) • Fully characterize the properties of the atmospheric column

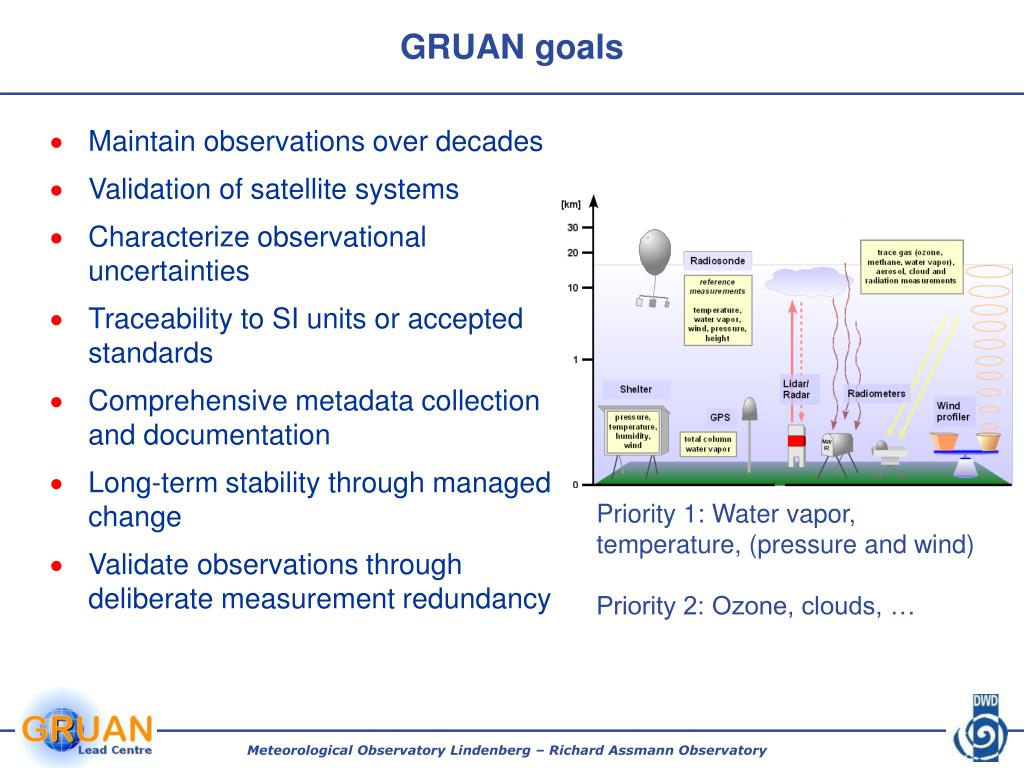

  4. GRUAN goals • Maintain observations over decades • Validation of satellite systems • Characterize observational uncertainties • Traceability to SI units or accepted standards • Comprehensive metadata collection and documentation • Long-term stability through managed change • Validate observations through deliberate measurement redundancy Priority 1: Water vapor, temperature, (pressure and wind) Priority 2: Ozone, clouds, …

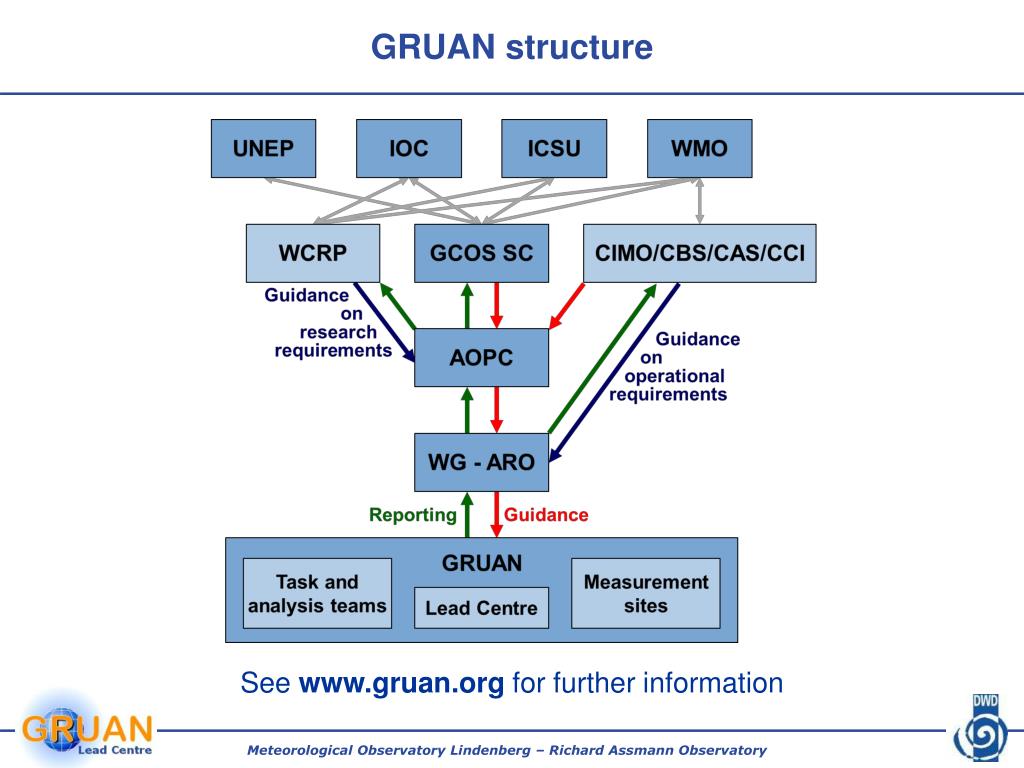

  5. GRUAN structure • See www.gruan.org for further information

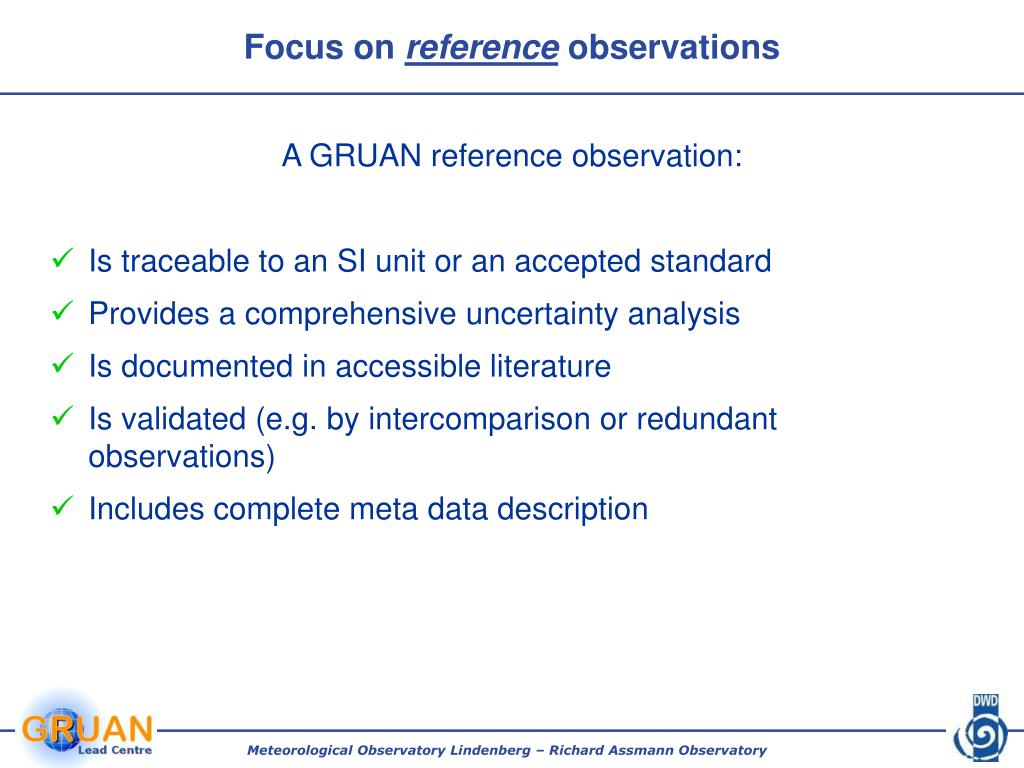

  6. Focus on referenceobservations • A GRUAN reference observation: • Is traceable to an SI unit or an accepted standard • Provides a comprehensive uncertainty analysis • Is documented in accessible literature • Is validated (e.g. by intercomparison or redundant observations) • Includes complete meta data description

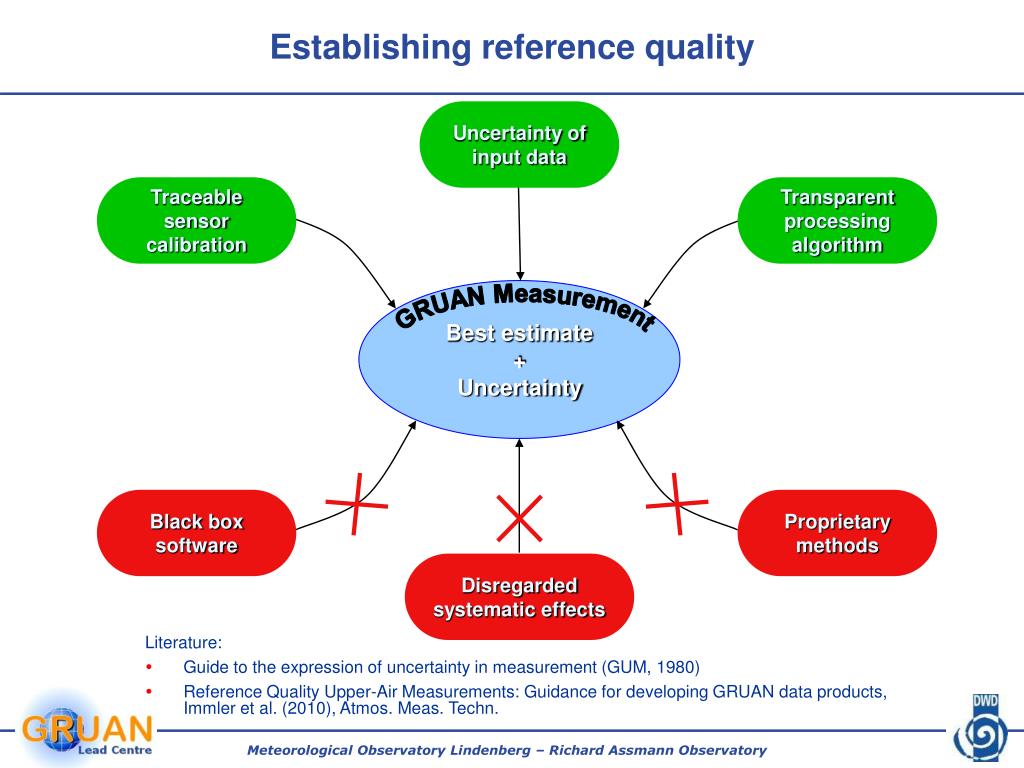

  7. Establishing reference quality Uncertainty of input data Traceable sensor calibration Transparent processing algorithm Best estimate + Uncertainty GRUAN Measurement Black box software Proprietary methods Disregarded systematic effects Literature: • Guide to the expression of uncertainty in measurement (GUM, 1980) • Reference Quality Upper-Air Measurements: Guidance for developing GRUAN data products, Immler et al. (2010), Atmos. Meas. Techn.

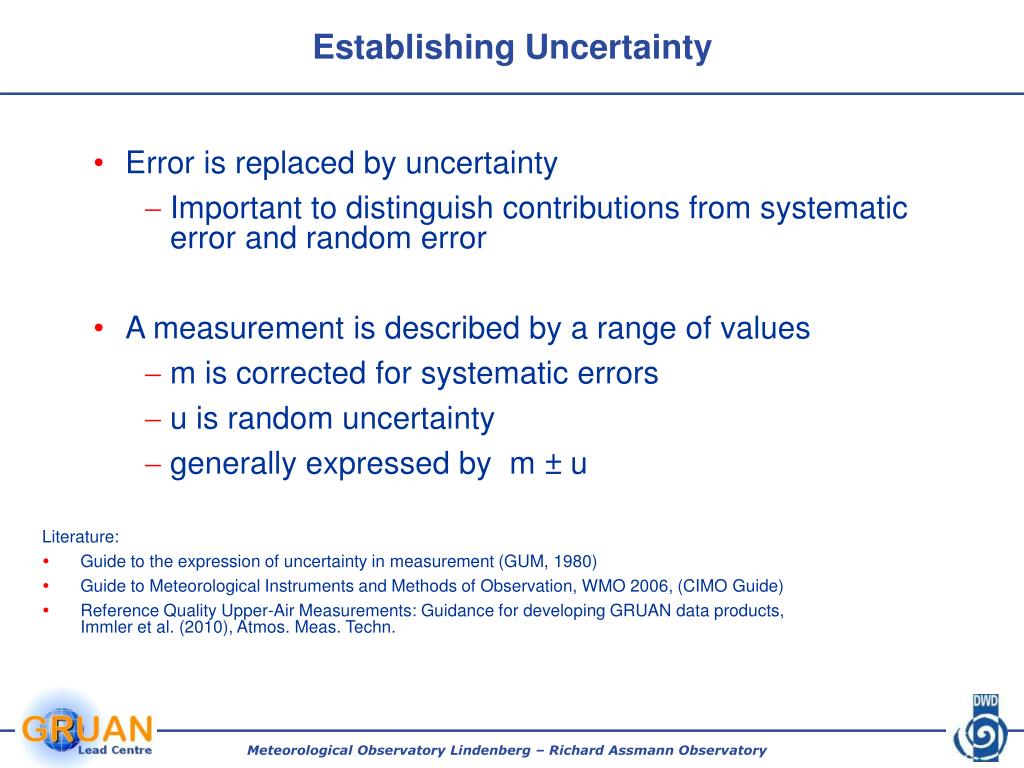

  8. Establishing Uncertainty • Error is replaced by uncertainty • Important to distinguish contributions from systematic error and random error • A measurement is described by a range of values • m is corrected for systematic errors • u is random uncertainty • generally expressed by m ± u Literature: • Guide to the expression of uncertainty in measurement (GUM, 1980) • Guide to Meteorological Instruments and Methods of Observation, WMO 2006, (CIMO Guide) • Reference Quality Upper-Air Measurements: Guidance for developing GRUAN data products, Immler et al. (2010), Atmos. Meas. Techn.

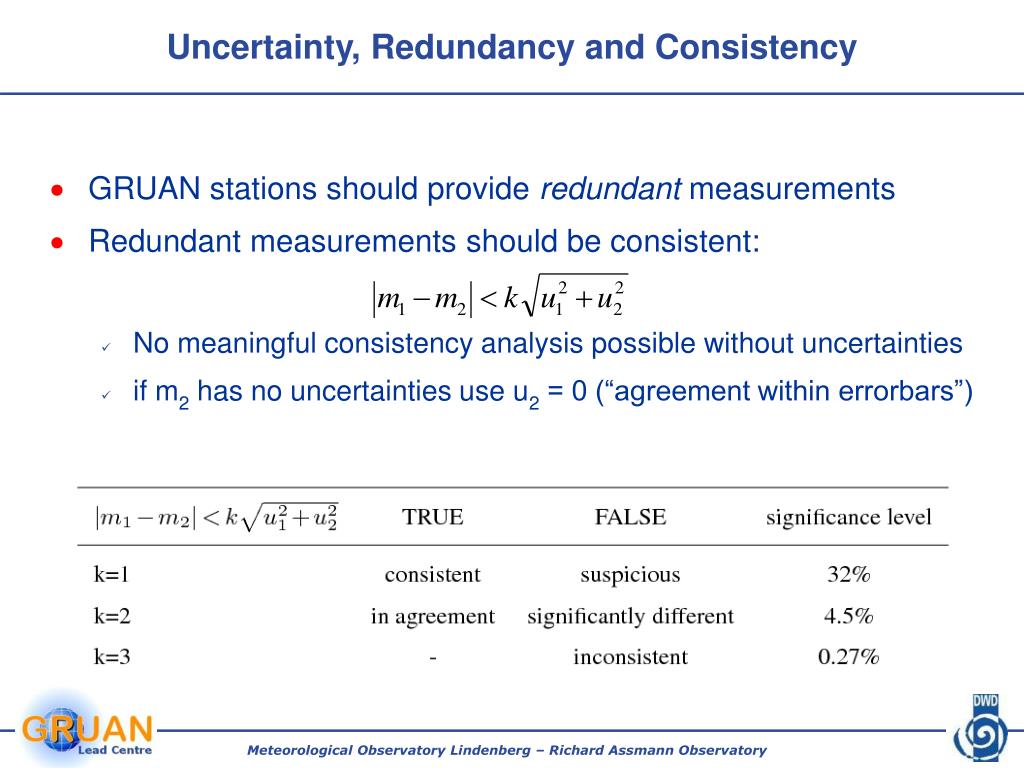

  9. Uncertainty, Redundancy and Consistency • GRUAN stations should provide redundant measurements • Redundant measurements should be consistent: • No meaningful consistency analysis possible without uncertainties • if m2 has no uncertainties use u2 = 0 (“agreement within errorbars”)

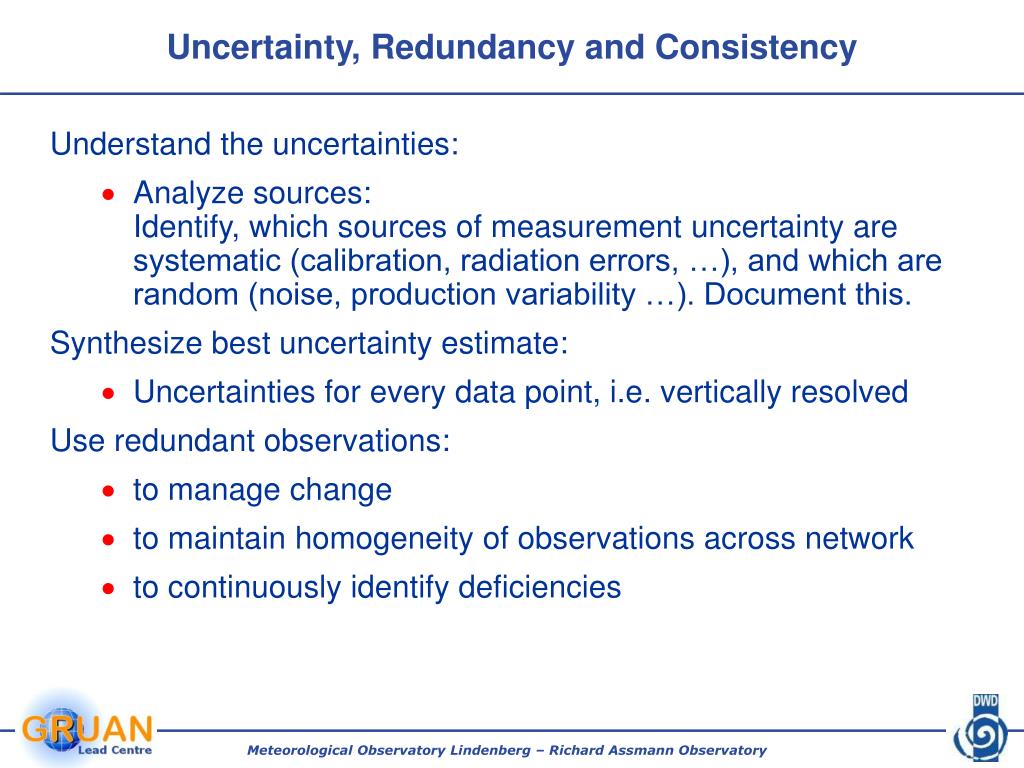

  10. Uncertainty, Redundancy and Consistency • Understand the uncertainties: • Analyze sources: Identify, which sources of measurement uncertainty are systematic (calibration, radiation errors, …), and which are random (noise, production variability …). Document this. • Synthesize best uncertainty estimate: • Uncertainties for every data point, i.e. vertically resolved • Use redundant observations: • to manage change • to maintain homogeneity of observations across network • to continuously identify deficiencies

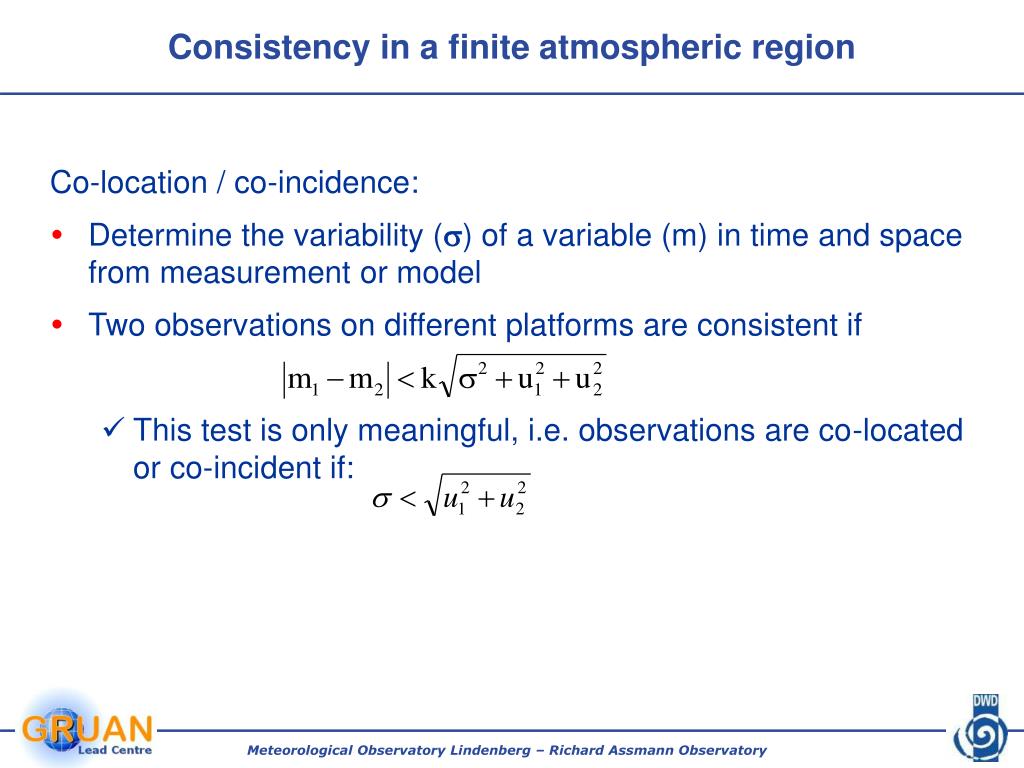

  11. Consistency in a finite atmospheric region • Co-location / co-incidence: • Determine the variability () of a variable (m) in time and space from measurement or model • Two observations on different platforms are consistent if • This test is only meaningful, i.e. observations are co-located or co-incident if:

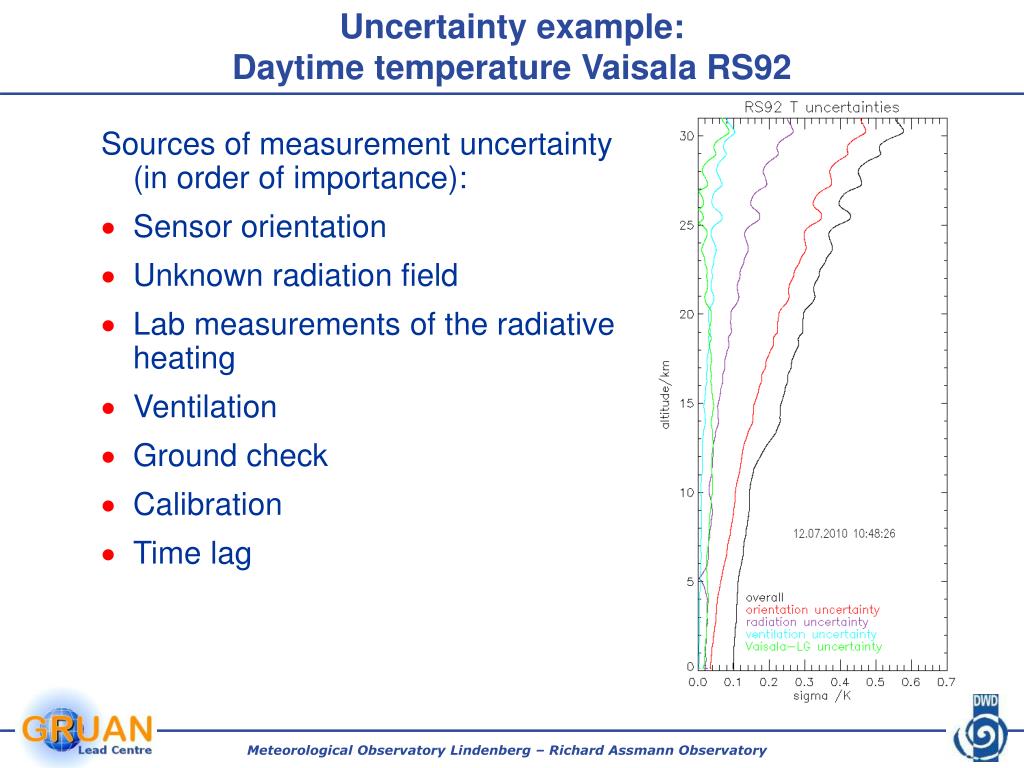

  12. Uncertainty example: Daytime temperature Vaisala RS92 Sources of measurement uncertainty (in order of importance): • Sensor orientation • Unknown radiation field • Lab measurements of the radiative heating • Ventilation • Ground check • Calibration • Time lag

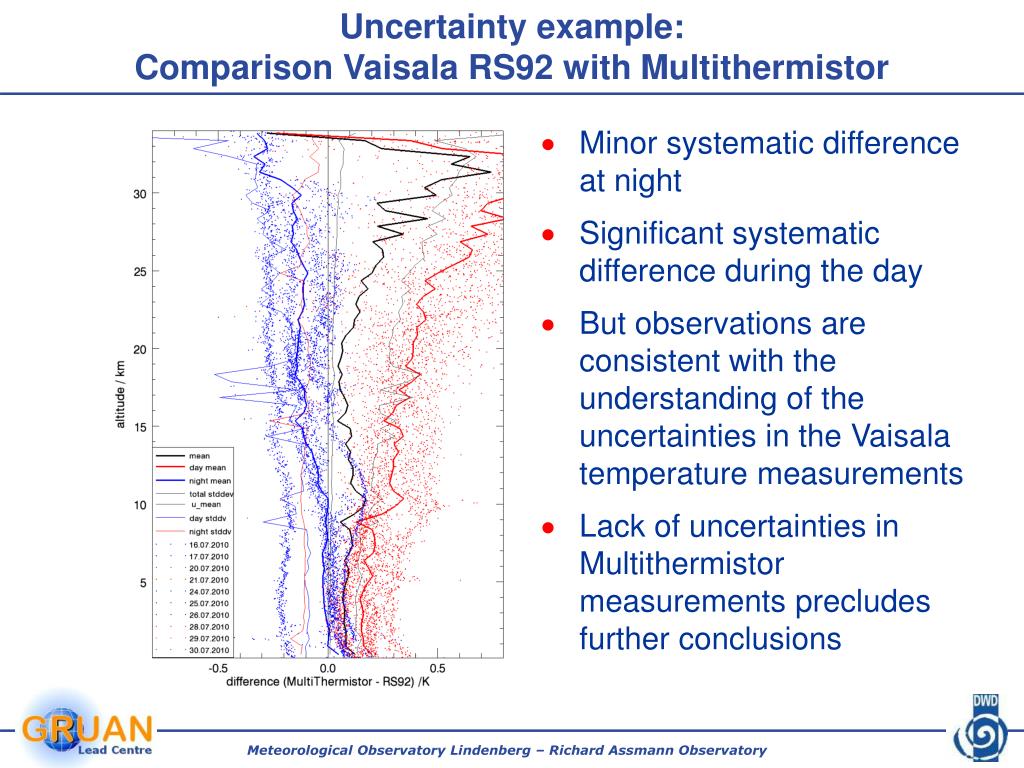

  13. Uncertainty example: Comparison Vaisala RS92 with Multithermistor • Minor systematic difference at night • Significant systematic difference during the day • But observations are consistent with the understanding of the uncertainties in the Vaisala temperature measurements • Lack of uncertainties in Multithermistor measurements precludes further conclusions

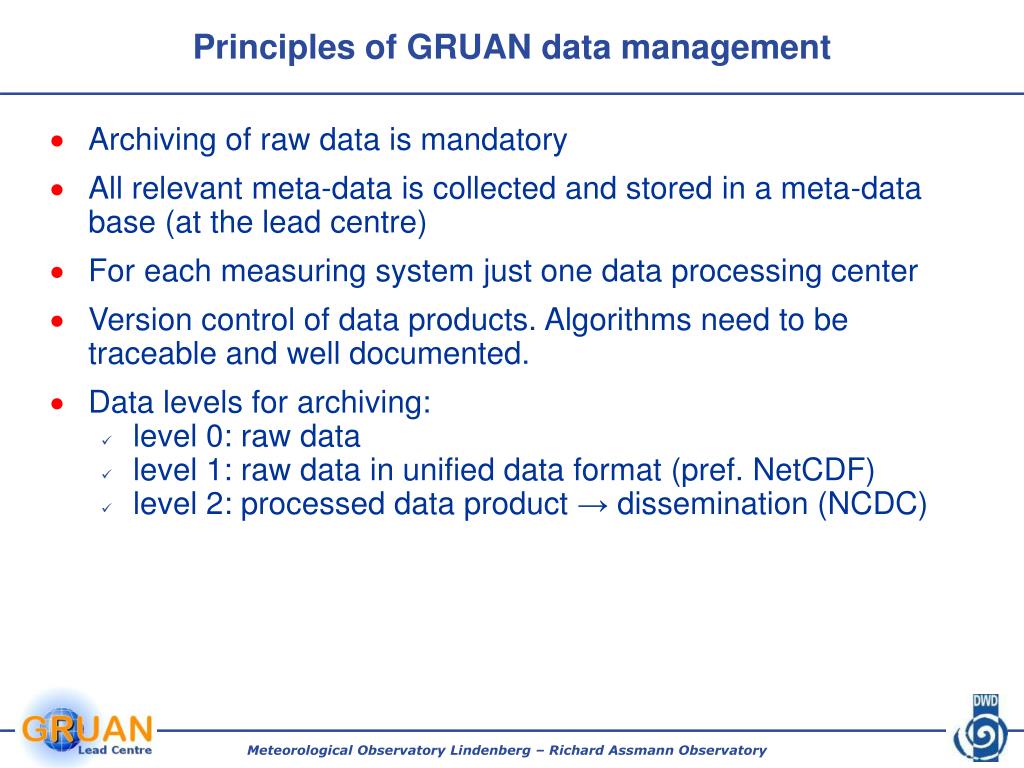

  14. Principles of GRUAN data management • Archiving of raw data is mandatory • All relevant meta-data is collected and stored in a meta-data base (at the lead centre) • For each measuring system just one data processing center • Version control of data products. Algorithms need to be traceable and well documented. • Data levels for archiving: • level 0: raw data • level 1: raw data in unified data format (pref. NetCDF) • level 2: processed data product → dissemination (NCDC)

  15. Distributed data processing

  16. Summary • GRUAN is a new approach to long term observations of upper air essential climate variables • Focus on priority 1 variables to start: Water vapor and temperature • Focus on reference observation: • quantified uncertainties • traceable • well documented • Understand the uncertainties: • analyze sources • synthesize best estimate • verify in redundant observations • GRUAN requires a new data processing and data storage approach
