  1. CS552Operating Systems z/390 Basic Assembler Language Programming

  2. Architecture • CISC • Complex Instruction Set Computer • Multiple operands per instruction • Multiple instruction formats • 64 bit architecture, • Instr set is variable • 32-bit • 64-bit • 32 bit instructions work on low-order

  3. I/O & State • Subchannels • Allow for variability of path to device • Use a "control block" for access • Program Status Word • Interruptability (on/off) • Privilege mode (on/off) • Wait state (on/off) • Next instruction

  4. Format Terms • Op operation code (8 bits) • R1, R2, R3 register number 0-F (8 bits) • B register used as address base • X register used as an index • DDD 0-FFF 12-bit disp. from base • M,I 8-bit, mask or immediate data • LL length of data

  5. Instruction Architecture Most-used formats

  6. RR Format • Example: AR 5,14 • Adds the contents of Reg 14 to the contents of Reg 5 • results in Reg 5 • No memory references involved • Note: examples show Regs as decimal values, but Assembler converts them to Hexadecimal • In memory, this instruction looks like: 1A5E

  7. Memory address is: content of X + content of B + value DDD Example: L Load - Opcode X'58' L R,DDD(B,X) L 4,mydata(12) Result replaces value in R If "mydata" is at offset X'23' from Reg 5, which holds X'0E00', then, in memory, this will look like: 584C5023 Mydata becomes a "starting point, and the content of Reg 12 is added to it as an "index" - nice for table accesses RX Format Arrows reverse for store operations +

  8. Memory address: content of B + value DDD Example: LM Load Multiple - Opcode X'98' LM R1,R2,DDD(B) LM 4,7,mydata Result: Loads all registers from R1 to R2, from data at "mydata" If "mydata" is at offset X'23' from Reg 5, which holds X'0E00', then, in memory, this will look like: 98475023 Note: "wrap-around" of register numbers is legal Ex: LM 14,12 loads regs 14, 15, 0,1,2,…,12 inclusive RS Format Arrows reverse for store operations

  9. SI Format • Performs "Op" using the instruction content itself (Imm) as data. That is, no additional memory reference is done.) • Example: • N And Immediate - Opcode X'94' • N DDD(B),I • N mydata,X'0A' If "mydata" is at offset X'23' from Reg 5, which holds X'0E00', then, in memory, this will look like: 940A5023 Note: when writing the instruction, the memory ref comes 1st, FOLLOWED BY the Imm data!

  10. Memory address is: + content of Bn + value DDDn Example: MVC Move Characters - Opcode X'D2' MVC DDD1(B1,LL),DDD2(B2) MVC yourdata(23),mydata 23=X'17' Result replaces value in B1DDD1 "mydata" is at offset X'02' from Reg 5 (X'0E00') "yourdata" is at offset X'55' from Reg 8 (X'1F00') then, in memory, this will look like: D21750028055 SS Format

  11. Writing a Program Assembler directives

  12. Module Definitions • CSECT - externally known module • Named or unnamed • Linkable object • Could be a compilation result • Contains program code or data • DSECT - externally known "dummy" module • Used to define offsets • Like a "C" 'struct' with a pointer • Both ended by another C/DSECT or END

  13. Storage Specification • DC Define Constant • Hex, character, decimal formats • Contains the actual "constants" • Constants are NOT protected • DS Define Storage • Allows for "reserving" an area • No pre-defined value, NOT zeroed out!!!

  14. Storage Specification 2 • Op [m] {attrib1} [Ln] '{value}' • Op [m] {attrib2} [Ln] ({value}) • m is a repetition factor (0 is valid) • n is a length (per element) • Attrib values • Attrib1 X, C, H, F, D ,B • Attrib2 A, S • Examples DS 0CL5 uses no memory DC 3XL3'25' 000025000025000025 DC A(mydata) 4-byte, aligned, address DC S(mydata) converts to base/disp notation

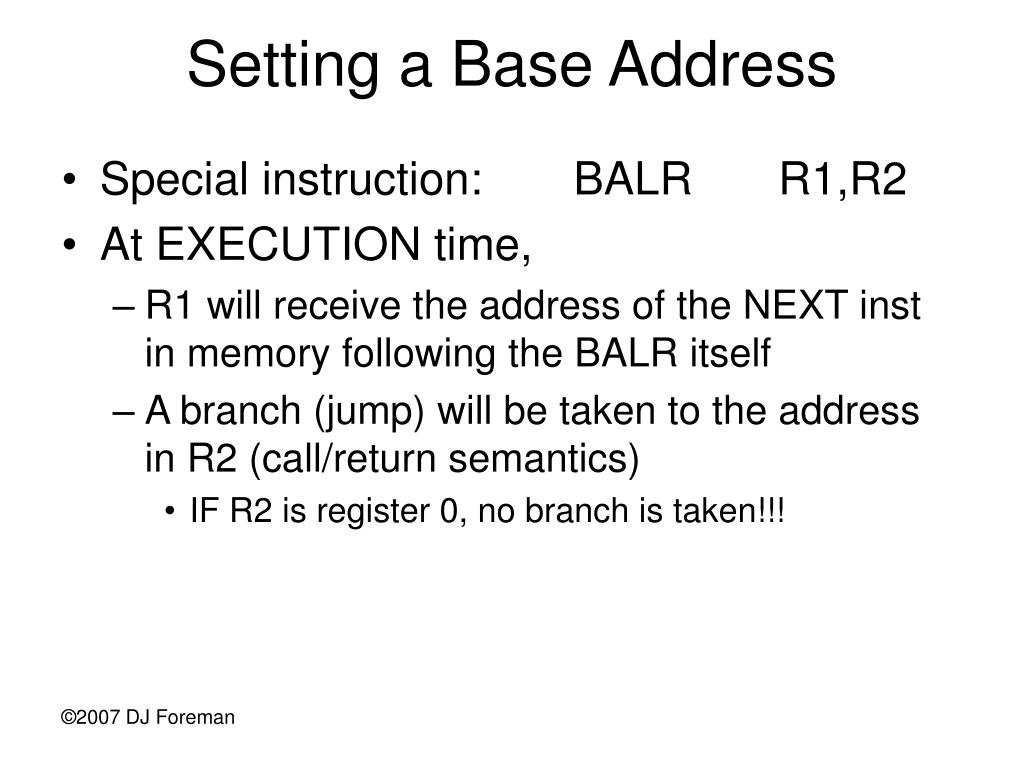

  15. Setting a Base Address • Special instruction: BALR R1,R2 • At EXECUTION time, • R1 will receive the address of the NEXT inst in memory following the BALR itself • A branch (jump) will be taken to the address in R2 (call/return semantics) • IF R2 is register 0, no branch is taken!!!

  16. Base Register Specification • USING Tells assembler which reg to use for names • Register to use as Base • Generates NO code (takes no space in memory) • Example: BALR 12,0 12 has addr of "go" USING *,12 go MVC Data1(5),Data2 Data1 DC C'target location' Data2 DC C'Source location' • Data1 is 6 bytes from "go" • The * means: "starting here" and the MVC is 6 bytes long • Could have said: USING go,12 • If Reg 12 has address of "go", then data1 will be 6 bytes from Reg 12 • YOU must put the correct memory address into the Base Reg • DROP terminates use of a register for name addressability

  17. Naming • EQU "equates" a name to a location or value • Example: • Data1 DC X'010203' length attr=1 • Because no length was explicitly given • Data2 DC XL3'010203' length attr=3 • Hextwo EQU Data2+1 • K5 EQU 5 • Hextwo now refers to the location of 02 inside Data1 • BE CAREFUL: since the target of Hextwo is in a string of length 3, hextwo has a length 'attribute' = 3 • K5 has a numeric value of 5 - uses NO memory

  18. Ending the Program Definition • END • tells assembler "end of program" • Generates NO code. It is NOT a "return" Comments • An * placed in column 1 of any line • tells assembler "ignore this line"

  19. I/O

  20. I/O • Basic I/O instructions • SSCH Start Sub-Channel • TSCH Test " - clears pending interrupts • Operand (SSCH/TSCH) points to an ORB • control block • Specifies additional info

  21. ORB layout

  22. I/O Programming • Setup the ORB • Setup the interrupt handler • Setup address of nsi in PSW to be loaded • Setup low memory • (I/O new & PGM new PSW's) • Ssch • Enable interrupts • Wait for interrupt

  23. General Programming Concepts

  24. IBM Application Conventions • All APPLICATION programs return to caller via Reg 14 • All programs save their caller's registers in an area pointed-to by Reg 13, STARTING WITH Reg 14 • Example: • STM 14,12,12(13) • saves callers regs 14, 15, 0,1, 2…12 in an area addressed by Reg 13+12

  25. Application conventions -2 Save Area Chaining: USING *,15 called via R15 MYPG STM 14,12,12(13) save caller's regs ST 13, mysave+4 Set BACK-ptr LR 14,13 pt to caller's area LA 13,mysave ST 13,8(0,14) set FWD-ptr LA 12,MYPG change to R12 USING MYPG,12 tell assembler    L 13,MYSAVE+4 restore caller regs LM 14,12,12(13) BR 14 return to caller END

  26. Application conventions -2 • Macros • Expand into actual inline code • Save writing and remembering • NOT a function call • Examples: • Save (14,12) • Return (14,12) • Generate the red-colored code on previous slide

  27. O/S Programs

  28. Structure • Privileged • No save-area chaining • No "runtime" libraries • Two styles: • Monolithic - one complete linked file • Modular • multiple files, • dynamically loaded files

  29. Context Management

  30. Reserved Memory • Page 0 is Reserved storage for O/S • Accessible only in privileged mode • Uses base register 0 • "treated" by hardware as if = zero • Same layout as real page 0 • 4096 bytes (addresses 0-FFF) • Only needs 12 bits, no base register value

  31. Boot Sequence • ROM forces an I/O read: • 24 bytes from Cyl 0, Hd 0, Rec 0 • Into loc 0, with chaining to loc 8 • These 24 bytes contain • PSW 0 state vector w/Addr of 1st byte of pgm • CCW1 Read more data • CCW2 And more data • CCW Chaining continues at loc 8 • At end of data, PSW is loaded • Execution begins

  32. Program State Management • LPSW - Load Program Status Word • Loads address of NSI • Sets privilege mode for NSI • Sets wait state on/off for NSI • Enables/disables interrupts for NSI • Sets memory protection mask for NSI

  33. VM Simulation • Boot minidisk formatted as a CMS disk • Not a free-standing drive • Temp disk is usable • O/S module created in CMS • O/S file copied to boot disk • Stand-Alone Program Loader (SAPL) installed on boot using SAPIPL • When drive is booted, SAPL loads the O/S • O/S may then use any volumes (but must either create a file system or use CMS file system

  34. Using VM Some CP & CMS commands

  35. What is VM? • A virtual environment • Minidisks • Virtual devices (some are true simulations) • Spool management (prt, con) • Real-system resource mgr • Privilege-mode emulator for virtual machines • Allows a user to • Invoke ALL real hw instructions in a program • Boot an O/S - existing or roll-your-own

  36. What is VM? - 2 • Two components • CP the Control Program or Hypervisor • Does all real I/O, paging, scheduling • Manages virtual devices (disks, consoles, etc) • CMS the "shell" that comes with VM • File system • Program management • No multi-threading • No multi-programming • Extensive s/w development & file mgmt commands

  37. Program creation • Xedit text mode editor • Command line for issuing commands • HLASM translates assembler source • Hlasm myos • LOAD collects compiled files • Load myos (RLDSAVE • RLDSAVE keeps relocation dictionary in file for SAPL • GENMOD link-edits the LOADed files • Gen myos • Scripting language: REXX

  38. Booting your own system • Define T3390 as vaddr cyl n • Format vaddr modeletter • Format vaddr modeletter n-1 (recomp • Salipl vaddr (origin xxxx mod myos • #CP IPL vaddr • Need the #CP to avoid terminal type problems • Returning to the CMS shell • #CP IPL CMS • Modeletter: • A-Z, same as a PC • Defines path for files AND writeability of drive

  39. Display • Displays contents of memory, regs, PSW • in hex and char format • Example Display 0 100 200 displays 3 locations Display 0-200 displays x'0' through x'200' Display P displays the current PSW
