  1. Splash Screen

  2. Five-Minute Check (over Lesson 3–1) Then/Now Postulate 3.1: Corresponding Angles Postulate Example 1: Use Corresponding Angles Postulate Theorems: Parallel Lines and Angle Pairs Proof: Alternate Interior Angles Theorem Example 2: Real-World Example: Use Theorems about Parallel Lines Example 3: Find Values of Variables Theorem 3.4: Perpendicular Transversal Theorem Lesson Menu

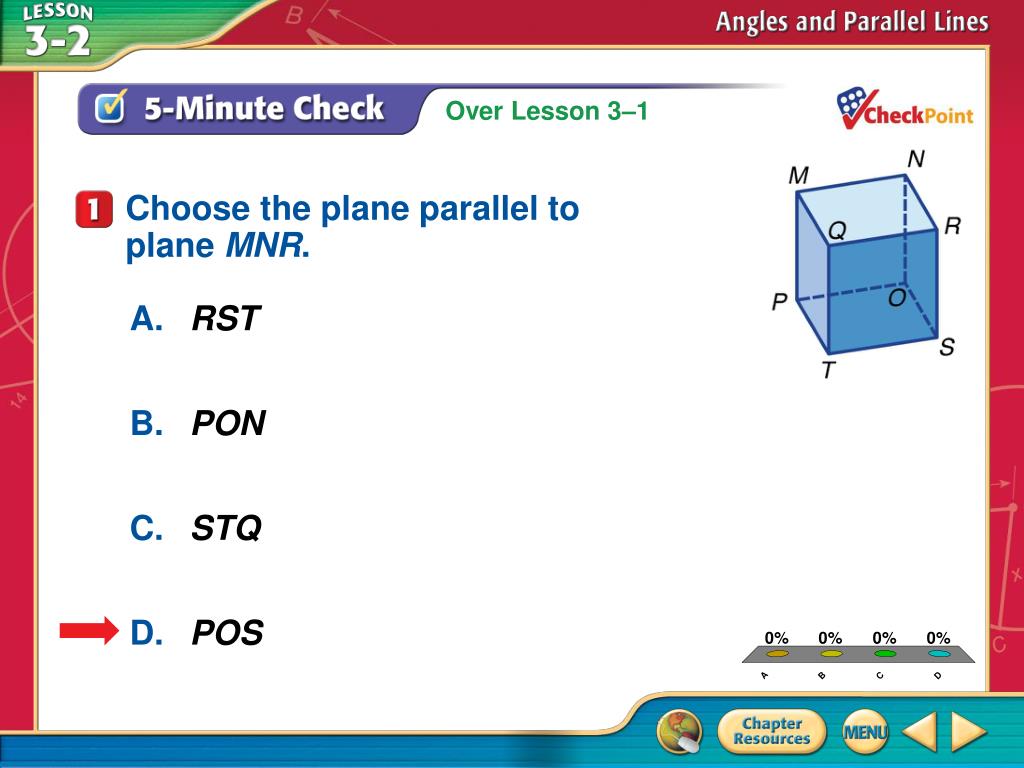

  3. A B C D Choose the plane parallel to plane MNR. A.RST B.PON C.STQ D.POS 5-Minute Check 1

  4. A B C D Choose the segment skew to MP. ___ A.PM B.TS C.PO D.MQ ___ ___ ___ 5-Minute Check 2

  5. A B C D Classify the relationship between 1 and 5. A. corresponding angles B. verticle angles C. consecutive interior angles D. alternate exterior angles 5-Minute Check 3

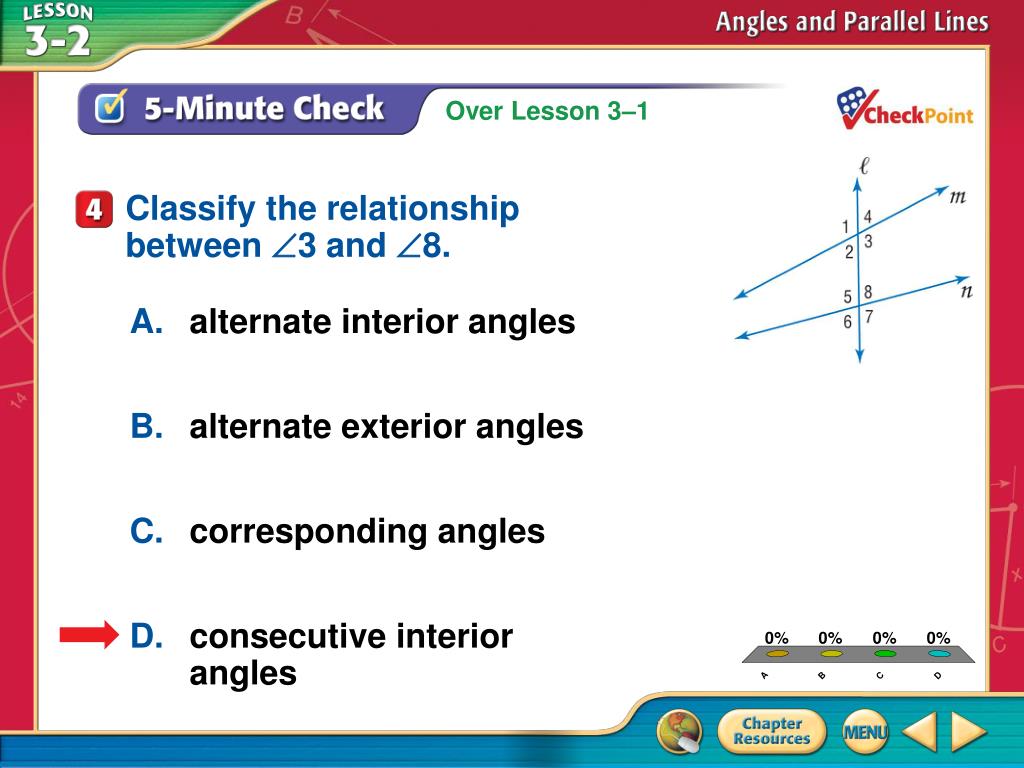

  6. A B C D Classify the relationship between 3 and 8. A. alternate interior angles B. alternate exterior angles C. corresponding angles D. consecutive interior angles 5-Minute Check 4

  7. A B C D Classify the relationship between 4 and 6. A. alternate interior angles B. alternate exterior angles C. corresponding angles D. verticle angles 5-Minute Check 5

  8. A B C D Which of the following segmentsis not parallel to PT? A.OS B.TS C.NR D.MQ 5-Minute Check 6

  9. You named angle pairs formed by parallel lines and transversals. (Lesson 3–1) • Use theorems to determine the relationships between specific pairs of angles. • Use algebra to find angle measurements. Then/Now

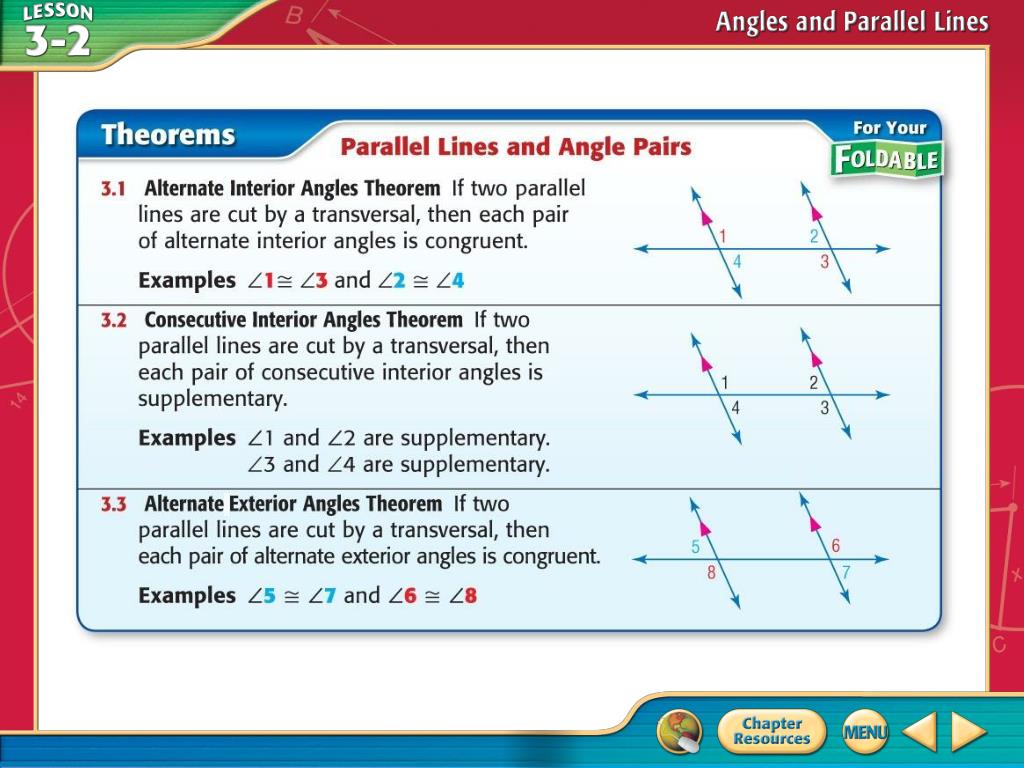

  10. Concept

  11. Use Corresponding Angles Postulate A. In the figure, m11 = 51. Find m15. Tell which postulates (or theorems) you used. 15  11 Corresponding Angles Postulate m15 =m11 Definition of congruent angles m15 =51 Substitution Answer: m15 = 51 Example 1

  12. Use Corresponding Angles Postulate B. In the figure, m11 = 51. Find m16. Tell which postulates (or theorems) you used. 15  11 Corresponding Angles Postulate 15 16 Substitution 11 16 Supplement Theorem m11 = m16 Definition of Congruent Angles m16 = 51 Substitution Answer: m16 = 51 Example 1

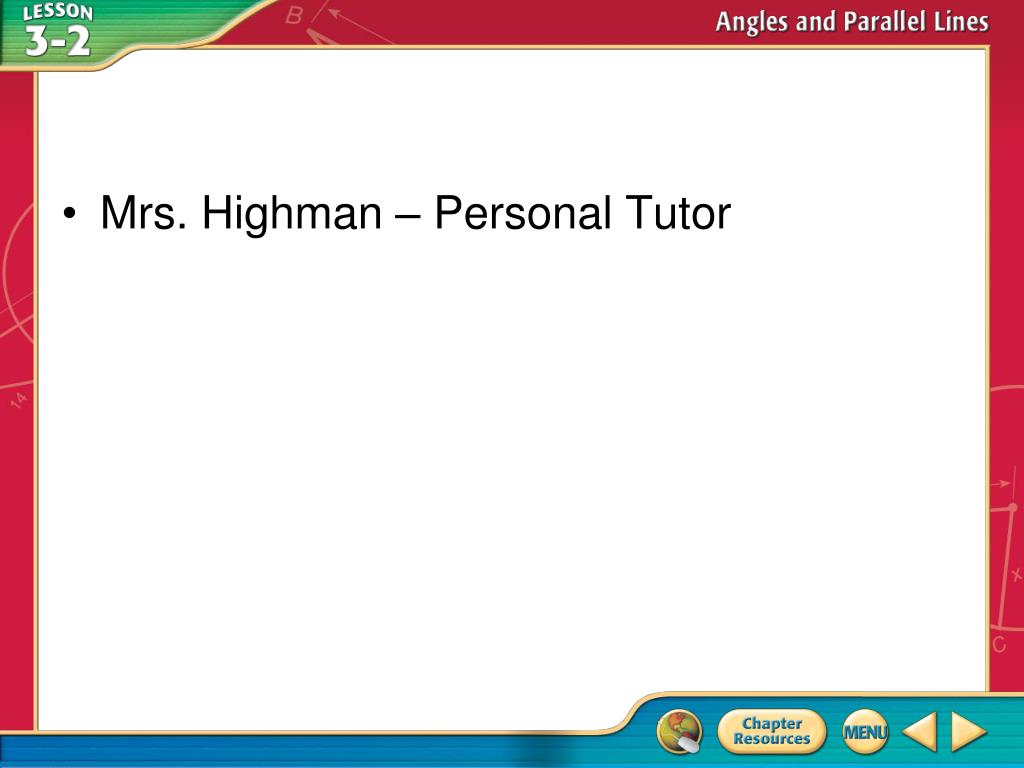

  13. Mrs. Highman – Personal Tutor

  14. A B C D A. In the figure, a || b and m18 = 42. Find m22. A. 42 B. 84 C. 48 D. 138 Example 1a

  15. A B C D B. In the figure, a || b and m18 = 42. Find m25. A. 42 B. 84 C. 48 D. 138 Example 1b

  16. Concept

  17. Use Theorems about Parallel Lines FLOOR TILES The diagram represents the floor tiles in Michelle’s house. If m2 = 125, find m3. 2  3 Alternate Interior Angles Postulate m2 =m3 Definition of congruent angles 125 =m3 Substitution Answer:m3 = 125 Example 2

  18. A B C D FLOOR TILES The diagram represents the floor tiles in Michelle’s house. If m2 = 125, find m4. A. 25 B. 55 C. 70 D. 125 Example 2

  19. Find Values of Variables A. ALGEBRA If m5 = 2x – 10, and m7 = x + 15, find x. 5  7 Corresponding Angles Postulate m5 =m7 Definition of congruent angles 2x – 10 =x + 15 Substitution x – 10= 15 Subtract x from each side. x = 25 Add 10 to each side. Answer:x = 25 Example 3

  20. Find Values of Variables B. ALGEBRA If m4 = 4(y – 25), and m8 = 4y, find y. 8  6 Corresponding Angles Postulate m8 = m6 Definition of congruent angles 4y = m6 Substitution Example 3

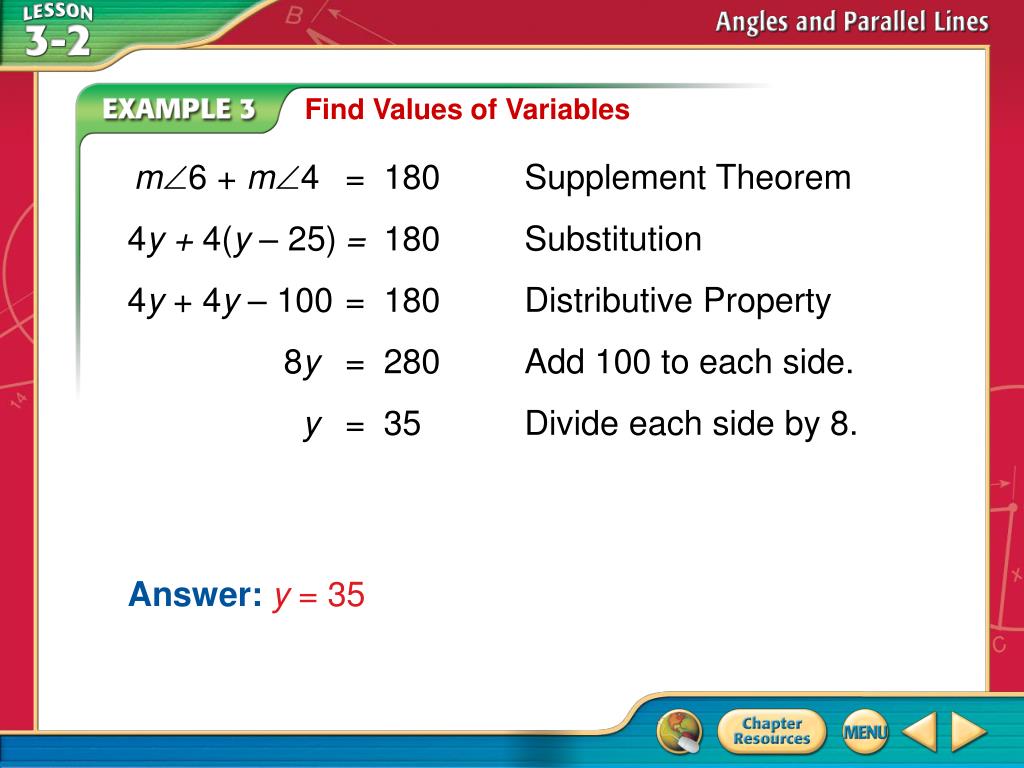

  21. Find Values of Variables m6 + m4 = 180 Supplement Theorem 4y + 4(y – 25) = 180 Substitution 4y + 4y – 100 = 180 Distributive Property 8y = 280 Add 100 to each side. y = 35 Divide each side by 8. Answer:y = 35 Example 3

  22. Mr. Hardesty – Personal Tutor

  23. A B C D A. ALGEBRA If m1 = 9x + 6, m2 = 2(5x – 3), and m3 = 5y + 14, find x. A.x = 9 B.x = 12 C.x = 10 D.x = 14 Example 3

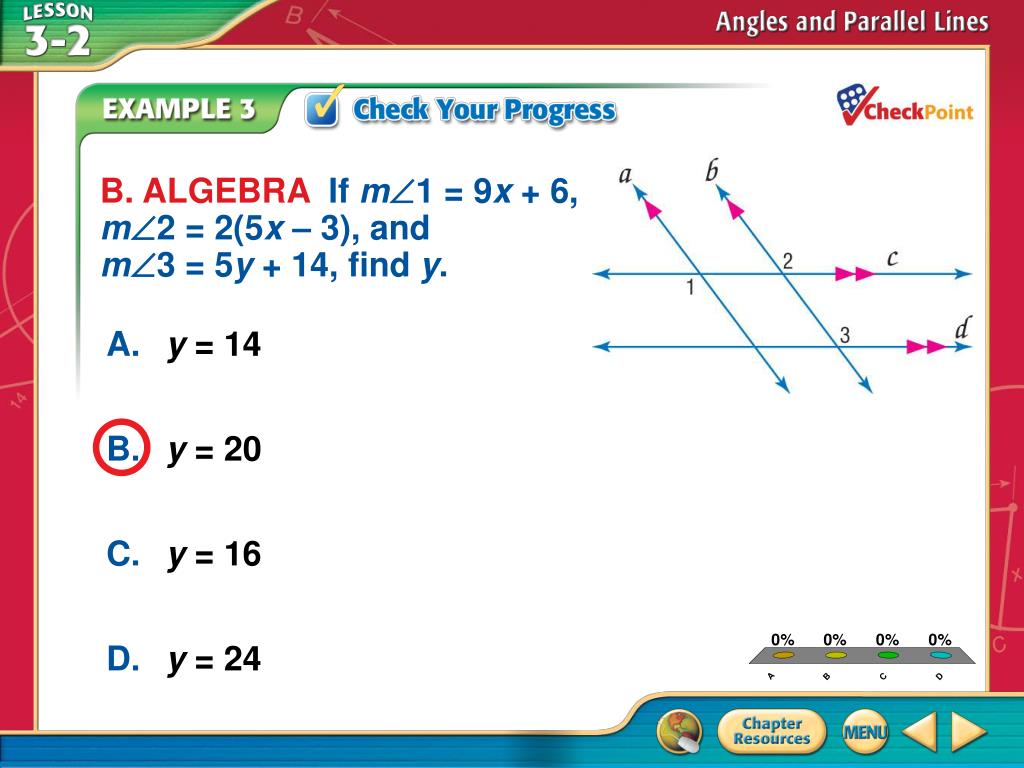

  24. A B C D B. ALGEBRA If m1 = 9x + 6, m2 = 2(5x – 3), and m3 = 5y + 14, find y. A.y = 14 B.y = 20 C.y = 16 D.y = 24 Example 3

  25. Concept

  26. End of the Lesson
