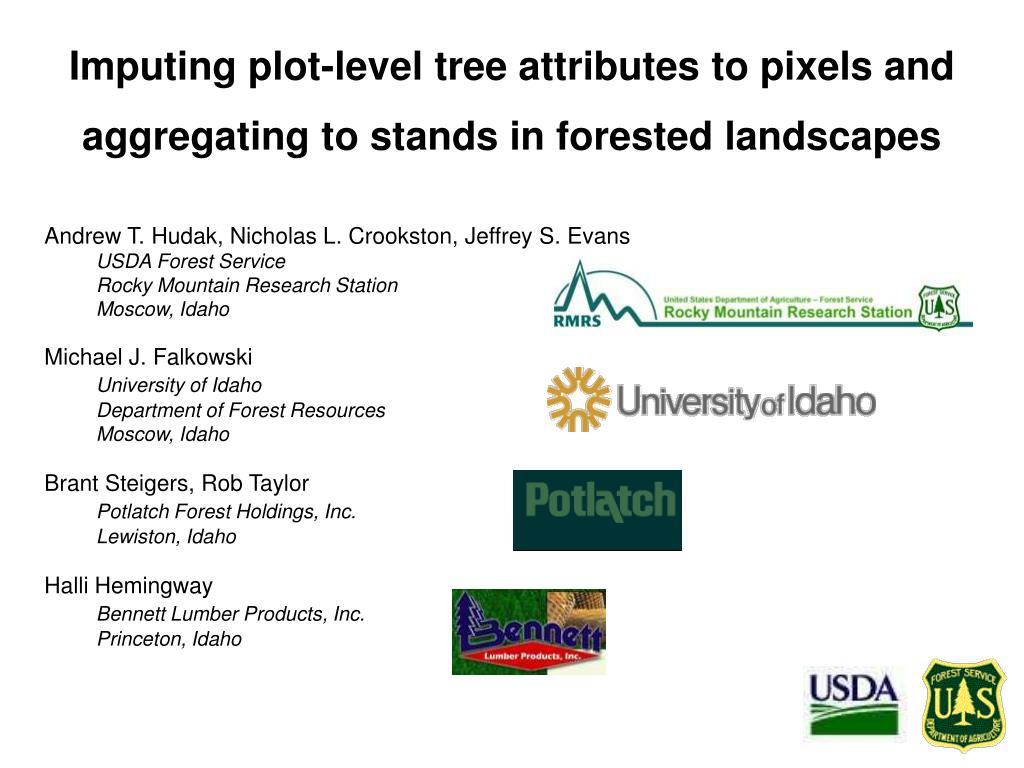

Imputing plot level tree attributes to pixels and aggregating to stands in forested landscapes

Imputing plot-level tree attributes to pixels and aggregating to stands in forested landscapes

Andrew T. Hudak, Nicholas L. Crookston, Jeffrey S. Evans

USDA Forest Service

Rocky Mountain Research Station

Moscow, Idaho

Michael J. Falkowski

University of Idaho

Department of Forest Resources

Moscow, Idaho

Brant Steigers, Rob Taylor

Potlatch Forest Holdings, Inc.

Lewiston, Idaho

Halli Hemingway

Bennett Lumber Products, Inc.

Princeton, Idaho

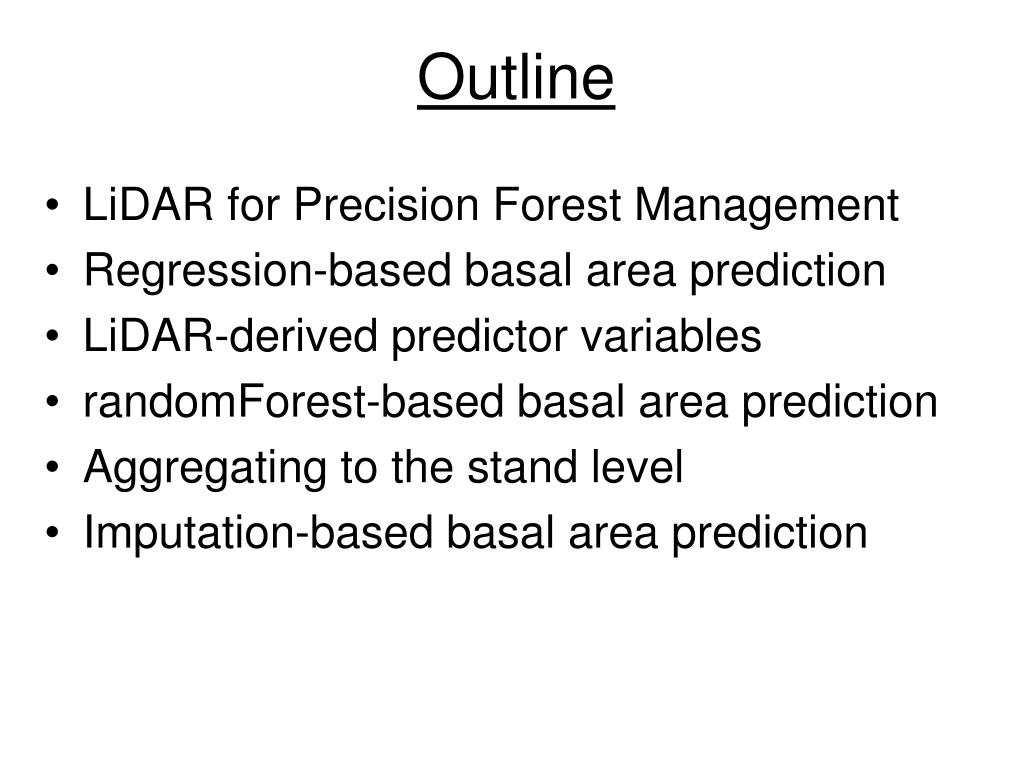

Outline
Outline aggregating to stands in forested landscapes

  • LiDAR for Precision Forest Management

  • Regression-based basal area prediction

  • LiDAR-derived predictor variables

  • randomForest-based basal area prediction

  • Aggregating to the stand level

  • Imputation-based basal area prediction

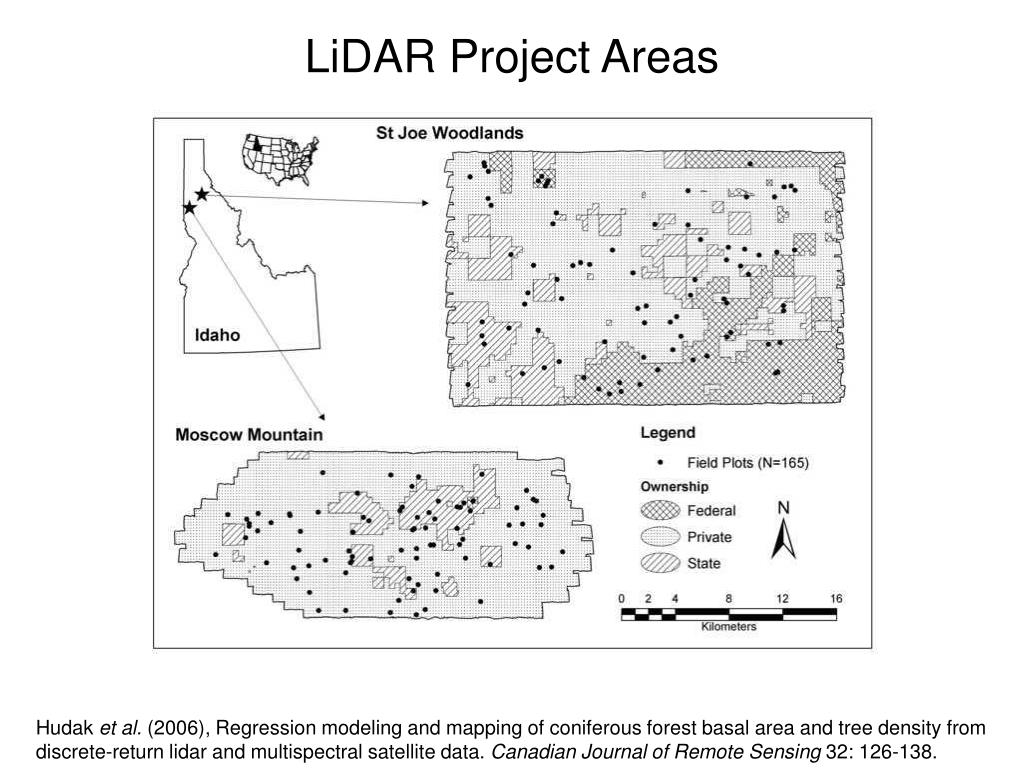

Lidar project areas
LiDAR Project Areas aggregating to stands in forested landscapes

Hudak et al. (2006), Regression modeling and mapping of coniferous forest basal area and tree density from

discrete-return lidar and multispectral satellite data. Canadian Journal of Remote Sensing 32: 126-138.


Field sampling
Field Sampling aggregating to stands in forested landscapes

  • Plots randomly placed within strata defined by:

    • Elevation

    • Solar insolation

    • NDVIc (satellite image-derived indicator of Leaf Area Index)

    • 3 (elevation) x 3 (insolation) x 9 (NDVIc) = 81 strata / study area

  • 1/10 acre plots in Moscow Mountain study area

  • 1/5 acre plots in St. Joe Woodlands study area

  • Fixed radius plot for all trees >5” dbh, circumscribed by variable radius plot for large trees


Regression
Regression aggregating to stands in forested landscapes

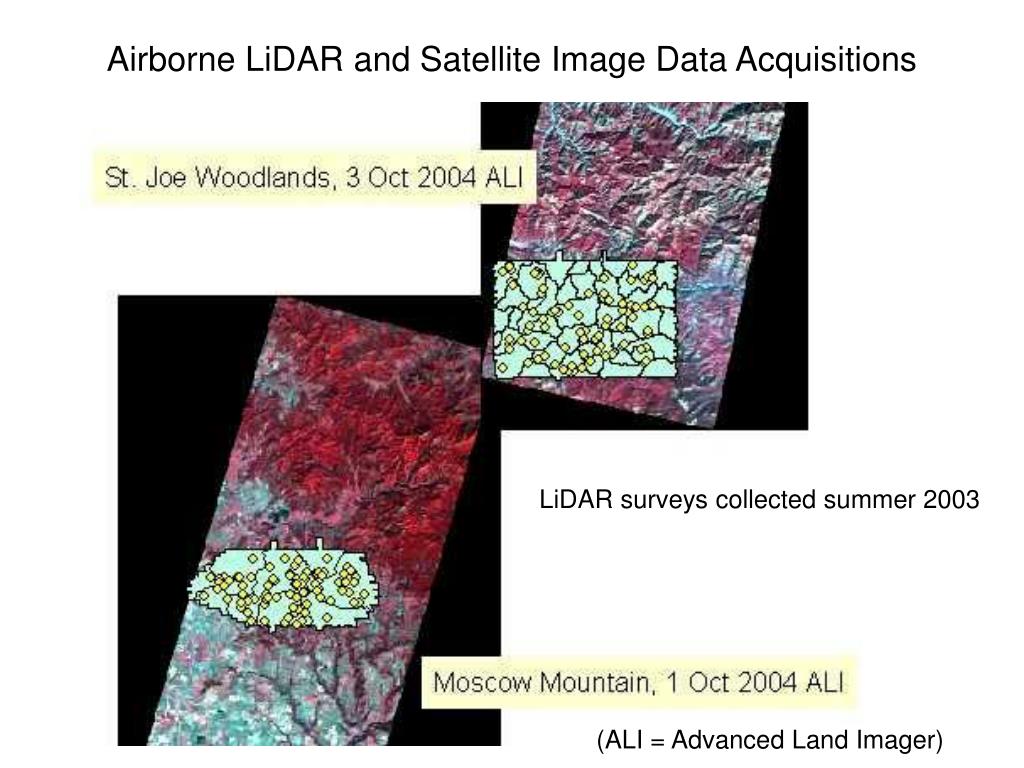

Airborne LiDAR and Satellite Image Data Acquisitions aggregating to stands in forested landscapes

LiDAR surveys collected summer 2003

(ALI = Advanced Land Imager)


Predicted basal area ln transformed regression model

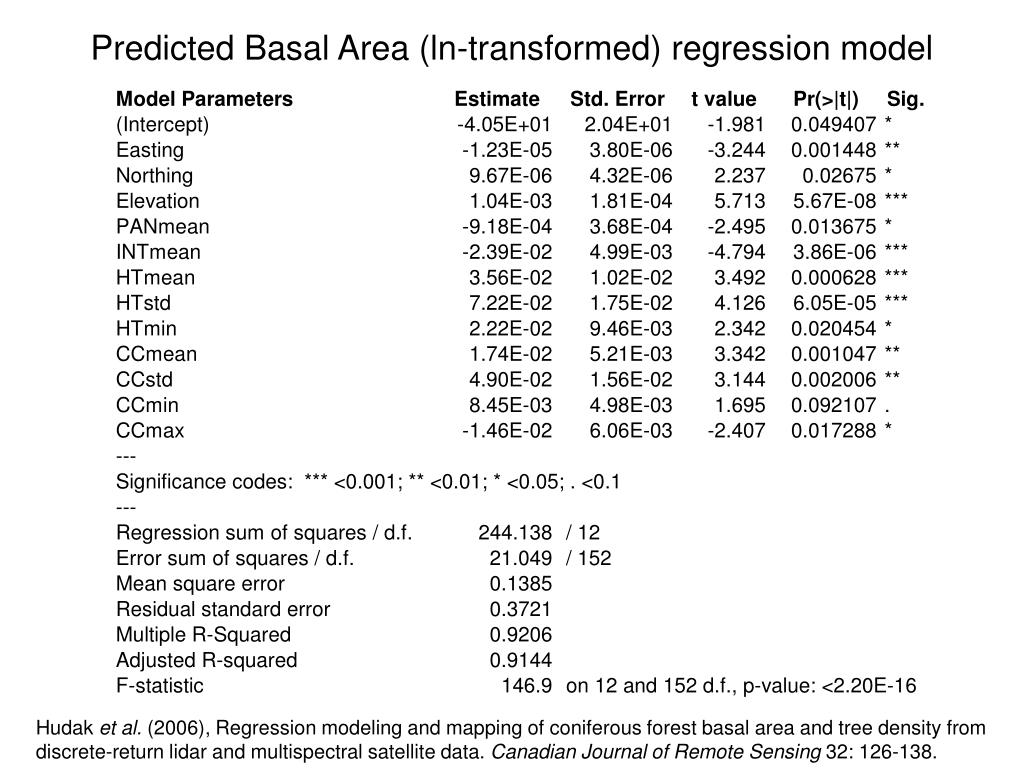

Predicted Basal Area (ln-transformed) regression model aggregating to stands in forested landscapes

Hudak et al. (2006), Regression modeling and mapping of coniferous forest basal area and tree density from

discrete-return lidar and multispectral satellite data. Canadian Journal of Remote Sensing 32: 126-138.


Hudak aggregating to stands in forested landscapeset al. (2006), Regression modeling and mapping of coniferous forest basal area and tree density from

discrete-return lidar and multispectral satellite data. Canadian Journal of Remote Sensing 32: 126-138.


Multiple linear regression basal area
Multiple Linear Regression – Basal Area aggregating to stands in forested landscapes

N=13678 pixels

Hudak et al. In press

Canadian J. Remote Sensing

Adjusted R2=0.91


Height distributions
Height Distributions aggregating to stands in forested landscapes


Lidar derived predictor variables
LiDAR-Derived Predictor Variables aggregating to stands in forested landscapes

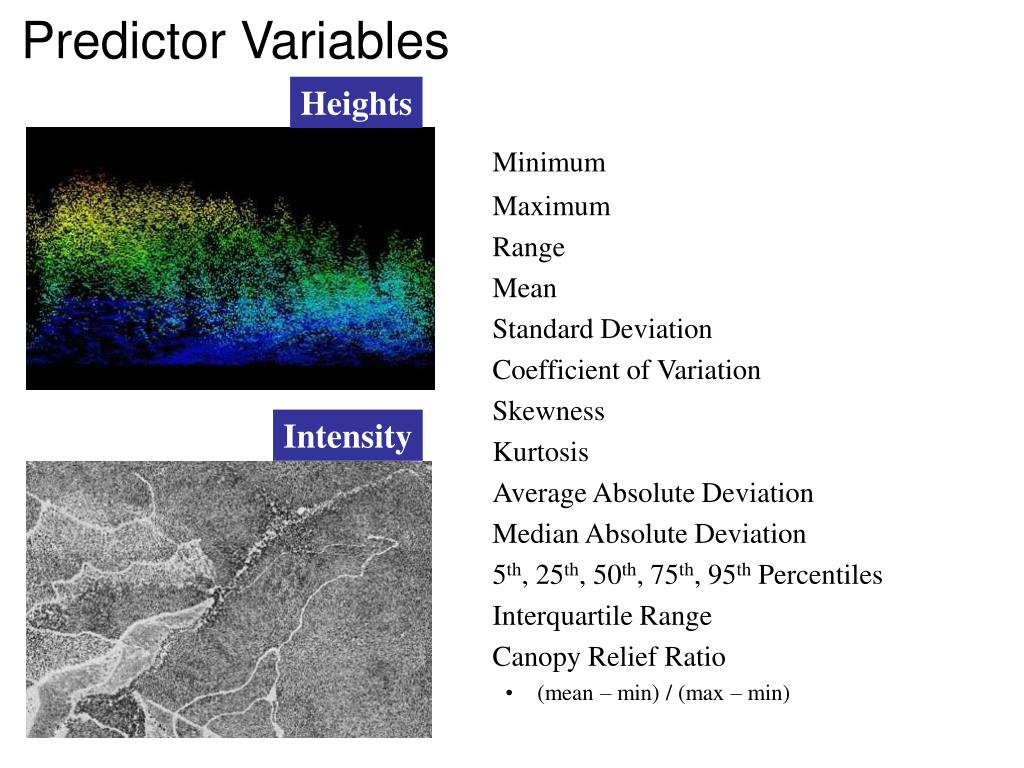

Predictor variables
Predictor Variables aggregating to stands in forested landscapes

Heights

Minimum

Maximum

Range

Mean

Standard Deviation

Coefficient of Variation

Skewness

Kurtosis

Average Absolute Deviation

Median Absolute Deviation

5th, 25th, 50th, 75th, 95th Percentiles

Interquartile Range

Canopy Relief Ratio

  • (mean – min) / (max – min)

Intensity


Predictor variables cont d
Predictor Variables, cont’d. aggregating to stands in forested landscapes

Canopy Density

DENSITY - Percent vegetation returns

  • measure of total canopy density

    STRATUM0 - Percent ground returns

    STRATUM1 - Percent veg returns >0 and <=1m

    TXT – Standard deviation of returns >0 and <=1m

  • texture measure of ground clutter

    STRATUM2 - Percent veg returns >1 and <=2.5m

    STRATUM3 - Percent veg returns >2.5 and <=10m

    STRATUM4 - Percent veg returns >10 and <=20m

    STRATUM5 - Percent veg returns >20 and <=30m

    STRATUM6 - Percent veg returns >30m

    PCT1 - Percent 1st returns

    PCT2 - Percent 2nd returns

    PCT3 - Percent 3rd returns


Predictor variables cont d1
Predictor Variables, cont’d. aggregating to stands in forested landscapes

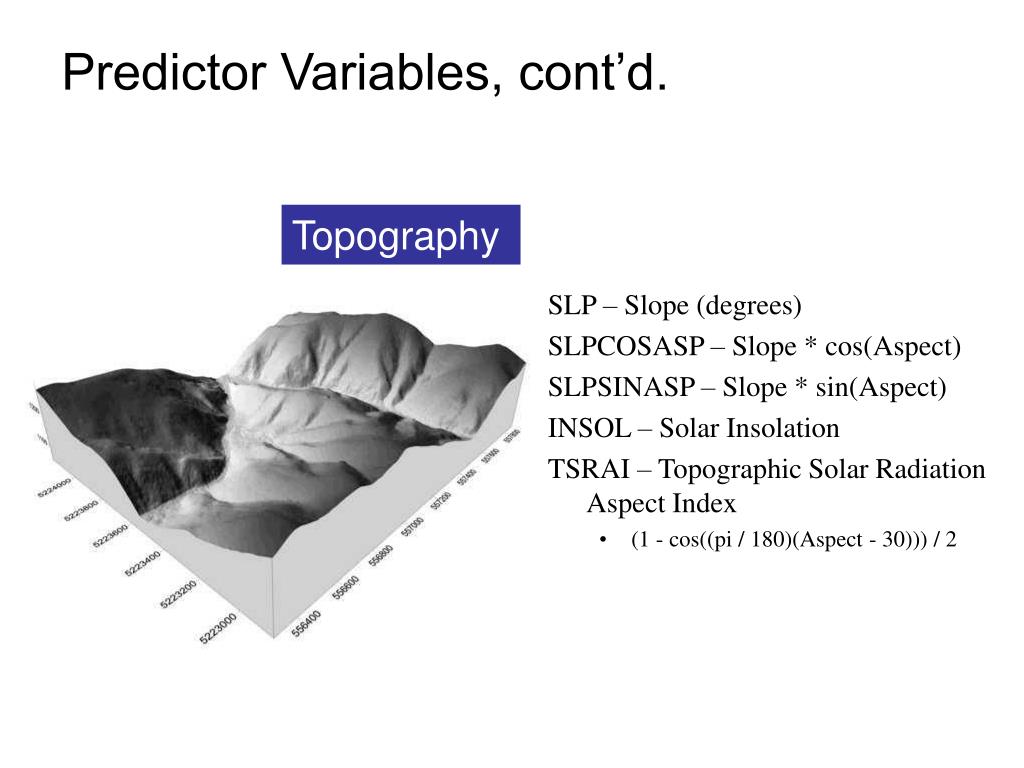

SLP – Slope (degrees)

SLPCOSASP – Slope * cos(Aspect)

SLPSINASP – Slope * sin(Aspect)

INSOL – Solar Insolation

TSRAI – Topographic Solar Radiation Aspect Index

  • (1 - cos((pi / 180)(Aspect - 30))) / 2

Topography


Randomforest
randomForest aggregating to stands in forested landscapes


Randomforest model breiman 2001 liaw and wiener 2005

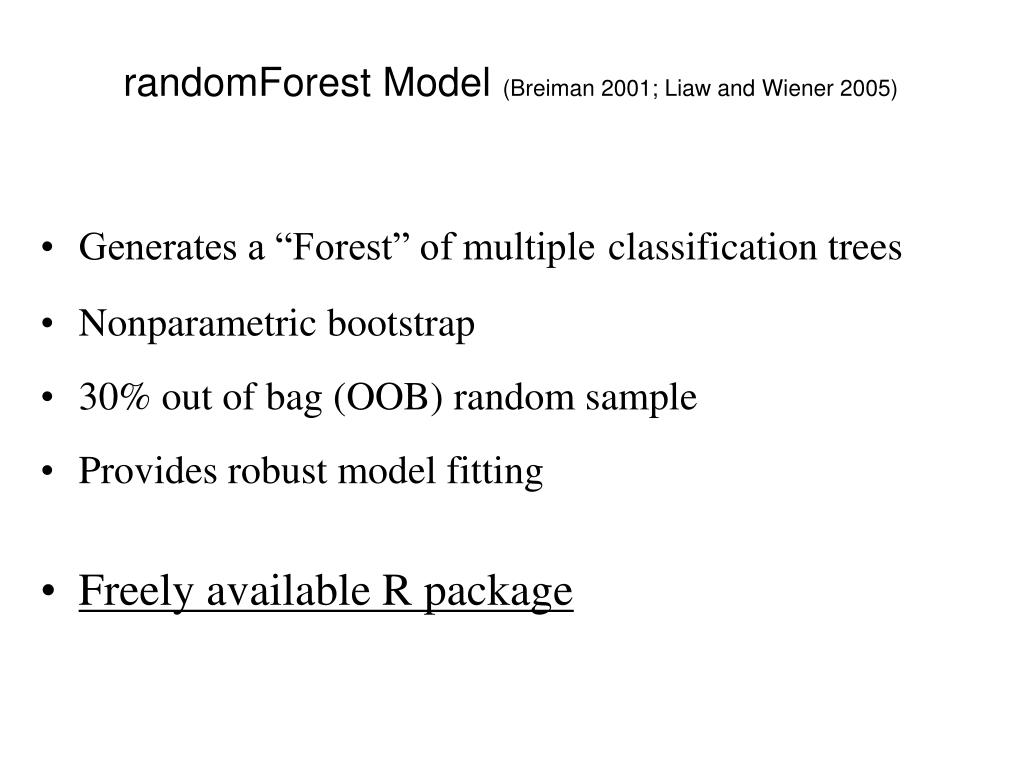

randomForest Model aggregating to stands in forested landscapes(Breiman 2001; Liaw and Wiener 2005)

  • Generates a “Forest” of multipleclassification trees

  • Nonparametric bootstrap

  • 30% out of bag (OOB) random sample

  • Provides robust model fitting

  • Freely available R package


Importance plot basal area

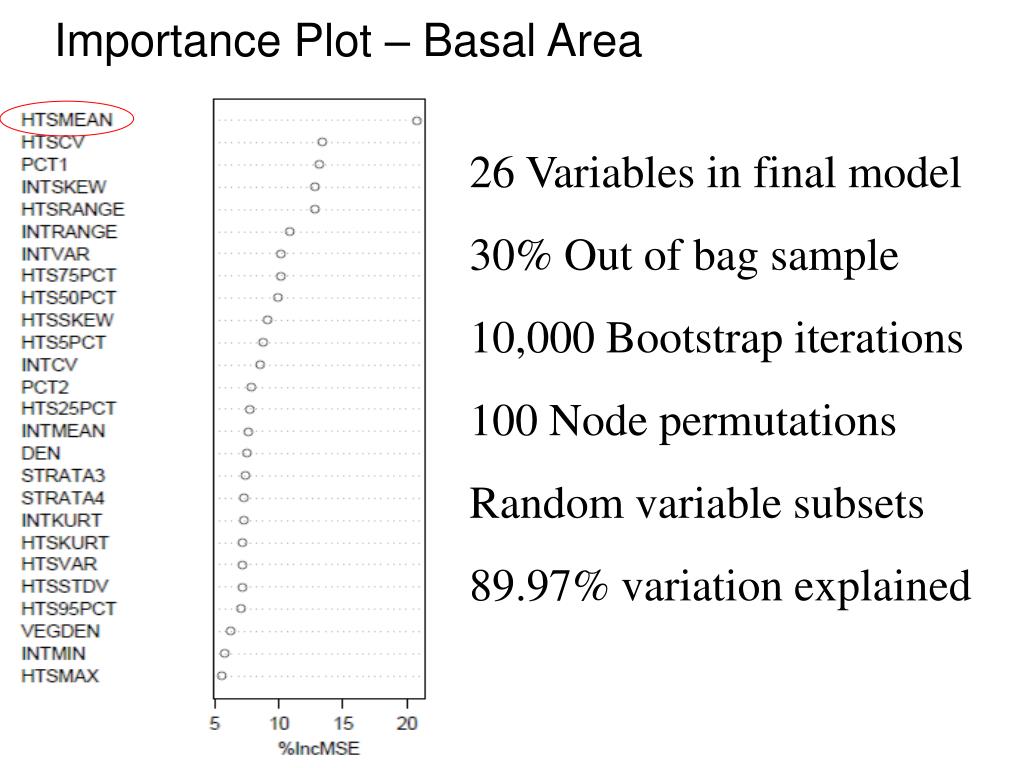

Importance Plot – Basal Area aggregating to stands in forested landscapes

26 Variables in final model

30% Out of bag sample

10,000 Bootstrap iterations

100 Node permutations

Random variable subsets

89.97% variation explained


Equivalency plot

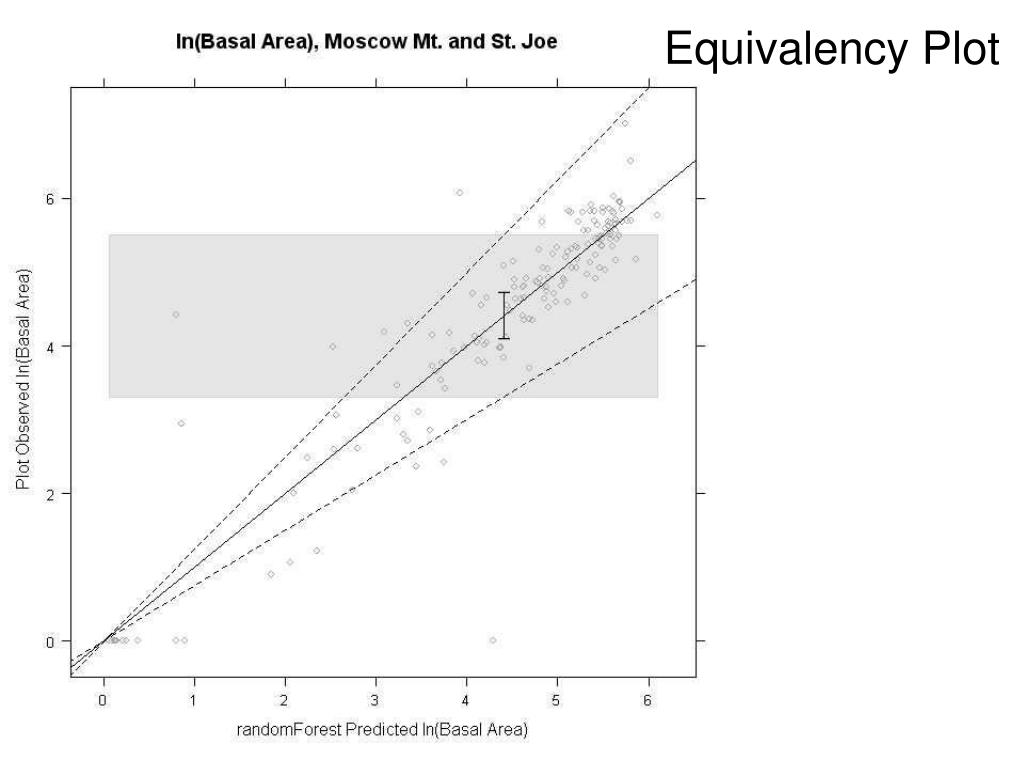

Equivalency Plot aggregating to stands in forested landscapes


Equivalency plot1
Equivalency Plot aggregating to stands in forested landscapes

Region of Similarity, Intercept


Equivalency plot2
Equivalency Plot aggregating to stands in forested landscapes

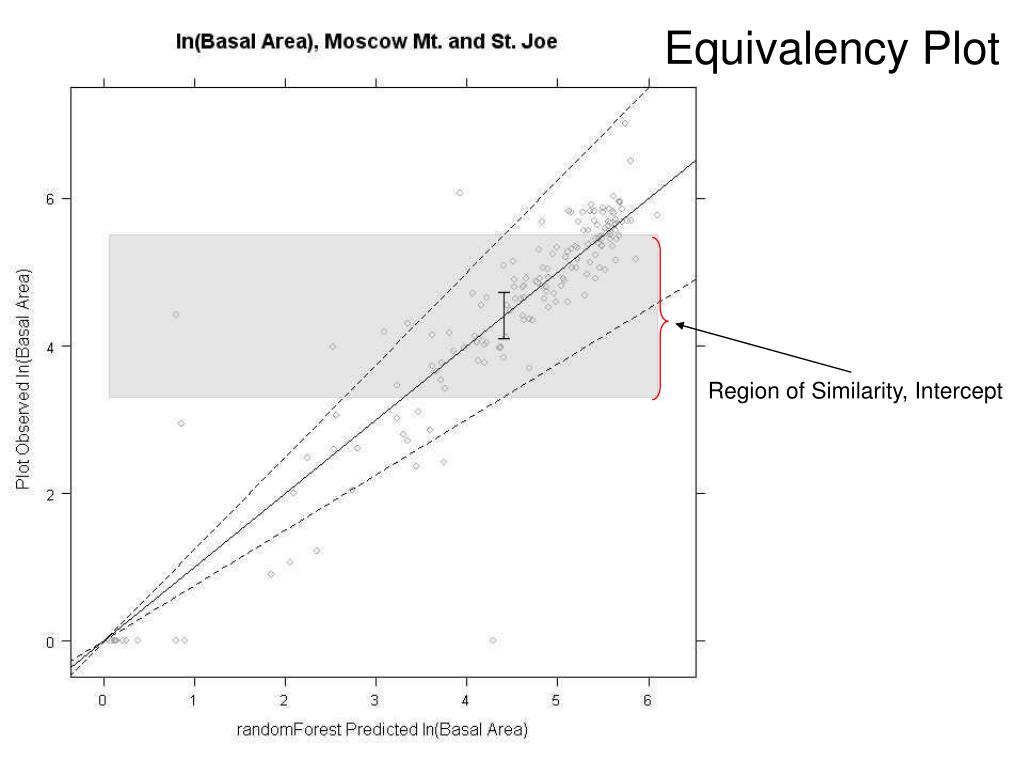

Region of Similarity, Intercept

No bias


Equivalency plot3
Equivalency Plot aggregating to stands in forested landscapes

Region of Similarity, Slope

Region of Similarity, Intercept

No bias


Equivalency plot4

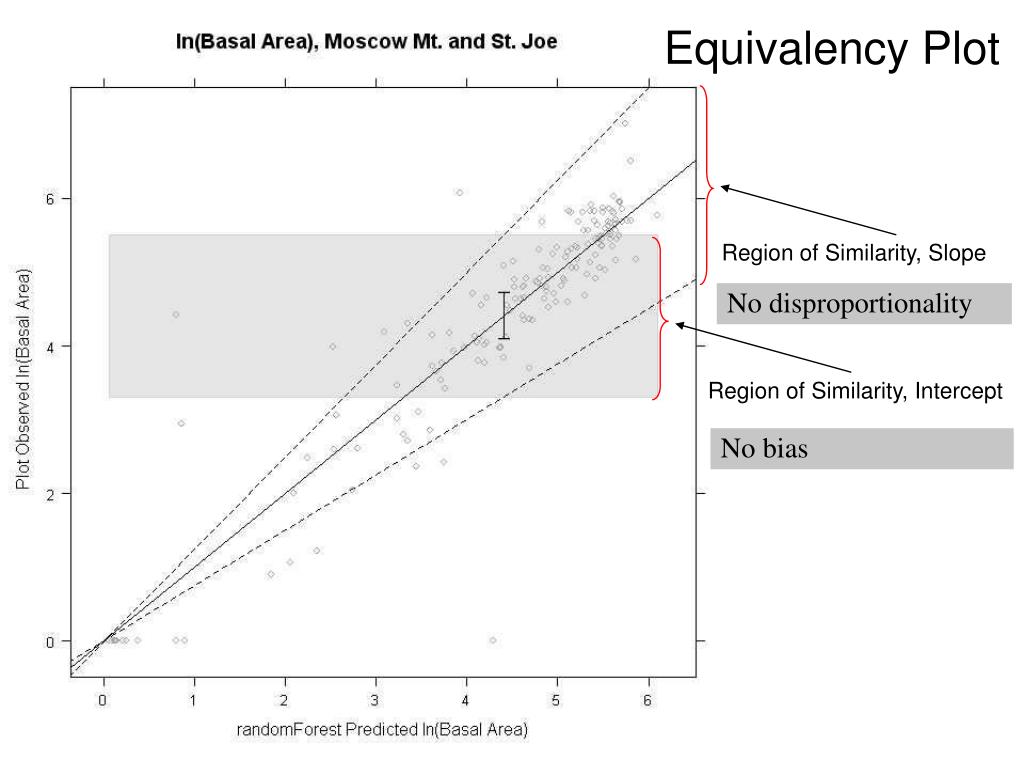

Equivalency Plot aggregating to stands in forested landscapes

Region of Similarity, Slope

No disproportionality

Region of Similarity, Intercept

No bias


Stand level aggregation
Stand-Level Aggregation aggregating to stands in forested landscapes

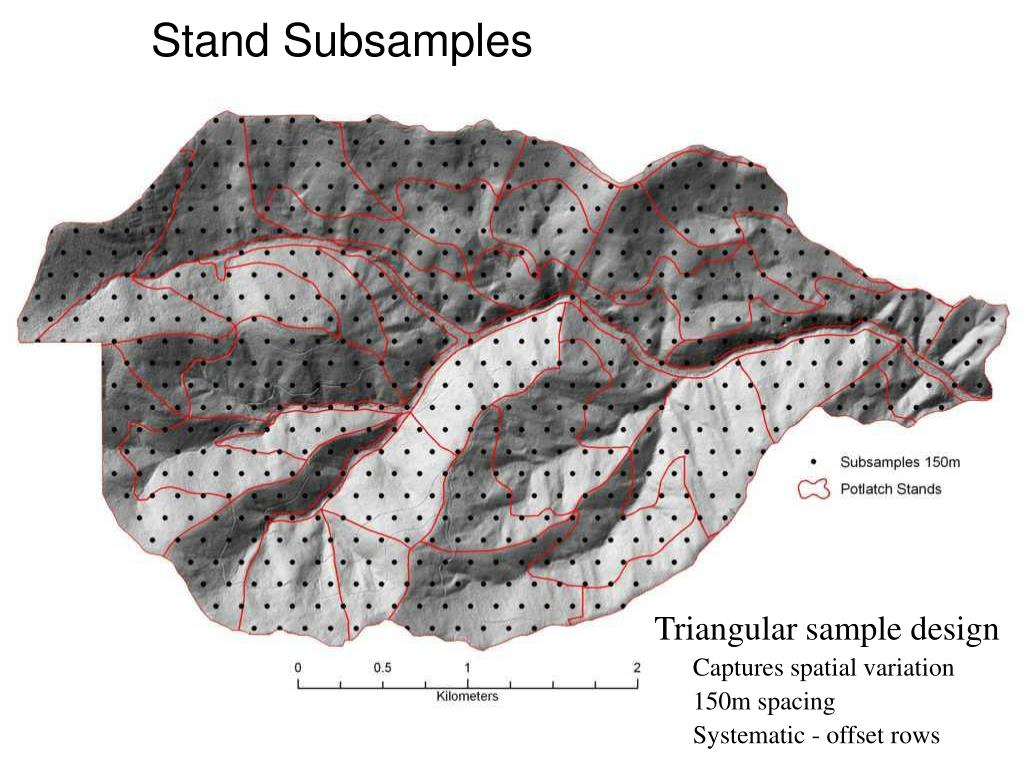

Stand subsamples
Stand Subsamples aggregating to stands in forested landscapes

Triangular sample design

Captures spatial variation

150m spacing

Systematic - offset rows

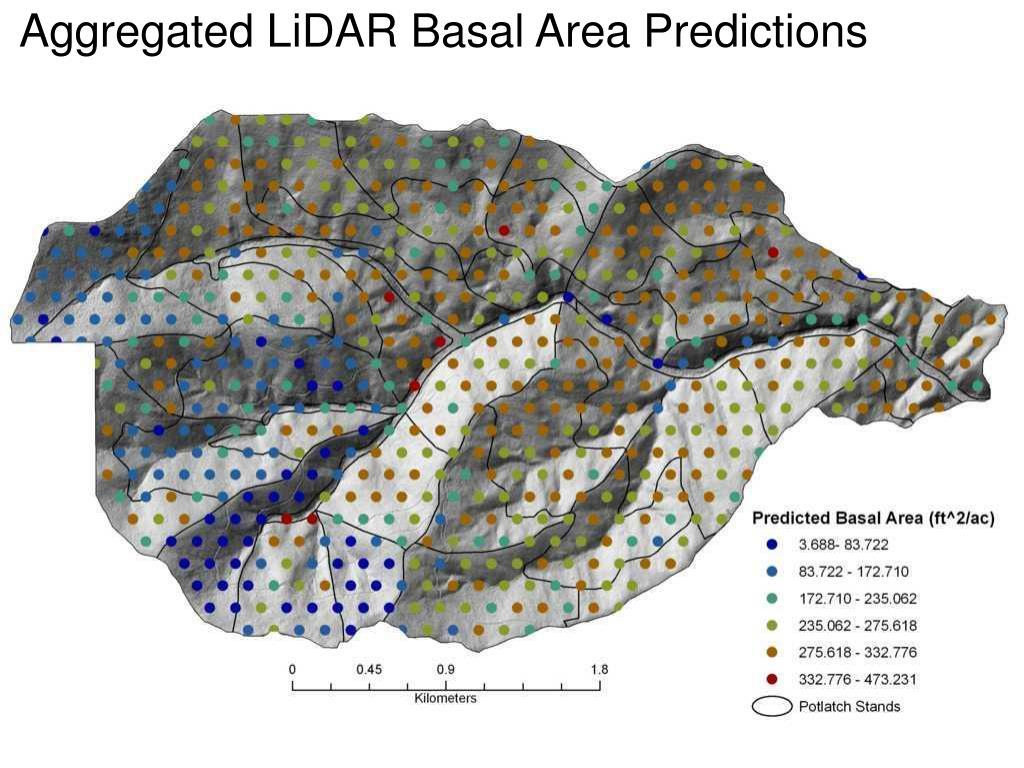

Aggregated lidar basal area predictions
Aggregated LiDAR Basal Area Predictions aggregating to stands in forested landscapes


Aggregated lidar basal area predictions1
Aggregated LiDAR Basal Area Predictions aggregating to stands in forested landscapes


Stand exam basal area

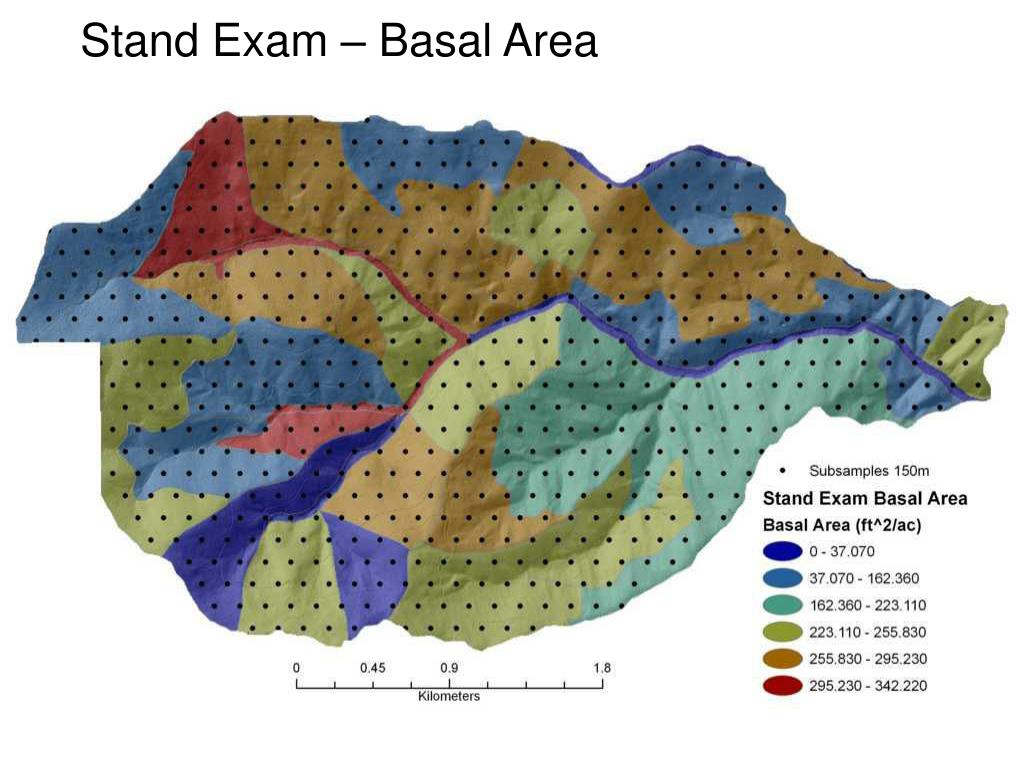

Stand Exam – Basal Area aggregating to stands in forested landscapes


Equivalency plot5
Equivalency Plot aggregating to stands in forested landscapes

Slight disproportionality,

not significant

Slight overprediction

bias, not significant

(N = 50 stands)


Imputation
Imputation aggregating to stands in forested landscapes


Yaimpute package crookston and finley in prep

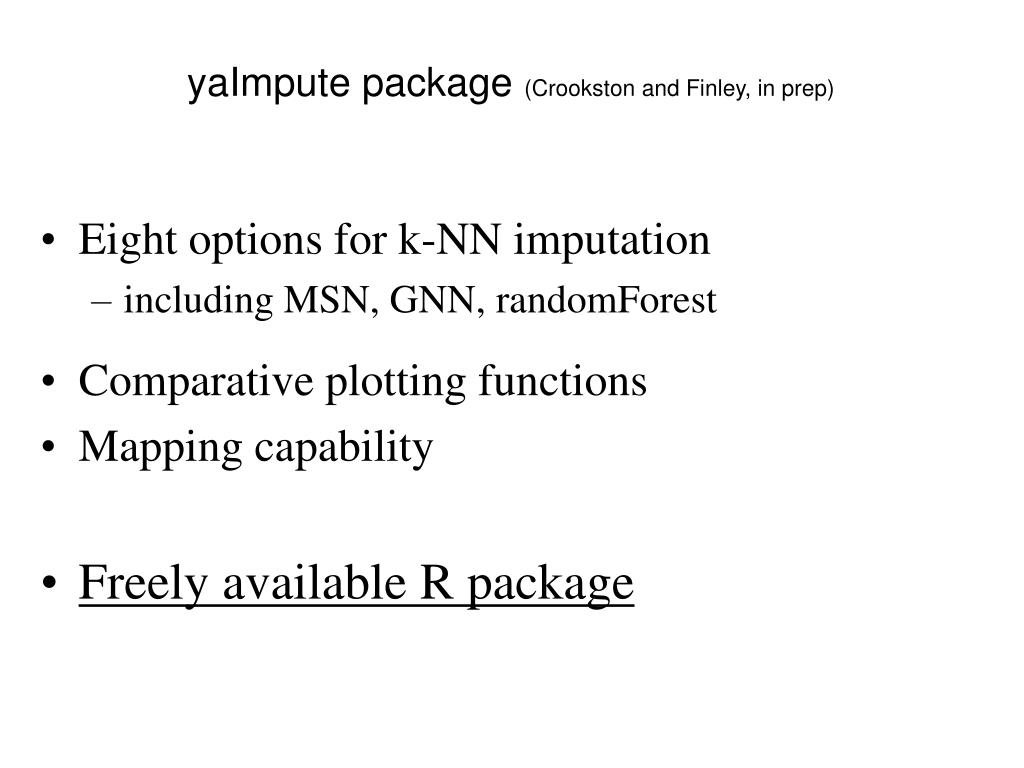

yaImpute package aggregating to stands in forested landscapes(Crookston and Finley, in prep)

  • Eight options for k-NN imputation

    • including MSN, GNN, randomForest

  • Comparative plotting functions

  • Mapping capability

  • Freely available R package

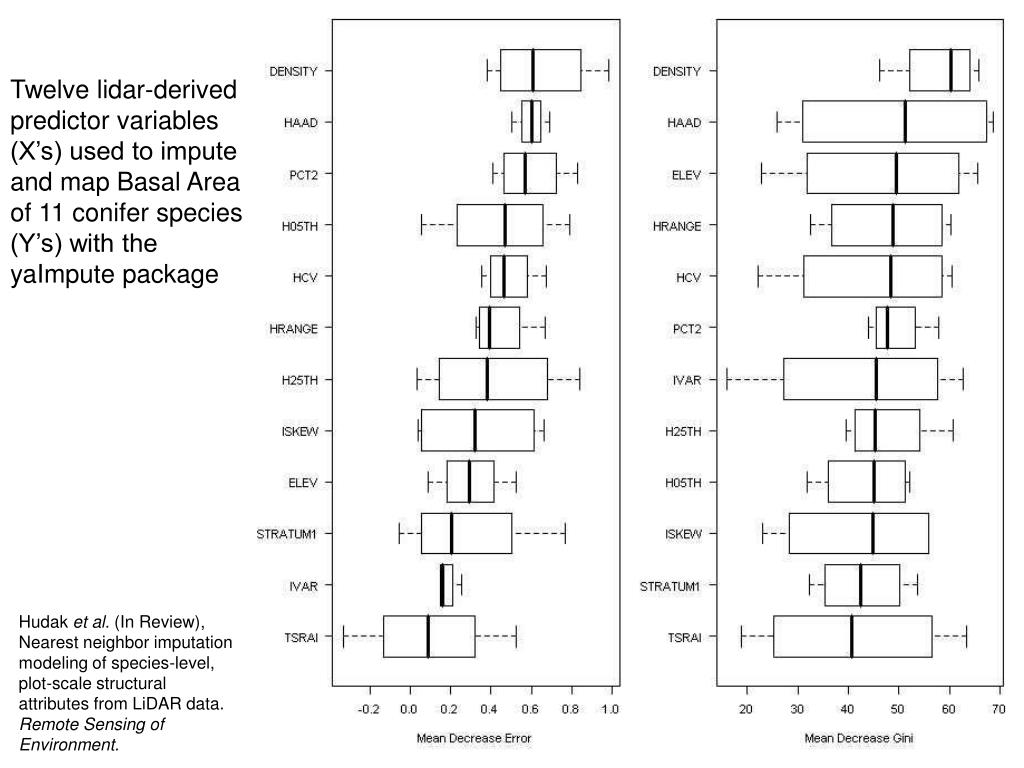

Twelve lidar-derived aggregating to stands in forested landscapes

predictor variables

(X’s) used to impute

and map Basal Area

of 11 conifer species

(Y’s) with the

yaImpute package

Hudak et al. (In Review), Nearest neighbor imputation modeling of species-level, plot-scale structural attributes from LiDAR data. Remote Sensing of Environment.


Total basal area sqft acre mapped at 30 m resolution
Total Basal Area (sqft / acre) mapped at 30 m resolution aggregating to stands in forested landscapes


Equivalency plot6
Equivalency Plot aggregating to stands in forested landscapes

Slight disproportionality,

significant

Slight bias towards

overprediction,

insignificant

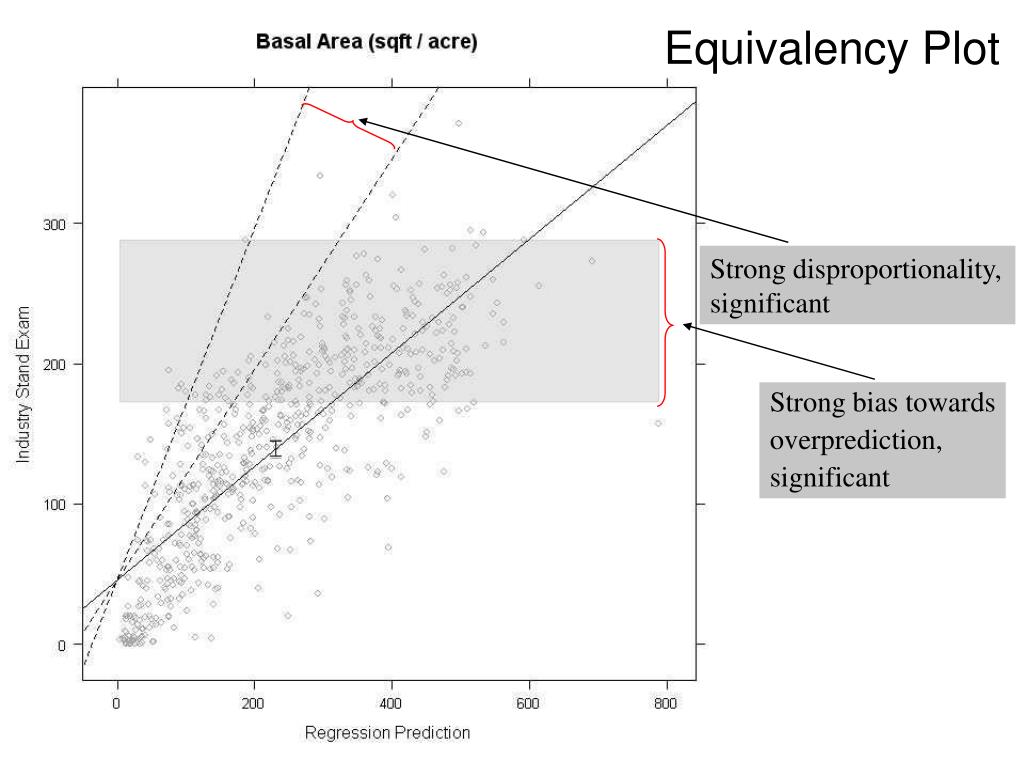

Equivalency Plot aggregating to stands in forested landscapes

Strong disproportionality,

significant

Strong bias towards

overprediction,

significant


Aggregated regression vs imputation predictions
Aggregated Regression vs. Imputation Predictions aggregating to stands in forested landscapes


Conclusions
Conclusions aggregating to stands in forested landscapes:

  • LiDAR metrics provide detailed structure information

  • Our sampling design based on a spectral data-derived LAI index may have inadequately stratified our landscapes based on basal area variation

  • Stand exams may not represent an unbiased sample of the full range of conditions in these landscapes, which is problematic for landscape-level inferences

  • The R packages randomForest and yaImpute hold much promise for modeling and mapping, as regression and imputation tools

  • Necessary next step is to impute tree lists from the LiDAR predictor variables for input into FVS


Questions? aggregating to stands in forested landscapes
