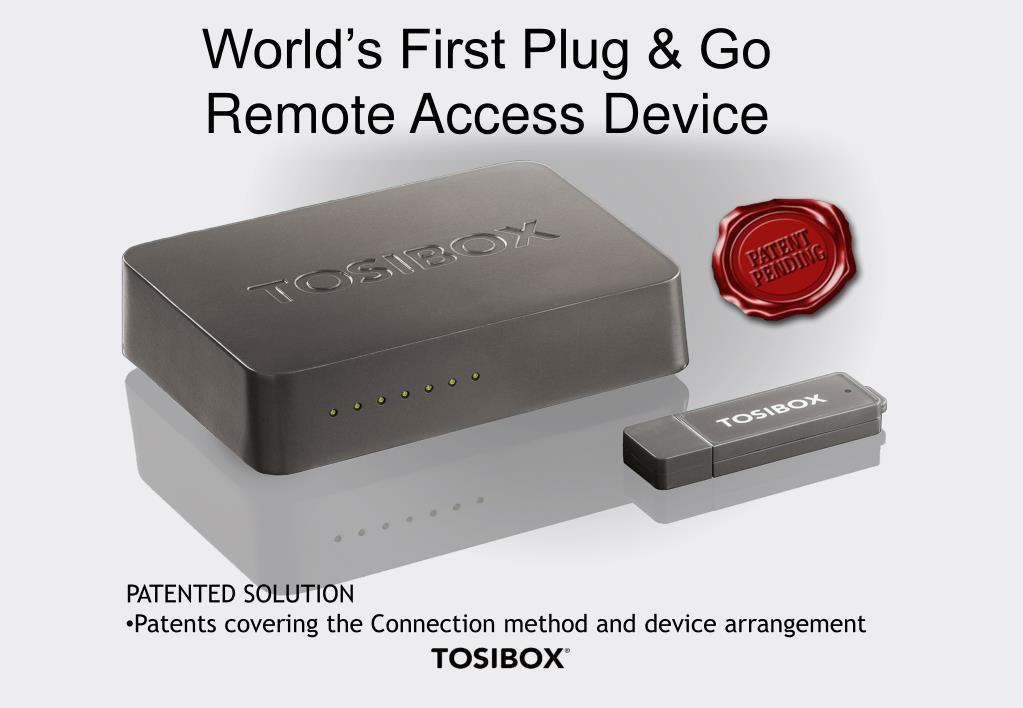

  1. World’s First Plug & GoRemote Access Device PATENTED SOLUTION • Patents covering the Connection method and device arrangement

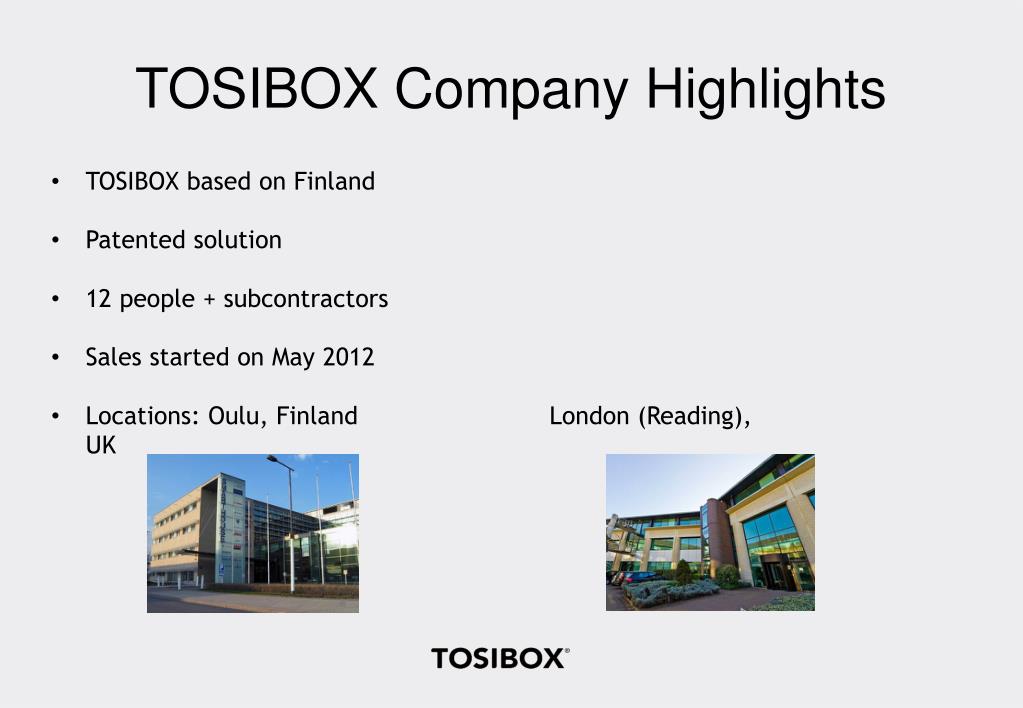

  2. TOSIBOX Company Highlights • TOSIBOX based on Finland • Patented solution • 12 people + subcontractors • Sales started on May 2012 • Locations: Oulu, Finland London (Reading), UK

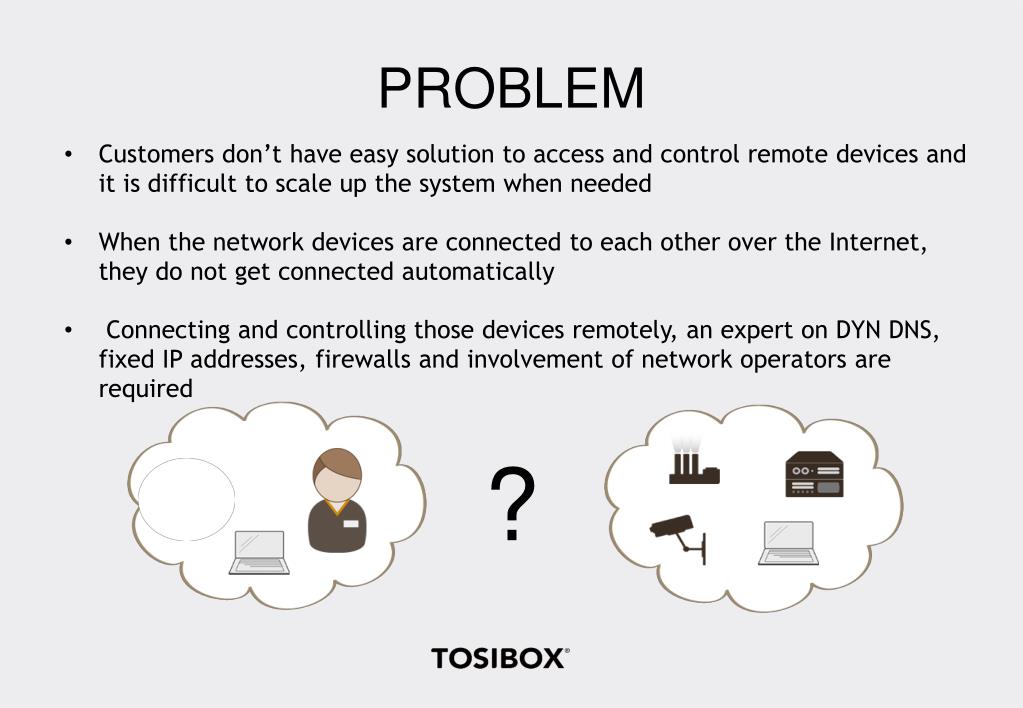

  3. PROBLEM • Customers don’t have easy solution to access and control remote devices and it is difficult to scale up the system when needed • When the network devices are connected to each other over the Internet, they do not get connected automatically • Connecting and controlling those devices remotely, an expert on DYN DNS, fixed IP addresses, firewalls and involvement of network operators are required ?

  4. TOSIBOX SOLUTION • TOSIBOX automatically connects the network devices over the internet in minutes and it is fully scalable system • Lower IT costs, lower capital cost, lower maintenance cost, faster connectivity to end-users Mobile Client

  5. TOSIBOX BENEFITS TAKE INTO USE ONLY IN 5 MINUTES HIGH LEVEL DATA SECURITY FLEXIBLE AND EXPANDABLE SOLUTION WORKS RELIABLY IN ALL KINDS OF INTERNET CONNECTIONS

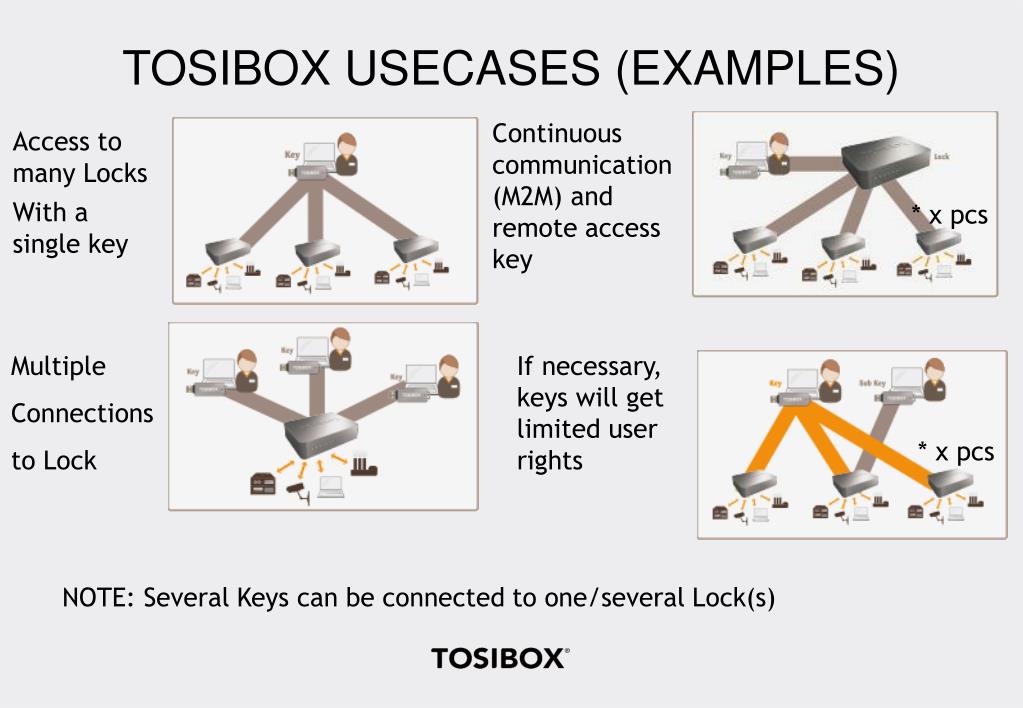

  6. TOSIBOX USECASES (EXAMPLES) Continuous communication (M2M) and remote access key Access to many Locks With a single key * x pcs Multiple Connections to Lock If necessary, keys will get limited user rights * x pcs NOTE: Several Keys can be connected to one/several Lock(s)

  7. Remote access to devices INTERNET

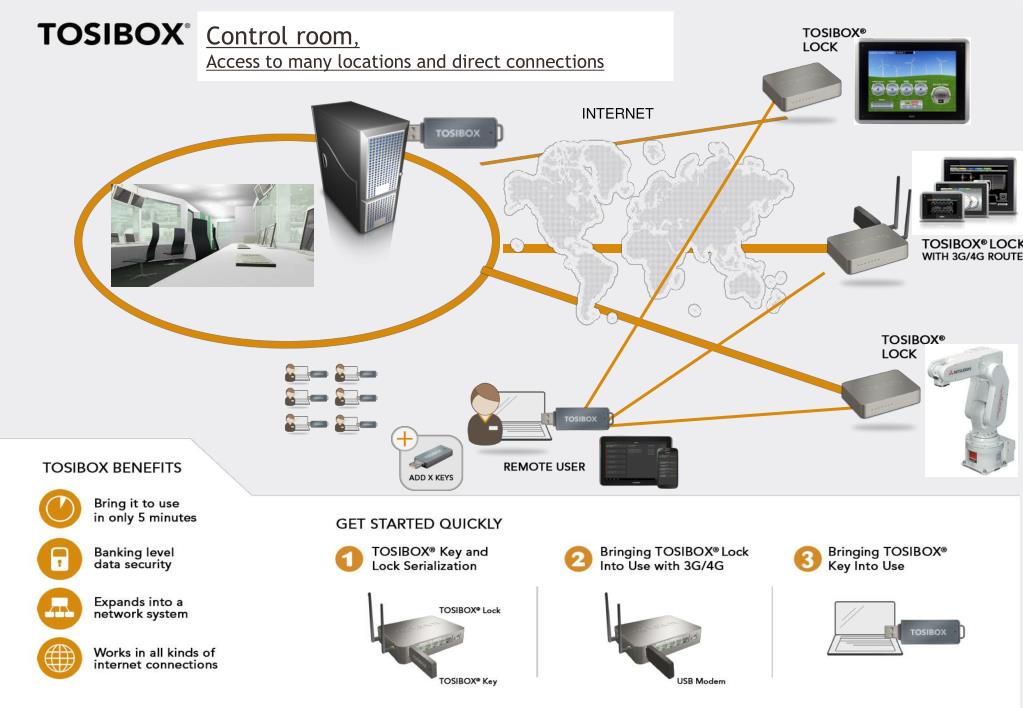

  8. Control room, Access to many locations and direct connections INTERNET

  9. Support by TOSIBOX lock Service people has TOSIBOX Lock, which will be connected to remote device: - For example PLC, Robots etc. - SW Designer will help by remote connection TOSIBOX Service Kit

  10. Power plant usecase

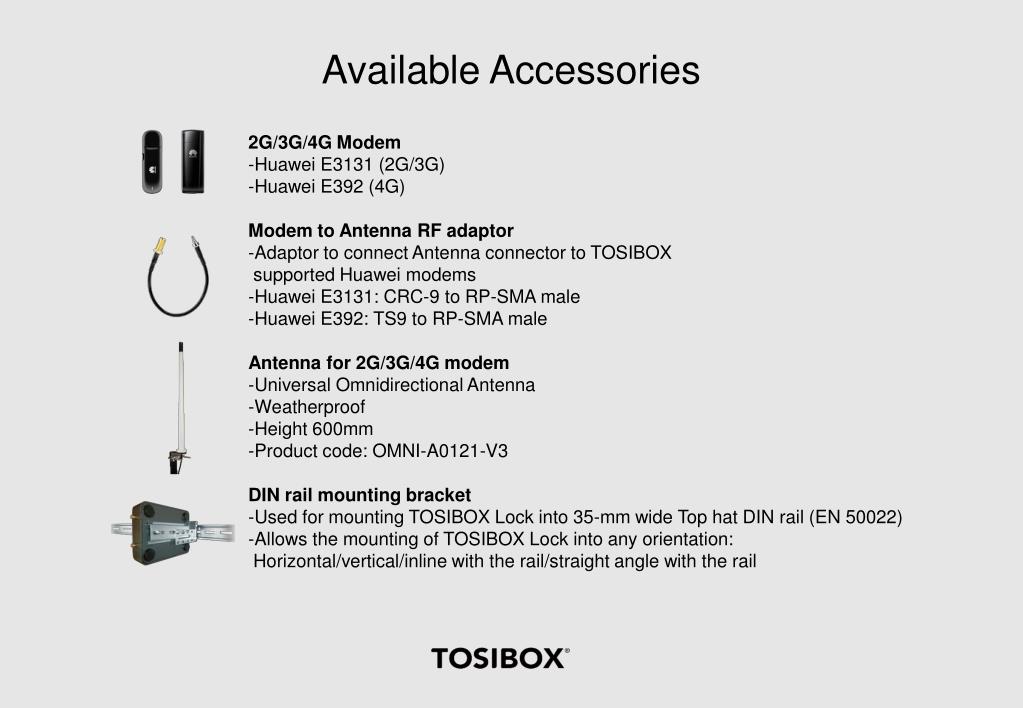

  11. Available Accessories 2G/3G/4G Modem-Huawei E3131 (2G/3G) -Huawei E392 (4G) Modem to Antenna RF adaptor-Adaptor to connect Antenna connector to TOSIBOX supported Huawei modems -Huawei E3131: CRC-9 to RP-SMA male-Huawei E392: TS9 to RP-SMA male Antenna for 2G/3G/4G modem-Universal Omnidirectional Antenna -Weatherproof -Height 600mm -Product code: OMNI-A0121-V3 DIN rail mounting bracket-Used for mounting TOSIBOX Lock into 35-mm wide Top hat DIN rail (EN 50022)-Allows the mounting of TOSIBOX Lock into any orientation: Horizontal/vertical/inline with the rail/straight angle with the rail

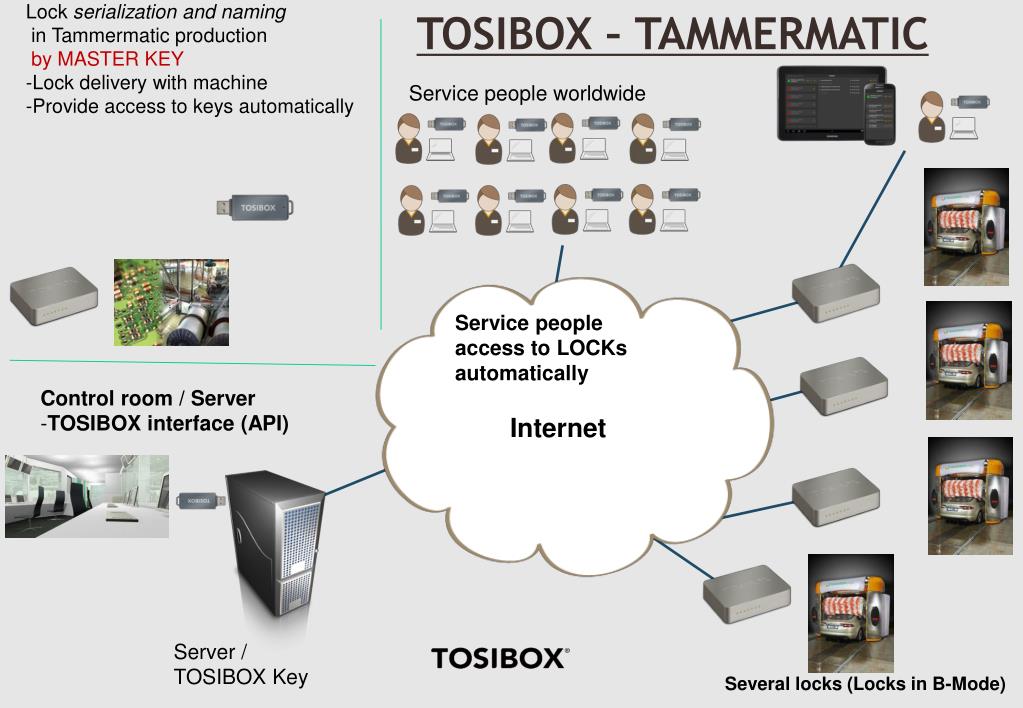

  12. Lock serialization and naming in Tammermatic production by MASTER KEY • Lock delivery with machine • Provide access to keys automatically TOSIBOX – TAMMERMATIC Service people worldwide Service people access to LOCKs automatically Control room / Server • TOSIBOX interface (API) * x pcs Internet Server / TOSIBOX Key Several locks (Locks in B-Mode)

  13. TOSIBOX CENTRAL LOCK TOSIBOX Central Lock provides an easy and scalable solution • Hub of the TOSIBOX ecosystem, allowing hundreds of connectionsfrom TOSIBOX Keys or Sub Locks. • Over 700 Mbit/s encryption throughput • up to 4000 concurrent VPN connections (TOSIBOX Lock or Key connection) • Option to collect audit log data from other TOSIBOX devices

  14. Service people serialized TOSIBOX locks by MASTER Key • Lock installation and devices to Central Lock IP address range • Locks to Sub Lock • Provide access to Central Lock and service people TOSIBOX – Traffic Control Unit Service people or remote users Group A Automatically access to dedicated Locks Central Lock continuous (M2M) access to all locks * x pcs TOSIBOX Central Lock • Serialized by Master Key • Access to all Locks Internet Several Locks as a Sub Lock

  15. SALES AND MARKETINGMATERIAL LINK: www.tosibox.com/files • User Manual & Quick Guide (included in sales pacgake) • TOSIBOX brochures • TOSIBOX introduction video http://www.youtube.com/watch?v=stpRLXMLv1U&feature=youtu.be

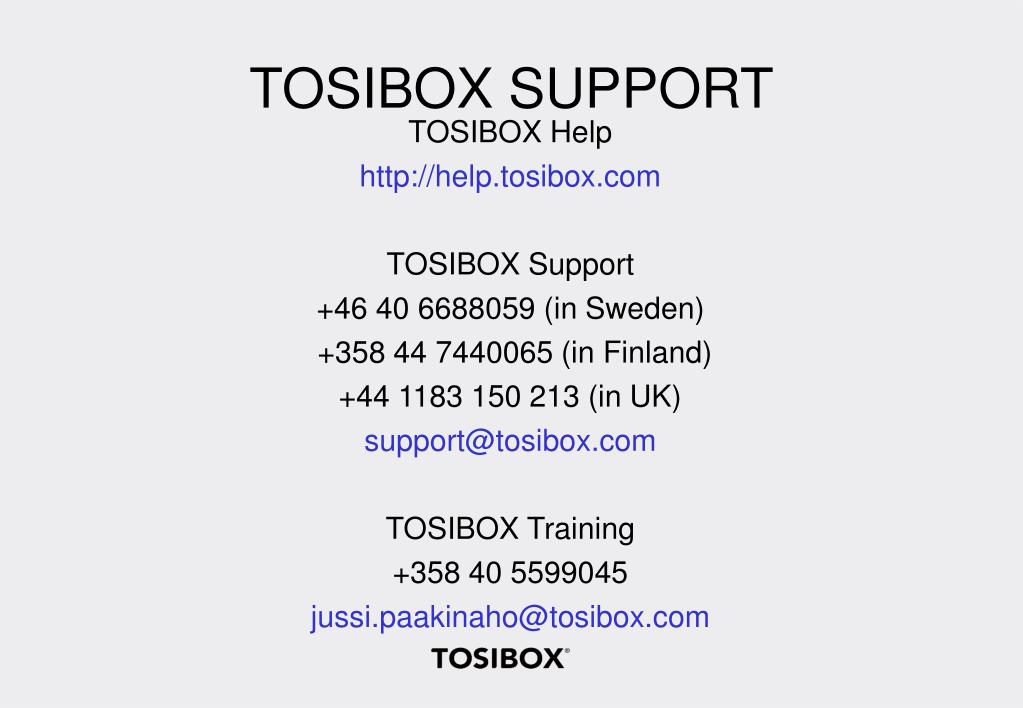

  16. TOSIBOX SUPPORT TOSIBOX Help http://help.tosibox.com TOSIBOX Support +46 40 6688059 (in Sweden) +358 44 7440065 (in Finland) +44 1183 150 213 (in UK) support@tosibox.com TOSIBOX Training +358 40 5599045 jussi.paakinaho@tosibox.com

  17. THANK YOU !

  18. Supportive Slides

  19. Lock Lock can also be set to work in Client mode, based on the network environment and what is the intended purpose of use. Factory default setting is Lock Lock, Client mode
