  1. MOM report Jean-Sebastien Graulich, Geneva • Last Week • Run Plan for this Week • Machine Physics J.S. Graulich

  2. Last week (1) • Online Optimization • Some data taken but mainly code development • Came to some conclusions: • Need “Online” Simulation • Need to asses beam line alignment • Need access to Beam Line Settings (now entered manually at start of run) • Not from CDB (available only at the end of run) • Not from EPICS (complicate software dependence scheme) • => From data stream (nearly there, need unpacking) J.S. Graulich

  3. Last week (2) • Neutral study • We do observe neutrals causing Triggers in TOF1 • Even if all magnets are Off ! (DS at 100 Amp) • Only when we dip the target ! • Scales with beam loss • About 7 triggers per spill at 2V beam loss 3.2 ms spill 2V ISIS beam loss = ~ 1300 mV in target DAQ • Only when the beam blocker is open ! • About 40% of the triggers in negative polarities are caused by neutrals • Irreducible • Main source of reconstruction inefficiency • Still need TOF efficiency studies J.S. Graulich

  4. Last week (3) • ISIS is tired • No beam on Thursday • Very little on Friday • Unstable on Sunday • Target delay scan • A few data acquired (4-5 points at 2V BL) • Rob Fletcher is doing the analysis J.S. Graulich

  5. CDB in Use • We can now reload the magnet configuration from a previous run by a single click ! • That really helps • Many Thanks to David Forrest and James Leaver • Now also available with tags • ReferenceRun (6+200 M0) • EndOfShift (all Conventional Magnets at 0A; DS at 400 A) • PionScan (200 MeV/c pions, Q789 at 0A) • Please use CDB offline as well • Important Note: • All variables not available through EPICS are set to zero Use spread sheet for the time being J.S. Graulich

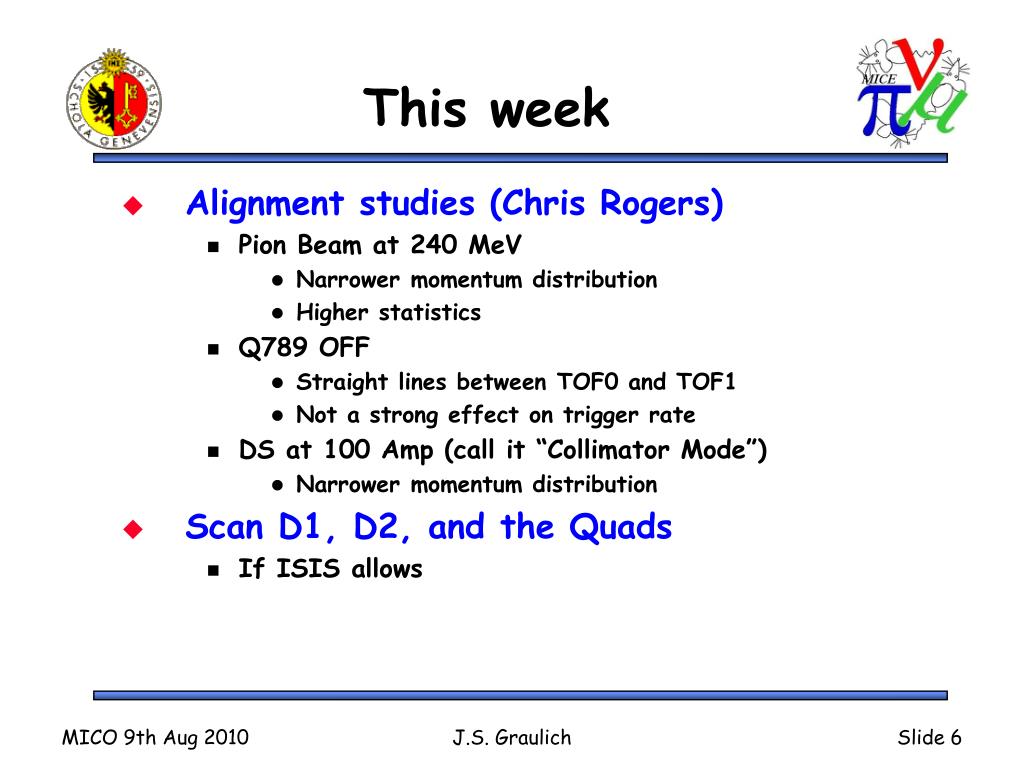

  6. This week • Alignment studies (Chris Rogers) • Pion Beam at 240 MeV • Narrower momentum distribution • Higher statistics • Q789 OFF • Straight lines between TOF0 and TOF1 • Not a strong effect on trigger rate • DS at 100 Amp (call it “Collimator Mode”) • Narrower momentum distribution • Scan D1, D2, and the Quads • If ISIS allows J.S. Graulich

  7. Machine Physics • Saturday August the 14th • MOM = Roumen Tsenov • From 16h30 to 24:00 • Start with ISIS at 50 Hz • scan target Delay at 3 V beam loss (1 hour) • Redo Adam Dobbs’ study with positive • Up to 10 V Beam Loss • Arrange for radiation measurement in MICE target area soon after the run J.S. Graulich
