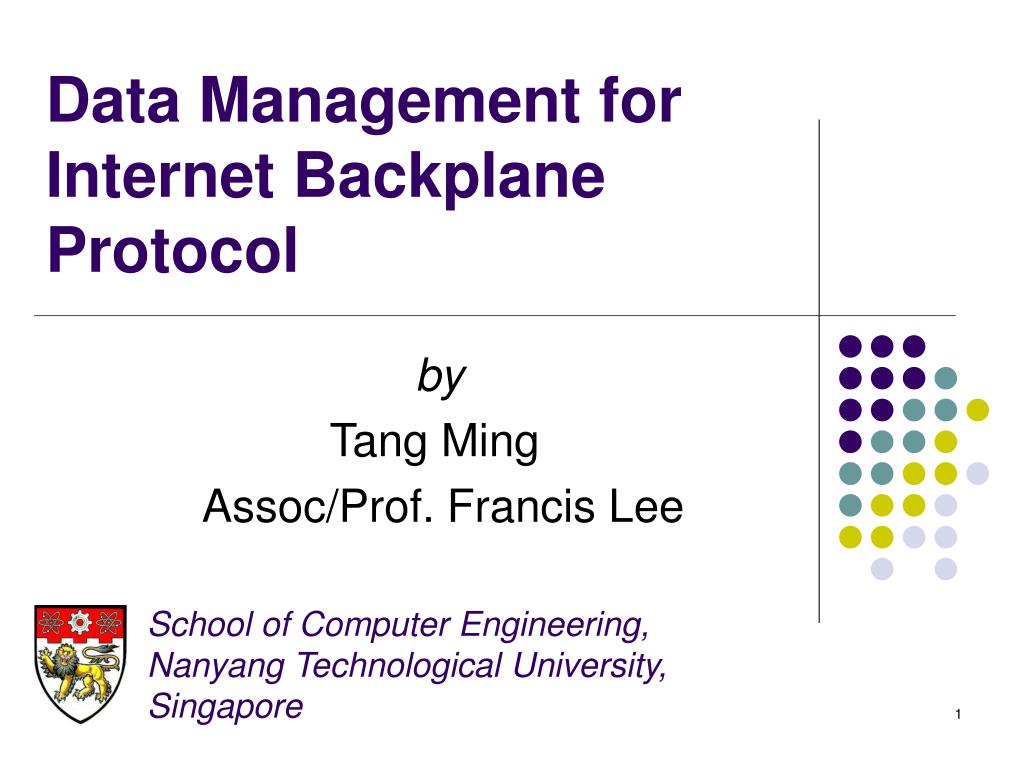

  1. Data Management for Internet Backplane Protocol by Tang Ming Assoc/Prof. Francis Lee School of Computer Engineering,Nanyang Technological University, Singapore

  2. 0. Outline • Introduction • The Logistical Networking & Globus Replica Catalog • Data Management for IBP

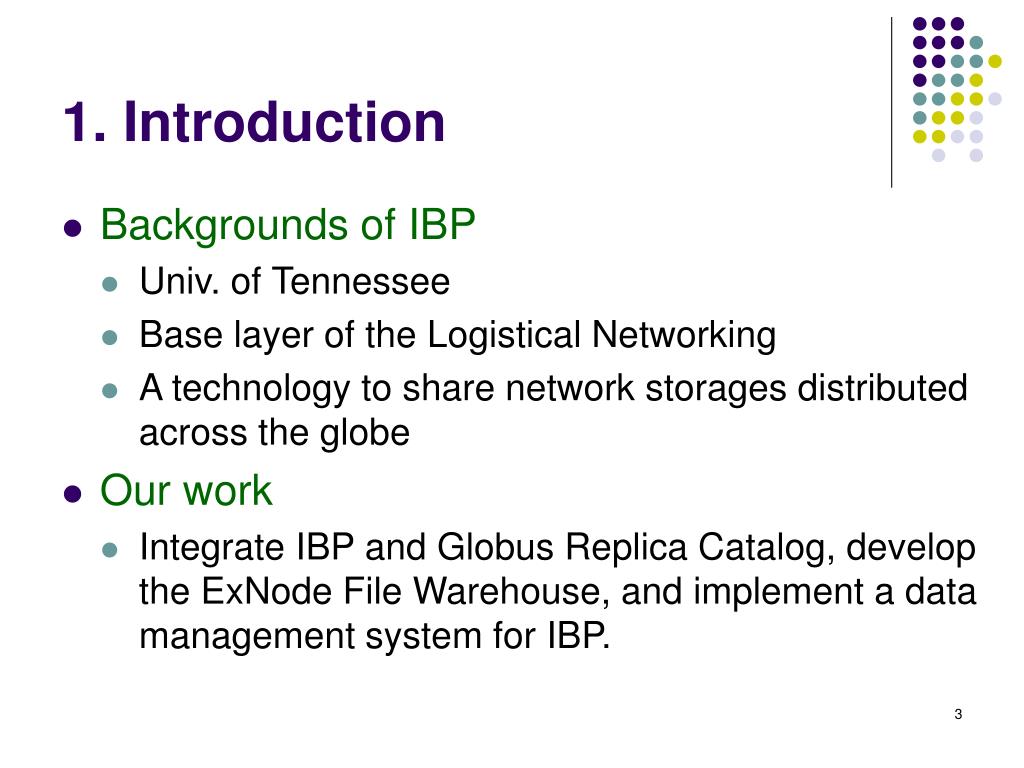

  3. 1. Introduction • Backgrounds of IBP • Univ. of Tennessee • Base layer of the Logistical Networking • A technology to share network storages distributed across the globe • Our work • Integrate IBP and Globus Replica Catalog, develop the ExNode File Warehouse, and implement a data management system for IBP.

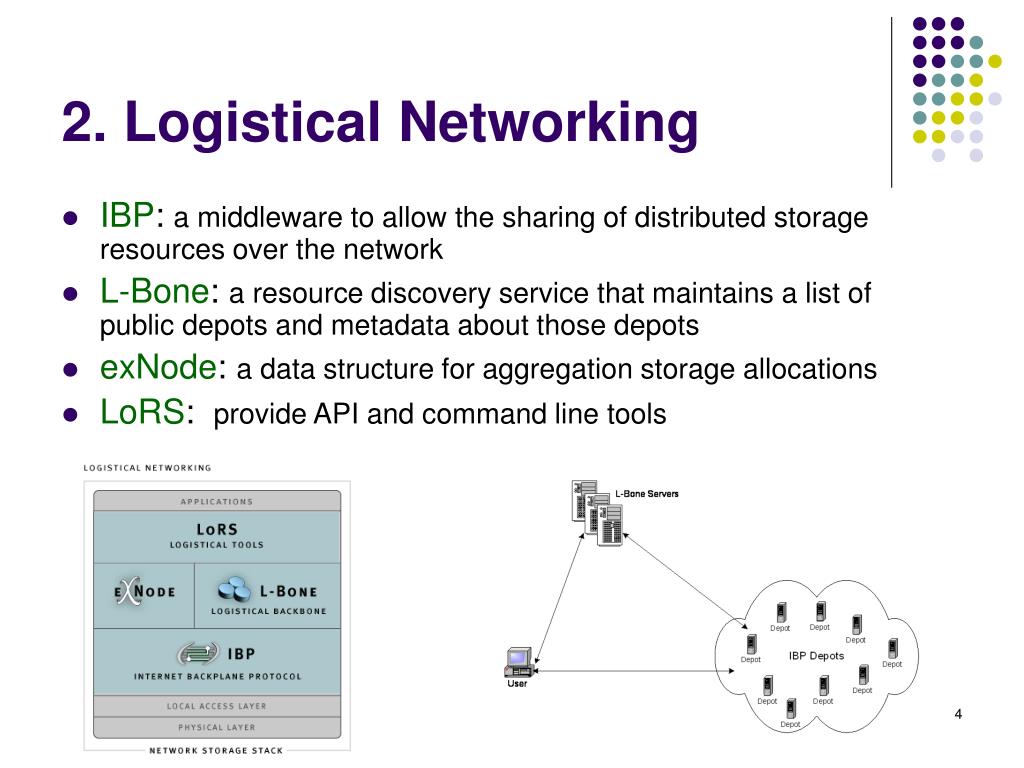

  4. 2. Logistical Networking • IBP: a middleware to allow the sharing of distributed storage resources over the network • L-Bone: a resource discovery service that maintains a list of public depots and metadata about those depots • exNode: a data structure for aggregation storage allocations • LoRS: provide API and command line tools

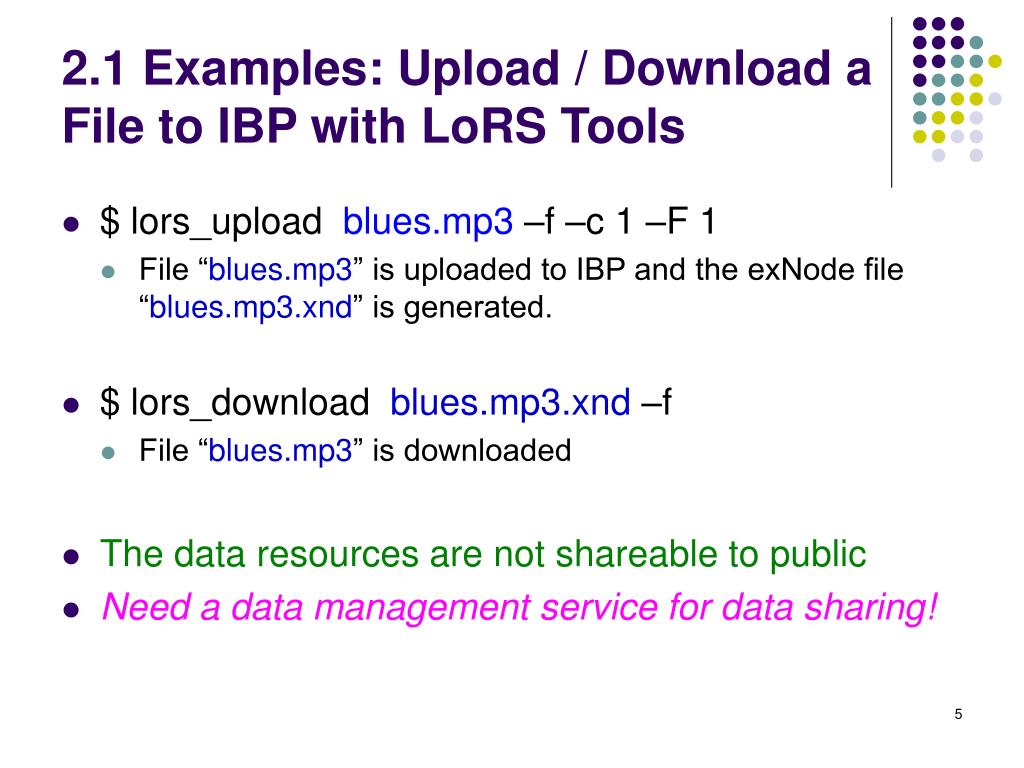

  5. 2.1 Examples: Upload / Download a File to IBP with LoRS Tools • $ lors_upload blues.mp3 –f –c 1 –F 1 • File “blues.mp3” is uploaded to IBP and the exNode file “blues.mp3.xnd” is generated. • $ lors_download blues.mp3.xnd –f • File “blues.mp3” is downloaded • The data resources are not shareable to public • Need a data management service for data sharing!

  6. 3. Globus Replica Catalog • Provide the replica location information for Data Grid • Logical File Name  Physical File Name LFN PFN File1 gsiftp://ssim1.sce.ntu.edu.sg/dir/ File2 ftp://ssim4.sce.ntu.edu.sg/dir2/ File3 irm://vista.sas.ntu.edu.sg/tmp/

  7. 3.1 Motivation of using GRC • Globus is the de facto standard of the Grid system • The GRC has been used by many Data Grid projects • It’s a way to integrate IBP and the existed Data Grids

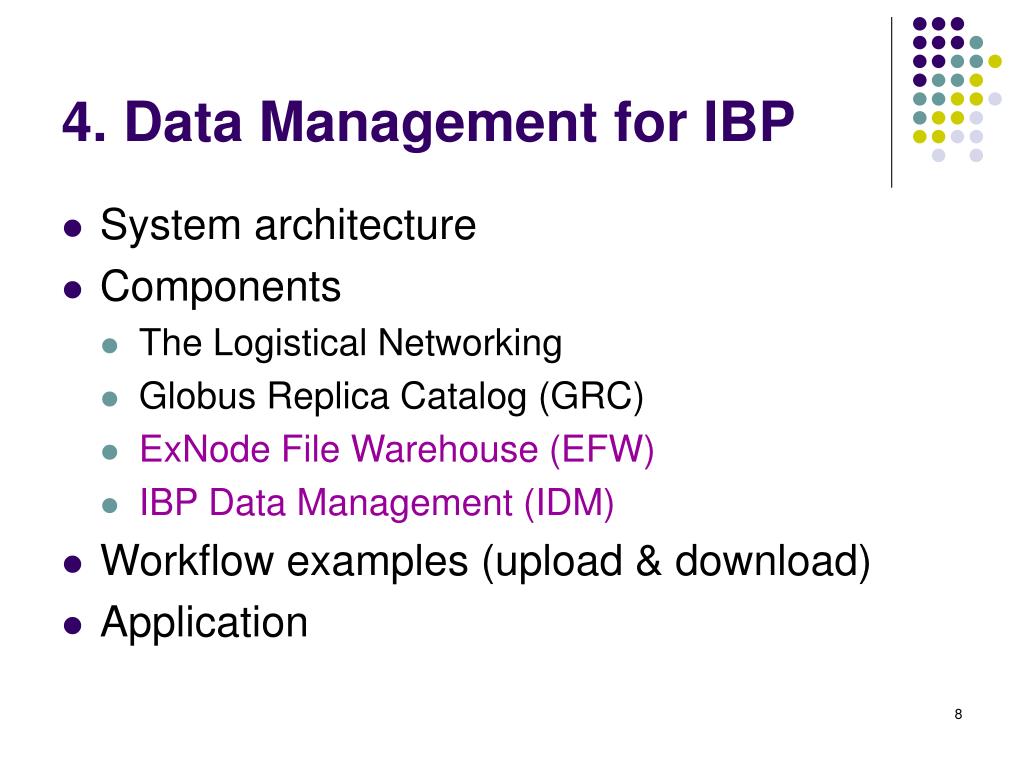

  8. 4. Data Management for IBP • System architecture • Components • The Logistical Networking • Globus Replica Catalog (GRC) • ExNode File Warehouse (EFW) • IBP Data Management (IDM) • Workflow examples (upload & download) • Application

  9. 4.1 System Architecture

  10. Main thread EFW Expiration checking thread Communication thread Communication thread Communication thread Globus RC exNode info. (in memory) Storage client client client … 4.2 ExNode File Warehouse (EFW) • EFW stores and maintains the exNode files for the data in IBP • Also keeps the metadata about the data files, e.g., the expiration dates and time stamps • EFW interacts with IDM and GRC

  11. 4.3 IBP Data Management (IDM) • IDM interacts with the Logistical Networking, GRC, and EFW, and it provides APIs to applications. • Functions: upload, download, refresh, delete, query a file or a file set

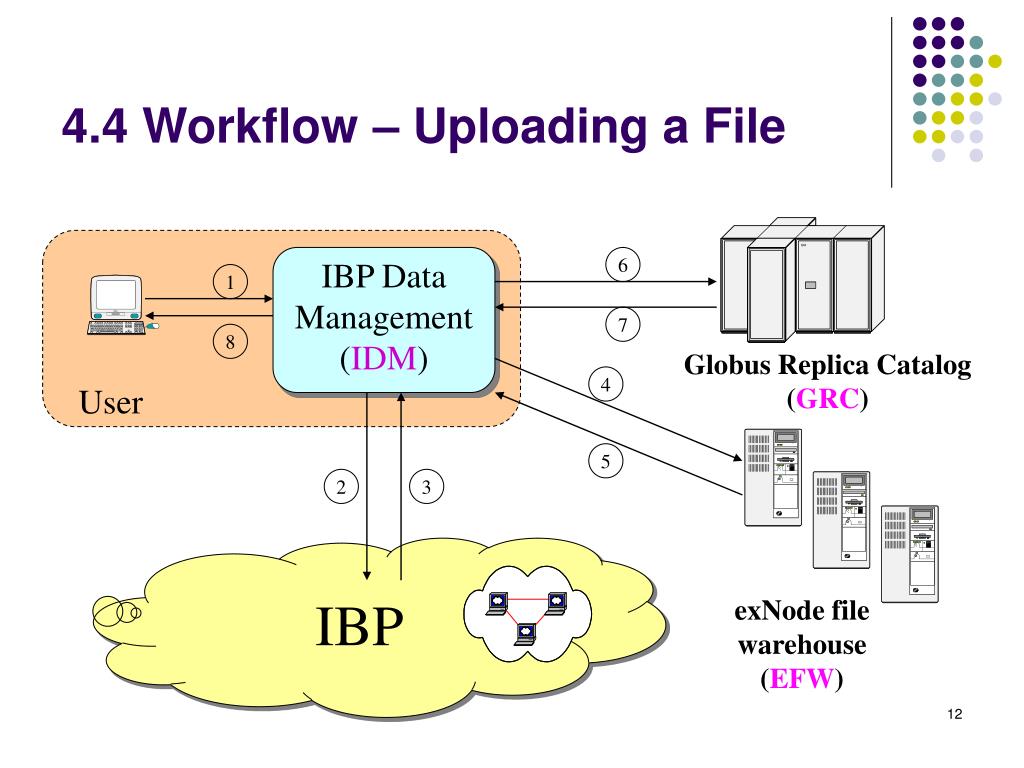

  12. 4.4 Workflow – Uploading a File IBP Data Management (IDM) 6 1 7 8 Globus Replica Catalog(GRC) 4 User 5 2 3 IBP exNode file warehouse(EFW)

  13. 4.5 Workflow – Downloading a File IBP Data Management (IDM) 2 1 3 8 Globus Replica Catalog(GRC) User 4 5 6 7 IBP exNode file warehouse(EFW)

  14. 4.6 Support Grid Computing • The system provides a global data cache to support Grid computing

  15. 5. Future Works • Develop data discovery and replica selection service • Support Globus new service: Replica Location Service (RLS) For further information: http://www.ntu.edu.sg/home5/p148943492/idm.htm Email: mtang@pmail.ntu.edu.sg ebslee@ntu.edu.sg
