  1. Why Multi scale modelling of biological systems is important. Dr Rachel Norman University of Stirling 10th June 2010.

  2. My background • Rabies in ethiopian wolves • Louping ill in red grouse • Fish parasites

  3. Why is changing scale important? Arises in a large number of systems • Physical: From individuals to populations- cells, enzymes, people, animals… • Spatial: From local to global- bee hives, villages, farms…. • Temporal: From short term to evolutionary time scales – transient dynamics vs equilibrium, present time vs evolutionary time…

  4. Individuals to populations: Examples • Population growth • Epidemiology • Immunology

  5. Population growth • Exponential growth

  6. Saturated growth • Assume birth decreases or death increases linearly with density

  7. Other possibilities

  8. Brannstrom and Sumpter (Proc Roy soc, 272, 2065-2072. 2005) • Built model based on distribution of individuals amongst discrete resource sites. • Changed rules about competition. • Some models, for example the quadratic model cannot be derived this way. • Why not?

  9. Questions • Why can’t you get the quadratic model? • What is the best form of a population growth model under different assumptions about the way individuals interact?

  10. Epidemiology

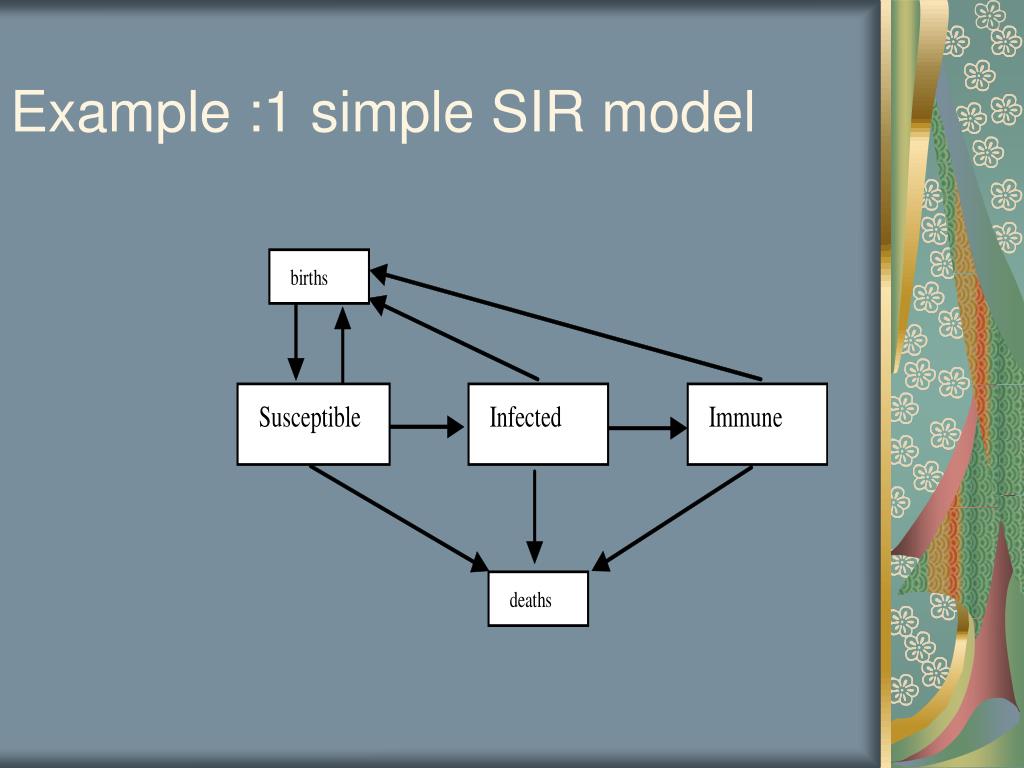

  11. Example :1 simple SIR model

  12. Transmission Term f(S,I) • Transmission rate per susceptible • contact*prob(infection)*prop infected = c*p*I/N • Density dependent transmission • Contact rate = constant * N • Transmission = • Frequency dependent transmission • Contact rate = constant • Transmission =

  13. Other forms • Hochberg (JTB, 153, 301-321, 1991) • Fenton, Fairbairn, Norman and Hudson (JAE, 71, 893-905, 2002) • Fitted experimental data on insect parasites to this transmission rate and compared with others in the literature.

  14. Turner, Begon and Bowers (Proc Roy soc, 270, 105-112, 2003) • Cellular Automata • Defined contacts locally for density and frequency dependent transmission. • Look at what happens globally. • They found that they got frequency dependent transmission globally in both cases.

  15. Questions: • Does that mean that you cannot get density dependent transmission from an IBM? • What is the “correct” form of the transmission form under different assumptions about interaction?

  16. Immunology • Fenton and Perkins (Parasitology, 137, 1027-1038, 2010)

  17. Questions • Are these the right assumptions to make about interaction terms? • Can we derive better functions for this?

  18. Conclusion • There are many systems where we make population level assumptions about interaction terms. • How do we write down rules about how be observe that individuals behave and derive the population level terms?
