Presentation Transcript


Clhep evaluator class

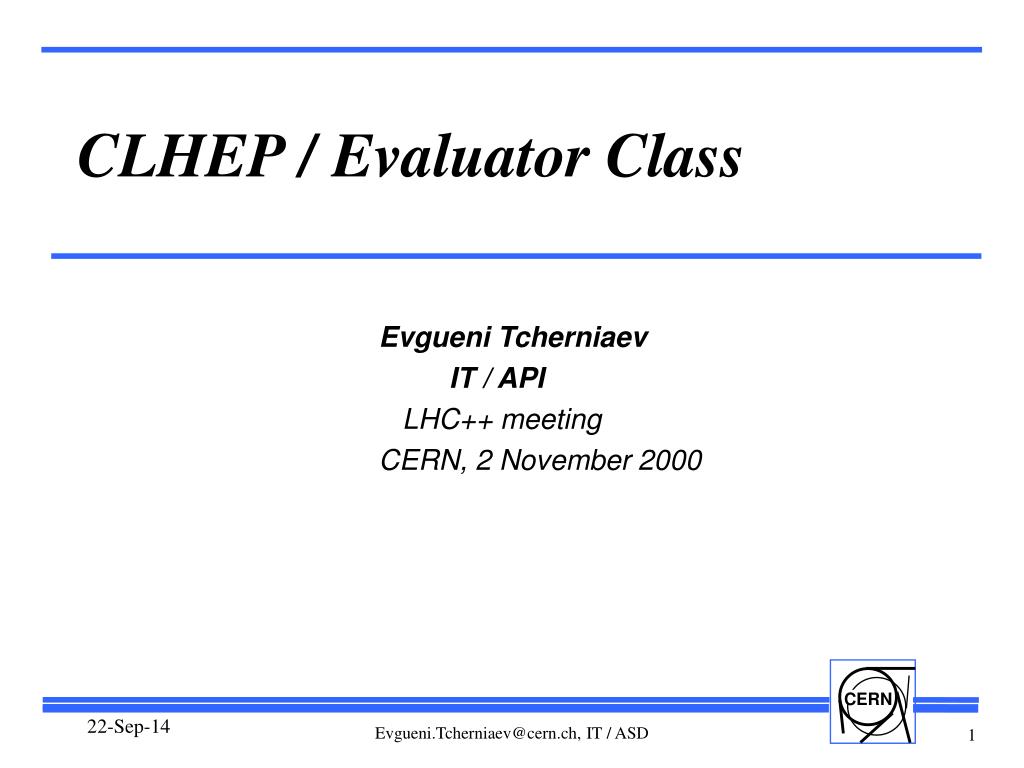

CLHEP / Evaluator Class

Evgueni Tcherniaev

IT / API

LHC++ meeting

CERN, 2 November 2000


New class in clhep 1 6

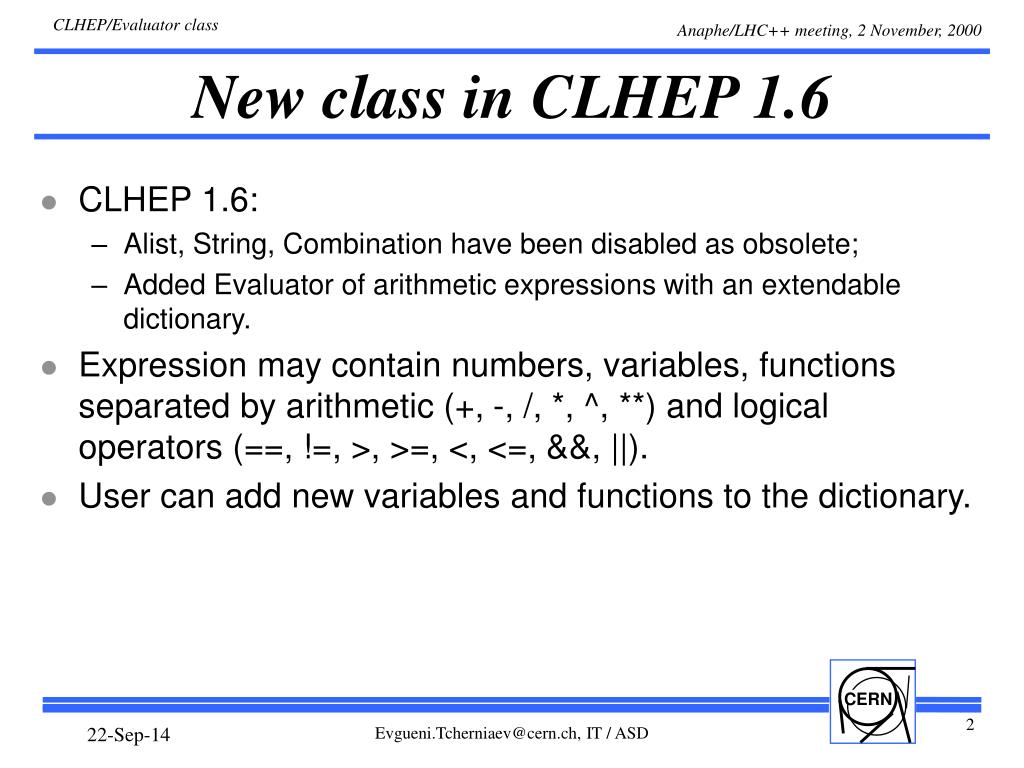

New class in CLHEP 1.6

  • CLHEP 1.6:

    • Alist, String, Combination have been disabled as obsolete;

    • Added Evaluator of arithmetic expressions with an extendable dictionary.

  • Expression may contain numbers, variables, functions separated by arithmetic (+, -, /, *, ^, **) and logical operators (==, !=, >, >=, <, <=, &&, ||).

  • User can add new variables and functions to the dictionary.


Evaluator member functions i

Evaluator: Member functions I

  • Constructor:

    • HepTool::Evaluator()

  • Main functions:

    • double evaluate(const char* expression)

    • void setVariable(const char* name, double value) void setVariable(const char* name, const char* expression)

    • void setFunction(const char* name, double (*fun)())void setFunction(const char* name, double (*fun)(double))void setFunction(const char* name, double (*fun)(double, double))...


Evaluator member functions ii

Evaluator: Member functions II

  • Other functions:

    • int status()

    • int error_position()

    • void print_error()

    • bool findVariable(const char* name)

    • bool findFunction(const char* name, int npar)

    • void removeVariable(const char* name)

    • void removeFunction(const char* name, int npar)

    • void clear()


Evaluator member functions iii

Evaluator: Member functions III

  • Special functions:

    • void setStdMath()

    • void setSystemOfUnits(double meter = 1, double kilogram = 1, double second = 1, double ampere = 1, double kelvin = 1, double mole = 1, double candela = 1)
