  1. Census Bureau System IPT Decennial Systems Database Modernization Support DRIS Decennial Response Integration System Date: 03/02/2007

  2. Index • Benchmarking – Hardware level • Old Machine • New Machine • Side By Side comparison-Host Level • 2000 Fortran->Oracle • Statistical Data • Old Host – dscmotd1 • New Host – de101 • Performance while indexing • Old Host – dscmotd1 • New Host – de101 • Moving to New Host • Hypothetical Figures • 2010 tables layout • Performance & Tuning (P & T)

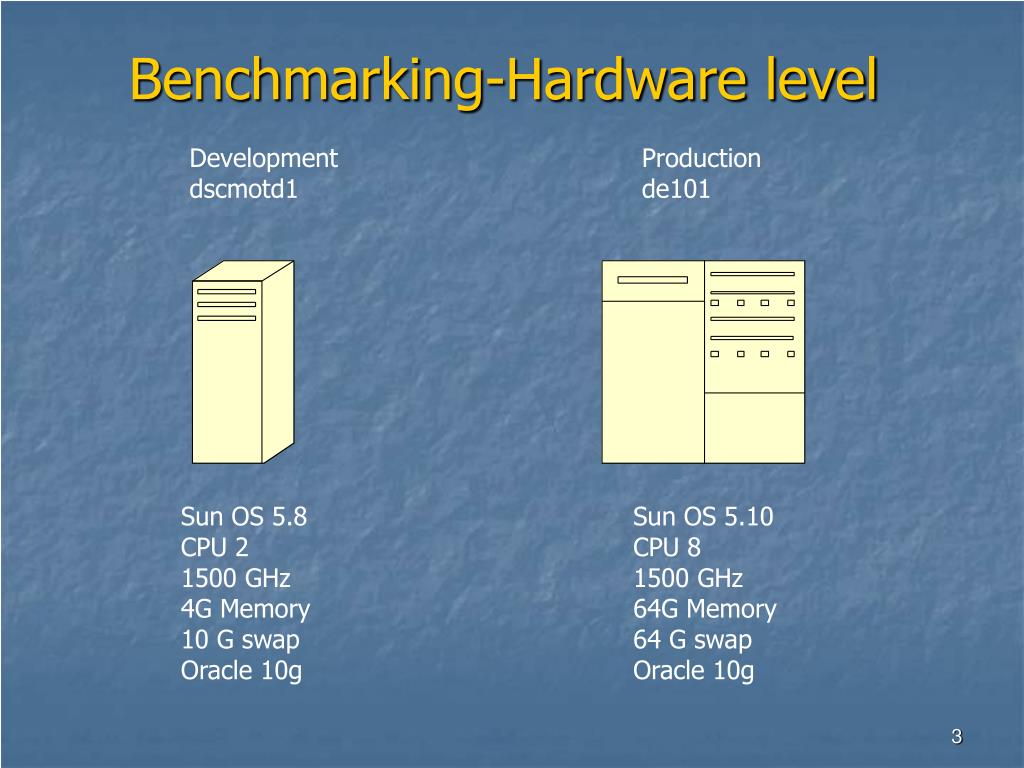

  3. Benchmarking-Hardware level Development dscmotd1 Production de101 Sun OS 5.8 CPU 2 1500 GHz 4G Memory 10 G swap Oracle 10g Sun OS 5.10 CPU 8 1500 GHz 64G Memory 64 G swap Oracle 10g

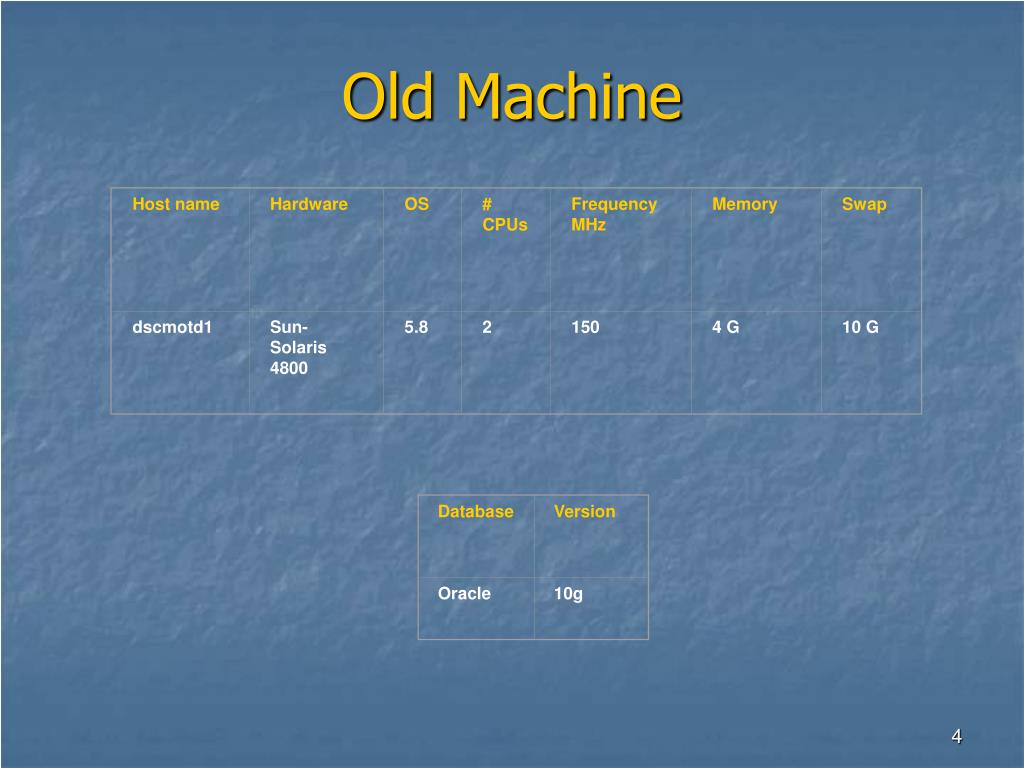

  4. Host name Hardware OS # CPUs Frequency MHz Memory Swap dscmotd1 Sun-Solaris 4800 5.8 2 150 4 G 10 G Database Version Oracle 10g Old Machine

  5. Host name Hardware OS # CPUs Frequency MHz Memory Swap de101 Sun-Solaris E6900 5.10 8 150 64 G 64 G Database Version Oracle 10g New Machine

  6. dscmotd1 de101 Hardware Sun Solaris 4800 Sun-Solaris E6900 OS 5.8 5.10 # CPUs 2 8 Memory 4 G 64 G Swap 10 G 64 G Database Oracle Oracle Database Version 10g 10g Side By Side Comparison-Host level

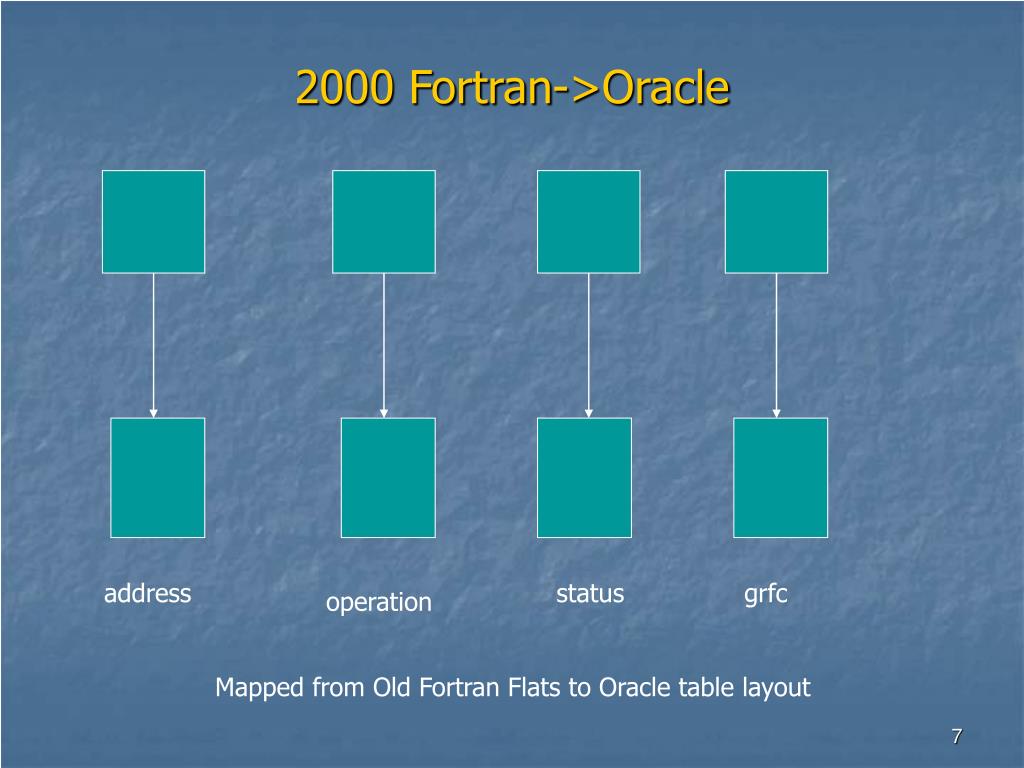

  7. 2000 Fortran->Oracle address status grfc operation Mapped from Old Fortran Flats to Oracle table layout

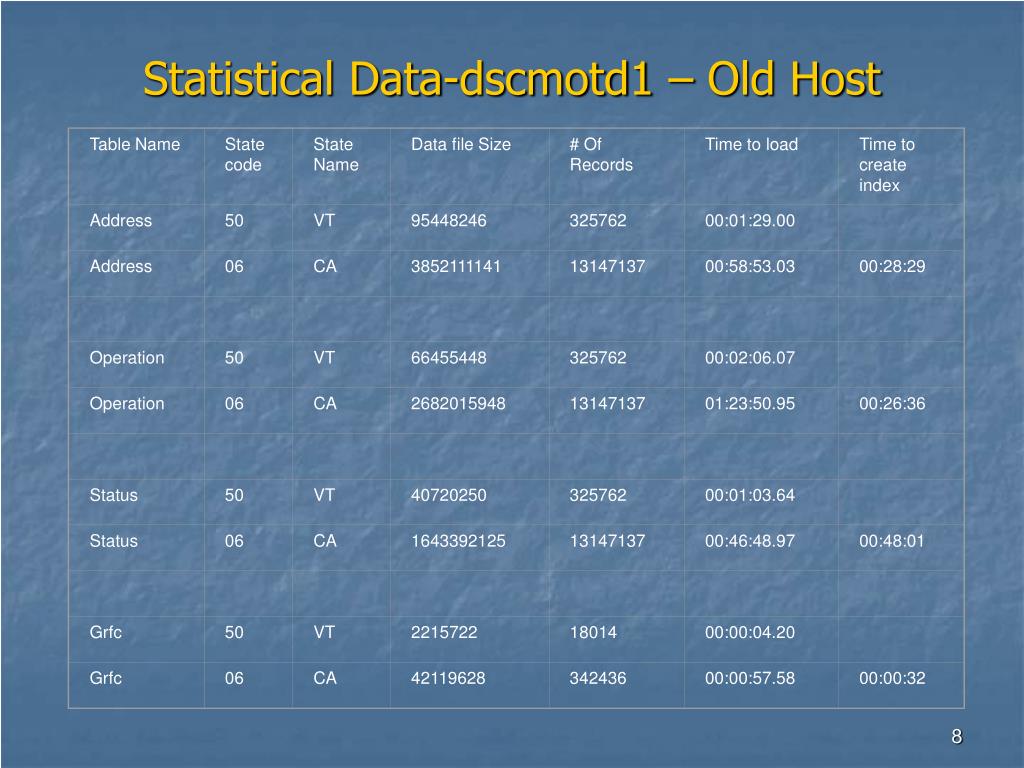

  8. Table Name State code State Name Data file Size # Of Records Time to load Time to create index Address 50 VT 95448246 325762 00:01:29.00 Address 06 CA 3852111141 13147137 00:58:53.03 00:28:29 Operation 50 VT 66455448 325762 00:02:06.07 Operation 06 CA 2682015948 13147137 01:23:50.95 00:26:36 Status 50 VT 40720250 325762 00:01:03.64 Status 06 CA 1643392125 13147137 00:46:48.97 00:48:01 Grfc 50 VT 2215722 18014 00:00:04.20 Grfc 06 CA 42119628 342436 00:00:57.58 00:00:32 Statistical Data-dscmotd1 – Old Host

  9. Table Name State code State Name Data file Size # Of Records Time to Load Time to create index Address 50 VT 95448246 325762 00:00:04.21 Address 06 CA 3852111141 13147137 00:02:56.80 00:01:20 Operation 50 VT 66455448 325762 00:00:04.80 Operation 06 CA 2682015948 13147137 00:03:17.03 00:01:16 Status 50 VT 40720250 325762 00:00:03.16 Status 06 CA 1643392125 13147137 00:02:21.78 00:01:39 Grfc 50 VT 2215722 18014 00:00:01.17 Grfc 06 CA 42119628 342436 00:00:03.15 00:00:02 Statistical Data-de101 – New Host

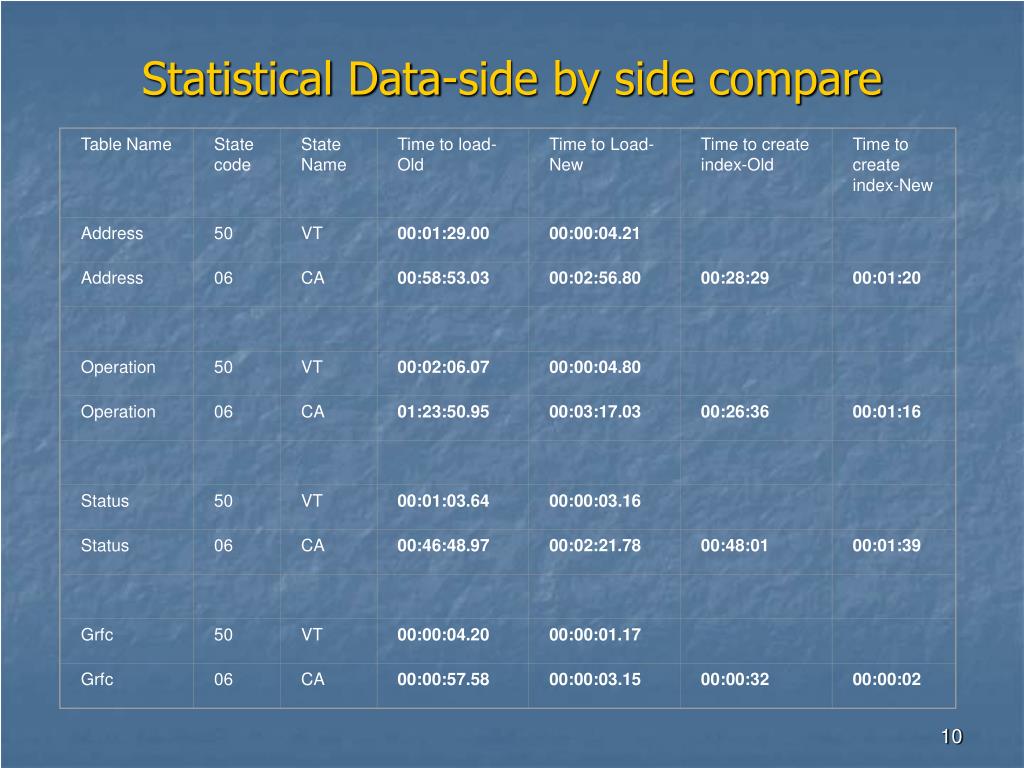

  10. Table Name State code State Name Time to load-Old Time to Load-New Time to create index-Old Time to create index-New Address 50 VT 00:01:29.00 00:00:04.21 Address 06 CA 00:58:53.03 00:02:56.80 00:28:29 00:01:20 Operation 50 VT 00:02:06.07 00:00:04.80 Operation 06 CA 01:23:50.95 00:03:17.03 00:26:36 00:01:16 Status 50 VT 00:01:03.64 00:00:03.16 Status 06 CA 00:46:48.97 00:02:21.78 00:48:01 00:01:39 Grfc 50 VT 00:00:04.20 00:00:01.17 Grfc 06 CA 00:00:57.58 00:00:03.15 00:00:32 00:00:02 Statistical Data-side by side compare

  11. Performance While Indexing Data-OLD TOP At the time of Indexing on address-dscmotd1 ====================================== last pid: 18264; load averages: 0.27, 0.18, 0.18 14:20:02 278 processes: 258 sleeping, 13 zombie, 5 stopped, 2 on cpu CPU states: 46.8% idle, 3.7% user, 2.0% kernel, 47.5% iowait, 0.0% swap Memory: 4096M real, 439M free, 3754M swap in use, 6513M swap free PID USERNAME THR PRI NICE SIZE RES STATE TIME CPU COMMAND 17694 patki001 11 48 0 842M 752M cpu/19 0:25 6.50% oracle 18182 patki001 1 58 0 2872K 1856K cpu/18 0:00 0.29% top 16904 oracle 11 58 0 361M 272M sleep 0:00 0.17% oracle 837 oracle 17 59 0 132M 42M sleep 60.4H 0.10% emagent 12306 oracle 26 28 10 205M 76M sleep 45:35 0.09% java 4031 oracle 6 0 0 26M 4888K sleep 36:10 0.09% tnslsnr 19855 root 1 58 0 7256K 3456K sleep 0:05 0.08% sshd2 11320 root 22 40 0 49M 11M sleep 106:27 0.07% java 3374 oracle 1 58 0 361M 277M sleep 1:07 0.07% oracle 1255 oracle 1 59 0 780M 693M sleep 2:31 0.05% oracle 18180 oracle 1 38 0 357M 261M sleep 0:00 0.05% oracle 17728 belgr001 1 58 0 5160K 4208K sleep 0:00 0.04% xterm 17824 oracle 1 58 0 7176K 4368K sleep 0:00 0.04% ssh2 911 oracle 15 49 0 781M 686M sleep 4:07 0.03% oracle 1979 oracle 1 58 0 780M 694M sleep 1:52 0.03% oracle

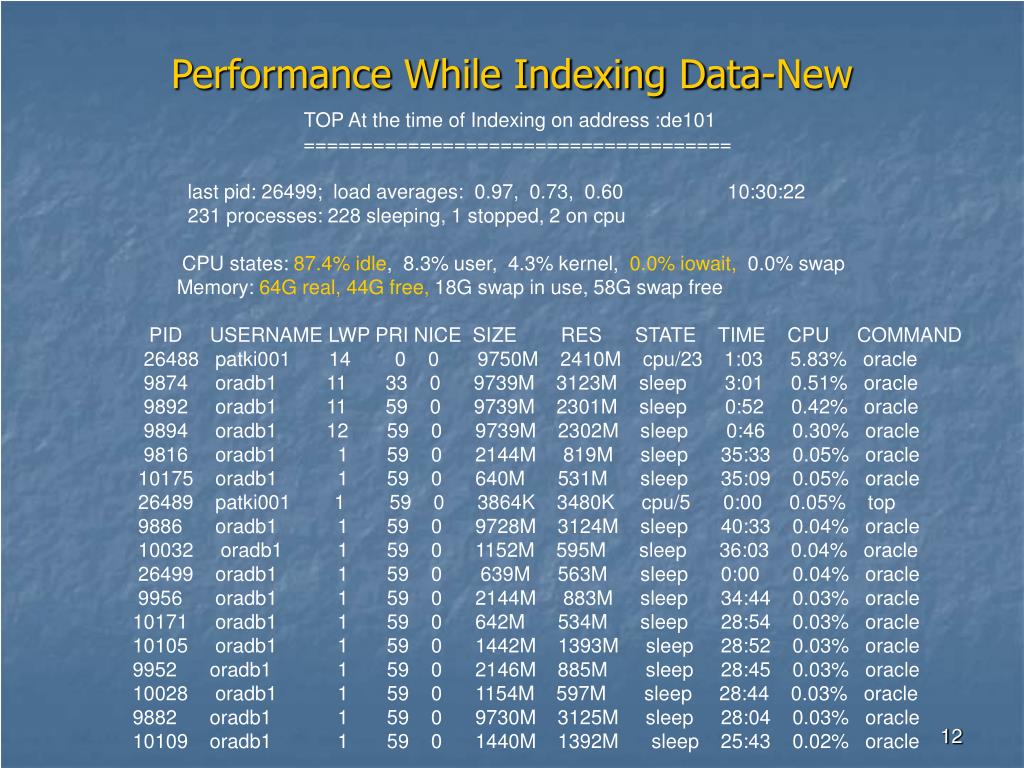

  12. Performance While Indexing Data-New TOP At the time of Indexing on address :de101 ===================================== last pid: 26499; load averages: 0.97, 0.73, 0.60 10:30:22 231 processes: 228 sleeping, 1 stopped, 2 on cpu CPU states: 87.4% idle, 8.3% user, 4.3% kernel, 0.0% iowait, 0.0% swap Memory: 64G real, 44G free, 18G swap in use, 58G swap free PID USERNAME LWP PRI NICE SIZE RES STATE TIME CPU COMMAND 26488 patki001 14 0 0 9750M 2410M cpu/23 1:03 5.83% oracle 9874 oradb1 11 33 0 9739M 3123M sleep 3:01 0.51% oracle 9892 oradb1 11 59 0 9739M 2301M sleep 0:52 0.42% oracle 9894 oradb1 12 59 0 9739M 2302M sleep 0:46 0.30% oracle 9816 oradb1 1 59 0 2144M 819M sleep 35:33 0.05% oracle 10175 oradb1 1 59 0 640M 531M sleep 35:09 0.05% oracle 26489 patki001 1 59 0 3864K 3480K cpu/5 0:00 0.05% top 9886 oradb1 1 59 0 9728M 3124M sleep 40:33 0.04% oracle 10032 oradb1 1 59 0 1152M 595M sleep 36:03 0.04% oracle 26499 oradb1 1 59 0 639M 563M sleep 0:00 0.04% oracle 9956 oradb1 1 59 0 2144M 883M sleep 34:44 0.03% oracle 10171 oradb1 1 59 0 642M 534M sleep 28:54 0.03% oracle 10105 oradb1 1 59 0 1442M 1393M sleep 28:52 0.03% oracle 9952 oradb1 1 59 0 2146M 885M sleep 28:45 0.03% oracle 10028 oradb1 1 59 0 1154M 597M sleep 28:44 0.03% oracle 9882 oradb1 1 59 0 9730M 3125M sleep 28:04 0.03% oracle 10109 oradb1 1 59 0 1440M 1392M sleep 25:43 0.02% oracle

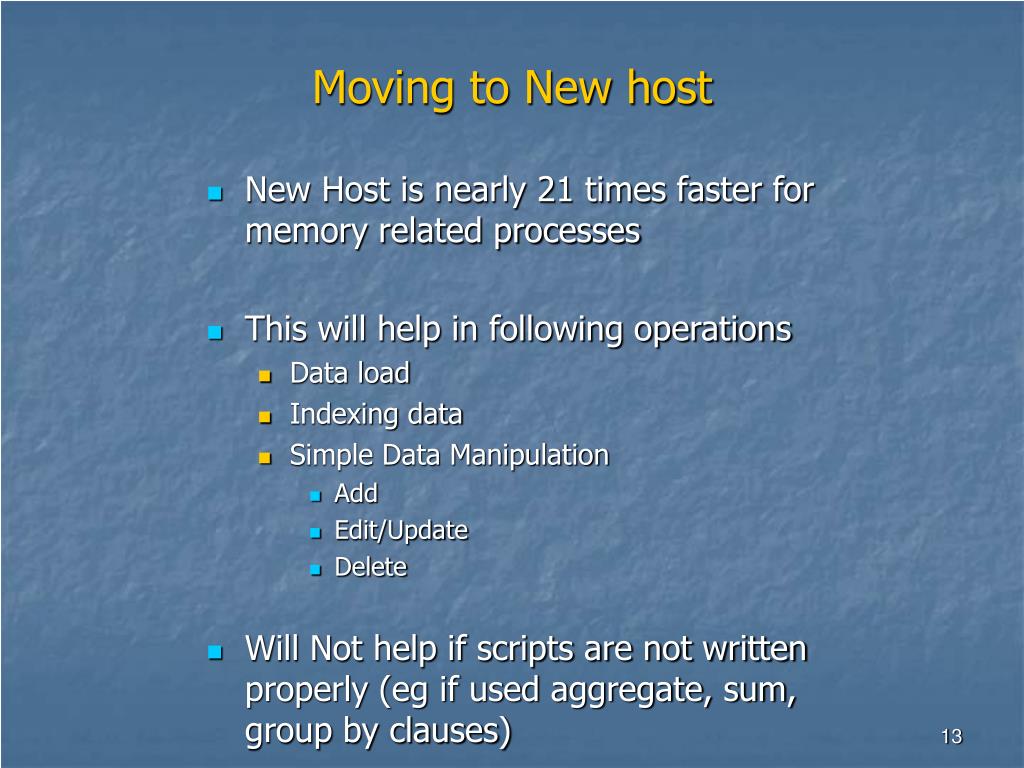

  13. Moving to New host • New Host is nearly 21 times faster for memory related processes • This will help in following operations • Data load • Indexing data • Simple Data Manipulation • Add • Edit/Update • Delete • Will Not help if scripts are not written properly (eg if used aggregate, sum, group by clauses)

  14. Hypothetical Figures • Without any changes, loading of 100% data should run close to following timing • address table • Old host = close to 8 hrs • New Host = close to 23 min • address table index • Old Host = close to 4 hrs • New Host = close to 15 min • All above is just changing from old host to new host.

  15. 2010 Tables layout address status grfc operation Mapped from Old Oracle Tables to New Tables layout

  16. Performance & Tuning • Hardware Level • Adding more power to m/c • Increasing CPUs • Speed • Memory • Database/Server Level • Indexing • Checking proper index usage • Moving indexes to separate table spaces • Partitioning • Partitioning tables • Server level P & T • memory • P & T parameters

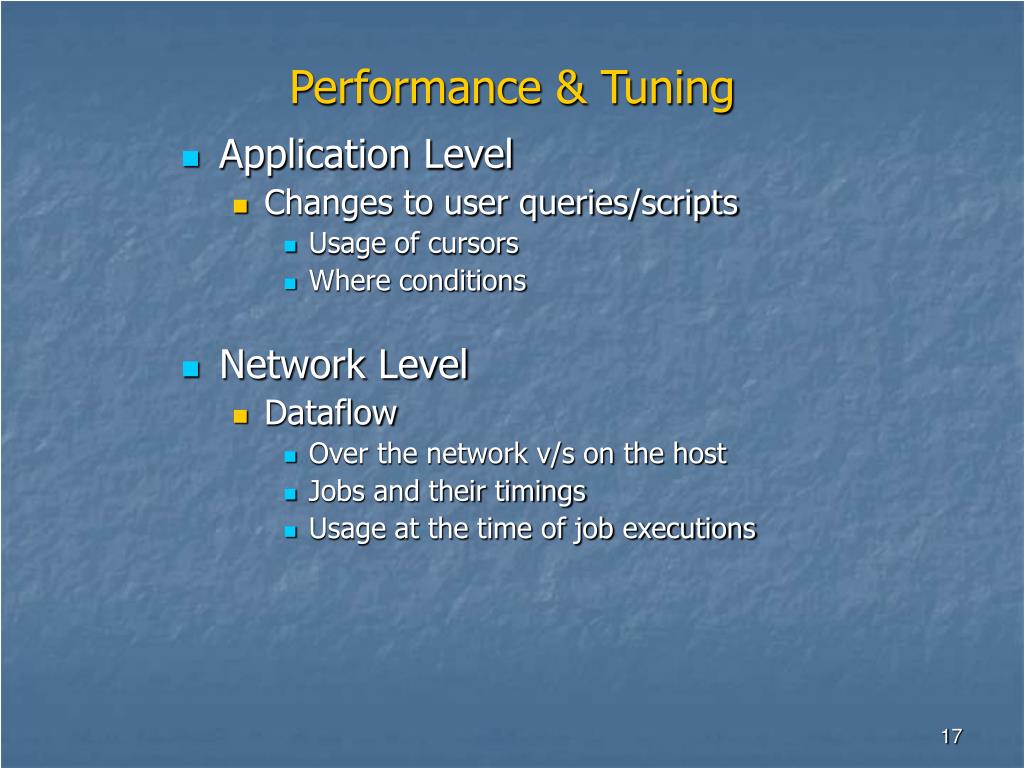

  17. Performance & Tuning • Application Level • Changes to user queries/scripts • Usage of cursors • Where conditions • Network Level • Dataflow • Over the network v/s on the host • Jobs and their timings • Usage at the time of job executions

  18. THE END
