TUDOR2 example

TUDOR2 example. Dispatch selects EWOKS TUDOR2. FPL from Jeppesen tool (FPL-PKGSH-IS -B772/H-SDE2E3FGHIM1RWXYZ/B1L -KSLC2300 -N0484F430 DCT EWOKS TUDOR2 -KSMF0127 -PBN/A1B2B3B4B5D1L1 NAV/AUSEP RNAV1 RNP5 RNP10 DOF/130520 REG/PKGSH EET/KZOA0043 SEL/EHFR ORGN/KDENXLDG PER/D)

chassidy-evans
Download Presentation

TUDOR2 example

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. TUDOR2 example

  2. Dispatch selects EWOKS TUDOR2 • FPL from Jeppesen tool (FPL-PKGSH-IS -B772/H-SDE2E3FGHIM1RWXYZ/B1L -KSLC2300 -N0484F430 DCT EWOKS TUDOR2 -KSMF0127 -PBN/A1B2B3B4B5D1L1 NAV/AUSEP RNAV1 RNP5 RNP10 DOF/130520 REG/PKGSH EET/KZOA0043 SEL/EHFR ORGN/KDENXLDG PER/D) • 702 message from Jeppesen tool FPN/RP:DA:KSLC:AA:KSMF:F:EWOKS,N40215W121428:A:TUDOR2.EWOK • Winds from Jeppesen tool FL /    29000       31000       33000       35000       37000~ POS   Wind Tem WS Wind Tem WS Wind Tem WS Wind Tem WS Wind Tem WS~ ~ EWOKS 31055M39-04 31061M44-03 31065M48-02 31069M52-04 32073M56-02~ LOMBO 29056M38-03 29060M43-02 29064M47-02 29066M52-01 29069M55-02~ BOWLS 29055M37-03 29059M42-02 29063M47-02 29066M51-02 29069M55-02~ PIECH 29054M37-02 29058M42-02 29062M47-02 29065M51-02 29068M55-02~ TUDOR 29053M37-02 29058M42-02 29061M47-02 29065M51-02 29068M55-02~ KSMF  29053M37-02 29057M42-02 29061M47-02 29064M51-02 29067M55-02~

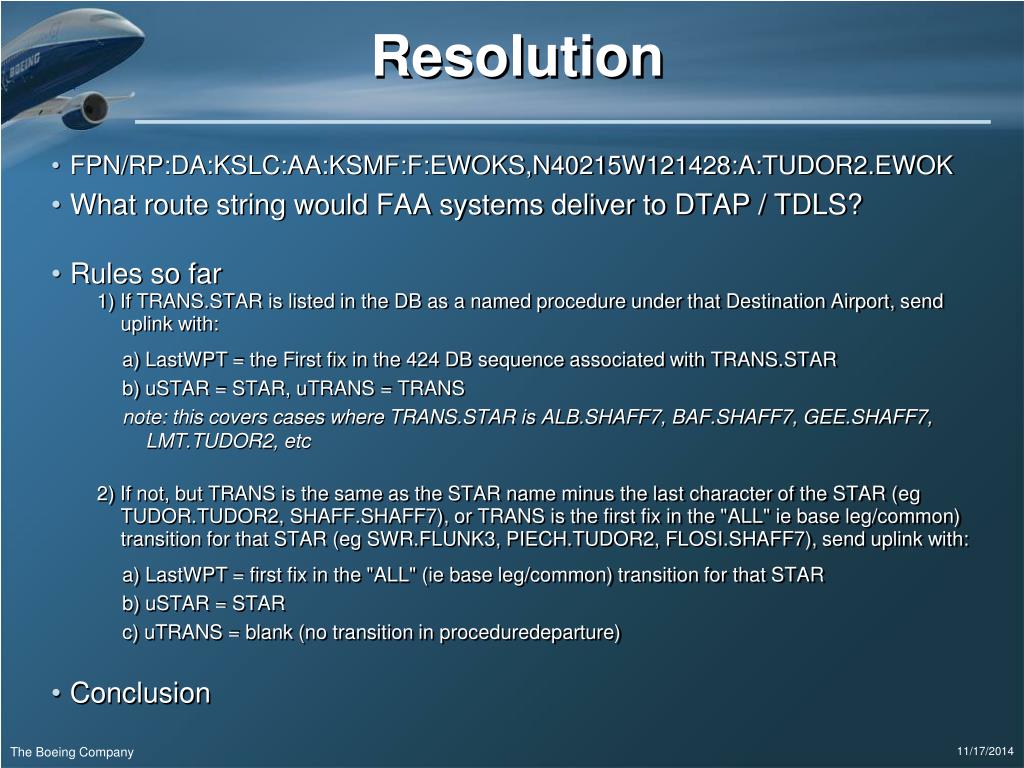

  3. Resolution • FPN/RP:DA:KSLC:AA:KSMF:F:EWOKS,N40215W121428:A:TUDOR2.EWOK • What route string would FAA systems deliver to DTAP / TDLS? • Rules so far 1) If TRANS.STAR is listed in the DB as a named procedure under that Destination Airport, send uplink with: a) LastWPT = the First fix in the 424 DB sequence associated with TRANS.STAR b) uSTAR = STAR, uTRANS = TRANS note: this covers cases where TRANS.STAR is ALB.SHAFF7, BAF.SHAFF7, GEE.SHAFF7, LMT.TUDOR2, etc 2) If not, but TRANS is the same as the STAR name minus the last character of the STAR (eg TUDOR.TUDOR2, SHAFF.SHAFF7), or TRANS is the first fix in the "ALL" ie base leg/common) transition for that STAR (eg SWR.FLUNK3, PIECH.TUDOR2, FLOSI.SHAFF7), send uplink with: a) LastWPT = first fix in the "ALL" (ie base leg/common) transition for that STAR b) uSTAR = STAR c) uTRANS = blank (no transition in proceduredeparture) • Conclusion
