Best practices in rolling out lotus traveler

Best Practices in Rolling Out Lotus Traveler

Alan Forbes

RPR Wyatt, Inc.


About me

  • VP Product Development @ RPR Wyatt

  • Product Manager / Developer “VitalSigns”

  • IBM Certified Professional R8 Administrator

  • IBM Certified Professional Developer

  • IBM Certified e-Business Solution Advisor

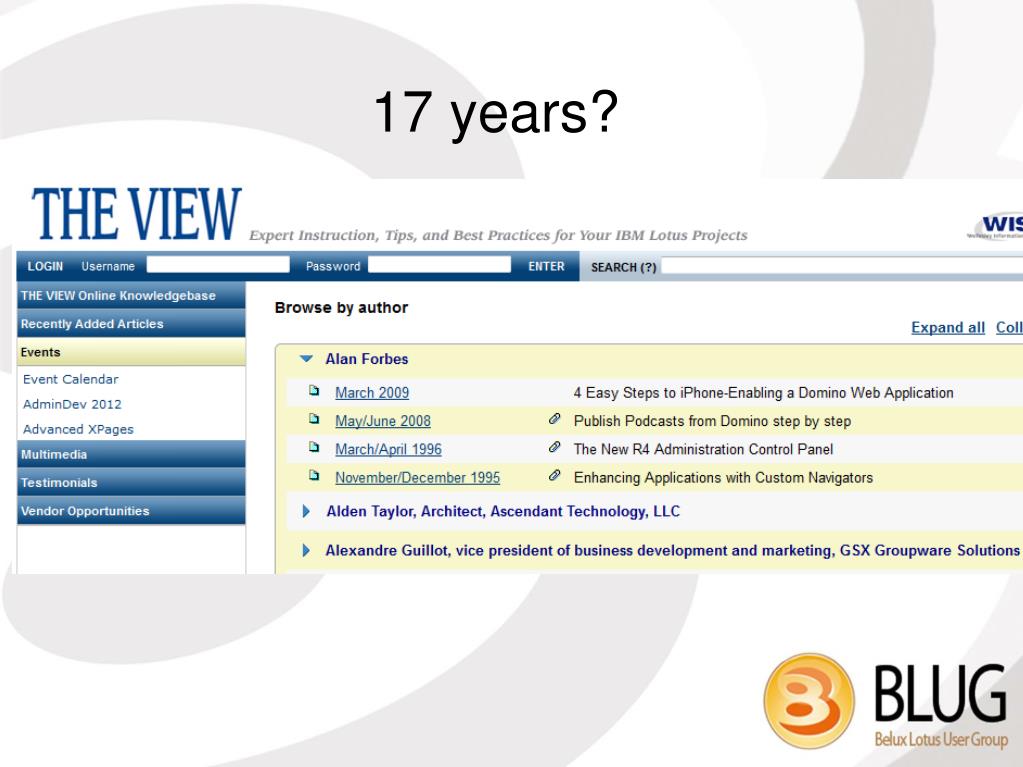

About Me


17 years

17 years?


Why the urgency

Why the Urgency?

Lotus Traveler is very cool

Lotus Traveler tends to explode with usage

The Lotus Traveler license is included in the Lotus Domino 8.5.1+ server license

Lotus Traveler is the savior of Lotus Notes


What is lotus traveler

What is Lotus Traveler?

Officially, it is called "IBM® Lotus® Notes® Traveler software” aka “Traveler”

Traveler provides mobile support for Lotus Notes and Web Access users

Automatic, real-time replication of email, calendar, address book, journal, and to-do


Agenda

Agenda

What you need

Basic Architecture – How it works

Device Management Options

LotusTraveler.nsf

Traveler Companion

Tuning, Maintenance, and Commands


What do you need

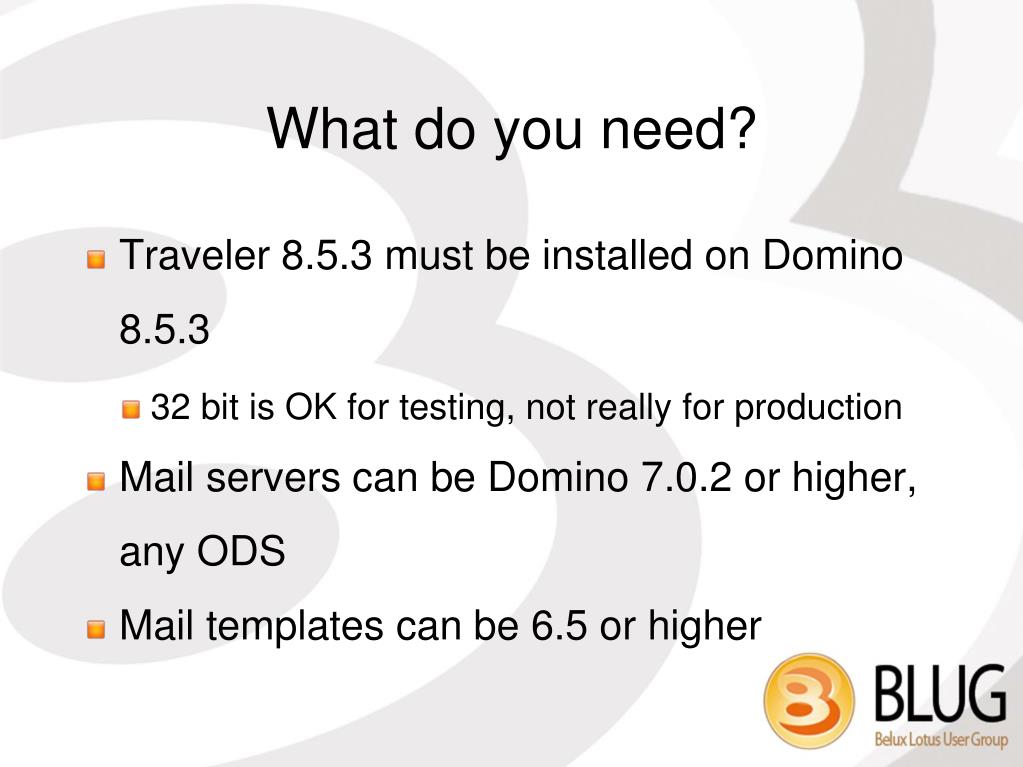

What do you need?

Traveler 8.5.3 must be installed on Domino 8.5.3

32 bit is OK for testing, not really for production

Mail servers can be Domino 7.0.2 or higher, any ODS

Mail templates can be 6.5 or higher


Acl requirements

ACL Requirements

The Traveler server must be able to find Person Documents for all Traveler users

The Traveler server must be able to connect to all possible cluster mail servers and mail files

The Traveler server must have reader access as a minimum to cldbdir.nsf on each clustered mail server


Derby database

Derby Database

/data/traveler/ntsdb directory

The derby database is accessed by a JDBC driver from the Traveler task. Contains a wealth of information including

when was the last sync completed from a device

folder ids to match between the mobile device and Domino

document unids to match between the mobile device and Domino

Not for human consumption

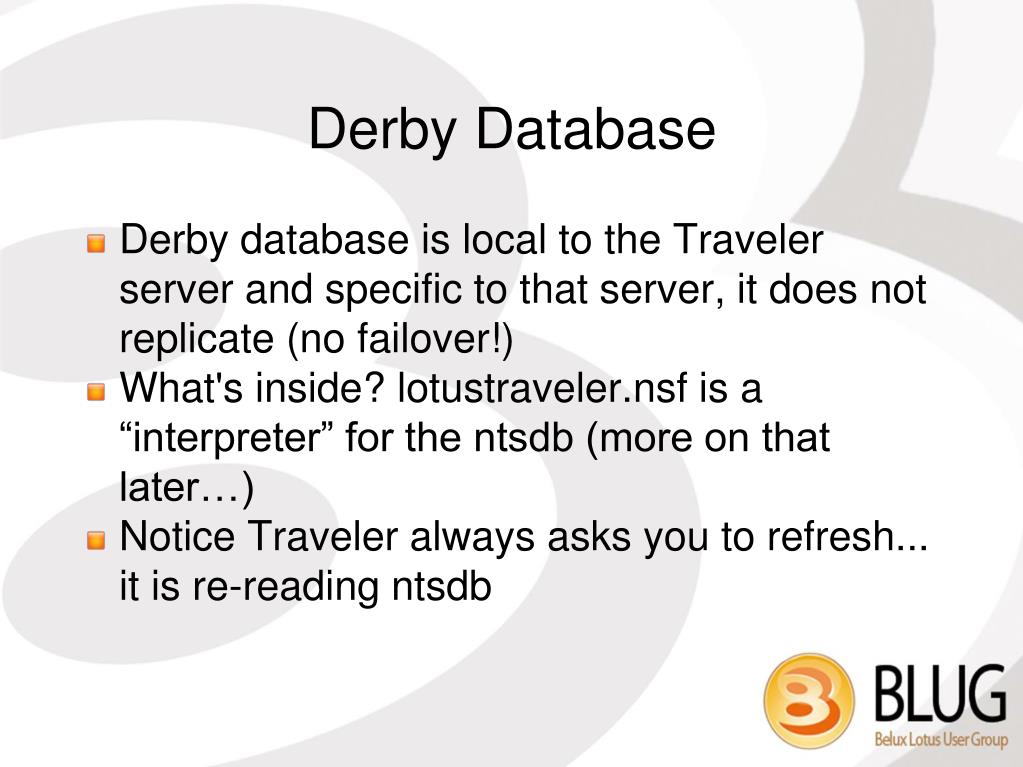

Derby database1

Derby Database

Derby database is local to the Traveler server and specific to that server, it does not replicate (no failover!)

What's inside? lotustraveler.nsf is a “interpreter” for the ntsdb (more on that later…)

Notice Traveler always asks you to refresh... it is re-reading ntsdb


Possible configuration 1

Possible Configuration # 1

If your Domino Mail server is accessible from the Internet then you can install Lotus Traveler on it.

If you have the hardware resources, it is advised to install Traveler on a separate server.


Possible configuration 2

Possible Configuration # 2

Put Lotus Traveler in a DMZ zone. In this case, it will not contain any replicas, it will look up mail files from the mail servers or mail cluster.

It will work like a proxy; clients will connect to Traveler, but actual data (mail files) will be accessed from the Mail server.


Possible configuration 3

Possible Configuration # 3

The most secure way to access Lotus Traveler is to locate Traveler behind a firewall, so users will access Traveler server via a VPN client.

Some phones provide built-in VPN client software, but others need additional software to be installed.


Vpn firewall configuration

VPN/Firewall Configuration

In scenario # 3, additional software (obviously) can cause additional costs.

Also, additional software means you need to manage it, (MDM slide later) so your Help Desk and IT departments will need to understand these considerations.


Possible configurations

Possible Configurations


How to deploy lotus traveler to device

How to deploy Lotus Traveler to device

Device visits special URL on server such as https://traveler.lotus.com/servlet/traveler

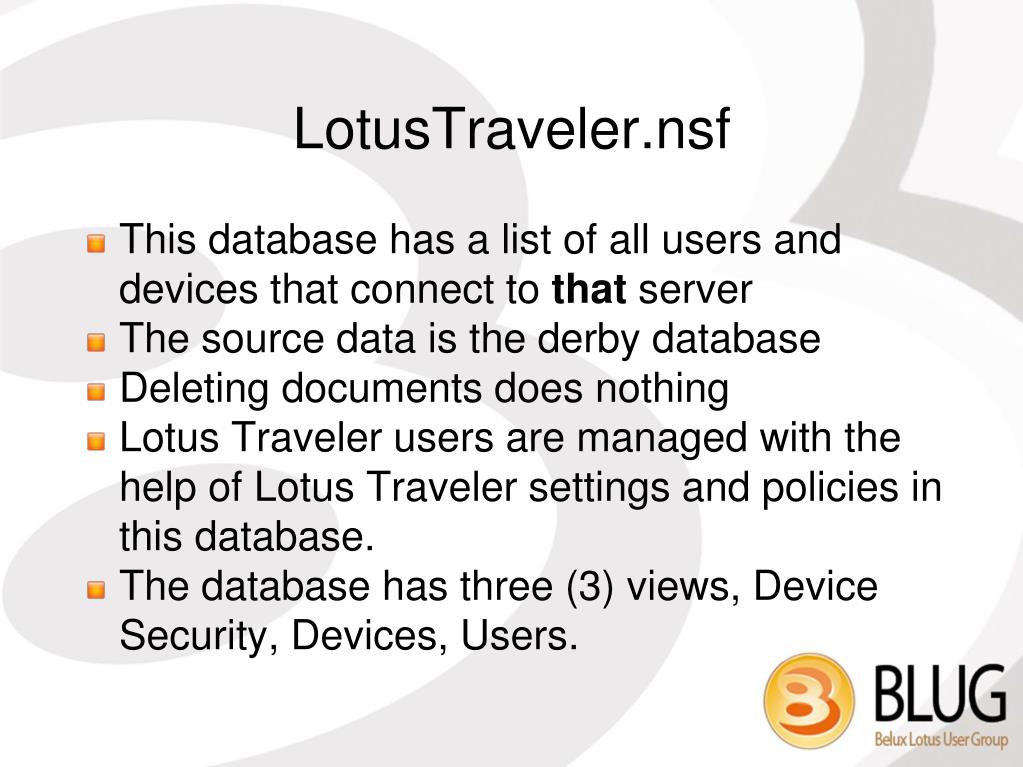

Lotustraveler nsf

LotusTraveler.nsf

This database has a list of all users and devices that connect to that server

The source data is the derby database

Deleting documents does nothing

Lotus Traveler users are managed with the help of Lotus Traveler settings and policies in this database.

The database has three (3) views, Device Security, Devices, Users.

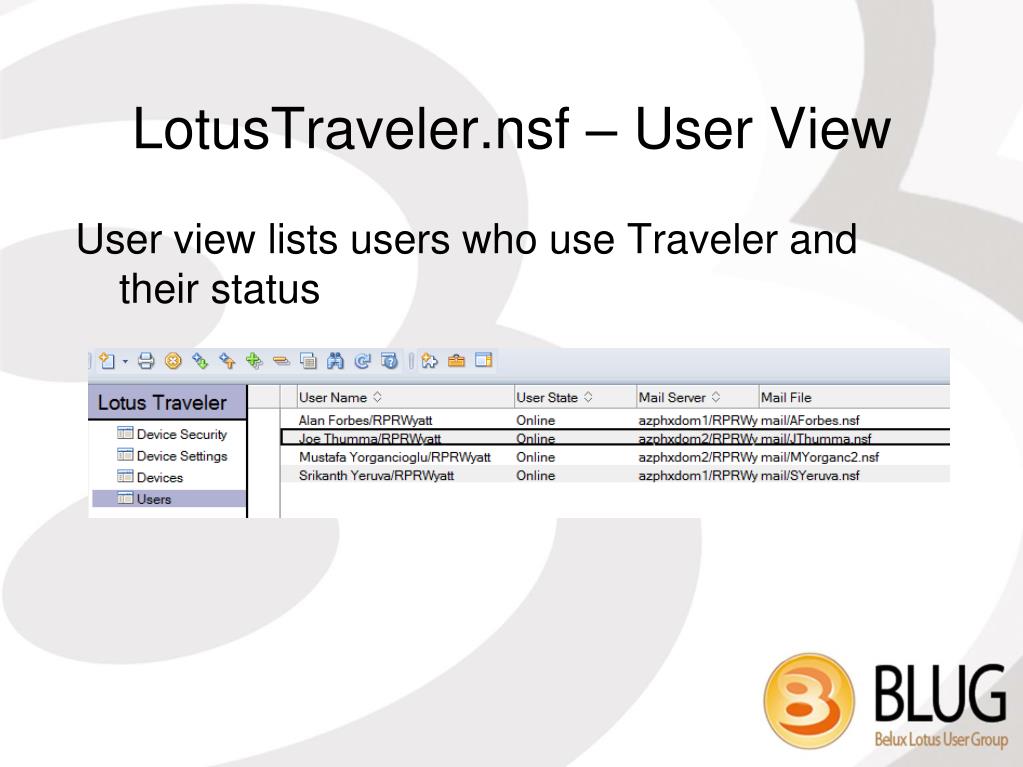

Lotustraveler nsf user view

LotusTraveler.nsf – User View

User view lists users who use Traveler and their status


Lotustraveler nsf devices view

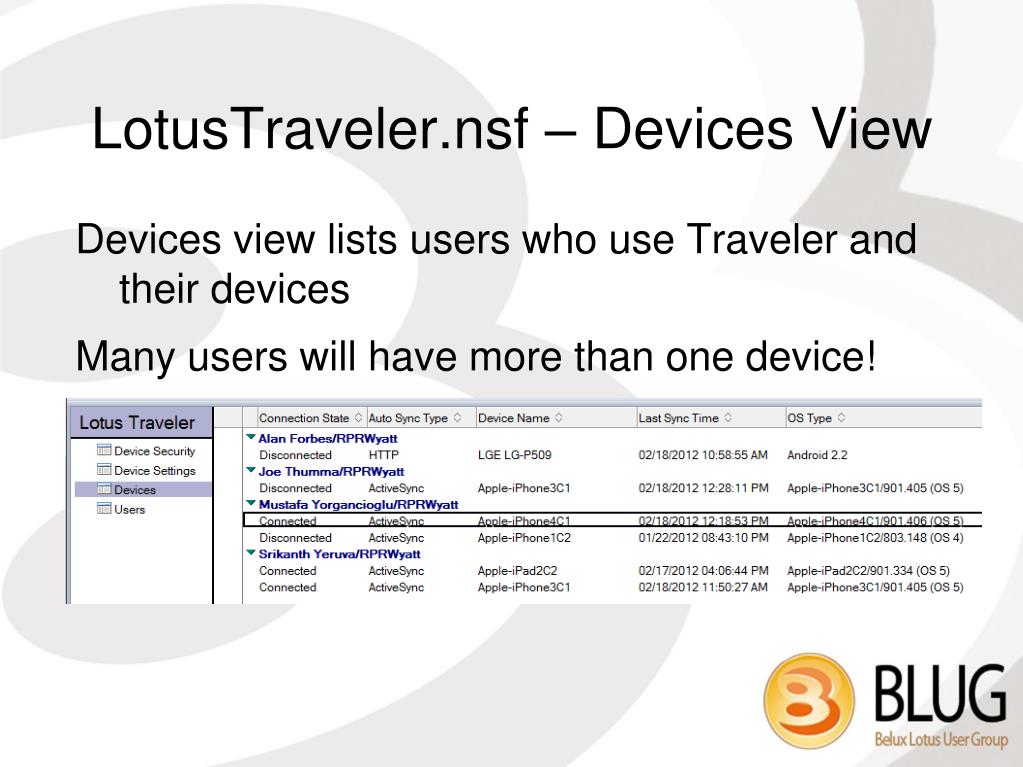

LotusTraveler.nsf – Devices View

Devices view lists users who use Traveler and their devices

Many users will have more than one device!


Lotustraveler nsf device settings

LotusTraveler.nsf – Device Settings

Devices Settings is new in 8.5.1 and provides defaults for connecting devices

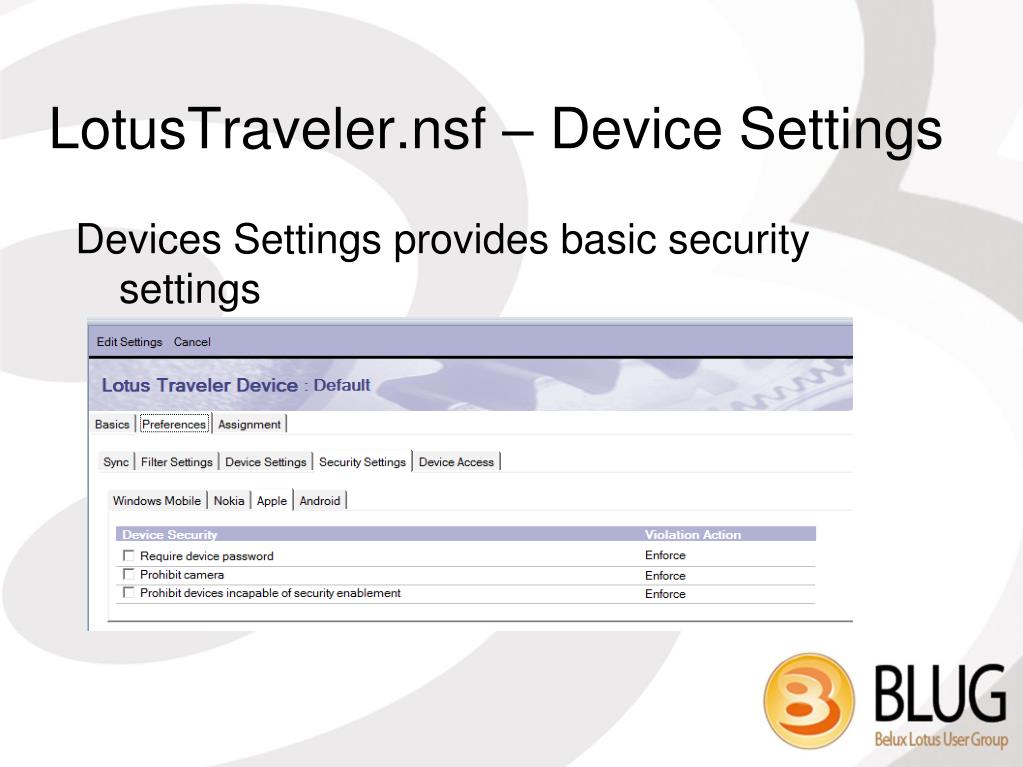

Lotustraveler nsf device settings1

LotusTraveler.nsf – Device Settings

Devices Settings provides basic security settings

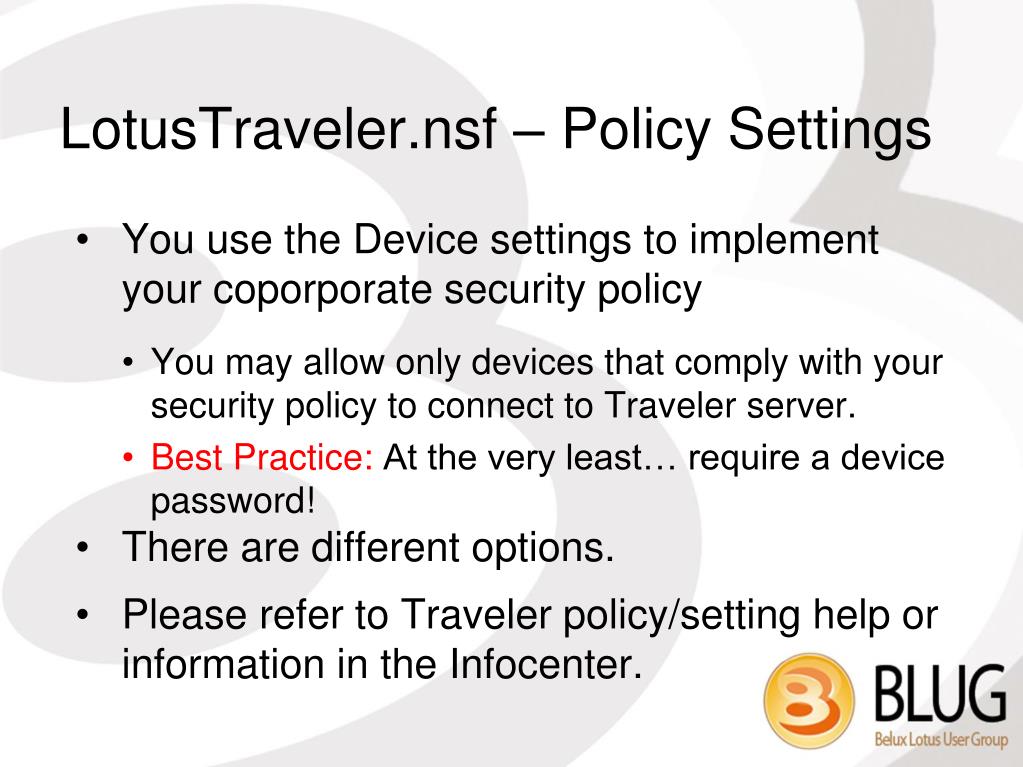

Lotustraveler nsf policy settings

LotusTraveler.nsf – Policy Settings

You use the Device settings to implement your coporporate security policy

  • You may allow only devices that comply with your security policy to connect to Traveler server.

  • Best Practice: At the very least… require a device password!

    There are different options.

    Please refer to Traveler policy/setting help or information in the Infocenter.


Mobile device management

Mobile Device Management

Mobile Device Management (MDM) software secures, monitors, manages and supports mobile devices deployed across multiple operators, service providers and enterprises.

MDM functionality typically includes over-the-air distribution of applications, data and configuration settings


Mobile device management1

Mobile Device Management

Different devices offer management capabilities

Apple does it well

Not so much on Android

LotusTraveler.NSF does not really provide MDM.

LotusTraveler.nsf does provides security


Best practices in rolling out lotus traveler

http://support.apple.com/kb/dl1466


Apple mdm

Apple MDM

The Apple tool doesn’t push the Profiles to the device (you have to figure that part out)

If you don’t want to do it by hand.. iOS.Profiler puts a Lotus Notes front-end to native Apple MDM capabilities

  • Creates and distributes these Profiles


Lotustraveler nsf device security

LotusTraveler.NSF – Device Security

Device Security is the only view with actions


Lotustraveler nsf actions

LotusTraveler.NSF – Actions

Deny Access prohibits any future syncing

Update SMS for users using SMS for synchronization

Change Approval if you require approval prior to providing access

Wipe offers multiple options depending on the device

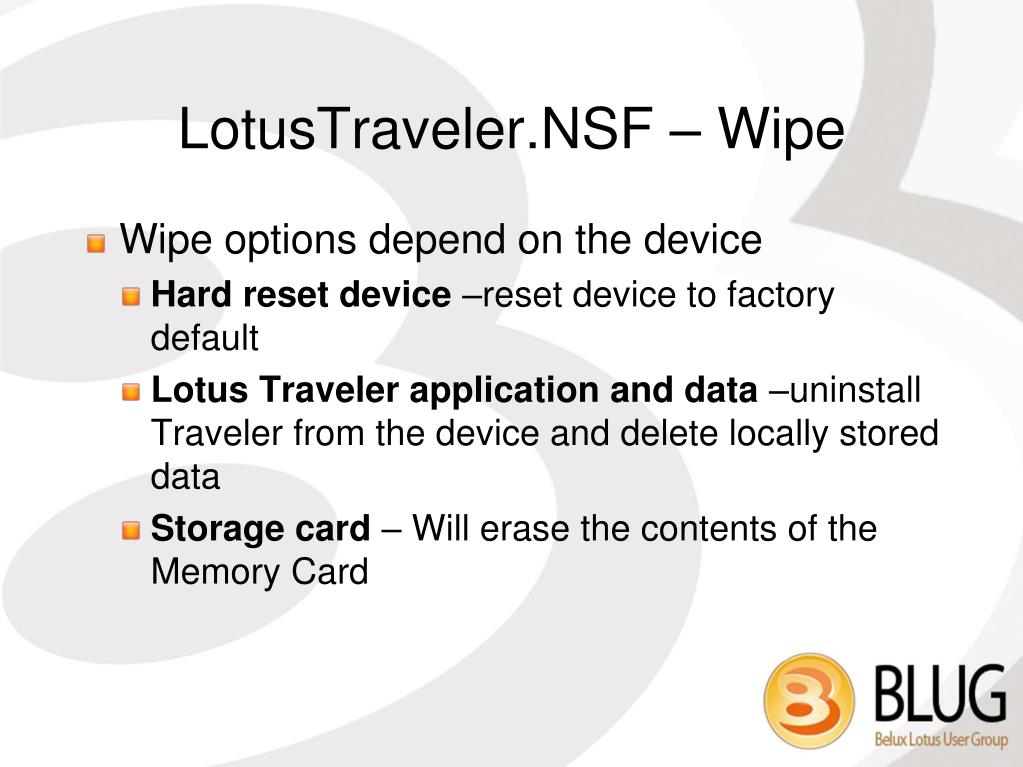

Lotustraveler nsf wipe

LotusTraveler.NSF – Wipe

Wipeoptions depend on the device

Hard reset device –reset device to factory default

Lotus Traveler application and data –uninstall Traveler from the device and delete locally stored data

Storage card – Will erase the contents of the Memory Card


Lotustraveler nsf wipe1

LotusTraveler.NSF – Wipe

The next time the device synchronizes with the server, the server will perform the wipe operation.

If clients have not yet connected to server, and there is no need to wipe it (for example, it was found), the administrator may the recall wipe request by selecting the “Clear Wipe” Action….right away!


Lotustraveler nsf1

LotusTraveler.nsf

LotusTraveler.nsf does not replicate

If you have 5 Traveler servers, you may need to search 5 places

Best Practice- Establish an easy-to-understand “scheme” for assigning users to servers

OR

Use my gift to you “Traveler Users Catalog”


Traveler users catalog

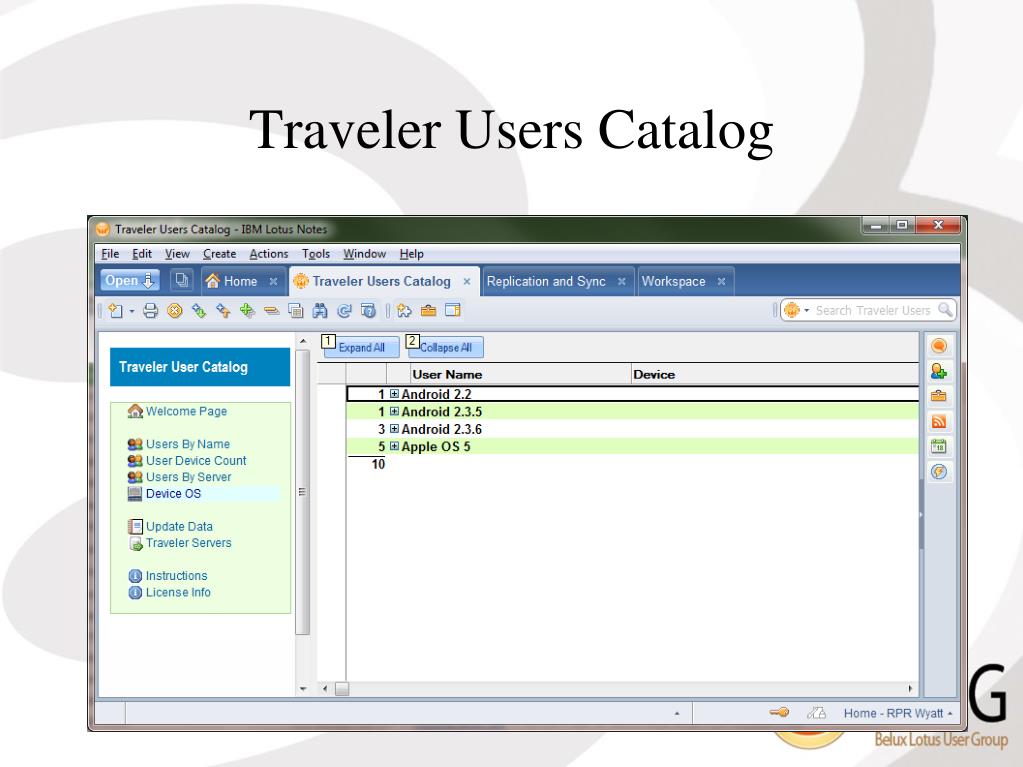

Traveler Users Catalog


Tuning http

Tuning HTTP

Open Domino Administrator

Select Configuration > Server > Current Server Document.

Basics Tab > Load Internet Configurations from Server/Internet Sites documents set to enabled.

Internet protocols tab > Domino Web Engine tab > Java servlet support set to Domino Servlet Manager.


Tuning http1

Tuning HTTP

Internet protocols tab > Class path Make sure this path is an existing directory. This step is optional, but the HTTP server will display an error message if this directory does not exist.

Internet protocols tab > HTTP > Maximum requests per persistent connection set to at least 100. (1.2 times the number of devices)

Internet protocols tab > HTTP > Input Timeout set to at least 75 seconds.

Save the Server Document.


How many http threads

How many HTTP threads?

How many do I need?

Traveler.Push.Devices.Total =225

This indicates that 225 devices are registered for synchronization with the Notes Traveler server and that at least 270 HTTP threads are needed

(1.2 x 225 = 270).


How many http threads1

How many HTTP threads?

Q: How many do I have?

A: Show stat http.workers

Q: How many have I used?

A: show stat http.PeakConnections


Best practices in rolling out lotus traveler

Shameless Plug

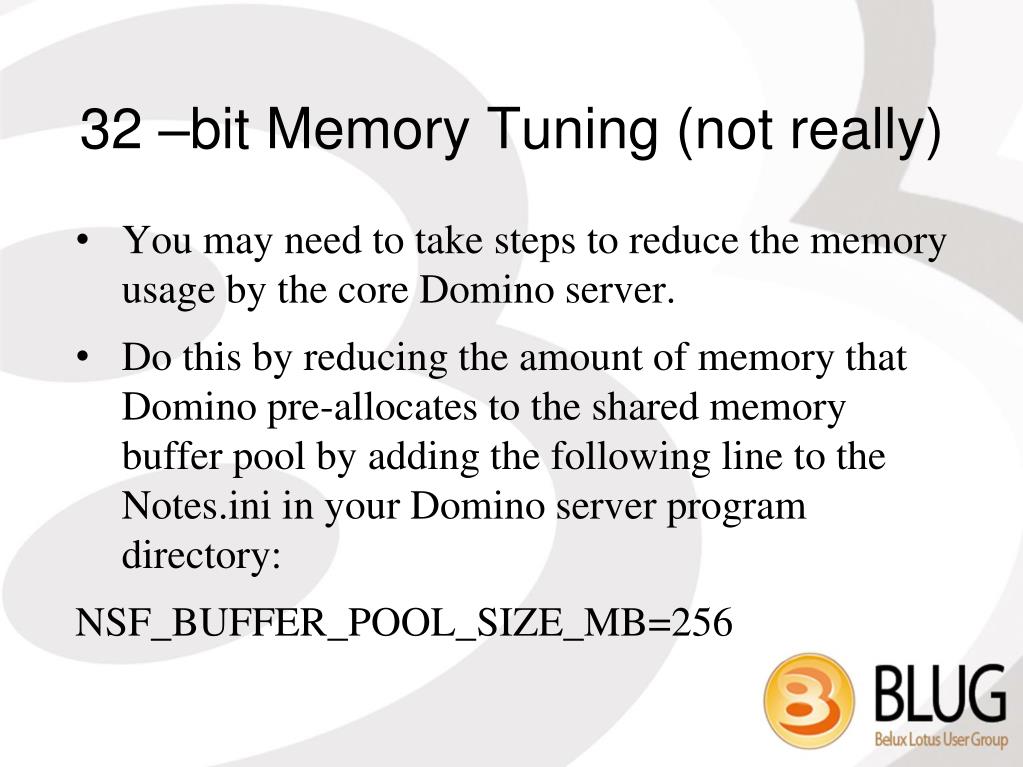

32 bit memory tuning not really

32 –bit Memory Tuning (not really)

You may need to take steps to reduce the memory usage by the core Domino server.

Do this by reducing the amount of memory that Domino pre-allocates to the shared memory buffer pool by adding the following line to the Notes.ini in your Domino server program directory:

NSF_BUFFER_POOL_SIZE_MB=256


64 bit memory tuning

64–bit Memory Tuning

On Windows 64 bit servers, increase the HTTP Maximum Cached users parameter to match the number of expected syncing devices.

This value is present in the Domino server document and can be changed using the Domino Administrator client.


Co locating lotus notes traveler with other applications

Co-locating Lotus Notes Traveler with other applications

While it is possible to run the Lotus Notes Traveler server on the same physical server as other Domino services (such as mail, iNotes, Sametime and BES), this is not recommended

UNLESS….the deployment of users on the server is very small, typically less than 100 users.

BECAUSE…once additional users are added, all of the applications will be vying for the same resources and the service will degrade


Tips tricks

Lotus Traveler

Tips & Tricks


How to deploy company logo in traveler website home page

How to deploy company logo in traveler website home page

1. Go to traveler server data directory (\domino\html\traveler\Images)

2. Rename banner.jpg to Ibmbanner.jpg

3. Copy your company logo and rename to banner.jpg

4. Restart HTTP task or restart traveler server


Traveler histogram stats

Traveler Histogram Stats

Traveler.DCA.DB_OPEN.Time.Histogram.CN=azphxdom1/O=RPRWyatt.000-001=4210

Traveler.DCA.DB_OPEN.Time.Histogram.CN=azphxdom1/O=RPRWyatt.001-002=7

Traveler.DCA.DB_OPEN.Time.Histogram.CN=azphxdom1/O=RPRWyatt.002-005=14

Traveler.DCA.DB_OPEN.Time.Histogram.CN=azphxdom1/O=RPRWyatt.005-010=11

Traveler.DCA.DB_OPEN.Time.Histogram.CN=azphxdom1/O=RPRWyatt.010-030=1

Traveler.DCA.DB_OPEN.Time.Histogram.CN=azphxdom2/O=RPRWyatt.000-001=2761

Traveler.DCA.DB_OPEN.Time.Histogram.CN=azphxdom2/O=RPRWyatt.010-030=1

Traveler.DCA.DB_OPEN.Time.Histogram.CN=azphxdom2/O=RPRWyatt.060-120=1

Traveler.DCA.DB_OPEN.Time.Histogram..000-001=4


Lotus traveler commands

Lotus Traveler Commands

Tell Traveler…

…status

The Lotus Notes Traveler task has been running since Thu Jun 17 21:52:29 EDT 2010.

The last successful device sync was on Friday Mar 23 03:23:41 EDT 2012

The overall status of Lotus Notes Traveler is Green.


Lotus traveler commands1

Lotus Traveler Commands

Tell Traveler…

….Delete, Reset, Dump, Log collect, Mem Show, Show, ShowActive, ShowUsers, Stat Show, Status, and SystemDump.


Lotus traveler database defragmentation

Lotus Traveler Database Defragmentation

It is recommended that customers run the defrag command approximately once a month as part of continued system health.

Shutdown the Lotus Traveler and the Domino HTTP tasks on the server

Start Traveler using the defrag parameter load traveler -defrag

Note: The defrag operation may take more than 30 minutes to complete.


Lotus traveler database defragmentation1

Lotus Traveler Database Defragmentation

Note: New as of 8.5.2.4 it is now possible to schedule the defrag operation by adding to Notes.INI

NTS_DEFRAG_INTERVAL_DAYS=30

(IBM recommends 30)

When does it run?


Conclusions

Conclusions

Cost ----->None

End User Satisfaction -----> High

Adoption Rate ----->Fast

Performance ----->Awesome

Ease of Management -----> High

Security ----->Robust


For more information

For More Information

For more information–

Alan.Forbes@ Rprwyatt.com

For a free (as in beer) copy of this presentation or a copy of Lotus Traveler Catalog database

My BLOG @ http://servervitalsigns.com/vs/

Traveler Monitoring @ http://www.rprwyatt.com/vstraveler.html
