Digital communications

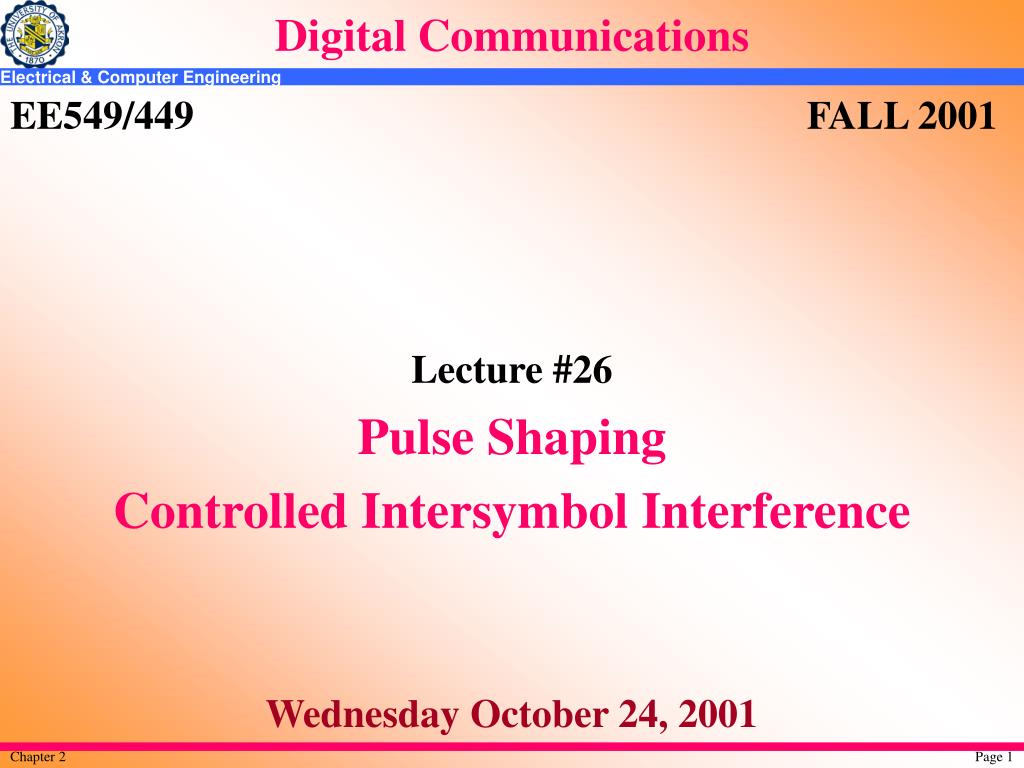

Digital Communications

EE549/449 FALL 2001

Lecture #26

Pulse Shaping

Controlled Intersymbol Interference

Wednesday October 24, 2001


Root raised cosine rc rolloff pulse shaping

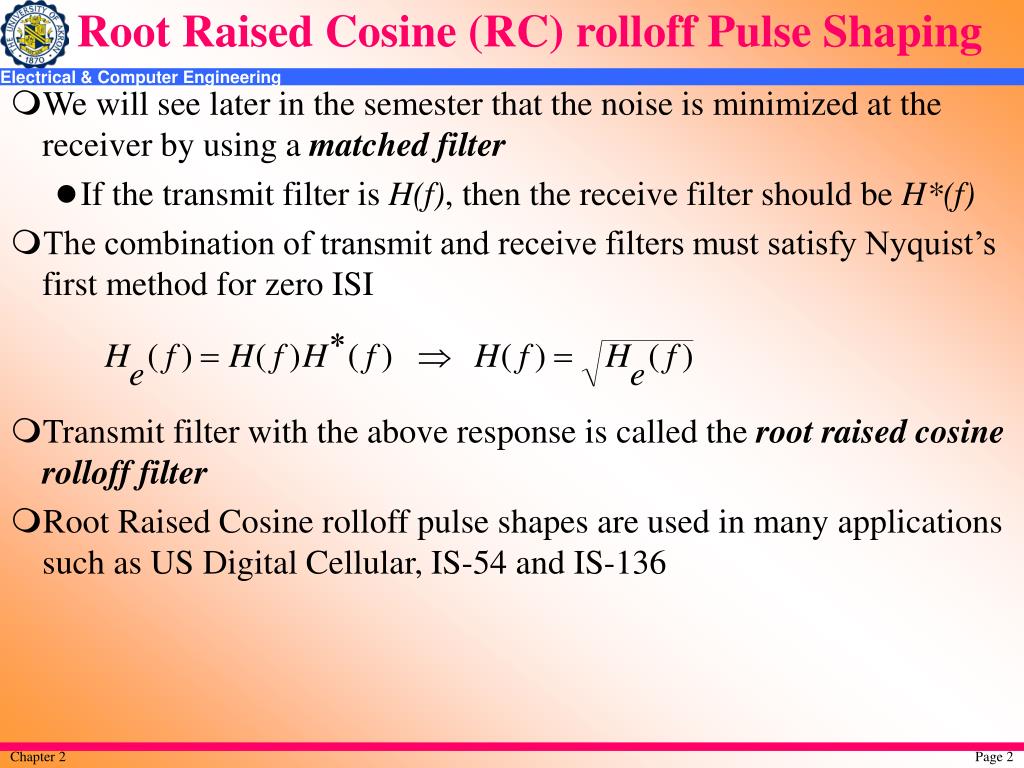

Root Raised Cosine (RC) rolloff Pulse Shaping

  • We will see later in the semester that the noise is minimized at the receiver by using a matched filter

    • If the transmit filter is H(f), then the receive filter should be H*(f)

  • The combination of transmit and receive filters must satisfy Nyquist’s first method for zero ISI

  • Transmit filter with the above response is called the root raised cosine rolloff filter

  • Root Raised Cosine rolloff pulse shapes are used in many applications such as US Digital Cellular, IS-54 and IS-136


Practical issues with pulse shaping

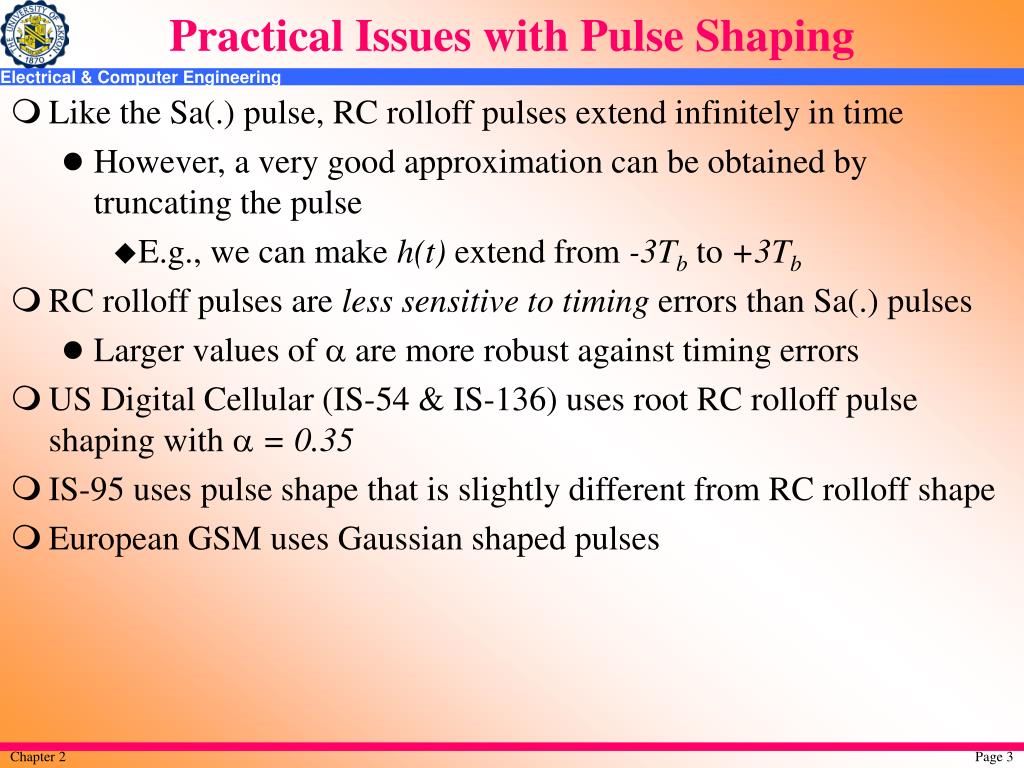

Practical Issues with Pulse Shaping

  • Like the Sa(.) pulse, RC rolloff pulses extend infinitely in time

    • However, a very good approximation can be obtained by truncating the pulse

      • E.g., we can make h(t) extend from -3Tb to +3Tb

  • RC rolloff pulses are less sensitive to timing errors than Sa(.) pulses

    • Larger values ofare more robust against timing errors

  • US Digital Cellular (IS-54 & IS-136) uses root RC rolloff pulse shaping with  = 0.35

  • IS-95 uses pulse shape that is slightly different from RC rolloff shape

  • European GSM uses Gaussian shaped pulses


Digital communications

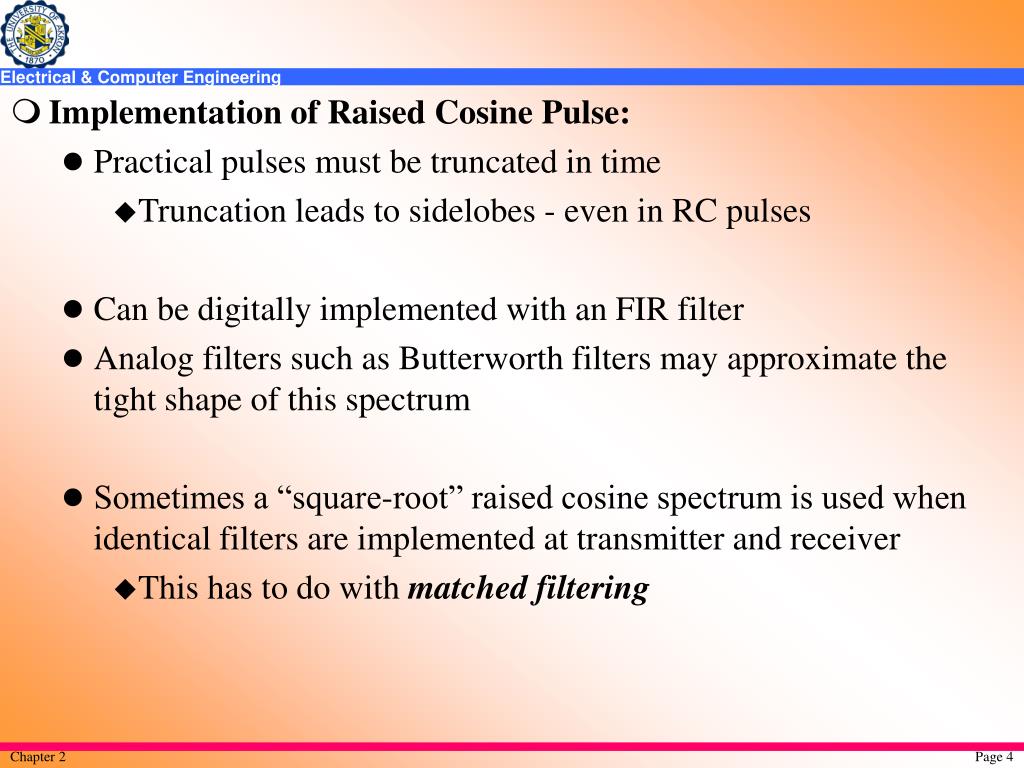

  • Implementation of Raised Cosine Pulse:

    • Practical pulses must be truncated in time

      • Truncation leads to sidelobes - even in RC pulses

    • Can be digitally implemented with an FIR filter

    • Analog filters such as Butterworth filters may approximate the tight shape of this spectrum

    • Sometimes a “square-root” raised cosine spectrum is used when identical filters are implemented at transmitter and receiver

      • This has to do with matched filtering


Controlled isi

Controlled ISI

  • To achieve zero ISI, we have seen that it is necessary to transmit at below the Nyquist rate

  • Is it possible to relax the condition on zero ISI and allow for some amount of ISI in order to achieve a rate > 2B?

  • Idea is to introduce some controlled amount of ISI instead of trying to eliminate it completely

  • ISI that we introduce is deterministic (or controlled) and hence we can take care of it at the receiver

  • How do we do this?

    • Controlled amount of ISI is introduced by combining a number of successive binary pulses prior to transmission

    • Since the combination is done in a known way, the receiver can be designed to correctly recover the signal

  • We will now discuss different methods of controlled ISI


Partial response signaling prs

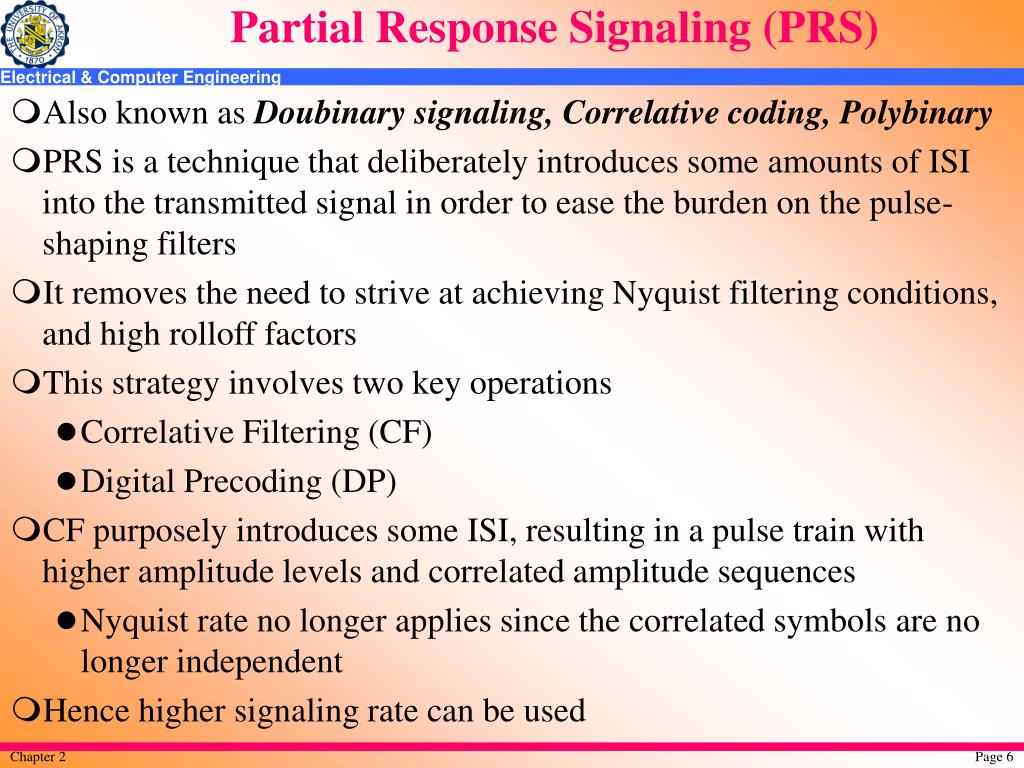

Partial Response Signaling (PRS)

  • Also known as Doubinary signaling, Correlative coding, Polybinary

  • PRS is a technique that deliberately introduces some amounts of ISI into the transmitted signal in order to ease the burden on the pulse-shaping filters

  • It removes the need to strive at achieving Nyquist filtering conditions, and high rolloff factors

  • This strategy involves two key operations

    • Correlative Filtering (CF)

    • Digital Precoding (DP)

  • CF purposely introduces some ISI, resulting in a pulse train with higher amplitude levels and correlated amplitude sequences

    • Nyquist rate no longer applies since the correlated symbols are no longer independent

  • Hence higher signaling rate can be used


Digital communications

  • The transfer function H(f) is equivalent to the Tap Delay Line model


Digital communications

  • Since h(t) = sinc(t/T) and R=1/T, the overall impulse response is

    and

    where

  • PRS changes the amplitude sequence ak a+k

  • a+k has a correlated amplitude span of N symbols since each a+k depends on the previous N values of ak

  • Also, when ak has M levels, a+k sequence has M+ > M levels

  • A whole family of PRS methods exists

  • Lets look at a few specific cases of PRS


Duobinary signaling

Duobinary Signaling

  • Also called class 1 signaling

  • Simplest form of PRS with M = 2, N = 1, Co = C1 = 1

  • The input data sequence is combined with a 1-bit delayed version of the same sequence (the controlled ISI) and then passed through the pulse-shaping filter

  • Duobinary Encoder


Digital communications

  • Each incoming pulse is added to the previous pulse

  • The bit or data sequence {yk} are not independent

    • Each yk digit caries with it the memory of the prior digit

  • It is this correlation between digit that is considered the controlled ISI which can be easily removed at the receiver

  • Impulse Response of Duobinary Signal:


Digital communications

  • From

    it can be shown that (exercise - show this)

  • Impulse response h(t) for the duobinary scheme is simply the sum of two sinc waveforms, delayed by one bit period w.r.t each other:


Digital communications

  • Duobinary signaling can be interpreted as adjacent pulse summation followed by rectangular low pass filtering

  • Encoder takes a 2 level waveform and produces a 3 level waveform

  • Duobinary Decoding:

    • The role of the receiver is to recover xk from yk

    • Transmitted signal (assuming no noise) is

    • xk can assume one of 2 values A, depending on whether the k-th bit is 1 or 0

    • Since yk depends on xk and xk-1, yk can have 3 values (no noise)


  • Digital communications

    • In general, (M-ary transmission), PRS results in 2M-1 output levels

    • Detection involves subtracting xk-1 decisions from yk digits such that

    • The detection process is the reverse operation at the transmitter

    • Decision rules is

    • A major drawback to this technique is that once errors are made, they tend to propagate through the system


    Digital communications

    A Duo-binary Baseband System

    • Advantage:

      • It permits transmission at the Nyquist rate without the need for linear phase rectangular pulse shaping

    • Disadvantages:

      • There is no one to one mapping between detected ternary symbol and the original binary digits (2  3)


    Digital communications

    • Require more power

      • Ternary nature of duobinary signal requires about 3 dB greater SNR compared to ideal signaling (i.e, binary) for a given PB

    • The decoding process results in propagation of errors

      • Because output data bits are decoded using previous data bit, if it is in error then the new output will be in error, and so on

      • In other words, errors will propagate through the system

    • It is ineffective for AC coupled signal

      • PSD has substantial values at zero making it unsuitable for use with AC coupled transmission

        Note:

      • Problem 3 can be solved by a technique known as precoding

      • Problem 4 is solved by a technique known as modified duobinary


    Summary of duobinary baseband system

    Summary of Duobinary Baseband System

    • In general, (M-ary transmission), PRS results in 2M-1 output levels

    • Detection involves subtracting xk-1 decisions from yk digits such that

    • Decision rules is


    Digital communications

    Composite pulses arising from like and unlike

    combinations of input impulse pair


    Digital communications

    Duobinary waveform arising from an example binary sequence


    Example 30 duobinary coding

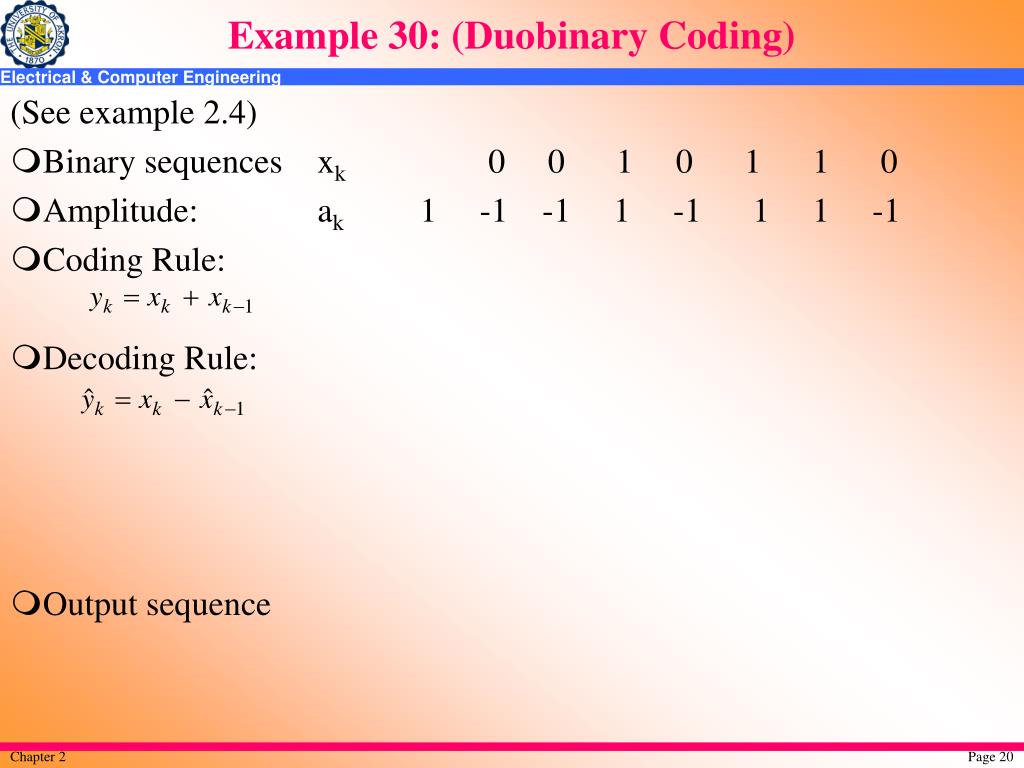

    Example 30: (Duobinary Coding)

    (See example 2.4)

    • Binary sequencesxk 0 0 1 0 1 1 0

    • Amplitude: ak1 -1 -1 1 -1 1 1 -1

    • Coding Rule:

    • Decoding Rule:

    • Output sequence
