  1. EFRTC General Meeting, Paris, 11th June 2010 WELCOME Franz Messerli

  2. EFRTC General Meeting, Paris, 11th June 2010 Purpose of the presentation Homologation of track machines for delivery to customers – experience of manufacturer, Mr. Franz Messerli, Assistant to the Managing Director, MATISA Franz Messerli

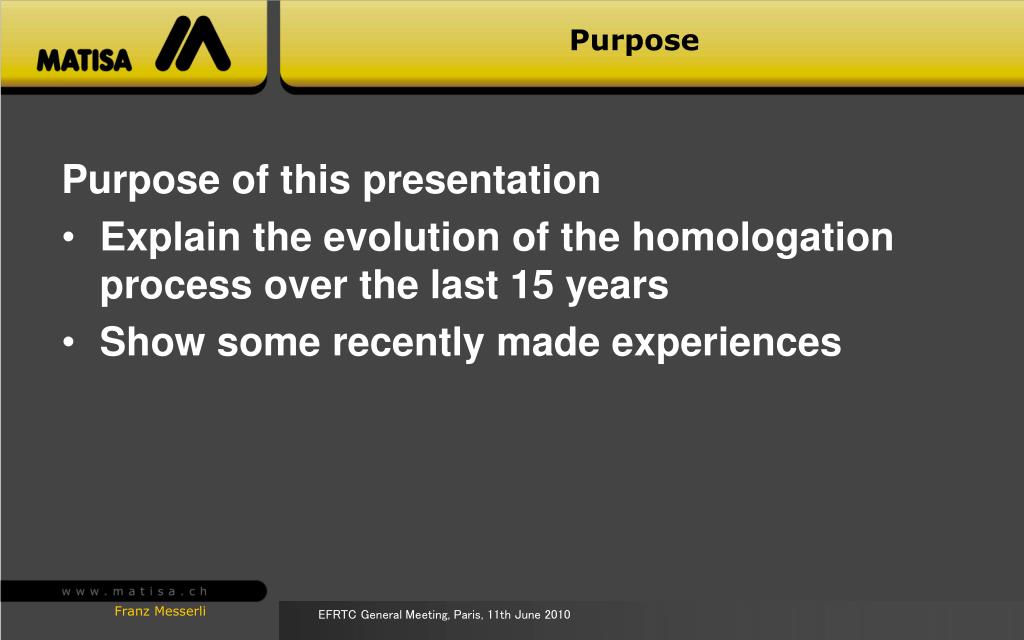

  3. EFRTC General Meeting, Paris, 11th June 2010 Purpose Purpose of this presentation • Explain the evolution of the homologation process over the last 15 years • Show some recently made experiences Franz Messerli

  4. EFRTC General Meeting, Paris, 11th June 2010 Content • Track maintenance machines • Homologation process in the nineties • Today's homologation process • Experiences made with today’s homologation process • Outlook • Summary • Questions Franz Messerli

  5. EFRTC General Meeting, Paris, 11th June 2010 Track maintenance machines Franz Messerli

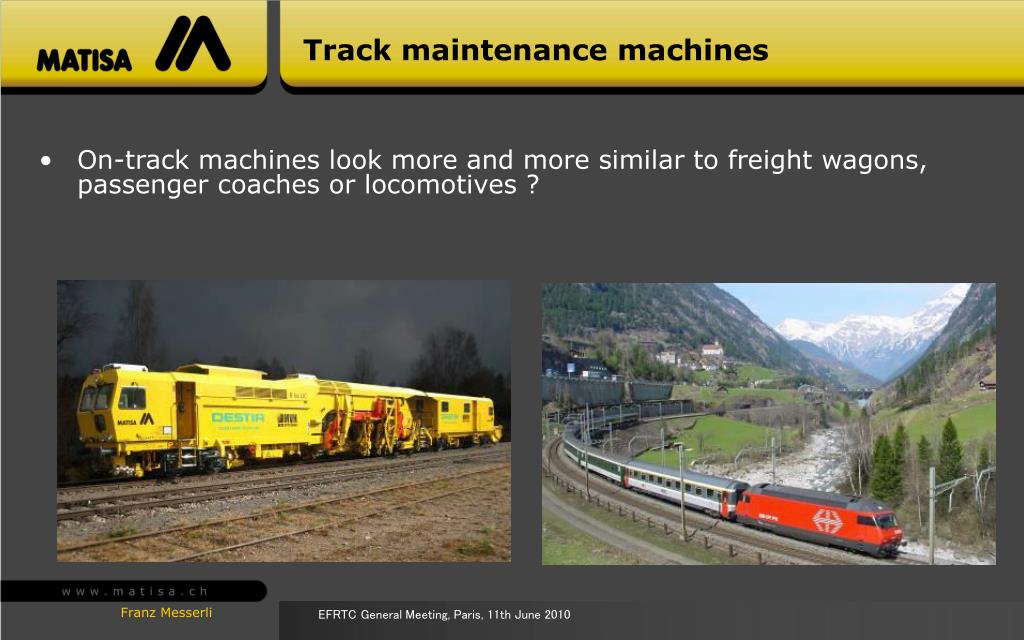

  6. EFRTC General Meeting, Paris, 11th June 2010 Track maintenance machines • On-track machines look more and more similar to freight wagons, passenger coaches or locomotives ? Franz Messerli

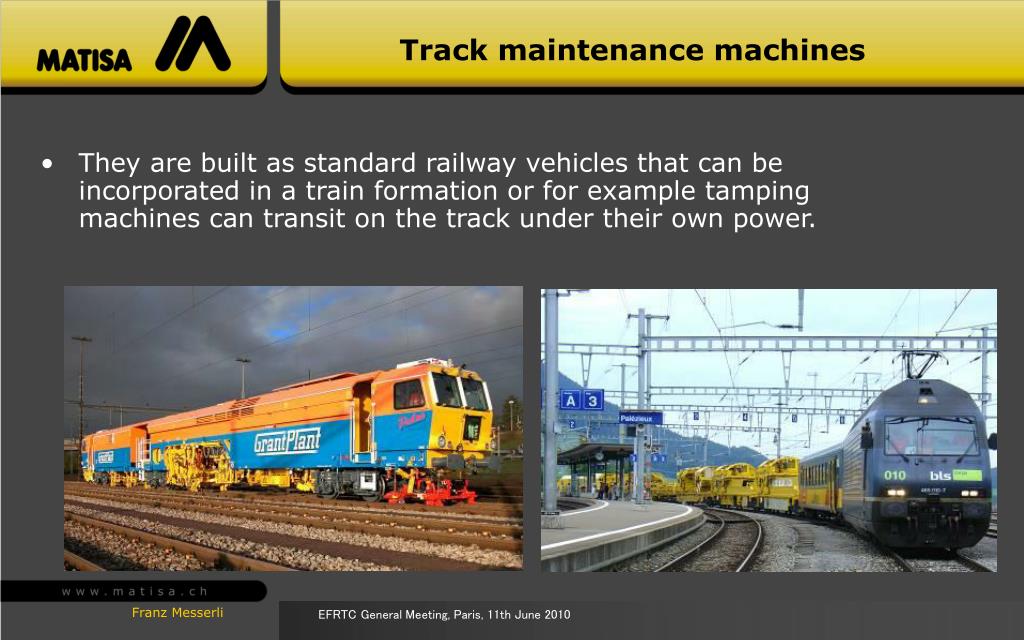

  7. EFRTC General Meeting, Paris, 11th June 2010 Track maintenance machines • They are built as standard railway vehicles that can be incorporated in a train formation or for example tamping machines can transit on the track under their own power. Franz Messerli

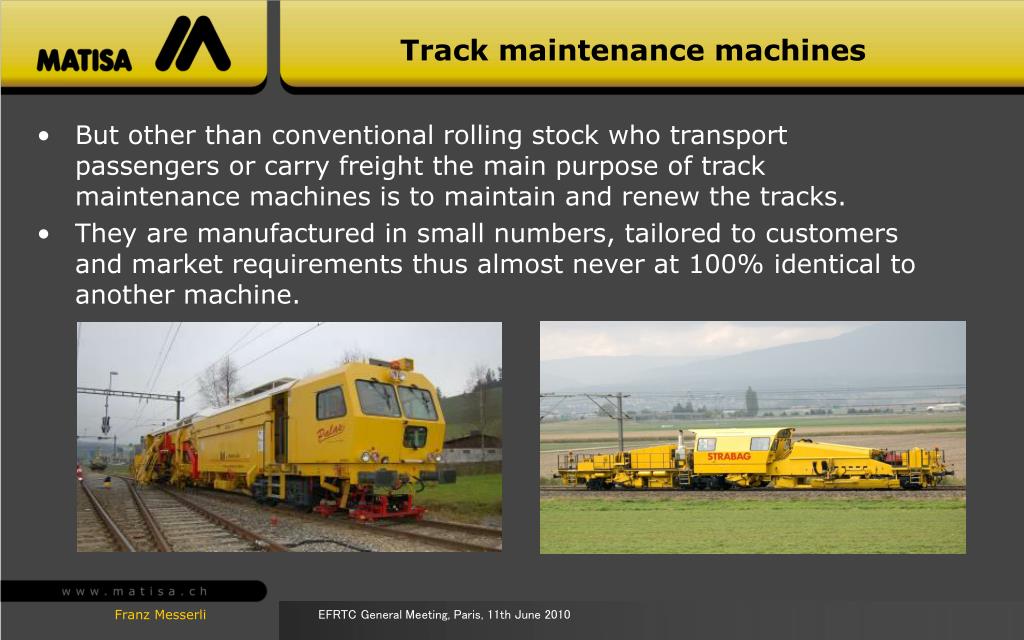

  8. EFRTC General Meeting, Paris, 11th June 2010 Track maintenance machines • But other than conventional rolling stock who transport passengers or carry freight the main purpose of track maintenance machines is to maintain and renew the tracks. • They are manufactured in small numbers, tailored to customers and market requirements thus almost never at 100% identical to another machine. Franz Messerli

  9. EFRTC General Meeting, Paris, 11th June 2010 Homologation process in the nineties Homologation process in the nineties Franz Messerli

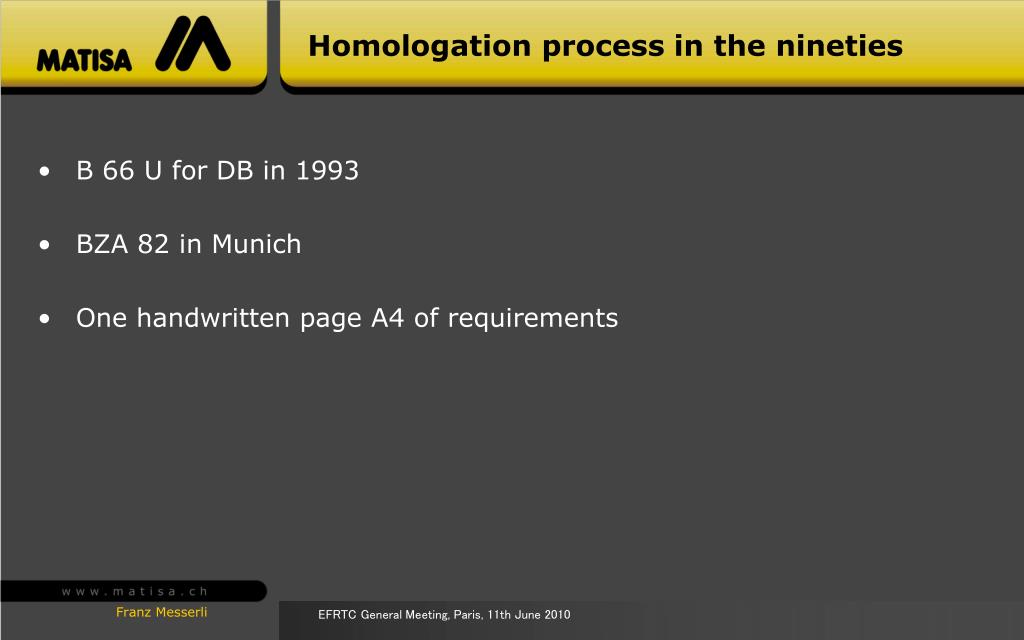

  10. EFRTC General Meeting, Paris, 11th June 2010 Homologation process in the nineties • B 66 U for DB in 1993 • BZA 82 in Munich • One handwritten page A4 of requirements Franz Messerli

  11. EFRTC General Meeting, Paris, 11th June 2010 Today's approval process Today's approval process Franz Messerli

  12. EFRTC General Meeting, Paris, 11th June 2010 Today’s approval process • Basic requirements are covered by the European Standard EN14033-1/-2/-3 “Rail bound construction and maintenance machines” Franz Messerli

  13. EFRTC General Meeting, Paris, 11th June 2010 Today’s approval process The following documents, calculations and proof must be delivered to the Railway Authorities • Machine and bogie frame strength • Proof of strength of mounted parts • Resistance to longitudinal compressive load • Powered and idle wheel set calculations • Demonstration of safety against derailment • Demonstration of running safety • Demonstration of brake performances • Demonstration of electrical contact resistances • Demonstration of equipment to be monitored (pressurised tanks such as brake air reservoir, fuel tanks, diesel, hydraulic, pressure valves) • Etc. Franz Messerli

  14. EFRTC General Meeting, Paris, 11th June 2010 Some experiences made by MATISA Some experiences made by MATISA with today’s homologation process Franz Messerli

  15. EFRTC General Meeting, Paris, 11th June 2010 • Over the last 15 years the MATISA internal amount of effort and cost for a European machine approval has been multiplied by big factors. For MATISA Switzerland the numbers are as follow: • 1993 = 0.5 person for homologation 2010 = 10 people in testing and approval department • 5 people in calculation department • Design engineers spend 20 % of their time for the elaboration of approval related documents. • Not counted management efforts used to overcome almost daily new problems and requirement. Some experiences made by MATISA Franz Messerli

  16. EFRTC General Meeting, Paris, 11th June 2010 Some experiences made by MATISA • Cost comparison B 66 UC Salcef, 2005, under old approval process B 66 UC Fourchard, 2009, under today’s approval process, 12 times more in external cost Franz Messerli

  17. EFRTC General Meeting, Paris, 11th June 2010 Some experiences made by MATISA • Difficulties to keep up with the huge number of EU Standards • Largely dependant on the person which signs off approval Interpretation of standard Know-how Experiences Background Franz Messerli

  18. EFRTC General Meeting, Paris, 11th June 2010 Some experiences made by MATISA • Request of independent reviews by external certified testing bodies for: Brake testing Franz Messerli

  19. EFRTC General Meeting, Paris, 11th June 2010 Some experiences made by MATISA • Safety against derailment Franz Messerli

  20. EFRTC General Meeting, Paris, 11th June 2010 Some experiences made by MATISA • Running safety (UIC 518) Franz Messerli

  21. EFRTC General Meeting, Paris, 11th June 2010 Some experiences made by MATISA • Testing proof of safety against derailment for a 3 point suspension system, external cost of more than € 30K Franz Messerli

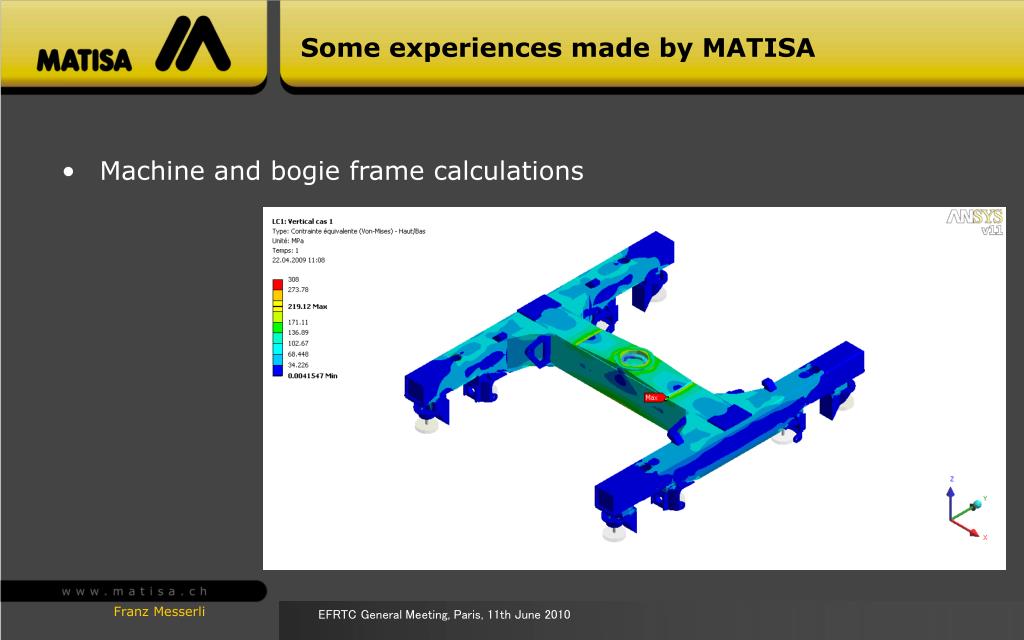

  22. EFRTC General Meeting, Paris, 11th June 2010 Some experiences made by MATISA • Machine and bogie frame calculations Franz Messerli

  23. EFRTC General Meeting, Paris, 11th June 2010 Some experiences made by MATISA • Wheel sets calculations Franz Messerli

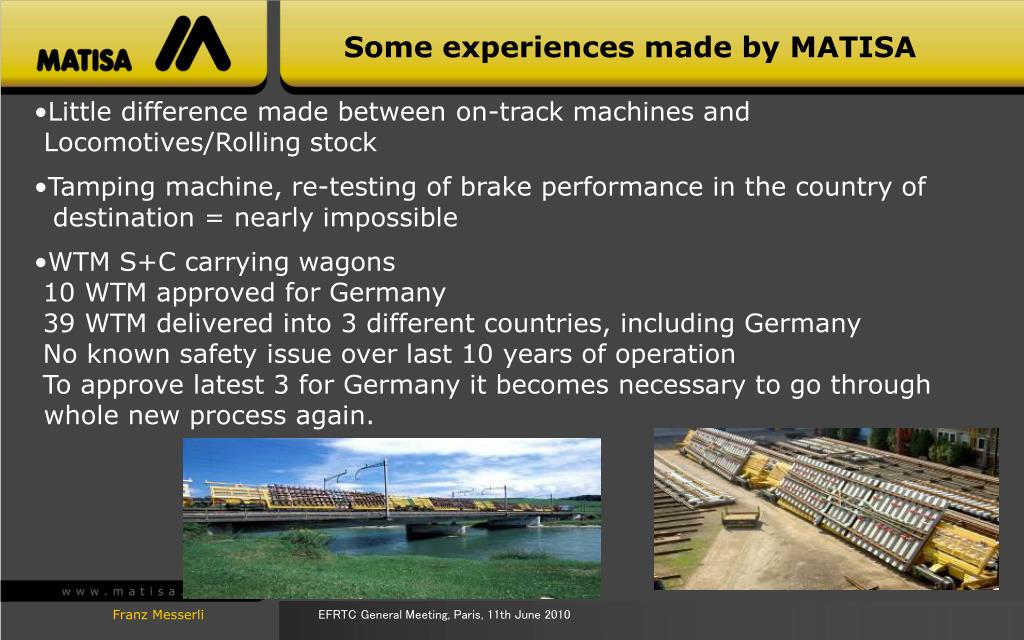

  24. EFRTC General Meeting, Paris, 11th June 2010 Some experiences made by MATISA • Little difference made between on-track machines and Locomotives/Rolling stock • Tamping machine, re-testing of brake performance in the country of destination = nearly impossible • WTM S+C carrying wagons • 10 WTM approved for Germany • 39 WTM delivered into 3 different countries, including Germany • No known safety issue over last 10 years of operation • To approve latest 3 for Germany it becomes necessary to go through whole new process again. Franz Messerli

  25. EFRTC General Meeting, Paris, 11th June 2010 Some experiences made by MATISA • Approval bodies do not care about cost, efforts and delivery delays due to the complexity of the homologation. Franz Messerli

  26. EFRTC General Meeting, Paris, 11th June 2010 Outlook Outlook Franz Messerli

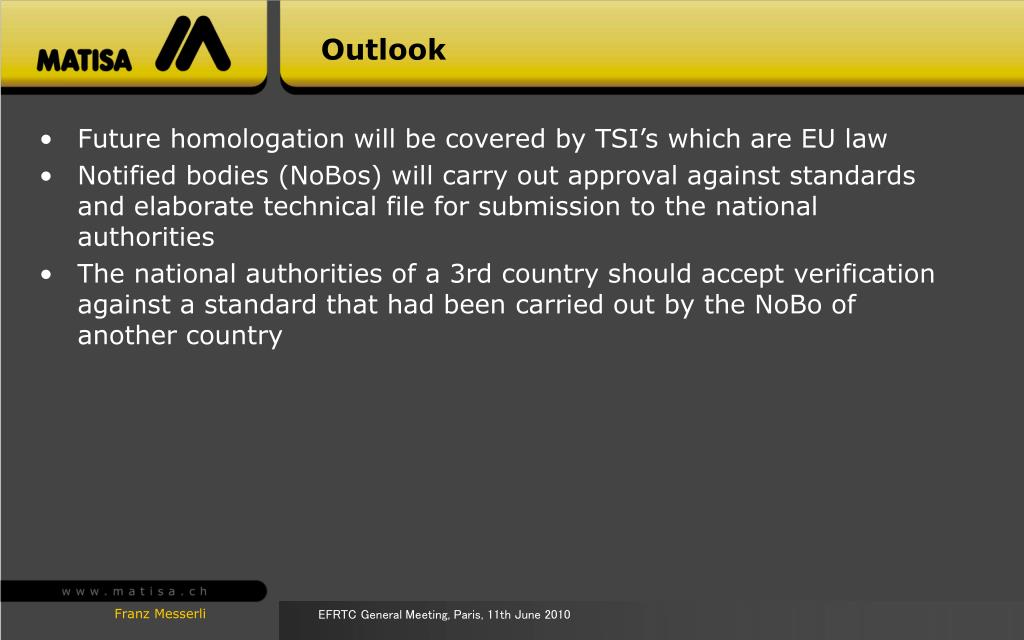

  27. EFRTC General Meeting, Paris, 11th June 2010 Outlook • Future homologation will be covered by TSI’s which are EU law • Notified bodies (NoBos) will carry out approval against standards and elaborate technical file for submission to the national authorities • The national authorities of a 3rd country should accept verification against a standard that had been carried out by the NoBo of another country Franz Messerli

  28. EFRTC General Meeting, Paris, 11th June 2010 Outlook The TSI Noise has already to be applied for the approval in certain countries. The conditions have been made easier. Some of the conditions today are: • No rain • No snow • Little wind • Approved track (shape of the countryside, track material, rail roughness • 1000 km travelled Franz Messerli

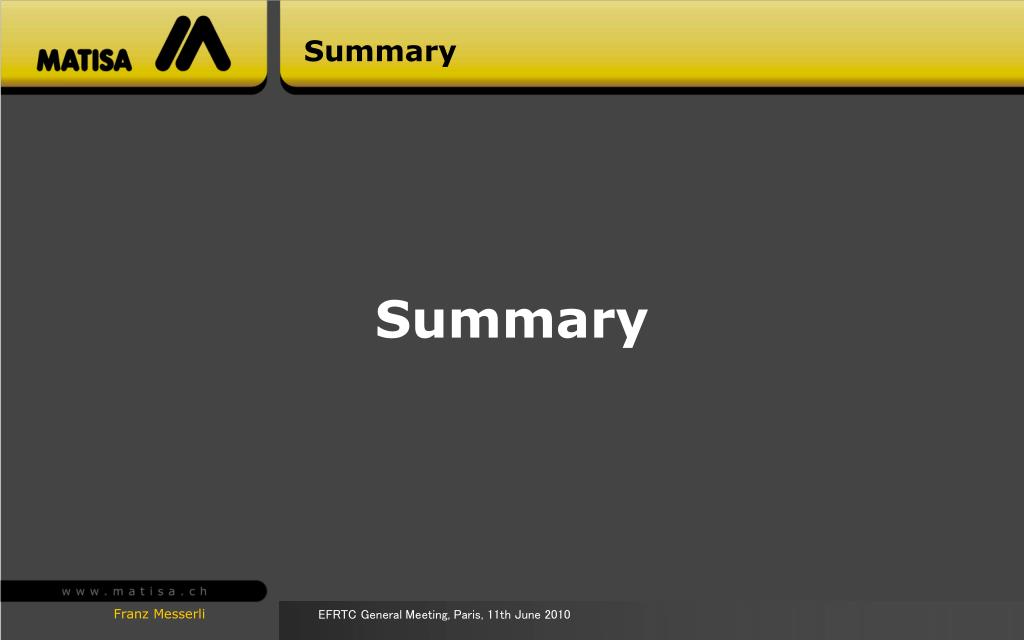

  29. EFRTC General Meeting, Paris, 11th June 2010 Summary Summary Franz Messerli

  30. EFRTC General Meeting, Paris, 11th June 2010 Summary • Efforts and cost for approval have dramatically risen over the last years. • It seems very likely that the introduction of the TSI will further increase efforts, expenses and delivery times. • On-track machines should not be put into the same category as locomotives or freight wagons. • On-track machines are often manufactured in small numbers tailored to customer needs Franz Messerli

  31. EFRTC General Meeting, Paris, 11th June 2010 Summary • On-track machines travel much less over then network than other rolling stock • The resistance of the national approval bodies and external independent experts will in our view still prevent the application of the Interoperability principle with the explanation that national specifications and procedures still apply. Franz Messerli

  32. EFRTC General Meeting, Paris, 11th June 2010 Questions Questions Franz Messerli

  33. EFRTC General Meeting, Paris, 11th June 2010 Tank you very much for your attention Franz Messerli
