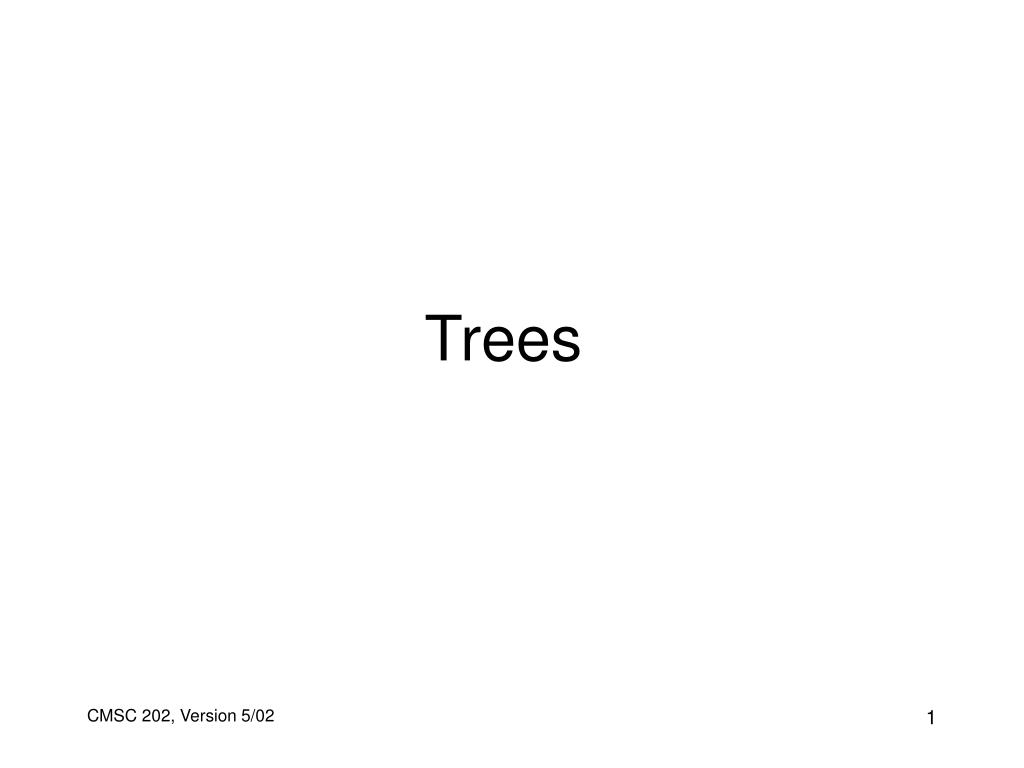

Trees

Loading in 2 Seconds...

play fullscreen
1 / 42

Trees - PowerPoint PPT Presentation


  • 75 Views
  • Uploaded on

Trees. Tree Basics. A tree is a set of nodes . A tree may be empty (i.e., contain no nodes). If not empty, there is a distinguished node, r, called the root and zero or more non-empty subtrees T 1 , T 2 , T 3 ,….T k , each of whose roots is connected by a directed edge from r.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about ' Trees' - cassandra-lara


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
tree basics
Tree Basics
  • A tree is a set of nodes.
  • A tree may be empty (i.e., contain no nodes).
  • If not empty, there is a distinguished node, r, called the root and zero or more non-empty subtrees T1, T2, T3,….Tk, each of whose roots is connected by a directed edge from r.
  • Trees are recursive in their definition and, therefore, in their implementation.
a general tree
A General Tree

A

B

G

K

L

C

D

H

I

J

E

F

tree terminology

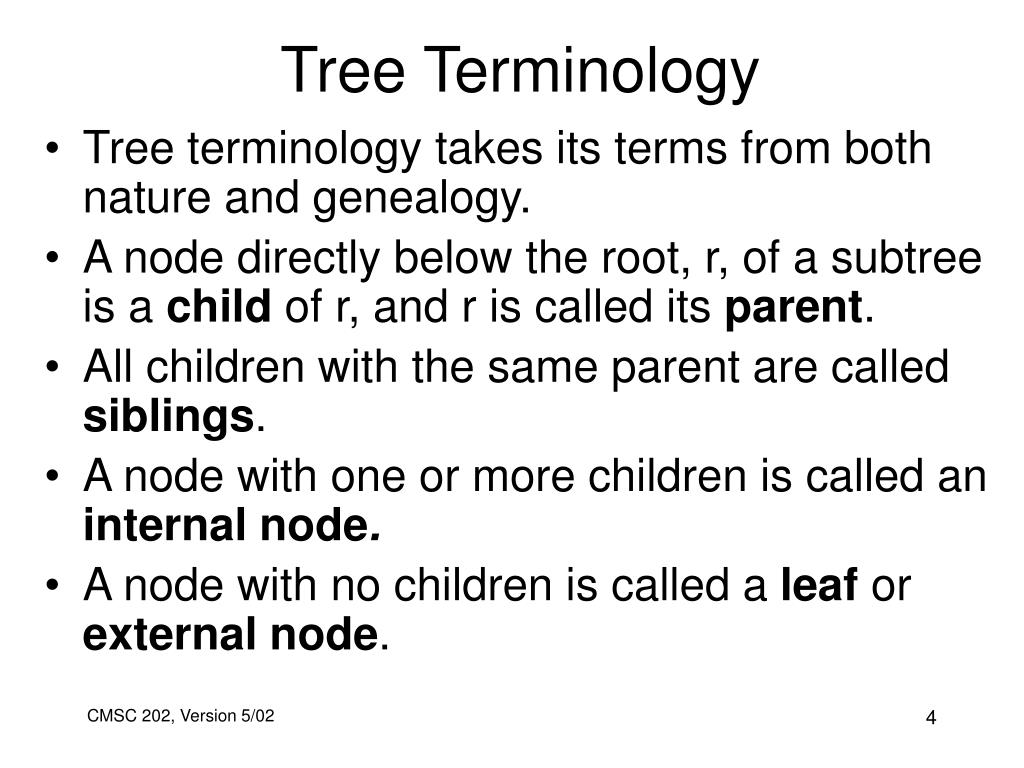

Tree Terminology
  • Tree terminology takes its terms from both nature and genealogy.
  • A node directly below the root, r, of a subtree is a child of r, and r is called its parent.
  • All children with the same parent are called siblings.
  • A node with one or more children is called an internal node.
  • A node with no children is called a leaf or external node.
tree terminology con t
Tree Terminology (con’t)
  • A path in a tree is a sequence of nodes, (N1, N2, … Nk) such that Ni is the parent of Ni+1 for 1 <= i <= k.
  • The length of this path is the number of edges encountered (k – 1).
  • If there is a path from node N1 to N2, then N1 is an ancestor of N2 and N2 is a descendant of N1.
tree terminology con t1
Tree Terminology (con’t)
  • The depth of a node is the length of the path from the root to the node.
  • The height of a node is the length of the longest path from the node to a leaf.
  • The depth of a tree is the depth of its deepest leaf.
  • The height of a tree is the height of the root.
  • True or False – The height of a tree and the depth of a tree always have the same value.
tree storage
Tree Storage
  • First attempt - each tree node contains
    • The data being stored
      • We assume that the objects contained in the nodes support all necessary operations required by the tree.
    • Links to all of its children
  • Problem: A tree node can have an indeterminate number of children. So how many links do we define in the node?
first child next sibling

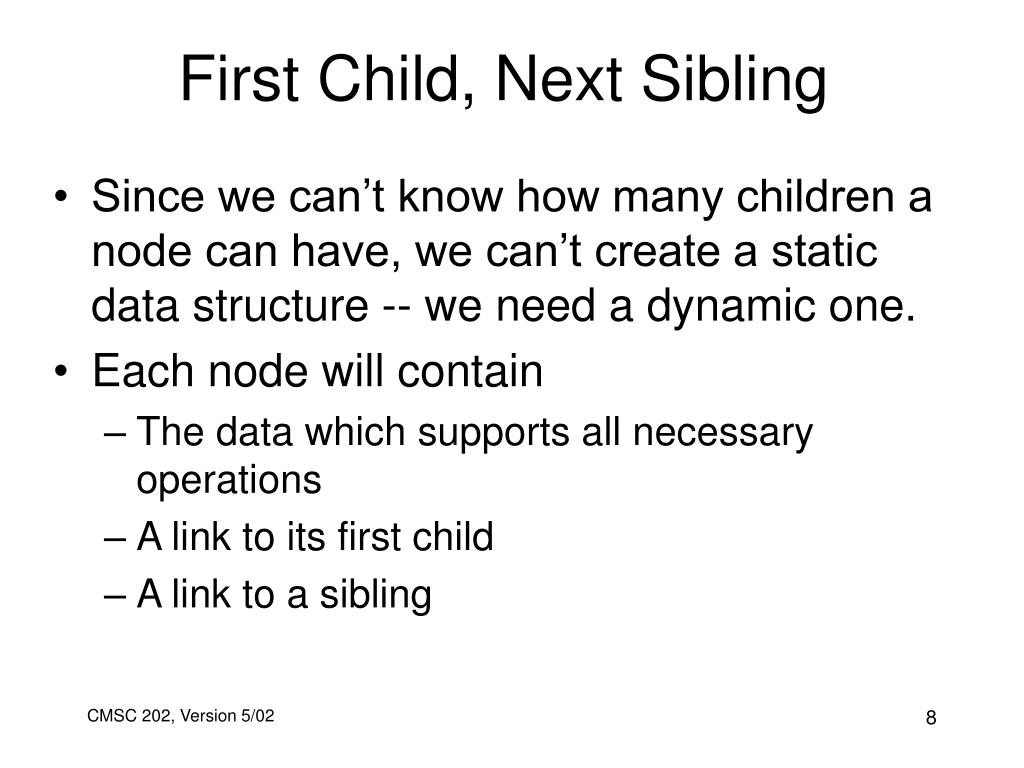

First Child, Next Sibling
  • Since we can’t know how many children a node can have, we can’t create a static data structure -- we need a dynamic one.
  • Each node will contain
    • The data which supports all necessary operations
    • A link to its first child
    • A link to a sibling
tree traversal
Tree Traversal
  • Traversing a tree means starting at the root and visiting each node in the tree in some orderly fashion. “visit” is a generic term that means “perform whatever operation is applicable”.
  • “Visiting” might mean
    • Print data stored in the tree
    • Check for a particular data item
    • Almost anything
breadth first tree traversals
Breadth-First Tree Traversals
  • Start at the root.
  • Visit all the root’s children.
  • Then visit all the root’s grand-children.
  • Then visit all the roots great-grand-children, and so on.
  • This traversal goes down by levels.
  • A queue can be used to implement this algorithm.
bf traversal pseudocode
BF Traversal Pseudocode

Create a queue, Q, to hold tree nodes

Q.enqueue (the root)

while (the queue is not empty)Node N = Q.dequeue( )for each child, X, of N Q.enqueue (X)

  • The order in which the nodes are dequeued is the BF traversal order.
depth first traversal
Depth-First Traversal
  • Start at the root.
  • Choose a child to visit; remember those not chosen
  • Visit all of that child’s children.
  • Visit all of that child’s children’s children, and so on.
  • Repeat until all paths have been traversed
  • This traversal goes down a path until the end, then comes back and does the next path.
  • A stack can be used to implement this algorithm.
df traversal pseudocode

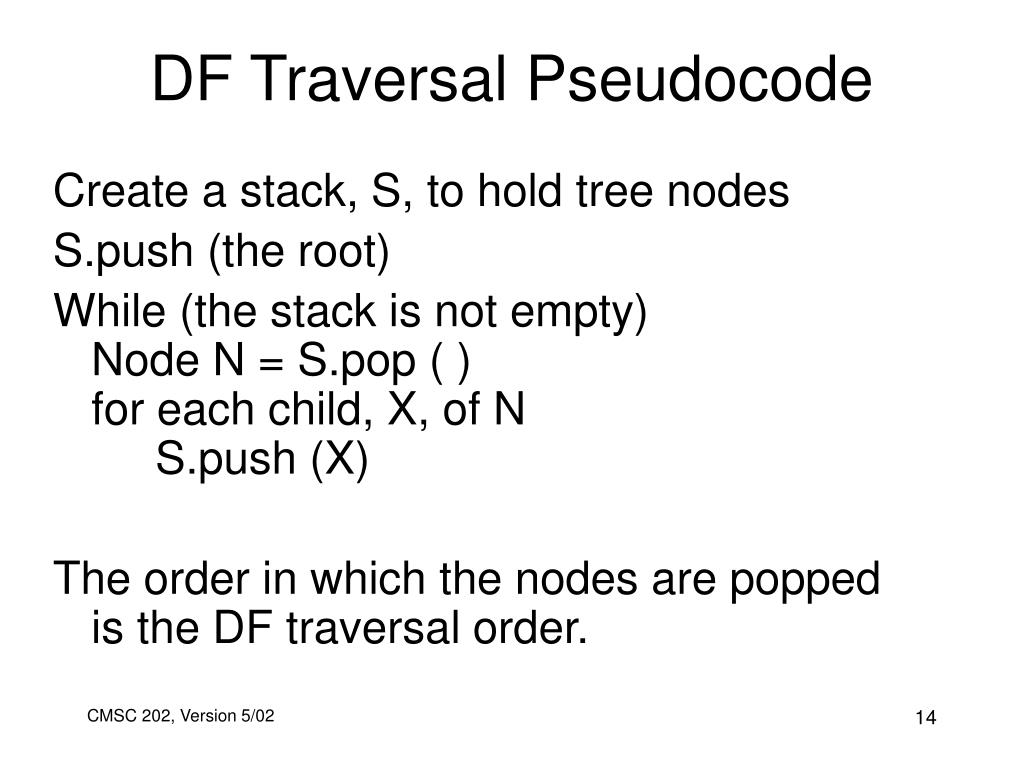

DF Traversal Pseudocode

Create a stack, S, to hold tree nodes

S.push (the root)

While (the stack is not empty)Node N = S.pop ( )for each child, X, of N S.push (X)

The order in which the nodes are popped is the DF traversal order.

performance of bf and df traversals

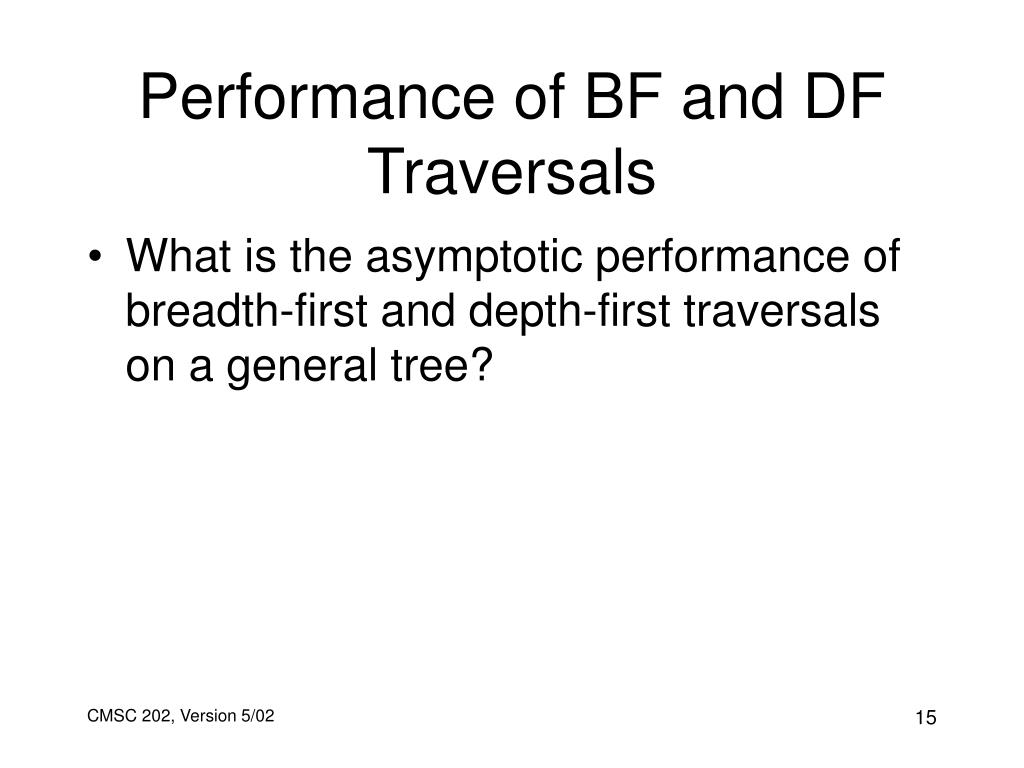

Performance of BF and DF Traversals
  • What is the asymptotic performance of breadth-first and depth-first traversals on a general tree?
binary trees
Binary Trees
  • A binary tree is a tree in which each node may have at most two children and the children are designated as left and right.
  • A full binary tree is one in which each node has either two children or is a leaf.
  • A perfect binary tree is a full binary tree in which all leaves are at the same level.
slide18

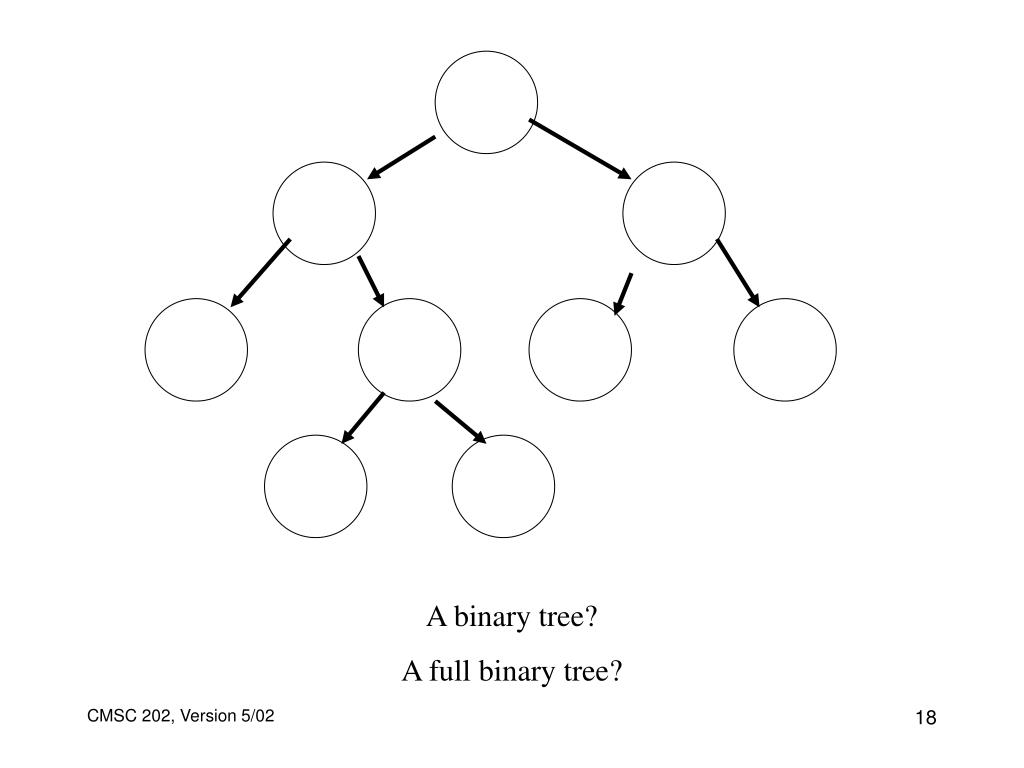

A binary tree?

A full binary tree?

slide19

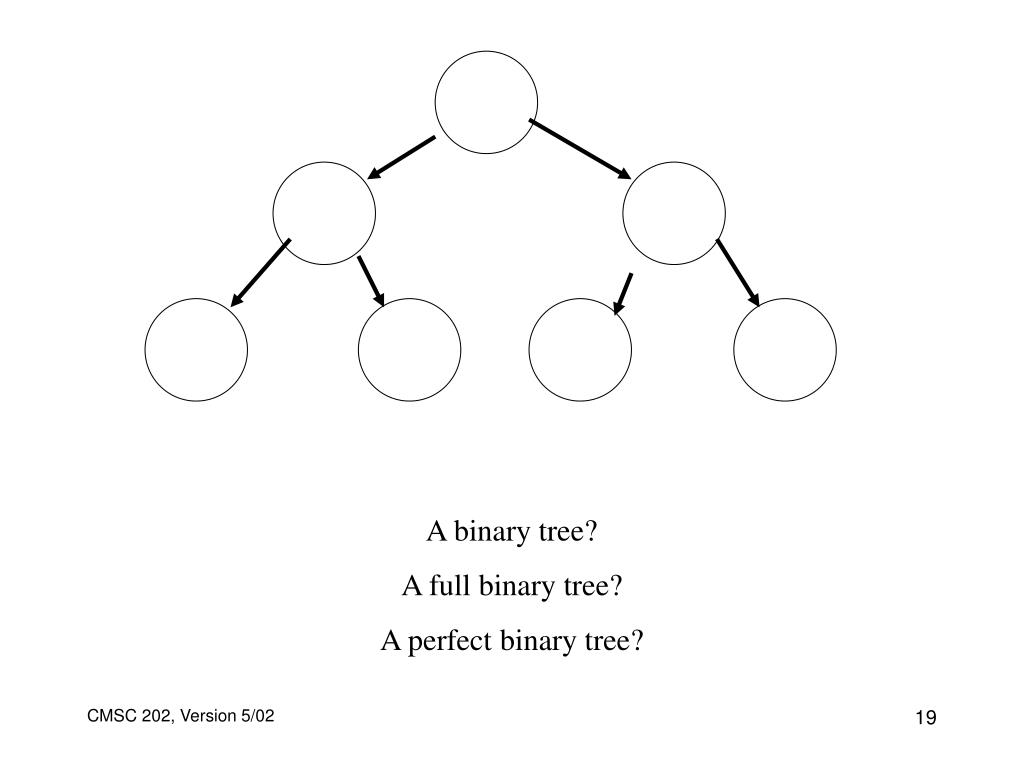

A binary tree?

A full binary tree?

A perfect binary tree?

binary tree traversals

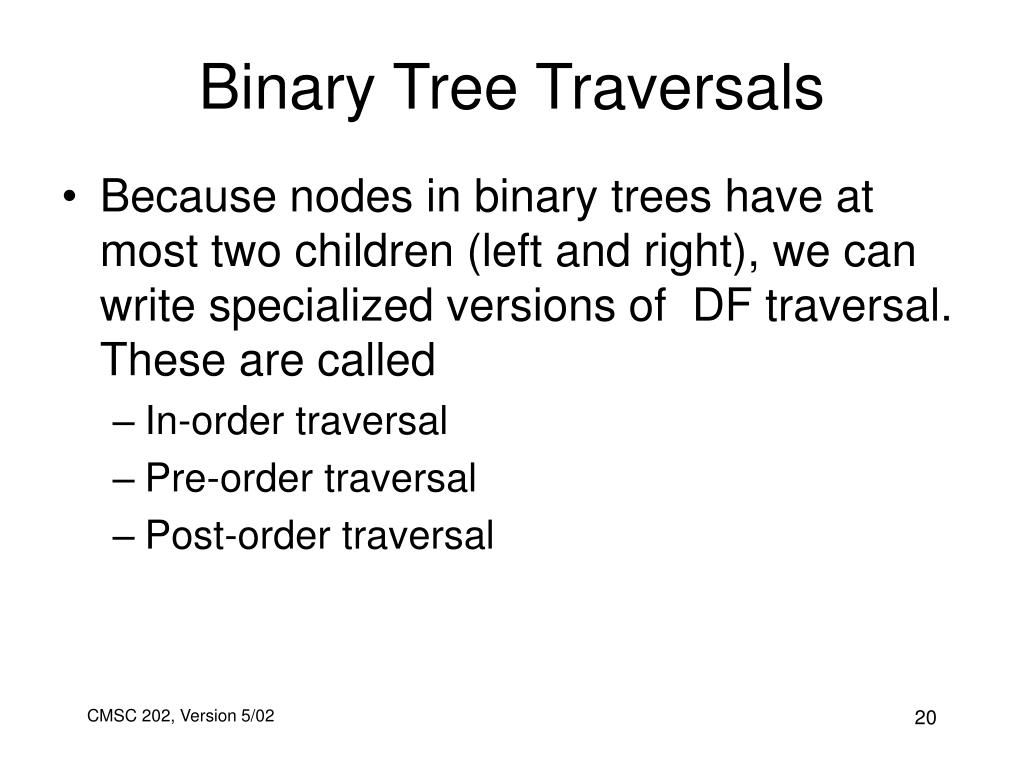

Binary Tree Traversals
  • Because nodes in binary trees have at most two children (left and right), we can write specialized versions of DF traversal. These are called
    • In-order traversal
    • Pre-order traversal
    • Post-order traversal
in order traversal

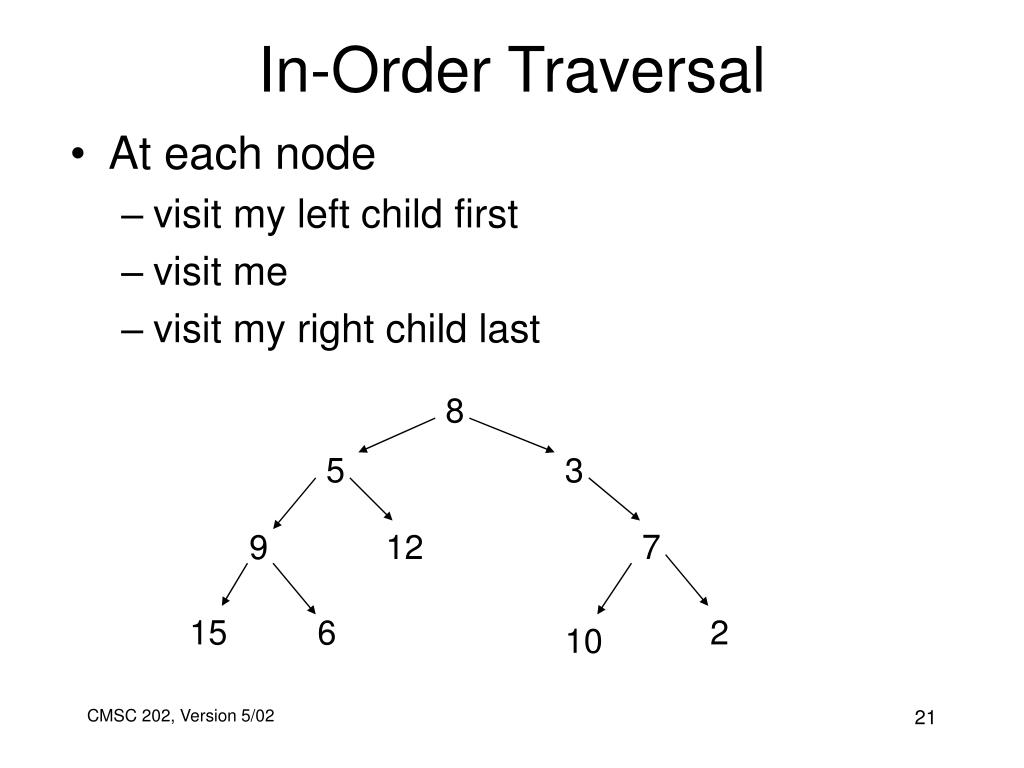

In-Order Traversal
  • At each node
    • visit my left child first
    • visit me
    • visit my right child last

8

5

3

9

12

7

15

6

2

10

in order traversal code

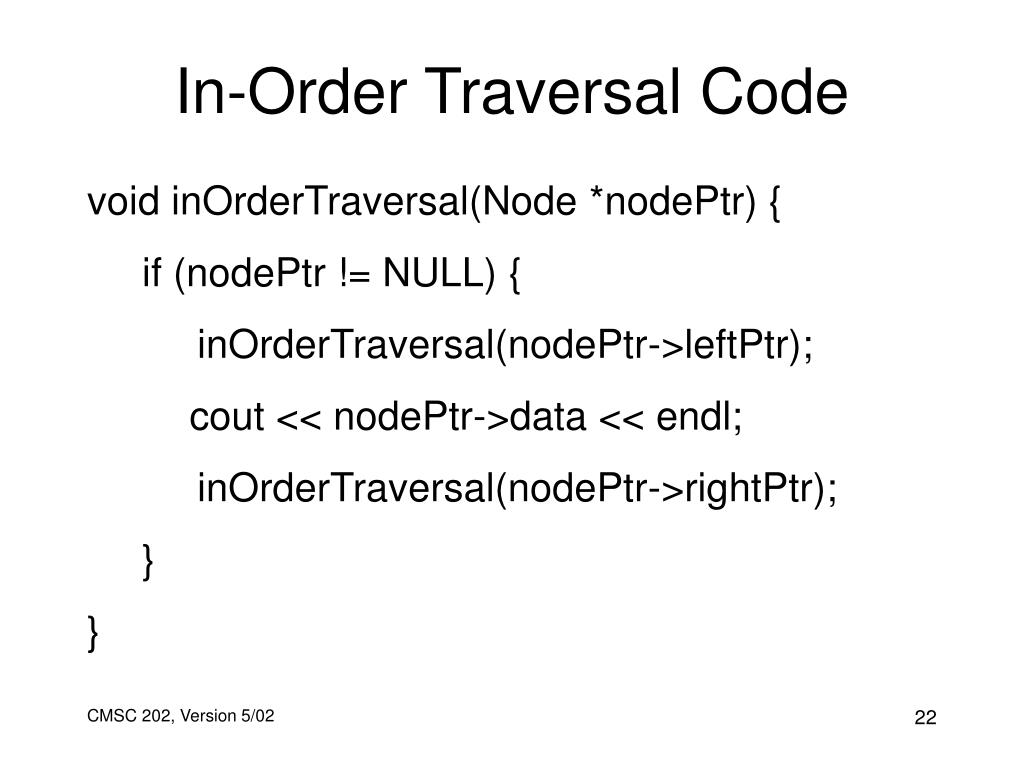

In-Order Traversal Code

void inOrderTraversal(Node *nodePtr) {

if (nodePtr != NULL) {

inOrderTraversal(nodePtr->leftPtr);

cout << nodePtr->data << endl;

inOrderTraversal(nodePtr->rightPtr);

}

}

pre order traversal

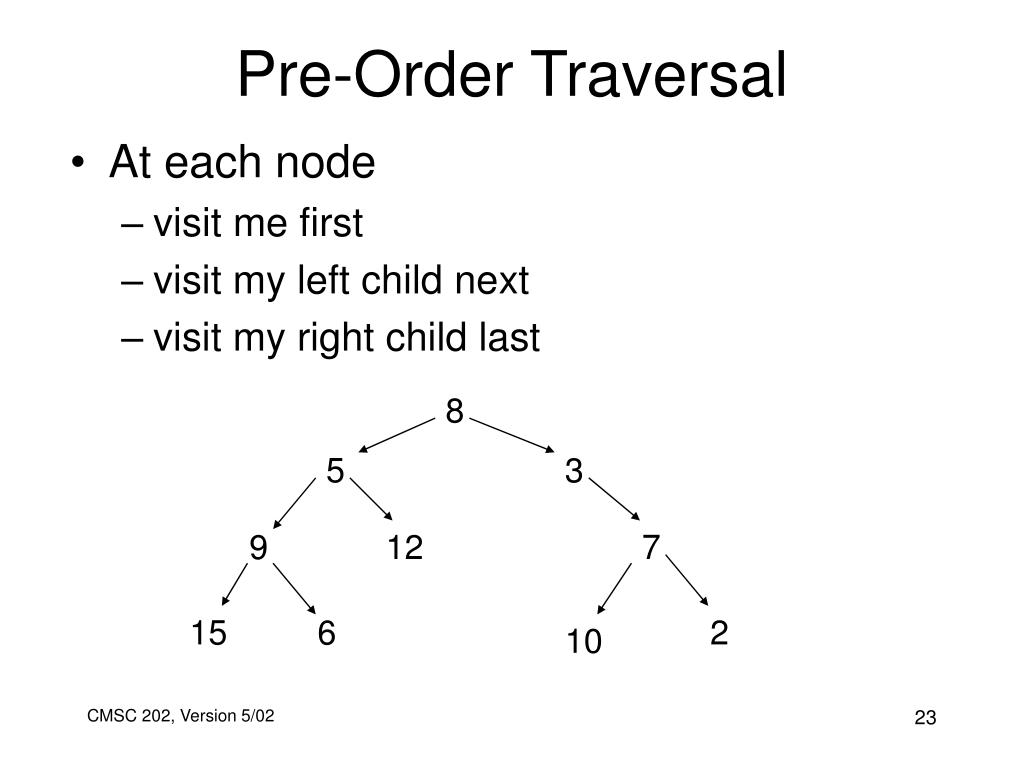

Pre-Order Traversal
  • At each node
    • visit me first
    • visit my left child next
    • visit my right child last

8

5

3

9

12

7

15

6

2

10

pre order traversal code
Pre-Order Traversal Code

void preOrderTraversal(Node *nodePtr) {

if (nodePtr != NULL) {

cout << nodePtr->data << endl;

preOrderTraversal(nodePtr->leftPtr);

preOrderTraversal(nodePtr->rightPtr);

}

}

post order traversal

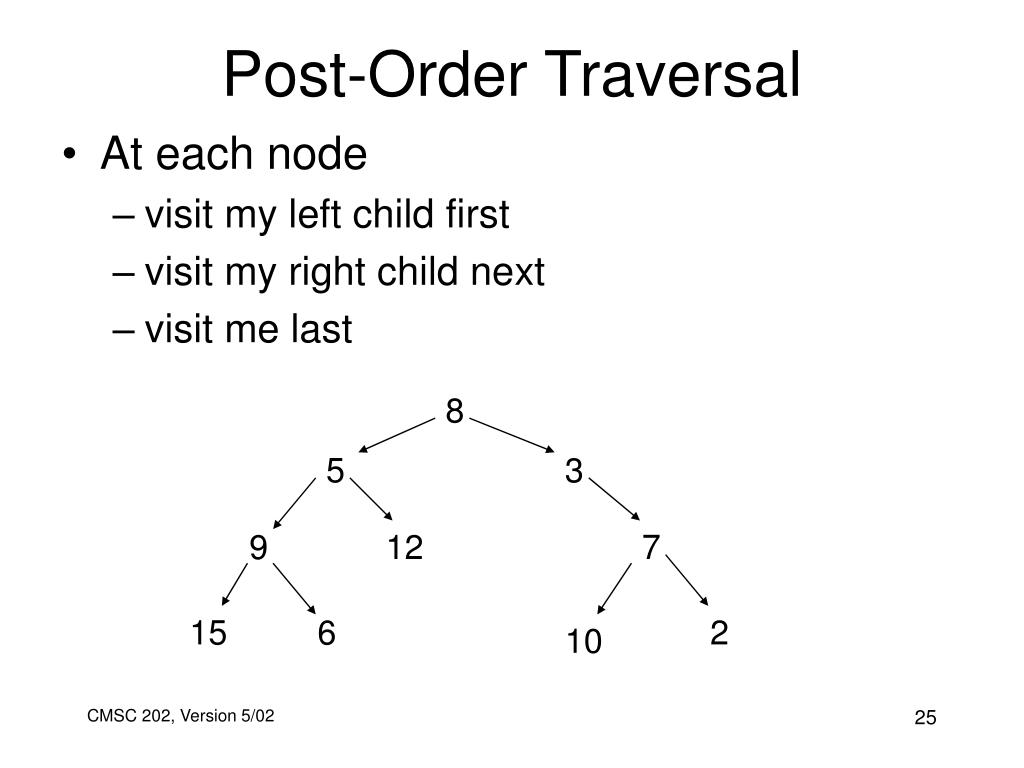

Post-Order Traversal
  • At each node
    • visit my left child first
    • visit my right child next
    • visit me last

8

5

3

9

12

7

15

6

2

10

post order traversal code
Post-Order Traversal Code

void postOrderTraversal(Node *nodePtr) {

if (nodePtr != NULL) {

postOrderTraversal(nodePtr->leftPtr);

postOrderTraversal(nodePtr->rightPtr);

cout << nodePtr->data << endl;

}

}

binary tree operations

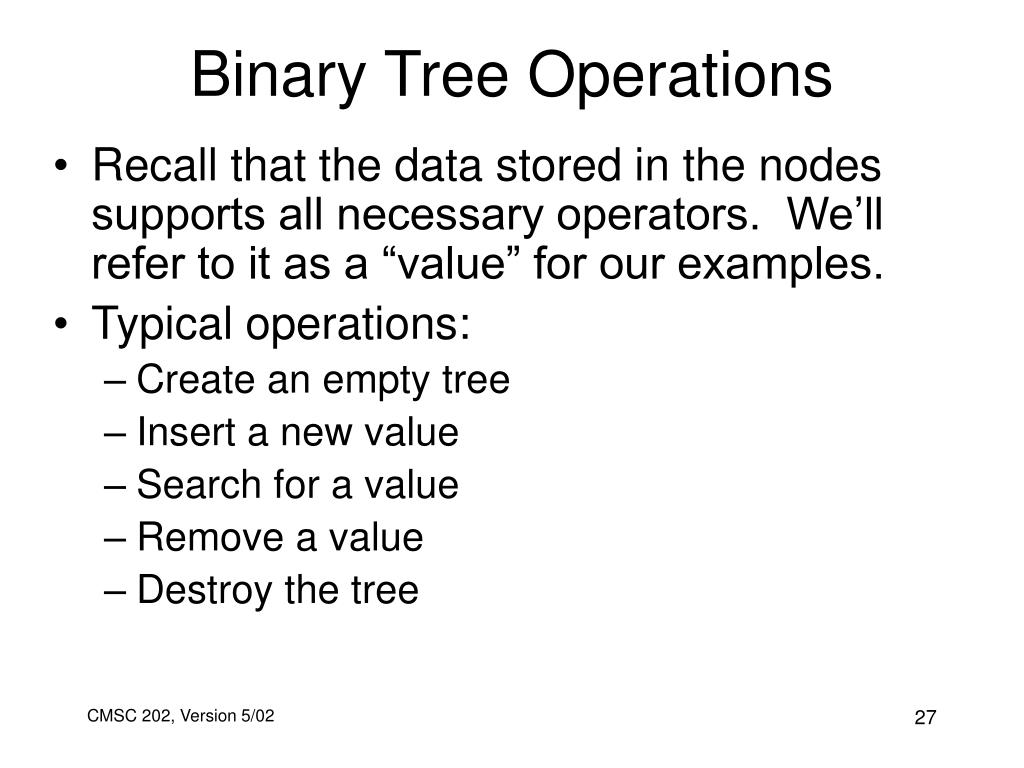

Binary Tree Operations
  • Recall that the data stored in the nodes supports all necessary operators. We’ll refer to it as a “value” for our examples.
  • Typical operations:
    • Create an empty tree
    • Insert a new value
    • Search for a value
    • Remove a value
    • Destroy the tree
creating an empty tree
Creating an Empty Tree
  • Set the pointer to the root node equal to NULL.
inserting a new value
Inserting a New Value
  • The first value goes in the root node.
  • What about the second value?
  • What about subsequent values?
  • Since the tree has no properties which dictate where the values should be stored, we are at liberty to choose our own algorithm for storing the data.
searching for a value
Searching for a Value
  • Since there is no rhyme or reason to where the values are stored, we must search the entire tree using a BF or DF traversal.
removing a value
Removing a Value
  • Once again, since the values are not stored in any special way, we have lots of choices. Example:
    • First, find the value via BF or DF traversal.
    • Second, replace it with one of its descendants (if there are any).
destroying the tree

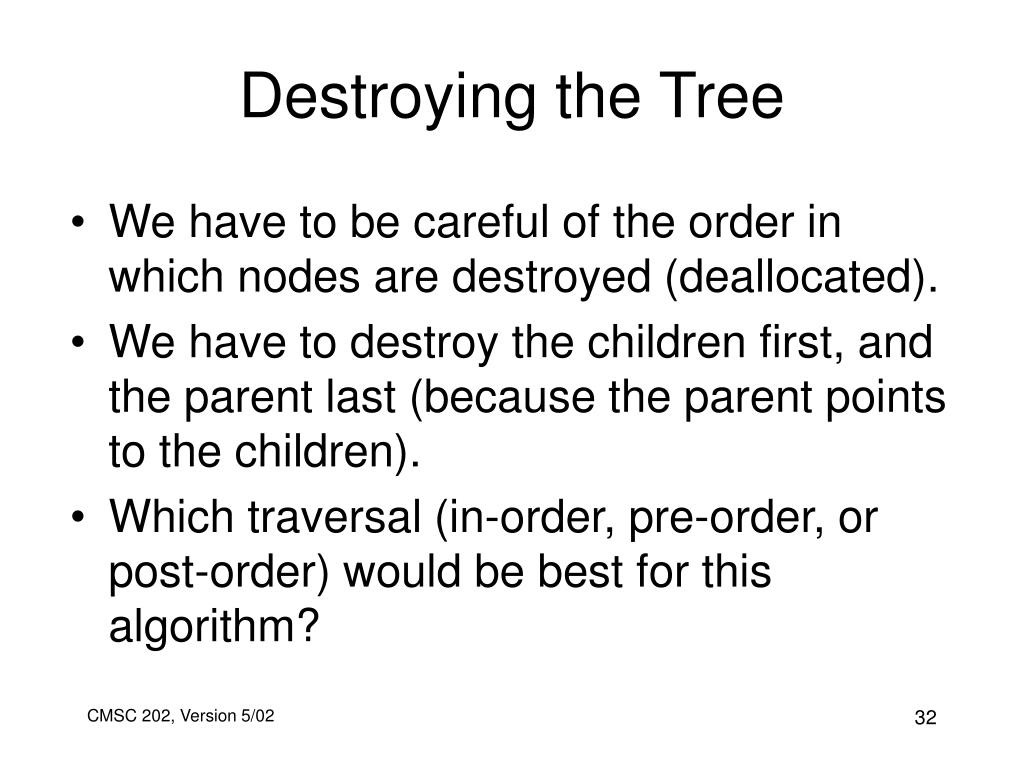

Destroying the Tree
  • We have to be careful of the order in which nodes are destroyed (deallocated).
  • We have to destroy the children first, and the parent last (because the parent points to the children).
  • Which traversal (in-order, pre-order, or post-order) would be best for this algorithm?
giving order to a binary tree
Giving Order to a Binary Tree
  • Binary trees can be made more useful if we dictate the manner in which values are stored.
  • When selecting where to insert new values, we could follow this rule:
    • “left is less”
    • “right is more”
  • Note that this assumes no duplicate nodes (i.e., data).
binary search trees

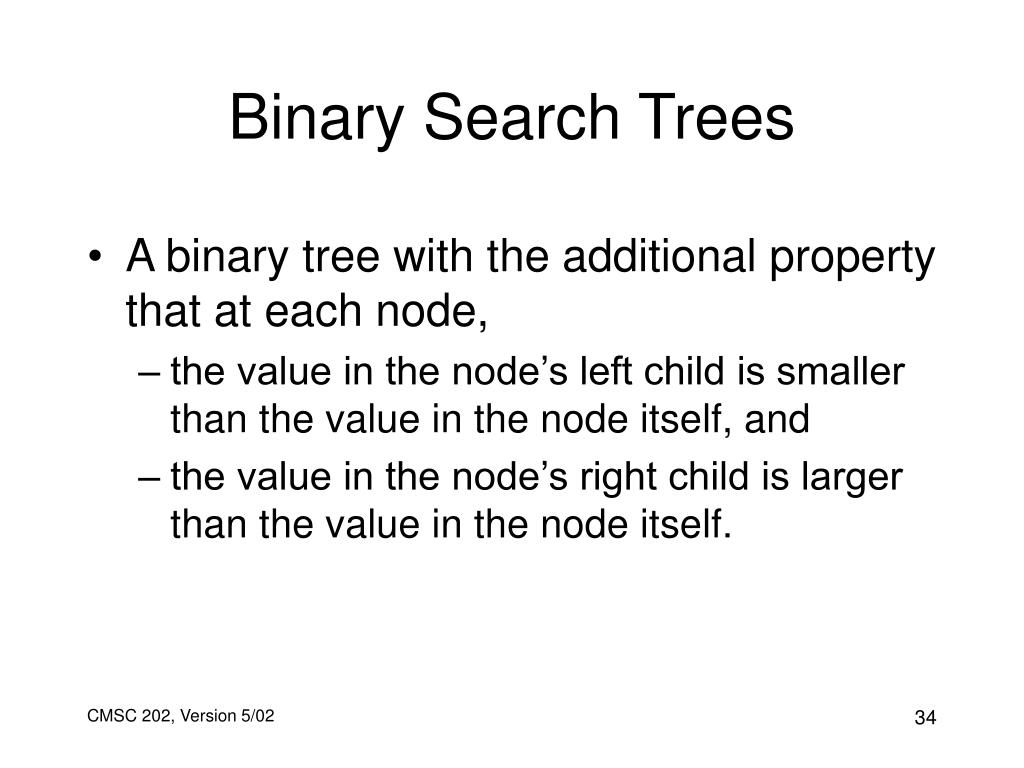

Binary Search Trees
  • A binary tree with the additional property that at each node,
    • the value in the node’s left child is smaller than the value in the node itself, and
    • the value in the node’s right child is larger than the value in the node itself.
a binary search tree

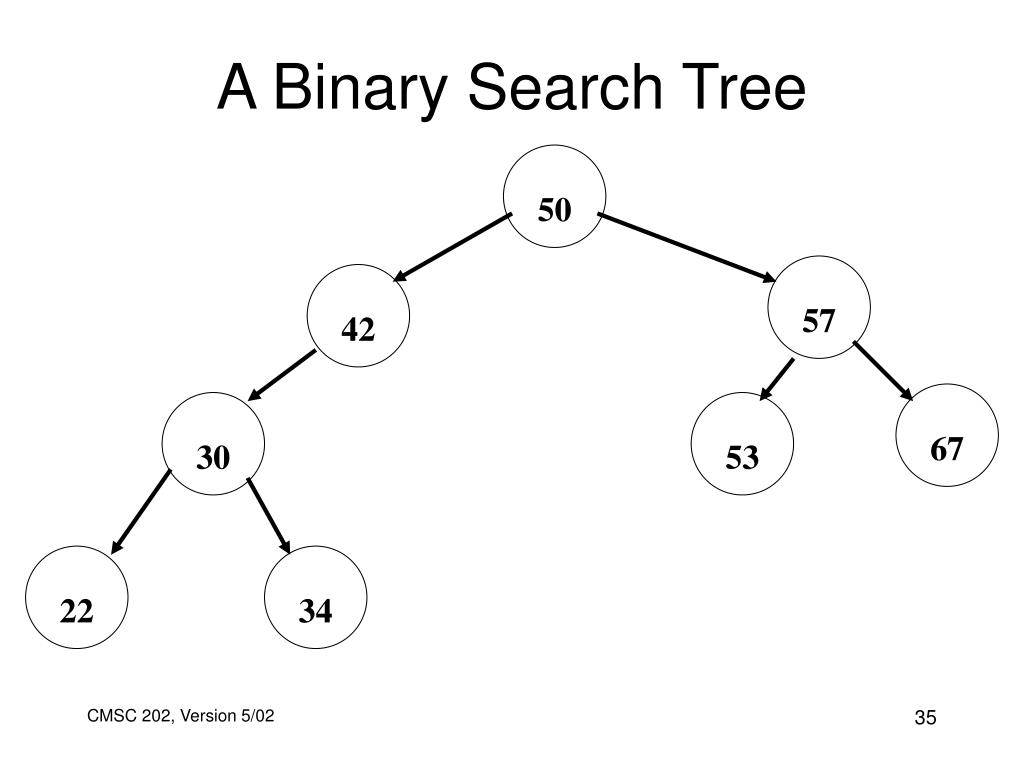

A Binary Search Tree

50

57

42

67

30

53

22

34

searching a bst

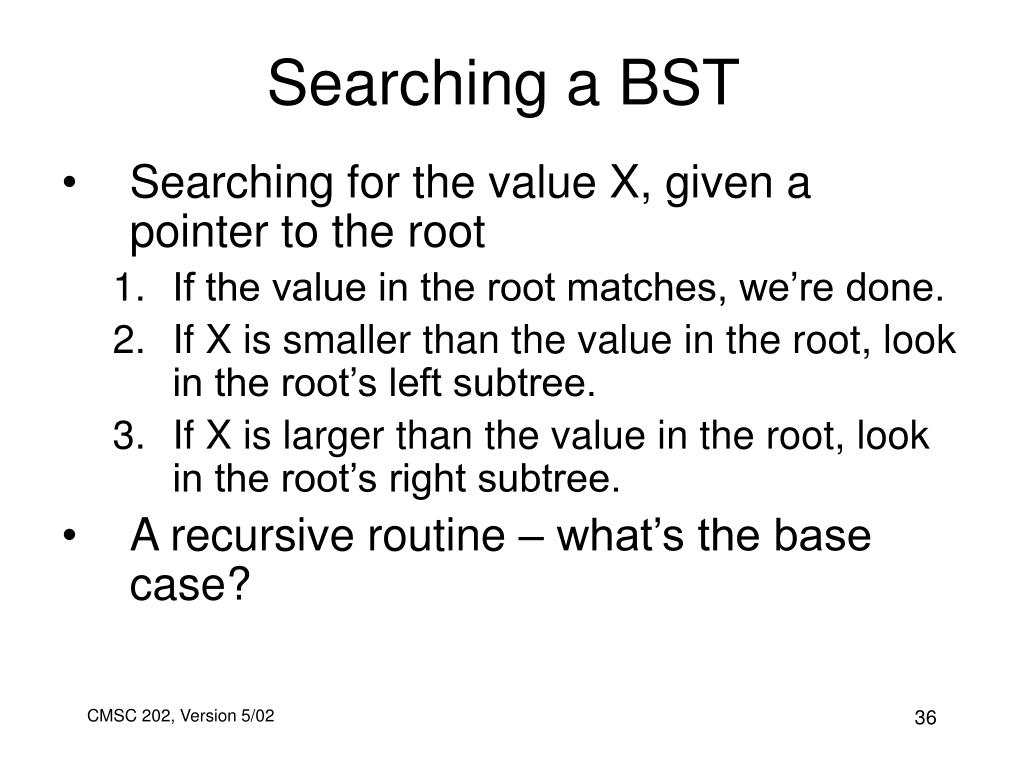

Searching a BST
  • Searching for the value X, given a pointer to the root
    • If the value in the root matches, we’re done.
    • If X is smaller than the value in the root, look in the root’s left subtree.
    • If X is larger than the value in the root, look in the root’s right subtree.
  • A recursive routine – what’s the base case?
inserting a value in a bst
Inserting a Value in a BST
  • To insert value X in a BST
    • Proceed as if searching for X.
    • When the search fails, create a new node to contain X and attach it to the tree at that node.
inserting

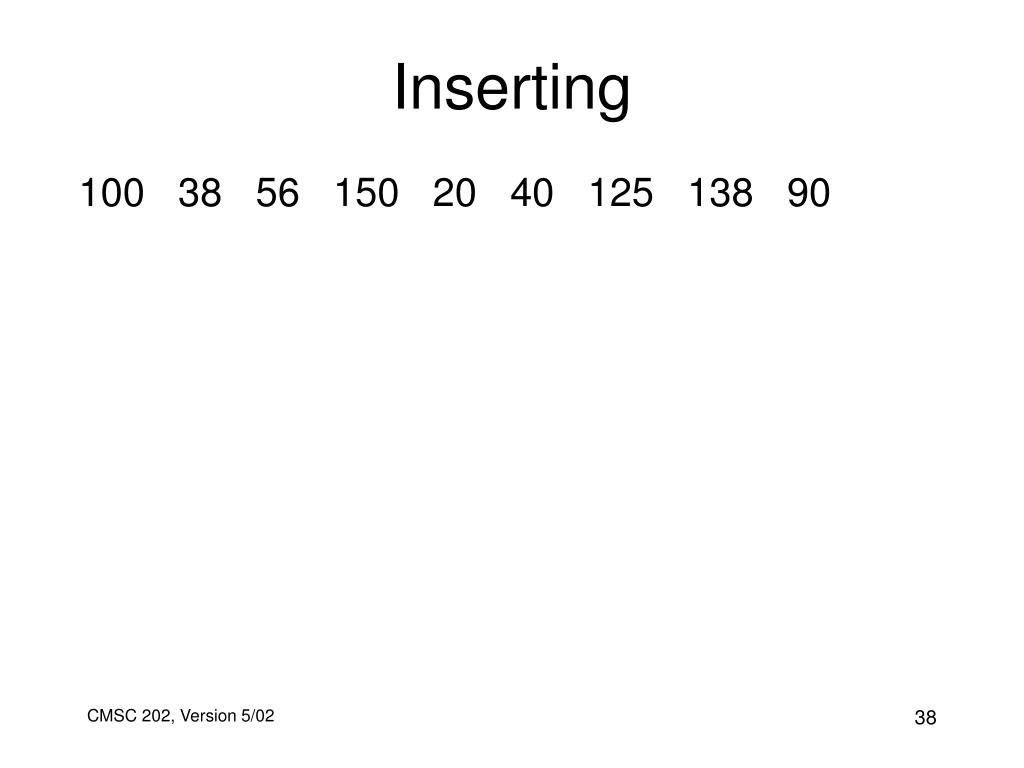

Inserting

100 38 56 150 20 40 125 138 90

removing a value from a bst
Removing a Value From a BST
  • Non-trivial
  • Three separate cases:
    • node is a leaf (has no children)
    • node has a single child
    • node has two children
removing
Removing

100

150

50

70

120

30

130

20

40

60

80

85

55

65

53

57

destroying a bst

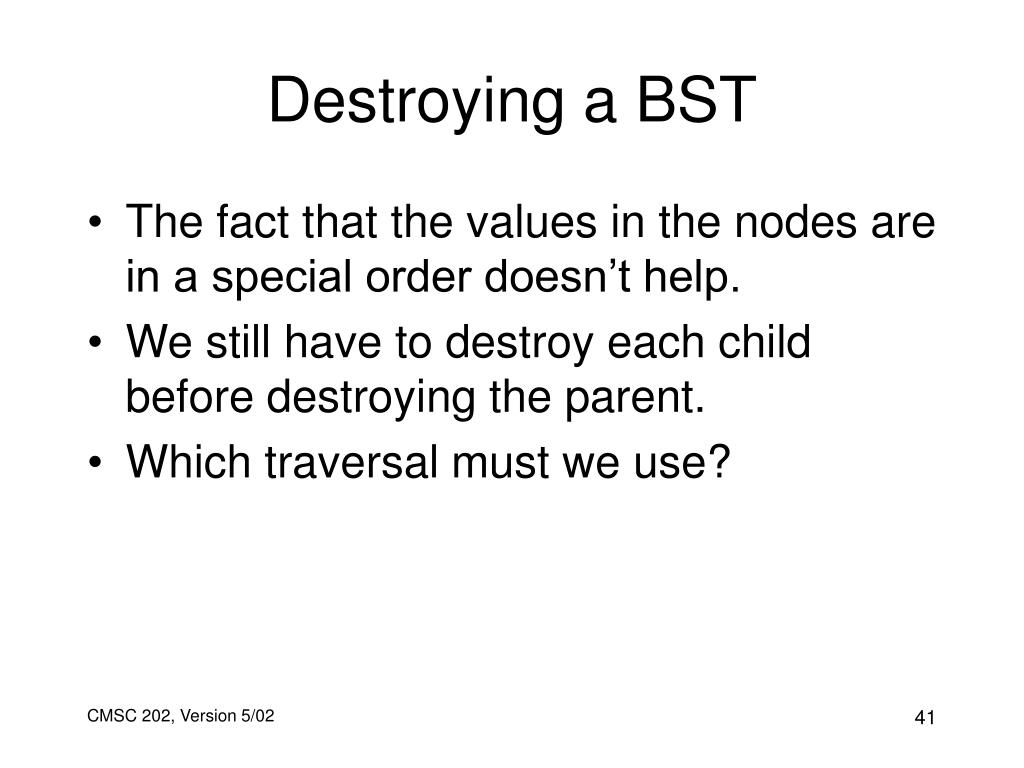

Destroying a BST
  • The fact that the values in the nodes are in a special order doesn’t help.
  • We still have to destroy each child before destroying the parent.
  • Which traversal must we use?
performance in a bst

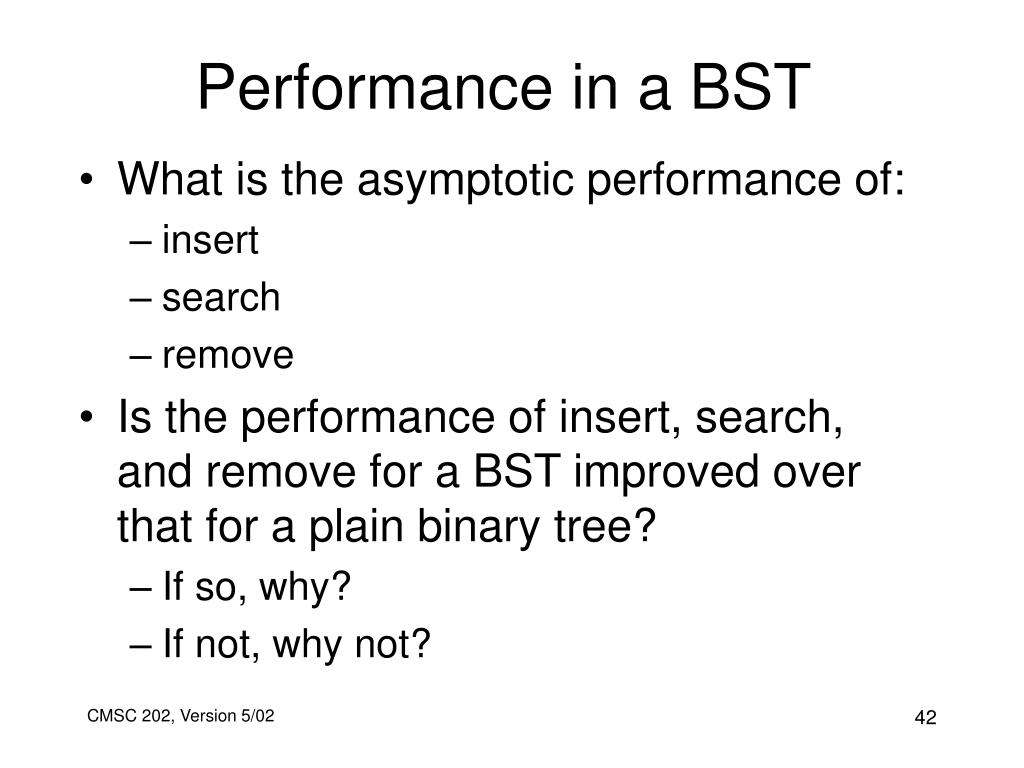

Performance in a BST
  • What is the asymptotic performance of:
    • insert
    • search
    • remove
  • Is the performance of insert, search, and remove for a BST improved over that for a plain binary tree?
    • If so, why?
    • If not, why not?
