Presentation Transcript

  1. Tropical Ocean-Global Atmosphere (TOGA) Tropical Atmosphere Ocean (TAO) Array Mira Losic Dec 2, 2010

  2. El Nino Southern Oscillation (ENSO) • Weakening of easterlies • Sloshing of warm water to the east • Stronger easterlies • Steeper than average thermocline

  3. Motivation • 1982-83 El Nino • Biggest of the century at the time • Undetected until its peak

  4. 1982-1983 El Nino Impacts: • Droughts • Floods • Typhoons • Loss of marine life • Coastal erosion • Landslides • Wild fires • Tornadoes Dust storm in Melbourne, Feb 1983

  5. The Making of TAO Array • 10 years to build and was completed in 1994 • During this time 400 buoys deployed on 83 cruises with 17 different ships from 6 countries • Moorings deployed in 2000-5000m deep waters

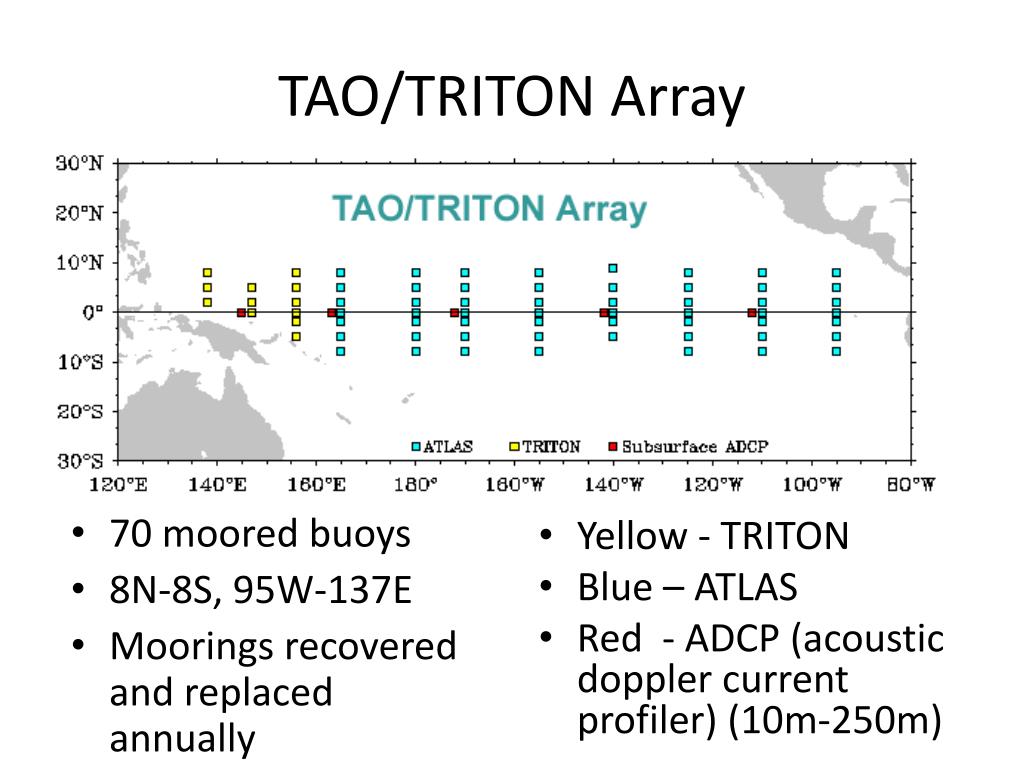

  6. TAO/TRITON Array • 70 moored buoys • 8N-8S, 95W-137E • Moorings recovered and replaced annually • Yellow - TRITON • Blue – ATLAS • Red - ADCP (acoustic doppler current profiler) (10m-250m)

  7. TAO Array Data transmitted several times per day and available on web in near real time

  8. Triangle Trans Ocean Buoy Network (TRITON) • TRITON replaced ATLAS buoys at 12 sites in west • TAO/TRITON Jan 1, 2000 • Serviced by Japanese research vessel • Replacement took several years to be sure of quality and proper calibration

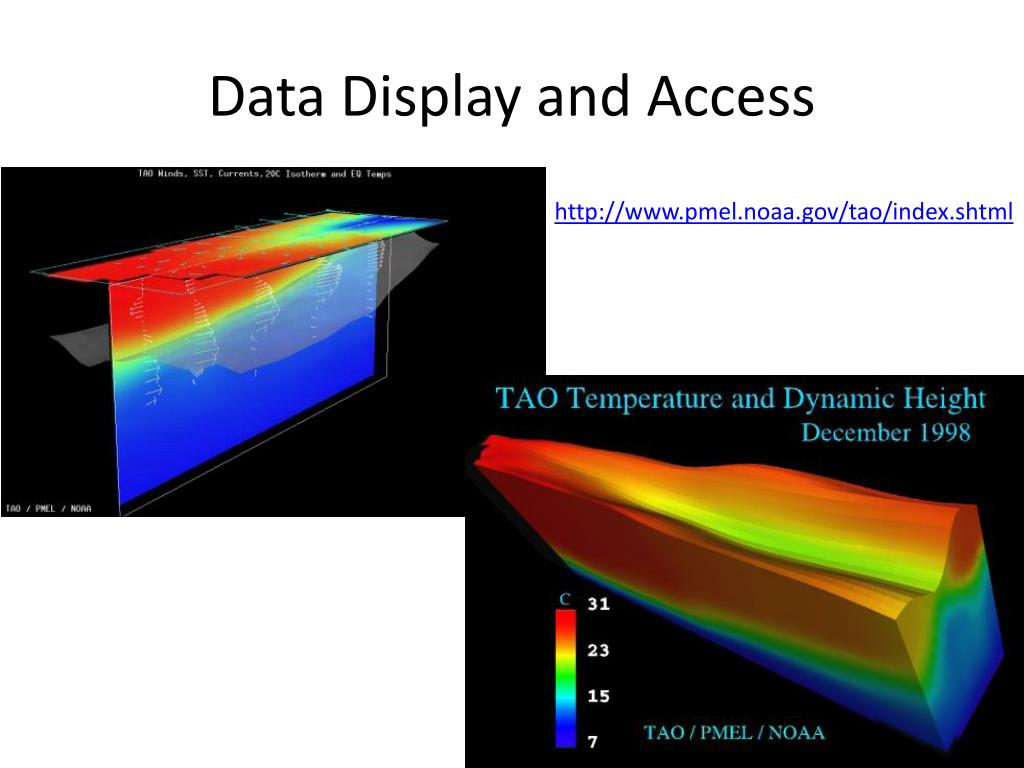

  9. Data Display and Access http://www.pmel.noaa.gov/tao/index.shtml

  10. Current Conditions – La Nina

  11. Beneficial Uses • Weather • Research • Agriculture • Marine ecology • Energy and water • Public health • Economy • Education • Recreation

  12. Other Arrays – PIRATA • (Prediction and Research Moored Array in the Atlantic) PIRATA

  13. Other Arrays - RAMA

  14. References • NOAA / PMEL / TAO Project Office, Dr. Michael J. McPhaden, Director • http://www.pmel.noaa.gov/tao/index.shtml • Stewart text
