Report on the commissioning activities

Report on the commissioning activities

G. Mornacchi, P. Perrodo and Sub-Systems Collaborators

Commissioning


Atlas components breakdown

ATLAS components breakdown

Inner Detector

TILES

DCS

MUONS

LARG

Commissioning


View on the atlas work packages

View on the ATLAS work packages

MUONS

LARG

Cooling/

Ventilation

WPs

DAQ

TILES

Commissioning


Concrete example tiles calorimeter

Concrete example: Tiles calorimeter

WP1:

Detector

and

Modules

WP4:

FE

Electronics

on the truck

Racks,DCS

Interlocks

Active WPs

WP9: Laser

system

WP8: Cesium

system

WP9: HV

system

BE LV

system

WP2:

Cables

Racks,

DCS

Cooling,

Sniffers

WP5:

FE LVPS

insertion

WP3:

Rack

equipment

FE electronics

at IP

Racks

WP11: TILES

DCS

TTC

DAQ

DB

WP6:

Cosmics L1

receivers

WP7: BE

electronics

Offline

FE-BE

integration

Laser

calibration

L1

receivers

WP12: min

Biais events

Updated on 27/01/05

Commissioning


Process overview

System Analysis

Break down

in components

Work Package

Break down

WP detailed

System document

Start end times

Tests & expected results

WP Elaboration

Detail schedule

and resources

Well ahead of execution

WP Execution

WP SIgn off

Process Overview

Documents stored in EDMS

Under ATC/commissioning/phase I/

We are ~ here

Requirements

WP Schedule -> ATLAS schedule

WP excel sheet, PPSPS document (safety)

Agree on WP outcome -> input to sign off

Document results

Preserve operational information

Commissioning


Phase 1wp next 3 months

Phase 1WP: next 3 months

Commissioning


Phase 1wp next 3 months1

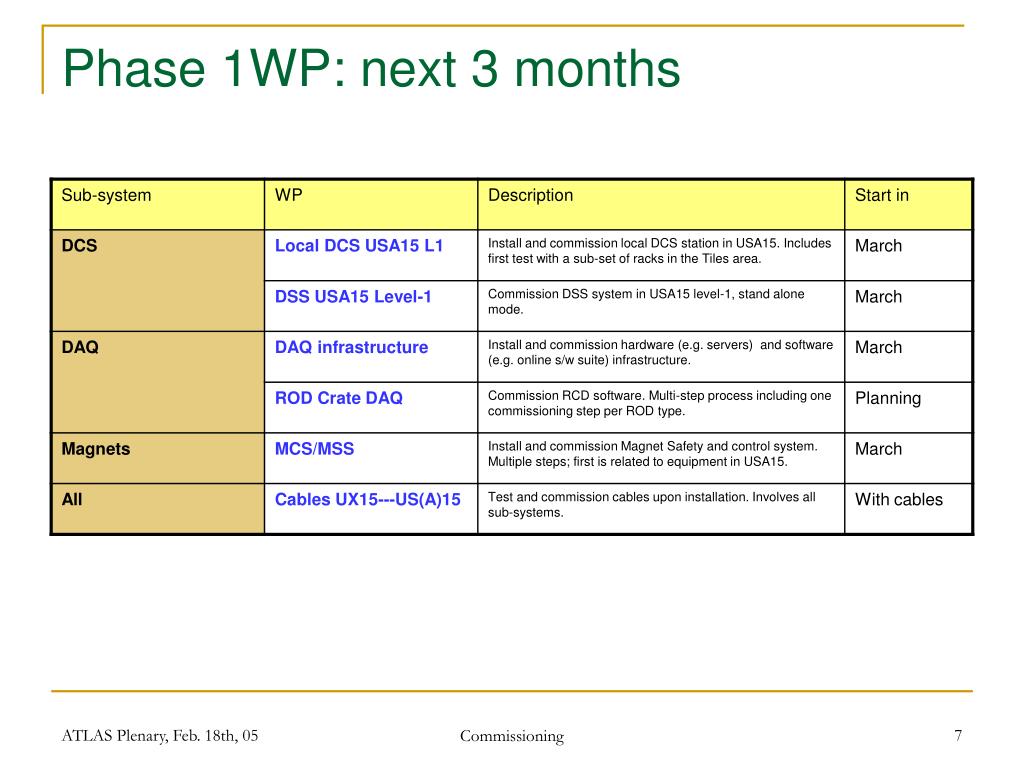

Phase 1WP: next 3 months

Commissioning


Sign off

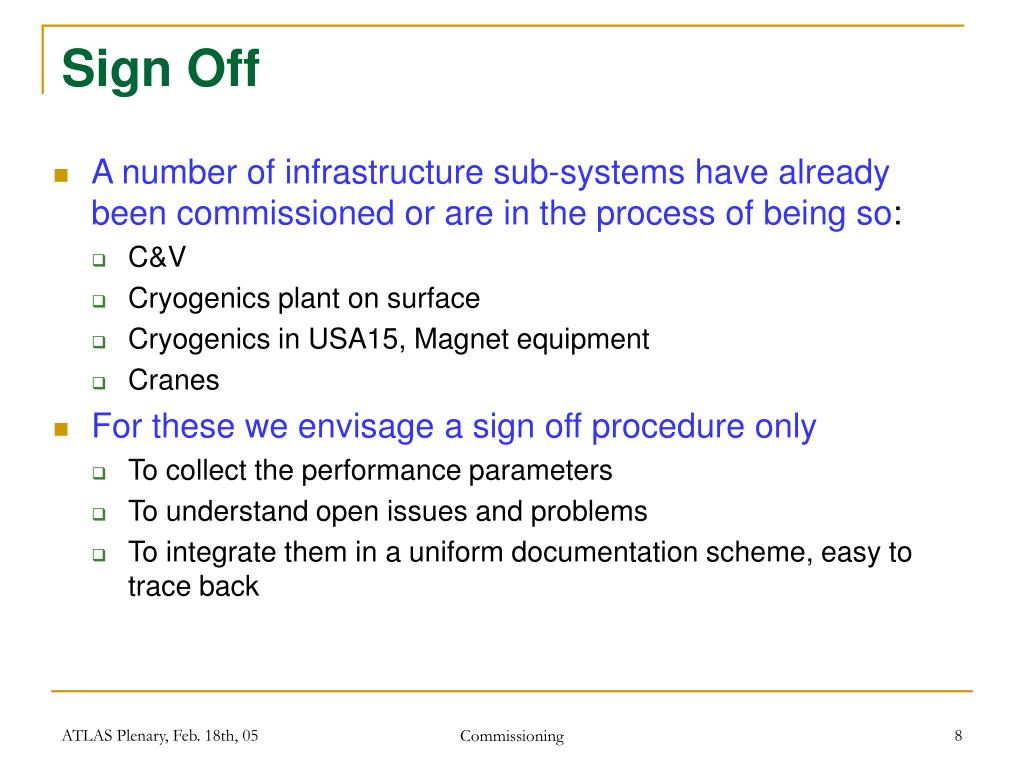

Sign Off

  • A number of infrastructure sub-systems have already been commissioned or are in the process of being so:

    • C&V

    • Cryogenics plant on surface

    • Cryogenics in USA15, Magnet equipment

    • Cranes

  • For these we envisage a sign off procedure only

    • To collect the performance parameters

    • To understand open issues and problems

    • To integrate them in a uniform documentation scheme, easy to trace back

Commissioning


Sign off1

Sign Off

  • A formal procedure to make sure that:

    • Installation (if any) has been properly done: e.g. w.r.t. TC procedures (Install. DB, etc…)

    • Proper grounding & safety issues have been taken into account

    • Documentation is available:

      • Technical and maintenance documentation for H/W and S/W

      • User guides, operational procedures, including the test procedures

    • Planning for maintenance and responsibilities are defined

    • Performance is according to specifications

      • Or we understand where, how, possibly why, there is a disagreement

    • We know what are the open problems and issues

      • And what actions can be defined

    • It is clear who is authorized to use the system once commissioned:

      • Sensitive items: ID cooling, LARG high voltage, TILES Cesium system,…

  • The sign-off procedure may occur in several steps:

    • For a complex WP one may envisage intermediate milestones, hence sign offs

    • Associated to a repetitive aspect:

      • E.g. ROD crates, FE electronics, muon chambers.

Commissioning


Report on the commissioning activities

Installation report

Inventory, grounding, safety, …

Performance specifications

Expected functionality

Quantitative performance figures

Test report

Checklist of tests and results

Operational documents

Indicates who is responsible, who to contact for problems

Maintenance procedures/plan

Pointers to relevant documentation

Operational procedures

Test procedures

Component manuals

List of open issues/problems

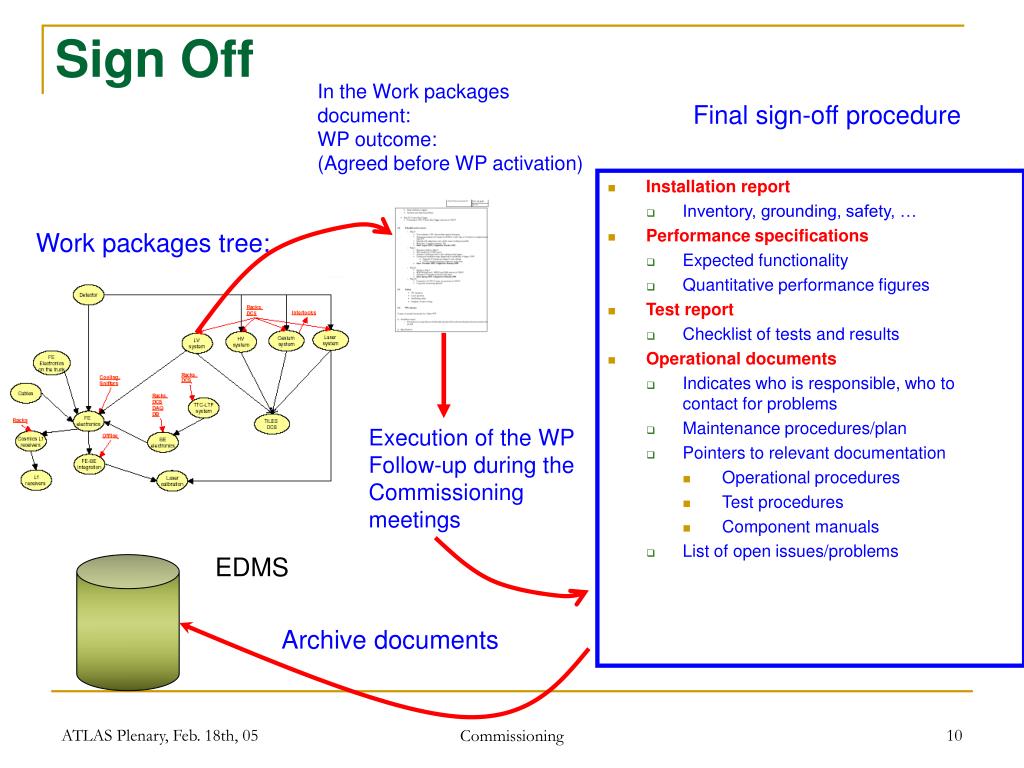

Sign Off

In the Work packages

document:

WP outcome:

(Agreed before WP activation)

Final sign-off procedure

Work packages tree:

Execution of the WP

Follow-up during the

Commissioning meetings

EDMS

Archive documents

Commissioning


Weekly meetings at point 1

Weekly meetings at Point 1

  • Make use of sub-system installation meetings to follow phase 1 sub-system specific commissioning

    • Phase 1 has too many WPs to concentrate their follow up in a single weekly meeting

    • Avoid proliferation of meetings

    • Assume that emphasis will shift from installation to commissioning

  • Weekly meeting

    • The same morning as the follow-up of the management meetings for UX15 (EAM) & counting rooms (CRM)

    • Use for topical discussion, sign off, follow sub-systems w/o an installation meeting (e.g. DSS, DCS, DAQ, trigger)

Minutes can be found at:

  • Experimental Area Management (EAM): http://atlas.web.cern.ch/Atlas/TCOORD/Activities/Logistics/G1/EAM_minutes_index.html

  • Counting Rooms Management (CRM): ATC-C-IM-0001

  • Inner Detector: ATC-GE-MM-0132

  • Calorimeters: ATC-GE-MM-0125

  • Muons: ATC-GE-MM-0126

Commissioning


Monthly meetings

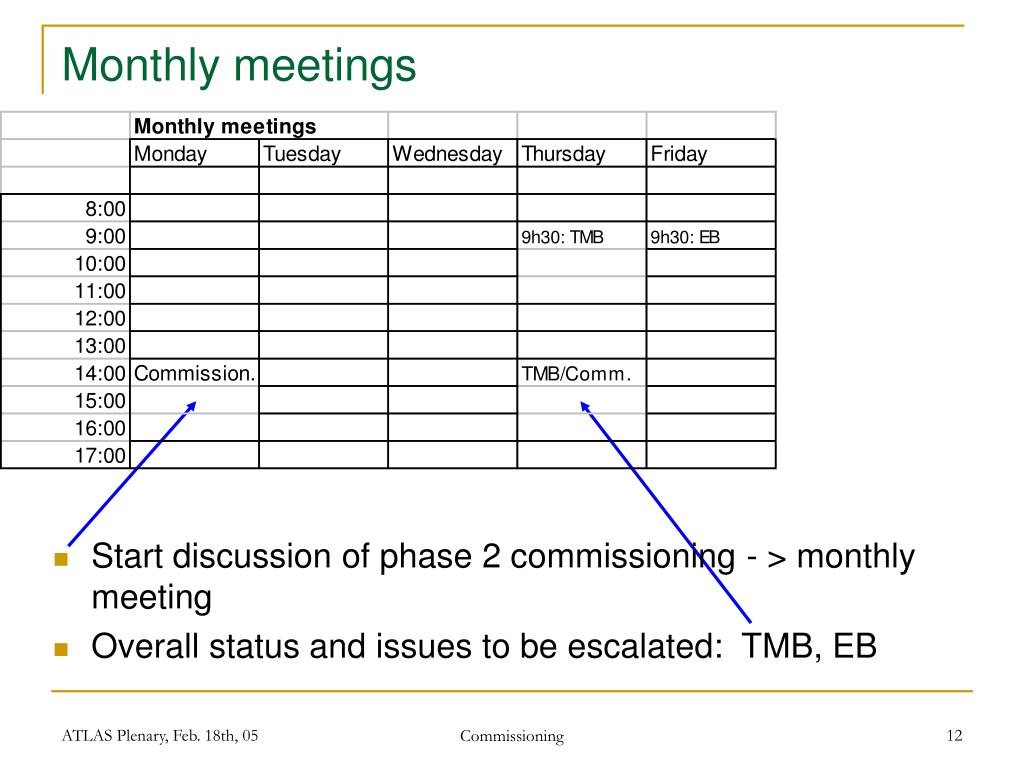

Monthly meetings

  • Start discussion of phase 2 commissioning - > monthly meeting

  • Overall status and issues to be escalated: TMB, EB

Commissioning


Potential difficulties

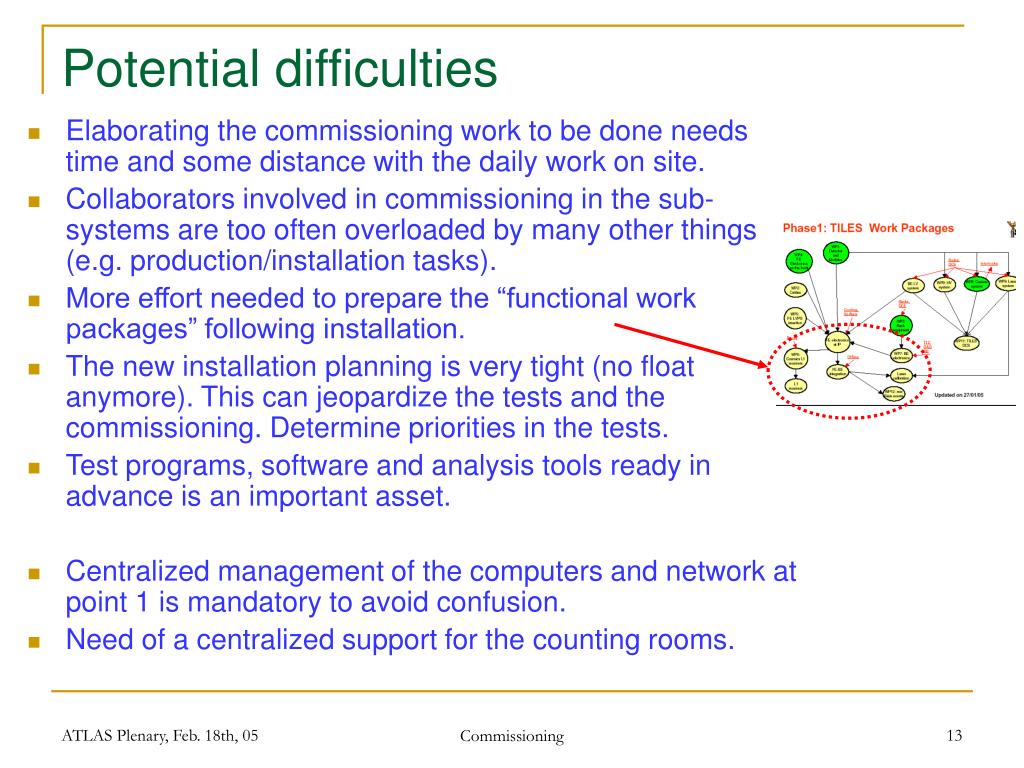

Potential difficulties

  • Elaborating the commissioning work to be done needs time and some distance with the daily work on site.

  • Collaborators involved in commissioning in the sub-systems are too often overloaded by many other things (e.g. production/installation tasks).

  • More effort needed to prepare the “functional work packages” following installation.

  • The new installation planning is very tight (no float anymore). This can jeopardize the tests and the commissioning. Determine priorities in the tests.

  • Test programs, software and analysis tools ready in advance is an important asset.

  • Centralized management of the computers and network at point 1 is mandatory to avoid confusion.

  • Need of a centralized support for the counting rooms.

Commissioning


Phase ii commissioning

Phase II commissioning

  • Define a reasonable “end of Phase I” for the sub-systems.

  • We won’t go sequentially Phase 1-> Phase 2.

  • System integration:

    • Partitioning the ATLAS detector: Trigger (CTP,LTP), DAQ (RCD), DCS, DB

    • Integration Sub-detectors + DAQ + DB + Offline data

    • Integration Sub-detectors + central DCS + DBs

    • Operations L1calo + LARG + TILES (Workshop Feb.. 1st 2005, next in April)

  • Functional tests:

    • Noise tests and Calibration Pulse tests on large scales involving sub-detectors and L1. Involves ROD crate DAQ.

    • Partial cosmic runs : Tiles + Muon Barrel sector 13 (+ alignment) + LARG (later). Involves ROD crate DAQ.

    • Toroid tests (after completion) + Sub-systems

    • Infrastructure (cooling, ventilation) + sub-systems (detectors, electronics, TDAQ, DCS)

Commissioning


Phase ii commissioning1

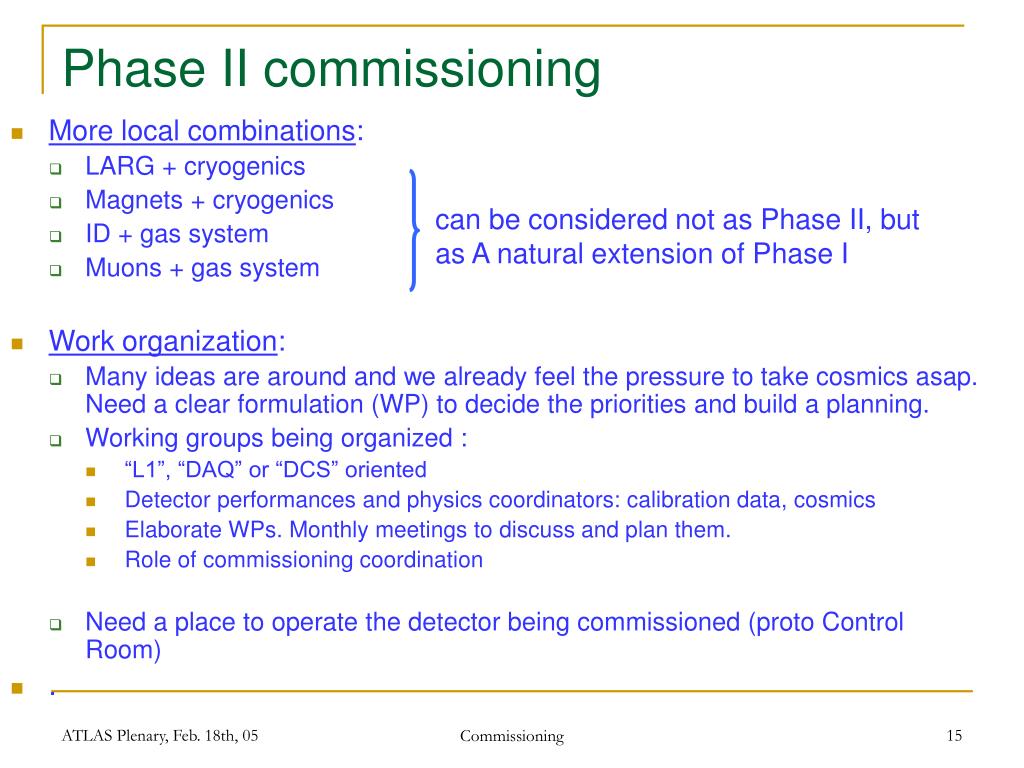

Phase II commissioning

  • More local combinations:

    • LARG + cryogenics

    • Magnets + cryogenics

    • ID + gas system

    • Muons + gas system

  • Work organization:

    • Many ideas are around and we already feel the pressure to take cosmics asap. Need a clear formulation (WP) to decide the priorities and build a planning.

    • Working groups being organized :

      • “L1”, “DAQ” or “DCS” oriented

      • Detector performances and physics coordinators: calibration data, cosmics

      • Elaborate WPs. Monthly meetings to discuss and plan them.

      • Role of commissioning coordination

    • Need a place to operate the detector being commissioned (proto Control Room)

  • .

can be considered not as Phase II, but

as A natural extension of Phase I

Commissioning


Conclusion

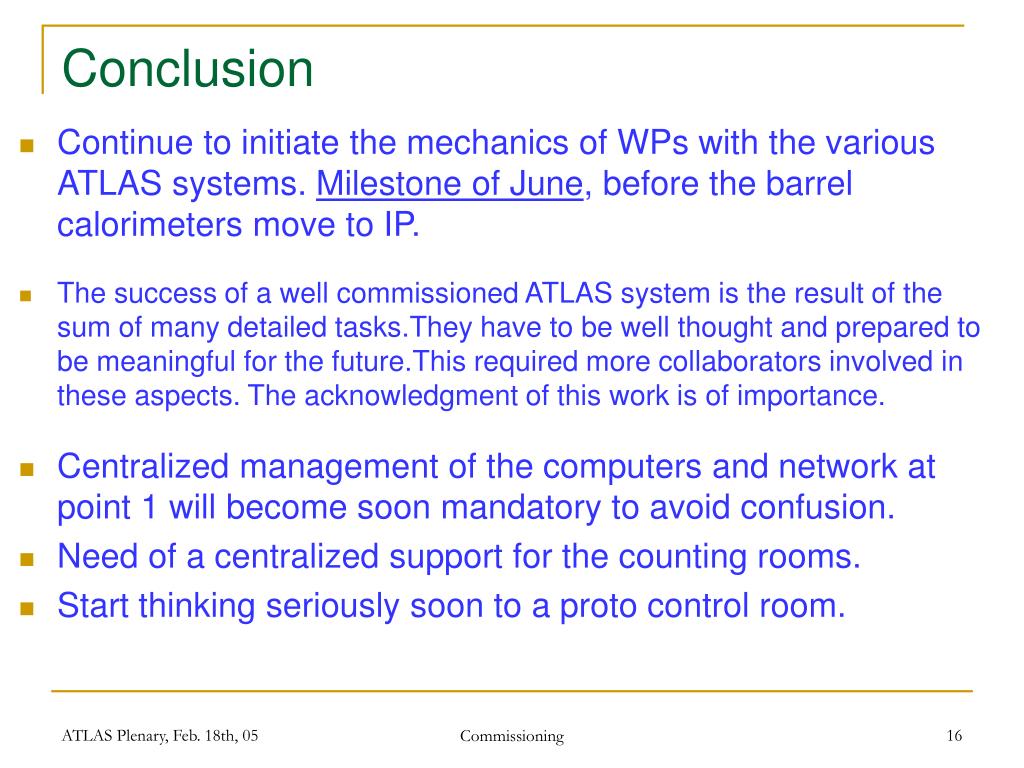

Conclusion

  • Continue to initiate the mechanics of WPs with the various ATLAS systems. Milestone of June, before the barrel calorimeters move to IP.

  • The success of a well commissioned ATLAS system is the result of the sum of many detailed tasks.They have to be well thought and prepared to be meaningful for the future.This required more collaborators involved in these aspects. The acknowledgment of this work is of importance.

  • Centralized management of the computers and network at point 1 will become soon mandatory to avoid confusion.

  • Need of a centralized support for the counting rooms.

  • Start thinking seriously soon to a proto control room.
