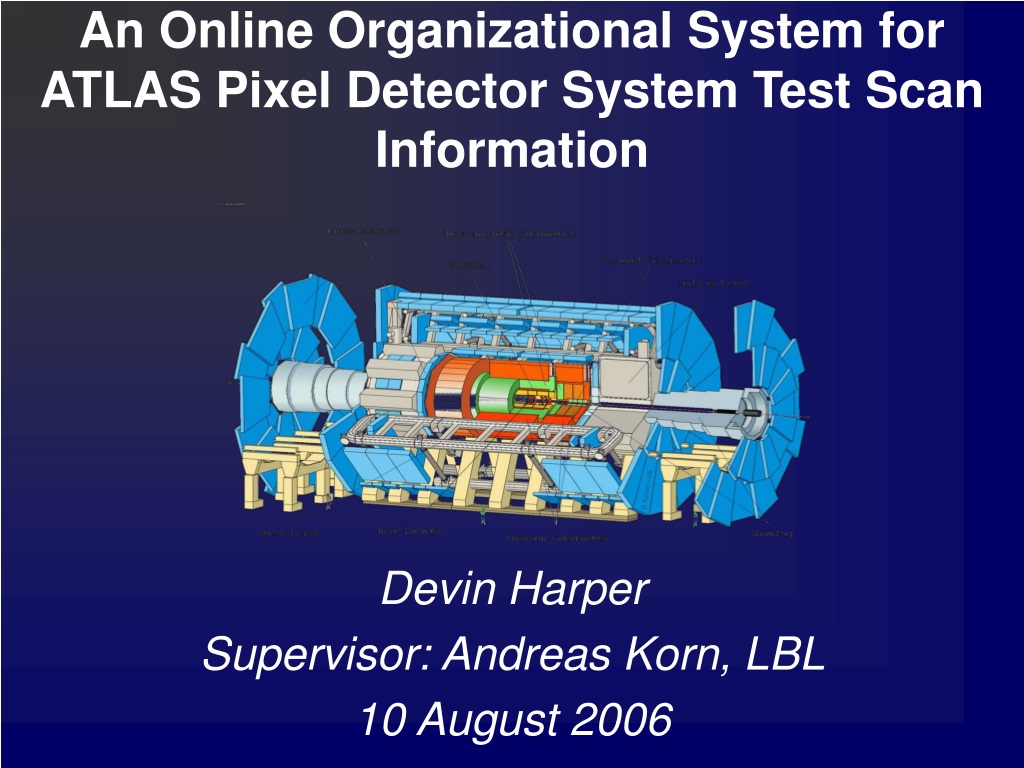

  1. An Online Organizational System for ATLAS Pixel Detector System Test Scan Information Devin Harper Supervisor: Andreas Korn, LBL 10 August 2006

  2. A Final Recap… Pixel Detector Specs FE Chips Modules • Silicon Pixel Detector • Pixel size = 400µm x 50µm • ~80M channel readout • Electronics • Ionization of Depletion Zone • Pixel-to-Bump technology Barrel Endcaps

  3. Electronics Review • Analog signal • Discriminator • Time Over Threshold • Measure of charge • Digital Signal Threshold Scan – performed on each pixel to calibrate tuning Illustration of Analog signal compared to Digital signal

  4. Scans • Testing in SR1 • Digital Scans • Threshold Scans • BOC Scans • Information is stored • Directories • *.root files • *.txt logfiles

  5. Origins of the Project… After becoming acquainted with the current status and functions happening in SR1, it was my turn to help… • Time to begin learning: • Perl • Learning capabilities • Analyzing text • Analyzing outputs • Incorporating with HTML • C++ • More in-depth look at entities • Classes, libraries, etc. • Working with ROOT

  6. Locate ROOT files, run Data Analysis [Perl] Display this info [WWW ] On to the web [WWW] Links particular to module scan [Perl] Run ROOT, create histo, save file MyAnalyse Generate graphics [C++ ] Data Analysis gives info summary about module scans [C++ ] The Basic Concept

  7. Explanation of Components • data_analysis.pl • Sorts through directories • Executes DataAnalysis on *.root files (see below) • Displays output of DataAnalysis on WWW • DataAnalysis • Joern Grosse-Knetter & Martin Schmitz • *.root file as input • Text output, summary information about scans for each module • Can be run with a GUI – not applicable for what we’re doing this summer • MyAnalyse • Executes ROOT • Particular to module scan, generates TCanvas • Draws histogram particular to that scan onto TCanvas • Saves this histogram in relevant directory • Histogram written, overwritten on the fly

  8. URLs • Pixel collaborator goes to address: • http://atlpclbl01.cern.ch:8838/cgi-bin/testarea/data_analysis.pl • [http://atlpclbl01.cern.ch:8838/html/data_analysis.html] (cached version) • Clicking link directs to another URL, specific to scan • http://atlpclbl01.cern.ch:8838/cgi-bin/testarea/input.pl • Initially, worked with logfiles • Important, as are *.root files • Perl >> working with text >> output onto WWW

  9. data_analysis.html Link particular to scan, showing summary information

  10. Input.pl Histogram particular to scan, with summary information listed

  11. Room For Improvement: • Quicker generation of initial link page • Perhaps as a cron-job, running once a day or so • Ability to pick the directory over which data_analysis.pl scans • Perhaps adding a link page displaying different directories • Perhaps having an input (e.g., field) to decide which directory is scanned

  12. Acknowledgements • Pixel Group • Andreas Korn • Jens Weingarten • Mauro Donega • Daniel Dobos • CERN • Ingrid Schmid • Claudia Huber • University of Michigan • Homer Neal • Jean Krisch • Steve Goldfarb • Jeremy Herr • Ford Motor Company

  13. An Amazing Summer…
