  1. Comparison of ISP HW vs Almalence SW filters + Tasks sharing between ISP And Almalence Imaging Libraries Image Filtering

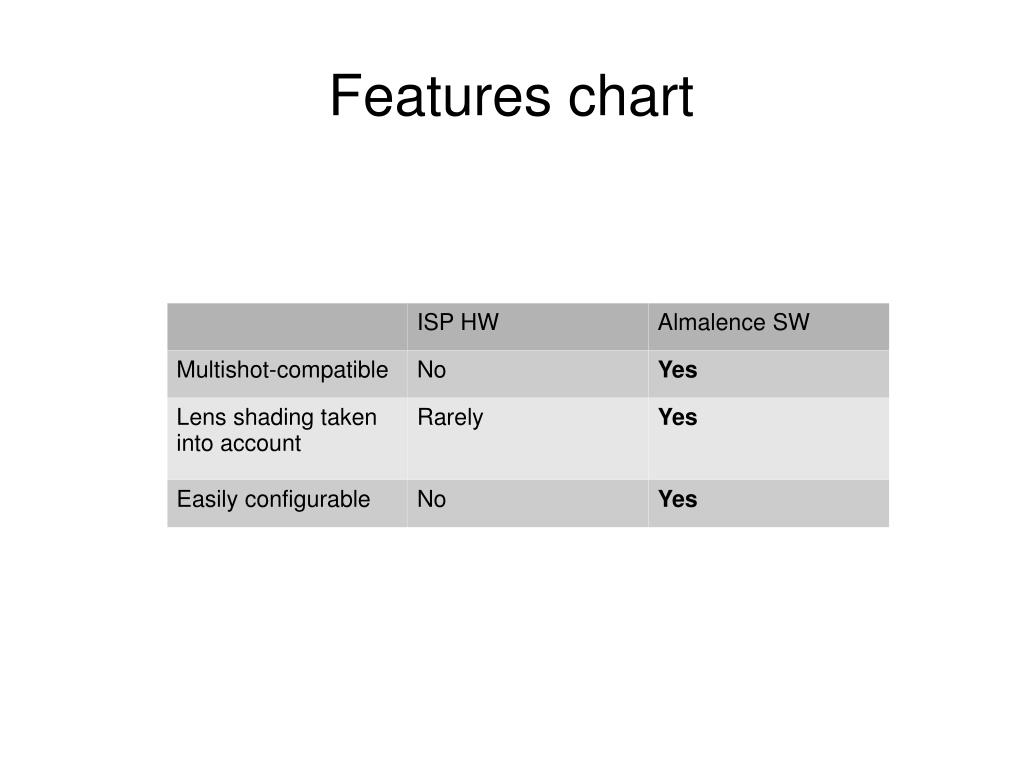

  2. Features chart

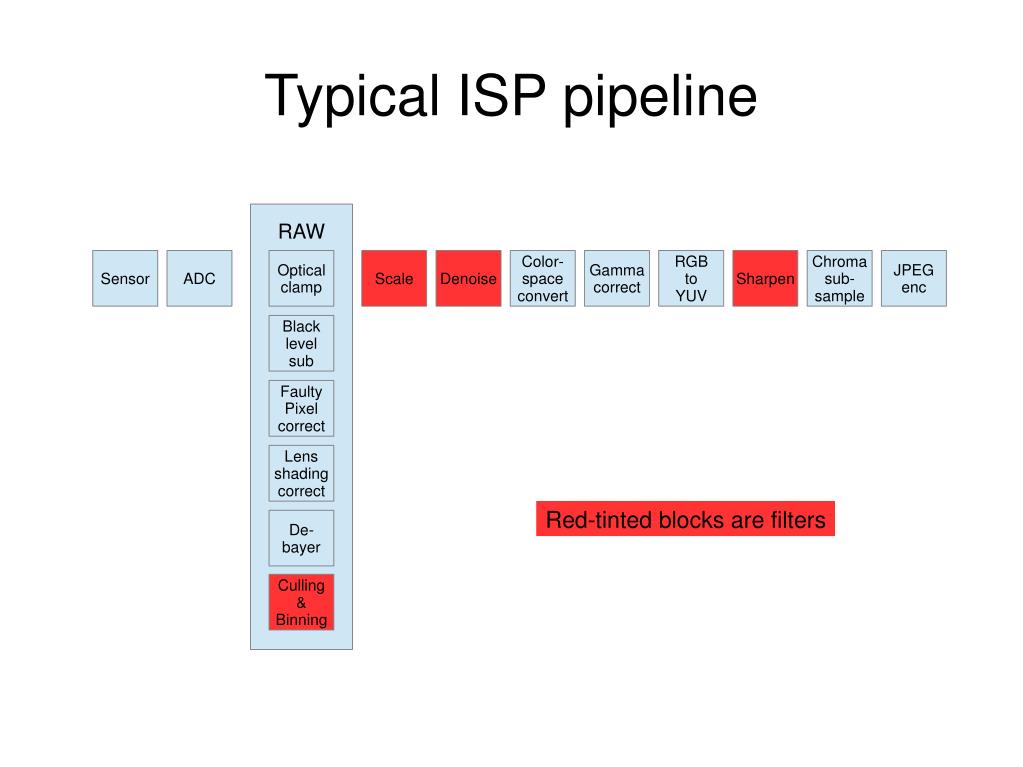

  3. Typical ISP pipeline RAW Sensor ADC Optical clamp Scale Denoise Color- space convert Gamma correct RGB to YUV Sharpen Chroma sub- sample JPEG enc Black level sub Faulty Pixel correct Lens shading correct Red-tinted blocks are filters De- bayer Culling & Binning

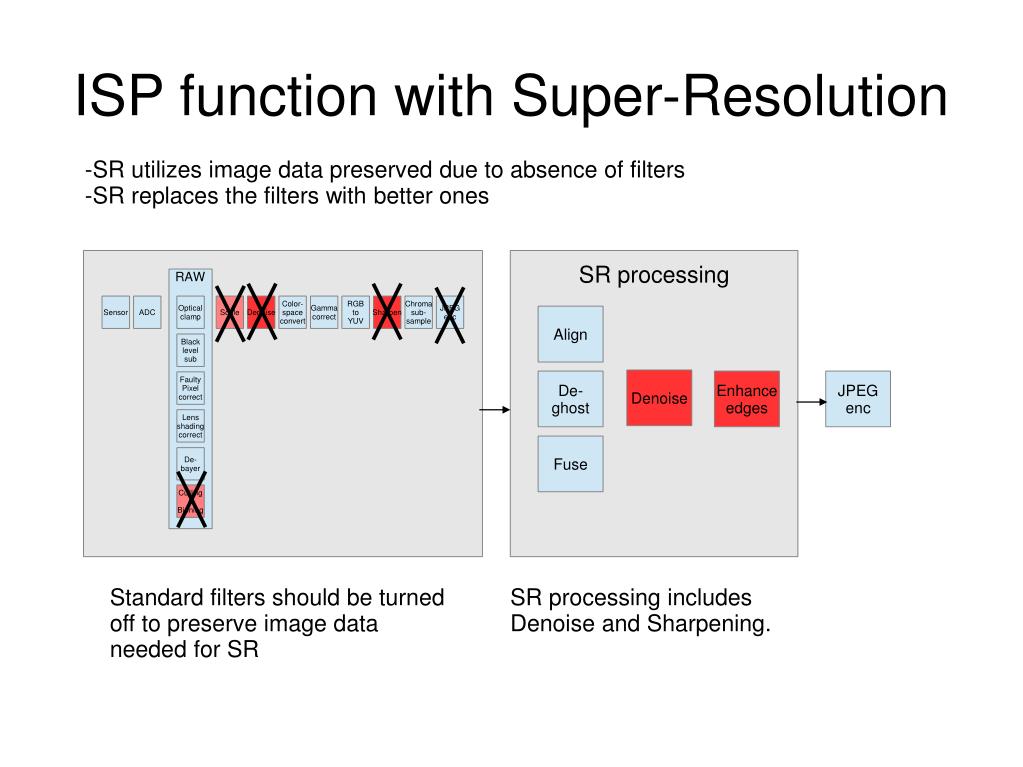

  4. RAW Sensor ADC Optical clamp Scale Denoise Color- space convert Gamma correct RGB to YUV Sharpen Chroma sub- sample JPEG enc Black level sub Faulty Pixel correct Lens shading correct De- bayer Culling & Binning ISP function with Super-Resolution • SR utilizes image data preserved due to absence of filters • SR replaces the filters with better ones SR processing Align Denoise De- ghost Enhance edges JPEG enc Fuse Standard filters should be turned off to preserve image data needed for SR SR processing includesDenoise and Sharpening.

  5. Real life comparison • Example images below have been taken with Galaxy Nexus • Stock firmware • Jelly Bean Android

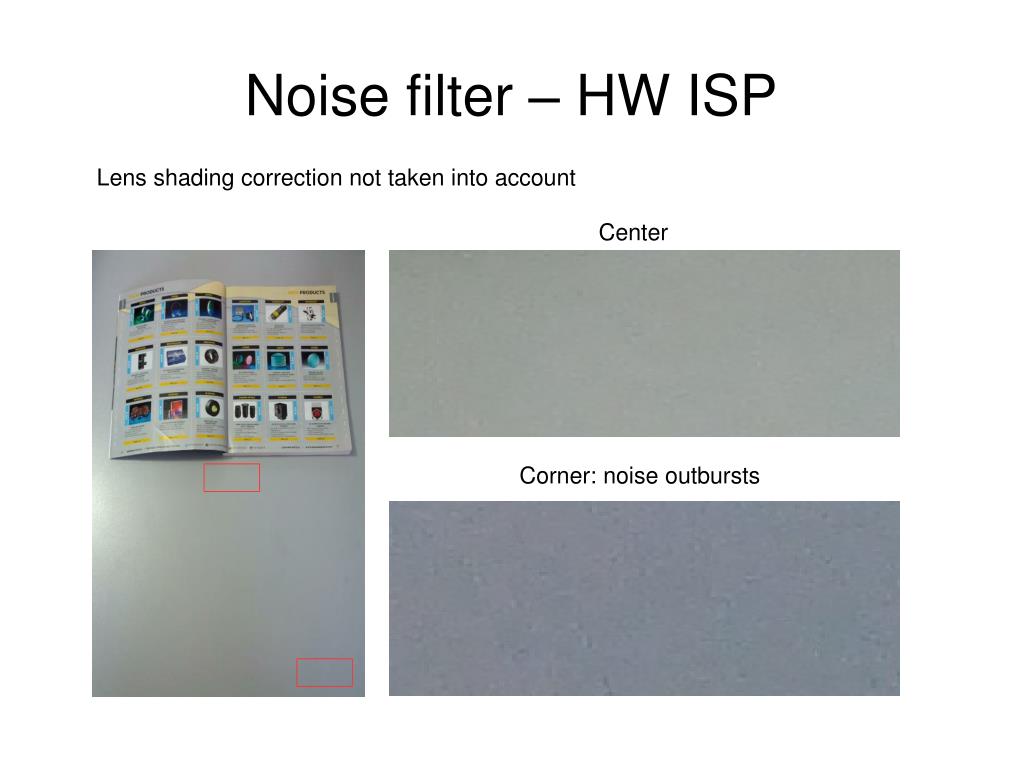

  6. Noise filter – HW ISP Lens shading correction not taken into account Center Corner: noise outbursts

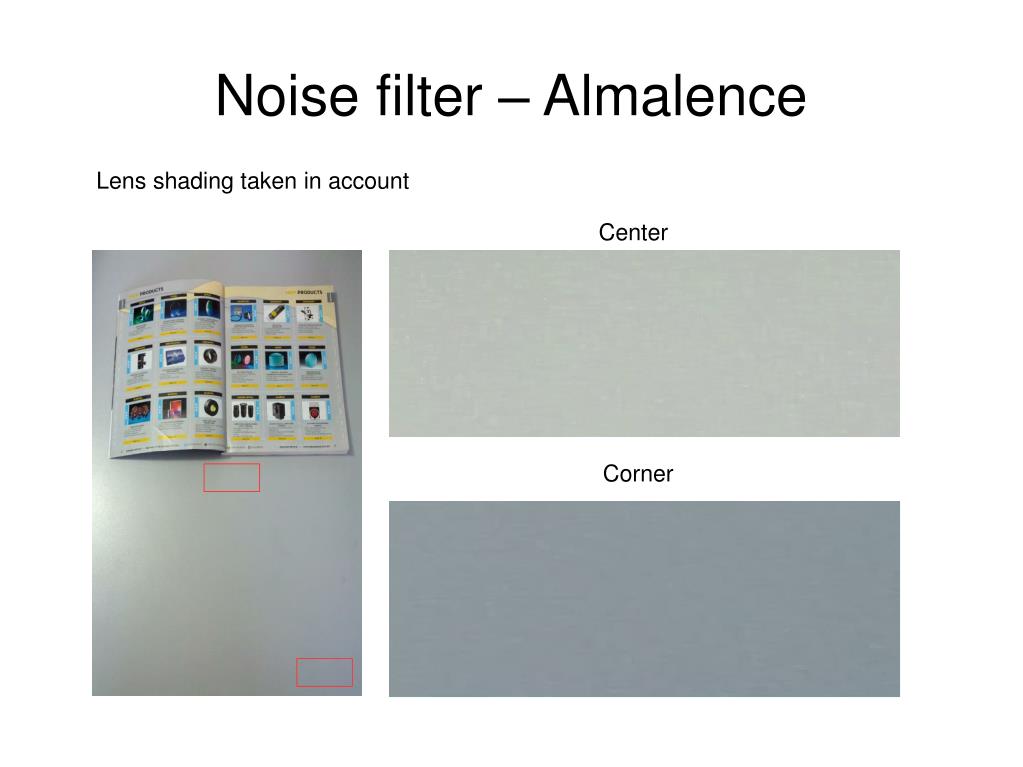

  7. Noise filter – Almalence Lens shading taken in account Center Corner

  8. Noise filter – Almalence Easily configured (API accessible from application layer) No filtering Little filtering High filtering

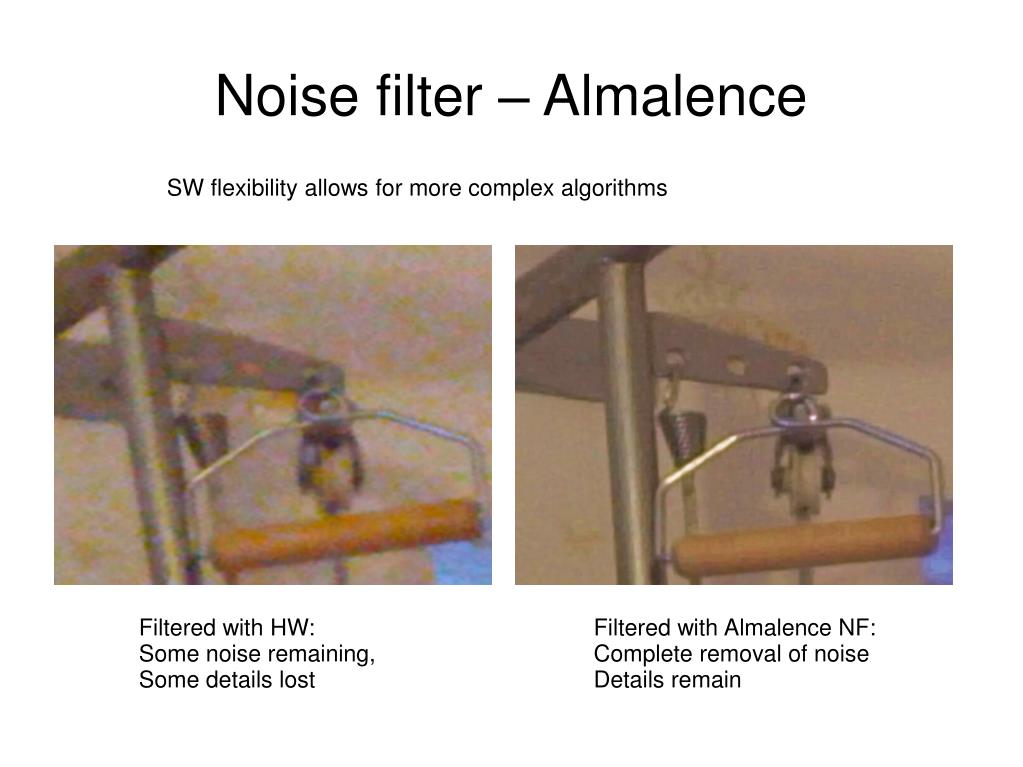

  9. Noise filter – Almalence SW flexibility allows for more complex algorithms Filtered with HW: Some noise remaining, Some details lost Filtered with Almalence NF: Complete removal of noise Details remain

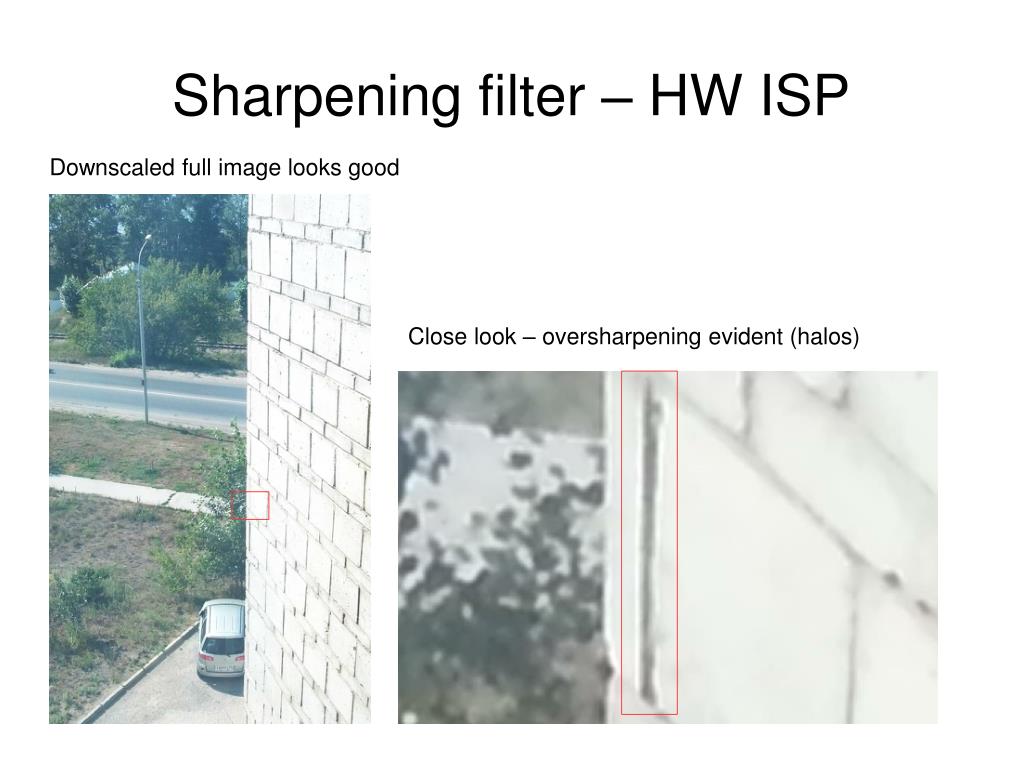

  10. Sharpening filter – HW ISP Downscaled full image looks good Close look – oversharpening evident (halos)

  11. Sharpening filter – Almalence Close look – edges are enhanced, no halos

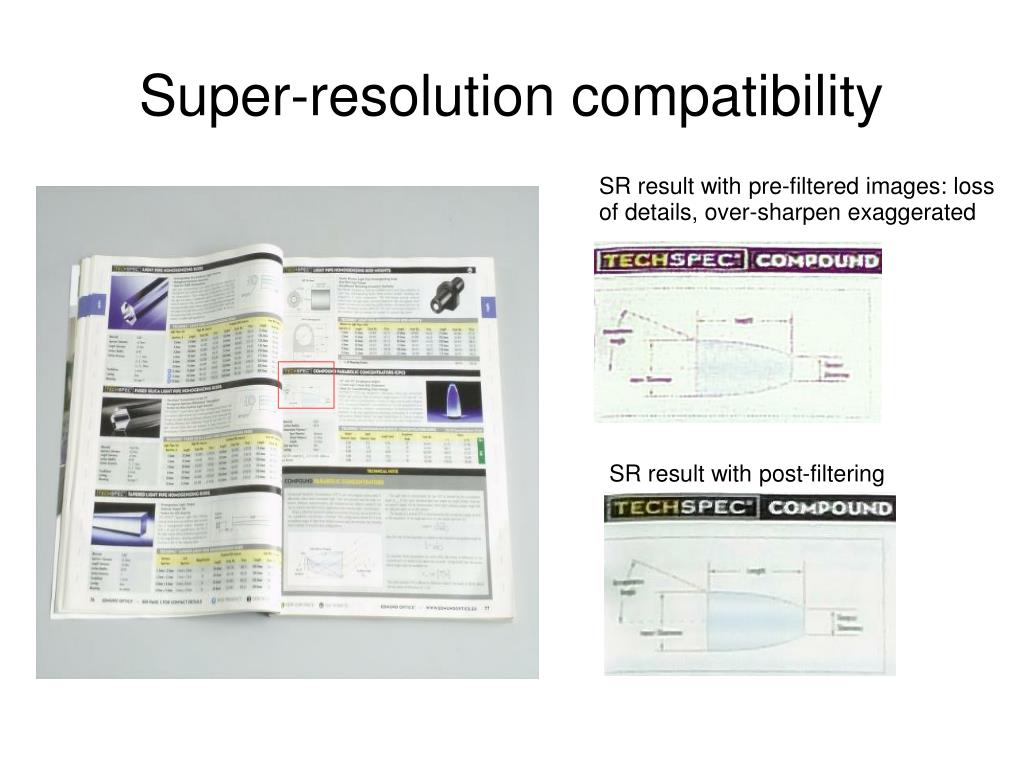

  12. Super-resolution compatibility SR result with pre-filtered images: lossof details, over-sharpen exaggerated SR result with post-filtering
