# Cross Validation False Negatives / Negatives PowerPoint PPT Presentation

Cross Validation False Negatives / Negatives. ד"ר אבי רוזנפלד. הגדרות. False Positives / Negatives. Confusion matrix 1. Confusion matrix 2. FN. Actual. Actual. FP. Predicted. Predicted. Precision (P) = 20 / 50 Recall (P) = 20 / 30. Example. Precision (A) = 50% (500/1000)

Cross Validation False Negatives / Negatives

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.

- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

## Cross ValidationFalse Negatives / Negatives

ד"ר אבי רוזנפלד

### False Positives / Negatives

Confusion matrix 1

Confusion matrix 2

FN

Actual

Actual

FP

Predicted

Predicted

Precision (P) = 20 / 50

Recall (P) = 20 / 30

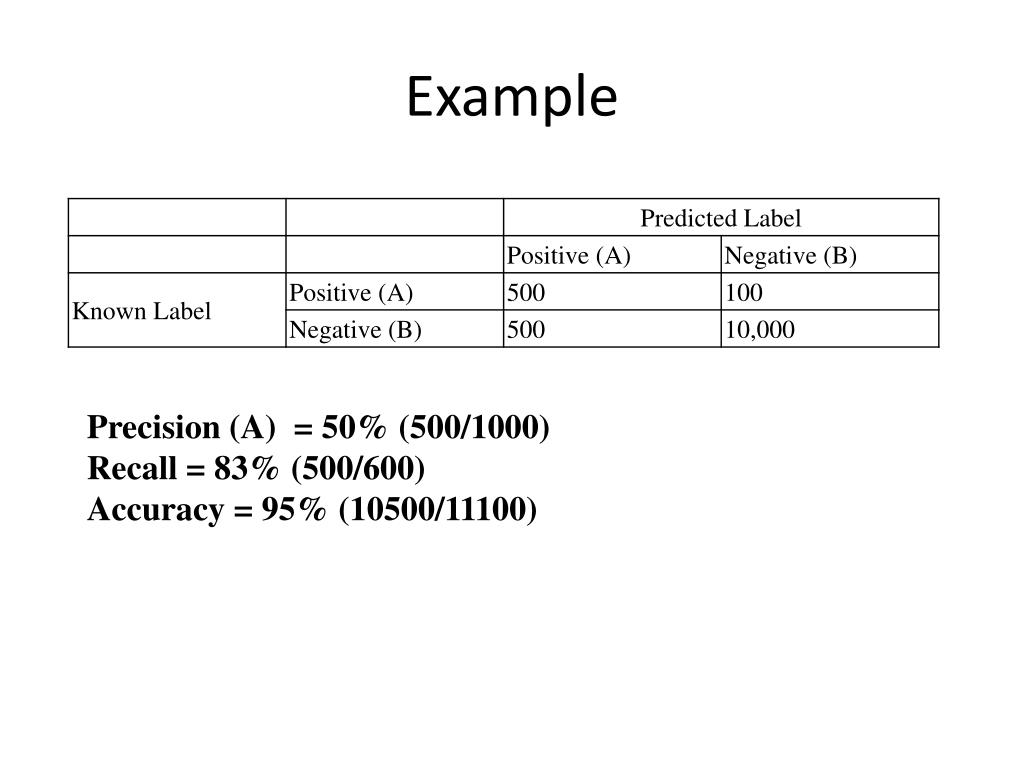

### Example

Precision (A) = 50% (500/1000)

Recall = 83% (500/600)

Accuracy = 95% (10500/11100)

### עוד דוגמא עם כמה קטגוריות

27 animals — 8 cats, 6 dogs, and 13 rabbits

Confusion Matrix:

Predicted class

Actual class CatDogRabbit

Cat530

Dog231

Rabbit0211

יש 3 False Negatives של חתולים שמסויגים כמו כלבים, ויש 2 False Positives של כלבים המסווגים כמו ארנבות.

ויש 2 False Positive של ארנבות שמסויגים ככלבים, ו0 False Positives של חתולים.

Recall (Dog) = 3/6, Precision(Dog) = 3/8

### דוגמא מWEKA

=== Summary ===

Correctly Classified Instances 320 66.39 %

Incorrectly Classified Instances 162 33.61 %

=== Detailed Accuracy By Class ===

Precision Recall

0.664 1

0 0

=== Confusion Matrix ===

a b <-- classified as

320 0 | a = FALSE -> Precision (A) = 320/582), Recall = 320/320

162 0 | b = TRUE -> Precision (B) = Recall (B) = 0

### דוגמא נוספת (מהחיות – (zoo.arff

Correctly Classified Instances 93 92.0792 %

Incorrectly Classified Instances 8 7.9208 %

=== Detailed Accuracy By Class ===

TP Rate FP Rate Precision Recall F-Measure ROC Area Class

1 0 1 1 1 1 mammal

1 0 1 1 1 1 bird

0.6 0.01 0.75 0.6 0.667 0.793 reptile

1 0.011 0.929 1 0.963 0.994 fish

0.75 0 1 0.75 0.857 0.872 amphibian

0.625 0.032 0.625 0.625 0.625 0.92 insect

0.8 0.033 0.727 0.8 0.762 0.986 invertebrate

=== Confusion Matrix ===

a b c d e f g <-- classified as

41 0 0 0 0 0 0 | a = mammal

0 20 0 0 0 0 0 | b = bird

0 0 3 1 0 1 0 | c = reptile

0 0 0 13 0 0 0 | d = fish

0 0 1 0 3 0 0 | e = amphibian

0 0 0 0 0 5 3 | f = insect

0 0 0 0 0 2 8 | g = invertebrate

Recall (Invertebrate) = 8/10 = 0.8, Precision = 8/11 = 0.727

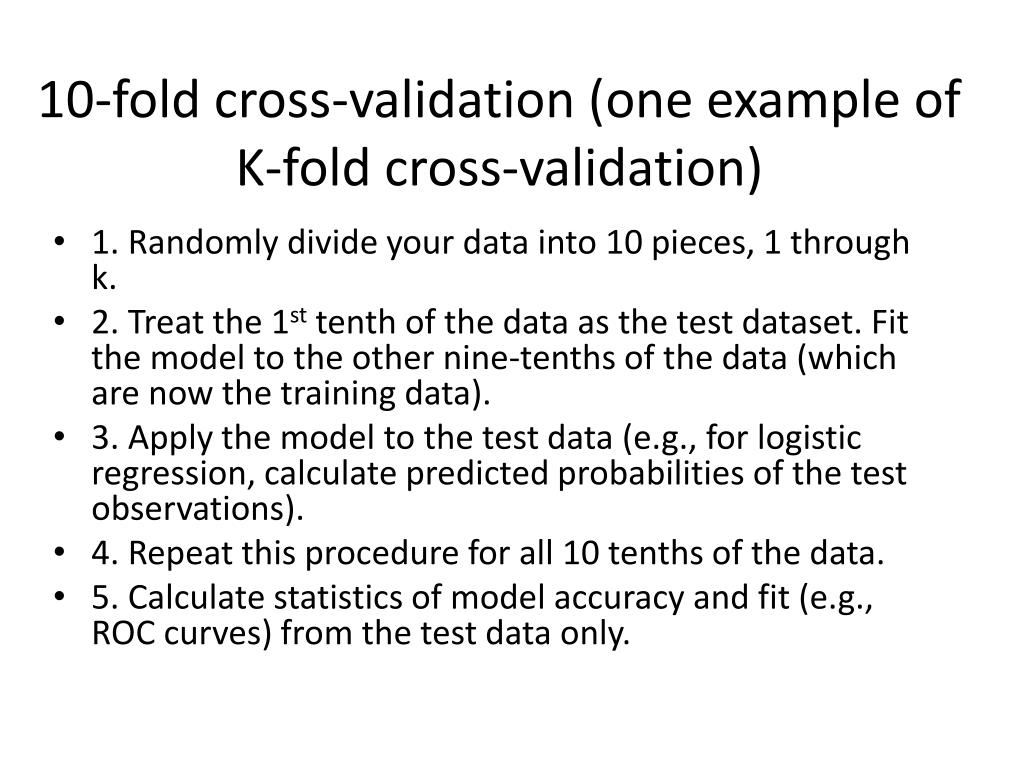

### 10-fold cross-validation (one example of K-fold cross-validation)

• 1. Randomly divide your data into 10 pieces, 1 through k.

• 2. Treat the 1st tenth of the data as the test dataset. Fit the model to the other nine-tenths of the data (which are now the training data).

• 3. Apply the model to the test data (e.g., for logistic regression, calculate predicted probabilities of the test observations).

• 4. Repeat this procedure for all 10 tenths of the data.

• 5. Calculate statistics of model accuracy and fit (e.g., ROC curves) from the test data only.
