IE 352Introduction to CAD/CAM

KAIST

IE

신하용


House of ie research areas at kaist ie

House of IE : Research areas at KAIST IE

산업 정보화

산업경영

(관리기술)

인간-기계 시스템

제조시스템

(생산기술)

응용분야

Domain Knowledge

응용통계

운용과학 (OR)

정보화기술 (IT)

분석기법

시스템적 사고방식


Ie 352 introduction to cad cam

IE452 공학 설계 (Capstone Design)

학생들이 직접 참여하는 제품설계 및 생산시스템 설계Project를 통하여 제품

및 생산시스템 개발에 필요한 개념과 기술을 체득한다.

IE451 제조정보시스템과 e-Business

제조업의IT화및e-Business개념을소개하고, B2B시스템, ERP시스템,

MES시스템등주요정보시스템의구축및활용방법을습득한다..

IE352 CAD/CAM 개론

제품의 설계 및 생산에 있어서

적극적으로 Computer를 활용하는

CAD/CAM을 이론과 실습으로 익힌다.

IE353 제품개발 및 정보관리

제품개발 Lifecycle에서의 설계 및

생산활동에 관련된 정보를 효율적으로

관리하는 방법을 배운다.

IE251 제조 프로세스 혁신

생산활동의 이해를 위하여, 제조공법과 재료들을 배우고, 프로세스혁신에 필요한

JIT, 6sigma등의 관리기법과 산업용 로봇, PLC등의 자동화기법을 익힌다.

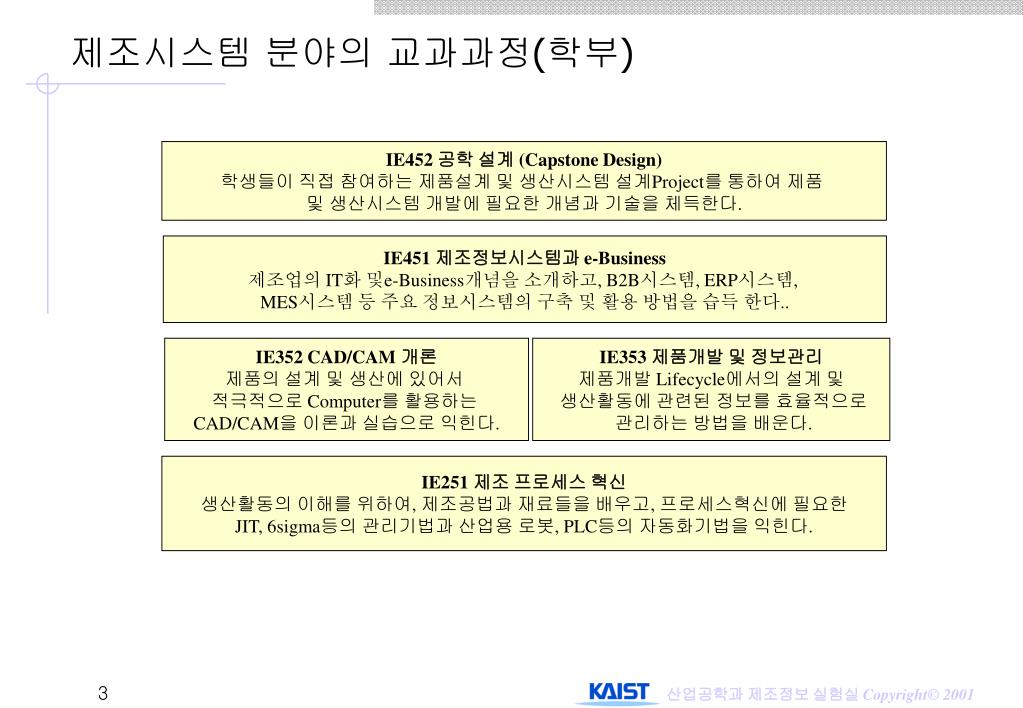

제조시스템 분야의 교과과정(학부)


Instructor ta etc

Hayong Shin

Office : IE & Mgt Building, #3106

Tel : 042-869-3124

Email : [email protected]

Office hour : T/Th 4:00 – 5:00pm

TA : Jeong, Chun Seok

Office : IE & Mgt Building, #3120

Tel : 042-869-3164

Email : [email protected]

Office hour : T/Th 11:00-12:00am

Text

A: Principles of CAD/CAM/CAE,

Kunwoo Lee, Addison Wesley, 1999

B: CAD/CAM 시스템과 CNC절삭가공, 최병규 외, SciTech, 2001

Course home page

URL : TBA

Syllabus

Lecture notes

Home work

Grading results

Lab schedule

Bulletin board

Q & A

Wishes

Discussion

Other issues

Grading

수업참여도 : 10%

Homework : 30% (10% penalty/day)

Exams : 60%

Instructor & TA, etc


Course overview

Curve and Surface Representation

Differential geometry

Curve representation

Surface representation

CNC machining

CNC controller

NC programming

Computer Aided Manufacturing

Theory of tool path generation

Functions of CAM

Overview of CAE

Commercial CAD/CAM system

Computer aided process planning

Rapid prototyping

Virtual manufacturing

Data Exchange Standards

Course overview

  • Introduction

    • Overview of the course

    • Intro. to CAD/CAM/CAE

  • Components of CAD/CAM/CAE

    • Hardware components

    • Software components

  • Computer graphics

    • Basics of Computer Graphics

    • OpenGL

  • Computer-aided drafting system

  • Geometric modeling system

    • Wire frame modeling

    • Surface modeling

    • Solid modeling

    • Assembly modeling


Course schedule

Course Schedule

week

Topics

실습

1

Overview of course schedule.Ch1(A). Introduction

2

Ch2(A) Components of CAD/CAM/CAE systems

3

Ch3(A) Basic concepts of graphic programming

OpenGL 실습

4

Ch4(A) Computer aided drafting system

5

Ch5(A) Geometric modeling systems

6

Solid Modeling system

SolidWorks 실습

7

Ch6(A) Representation and manipulation of curves

GS-NURBS

8

Mid term exam

9

Ch7(A) Representation and manipulation of surfaces

Rhino3D 실습

10

Ch1-2 (B) CNC Machining

11

Ch11, Ch12 (B) 자유곡면의절삭가공

Z-Master실습

12

Ch8 (B) CAE – FE modeling and analysis

13

Ch13(B) 상업용CAD/CAM 시스템, CAPP

14

Ch12(A) Rapid prototyping, Ch13(A) Virtual engineering

VFS실습

15

Ch14(A), Ch14(B) Data exchange standards

16

Final Exam
