  1. Datové struktury GIS

  2. Bodová vrstva

  3. Liniová vrstva Co bude jedna položka tabulky - bude to jeden úsek linie Linie budou orientované Linie budou jen lomené čáry

  4. Liniová vrstva L7 L6 L5 L1 L4 L3 L2

  5. Indukovaná bodová vrstva B1 L7 B3 B2 L6 L5 L1 B7 B5 B4 L4 L3 B8 B6 L2

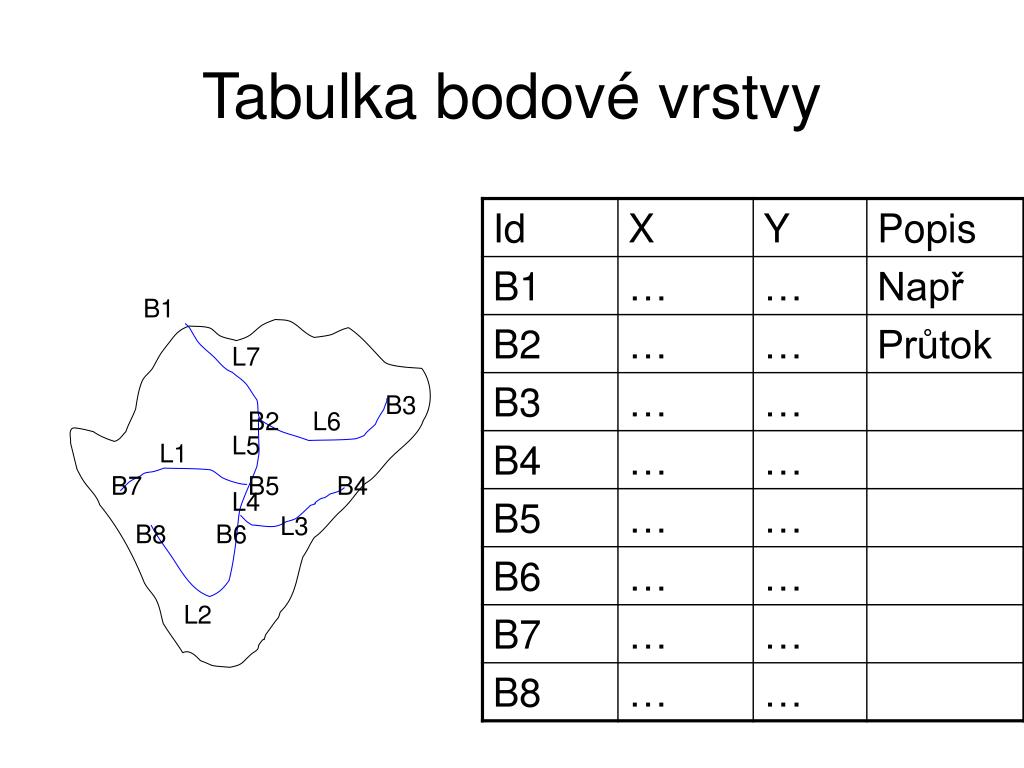

  6. Tabulka bodové vrstvy B1 L7 B3 B2 L6 L5 L1 B7 B5 B4 L4 L3 B8 B6 L2

  7. Tabulka liniové vrstvy B1 L7 B3 B2 L6 L5 L1 B7 B5 B4 L4 L3 B8 B6 L2 X1y1x2y2……………

  8. A - N topologie B1 L7 B3 B2 L6 L5 L1 B7 B5 B4 L4 L3 B8 B6 L2

  9. Polygonová vrstva P1 P3 P2

  10. Indukovaná liniová a bodová vrstva L1 L2 B1 P1 L6 B3 P3 L4 B2 P2 L5 L3 B4

  11. Tabulka bodové vrstvy L1 L2 B1 P1 L6 B3 P3 L4 B2 P2 L5 L3 B4

  12. Tabulka liniové vrstvy s A-N topologií L1 L2 B1 P1 L6 B3 P3 L4 B2 P2 L5 L3 B4

  13. Tabulka plošné vrstvy L1 L2 B1 P1 L6 B3 P3 L4 B2 P2 L5 L3 B4

  14. P-A topologie L1 L2 B1 P1 L6 B3 P3 L4 B2 P2 L5 L3 B4

  15. Vnější plocha P0 P0 L1 L2 B1 P1 L6 B3 P3 L4 B2 P2 L5 L3 B4

  16. Vnější plocha P0 P0 L1 L2 B1 P1 L6 B3 P3 L4 B2 P2 L5 L3 B4

  17. Uzavřená plocha P0 L1 L2 B1 P1 L6 P4 B3 P3 L4 B2 P2 L5 L3 B4

  18. Uzavřená plocha P0 L1 L2 B1 B5 P1 L6 P4 L7 B3 P3 L4 B2 P2 L5 L3 B4

  19. Uzavřená plocha P0 L1 L2 B1 B5 P1 L6 P4 L7 B3 P3 L4 B2 P2 L5 L3 B4

  20. Uzavřená plocha P0 L1 L2 B1 B5 P1 L6 P4 L7 B3 P3 L4 B2 P2 L5 L3 B4

  21. Uzavřená plocha P0 L1 L2 B1 B5 P1 L6 P4 L7 B3 P3 L4 B2 P2 L5 L3 B4
