Venous pressure

Venous Pressure


Venous pressure1

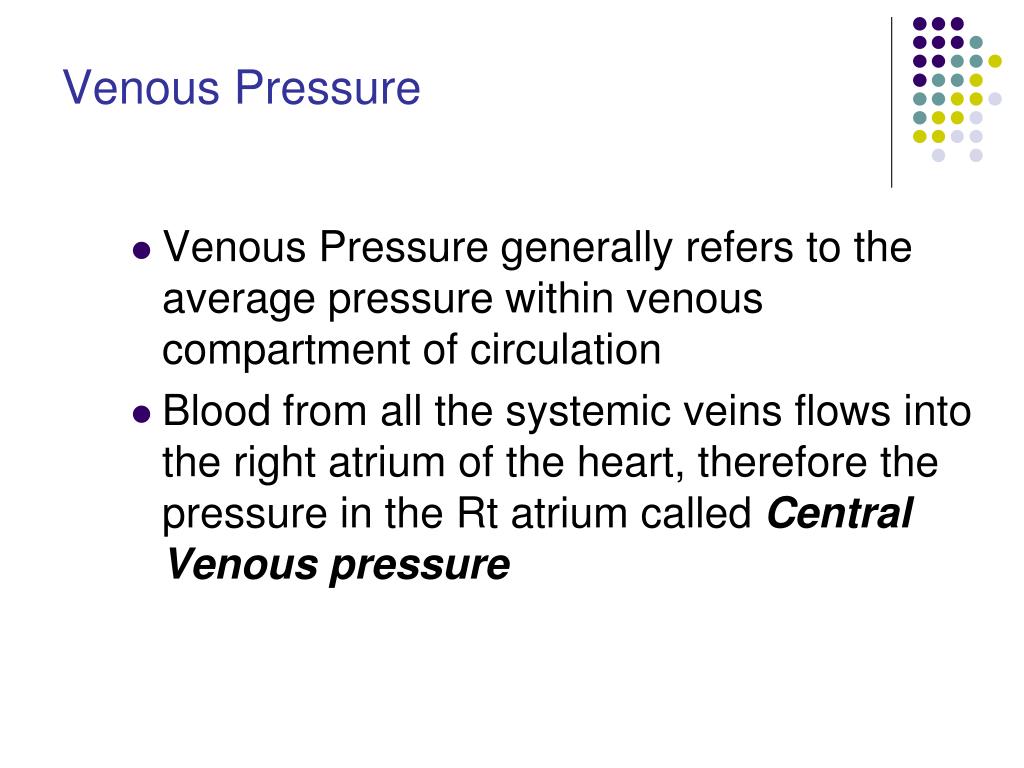

Venous Pressure

Venous Pressure generally refers to the average pressure within venous compartment of circulation

Blood from all the systemic veins flows into the right atrium of the heart, therefore the pressure in the Rt atrium called Central Venous pressure


How to measure the cvp

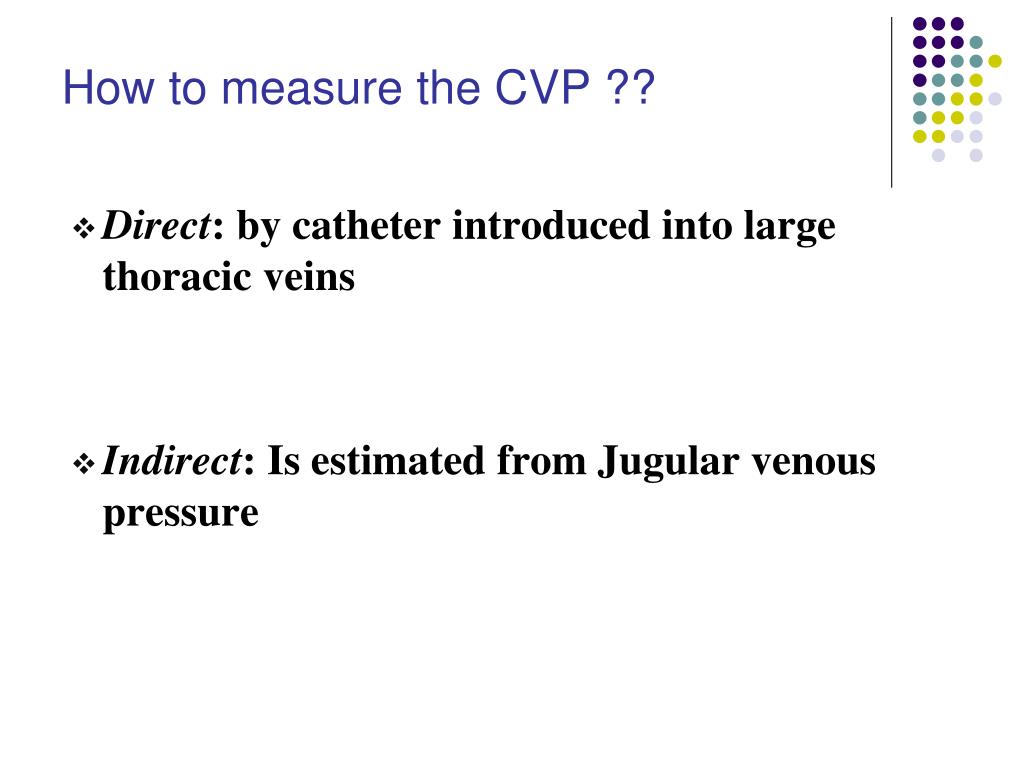

How to measure the CVP ??

  • Direct: by catheter introduced into large thoracic veins

  • Indirect: Is estimated from Jugular venous pressure


Jugular venous pulse jvp

Jugular Venous Pulse (JVP)

There is no valves between the Rt atrium and the Internal Jugular Vein . So the degree of distension of this vein is dictated by the Rt atrium pressure.

Pressure changes transmitted from right atrium

The right internal jugular is the best neck vein to inspect

Provides information about hemodynamic changes in right atrium & ventricle


Anatomy of ijv

Anatomy Of IJV


Venous pressure

Cont….

  • The internal jugular vein is lateral to carotid artery & deep to sternomastoid muscle.

  • External jugular is superficial to sternomastoid


Jvp waves

JVP waves


Venous pressure

Cont….

A a positive wave due to atrial contraction.

C a positive deflection due closure of tricuspid

Xa negative deflection due to atrial relaxation

V a positive deflection due to filling of the right atrium against the closed tricuspid valve during ventricular contraction (venous return)

Y a negative deflection due to emptying of the right atrium upon ventricular relaxation


Abnormalities of wave

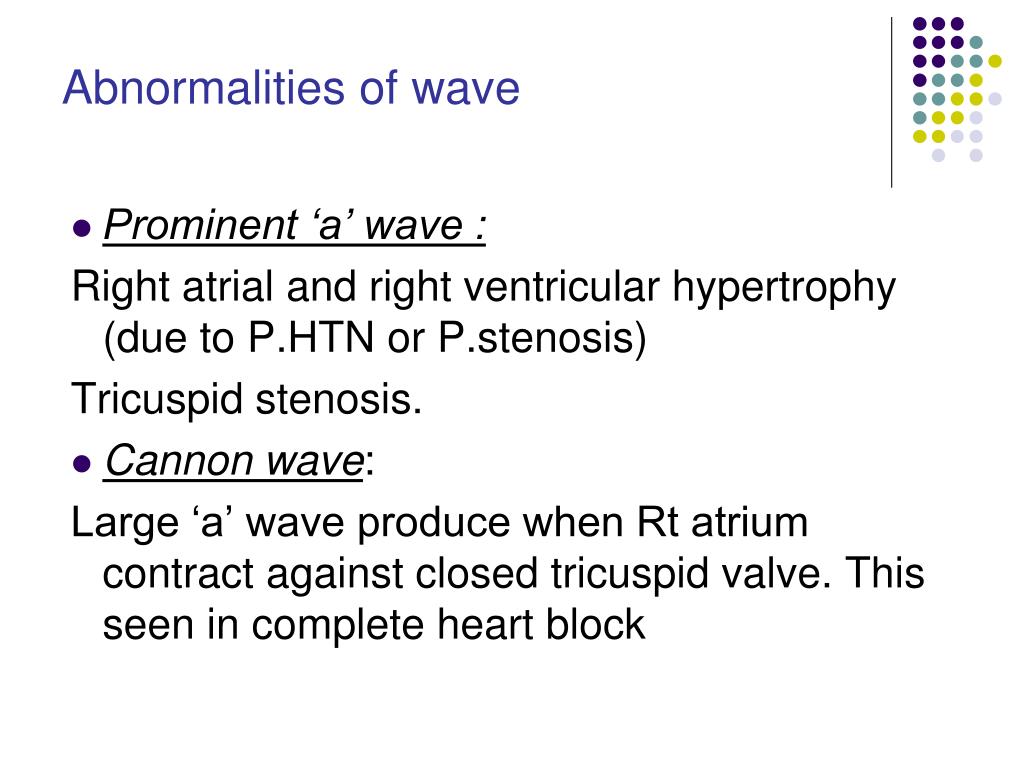

Abnormalities of wave

Prominent ‘a’ wave :

Right atrial and right ventricular hypertrophy (due to P.HTN or P.stenosis)

Tricuspid stenosis.

Cannon wave:

Large ‘a’ wave produce when Rt atrium contract against closed tricuspid valve. This seen in complete heart block


Venous pressure

Cont…

Kussmaul sign:

A paradoxical rise of JVP on inspiration. Causes:

Constrictive pericarditis

Cardiac tamponade

Sever Rt ventricular failure


Difference between arterial and venous pulsation in neck

Difference between arterial and venous pulsation in neck

Change in posture ?

Change in respiration ?

Pulsation pattern ?

Palpation ?

Occlusion ?


The jvp and carotid pulse can be differentiated several ways

The JVP and carotid pulse can be differentiated several ways

  • multiphasic - the JVP "beats" twice (in quick succession) in thecardiac cycle. In other words, there are two waves in the JVP for each contraction-relaxation cycle by the heart. The first beat represents that atrial contraction (termeda) and second beat represents venous filling of the right atrium against a closed tricuspid valve (termedv) . The carotid artery only has one beat in the cardiac cycle.

  • non-palpable - the JVP cannot be palpated. If one feels a pulse in the neck, it is generally thecommon carotid artery.

  • occludable - the JVP can be stopped by occluding theinternal jugular veinby lightly pressing against the neck. It will fill from above.

  • If a person is standing, his JVP appears to be lower on the neck (or may not be seen at all because it is below thesternal angle). The carotid pulse's location does not vary with standing.

  • varies with respiration - the JVP usually decreases with deep inspiration. Physiologically, inspiration decreases the thoracic pressure and increases blood movement into the heart (venous return), which a healthy heart moves into thepulmonary circulation.


How measure jvp

How measure JVP ?

  • LOOK

  • CONFIRM

  • MEASURE


Method

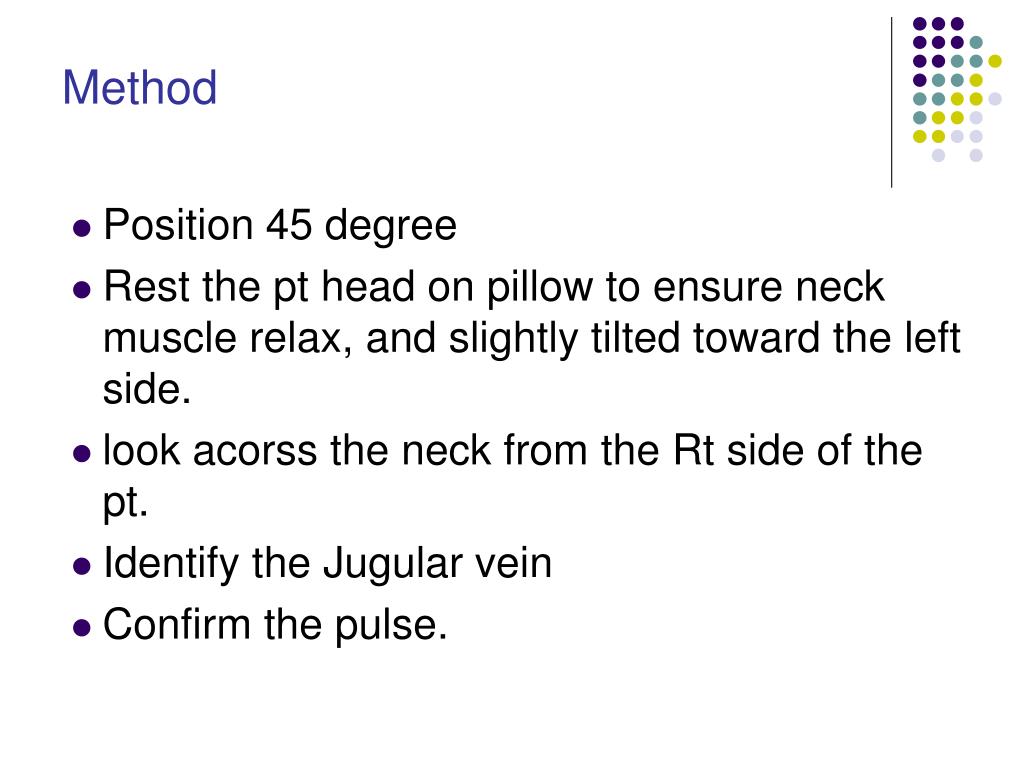

Method

Position 45 degree

Rest the pt head on pillow to ensure neck muscle relax, and slightly tilted toward the left side.

look acorss the neck from the Rt side of the pt.

Identify the Jugular vein

Confirm the pulse.


Venous pressure

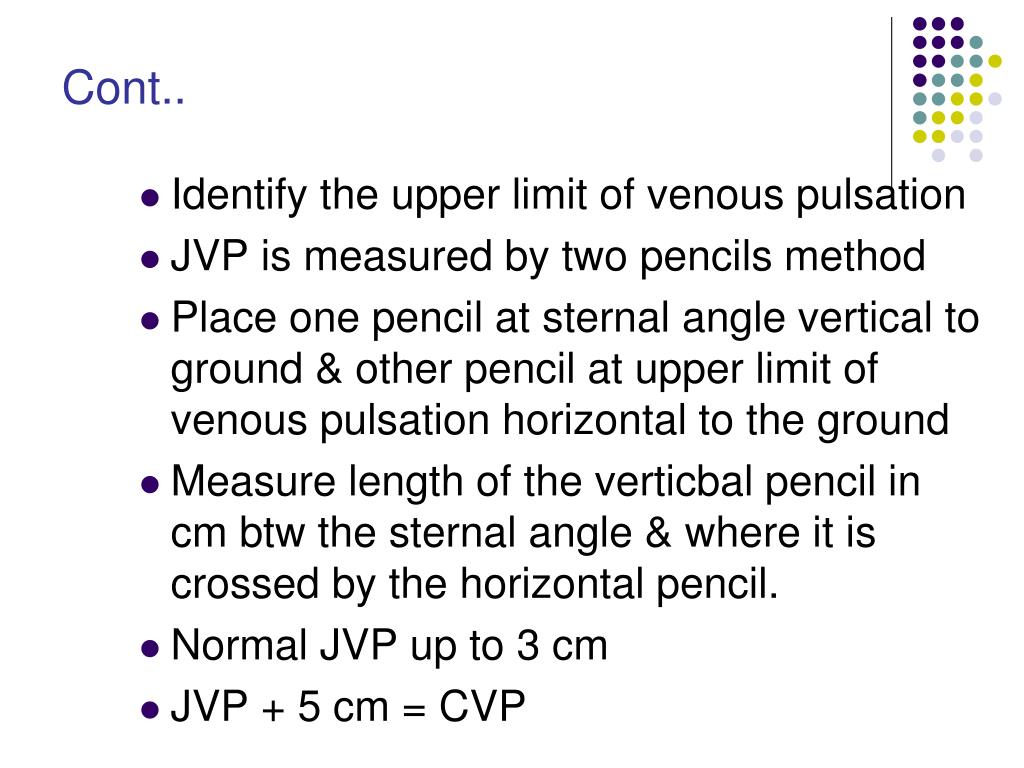

Cont..

Identify the upper limit of venous pulsation

JVP is measured by two pencils method

Place one pencil at sternal angle vertical to ground & other pencil at upper limit of venous pulsation horizontal to the ground

Measure length of the verticbal pencil in cm btw the sternal angle & where it is crossed by the horizontal pencil.

Normal JVP up to 3 cm

JVP + 5 cm = CVP


Causes of raised jvp

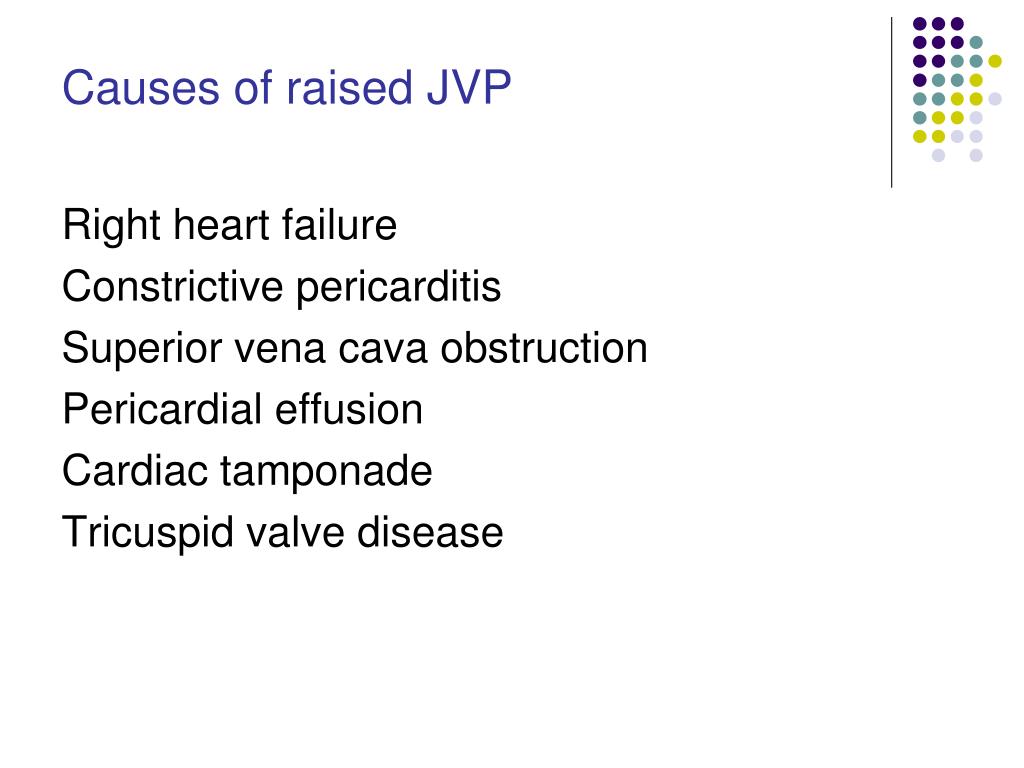

Causes of raised JVP

Right heart failure

Constrictive pericarditis

Superior vena cava obstruction

Pericardial effusion

Cardiac tamponade

Tricuspid valve disease


Cardiac tamponade

Cardiac tamponade

  • Cardiac tamponade: the accumulation of fluid in the pericardium in an amount sufficient to cause serious obstruction to the inflow of blood to ventricle results in cardiac tamponade.

  • The three principal features of tamponade are:

  • 1.elevation of intracardiac pressures

  • 2.limitation of ventricular fillng

  • 3.reduction of cardiac output


Beck triad increased jugular venous pressure hypotension diminished heart sounds

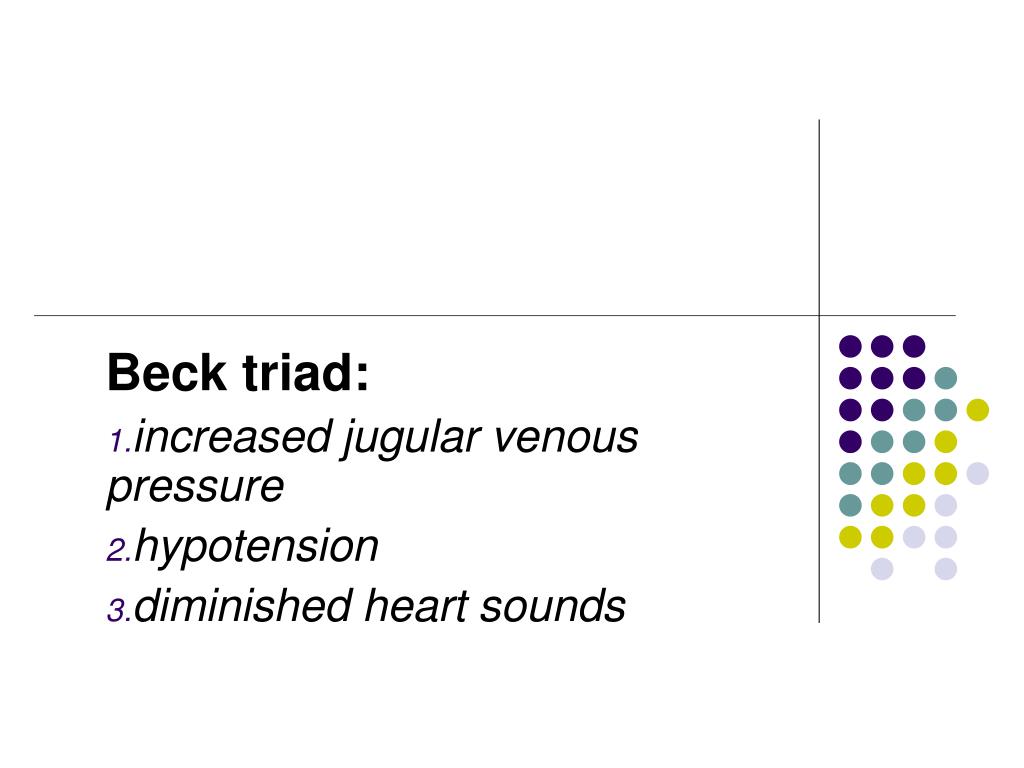

Beck triad:

increased jugular venous pressure

hypotension

diminished heart sounds
