Chapter 24: Air Pollution

Chapter 24: Air Pollution. A Brief History of Air Pollution. The atmosphere has long been a sink for waste disposal. Long history of recognition of the existence of atmospheric pollutants Natural photochemical smog recognized in 1550 Acid rain first described in 17 th century

cain-flores
Download Presentation

Chapter 24: Air Pollution

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Chapter 24: Air Pollution

  2. A Brief History of Air Pollution • The atmosphere has long been a sink for waste disposal. • Long history of recognition of the existence of atmospheric pollutants • Natural photochemical smog recognized in 1550 • Acid rain first described in 17th century • Word smog introduced in 1905 • Mixture of smoke and fog

  3. A Brief History of Air Pollution • Two events sparked research on air pollution and regulations to control air quality. • Donora fog in 1948 • London smog event in 1952 • Both cause by pollutants being trapped by weather events. Both killed numerous people. • Could happen again in cities like Beijing or Mexico City

  4. Stationary Source of Air Pollution • Stationary sources are those that have a relatively fixed location. • Point sources emit pollutants from one or more controllable sites. • Fugitive sources generate air pollutants from open areas exposed to wind processes. • Area sources are well defined areas within which are several sources of air pollutants.

  5. Point source

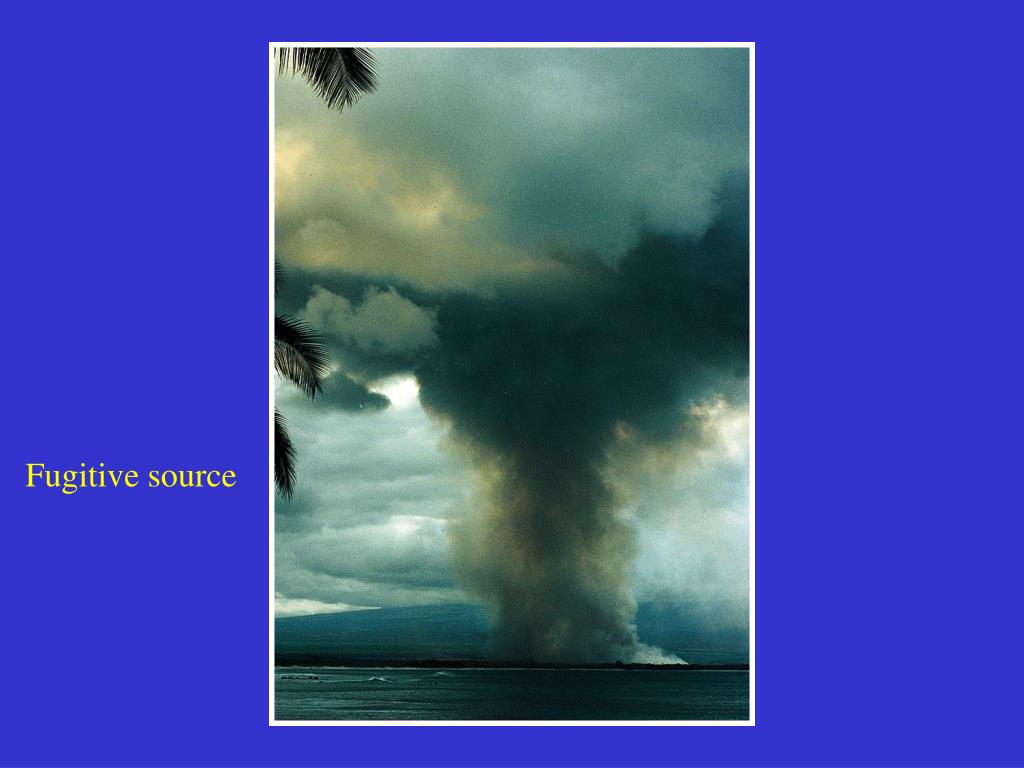

  6. Fugitive source

  7. Mobile Source of Air Pollution • Mobile source of air pollutants move from place to place while emitting pollutants. • Automobiles, trucks, buses, aircraft, ships, and trains.

  8. General Effects of Air Pollution • Affects many aspects of our environment • Visual qualities • Vegetation • Animals • Soil • Water quality • Natural and artificial structures • Human health

  9. General Effects of Air Pollution • Significant factor in human death rate for many large cities • Athens, Greece- # of deaths higher on bad air quality days • Hungary- 1 in 17 deaths contributed to air pollution • US- 300,000 deaths/year, health cost $50 billion • China- health cost $50 - $100 billion

  10. General Effects of Air Pollution • Affect human health in several ways • Toxic poisoning, cancer, birth defects, eye irritation, and irritation of respiratory system. • Increased susceptibility to viral infections, causing pneumonia and bronchitis. • Increased susceptibility to heart disease. • Aggravation of chronic diseases, such as asthma and emphysema.

  11. General Effects of Air Pollution • Many air pollutants have synergistic effects • Do greater damage to the lungs than a combination of the two pollutants would be expected to do based on their separate effects.

  12. Air Pollutants • 200 air pollutants recognized and assessed by US EP and listed in Clean Water Act • Six called critical pollutants

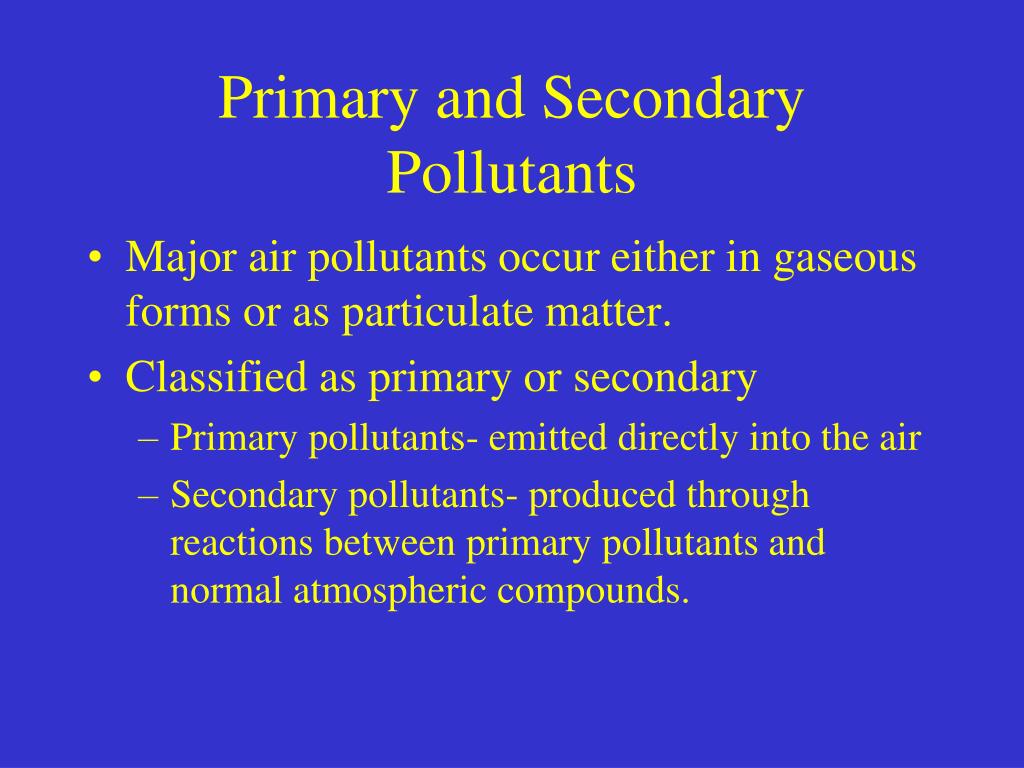

  13. Primary and Secondary Pollutants • Major air pollutants occur either in gaseous forms or as particulate matter. • Classified as primary or secondary • Primary pollutants- emitted directly into the air • Secondary pollutants- produced through reactions between primary pollutants and normal atmospheric compounds.

  14. Primary and Secondary Pollutants • In addition to human sources, our atmosphere contains many pollutants of natural origin. • Release of sulfur dioxide from volcanic eruptions. • Release of hydrogen sulfide from geysers and hot springs and from biological decay in bogs and marshes. • Release of ozone in the lower atmosphere as a result of unstable meteorological conditions. • Emission of a variety of particles from wildfires and • windstorms. • Natural hydrocarbon seeps.

  15. Criteria Pollutants • There are six criteria pollutants • Sulfur dioxide • Nitrogen oxides • Carbon monoxide • Ozone • Particulates • Lead

  16. Sulfur Dioxide • SO2 • Colorless odorless gas • Once emitted can be converted to sulfateSO4 • Removed from atmosphere by wet or dry deposition • Major human sources; coal power plants, industrial processes

  17. Sulfur Dioxide • Adverse effects depend on dose and concentration present • Injury or death to animals and plants • Corrosion of paint and metals • Important precursor to acid rain

  18. Nitrogen Oxides • Occur in many forms in the atmosphere but largely emitted in two forms: • Nitric oxide- NO • Nitrogen dioxide- NO2 • A yellow-brown to reddish-brown gas • May be converted to NO32- • Both subject to emissions regulation and contribute to smog • NO2 major contributor to acid rain

  19. Nitrogen Oxides • Nearly all NO2 emitted from human sources • Automobiles and power plants that burn fossil fuels • Environmental effects • Irritate eyes and mucous membranes • Suppress plant growth • However when convert to nitrate may promote plant growth

  20. Carbon Monoxide • CO is a colorless, odorless gas • Even at low concentrations is extremely toxic to humans • Binds to hemoglobin in blood. • 90% of CO in atmosphere comes from natural sources • 10% comes from fires, cars, and incomplete burning of organic compounds

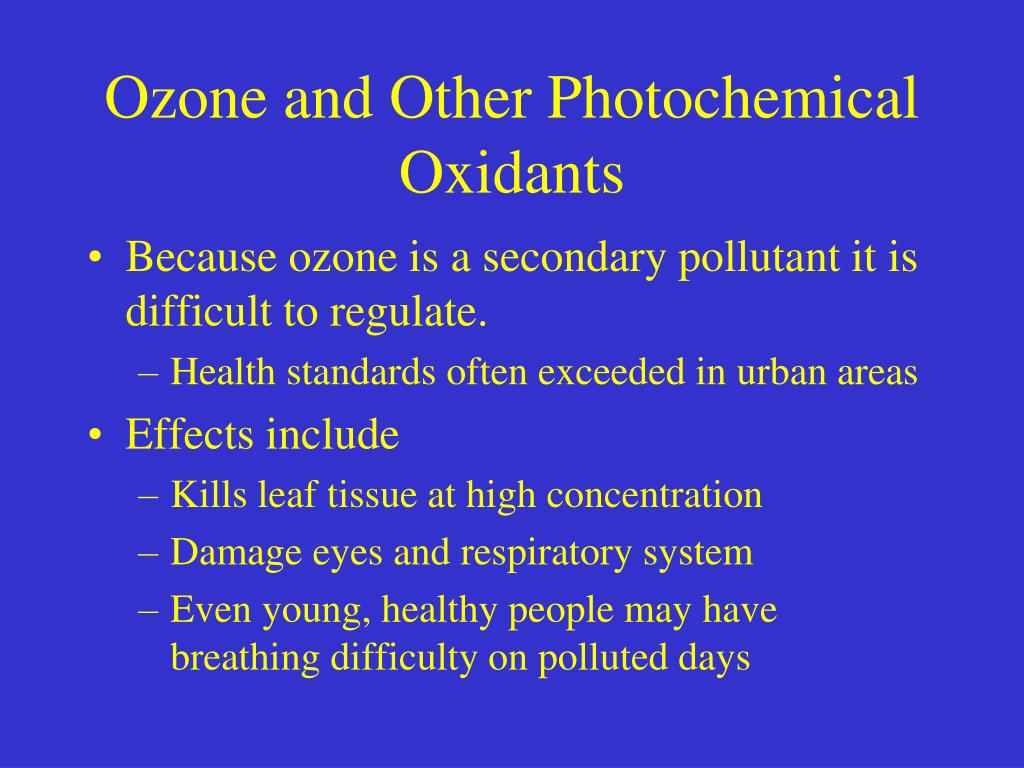

  21. Ozone and Other Photochemical Oxidants • Photochemical oxidants result from atmospheric interactions of nitrogen dioxide and sunlight. • Most common is ozone- O3 • Colorless gas w/ slightly sweet odor • Very active chemically, oxidizes or burns • Beneficial in the upper atmosphere

  22. Ozone and Other Photochemical Oxidants • Because ozone is a secondary pollutant it is difficult to regulate. • Health standards often exceeded in urban areas • Effects include • Kills leaf tissue at high concentration • Damage eyes and respiratory system • Even young, healthy people may have breathing difficulty on polluted days

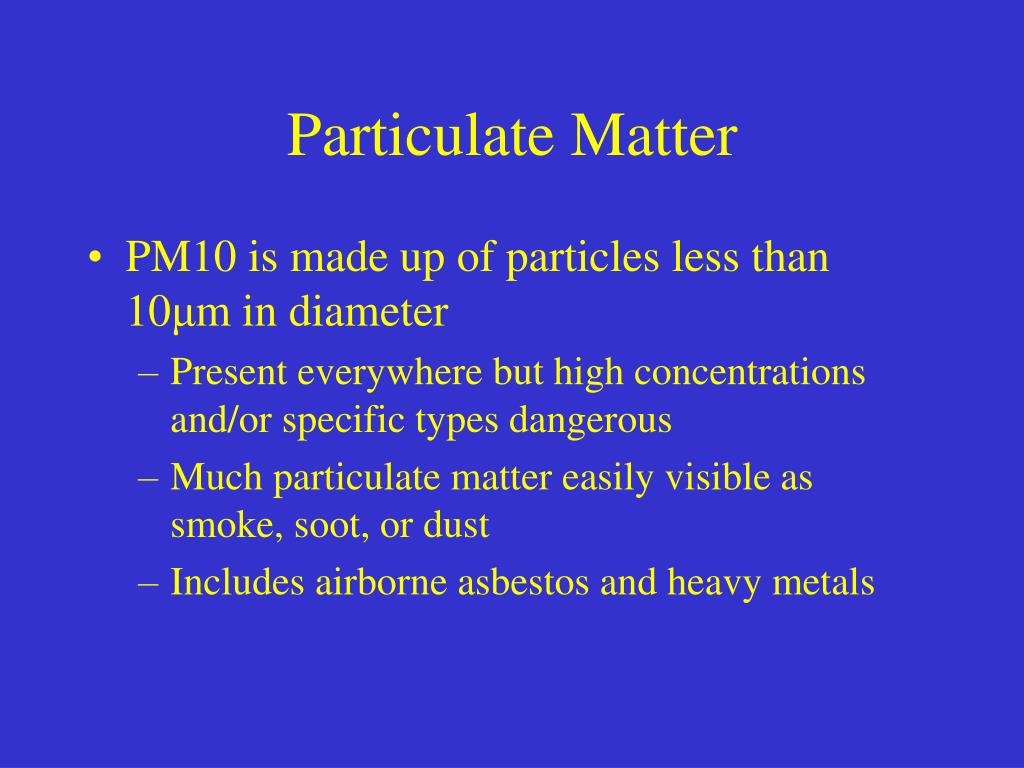

  23. Particulate Matter • PM10 is made up of particles less than 10μm in diameter • Present everywhere but high concentrations and/or specific types dangerous • Much particulate matter easily visible as smoke, soot, or dust • Includes airborne asbestos and heavy metals

  24. Particulate Matter • Of particular concern are very fine pollutants • PM 2.5- less than 2.5 μm in diameter • Easily inhaled into the lungs, then absorbed into the bloodstream • Ultrafine particles- <0.18 μm released by automobiles. • Related to heart disease

  25. Particulate Matter • When measured often referred to as total suspended particles (TSPs) • Tend to be highest in large cities in developing countries

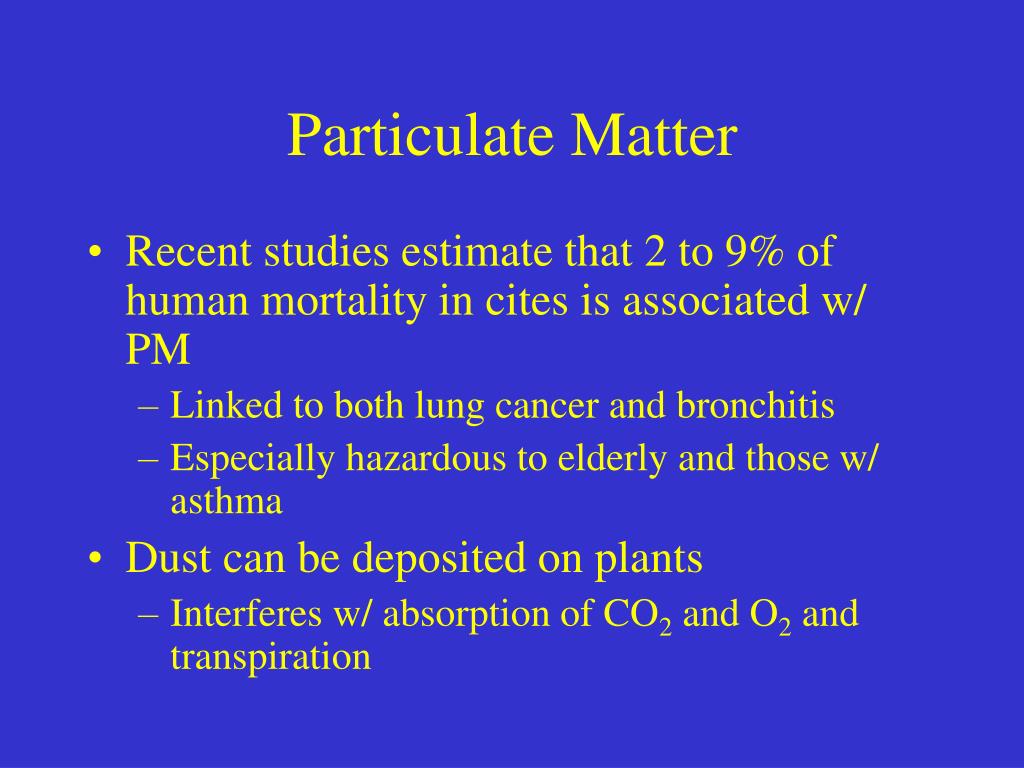

  26. Particulate Matter • Recent studies estimate that 2 to 9% of human mortality in cites is associated w/ PM • Linked to both lung cancer and bronchitis • Especially hazardous to elderly and those w/ asthma • Dust can be deposited on plants • Interferes w/ absorption of CO2 and O2 and transpiration

  27. Particulate Matter • Block sunlight and may cause climate change. • Global dimming • Gradual reduction in the solar energy that reaches the surface of Earth • Cools the atmosphere • Lessens global warming

  28. Lead • Lead is constituent of auto batteries and used to be added to gasoline. • Lead in gas emitted into air w/ exhaust • Spread widely around world in soils and water along roadways • Once in soil can enter the food chain • Lead now removed from gas in US, CAN, EU • 98% reduction in emissions since 1970s

  29. Air Toxics • Among pollutants that are known or suspected to cause cancer or other serious health problems. • Associated w/ long-term and short-term exposures • Gases, metals, and organic chemicals that are emitted in relatively small volumes • Cause respiratory, neurological, reproductive, or immune diseases

  30. Air Toxics • Standards have been set for more than 150 air toxics • E.g. hydrogen sulfide, hydrogen fluoride, chlorine gases, benzene, methanol, ammonia • EPA estimates that the average risk for cancer from exposure to air toxics is about 1 in 21,000

  31. Hydrogen sulfide • Highly toxic corrosive gas easily identified by its rotten egg odor. • Produced from • Natural sources such as geysers, swamps, and bogs • Human sources such as industrial plants that produce petroleum or that smelt metals. • Effects of hydrogen sulfide include • Functional damage to plants • Health problems ranging from toxicity to death for humans and other animals.

  32. Hydrogen Fluoride • Extremely toxic gaseous pollutant • Released by some industrial activities • Such as production of aluminum, coal gasification, and burning of coal in power plants. • Even a small concentration (as low as 1 ppb) of HF may cause problems for plants and animals. • Potentially dangerous to grazing animals because forage plants can become toxic when exposed to this gas.

  33. Methyl Isocyanate • An ingredient of a common pesticide • known in the United States as Sevin. • Colorless gas • Causes severe irritation (burns on contact) to eyes, nose, throat, and lungs. • Breathing the gas in concentrations of only a few ppm causes violent coughing, swelling of the lungs, bleeding, and death. • Less exposure can cause a variety of problems, including loss of sight.

  34. Volatile Organic Compounds • Variety of organic compounds used as solvents in industrial processes • Dry cleaning, degreasing, and graphic arts. • Hydrocarbons • Comprise one group of VOCs. • Thousands of hydrocarbon compounds exist, including natural gas, or methane (CH4); butane (C4H10); and propane (C3H8).

  35. Volatile Organic Compounds • Some VOCs react w/ sunlight to produce photochemical smog • Globally 15% of hydrocarbons emissions are anthropogenic • In the US 50% • Primary human source automobiles

  36. Benzene • Additive in gasoline and an important industrial solvent. • Produced when gasoline and coal undergo incomplete combustion. • Also component of cigarette smoke • Major environmental source on and off road vehicles

  37. Arcolein • A volatile hydrocarbon that is extremely irritating to nose, eyes, and respiratory system. • Produced from • Manufacturing processes that involve combustion of petroleum fuels • Component of cigarette smoke

  38. Variability of Air Pollution • Problems vary in different regions of the country and the world. • LA pollution mainly from mobile sources • Ohio and Great Lakes point sources • Also varies w/ time of year • Smog a problem in summer when there is lots of sunshine • Particulates a problem in dry months

  39. Las Vegas: Particulates • Particulates a problem in arid regions • Where little vegetation is present and wind can easily pick up and transport fine dust. • Brown haze over Las Vegas partly due to naturally occurring PM 10 • 60% of the dust comes from new construction sites, dirt roads, and vacant land.

  40. Haze From Afar • Air quality concerns are not restricted to urban areas. • North slope of AK has an air pollution problem that originates from sources in EE and Eurasia. • Transported by the jet stream. • Significant as we try to understand global air pollution.

  41. Urban Air Pollution • Whether air pollution develops depends on topography and meteorological conditions • Determine the rate at which pollutants are transported away and converted to harmless compounds.

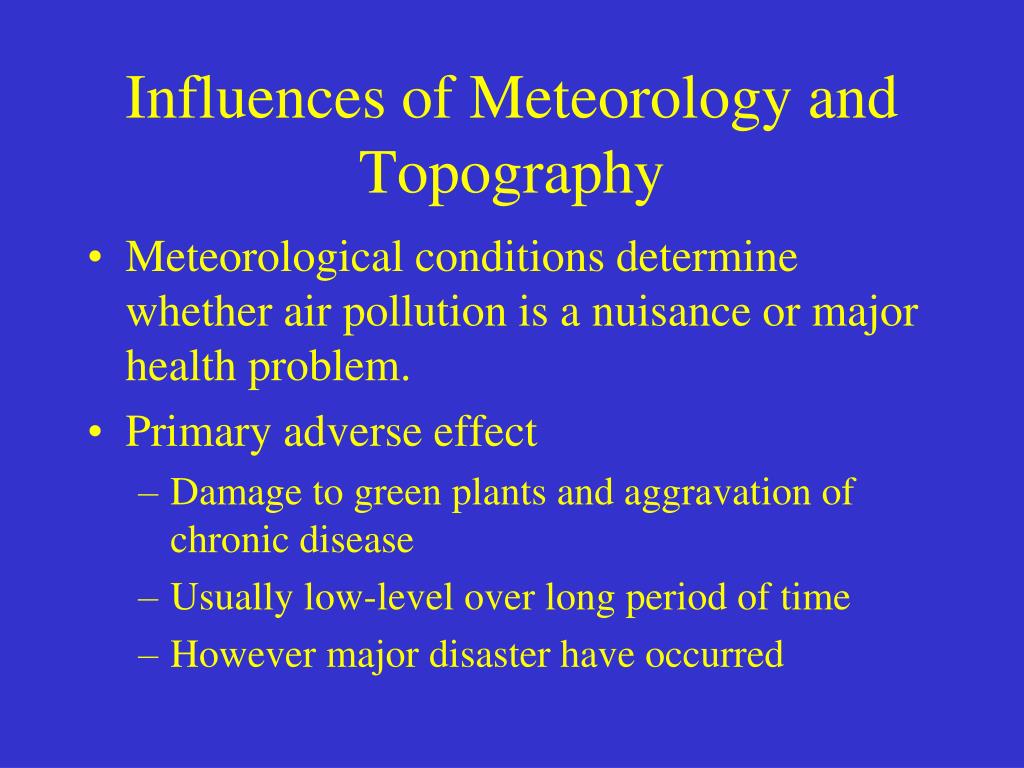

  42. Influences of Meteorology and Topography • Meteorological conditions determine whether air pollution is a nuisance or major health problem. • Primary adverse effect • Damage to green plants and aggravation of chronic disease • Usually low-level over long period of time • However major disaster have occurred
