Raman Effect

Raman Effect. Energy. Virtual Energy Level. h n 0. h n 0 +E vib. h n 0. h n 0 -E vib. h n 0. h n 0. 1 st excited vibrational state ground state. {. D E = E vib. Rayleigh Scattering (elastic). Stokes Scattering (inelastic). anti-Stokes Scattering (superelastic).

Download Presentation

Raman Effect

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Raman Effect Energy Virtual Energy Level hn0 hn0+Evib hn0 hn0-Evib hn0 hn0 1st excited vibrational state ground state { DE = Evib Rayleigh Scattering (elastic) Stokes Scattering (inelastic) anti-Stokes Scattering (superelastic)

  2. Rayleigh Line <Haken & Wolf, “Molekϋlphysik und Quantenchemie”, 4th edition,Springer-Verlag, Berlin 2003>

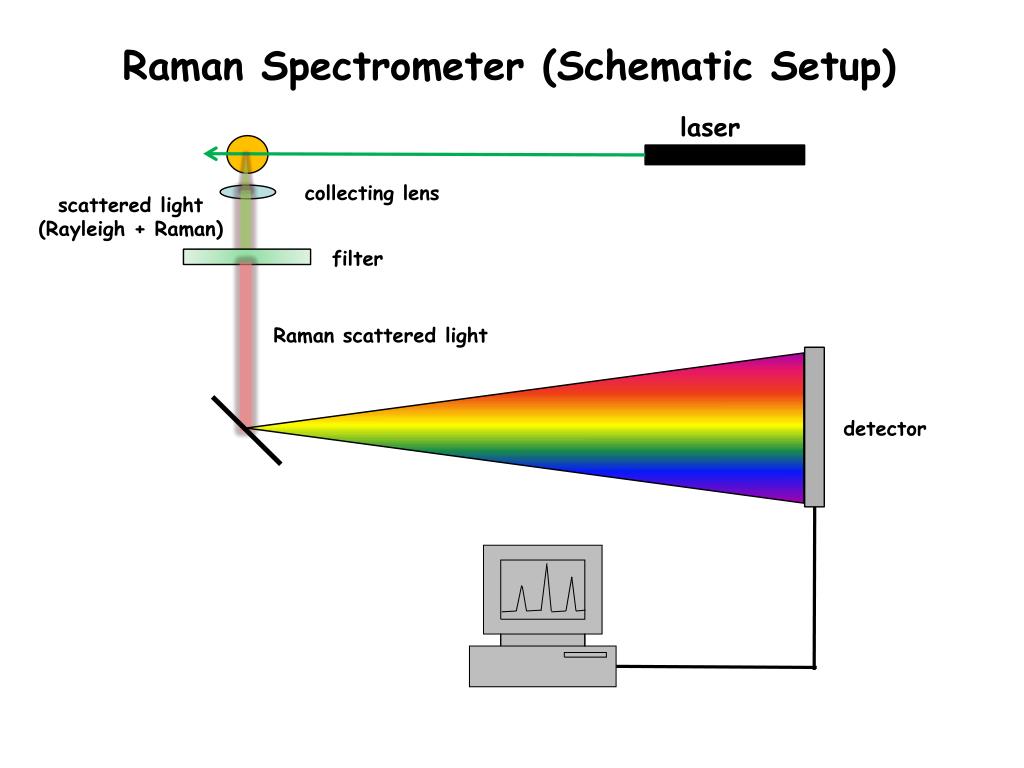

  3. Raman Spectrometer (Schematic Setup) laser collecting lens scattered light (Rayleigh + Raman) filter Raman scattered light detector

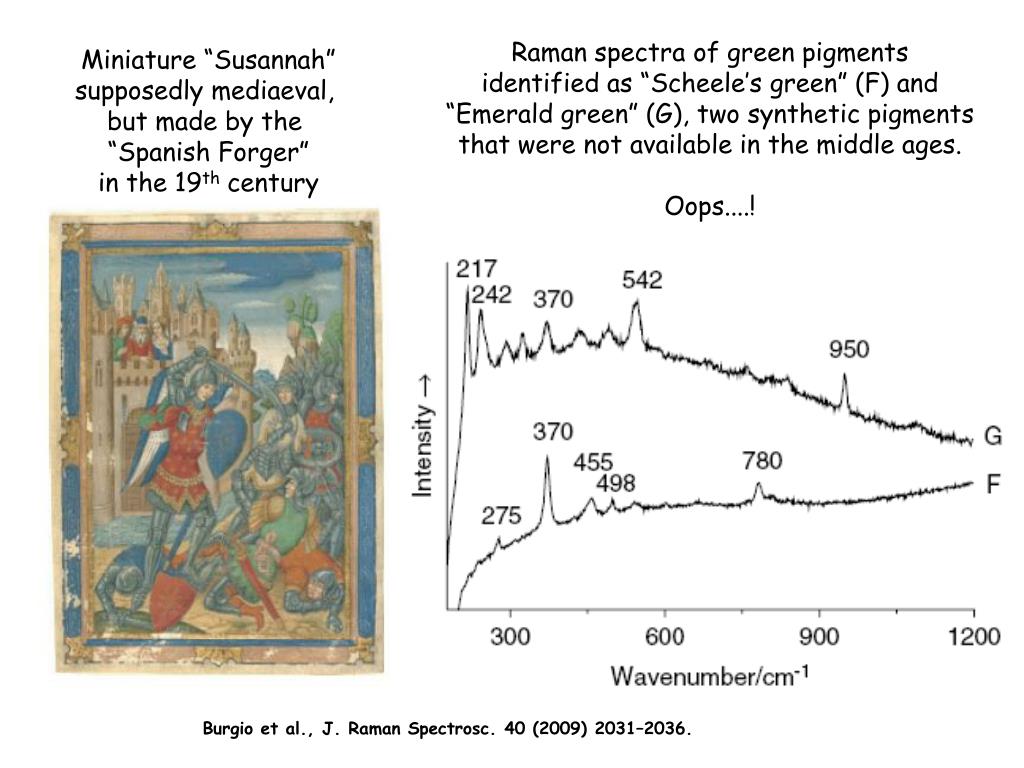

  4. Raman spectra of green pigments identified as “Scheele’s green” (F) and “Emerald green” (G), two synthetic pigments that were not available in the middle ages. Oops....! Miniature “Susannah” supposedly mediaeval, but made by the “Spanish Forger” in the 19th century Burgio et al., J. Raman Spectrosc. 40 (2009) 2031–2036.
