Emphysema

Emphysema. 1. What is Emphysema?. Specifically, two things combined:. Permanent abnormal enlargement of the acini ( acinius , Latin for “berry”) (MedicineNet, 1999) Destruction of alveolar walls without obvious fibrosis (McCance & Huether, 2006).

cade-ballard
Download Presentation

Emphysema

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

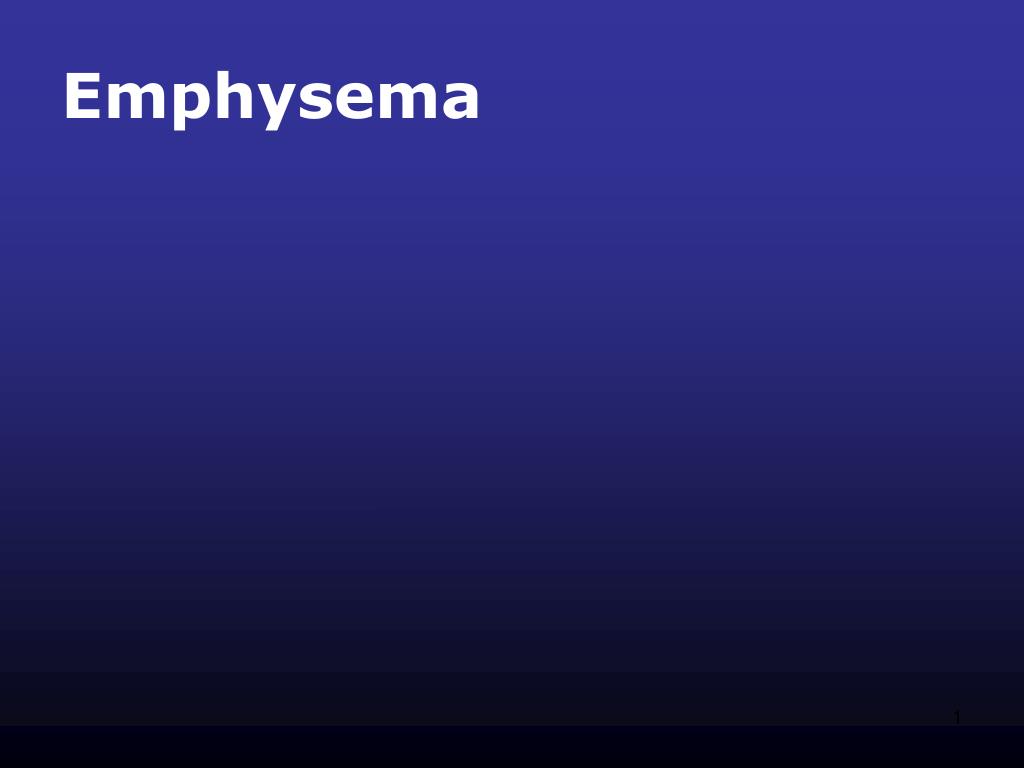

  1. Emphysema 1

  2. What is Emphysema? Specifically, two things combined: • Permanent abnormal enlargement of the acini (acinius, Latin for “berry”) (MedicineNet, 1999) • Destruction of alveolar walls without obvious fibrosis (McCance & Huether, 2006) (as opposed to something like Asbestosis: http://en.wikipedia.org/wiki/Asbestosis) Image from www.nucleusinc.com 2

  3. Two kinds of emphysema Primary emphysema • 1-2% of cases • Inherited lack of alpha-1 antitrypsin, a protective protein (inhibits neutrophil elastase) Secondary emphysema • Also caused by inability to inhibit proteolytic enzymes in the lungs • From inhaled toxins (e.g., cigarette smoke) • 20% of smokers at risk (McCance & Huether, 2006) 3

  4. Secondary Emphysema: Pathophysiology • Toxins (smoke) cause inflammation • Infiltration of neutrophils, macrophages and lymphocytes • Inflammatory cytokines increase protease activity, inhibiting normal antiprotease activity (antitrypsin) • Alveoli are destroyed because elastin is being broken down by proteases (McCance & Huether, 2006) 4

  5. Acinius Normal vs. Emphysema 5

  6. Emphysema & Normal Alveoli • Loss of septa • Loss of capillary beds • Hyperinflation • Loss of elastic recoil & collapse of alveoli • Increased residual volume • Decreased diffusion • (lower SA/Volume ) 6

  7. Bullous Emphesyma “Bullae are large dilated airspaces that bulge out from beneath the pleura.” [Image and quote from http://medlib.med.utah.edu/WebPath/LUNGHTML/LUNG056.html] 7

  8. Centriacinar (centrilobar) Emphysema Respiratory bronchioles in proximal portion of acinus are lost Alveoli distal to terminal bronchiole intact Occurs in smokers with chronic bronchitis Usually in upper lobes 8

  9. Emphysema: Clinical Manifestations • Dyspnea • Wheezing is minimal • Barrel chest, often thin • Tachpynea with prolonged expiration • Pursed lip breathing • Tripod stance • Hypoxemia &/or hypercapnia • Chronic hypoventilation (later stage) • Not much coughing with little sputum (Productive cough with infection) 9

  10. COPD: Chronic Bronchitis & Emphysema 10

  11. Barrel Chest: Increased Anterior/Posterior Diameter 11

  12. Radiograph: Emphysema, Pulmonary hypertension, Cardiomegaly • Flattened diaphragm • Hyperinflation • Translucency of lung • Hypertrophy of heart • (Hypoxia/ hypercapnea & damage = pulmonary vasoconstriction & hypertension. • Later cor pulmonale) 12

  13. Clubbing of the Nails A sign of chronic hypoxia 13

  14. Normal Spirograph FEV1/VC normally greater than 75% (per Walters presentation) Emphysema Spirograph Decreased FEV1/VC Total Lung Capacity normal or increased RV increased 14
