Presentation Transcript


  1. Biochemistry • Robert F. Waters PhD.

  2. Porphyrin Rings • Produced mainly in: • Liver • Erythrocyte producing cells of bone marrow • Not mature erythrocytes (lack of mitochondria) • Initial step and last three steps are in the mitochondria • Glycine and Succinyl CoA are precursors • Hemin is feedback inhibitor of -aminolevulinic dehydrase (ALA) (-delta) • Lead is inhibitor of this pathway

  3. Porphyrin Uses • Cytochromes • P450, b5, ETS • Hemoglobin

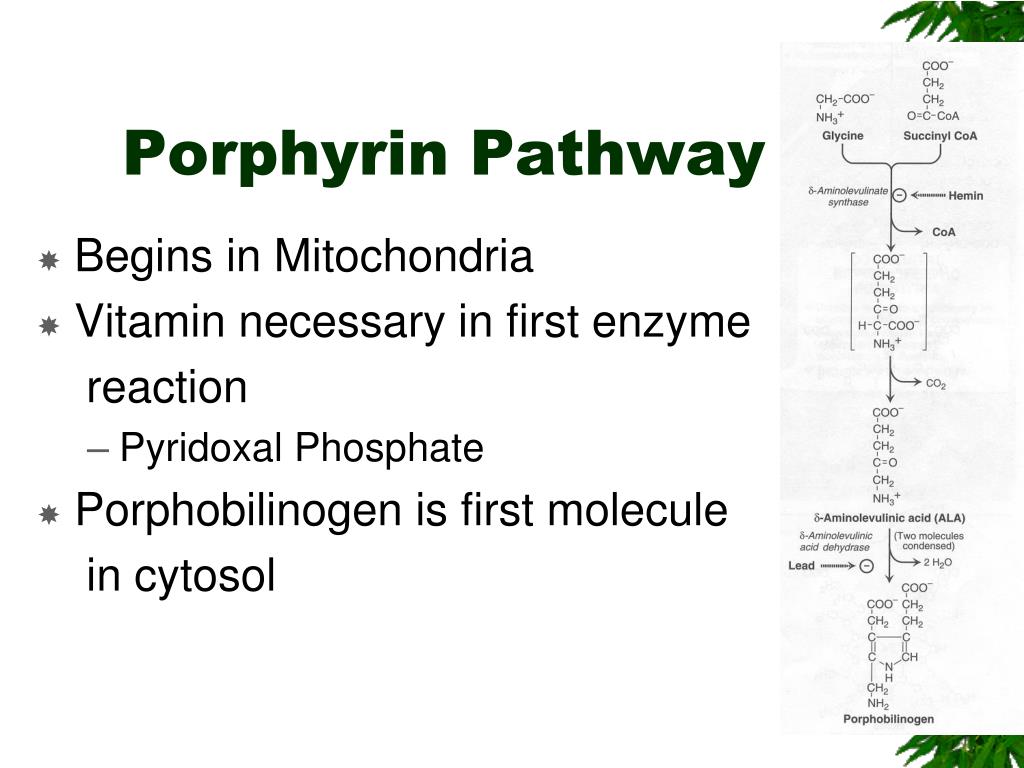

  4. Porphyrin Pathway • Begins in Mitochondria • Vitamin necessary in first enzyme reaction • Pyridoxal Phosphate • Porphobilinogen is first molecule in cytosol

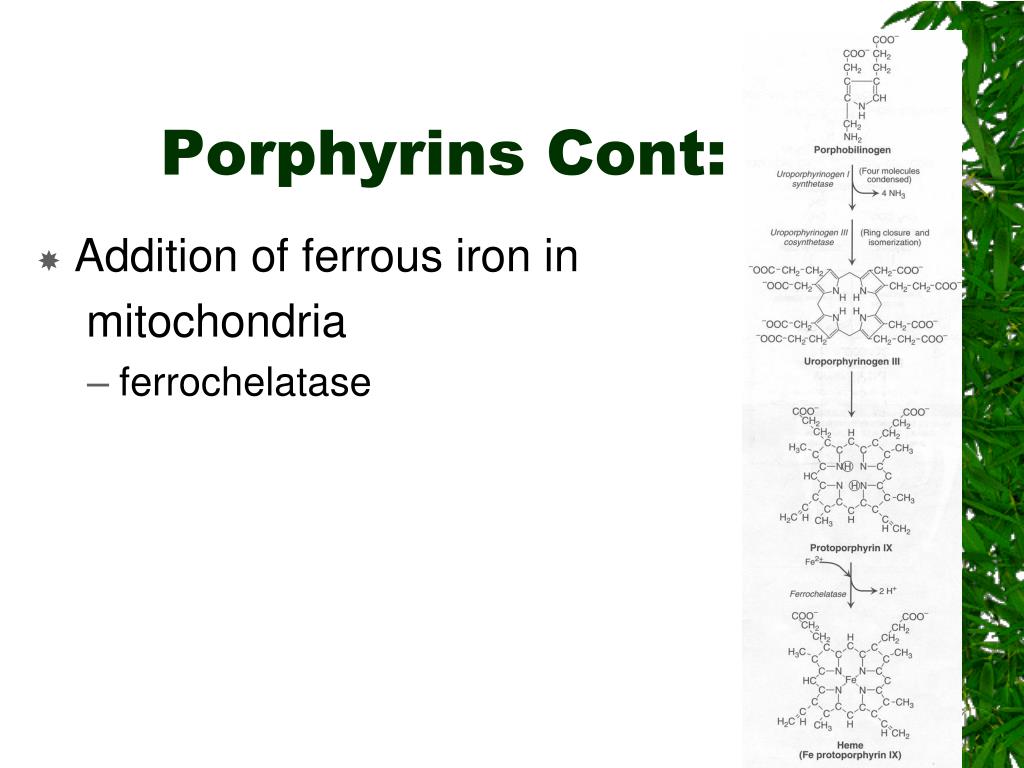

  5. Porphyrins Cont: • Addition of ferrous iron in mitochondria • ferrochelatase

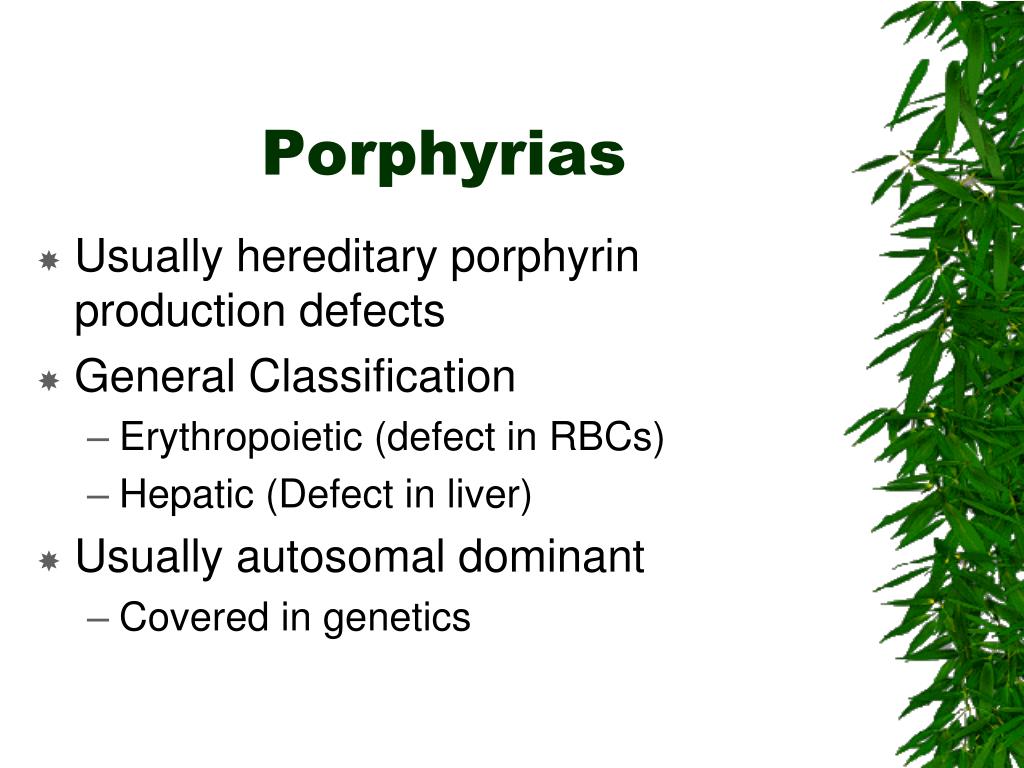

  6. Porphyrias • Usually hereditary porphyrin production defects • General Classification • Erythropoietic (defect in RBCs) • Hepatic (Defect in liver) • Usually autosomal dominant • Covered in genetics

  7. Heme Degradation • First product is biliverdin (open ring) • Heme oxygenase • Biliverdin plus CO yields bilirubin • Biliverdin reductase • NADP • Bilirubin • Gut (microbial enzymes act on bilirubin) • Produce Urobilinogen • Absorbed and carried to liver to produce Urobilin • Yellow color • Large intestine further microbial enzymes produce Stercobilin • Characteristic brown color • Liver • Conjugation with 2 moles of glucuronic acid • Glucuronyl bilirubin transferase • Forms bilirubin diglucuronide (polar and soluble) • detox

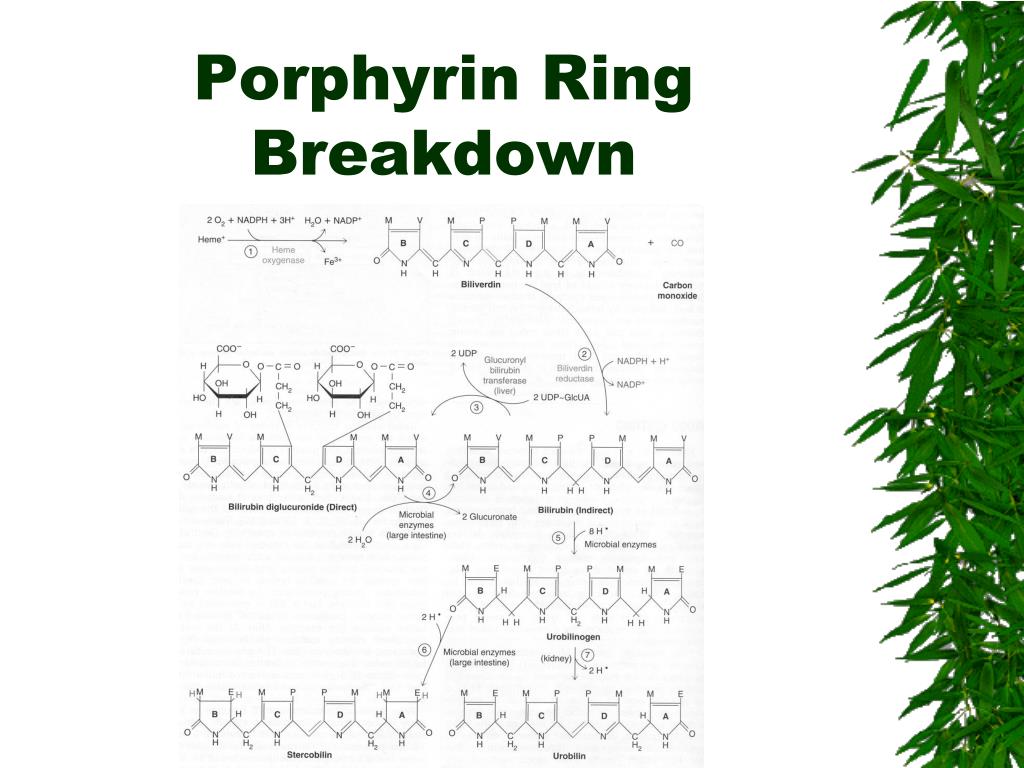

  8. Porphyrin Ring Breakdown

  9. Jaundice • Hemolytic • Response to sickle cell anemia • Glycolytic enzyme deficiencies • Erythroblastosis foetalis • Obstructive • Hepatic tumor • Pale stools • GI pain, nausea • Hepatocellular • Liver damage • Cirrhosis, hepatitis • Urine dark, stools pale (liver regurgitates conjugated bilirubin into blood and then into urine) • Elevated AST (SGOT) and ALT (SGPT)

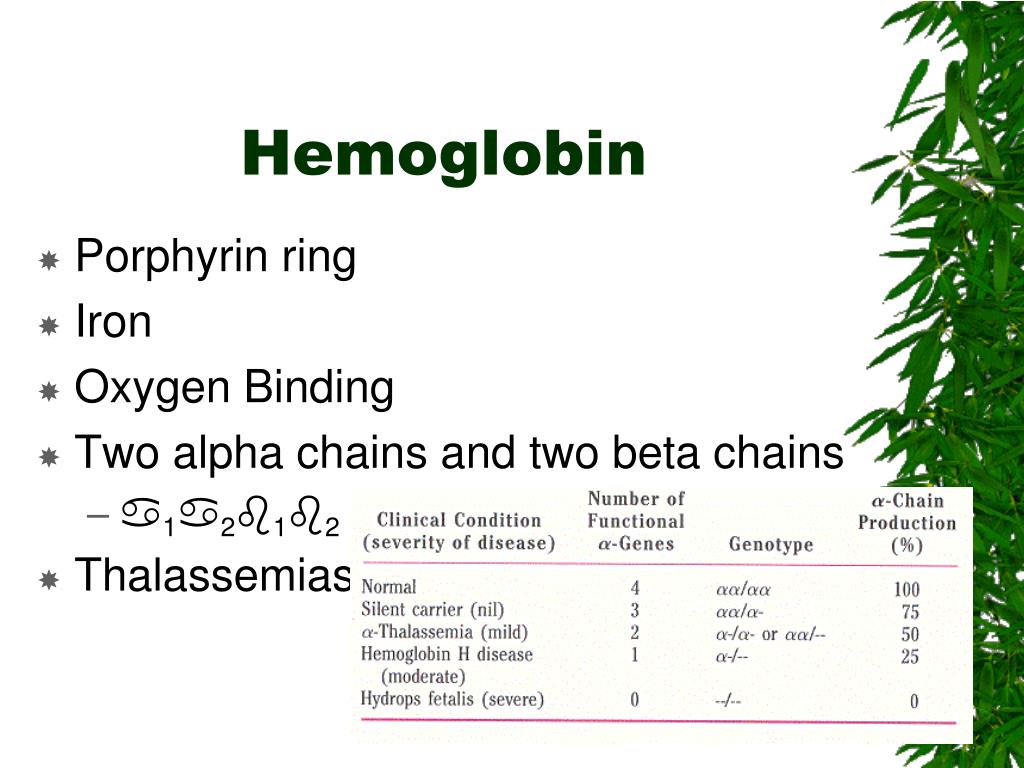

  10. Hemoglobin • Porphyrin ring • Iron • Oxygen Binding • Two alpha chains and two beta chains • 1212 • Thalassemias

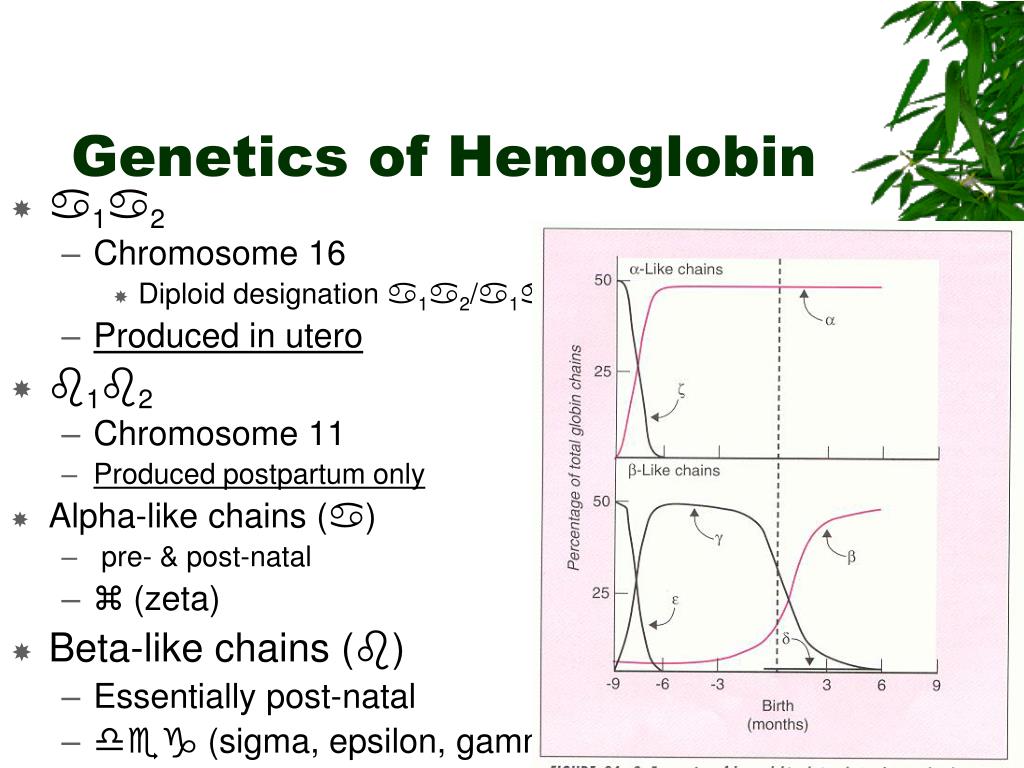

  11. Genetics of Hemoglobin • 12 • Chromosome 16 • Diploid designation 12/12 • Produced in utero • 12 • Chromosome 11 • Produced postpartum only • Alpha-like chains () • pre- & post-natal •  (zeta) • Beta-like chains () • Essentially post-natal •  (sigma, epsilon, gamma)

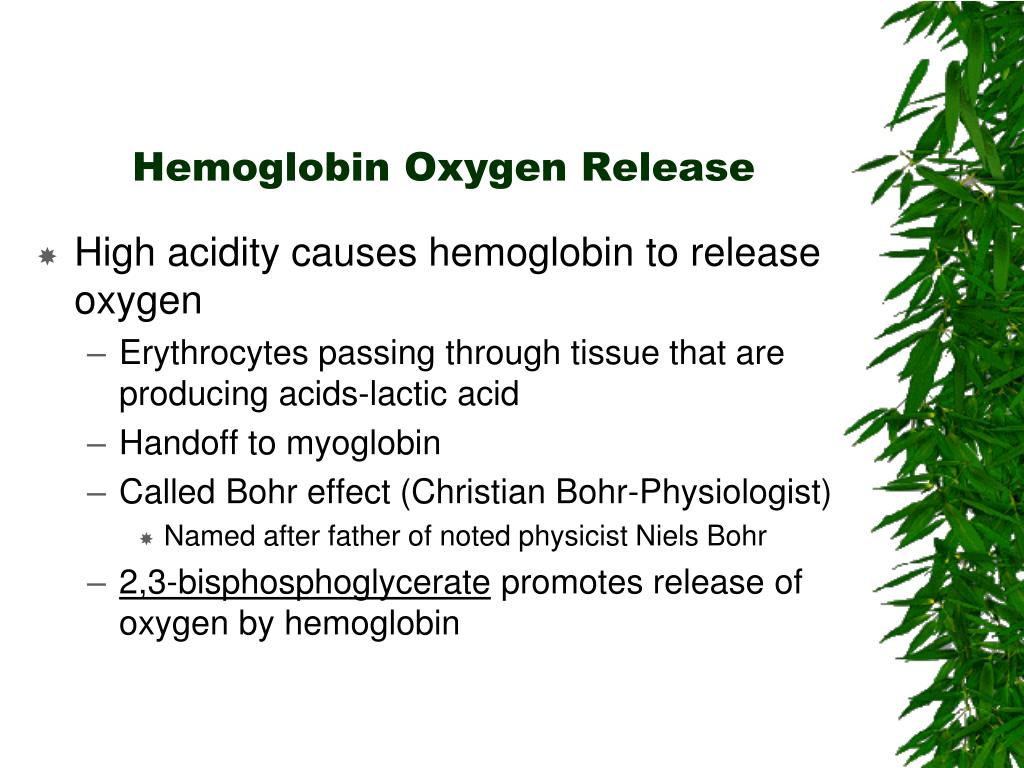

  12. Hemoglobin Oxygen Release • High acidity causes hemoglobin to release oxygen • Erythrocytes passing through tissue that are producing acids-lactic acid • Handoff to myoglobin • Called Bohr effect (Christian Bohr-Physiologist) • Named after father of noted physicist Niels Bohr • 2,3-bisphosphoglycerate promotes release of oxygen by hemoglobin

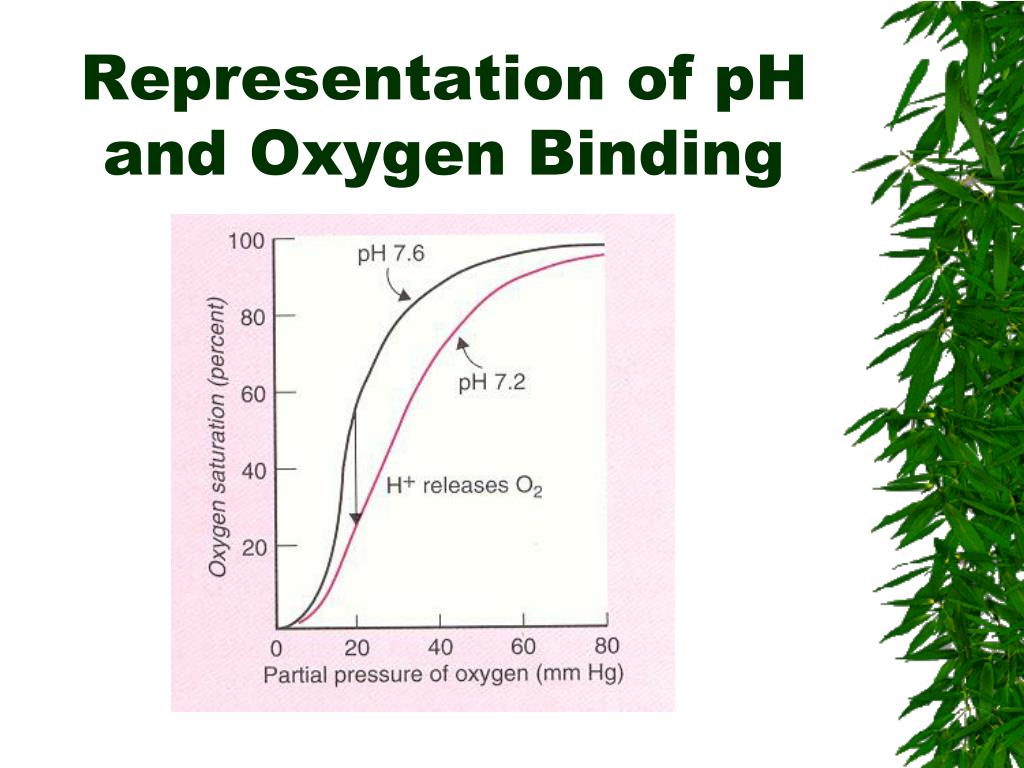

  13. Representation of pH and Oxygen Binding

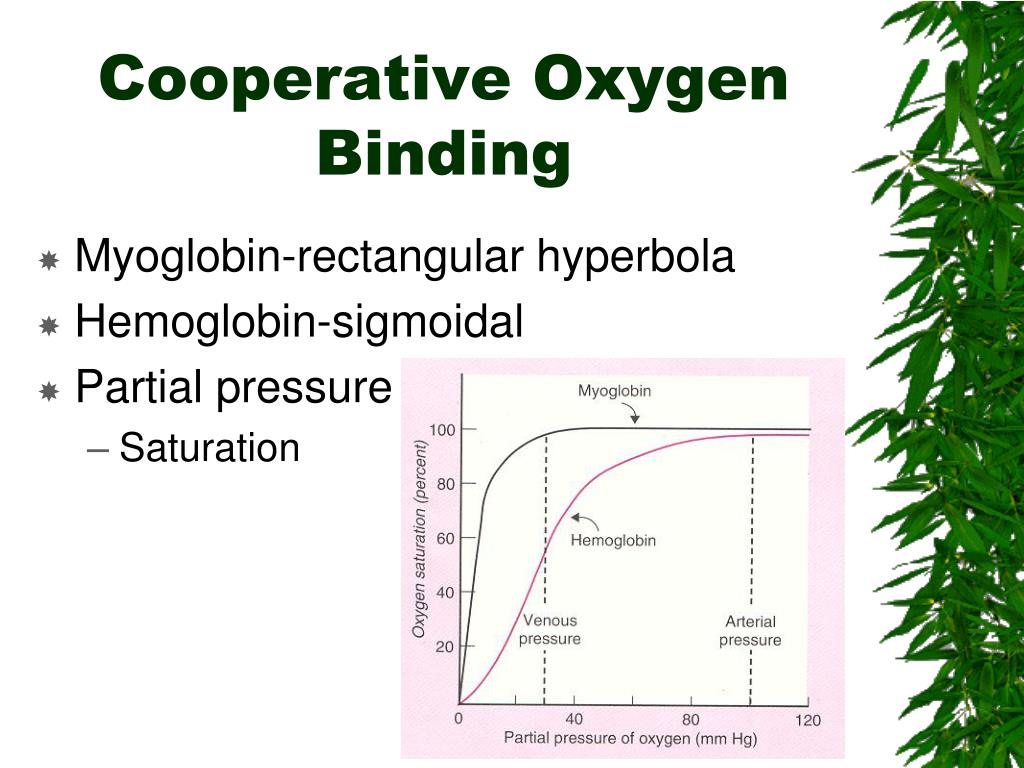

  14. Cooperative Oxygen Binding • Myoglobin-rectangular hyperbola • Hemoglobin-sigmoidal • Partial pressure • Saturation

  15. Structure of Hemoglobin

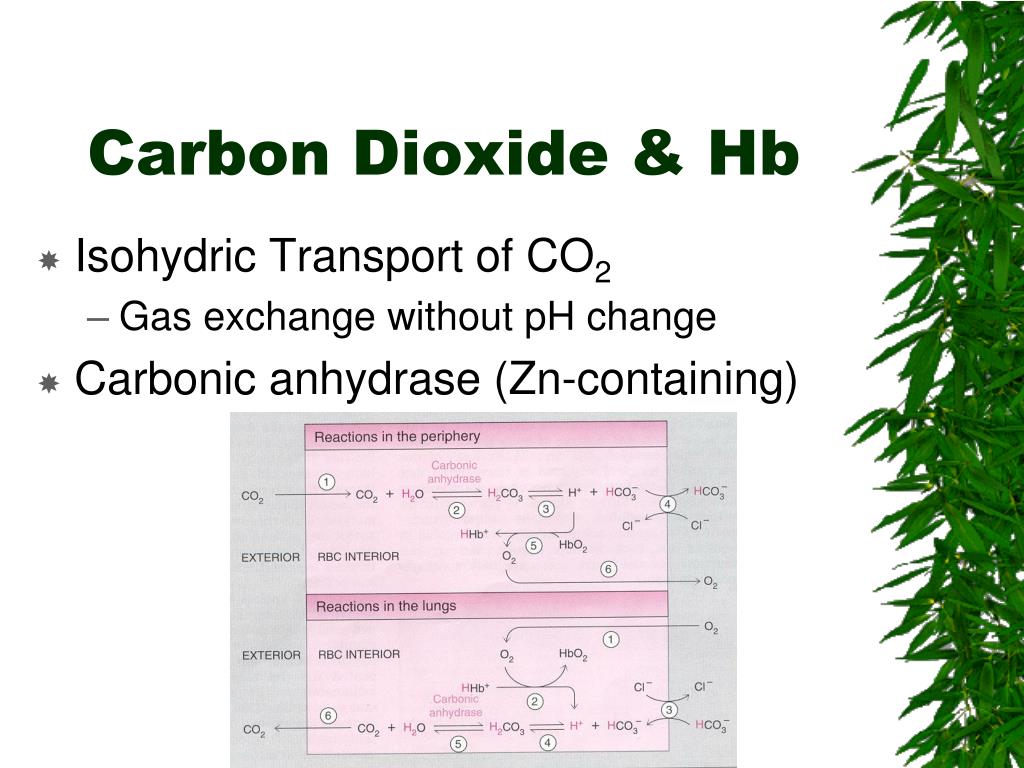

  16. Carbon Dioxide & Hb • Isohydric Transport of CO2 • Gas exchange without pH change • Carbonic anhydrase (Zn-containing)

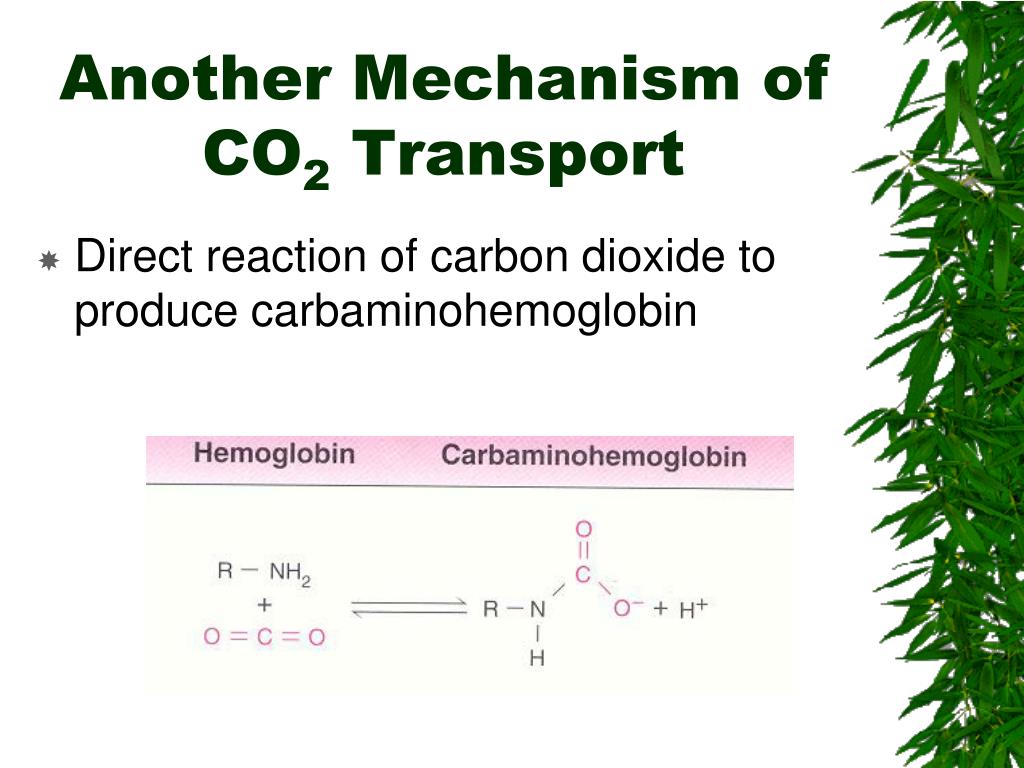

  17. Another Mechanism of CO2 Transport • Direct reaction of carbon dioxide to produce carbaminohemoglobin

  18. Genetics Overview • -psi pseudo-genes • Mutations (mutated) such that they do not produce a functional protein • -zeta

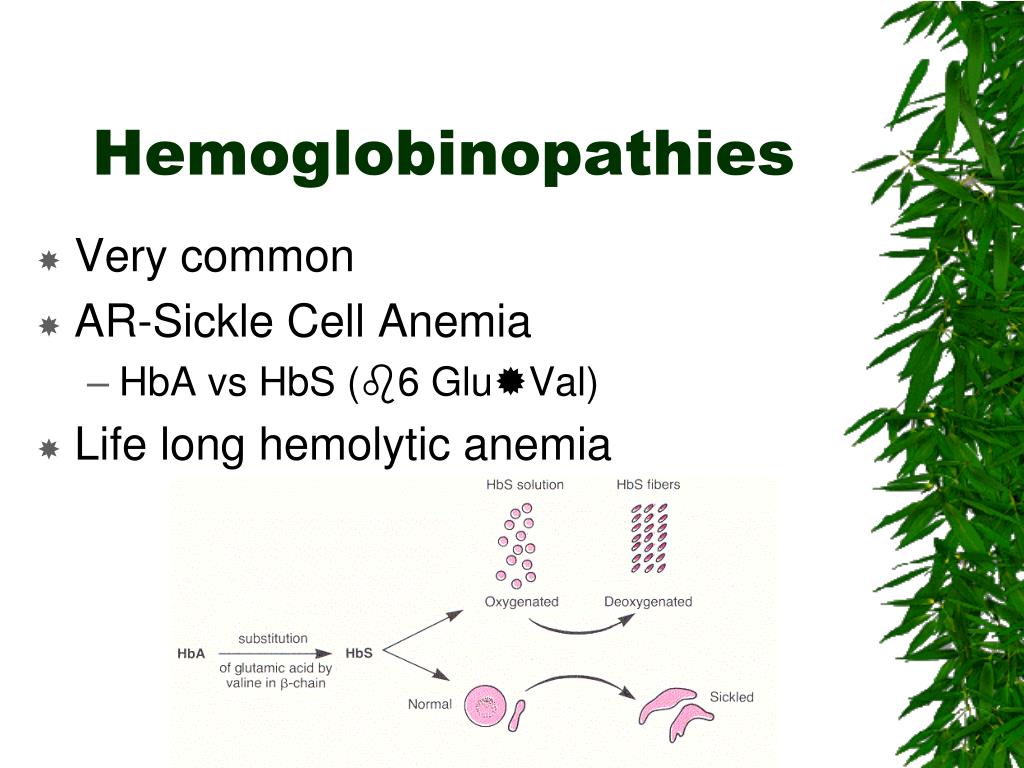

  19. Hemoglobinopathies • Very common • AR-Sickle Cell Anemia • HbA vs HbS (6 GluVal) • Life long hemolytic anemia

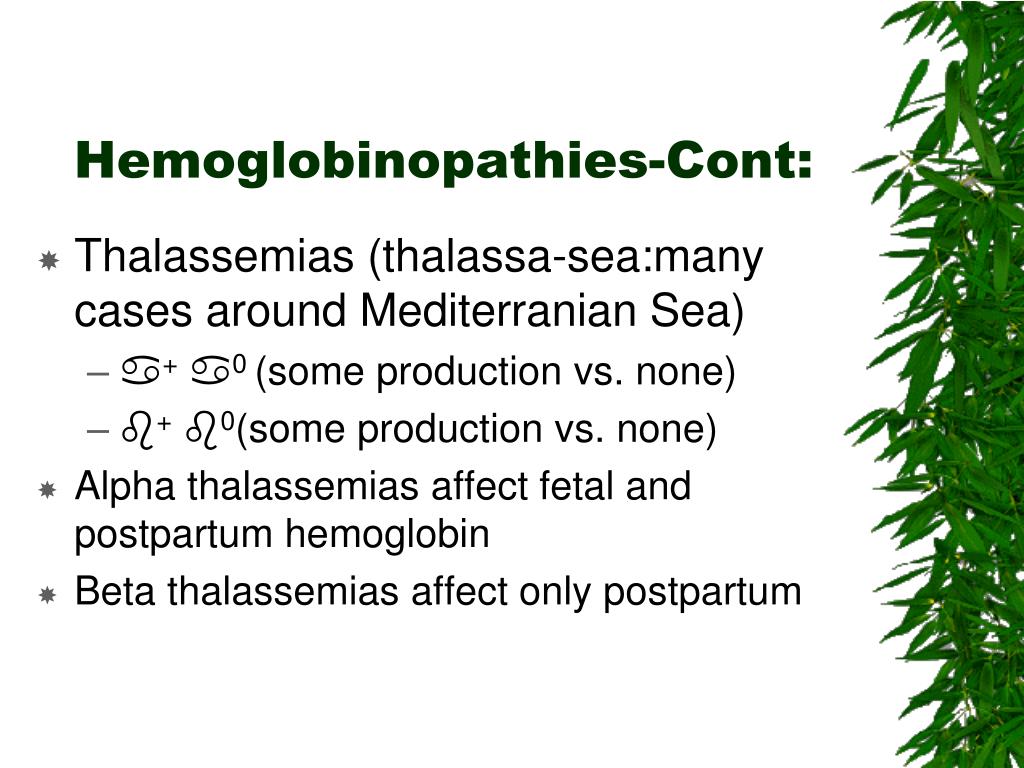

  20. Hemoglobinopathies-Cont: • Thalassemias (thalassa-sea:many cases around Mediterranian Sea) • + 0 (some production vs. none) • + 0(some production vs. none) • Alpha thalassemias affect fetal and postpartum hemoglobin • Beta thalassemias affect only postpartum

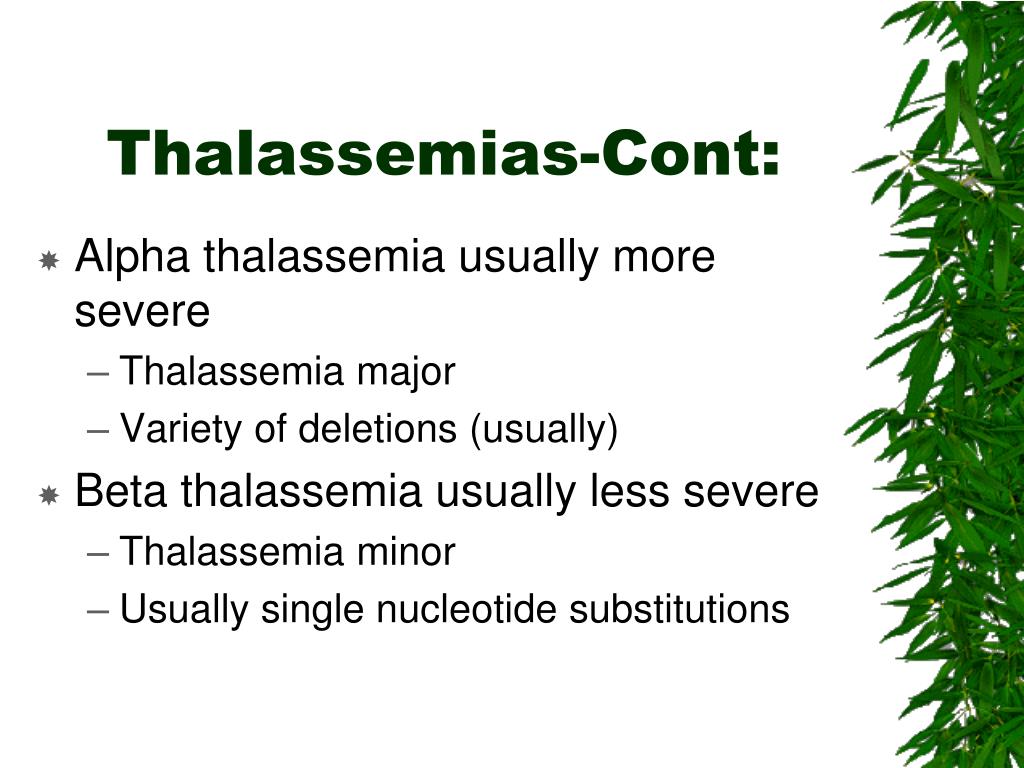

  21. Thalassemias-Cont: • Alpha thalassemia usually more severe • Thalassemia major • Variety of deletions (usually) • Beta thalassemia usually less severe • Thalassemia minor • Usually single nucleotide substitutions

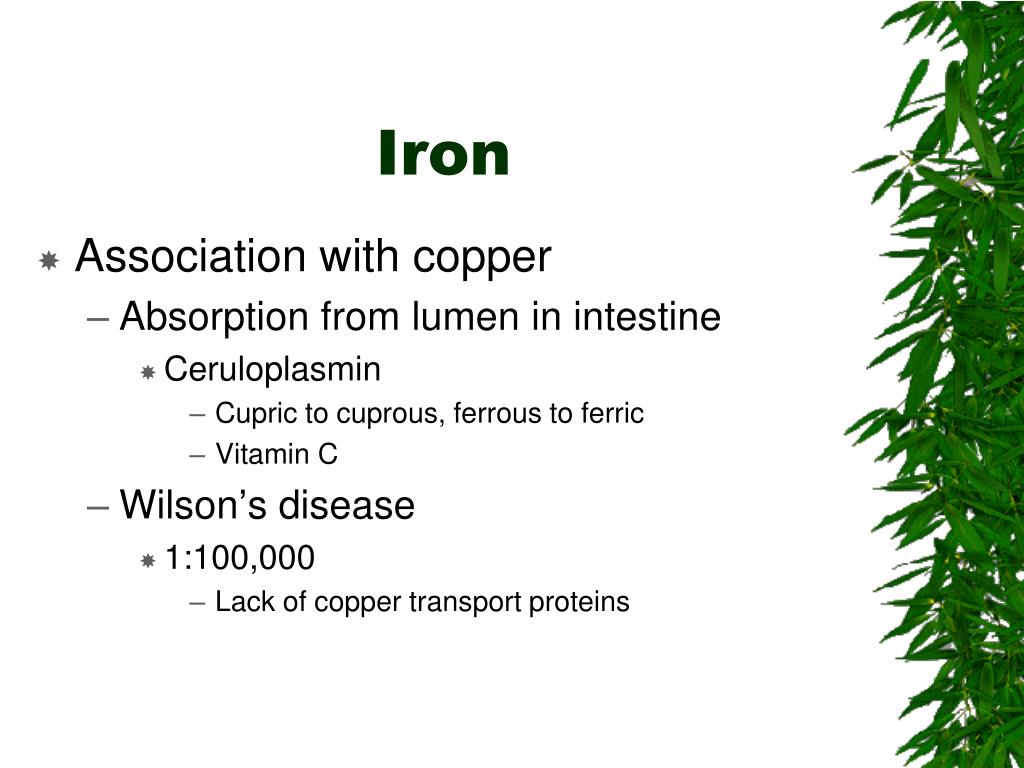

  22. Iron • Association with copper • Absorption from lumen in intestine • Ceruloplasmin • Cupric to cuprous, ferrous to ferric • Vitamin C • Wilson’s disease • 1:100,000 • Lack of copper transport proteins

  23. Iron Contained in:Some Examples • Hemoglobin, myoglobin • NO binding, guanylate cyclase • ETS hemes • Cytochrome b5 in desaturation • Iron-sulfur (Complex I, aconitase, xanthine oxidase, ferrochelatase (heme synth.) • Phenylalaine hydroxylase, tyrosine hydroxylase, dioxygenases • Etc.

  24. Proteins and Iron • Iron binding proteins • Transferrin (Fe3+), Lactoferrin (Fe3+), Ferritin (Fe3+), Hemosiderin (Fe3+) • Proteins that use iron as substrate • Ferroxidase (Fe2+/Fe3+)-adrenals, Ferrochelatase (Fe2+)-porphyrins • Protein that uses heme as substrate • Heme oxygenase (biliverdin)

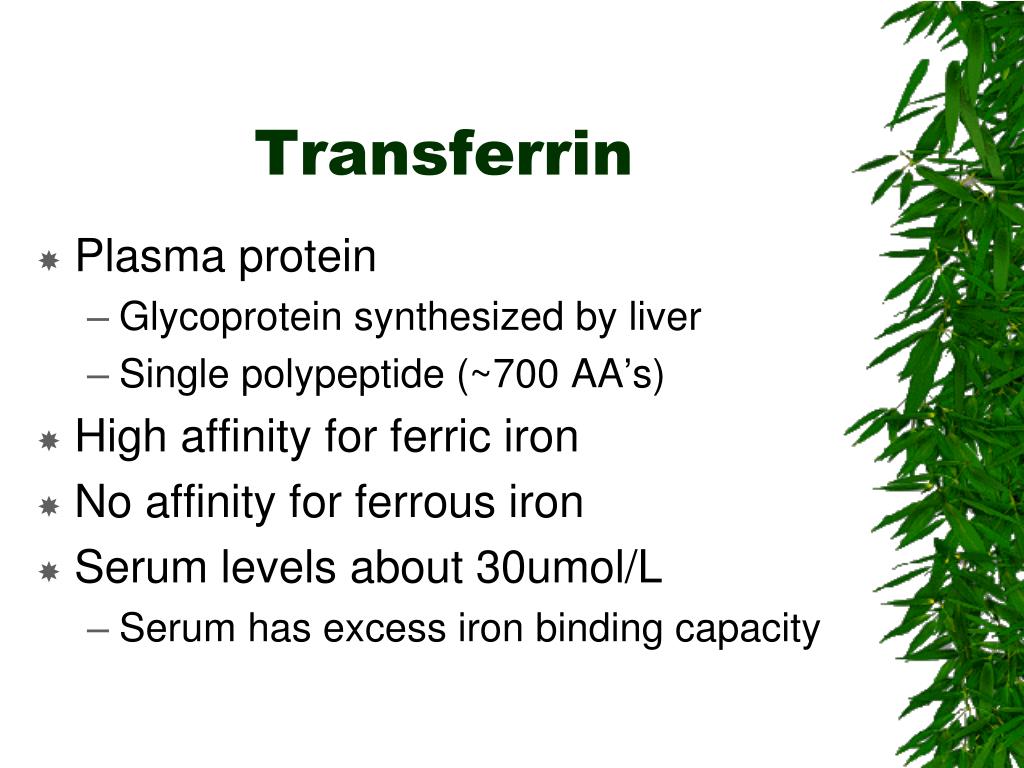

  25. Transferrin • Plasma protein • Glycoprotein synthesized by liver • Single polypeptide (~700 AA’s) • High affinity for ferric iron • No affinity for ferrous iron • Serum levels about 30umol/L • Serum has excess iron binding capacity

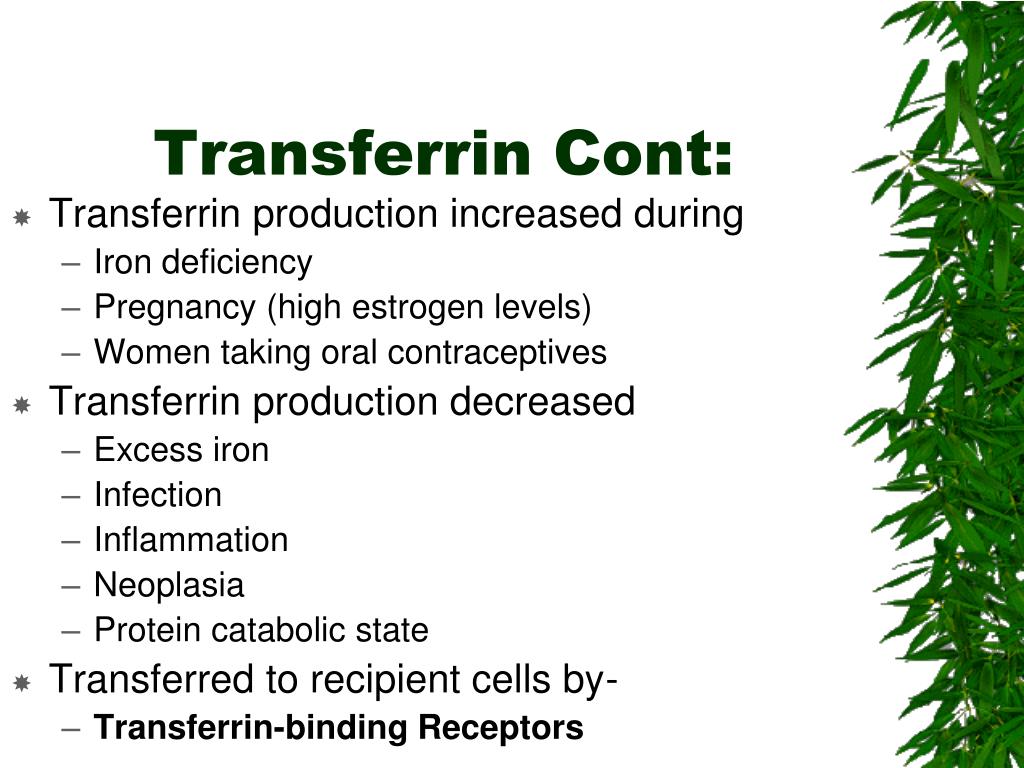

  26. Transferrin Cont: • Transferrin production increased during • Iron deficiency • Pregnancy (high estrogen levels) • Women taking oral contraceptives • Transferrin production decreased • Excess iron • Infection • Inflammation • Neoplasia • Protein catabolic state • Transferred to recipient cells by- • Transferrin-binding Receptors

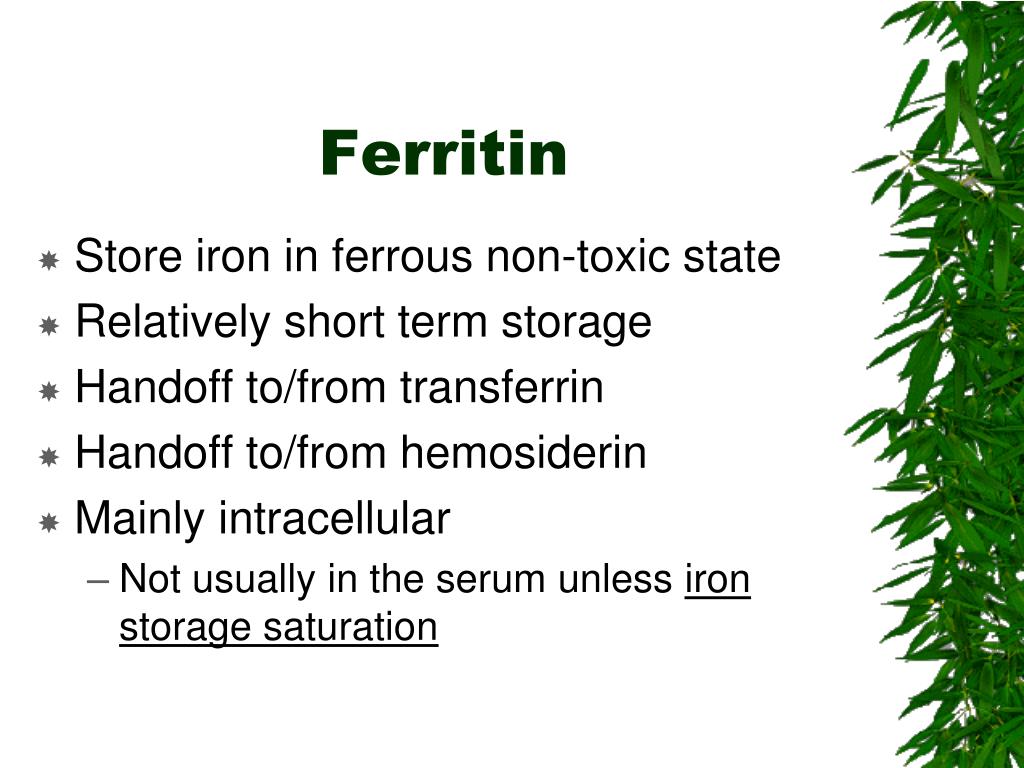

  27. Ferritin • Store iron in ferrous non-toxic state • Relatively short term storage • Handoff to/from transferrin • Handoff to/from hemosiderin • Mainly intracellular • Not usually in the serum unless iron storage saturation

  28. Other Transport Proteins • Exist during high iron overload, ineffective erythropoiesis (hemes/hemoglobin in serum), hemolytic anemia, etc. • Examples • Haptoglobin • Bind free (serum) oxyhemoglobin dimers • Brought into hepatocytes by receptor mediated endocytosis • Hemopexin and albumen bind free hemes • Lactoferrin (neutrophils, secretory epithelial secretions (milk)

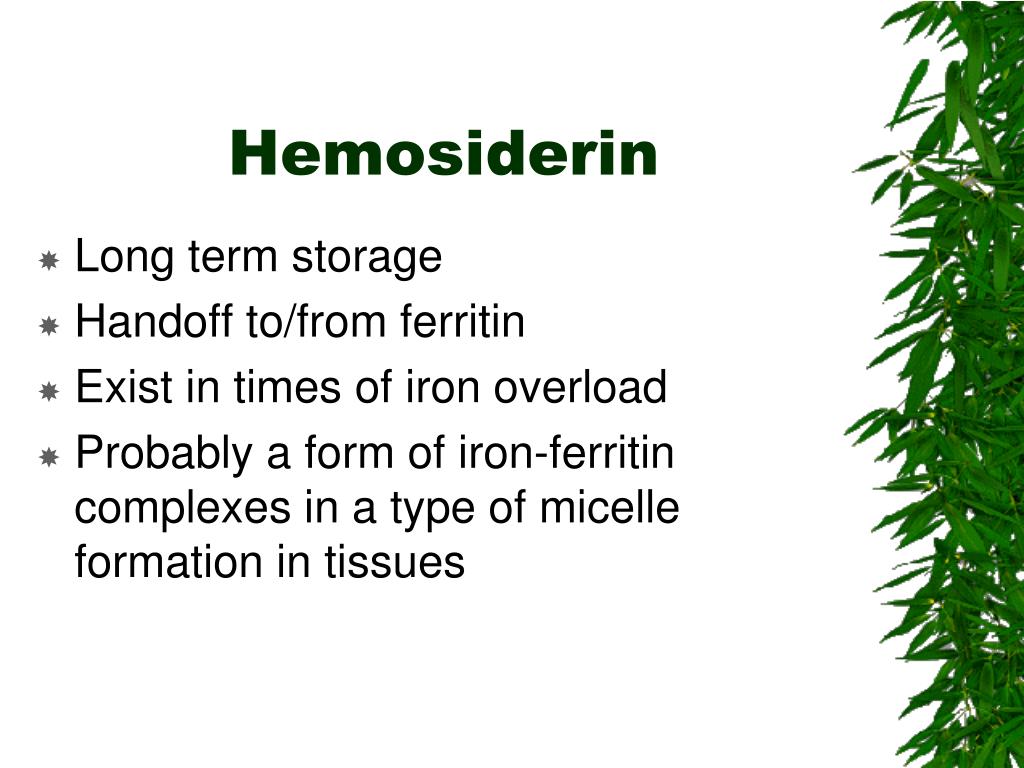

  29. Hemosiderin • Long term storage • Handoff to/from ferritin • Exist in times of iron overload • Probably a form of iron-ferritin complexes in a type of micelle formation in tissues

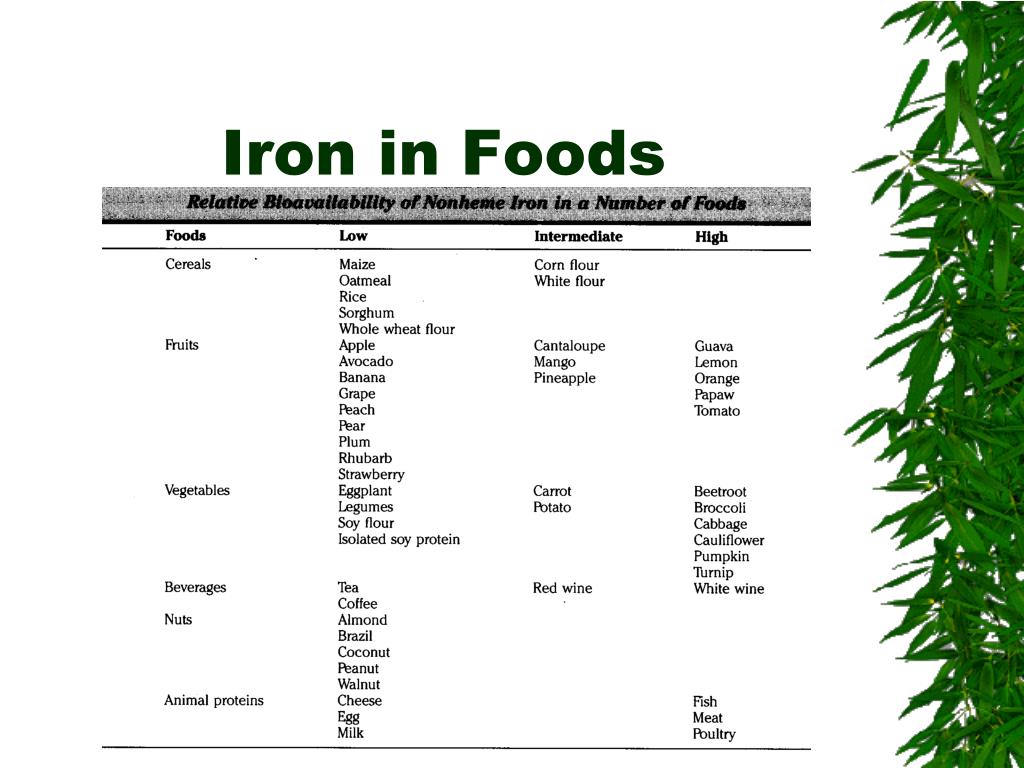

  30. Iron in Foods

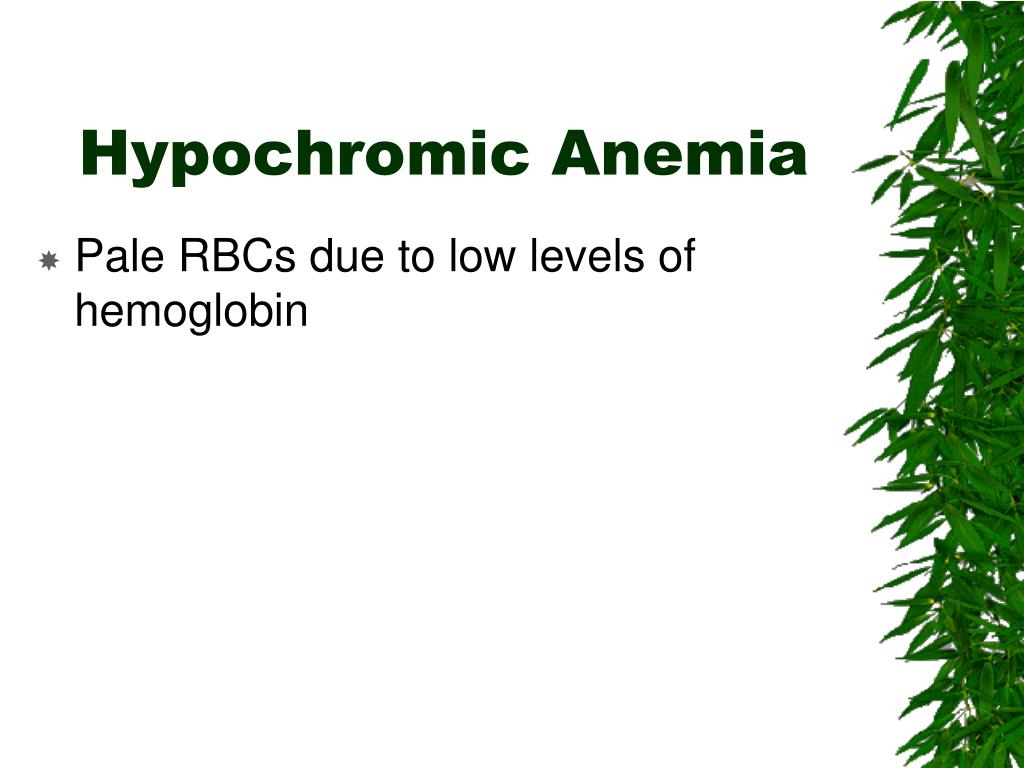

  31. Hypochromic Anemia • Pale RBCs due to low levels of hemoglobin

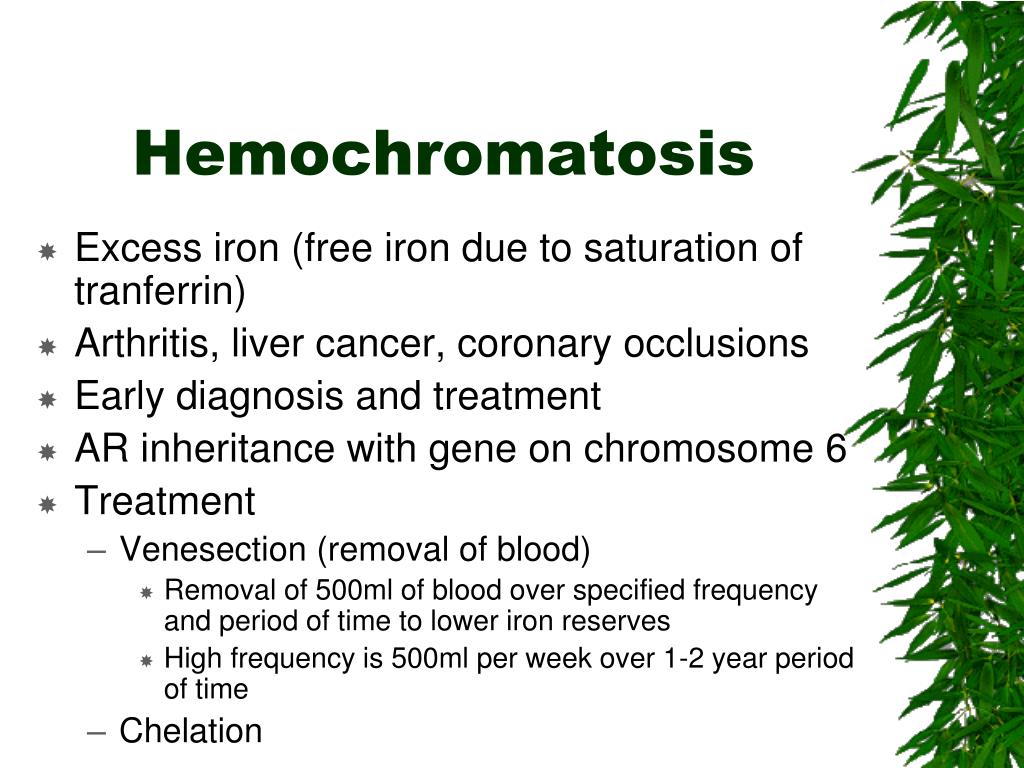

  32. Hemochromatosis • Excess iron (free iron due to saturation of tranferrin) • Arthritis, liver cancer, coronary occlusions • Early diagnosis and treatment • AR inheritance with gene on chromosome 6 • Treatment • Venesection (removal of blood) • Removal of 500ml of blood over specified frequency and period of time to lower iron reserves • High frequency is 500ml per week over 1-2 year period of time • Chelation

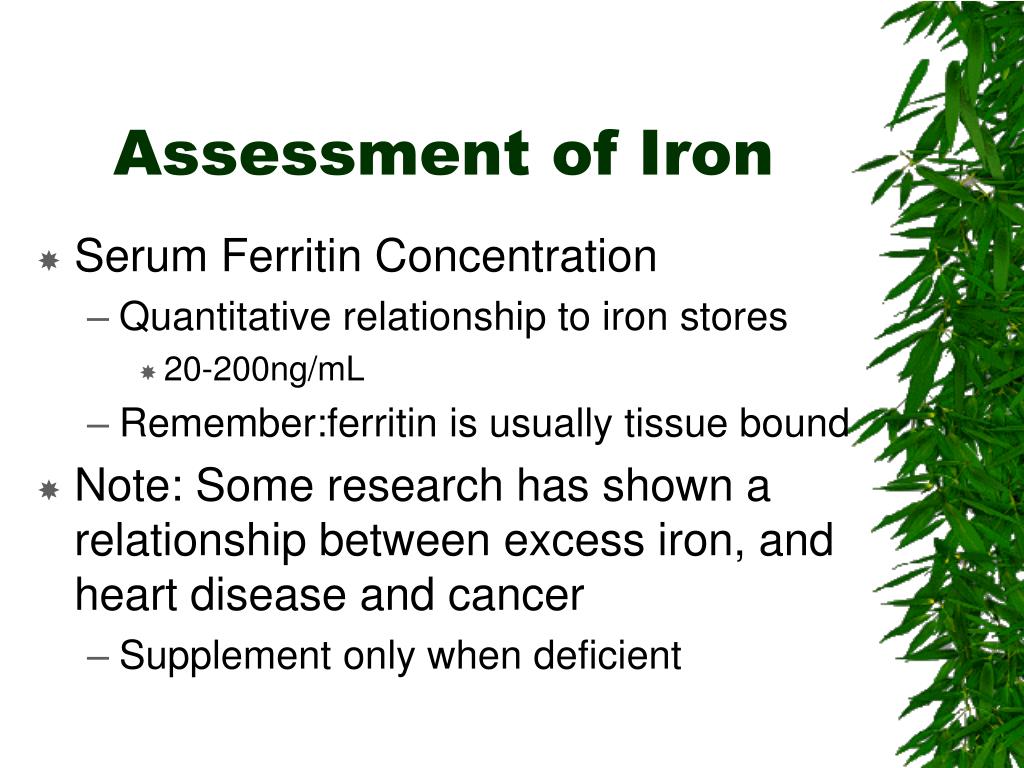

  33. Assessment of Iron • Serum Ferritin Concentration • Quantitative relationship to iron stores • 20-200ng/mL • Remember:ferritin is usually tissue bound • Note: Some research has shown a relationship between excess iron, and heart disease and cancer • Supplement only when deficient

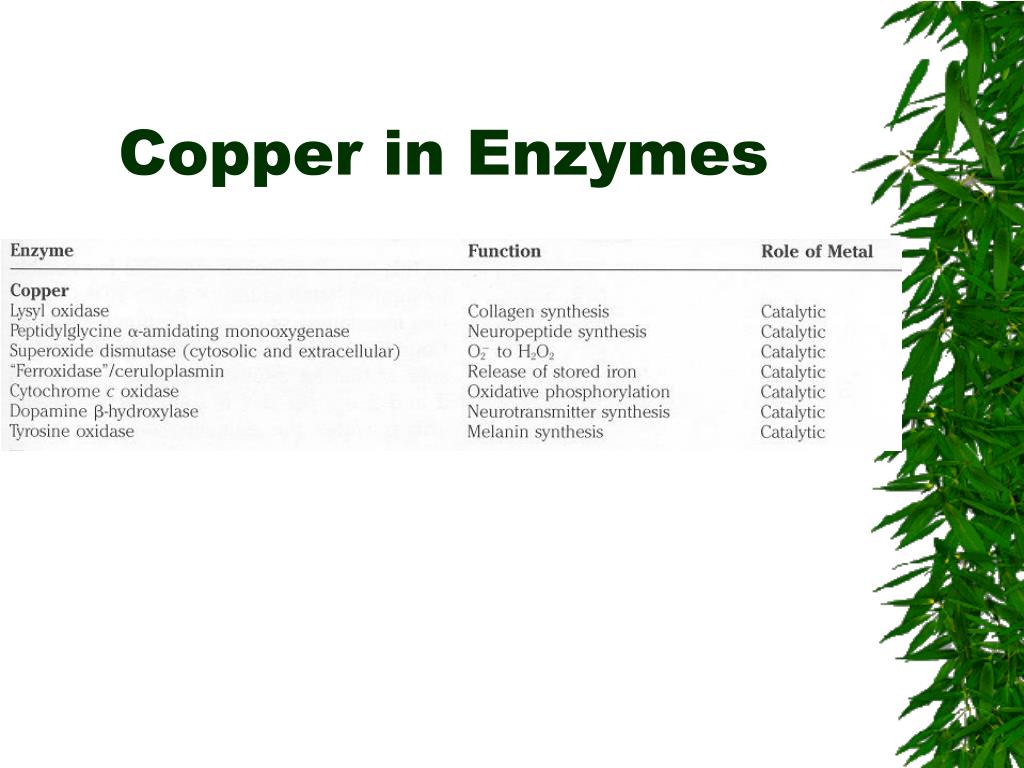

  34. Copper in Enzymes
