Lateral skull base

LATERAL SKULL BASE

AMOLENDA, Patricia G.


Anatomy

Anatomy

  • Internal auditory canal with the facial nerve

  • Jugular Foramen

  • Foramen lacerum

  • Foramen ovale

  • Foramen spinosum


Clinical examination

Clinical Examination

  • The symptoms of the diseases of the lateral skull base may cause deficits of CN 7, 8, 9, 10, 11

  • CN testing

    • Oral cavity examination: CN 9 & 12

    • Indirect laryngoscopy: CN 10, recurrent laryngeal nerve


Clinical examination1

Clinical Examination

  • Cochleovestibular Syndrome

    • Sensorineural HL

    • Tinnitus

    • Dysequilibrium and vertigo


Clinical examination2

Clinical Examination

  • Jugular Foramen Syndrome

    • CN 9: palatal deviation

    • CN 10: unilateral vocal cord paralysis and dysphagia

    • CN 12: tongue deviation toward the affected side, lingual atrophy, lingual fasciculations


Clinical examination3

Clinical Examination

  • Petrous Apex Syndrome

    • Triad

      • Purulent otorrhea

      • Stabbing ipsilateral facial pain (Trigeminal nerve irritation)

      • Diplopia (CN 6 palsy in petrous apex abscess)


Imaging studies

Imaging Studies

  • CT Scan

    • Best for defining infiltration and destruction of bony structures

  • MRI

    • Better for defining and differentiating lesions especially tumor and inflammatory processes

  • Conventional Angiography

    • Assess disease processes in close proximity to major vessels

    • Embolization


Surgery of the lateral skull base

Surgery of the Lateral Skull Base

  • Intracranial-intradural

    • Most common: suboccipital and retrosigmoid approach

  • Intracranial-extradural (Transtemporal)

    • Exposes the petrous pyramid through a temporal craniotomy

    • The dura is separated from the surface of the petrous pyramid and elevated away from it with the temporal lobe

    • Used in surgical treatment of temporal bone fractures or tumors of the internal auditory canal


Surgery of the lateral skull base1

Surgery of the Lateral Skull Base

  • Extracranial-extradural (Transmastoid and infratemporal)


Laterobasal fractures

Laterobasal Fractures


Classification of temporal bone fractures

Classification of Temporal Bone Fractures

  • Squama-mastoid Fractures

  • squLongitudinal temporal bone fracture

  • Transverse temporal bone fracture

  • Isolated meatal fracture


Squama mastoid fractures

Squama-mastoid Fractures

  • Confined to the temporal squama and mastoid air cells

  • Auditory and tympanic cavity may also be involved


Isolated meatal fracture

Isolated Meatal Fracture

  • Most often caused by a posterior displacement of the mandibular condyle

  • Usually due to a fall onto the chin

  • The fracture penetrates the posterior wall of the glenoid fossa and the anterior wall of the ear canal and is often associated with a condylar neck fracture


Longitudinal temporal bone fractures

Longitudinal Temporal bone Fractures

  • Most common burst fracture

  • Caused by a diffuse, lateral traumatizing force (ex. Falls, brain trauma)

  • Fracture along the EAC and the anterior border of the petrous pyramid

  • Symptoms: otorrhea (blood or blood with CSF), hearing loss, bloody rhinorrhea, facial paralysis


Longitudinal temporal bone fracture

Longitudinal Temporal Bone Fracture

Diagnosis

  • Otoscopy: tearing of the meatal skin and TM, with bleeding into the ear canal

  • Clinical auditory testing (Weber test): lateralized to affected ear

  • Neurography: facial nerve function

  • Thin slice CT scan

  • Pure tone audiometry


Longitudinal temporal bone fracture1

Longitudinal Temporal Bone Fracture

Complications

  • Meningitis, OM w/ TM perforation, facial nerve paralysis

    Treatment

  • Cover the ear with sterile dressing

  • Corticosteroids: facial paralysis

  • Surgical exploration


Transverse temporal bone fractures

Transverse Temporal Bone Fractures

  • Fracture that runs across the petrous pyramid along the internal auditory canal and//or through the labyrinth

  • Caused by a traumatizing force in the frontal plane

  • Symptoms: severe vertigo, nausea and vomiting, deafness


Transverse temporal bone fracture

Transverse Temporal Bone Fracture

Diagnosis

  • Clinicalexamination:

    • Weber Test-Lateralized to the normal ear

    • spontaneous nystagmus towards normal side

    • Otoscopy: hemotympanum

  • CT Scan


Transverse temporal bone fracture1

Transverse Temporal Bone Fracture

Complication

  • Meningitis, Facial nerve paralysis

    Treatment

  • Surgical closure


Inflammations and tumors of the lateral skull base

Inflammations and Tumors of the Lateral Skull Base


Otitis media

Otitis Media

  • most common inflammation and infection that affect the lateral skull base region

  • Cholesteatoma is one of its complications which arises from the middle ear and spreads to the lateral skull base


Tumors of the temporal bone

Tumors of the Temporal Bone

  • Paraganglioma

  • Primary Cholesteatoma or Epidermoid

  • Carcinoma of the Mucosa

  • Sarcoma

  • Lymphoma


Paraganglioma

Paraganglioma

  • Also glomustumor, chemodectoma

  • Most common tumor of the middle ear and adjacent lateral skull base

  • Arises from the paraganglia of the temporal region, most commonly in the area of the jugular bulb and along the neural plexus of the tympanic cavity

  • It may be located in the middle ear, jugular bulb, carotid bifurcation, and along the vagus nerve, and often extend to the temporal bone region


Paraganglioma1

Paraganglioma

  • Manifestations: pulsatile tinnitus and conductive hearing loss, possible SNHL

  • Diagnosis: MRI, CT Scan, Angiography

  • Treatment: Surgery-subtotal petrosectomy


Tumors of the internal auditory canal and cerebellopontine angle

Tumors of the Internal Auditory Canal and Cerebellopontine Angle

  • Vestibular Schwanomma

  • Meningioma

  • Hemangioma

  • Lipoma

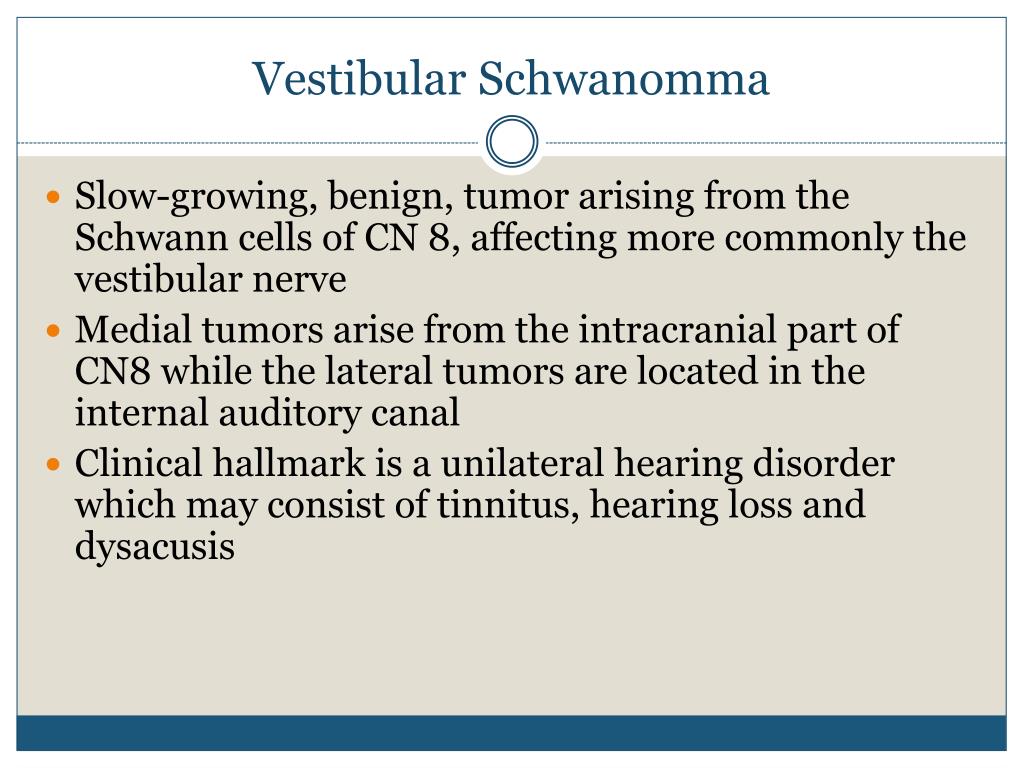

Vestibular schwanomma

Vestibular Schwanomma

  • Slow-growing, benign, tumor arising from the Schwann cells of CN 8, affecting more commonly the vestibular nerve

  • Medial tumors arise from the intracranial part of CN8 while the lateral tumors are located in the internal auditory canal

  • Clinical hallmark is a unilateral hearing disorder which may consist of tinnitus, hearing loss and dysacusis


Vestibular schwannoma

Vestibular Schwannoma

  • Medial schwannomas can occasionally produce trigeminal nerve symptoms such as facial pain or numbness in the jaw

  • Large tumors present with signs of brainstem compression and/or hydrocephalus with ataxia, nausea & vomiting

  • Diagnosis:

    • clinical examination: shows unilateral cochleovestibular d/o

    • Audiometry: shows retrocochlear impairment with lengthening of auditory brainstem reposnses

    • gadolinium enhanced MRI


Vestibular schwanomma1

Vestibular Schwanomma

  • <1cm: observe

  • 1-2.5cm: streotactic radiosurgery/ open surgery

  • >2.5cm: open surgery
