  1. HYPERSPECTRAL IMAGING

  2. WHAT IS HYPERSPECTRAL IMAGING? • Collection of high resolution spectral detail overa large spatial and broad wavelength regionfrom within each pixels instantaneous field ofview • A standard RGB image has three bands corresponding to red, green and blue. • In contrast, a hyperspectral image records reflectance values at many different bands, typically > 200 bands. • Many of these extra bands are in the ultraviolet and infrared ranges, outside the visible spectrum.

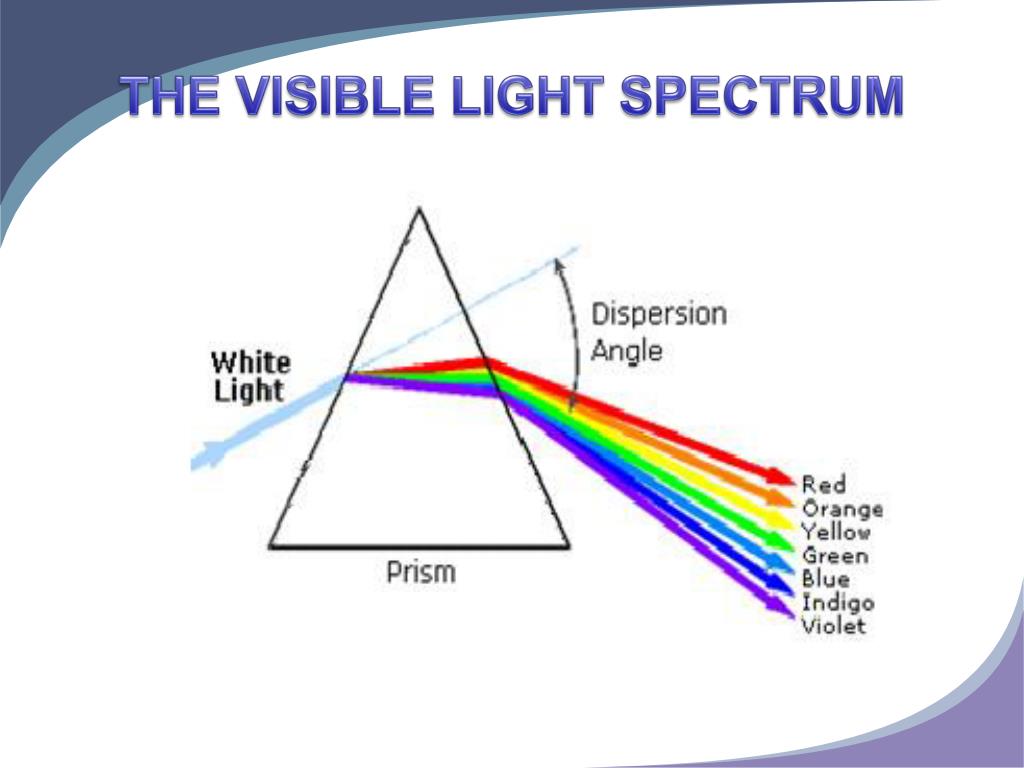

  3. THE VISIBLE LIGHT SPECTRUM

  4. What information can the technologytell us?

  5. Applications... • Military Hyperspectal imaging applications • Civilian hyperspectral imager of the main application areas

  6. Military Hyperspectal imaging applications • Identification of camouflage: According to different spectral characteristics, the usinghyperspectal imaging can find camouflaged target objects.

  7. Military Hyperspectal imaging applications • Weapons production survey Hyperspectral Imager can detect not only the spectral characteristics of the target but also can be used to analyze the material composition.By analyzing factory smoke, the material composition could be directly identified of the material which could help to determine the production of weapons • Application of Naval Operations Analyzing imaging data like the transparency of the sea, the ocean depths, underwater hazards, currents, oil spills, seabed type, Oceanic and Atmospheric visibility, tides, bioluminescence, beach characteristics, the total amount of atmospheric water vapor could be very useful for naval operations.

  8. Civilian hyperspectral imager of the main application areas • Survey of land resources, including mineral exploration, forest grassland surveys, land-use categories, urban planning, land desertification and soil degradation,etc. • Remote sensing in forestry, including forest resources, deforestation, reforestation and forest protection. • Environmental monitoring, including assessment of the ecological environment and ecological change investigation. • Marine applications, including marine resources survey, water quality changes in water color, chlorophyll and plankton content analysis, coastal zone and marine ecosystems change and marine pollution monitoring

  9. Civilian hyperspectral imager of the main application areas • Agricultural applications, including assessment of crop growth and yield, crop type of investigation and monitoring of pests and diseases. • Monitoring of natural disasters, including floods, droughts, hail, forest fires and earthquakes, such as multi-hazard monitoring and disaster assessment. • The universe, atmosphere, space environment and a wide range of fields such as astronomyapplications.

  10. Example of Hyperspectal Imaging

  11. We now presents you the GVS • GVS (Green Vision Systems)is bringing to the market the next level of tracking biochemicalcontamination sources, such as city air pollution, by providing a comprehensive productsuite that replaces processes of days, weeks and even months with that of hours or less. Thesuite is based on the company's patented and field-proven HSI (Hyper-Spectral Imaging)technology. GVS has already initiated mega projects with customers and partners, including inEurope, in Singapore and in the USA.

  12. We now presents you the GVS • GVS was founded in 1996. Today, after more than 10 years in HSI technology (over 200engineering man years) and 11 international patents, GVS is an ISO-9001 approved companyand its products have been approved under the UL(Underwriters Laboratories) and CE(Conformance European) standards.

  13. GVS PRODUCT SUITE – REDUCING HEALTH RISK • The suite is composed of several modular systems, enabling GVS to provide asolution that is tailor-made to the needs of each organization. It includesproducts for real-time data collection in the field (HyperEye™-ID platforms),integrated network communication (INSIP-20™ software) and analysis in acentral location (FIPA®-20/40 systems). Below is a more detailed presentationof three of the suite's main HSI-based products:

  14. HyperEye™-ID (Immediate Detection) is an online station for air pollutionmonitoring, enabling 24/7 monitoring and tracking of air pollution in urbanenvironments, including threats ranging from industrial/automotivecontamination to Anthrax clouds due to terrorist activities. HyperEye™-ID

  15. HyperEye™-RS (Remote Sensing) is a real-time remote sensing system,which should be placed on buildings or other high locations, forobjects/surface spectral classification and tracking. HyperEye™- RS FIPA®-20/40 (Fluorescence Imaging ParticleAnalyzer) is semi-online system for laboratory P.M.(Particulate Matter1) investigation HSI microscopy. Itcaptures, analyzes and generates information on thechemical, morphological and polymorphism(crystallization) characteristics of scanned particles(according to the C.M.B. standard). FIPA®-20/40

  16. Thanks for your attention and Contact us ICNG Holding B.V. Scandinaviëweg 149723 AV GroningenThe Netherlands Tel:+31628807221 E mail: info@icng-holding.com Web: www.icng-holding.com
