Presentation Transcript

Martin Berzins(Steve Parker)

What are the hard apps problems?

How do the solutions get shared?

What non-apps work is needed?

Uintah solver for multiphase-fluid-structure interaction problems- explosive filled container in fire

Thanks to DOE for funding since 1997, NSF since 2008


Martin Berzins(Steve Parker)

What are the hard apps problems?

ADAPTIVE DYNAMIC GLOBAL

How do the solutions get shared?

ENCAPSULATION ABSTRACTION

What non-apps work is needed?

APPLICATION DRIVEN TOOLS

Uintah solver for multiphase-fluid-structure interaction problems- explosive filled container in fire

Thanks to DOE for funding since 1997, NSF since 2008


Hard apps problems are multi physics multiscale with adaptive methods and or global comms

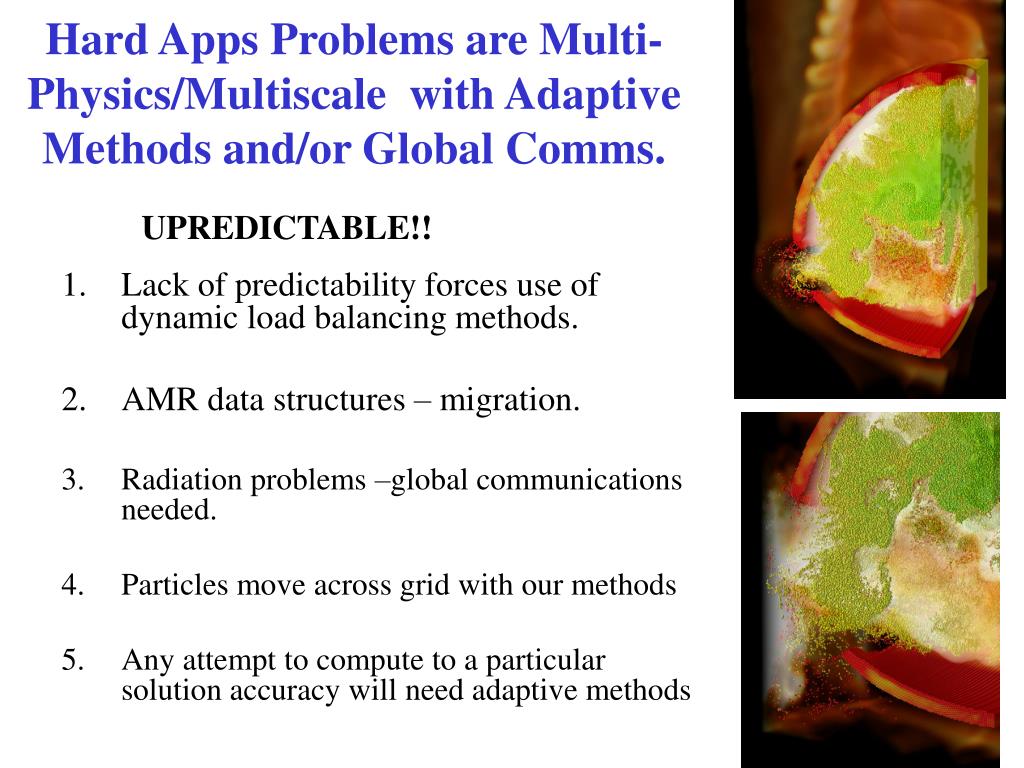

Hard Apps Problems are Multi-Physics/Multiscale with Adaptive Methods and/or Global Comms.

UPREDICTABLE!!

  • Lack of predictability forces use of dynamic load balancing methods.

  • AMR data structures – migration.

  • Radiation problems –global communications needed.

  • Particles move across grid with our methods

  • Any attempt to compute to a particular solution accuracy will need adaptive methods


Particle variables

Fundamental Uintah Adaptive

data Structure is a

patch – multiple variable types

SFC Load balancing uses patches

Particle Variables

Cell –Vertex Variables

User writes code for a

patch and its communications

only - Uintah uses this information to construct communications pattern via a task graph

Cell Centered Variables

Uintah Domain Decomposition



How does uintah work

Problem Adaptive

Specification

XML

Load

Balancer

Simulation

(One of Arches, ICE, MPM, MPMICE, MPMArches, …)

Callbacks

Assignments

Tasks

Data

Archiver

Scheduler

Tasks

Configuration

Callbacks

MPI

How Does Uintah Work?

Simulation

Controller


Burgers equation code
Burgers Equation code Adaptive

void Burger::timeAdvance(const ProcessorGroup*, const PatchSubset* patches,

const MaterialSubset* matls, DataWarehouse* old_dw, DataWarehouse* new_dw)

{

//Loop for all patches on this processor

for(int p=0;p<patches->size();p++){

//Get data from data warehouse including 1 layer of "ghost" nodes from surrounding patches

old_dw->get(u, lb_->u, matl, patch, Ghost::AroundNodes, 1);

// dt, dx Time and space increments

Vector dx = patch->getLevel()->dCell();

old_dw->get(dt, sharedState_->get_delt_label());

// allocate memory for results

new_dw->allocateAndPut(new_u, lb_->u, matl, patch);

// define iterator range l and h …… lots missing here and Iterate through all the nodes

for(NodeIterator iter(l, h);!iter.done(); iter++){

IntVector n = *iter;

double dudx = (u[n+IntVector(1,0,0)] - u[n-IntVector(1,0,0)]) /(2.0 * dx.x());

double du = - u[n] * dt * (dudx);

new_u[n]= u[n] + du;

}


Task graph
Task graph Adaptive

  • Each algorithm defines a description of the computation

    • Required inputs and outputs (names and spatial relationships)

    • Callbacks to perform each task on a single subregion of space

  • Communication is performed at the edges in the graph

  • Uintah uses this information to create a graph of computation and communication


Amr scalability

Challenging dynamically Adaptive

changing workload

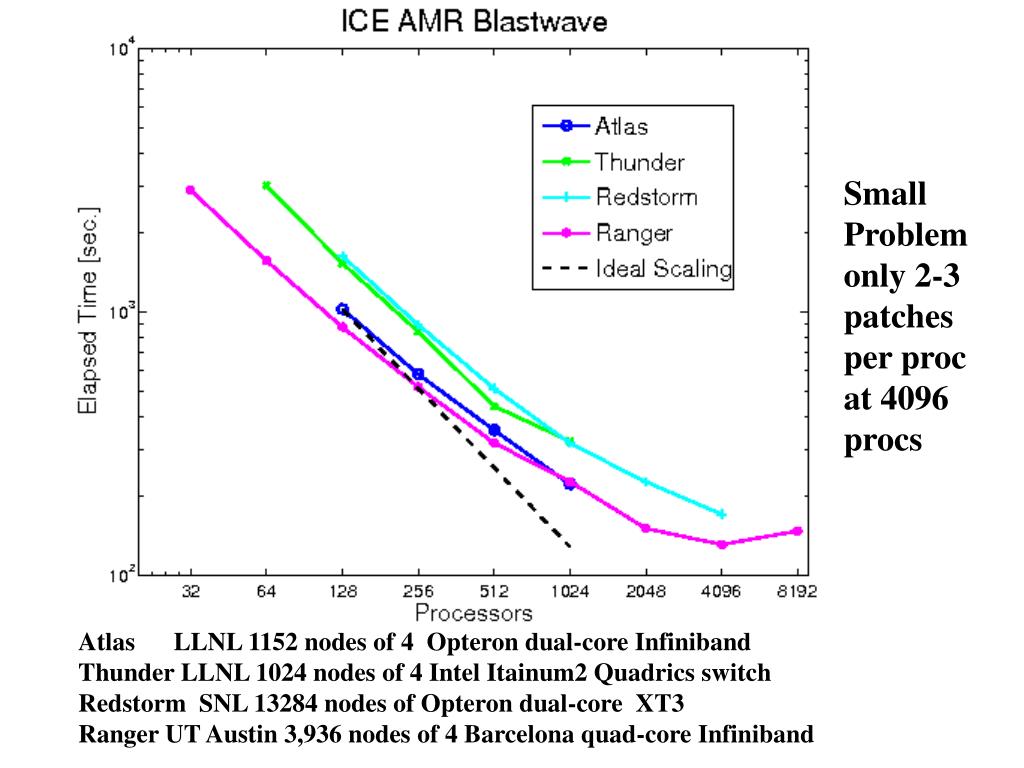

AMR Scalability

8x8x8 patches: timings over about 30 timesteps 8K to 20K patches

Original remeshes at every step Dilated only every 4 steps or so


Small Adaptive

Problem

only 2-3

patches

per proc

at 4096

procs

Atlas LLNL 1152 nodes of 4 Opteron dual-core Infiniband

Thunder LLNL 1024 nodes of 4 Intel Itainum2 Quadrics switch

Redstorm SNL 13284 nodes of Opteron dual-core XT3

Ranger UT Austin 3,936 nodes of 4 Barcelona quad-core Infiniband


Summary
Summary Adaptive

  • Uintah is adaptive multi-physics AMR code

  • Clear separation between application user and system components

  • Very general CS approach to load balancing and scalability

  • Expensive multidisciplinary effort.


Existing AMR scalability work Adaptive

Strong scalability: fixed problem size doubling processors should halve execution time

Weak scalability: problem size grows with processors

Doubling processors give constant execution time

  • Brian Van Stralen: weak scaling easy strong scaling hard

  • Strong scaling problems include message overload, malloc inconsistencies and load imbalance.

  • Not clear that these problems cannot be solved

  • AMR does scale to 12K processors Flash Code BG/L and beyond (?)
