Chapter 3 Biochemistry. Organic Molecules - The Building Blocks of Life. I. What is an Organic Compound ?. Contains carbon atoms Built from carbon ( C ), hydrogen ( H ) and nitrogen ( N )- Covalently Bonded. Where is Carbon on the Periodic Table?. It forms 4 covalent bonds.
Organic Molecules - The Building Blocks of Life

An Image/Link below is provided (as is) to

Download Policy: Content on the Website is provided to you AS IS for your information and personal use only and may not be sold or licensed nor shared on other sites. SlideServe reserves the right to change this policy at anytime. While downloading, If for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.











- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -




Organic molecules the building blocks of life l.jpgSlide 1

Chapter 3 Biochemistry

Organic Molecules- The Building Blocks of Life

I what is an organic compound l.jpgSlide 2

I.Whatis anOrganic Compound?

  • Contains carbon atoms

  • Built from carbon (C), hydrogen (H) and nitrogen (N)- Covalently Bonded

Where is carbon on the periodic table l.jpgSlide 3

Where is Carbon on the Periodic Table?

It forms4 covalent bonds

Carbon has 4 electrons in its outmost electron shell l.jpgSlide 4

Carbon has 4 electrons in its outmost electron shell.

  • it forms4 covalent bonds

Carbon bonds chains branched rings each line represents a single covalent bond l.jpgSlide 5

Carbon bonds: Chains, Branched, RingsEach line represents a single covalent bond

Carbon also forms double triple bonds l.jpgSlide 6

Carbon also forms double & triple bonds

A good site for more explanation:

www.biologyjunction.com

Methane the simplest carbon compound 1 carbon 4 hydrogen atoms l.jpgSlide 7

Methane- the simplest carbon compound- 1 Carbon & 4 hydrogen atoms

Other simple organic molecules l.jpgSlide 8

Other simple organic molecules

  • Butane cyclohexane

B functional groups l.jpgSlide 9

B. Functional groups

Slide10 l.jpgSlide 10

Functional Groups

- A specific group of atoms that gives a known type of behavior to molecules

– changes the characteristics of the compound-

(See page 52 in your textbook for more on functional groups)

Hydrocarbons - C and H only

Alcohols - OH

Acids - COOH

Amines - NH2

Example adding a hydroxyl group makes ethane into an alcohol l.jpgSlide 11

Example -adding a hydroxyl group – makes ethane into an alcohol-

Example - adding an amino group

- makes methane or ethane into- an amine

C sizes of molecules l.jpgSlide 12

C. Sizes of Molecules

1. Monomers-small simple molecules

2. Polymers-big molecules formed when monomers bonded to each other

3 reactions to build or break down molecules l.jpgSlide 13

3. Reactions to build or break down molecules

  • Condensation Reaction

    • 2 monomers join together- a water is released

      (an H from 1 end and an OH from the other

      end are cut loose when the monomers join.)

  • Hydrolysis Reaction

    • polymers are broken back down- they need a wateradded.

Hydrolysis of sucrose l.jpgSlide 14

Hydrolysis of sucrose

D energy from atp l.jpgSlide 15

D. Energy from ATP

  • Life needs a constant supply of energy

  • Chemical bonds store energy.

  • One molecule that living things use to store energy is in the bonds of the ATP molecule

  • Adenosine Triphosphate

Adenosine triphosphate l.jpgSlide 16

Adenosine Triphosphate

Blue = ribose (a 5-carbon sugar)Green = adenine (a nitrogenous base)

Yellow = phosphate groups

Energy is stored in bonds joining thephosphate groups

Atp adp cycle l.jpgSlide 17

ATP-ADP Cycle.

Energy is stored in ATP (ADP + P)

Energy is used as needed & ATP is

converted back to ADP + phosphate.

4 classes of organic molecules l.jpgSlide 18

4 Classes of Organic Molecules

  • Carbohydrates

  • Proteins

  • Lipids

  • Nucleic Acids

Monomers polymers l.jpgSlide 19

Monomers & Polymers

  • Each group has small molecules(monomers)

  • linked to form larger macromolecules

    (polymers) three to millions of subunits.

Slide20 l.jpgSlide 20

  • Carbohydrates

    the most important energy source for cells

    • short-term energy storage (sugar)

    • intermediate-term energy storage

      • starchfor plants

      • glycogenfor animals

    • as structural components in cells

      • cellulosecell walls of plants

      • chitin-exoskeleton of insects

Slide21 l.jpgSlide 21

Monomers & Polymers

1.   Monosaccharides

- single sugar unitsglucose

2.   Disaccharides

- twomonosaccharides. Lactose, maltose

3.   Polysaccharides

- linking many sugar units together

Examples: starch, glycogen, cellulose

Carbohydrates l.jpgSlide 22

Carbohydrates

  • General formula [CH2O]n

  • where n is a number between 3 and 6.

  • Ex- glucose= C6H12O6

Slide23 l.jpgSlide 23

What does it mean to be

“lactose intolerant”?

Got milk milk s sugar is lactose l.jpgSlide 24

Got Milk?- milk’ssugar is lactose

  • Infant mammals are fed on milk from mom

  • Enzyme lactase digests

    the molecule into its two

    subunits for absorption.

  • in most species, including humans,

    the production of lactase gradually

    ceases with maturity, & they are

    then unable to metabolize lactose…

    becoming “Lactose intolerant”

A polysaccharide l.jpgSlide 25

A Polysaccharide

Lots of monomers linked together

B proteins l.jpgSlide 26

B. Proteins

  • Important as control and structural elements.

    • Control –enzymes, hormones.

    • Structural -cell membrane, muscle tissue, etc.

  • Amino acids are the

    building block of proteins

  • All living things (and even viruses) use various combinations of the same 20 amino acids.

An amino acid l.jpgSlide 27

An Amino Acid

  • an amino end(NH2)

  • a carboxyl end (COOH).

  • R is the variable (R-group) of each amino acid.

Slide29 l.jpgSlide 29

*Amino acids are linked together by joining the amino end of one molecule to the carboxyl end of another. *Removal of water (condensation reaction) links amino acids with a peptide bond.

2 peptide bonds l.jpgSlide 30

2. PEPTIDE BONDS

Some examples of proteins l.jpgSlide 31

Some examples of proteins

  • Antibodies: they recognize molecules of invading organisms.

  • Receptors: part of the cell membrane, they recognize other proteins, or chemicals, and inform the cell... 'The Door Bell'.

  • Enzymes: assemble or digest.

  • Neurotransmitters and some hormones: Trigger the receptors... (the finger on the door bell...)

  • Channels, and pores:holes in the cell membrane (with or without a gate). Usually, filter the flow...

3 enzymes l.jpgSlide 32

3. Enzymes

  • Organic molecules that act as catalysts

  • Enzymes & substrates (the reactants) fit together like a “lock & key”

  • This fit weaken bonds so thatless energy is needed for reaction.

C lipids l.jpgSlide 34

C. Lipids

  • Functions:

  • Long-term energy storage.

    -Generally insoluble in polar substances (water)

  • phospholipids are the major building block in cell membranes

  • hormones("messengers") play roles in communicationswithin and between cells.

Structure of fatty acids l.jpgSlide 35

Structure of Fatty Acids

  • The carboxyl head is polar- therefore it is HYDROPHILIC – water loving

  • The hydrocarbon CH2 units are HYDROPHOBIC- water fearing

    (not water soluble).

Fatty acids l.jpgSlide 36

Fatty acids

  • Can be saturated (meaning they have as many hydrogens bonded to their carbons as possible)

  • Unsaturated (with one or more double bonds connecting their carbons, hence fewer hydrogens).

  • A fat is solid at room temperature, while an oil is a liquid under the same conditions. The fatty acids in oils are mostly unsaturated, while those in fats are mostly saturated.

2 triglycerides l.jpgSlide 37

2. Triglycerides

  • Triglycerides are composed of three fatty acids (usually) covalently bonded to a 3-carbon glycerol.

Fats and oils function in energy storage l.jpgSlide 40

Fats and oils function in energy storage.

  • Animals convert excess sugars into fats.

  • Most plants store excess sugars as starch, although some seeds and fruits have energy stored as oils (e.g. corn oil, peanut oil, palm oil, canola oil, and sunflower oil).

    • Fats yield 9.3 Kcal/gm, while carbohydrates yield 3.79 Kcal/gm. Fats store six times as much energy as glycogen.

Diets fat intake l.jpgSlide 41

Diets & Fat Intake

  • Attempts to reduce the amount of fats present in specialized cells known as adipose cells that accumulate in certain areas of the human body.

  • By restricting the intakes of carbohydrates and fats, the body is forced to draw on its own stores to makeup the energy debt.

  • The body responds to this by lowering its metabolic rate, often resulting in a drop of "energy level."

  • Successful diets usually involve three things: decreasing the amounts of carbohydrates and fats; exercise; and behavior modification

3 phospholipids l.jpgSlide 42

3.  Phospholipids

  • One fatty acid is

    replaced with a

    phosphate.

  • The negative charge(s) of the phosphate makes the “head” of the phospholipid hydrophilic. The long, hydrocarbon tail is non-polar and, therefore, hydrophobic.

Slide43 l.jpgSlide 43

*The water loving edge of the molecule orients toward water- the inside and outside of the cell.

*The water fearing edges of the molecule orient toward each other to make a lipid “bilayer”

- the construction of the cell membrane.

4 cholesterol and steroids l.jpgSlide 44

4. Cholesterol and steroids:

  • Structure is a lipid with 4 carbon rings with various functional groups attached

  • Cholesterol has many biological uses, such as its occurrence in the cell membranes, and its role in forming the sheath of some neurons. Excess cholesterol in the blood has been linked to atherosclerosis, hardening of the arteries.

  • Steroids are mainly used as hormones in living things

  • Structure of four steroids. Image from Purves et al., Life: The Science of Biology, 4th Edition, by Sinauer Associates (www.sinauer.com) and WH Freeman (www.whfreeman.com), used with permission.

D nucleic acids l.jpgSlide 45

D. Nucleic Acids

  • Function - informational molecules – heredity/genetic, protein synthesis, and energy

  • A nucleotide is formed from a 5 carbon sugar, a phosphate and a nitrogen base.

  • Polymers formed by linking together long chains of nucleotide monomers.

Slide46 l.jpgSlide 46

  • 3 Nucleic Acids

  • DNA-deoxyribonucleic acid

    • Double strand of nucleotides

    • Double Helix shape

  • RNA-ribonucleic acid

    • Single strand nucleotides

  • ATP -Adenosine Triphosphate

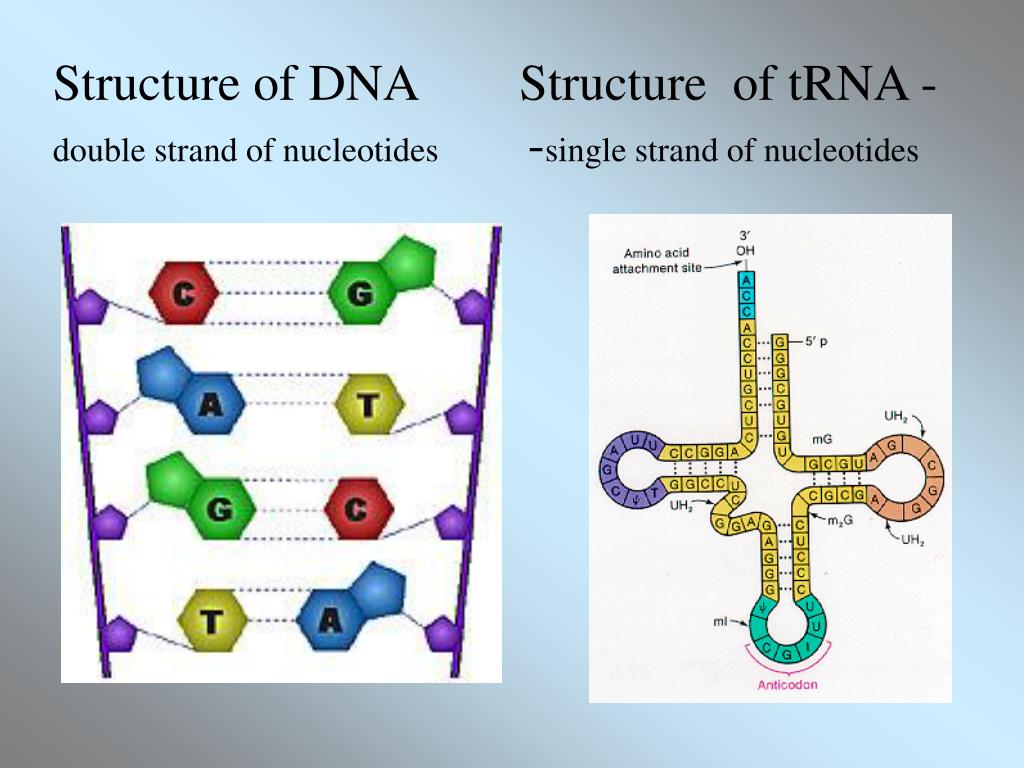

Structure of dna structure of trna double strand of nucleotides single strand of nucleotides l.jpgSlide 47

Structure of DNA Structure of tRNA -double strand of nucleotides -single strand of nucleotides

Rna differs from dna in the following ways l.jpgSlide 49

RNA differs from DNA in the following ways:

  • RNA is single stranded while DNA is double stranded.

  • RNA has a sugar called ribose while DNA has a sugar called deoxyribose.

  • RNA has the base uracil while DNA has the base thymine.

How dna rna work together l.jpgSlide 50

How DNA & RNA work together

  • DNA(deoxyribonucleic acid) is the genetic material.

  • It functions by storing information regarding the sequence of amino acids in each of the body’s proteins.

  • This "list" of amino acid sequences is needed when proteins are synthesized.

  • Before protein can be synthesized, the instructions in DNA must first be copied to another type of nucleic acid called messenger RNA.

3 types rna l.jpgSlide 51

3 types RNA

  • Messenger RNA, or mRNA.

    • carries the code for building a protein from the nucleus to the ribosomes in the cytoplasm. It acts as a messenger.

  • Transfer RNA or tRNA.

    • picks up specific amino acids in the cytoplasm & brings them into position on ribosome where they are joined together in specific order to make a specific protein.

  • Ribosomal RNA or rRNA –place for protein synthesis

How a protein is built l.jpgSlide 52

How a protein is built
