2011 pe review

2011 PE Review:

Michael C. Hirschi, PhD, PE, D.WRE

Professor and Assistant Dean

University of Illinois

[email protected]


2011 pe review

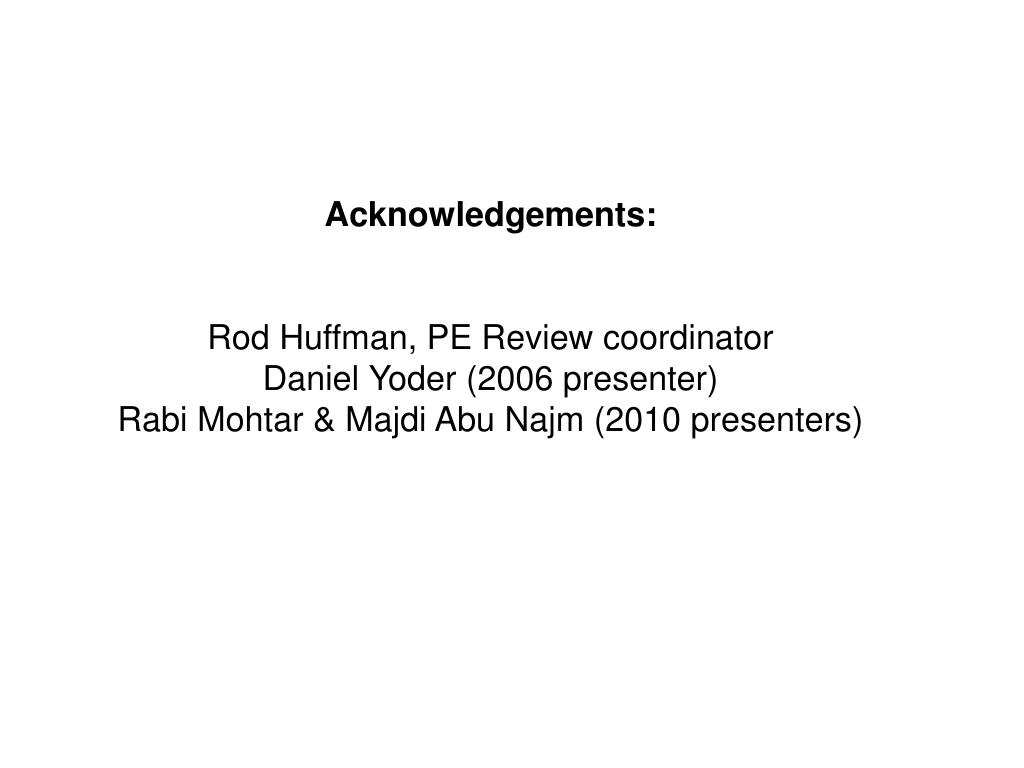

Acknowledgements:

Rod Huffman, PE Review coordinator

Daniel Yoder (2006 presenter)

Rabi Mohtar & Majdi Abu Najm (2010 presenters)


Topics

Topics

  • Principles of Soil Physics (some duplication with Management session)

  • Soil Strength & Mechanics

  • Sediment Transport

  • Erosion Control

  • Slope Stabilization


Sources

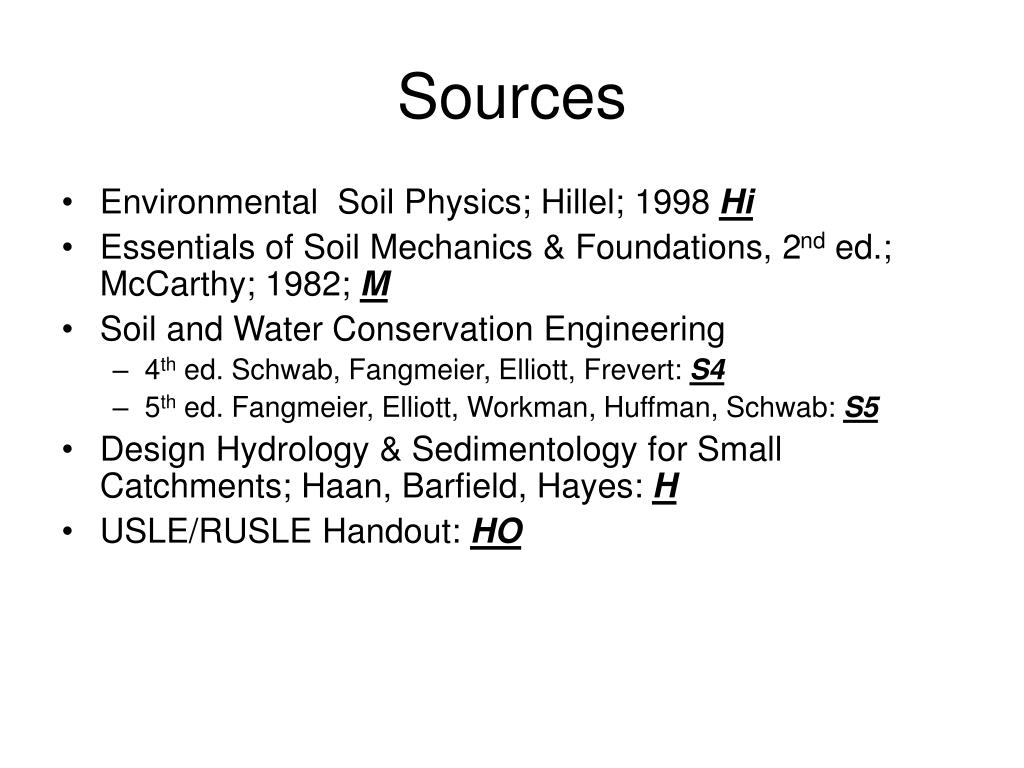

Sources

  • Environmental Soil Physics; Hillel; 1998 Hi

  • Essentials of Soil Mechanics & Foundations, 2nd ed.; McCarthy; 1982; M

  • Soil and Water Conservation Engineering

    • 4th ed. Schwab, Fangmeier, Elliott, Frevert: S4

    • 5th ed. Fangmeier, Elliott, Workman, Huffman, Schwab: S5

  • Design Hydrology & Sedimentology for Small Catchments; Haan, Barfield, Hayes: H

  • USLE/RUSLE Handout: HO


Soil physics mechanics

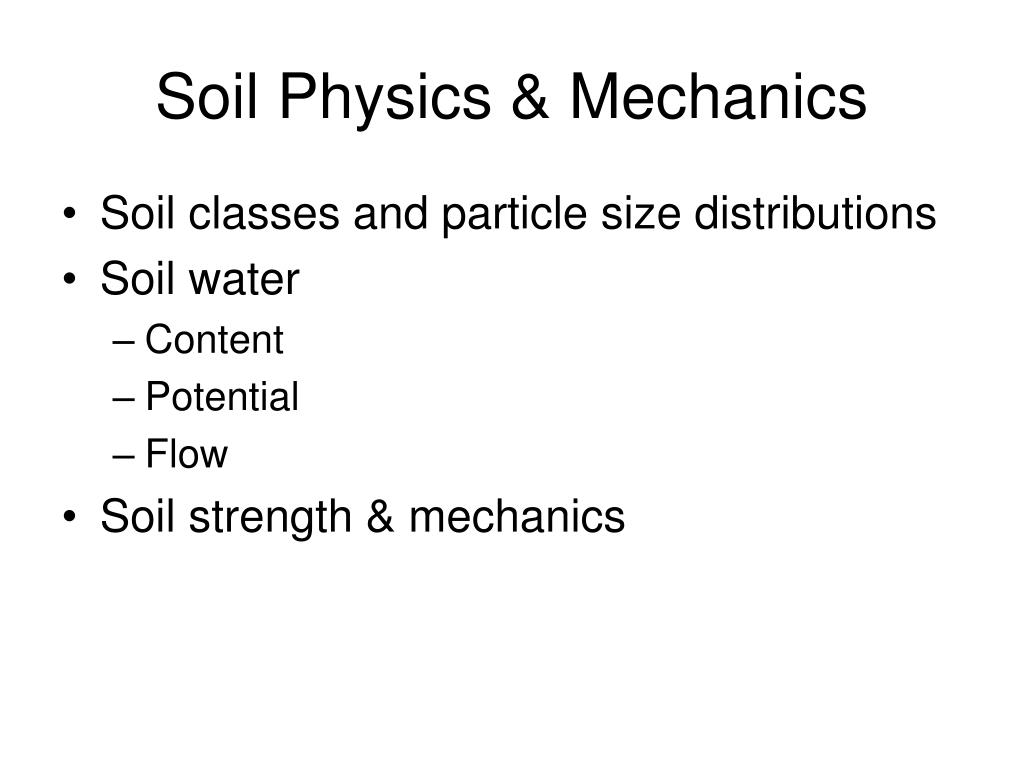

Soil Physics & Mechanics

  • Soil classes and particle size distributions

  • Soil water

    • Content

    • Potential

    • Flow

  • Soil strength & mechanics


Soil classes particle sizes

Soil classes & particle sizes

Hi.61


Soil classes particle sizes 2

Soil classes & particle sizes - 2

  • ISSS easiest

    • Sand 0.02-2.0mm (20-2000μ)

    • Silt 0.002-0.02mm (2-20μ)

    • Clay <0.002mm (<2μ)

  • Soil texture classes based on USDA

    • Sand 0.05-2.0mm

    • Silt 0.002-0.05mm

    • Clay <0.002mm


Soil classes particle sizes 3

Soil classes & particle sizes – 3

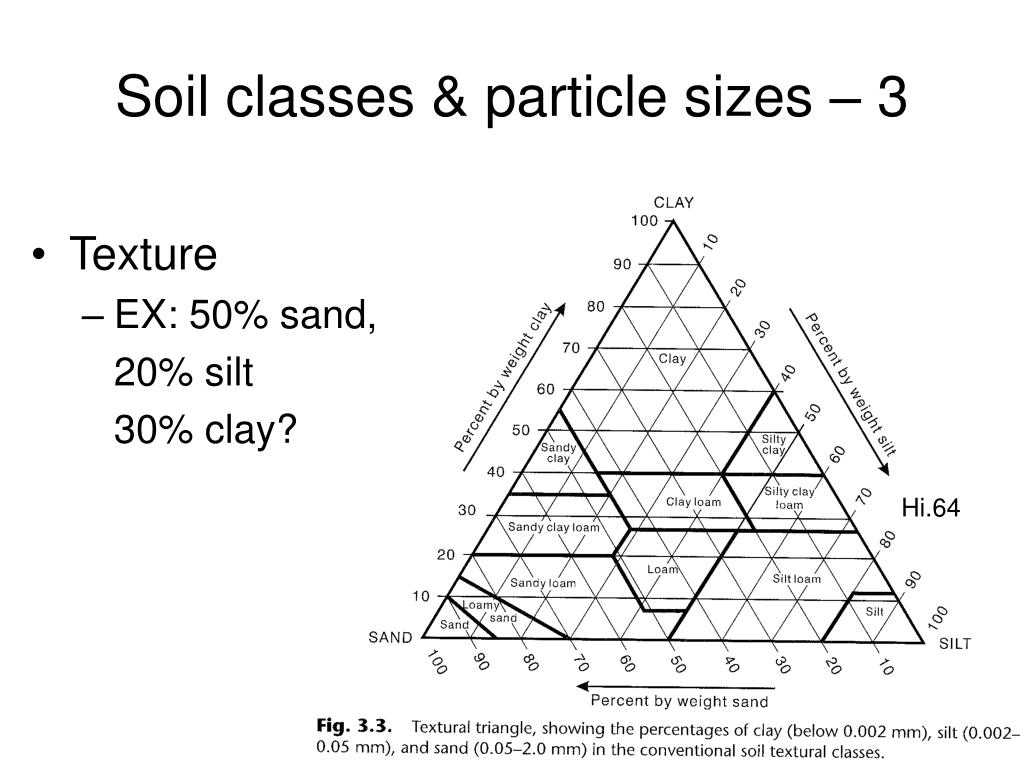

  • Texture

    • EX: 50% sand,

      20% silt

      30% clay?

Hi.64


Soil classes particle sizes 4

Soil classes & particle sizes – 4

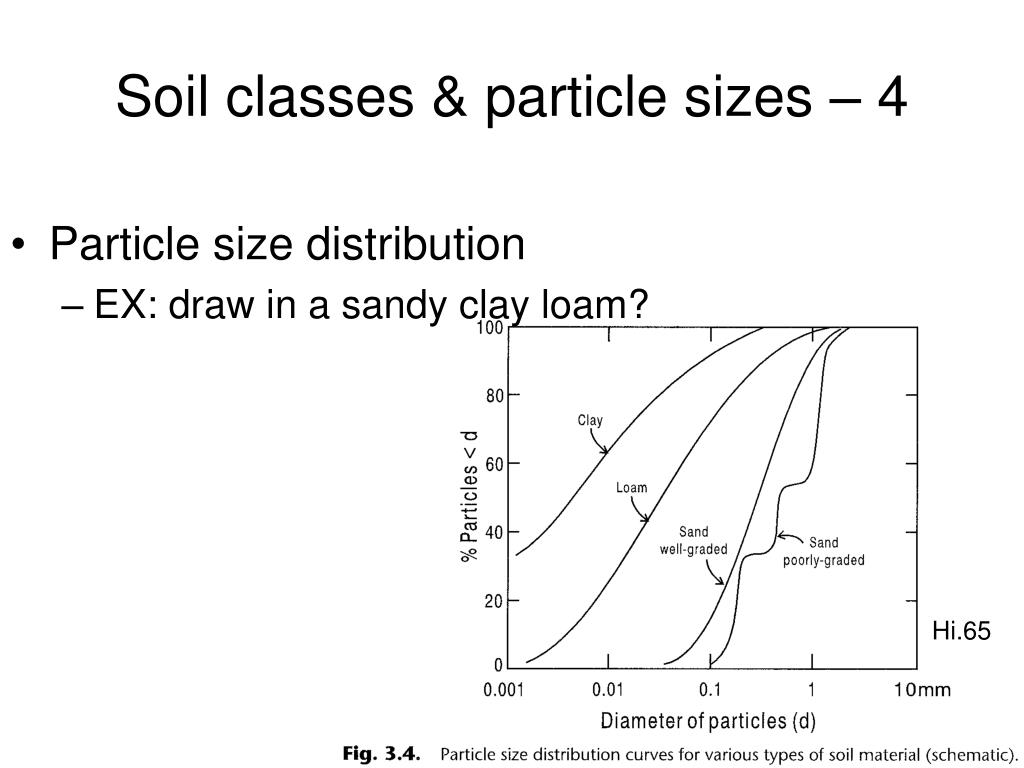

  • Particle size distribution

    • EX: draw in a sandy clay loam?

Hi.65


Soil water content

0

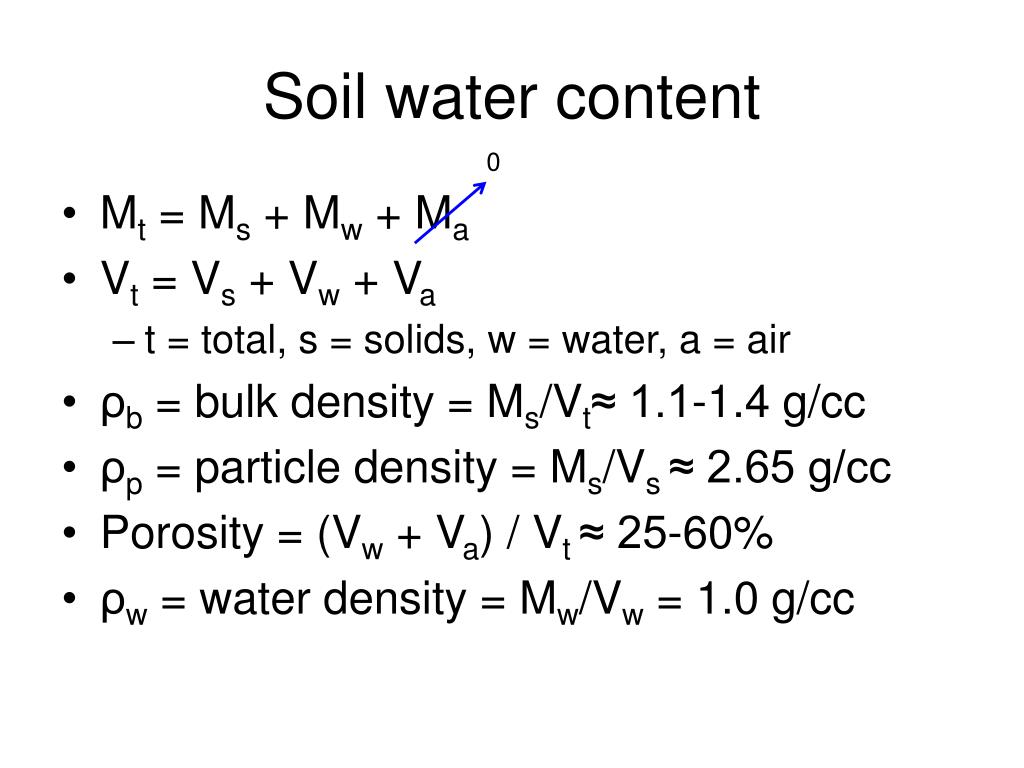

Soil water content

  • Mt = Ms + Mw + Ma

  • Vt = Vs + Vw + Va

    • t = total, s = solids, w = water, a = air

  • ρb = bulk density = Ms/Vt≈ 1.1-1.4 g/cc

  • ρp = particle density = Ms/Vs ≈ 2.65 g/cc

  • Porosity = (Vw + Va) / Vt ≈ 25-60%

  • ρw = water density = Mw/Vw = 1.0 g/cc

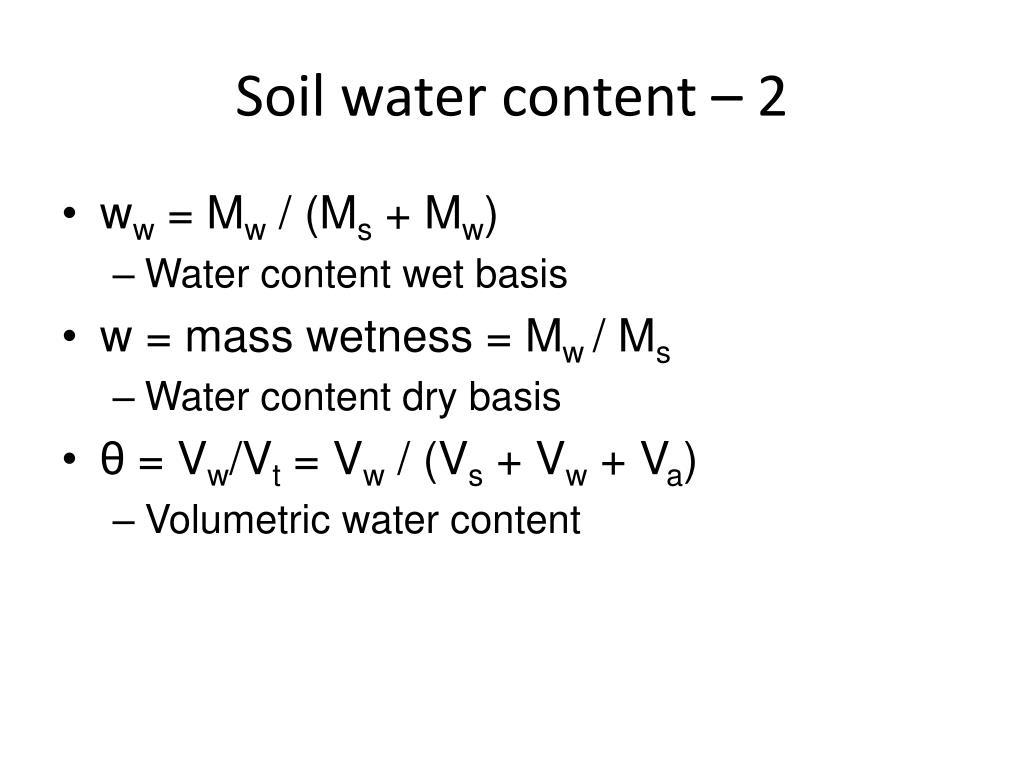

Soil water content 2

Soil water content – 2

  • ww = Mw / (Ms + Mw)

    • Water content wet basis

  • w = mass wetness = Mw / Ms

    • Water content dry basis

  • θ = Vw/Vt = Vw / (Vs + Vw + Va)

    • Volumetric water content

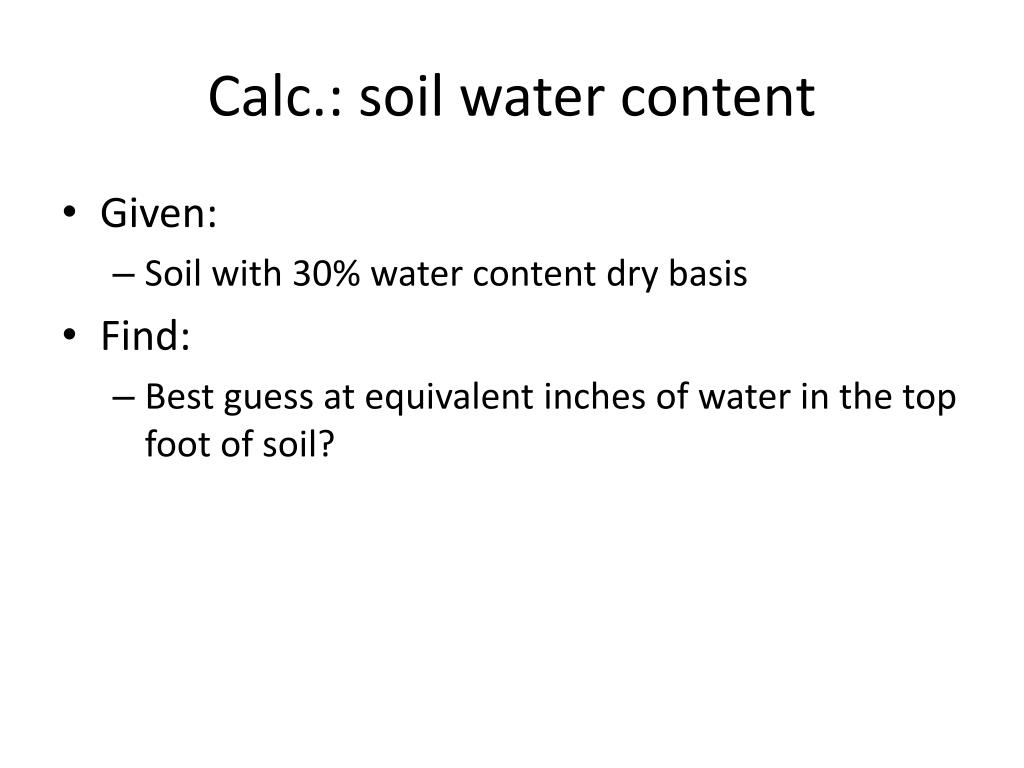

Calc soil water content

Calc.: soil water content

  • Given:

    • Soil with 30% water content dry basis

  • Find:

    • Best guess at equivalent inches of water in the top foot of soil?

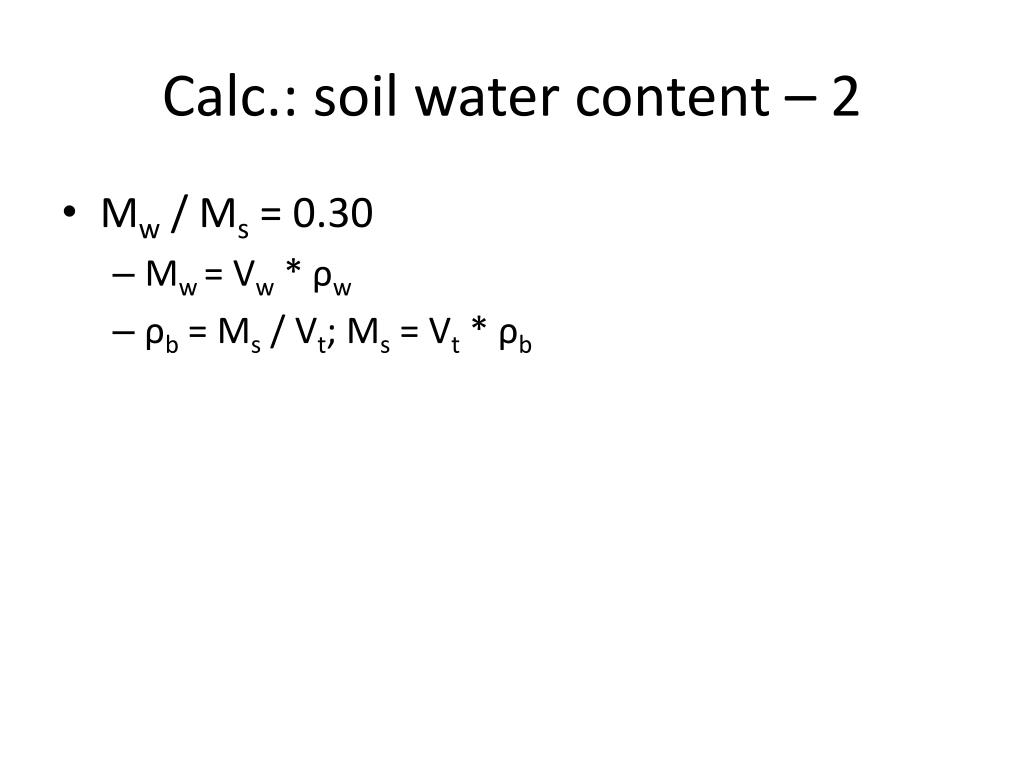

Calc soil water content 2

Calc.: soil water content – 2

  • Mw / Ms = 0.30

    • Mw = Vw * ρw

    • ρb = Ms / Vt; Ms = Vt * ρb


Calc soil water content 3

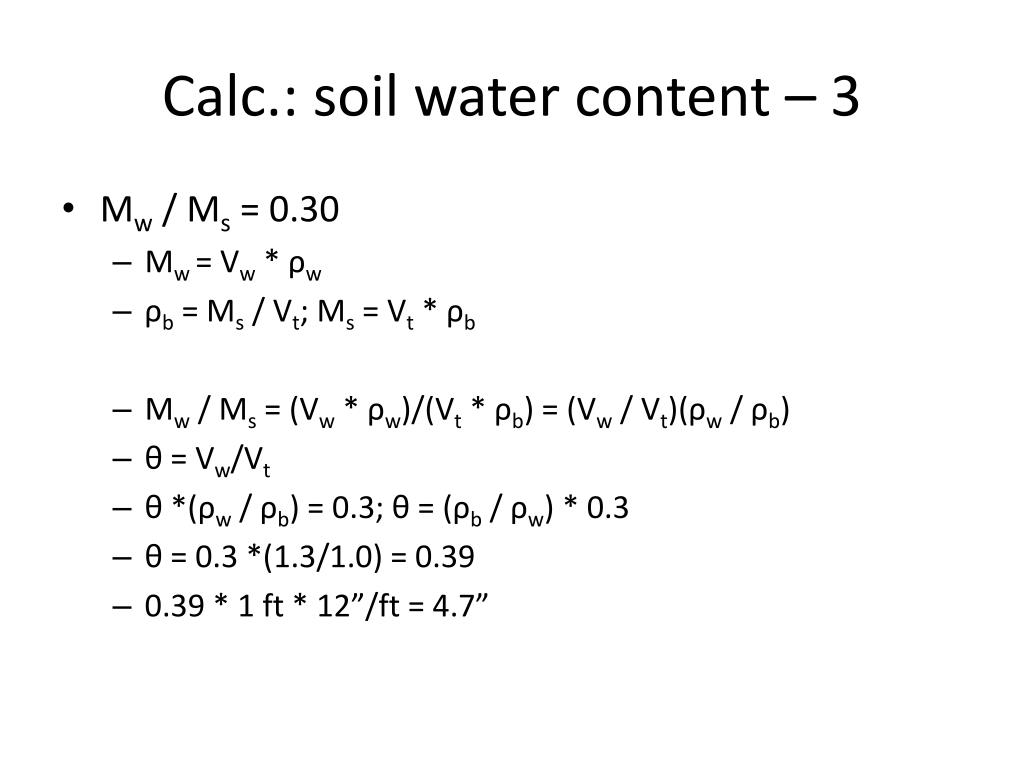

Calc.: soil water content – 3

  • Mw / Ms = 0.30

    • Mw = Vw * ρw

    • ρb = Ms / Vt; Ms = Vt * ρb

    • Mw / Ms = (Vw * ρw)/(Vt * ρb) = (Vw / Vt)(ρw / ρb)

    • θ = Vw/Vt

    • θ *(ρw / ρb) = 0.3; θ = (ρb / ρw) * 0.3

    • θ = 0.3 *(1.3/1.0) = 0.39

    • 0.39 * 1 ft * 12”/ft = 4.7”


Soil water potential

Soil water potential

Hi.157


Soil water potential 2

Soil water potential – 2

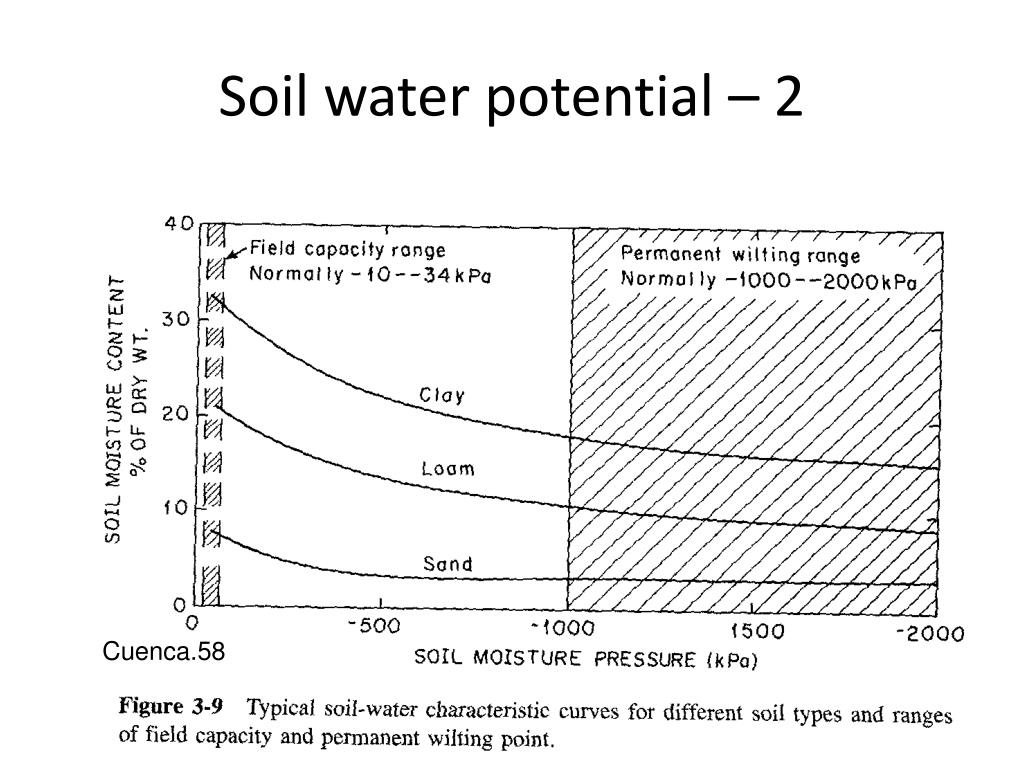

Cuenca.58


Soil water potential 3

Soil water potential – 3

S5.337


Soil water potential 4

Soil water potential – 4

Hi.162


Calc soil water potential

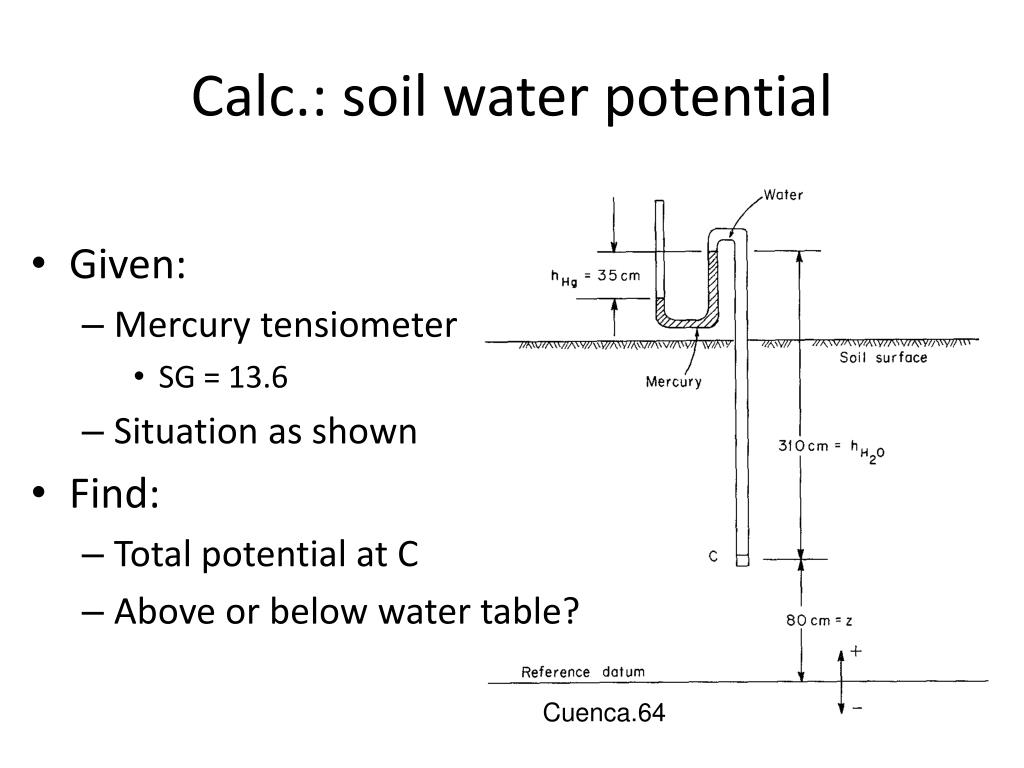

Calc.: soil water potential

  • Given:

    • Mercury tensiometer

      • SG = 13.6

    • Situation as shown

  • Find:

    • Total potential at C

    • Above or below water table?

Cuenca.64


Calc soil water potential 2

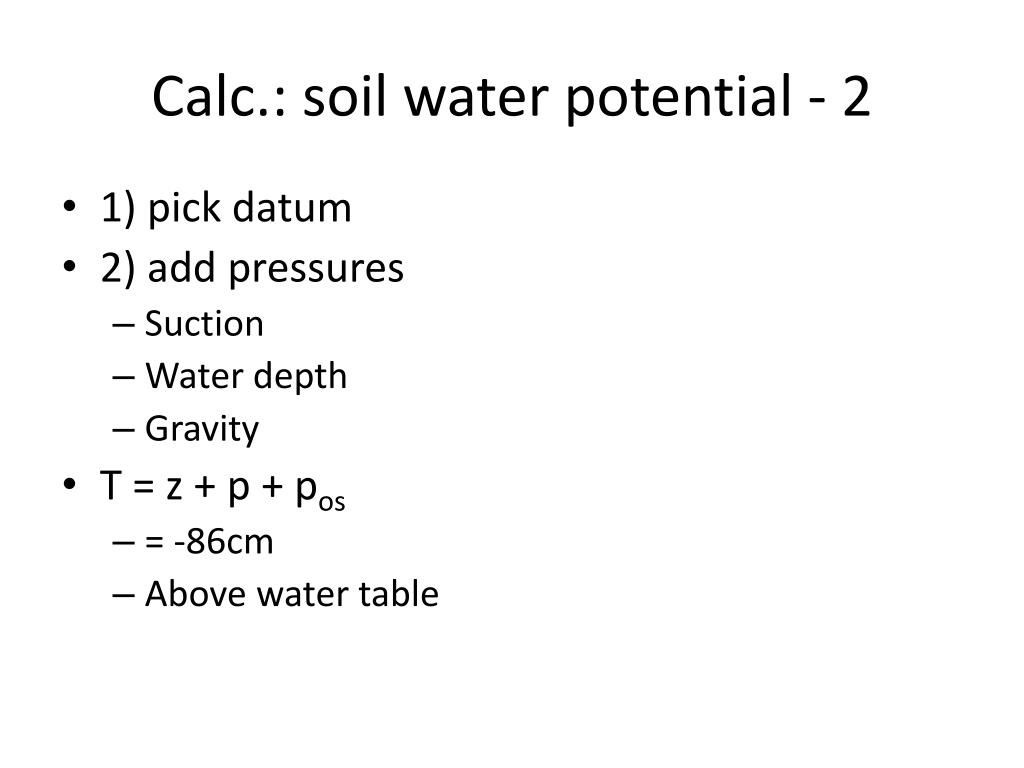

Calc.: soil water potential - 2

  • 1) pick datum

  • 2) add pressures

    • Suction

    • Water depth

    • Gravity

  • T = z + p + pos

    • = -86cm

    • Above water table


Soil water flow

Soil water flow

  • q = A*K*H/L

    • K = (q*L)/(A*H)

  • K values S4.359; S5.261; H.430

A

H

L

q


Calc soil water flow

Calc.: soil water flow

  • Given:

    • Need 50000 gpd through a 1-ft thick sand filter with K = 8 ft/d, and a total driving head of 3 ft

  • Find :

    • Required diameter for circular tank?

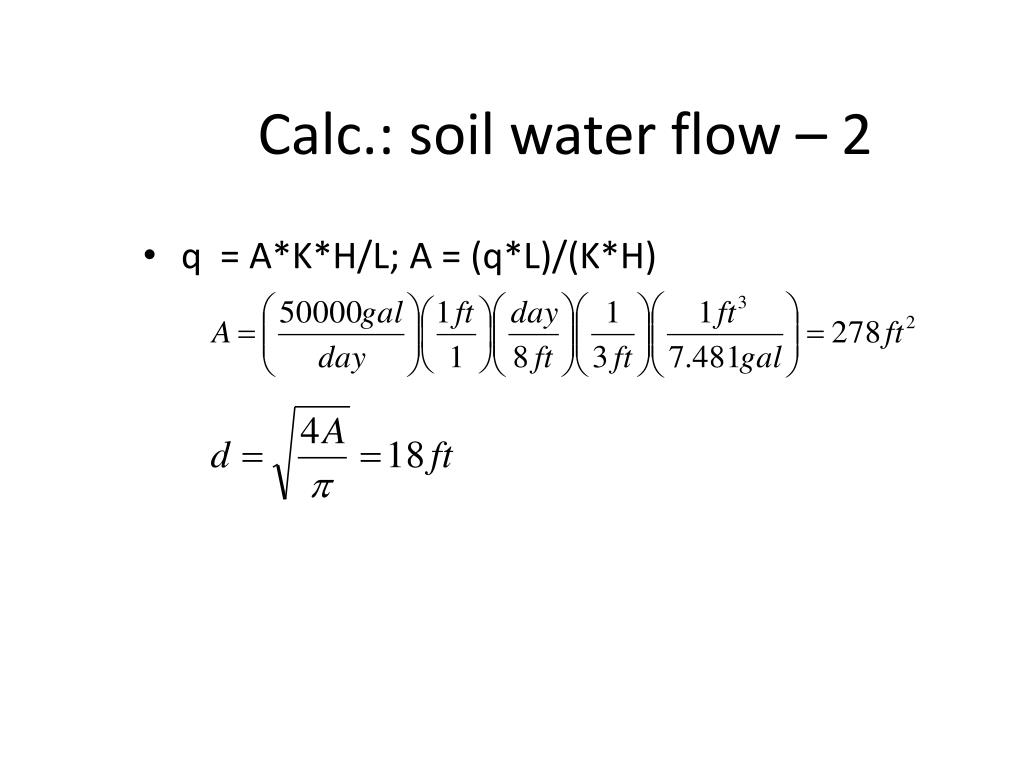

Calc soil water flow 2

Calc.: soil water flow – 2

  • q = A*K*H/L; A = (q*L)/(K*H)


Soil strength and mechanics

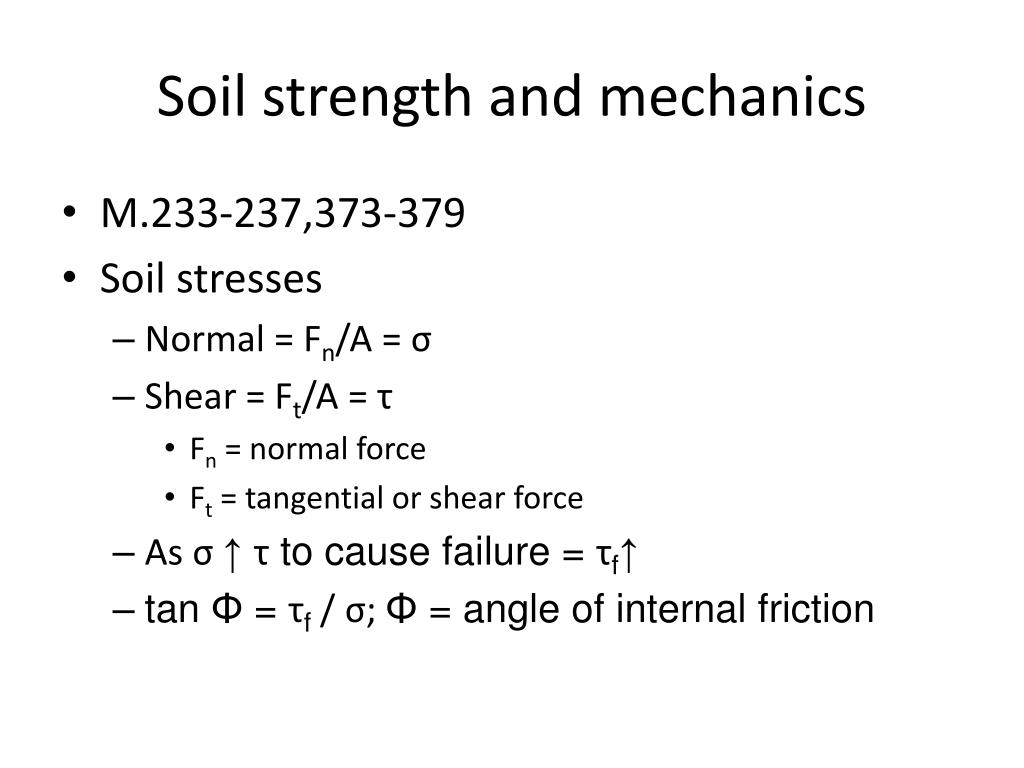

Soil strength and mechanics

  • M.233-237,373-379

  • Soil stresses

    • Normal = Fn/A = σ

    • Shear = Ft/A = τ

      • Fn = normal force

      • Ft = tangential or shear force

    • As σ↑ τ to cause failure = τf↑

    • tan Φ = τf / σ; Φ = angle of internal friction


Soil strength and mechanics 2

Soil strength and mechanics – 2

M.234


Calc soil strength

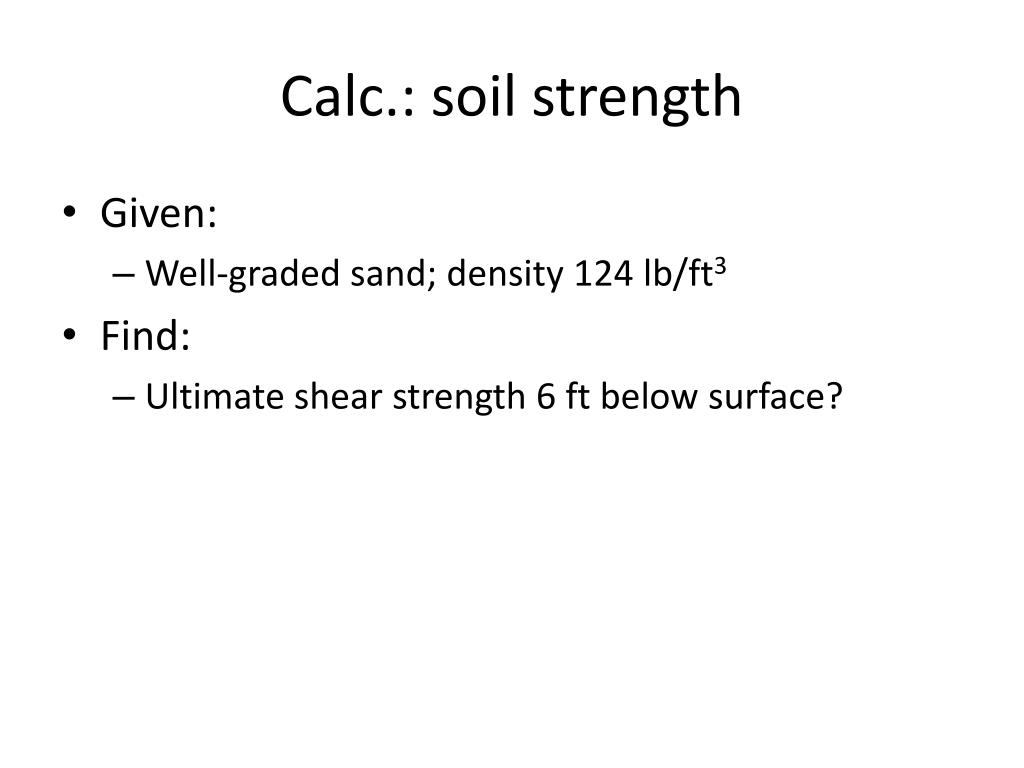

Calc.: soil strength

  • Given:

    • Well-graded sand; density 124 lb/ft3

  • Find:

    • Ultimate shear strength 6 ft below surface?


Calc soil strength 2

Calc.: soil strength – 2

  • From table, for well-graded sand, Φ = 32-35o = 33.5o

  • Normal stress = (124 lb/ft3)(6 ft) = 744 lb/ft2

  • tan Φ = τf / σ;

    τf = σ * tan Φ =

    τf = 744 lb/ft2 * tan(33.5o) = 492 lb/ft2


Footing bearing loads

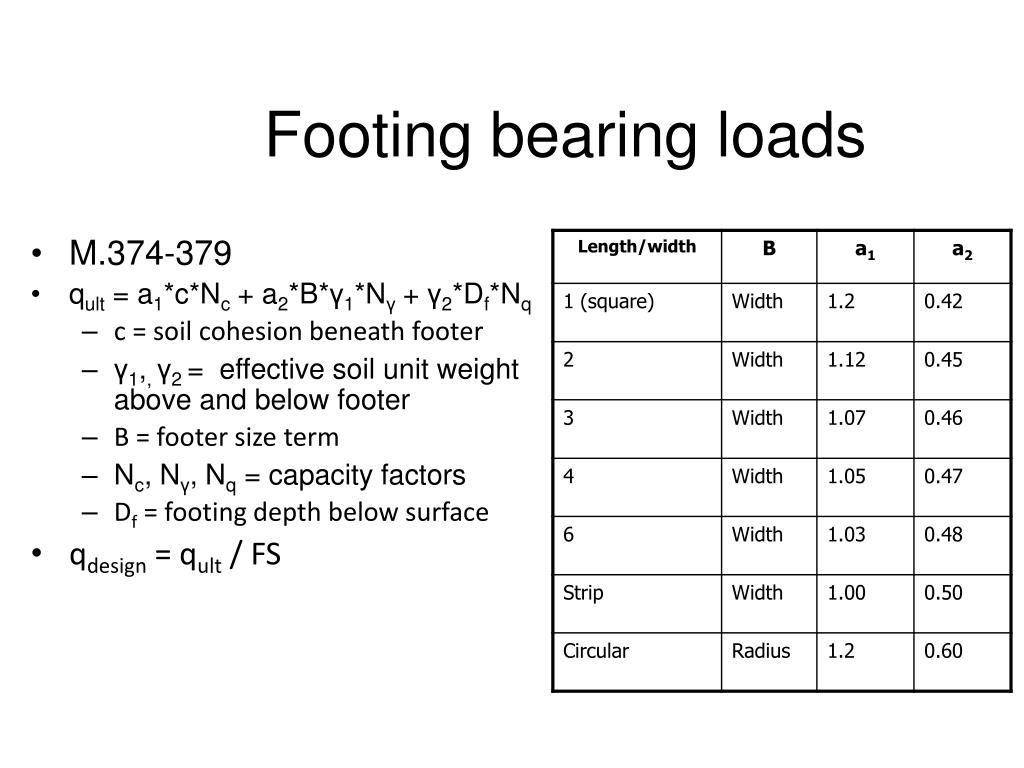

Footing bearing loads

  • M.374-379

  • qult = a1*c*Nc + a2*B*γ1*Nγ + γ2*Df*Nq

    • c = soil cohesion beneath footer

    • γ1,, γ2 = effective soil unit weight above and below footer

    • B = footer size term

    • Nc, Nγ, Nq = capacity factors

    • Df = footing depth below surface

  • qdesign = qult / FS


Footing bearing loads 2

Footing bearing loads – 2

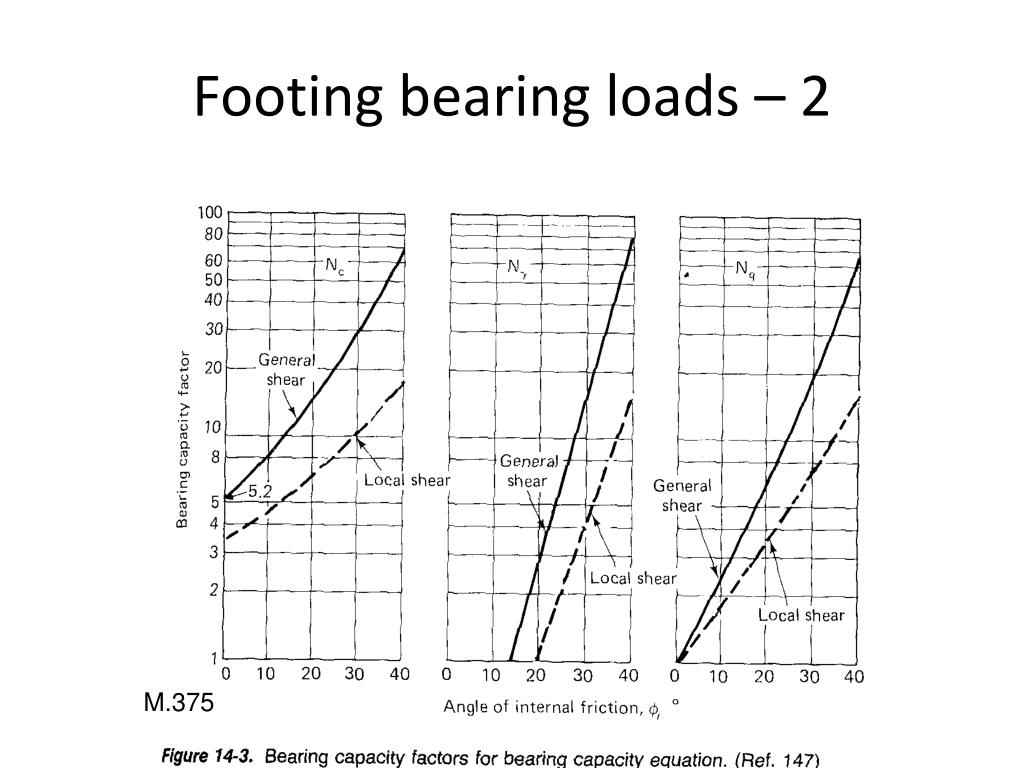

M.375


Calc footing load

Calc.: footing load

  • Given:

    • Strip footing 3 ft wide

    • Wet soil with density of 125 lb/ft3

    • Angle of internal friction = 30o

    • Cohesive strength of 400 lb/ft2

    • Use factor of safety of 3

  • Find:

    • qdesign in lb/ft2


Calc footing load 2

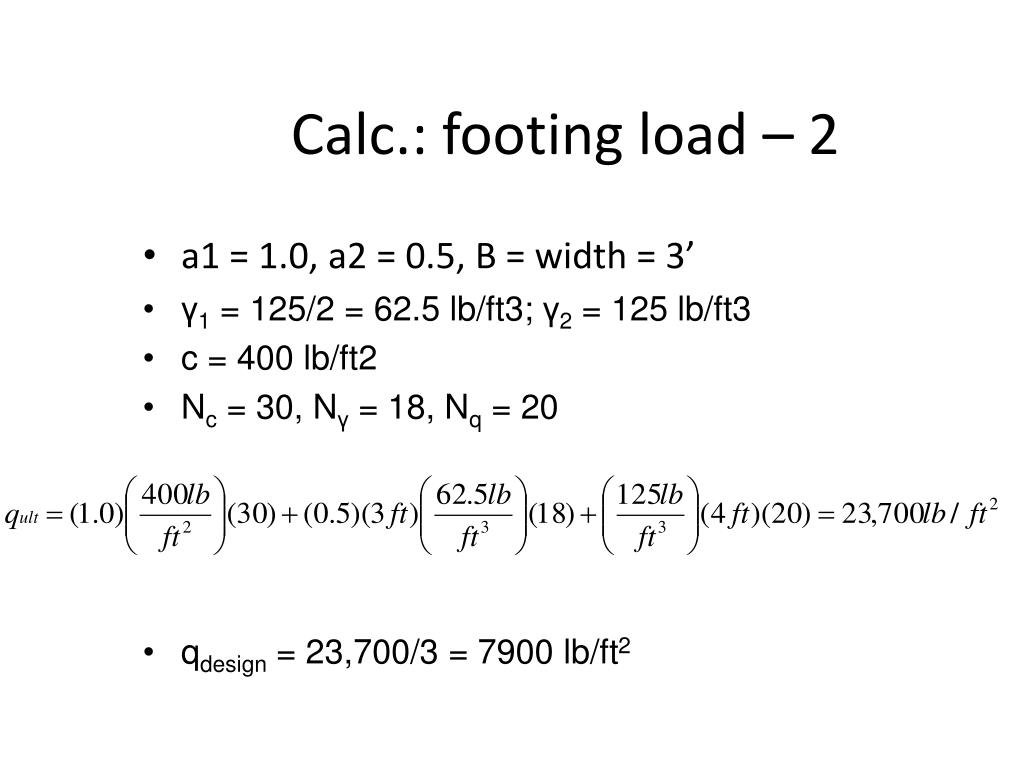

Calc.: footing load – 2

  • a1 = 1.0, a2 = 0.5, B = width = 3’

  • γ1 = 125/2 = 62.5 lb/ft3; γ2 = 125 lb/ft3

  • c = 400 lb/ft2

  • Nc = 30, Nγ = 18, Nq = 20

  • qdesign = 23,700/3 = 7900 lb/ft2


Soil compaction and density

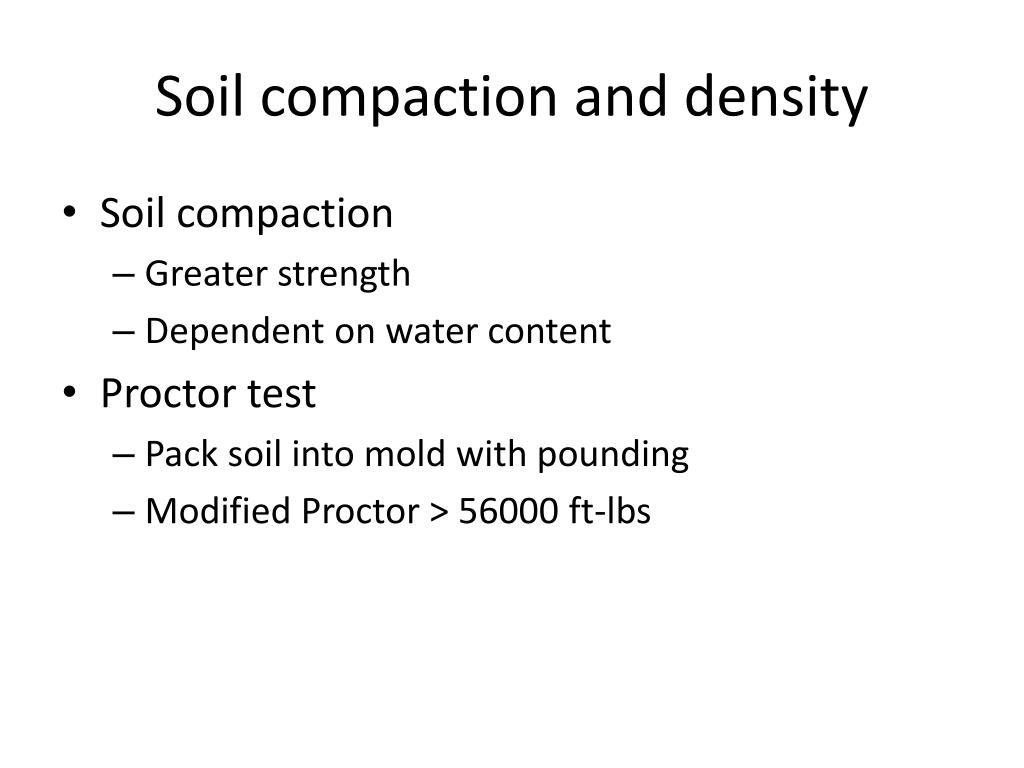

Soil compaction and density

  • Soil compaction

    • Greater strength

    • Dependent on water content

  • Proctor test

    • Pack soil into mold with pounding

    • Modified Proctor > 56000 ft-lbs


The erosion process

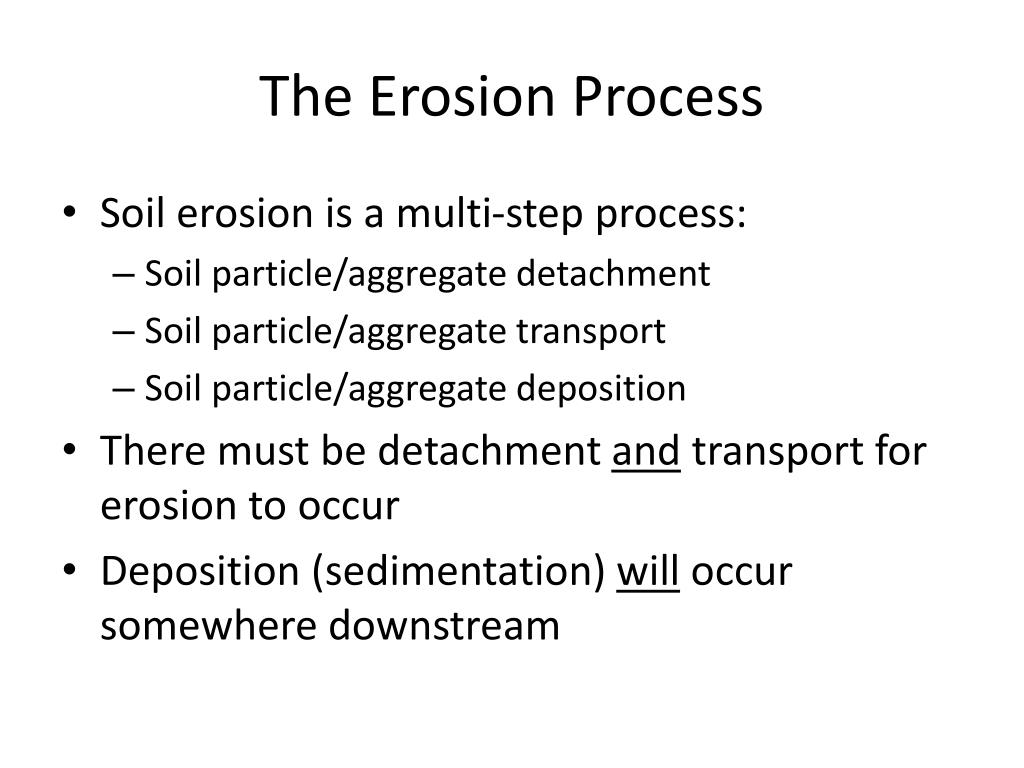

The Erosion Process

  • Soil erosion is a multi-step process:

    • Soil particle/aggregate detachment

    • Soil particle/aggregate transport

    • Soil particle/aggregate deposition

  • There must be detachment and transport for erosion to occur

  • Deposition (sedimentation) will occur somewhere downstream

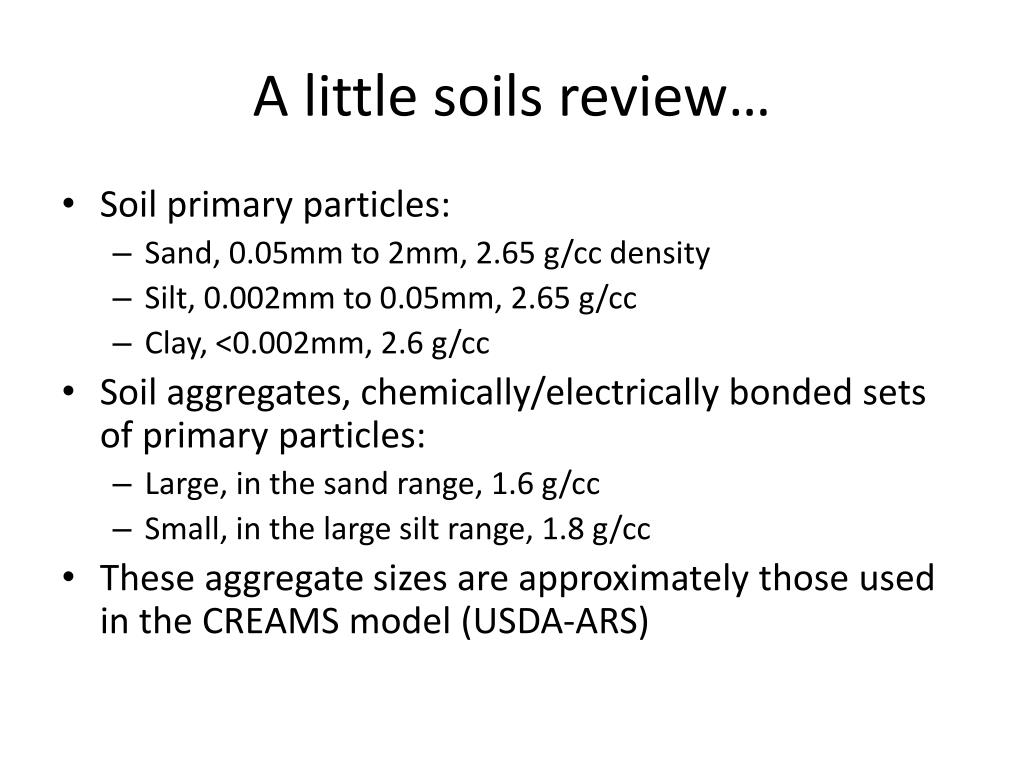

A little soils review

A little soils review…

  • Soil primary particles:

    • Sand, 0.05mm to 2mm, 2.65 g/cc density

    • Silt, 0.002mm to 0.05mm, 2.65 g/cc

    • Clay, <0.002mm, 2.6 g/cc

  • Soil aggregates, chemically/electrically bonded sets of primary particles:

    • Large, in the sand range, 1.6 g/cc

    • Small, in the large silt range, 1.8 g/cc

  • These aggregate sizes are approximately those used in the CREAMS model (USDA-ARS)


Detachment

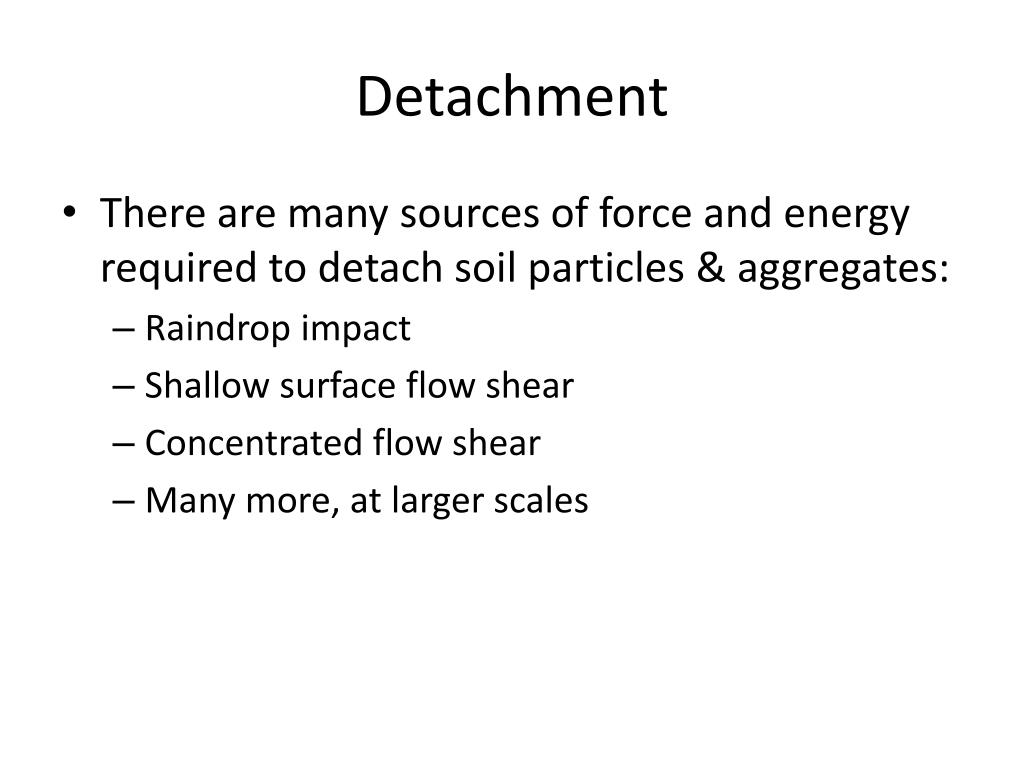

Detachment

  • There are many sources of force and energy required to detach soil particles & aggregates:

    • Raindrop impact

    • Shallow surface flow shear

    • Concentrated flow shear

    • Many more, at larger scales


Transportation

Transportation

  • Many of the same processes contribute force and energy for soil particle & aggregate transport:

    • Raindrop impact

    • Shallow surface flow

    • Concentrated surface flow

    • Channelized flow

    • Others


Balancing act

Balancing act

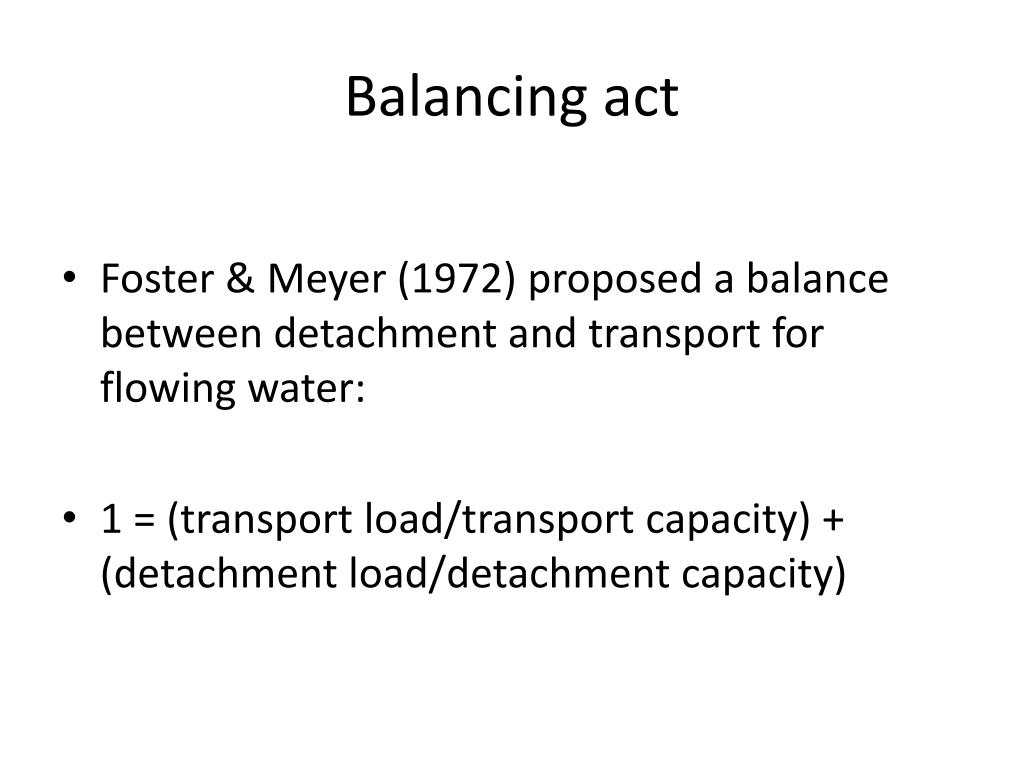

  • Foster & Meyer (1972) proposed a balance between detachment and transport for flowing water:

  • 1 = (transport load/transport capacity) + (detachment load/detachment capacity)


2011 pe review

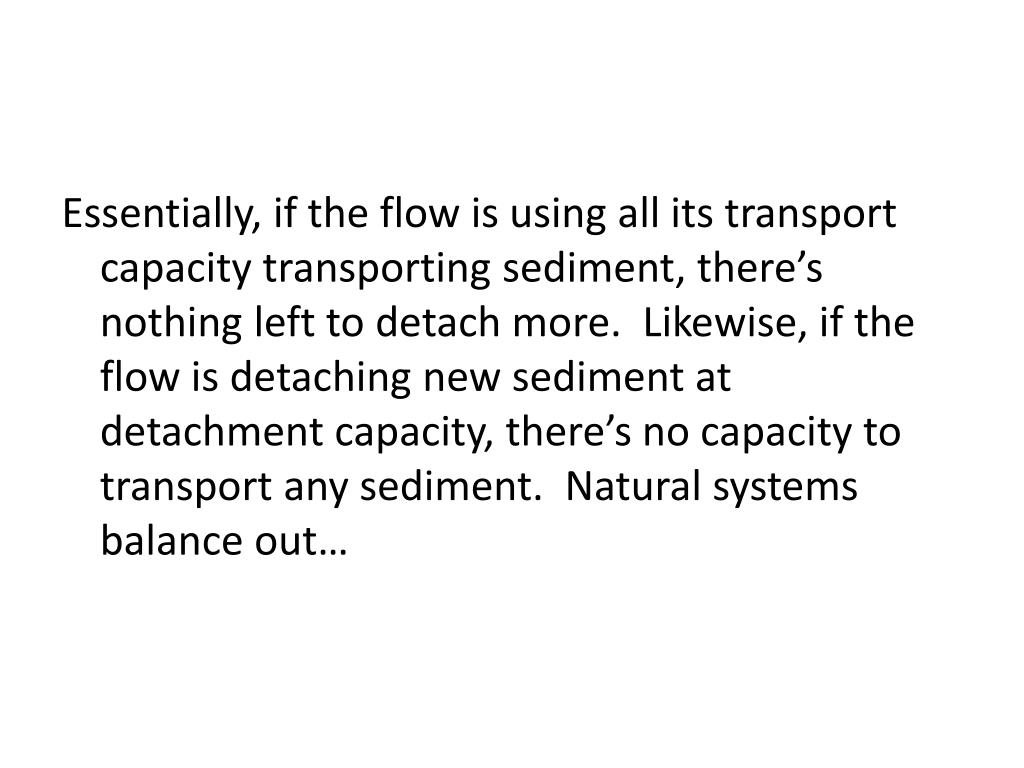

Essentially, if the flow is using all its transport capacity transporting sediment, there’s nothing left to detach more. Likewise, if the flow is detaching new sediment at detachment capacity, there’s no capacity to transport any sediment. Natural systems balance out…


Example

Example

  • In the 80’s and 90’s there was a successful push to conservation tillage as a method to reduce sediment in lakes and streams

  • In many situations, no improvement was seen, but streambank erosion became more of a problem than it was in the past

  • I contend that now that the streams are receiving cleaner water (because of less upland erosion), but at similar rates, from farm fields, the stream uses less of its erosive energy to transport load it receives from runoff water, so it has capacity to undercut banks and scour the streambed


Multi stage erosion

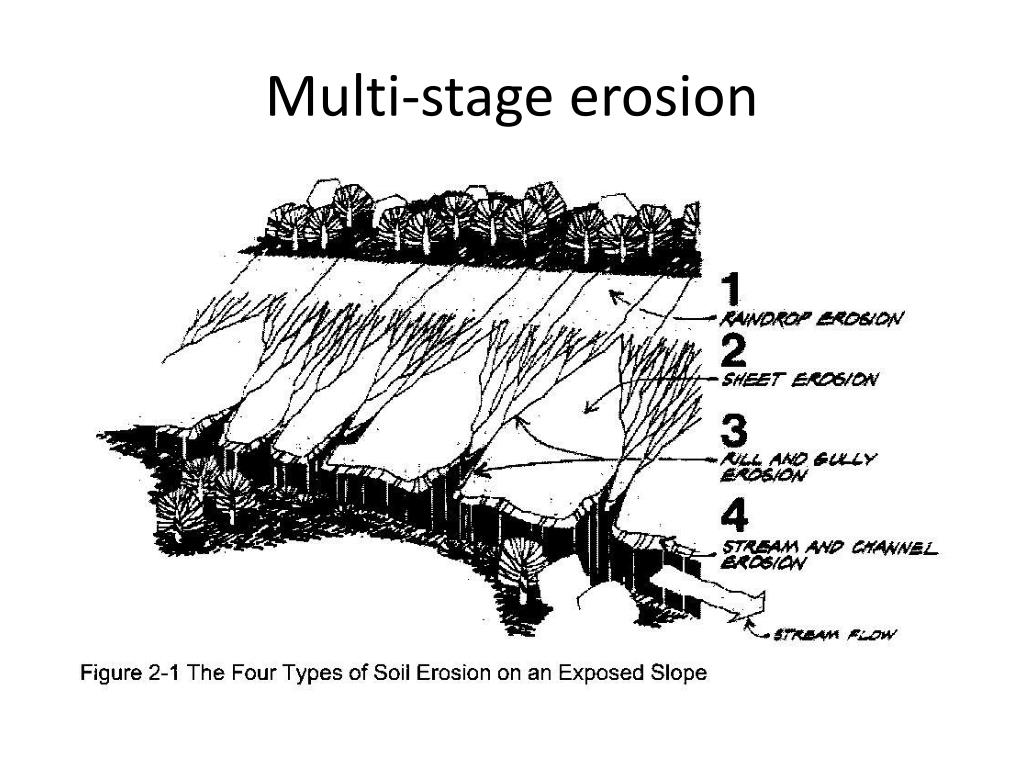

Multi-stage erosion

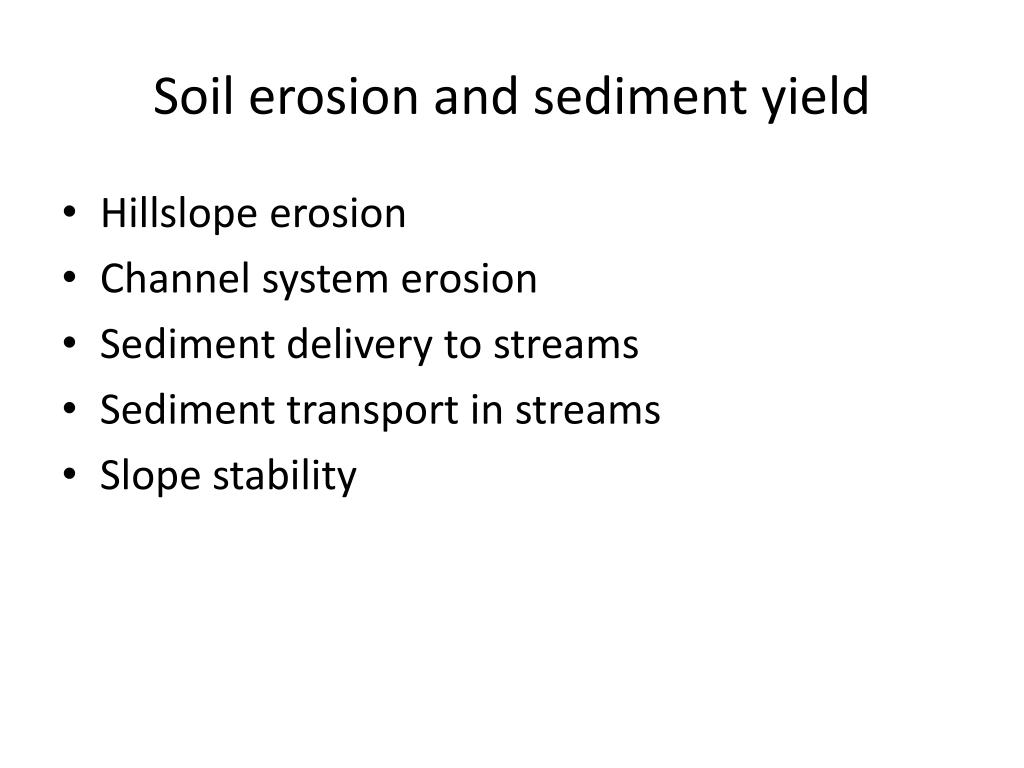

Soil erosion and sediment yield

Soil erosion and sediment yield

  • Hillslope erosion

  • Channel system erosion

  • Sediment delivery to streams

  • Sediment transport in streams

  • Slope stability


Hillslope soil erosion

Hillslope soil erosion

  • S4.91-111; S5.134-156; H.238-285

  • Background

    • Detachment

      • Raindrop impact

      • By turbulent overland flow

        • Runoff

    • Transport downslope

      • By runoff


Hillslope soil erosion background

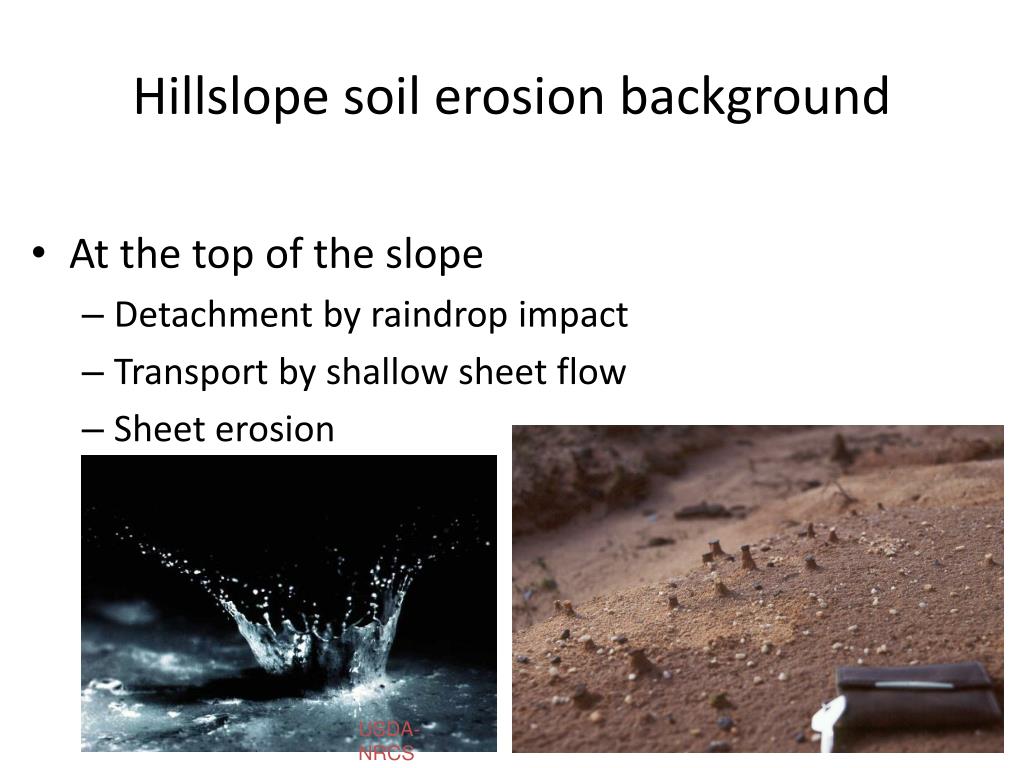

Hillslope soil erosion background

  • At the top of the slope

    • Detachment by raindrop impact

    • Transport by shallow sheet flow

    • Sheet erosion

USDA-NRCS


Hillslope soil erosion background 2

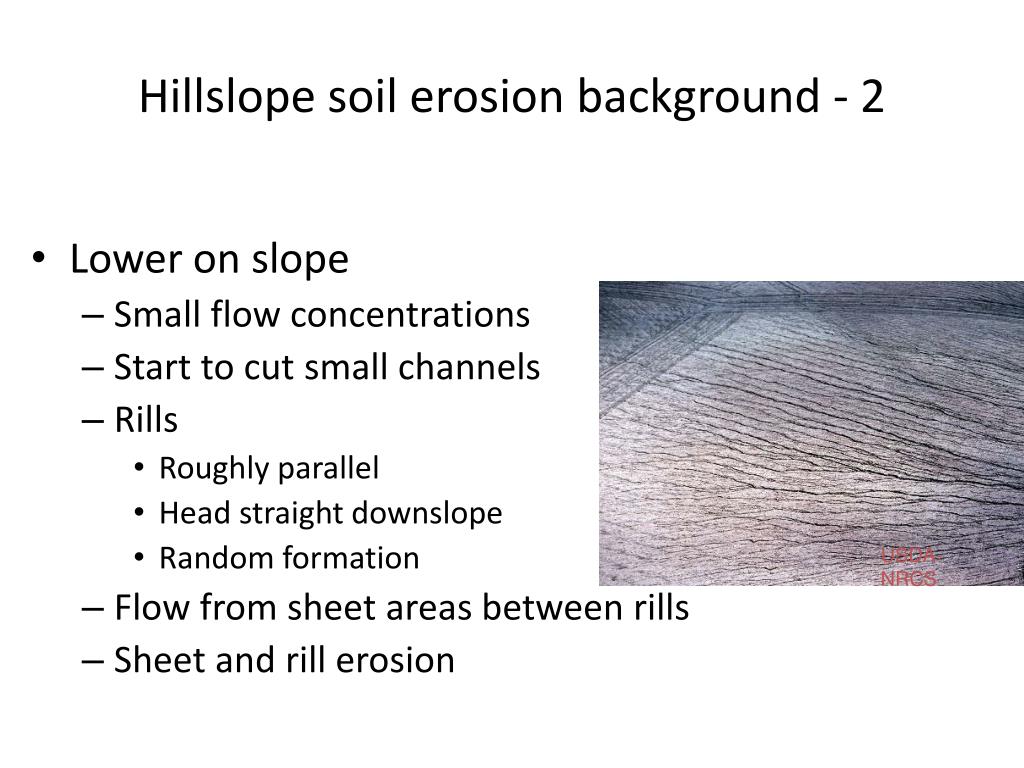

Hillslope soil erosion background - 2

  • Lower on slope

    • Small flow concentrations

    • Start to cut small channels

    • Rills

      • Roughly parallel

      • Head straight downslope

      • Random formation

    • Flow from sheet areas between rills

    • Sheet and rill erosion

USDA-NRCS


Hillslope soil erosion background 3

Hillslope soil erosion background - 3

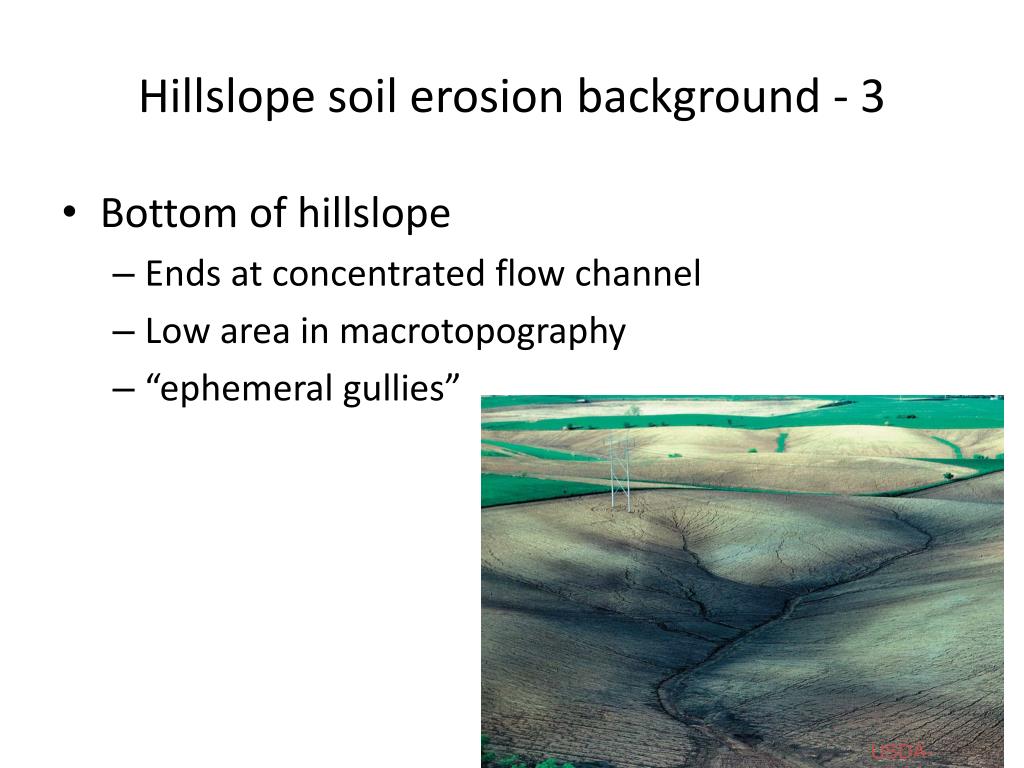

  • Bottom of hillslope

    • Ends at concentrated flow channel

    • Low area in macrotopography

    • “ephemeral gullies”

USDA-NRCS


Hillslope erosion factors

Hillslope erosion factors

  • Rainfall erosivity

    • Intensity

    • Total storm energy

  • Soil erodibility

  • Topography

    • Slope length

    • Steepness

  • Management

    • Reduce local erosion

    • Change runoff path

    • Slow and spread runoff => deposition


Usle rusle

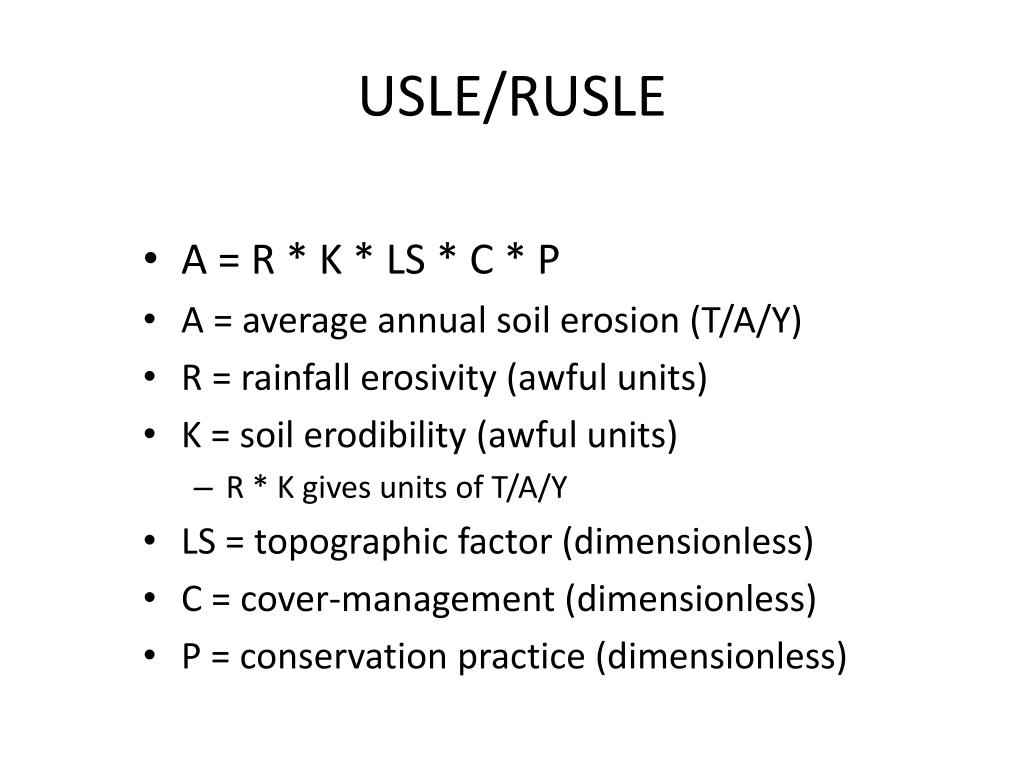

USLE/RUSLE

  • A = R * K * LS * C * P

  • A = average annual soil erosion (T/A/Y)

  • R = rainfall erosivity (awful units)

  • K = soil erodibility (awful units)

    • R * K gives units of T/A/Y

  • LS = topographic factor (dimensionless)

  • C = cover-management (dimensionless)

  • P = conservation practice (dimensionless)


Usle rusle background

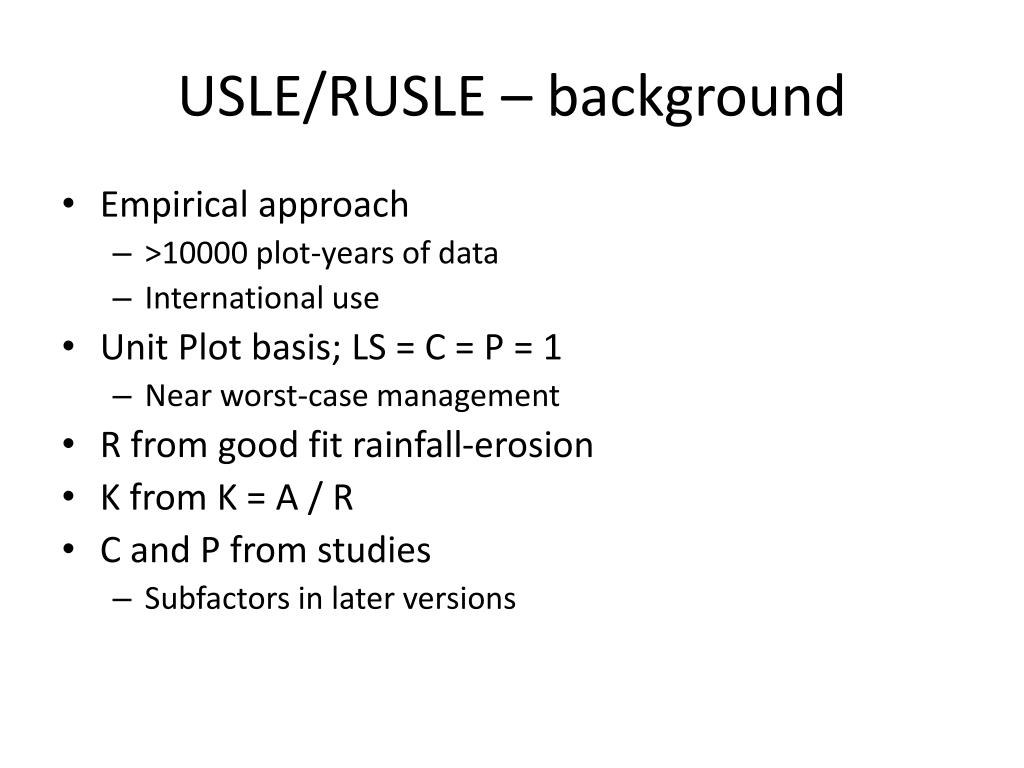

USLE/RUSLE – background

  • Empirical approach

    • >10000 plot-years of data

    • International use

  • Unit Plot basis; LS = C = P = 1

    • Near worst-case management

  • R from good fit rainfall-erosion

  • K from K = A / R

  • C and P from studies

    • Subfactors in later versions


Usle rusle approach

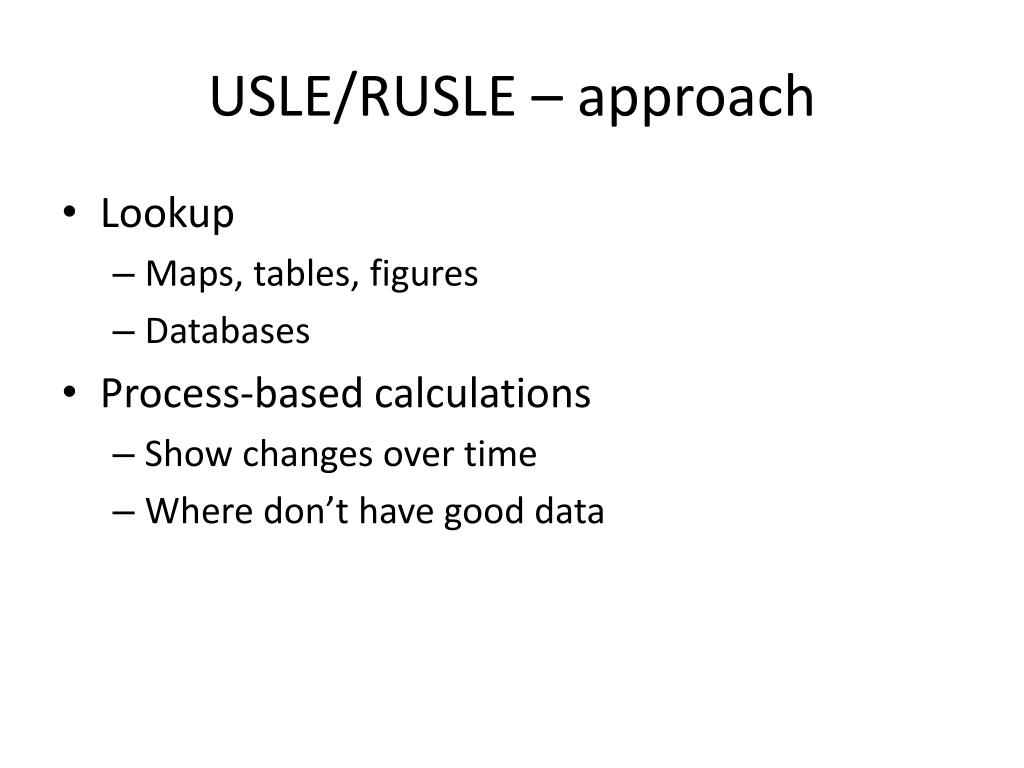

USLE/RUSLE – approach

  • Lookup

    • Maps, tables, figures

    • Databases

  • Process-based calculations

    • Show changes over time

    • Where don’t have good data

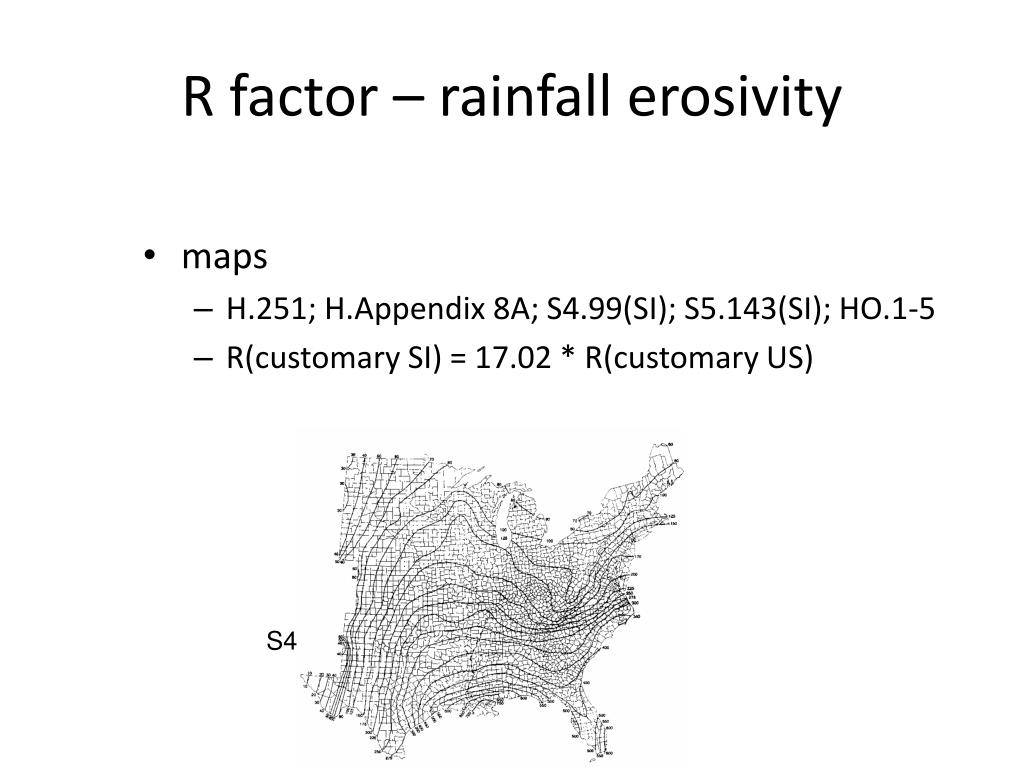

R factor rainfall erosivity

R factor – rainfall erosivity

  • maps

    • H.251; H.Appendix 8A; S4.99(SI); S5.143(SI); HO.1-5

    • R(customary SI) = 17.02 * R(customary US)

S4


K factor soil erodibility

K factor – soil erodibility

  • Soil surveys, NASIS, H.261-262; HO.6

  • Erodibility nomograph

    • H.255; S4.101; S5.144; HO.7

    • No short-term OM


Ls topography factor

LS – topography factor

  • New tables & figures

    • H.264; HO.8

  • Know susceptibility to rilling

    • High for highly disturbed soils

    • Low for consolidated soils


C cover management factor

C – cover-management factor

  • Part of normal management scheme

  • Lookup: S4.102; S5.146; H.266; H.Appendix 8; HO.9

  • Change over time


C cover management factor 2

C – cover-management factor - 2

  • Subfactor approach (RUSLE)

    • C = PLU * CC * SC * SR * SM; all 0-1

      • PLU = prior land use

        • roots, buried biomass, soil consolidation

      • CC = canopy cover; % cover & fall height

      • SC = exp(-b * % cover)

        • B = 0.05 if rills dominant; 0.035 typical; 0.025 interrill

      • SR = roughness; set by tillage, reduces over time

      • SM = soil moisture; used only in NWRR


P conservation practice factor

P – conservation practice factor

  • Common practices

    • Contouring, stripcropping, terraces

  • Change flow patterns or cause deposition

  • Lookup tables

    • S4.103; S5.146; H.281; HO.10


Calc usle rusle

Calc.: USLE/RUSLE

  • Given:

    • Materials in handout

    • 3-Acre construction site near Chicago

    • Straw mulch applied at 4 T/A

    • Average 20% slope, 100’ length

    • Loamy sand subsoil

    • Fill (loose soil)

  • Find:

    • Erosion rate in T/A/Y


Calc usle rusle 2

Calc: USLE/RUSLE – 2

  • R = 150 (HO.1)

  • K = 0.24 (HO.7)

  • LS = 4 (HO.8-high rilling)

  • C = 0.02 (HO.9)

  • P = 1.0

  • A = R * K * LS * C * P = 2.9 T/A/Y


Calc usle rusle 2 1

Calc: USLE/RUSLE – 2.1

  • Given:

    • Materials in handout

    • 16-A site near Dallas, TX

    • Silty clay loam subsoil

    • Average 50% slope, 75’ length

    • Cut soil

  • Find:

    • By what percentage will the erosion be reduced if we increase our straw mulch cover from 40% cover to 80% cover?


Calc usle rusle 2 2

Calc: USLE/RUSLE – 2.2

  • Only thing different is C

    • Only subfactor different is SC

  • SC = exp(-b * %cover)

    • For consolidated soil, b = 0.025

  • SC1 = exp(-0.025 * 40%) = 0.368

  • SC2 = exp(-0.025 * 80%) = 0.135

  • Reduction = (0.368 – 0.135)/0.368 = 63%


Sediment delivery

Sediment delivery

  • USLE/RUSLE for hillslopes

    • Erosion

    • Delivery

  • Erosion critical for soil resource conservation

  • Delivery critical for water quality

    • Movement through channel system


Sediment delivery 2

Sediment delivery – 2


Sediment delivery 3

Sediment delivery – 3

  • SDR (Sediment Delivery Ratio)

    • Hillslope erosion

    • Empirical fit for watershed delivery

  • Channel erosion/deposition modeling

    • Erosion

    • Transport

    • Deposition


Sediment delivery ratio

Sediment Delivery Ratio

  • H.293-299

  • SDR = SY / HE

    • SDR = sediment delivery ratio

    • SY = sediment yield at watershed exit

    • HE = hillslope erosion over watershed


Sediment delivery ratio 2

Sediment Delivery Ratio – 2

  • Area-delivery relationship

H.294


Sediment delivery ratio 3

Sediment Delivery Ratio – 3

  • Relief-length ratio

    • Relief = elev change along main branch

    • Length = length along main branch

H.294


Sediment delivery ratio 4

Sediment Delivery Ratio – 4

  • Forest Service Delivery Index Method

H.295


Sediment delivery ratio 5

Sediment Delivery Ratio – 5

  • MUSLE (H.298)

    • Y = 95(Q * qp)0.56 (Ka)(LSa)(Ca)(Pa)

      • Y = storm yield in tons

      • Q = storm runoff volume in acre-in

      • q = peak runoff rate in cfs

      • K, LS, C, P = area=weighted watershed values

    • SDR = 95(Q * qp)0.56/(R * area)

      • R = storm erosivity in US units

    • Routing for channel delivery


Calc sdr

Calc: SDR

  • Given:

    • Flow path length in watershed = 4000ft

    • Elevation difference = 115ft

  • Find:

    • SDR


Calc sdr 2

Calc.: SDR – 2

  • R/L = 115/4000 = 0.029

  • From figure SDR = 0.45


Channel erosion deposition modeling

Channel erosion-deposition modeling

  • Process-based small channel models

    • Foster-Lane model

      • H.285-289

      • Complicated and process-based

    • Ephemeral Gully Erosion Model

      • EGEM

      • Fit to Foster-Lane Model results


Channel erosion deposition modeling 2

Channel erosion-deposition modeling – 2

  • Large-channel models

    • Sediment transport

    • Channel morphology


Sediment transport

Sediment transport

  • Settling (H.204-209)

    • Stokes’ Law

      • Vs = settling velocity

      • d = particle diameter

      • g = accel due to gravity

      • SG = particle specific gravity

      • ν = kinematic viscosity

    • Simplified Stokes’ Law

      • SG = 2.65

      • Quiescent water at 68oF

      • d in mm, Vs in fps


Calc stokes law settling

Calc.: Stokes’ Law settling

  • Given:

    • ISSS soil particle size classification

  • Find:

    • Settling velocities of largest sand, silt, and clay particles


Calc stokes law settling 2

Calc.: Stokes’ Law settling – 2

  • ISSS classification

    • Largest particles size

      • Clay = 0.002mm

      • Silt = 0.2mm

      • Sand = 2mm

    • Vs,clay = 1.12*10-4 fps = 0.04 ft/hr = 0.97 ft/day

    • Vs,silt = 0.11 fps = 405 ft/hr = 1.83 mi/day

    • Vs,sand = 11.24 fps = 7.66 mph = 184 mi/day


Calc stokes law settling1

Calc.: Stokes’ Law settling

  • Given:

    • Stokes’ Law settling

  • Find: particles larger than what size can be assumed to settle 1 ft in one hour?


Calc stokes law settling 21

Calc.: Stokes’ Law settling – 2

  • Vs = [(1 ft)/(1 hr)](1 hr/3600s) = 2.778*10-4 fps

  • d = (Vs/2.81)1/2 = 0.00994mm


Other settling

Other settling

  • Flocculant, hindered, compression

    • Order of increasing concentration

    • Slower settling with increased conc.

  • Settleable solids

    • Imhoff cone

H.211


Sediment transport relationships

Sediment transport relationships

  • H.223-233

  • Bedload

    • Einstein equation

  • Suspended load

  • Total load

    • Yalin total load equation

      • Vavg, d, SG, r, т, тc

    • Yang stream power relationship

      • Stream power instead of critical shear


Channel morphology

Channel morphology

  • H.391-419

  • Channel cross-section

    • Width B, depth D, avg. vel. U, suspended sediment load qs, flow rate q

    • B = Ca * qa, D = Cb * qb, U = Cc * qc,

      qs = Cd * qd

    • Ca, Cb, Cc, Cd, a, b, c, d = fit coefficients & exponents


Channel morphology 2

Channel morphology – 2

  • Channel-forming discharge

    • Greatest impact on channel itself

    • Return period ≈ 1.5 years

  • Channel roughness


Channel morphology 3

Channel morphology – 3

  • Channel regime

    • H.405-419

H.416


Application of process knowledge to control

Application of process knowledge to control

  • Limit individual parts to limit whole

    • Limit detachment

    • Limit transport

  • Enhance deposition strategically

    • Where damage is minimal

    • Where cleanup is possible


Control of soil erosion by water

Control of Soil Erosion by Water

  • Detachment limiting strategies

    • Reduce raindrop impact (“Stop the Drops”)

    • Reduce runoff

    • Reduce detachment capacity of runoff

    • Increase soil resistance to erosive forces

  • Transport limiting strategies

    • Reduce runoff volume

    • Reduce runoff transport capacity (“Slow the Flow”)


Example no till

Example – No-Till

  • Detachment

    • Raindrop impact detachment is very low due to high surface cover percentage

    • Flow shear detachment is low due to low velocities caused by tortuous flow path

    • Soil is resistant to erosion because of low disturbance

  • Transport

    • Raindrop transport is limited by surface residue

    • Flow transport is limited by increased infiltration, lessening runoff

    • Flow transport is further limited by small dams created by surface residue


Example mulch on newly seeded area

Example – Mulch on newly seeded area

  • Detachment

    • Raindrop impact detachment is very low due to high surface cover percentage

    • Flow shear detachment is low due to low velocities caused by tortuous flow path

  • Transport

    • Raindrop transport is limited by surface residue

    • Flow transport is limited by increased infiltration, lessening runoff

    • Flow transport is further limited by small dams created by surface residue


Comparison of no till vs mulch

Comparison of no-till vs. mulch

  • Detachment

    • Likely higher with mulch for same surface cover fraction because of higher soil disturbance for seedbed preparation

    • Likely higher for no-till following dry years because amount of residue cover is dictated by prior year crop growth

  • Transport

    • Likely higher for mulch, unless “cut” in because no-till residue is effectively “cut” in during planting, at least for a small area, hopefully across slope

    • Likely higher for mulch situation because seedbed prep likely reduced average aggregate diameter


Control of sediment in runoff

Control of Sediment in Runoff

  • Reduce transport capacity of flow

  • Enhance deposition of sediment


Reduce transport capacity

Reduce transport capacity

  • Slow the flow

    • Barriers

      • Must let water pass, though slowly

      • Must be flow-stable, even after use

      • Must be where maintenance is possible

    • Reduce slope steepness

      • Channel must be of adequate capacity

  • Increase infiltration


Enhance deposition of sediment

Enhance deposition of sediment

  • Use flocculant to increase sedimentation

    • Usually in sedimentation ponds when other methods are not adequate

    • Expensive…


Slope stability failure possible forms of failure

Slope stability & failurePossible forms of Failure

McCarthy (1982) page 437-455

McCarthy (1982) page 440

I.B Mohtar


Slope stability failure 2

Slope stability & failure – 2

  • Terms

    • β=max. slope angle before sliding

    • Φ=angle of internal friction

  • Cohesionless soil

    • tan(β) = tan(Φ)

    • Saturated: tan(β) = (1/2)tan(Φ)

I.B Mohtar


Slope stability failure 3

Slope stability & failure – 3

  • Cohesive soil

    • γ*z*sin(β)*cos(β) = c + σ*tan(Φ)

      • z = assumed depth

      • c = cohesive force

      • σ = effective compressive stress

    • Rotational or sliding block

I.B Mohtar


Slope stability failure 4

Slope stability & failure – 4

For clay soil

For soil with cohesion and internal friction > 0

McCarthy (1982) page 474

I.B Mohtar


Slope stability failure 5

Slope stability & failure – 5

  • Ns = c / (γ * Hmax)

    • c = cohesion force

    • γ = soil unit weight

    • Hmax = max depth without sliding

I.B Mohtar


Calc slope stability

Calc.: slope stability

Example 8:

  • Given:

    • Cohesion strength = 500 lb/ft2

    • Unit weight = 110 lb/ft3

    • Slope steepness = 50o

    • Internal friction angle = 15o

  • Find:

    • Max. slope height

I.B Mohtar


Calc slope stability 2

Calc.: slope stability – 2

  • Fig. b, φ = 15o, i = 50o

  • Hmax = c / (γ * Ns) =

    (500 lb/ft2)(1ft3/ 10)(1/ 0.095) = 48 ft

I.B Mohtar


Questions

Questions?


  • Login
