Matura slide series
Matura Slide series

The Matura System, an overview


A new way
A new way…

A new way to distribute cables and ducts


The matrix tiles
The matrix tiles

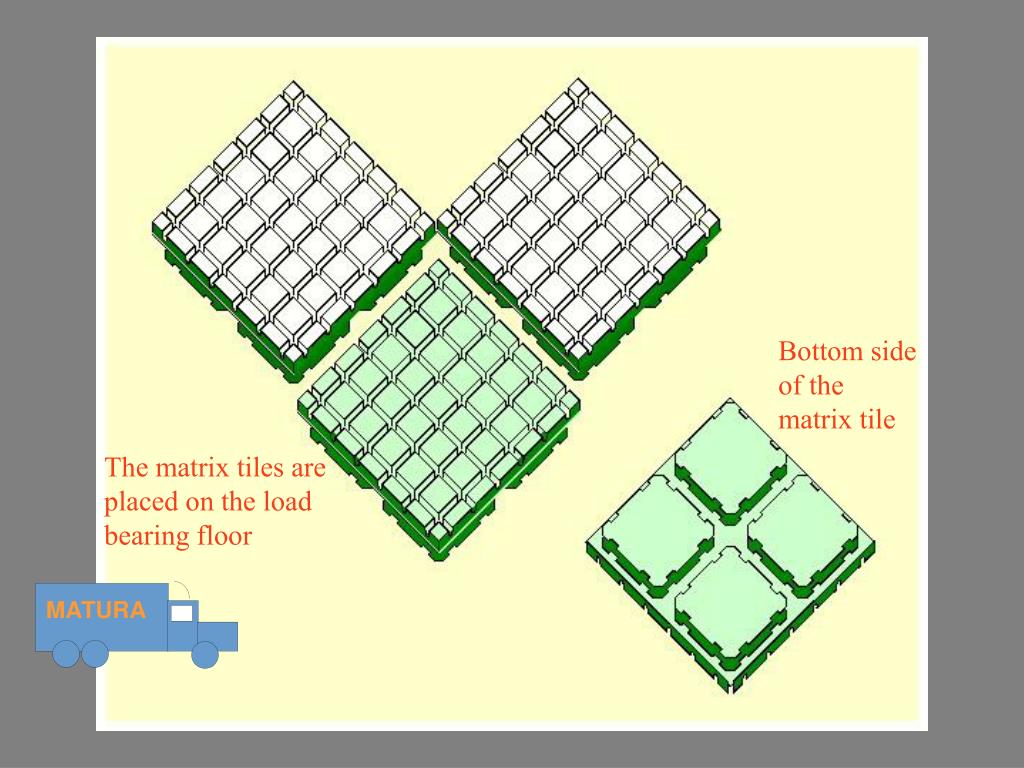

Bottom side of the matrix tile

The matrix tiles are placed on the load bearing floor


Drain pipes
Drain pipes

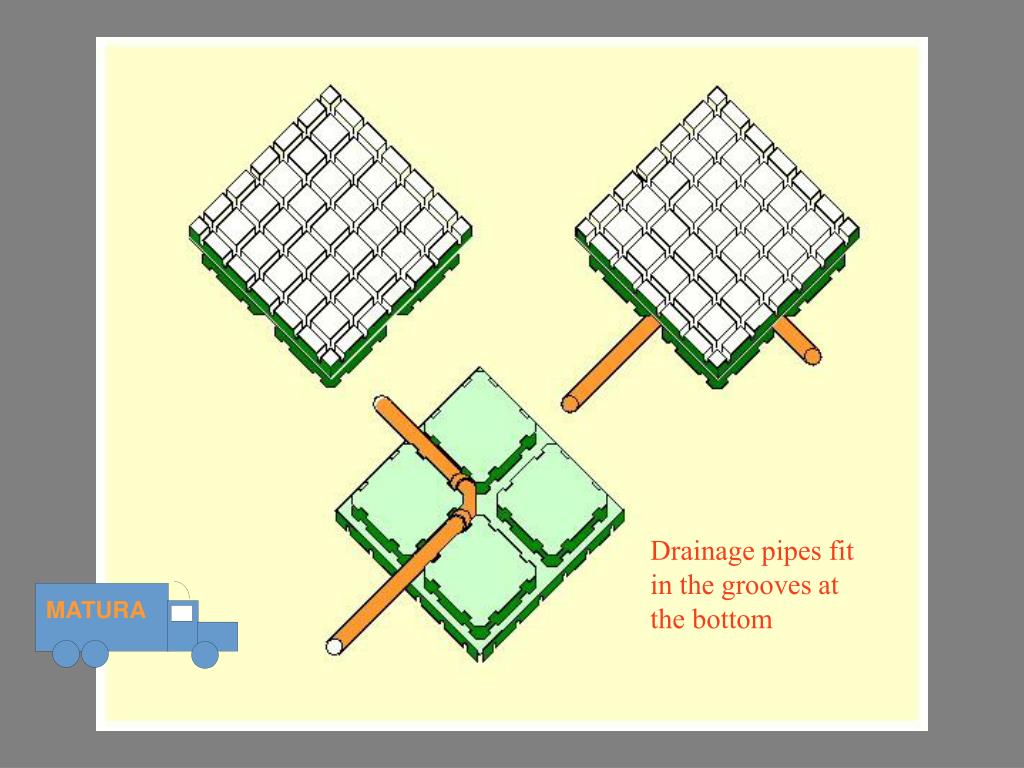

Drainage pipes fit in the grooves at the bottom


Gas lines
Gas lines

Gas lines also fit in the bottom grooves


Ventilation
ventilation

Tiles are cut to accommodate ventilation ducts between them


Water and cv
Water and cv

Conduits for hot and cold water and for central heating run in the grooves on top of the tiles


Base profiles
Base profiles

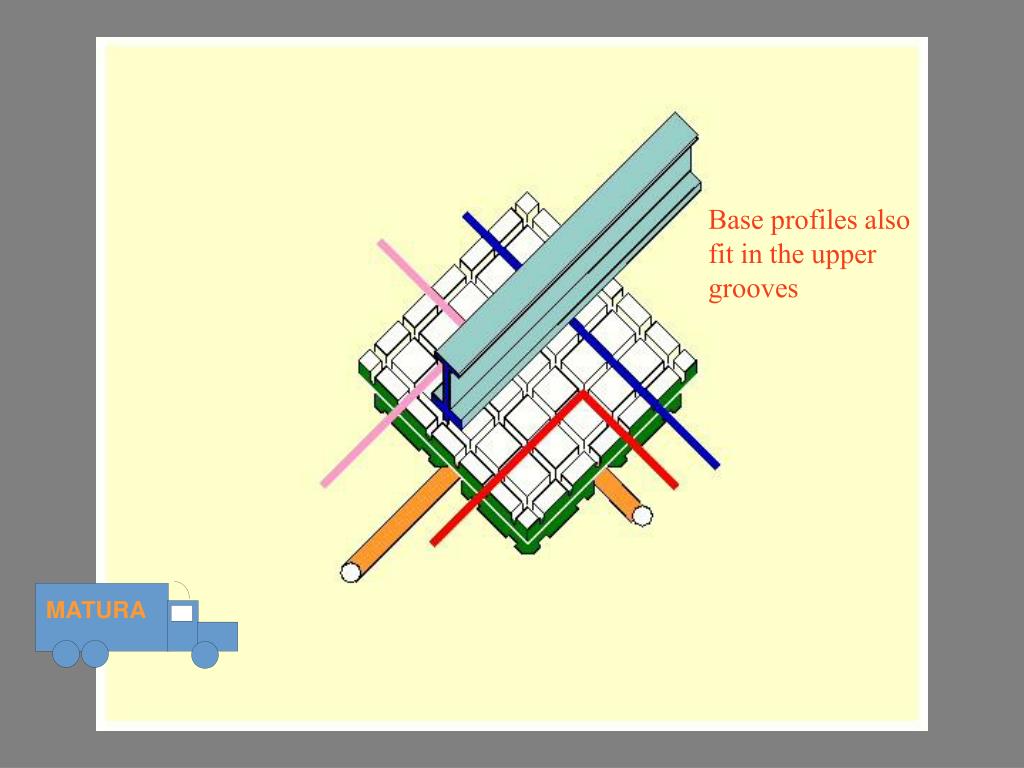

Base profiles also fit in the upper grooves


Floor boards
Floor boards

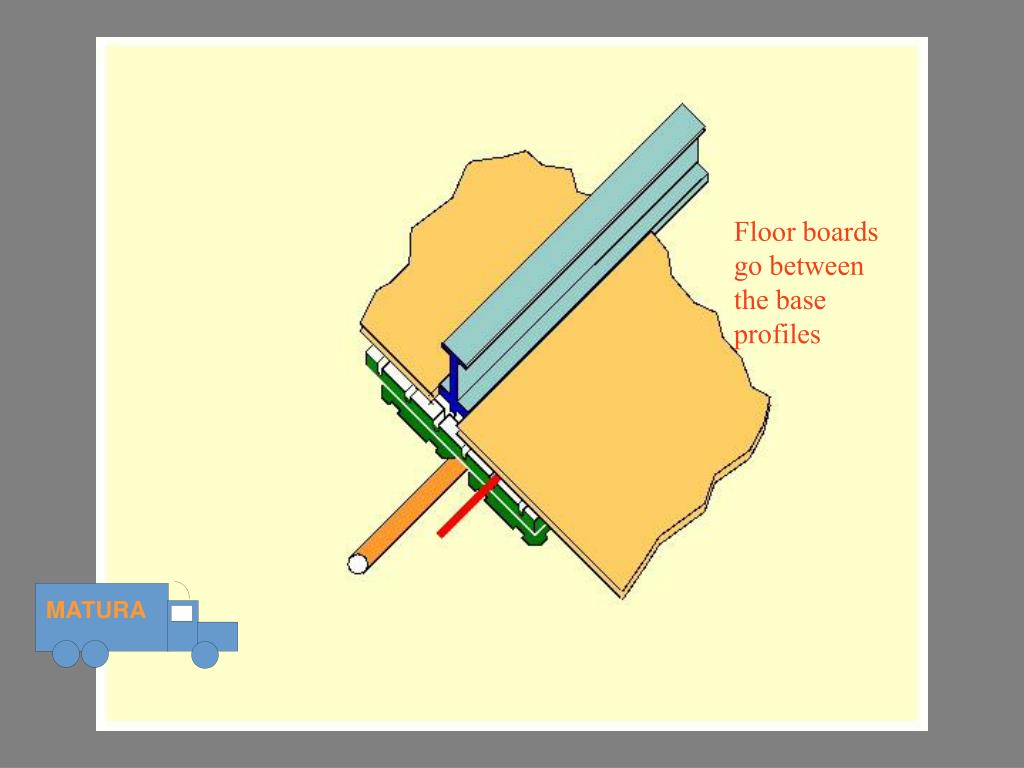

Floor boards go between the base profiles


Cables in base profile
Cables in base profile

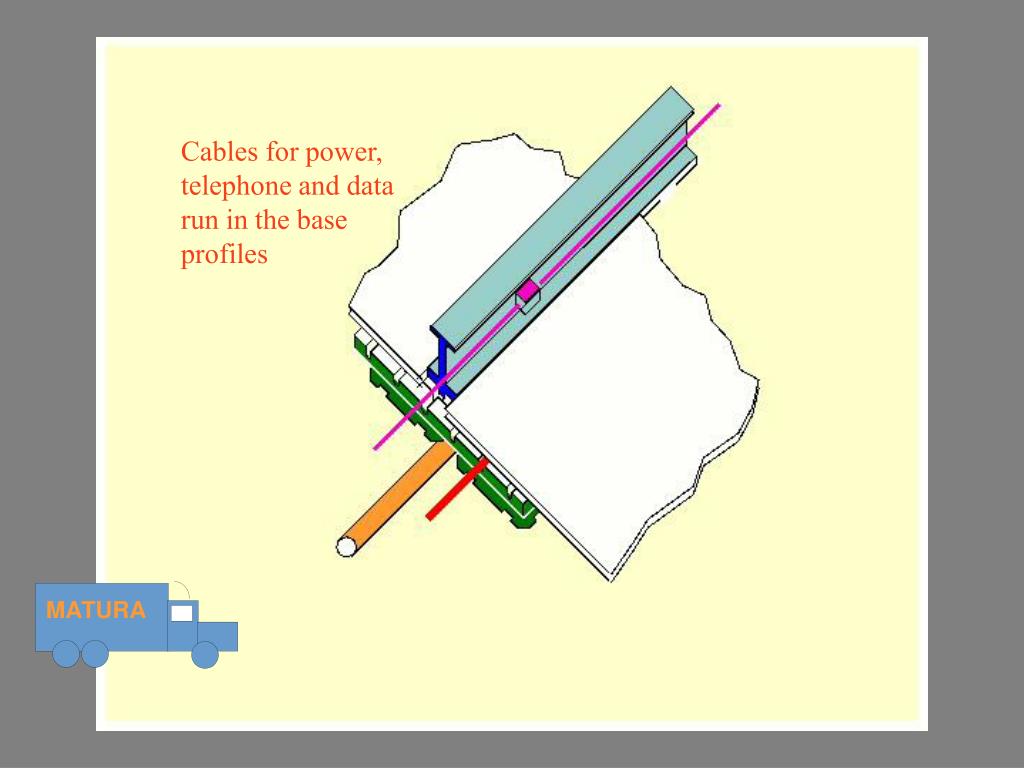

Cables for power, telephone and data run in the base profiles


Walls on top of b p
Walls on top of b.p.

Partitioning walls are placed on top of the base profiles


Base board covers
Base board covers

Base board covers with or without outlets, close the base profile channel


Outlets in walls
Outlets in walls

Outlets in the partitioning walls connect to the cables in the base profile


Equipment
equipment

Bathroom and kitchen equipment connects to the conduits un the matrix tiles


Upper and lower system
Upper and lower system

Partitioning, doors, and equipment constitute the “upper system” which is available from third parties

The matrix tiles with the base profiles and the conduits and cables in them make for the “lower system”


Mcad examples
Mcad examples

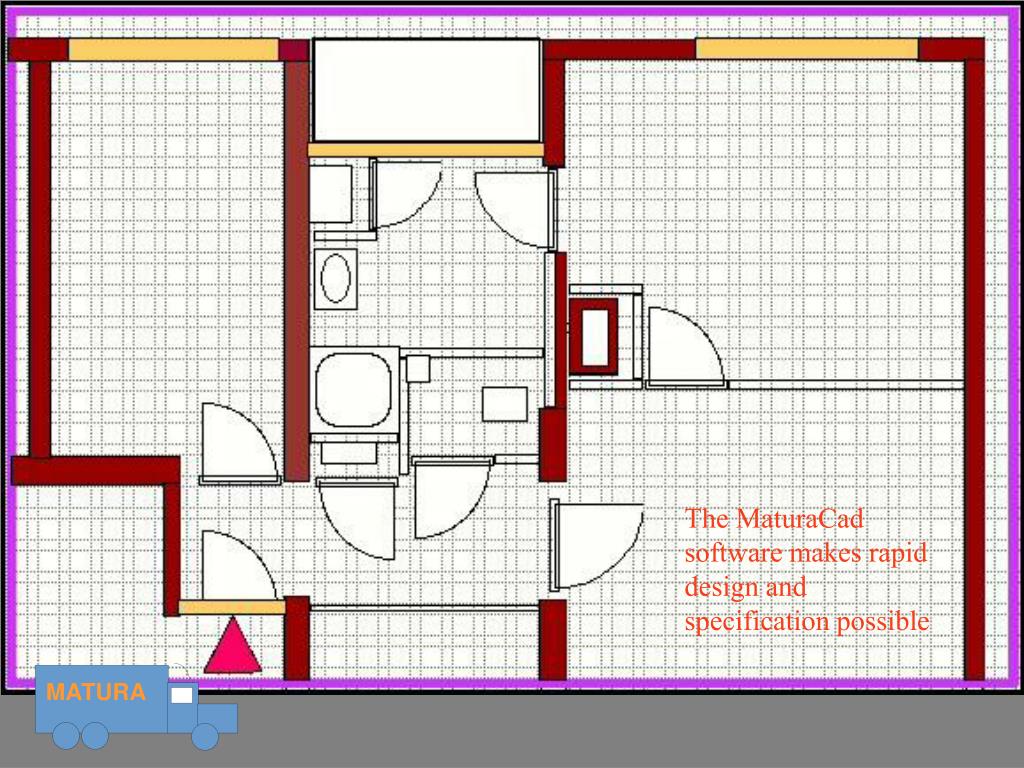

The MaturaCad software makes rapid design and specification possible


Drainage system
Drainage system

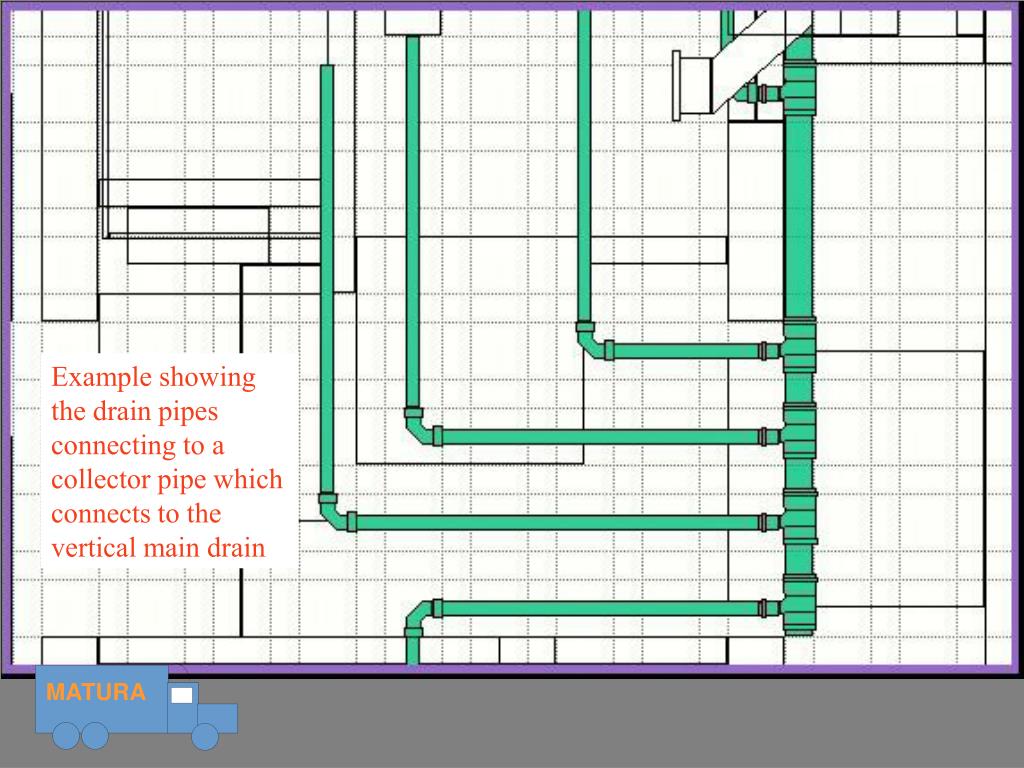

Example showing the drain pipes connecting to a collector pipe which connects to the vertical main drain


Conduits under tiles
Conduits under tiles

dranage

water

ventilation

Conduits under the matrix tiles are shown in “nominal representation”


Enlargement
enlargement

Enlargement of the conduits under the matrix tiles


Lines in upper grooves
Lines in upper grooves

Central heating

water

Base profiles

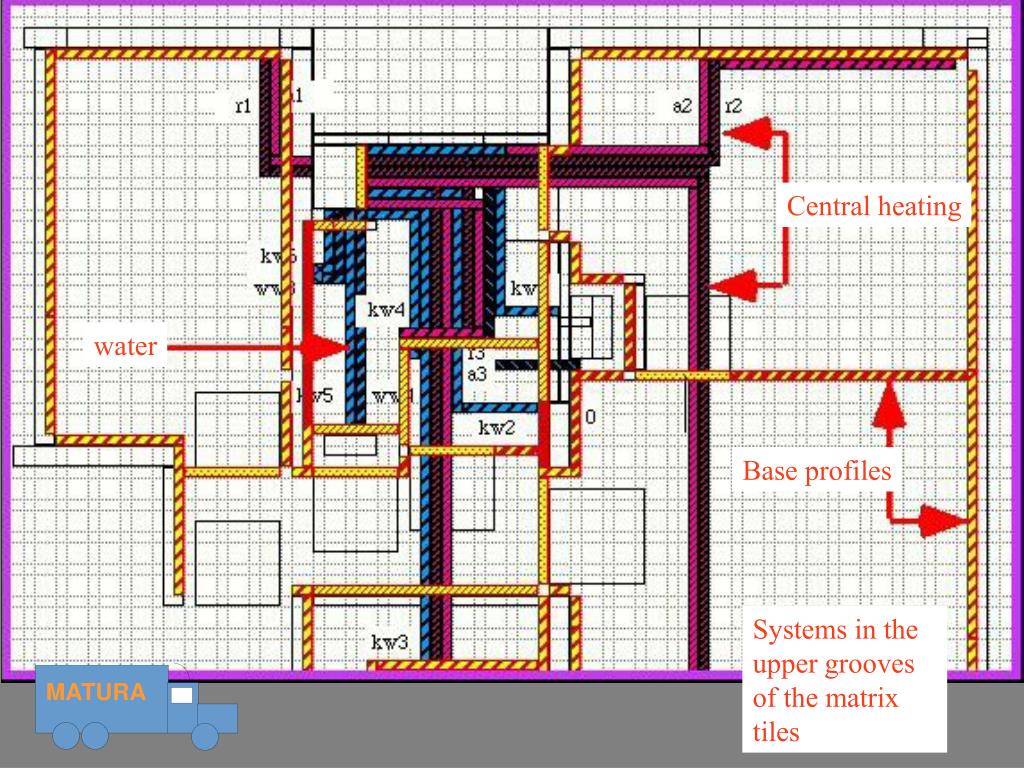

Systems in the upper grooves of the matrix tiles


Nominal presentation of former
Nominal presentation of former

Detail of lines in the upper grooves in nominal representation


Floor boards1
Floor boards

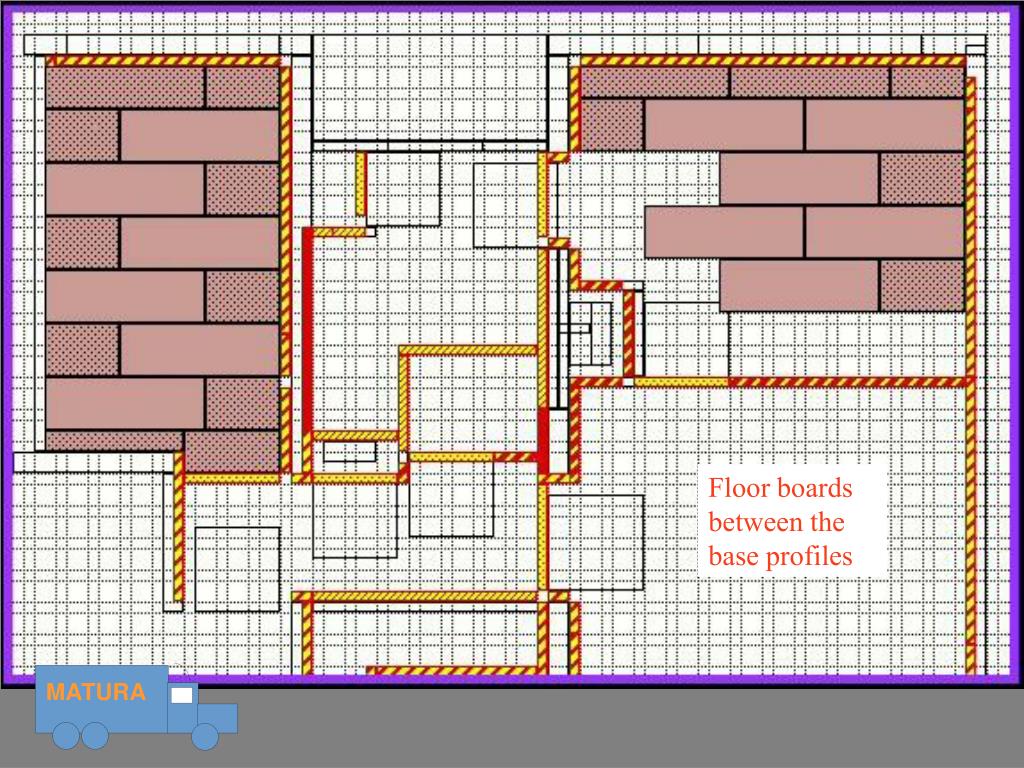

Floor boards between the base profiles
