Schematic Diagram of SLM. I B. LOCK-IN AMPLIFIER. CURRENT SOURCE. COMPUTER. V. OPTICAL FIBER. LASER. FOCUSING OPTIC. XYZ STAGE. SAMPLE STAGE. MECHANICAL CHOPPER. MICROSCOPE OBJECTIVE. G. F.

Download Presentation

ABSTRACT

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Abstract

Schematic Diagram of SLM

IB

LOCK-IN

AMPLIFIER

CURRENT

SOURCE

COMPUTER

V

OPTICAL FIBER

LASER

FOCUSING

OPTIC

XYZ

STAGE

SAMPLE

STAGE

MECHANICAL

CHOPPER

MICROSCOPE

OBJECTIVE

G

F

From the close inspection of the images, we have concluded that there is a variation of surface temperature due to the heating at the contact areas and/or the poor thermal contact between the sample and the heat bath.

15

H

E

R(W)

10

D

  • The superconducting transition starts in the middle and spreads along the bridge.

  • The image taken at lower resistance shows that the bright area in one side is shifting toward the current lead (#E) and the other end is still undergoing transition suggesting the closer to the current contact area the lower the Tc.

  • However, it does not discount the capability of VTSLM to map the local superconducting properties.

A

B

C

5

We used an epitaxial YBa2Cu3O7-d films deposited by pulsed laser deposition technique. The sample is lithographically patterned to a 300 mm wide bridge.

0

84

85

86

87

88

89

90

T(K)

The resistance versus temperature measured from the right section of the bridge (using E-F for current and C-D for voltage).

Compared with the previous measurements, there is no systematic change in the images to indicate non-uniform temperature distribution. However, even after improving thermal contact, we still observe the distribution of superconducting transition. The images indicate that the superconducting transition occurs less than 1 K in a localized scale. Hence, any samples with superconducting transition width larger than 1 K have local non-uniformity in Tc.

VTSLM images taken again at (a) 4.5  (T=84.7K), (b) 3.85  (T=85.3K), (c) 22.3  (T=85.9K), and (d) 31.6  (T=86.5K) using F-H for current and A-C for voltage. The images are 4.6 mm x 0.8 mm scans with 40 mm steps.

Operating Principle of Scanning Laser Microscope

< Resistance Measurements >

V = IBR

The resistance versus temperature measured from the left section of the bridge (using F-H for current and A-C for voltage).

< Interaction between a laser beam and a sample >

A laser beam -> a heating source (perturbation)

VTSLM images taken at (a) 3.85 , (b) 22.5 , and (c) 31.6 using F-H for current and A-C for voltage. The images are 4.6 mm x 0.8 mm scans with 40 mm steps. The edges of the bridge are marked with arrows, and the sample is slightly tilted with respect to the scan directions.

VTSLM images taken at (a) 8.43 , (b) 4.64 , (c) 2.19 , (d) 0.35 , and (e) 0.19 using E-F for current and C-D for voltage. The images are 2.70 mm x 0.45 mm scans with 10 mm steps.

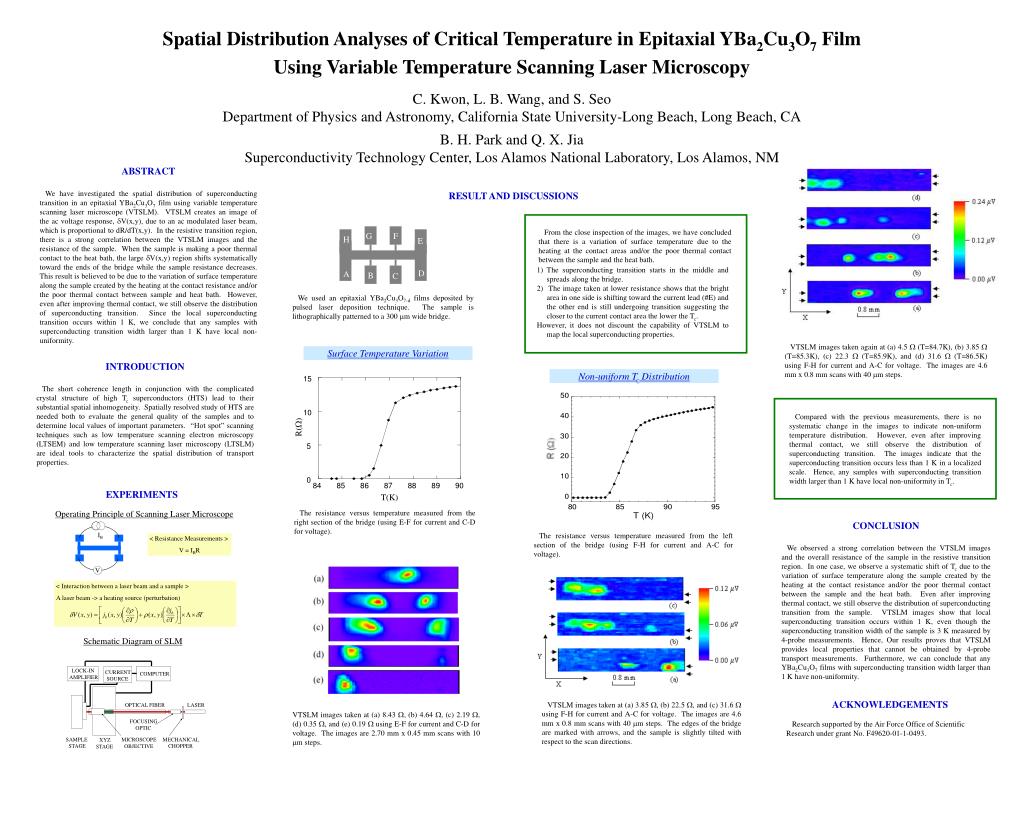

Spatial Distribution Analyses of Critical Temperature in Epitaxial YBa2Cu3O7 Film Using Variable Temperature Scanning Laser Microscopy
