Revision Total Hip Arthroplasty

Revision Total Hip Arthroplasty. Requires a clear preoperative plan. Plan - 1) Revision Dx. 2) Surgical approach 3)Instruments 4) Bone Grafts 5) Implants Preparation to handle unexpected problems that may require a greater exposure. Surgical Approach.

Download Presentation

Revision Total Hip Arthroplasty

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

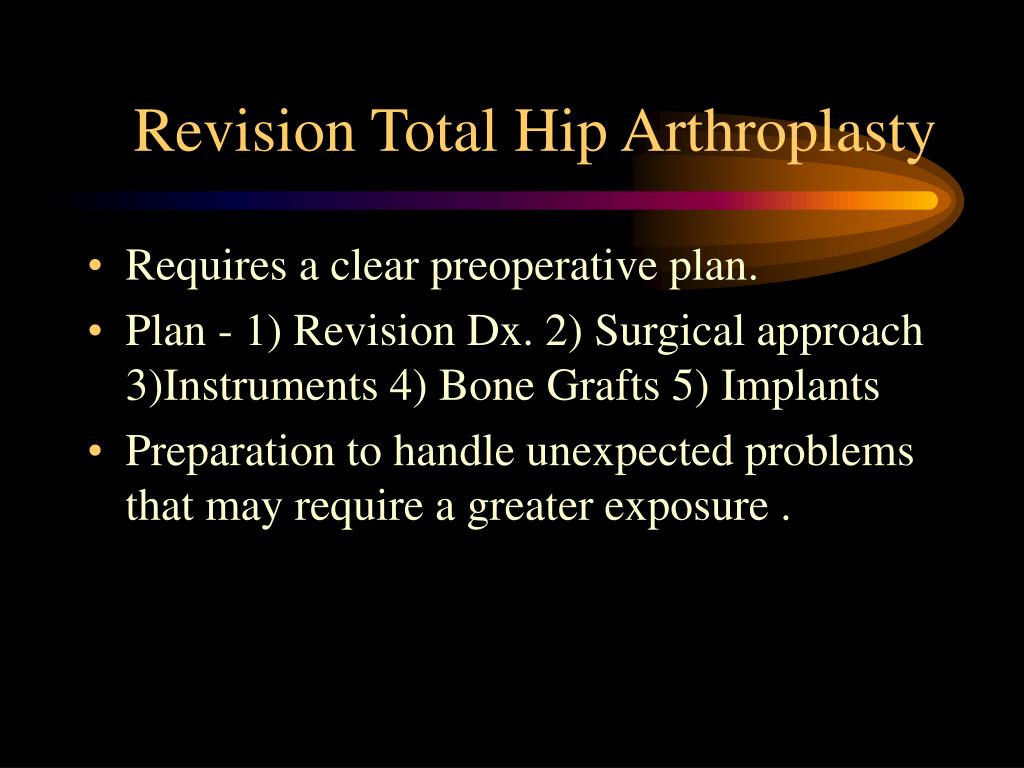

  1. Revision Total Hip Arthroplasty • Requires a clear preoperative plan. • Plan - 1) Revision Dx. 2) Surgical approach 3)Instruments 4) Bone Grafts 5) Implants • Preparation to handle unexpected problems that may require a greater exposure .

  2. Surgical Approach • Revisions performed with posterior approach • May be extended proximally or distally • Proximal extension exposes entire ilium and anterior column

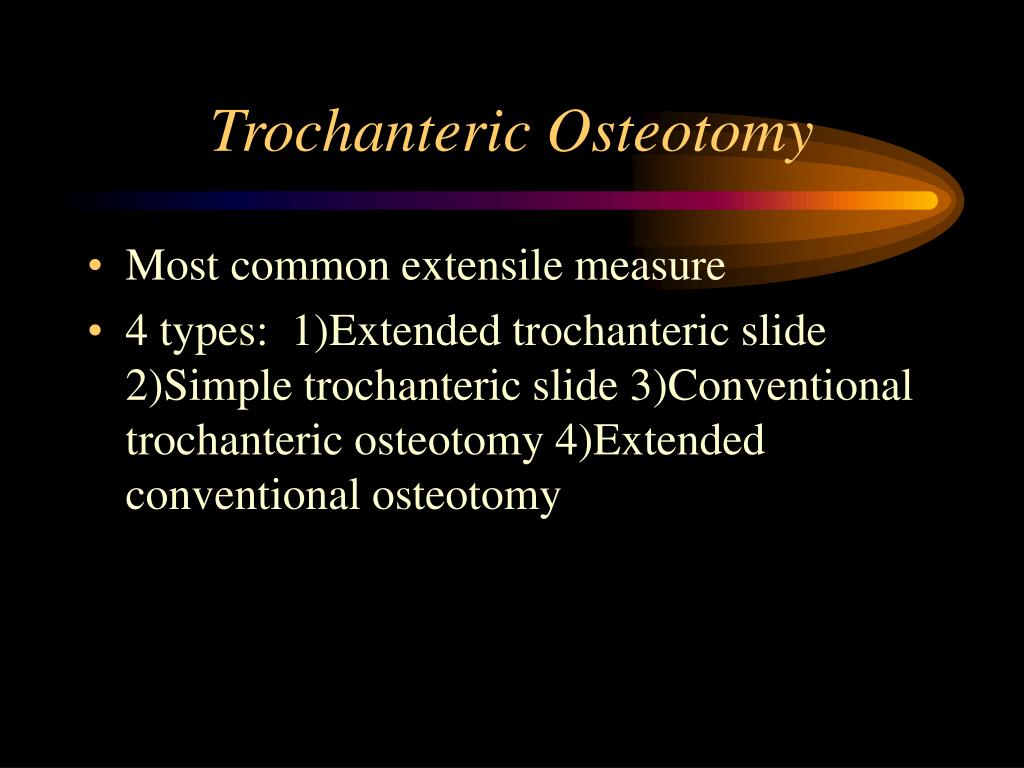

  3. Trochanteric Osteotomy • Most common extensile measure • 4 types: 1)Extended trochanteric slide 2)Simple trochanteric slide 3)Conventional trochanteric osteotomy 4)Extended conventional osteotomy

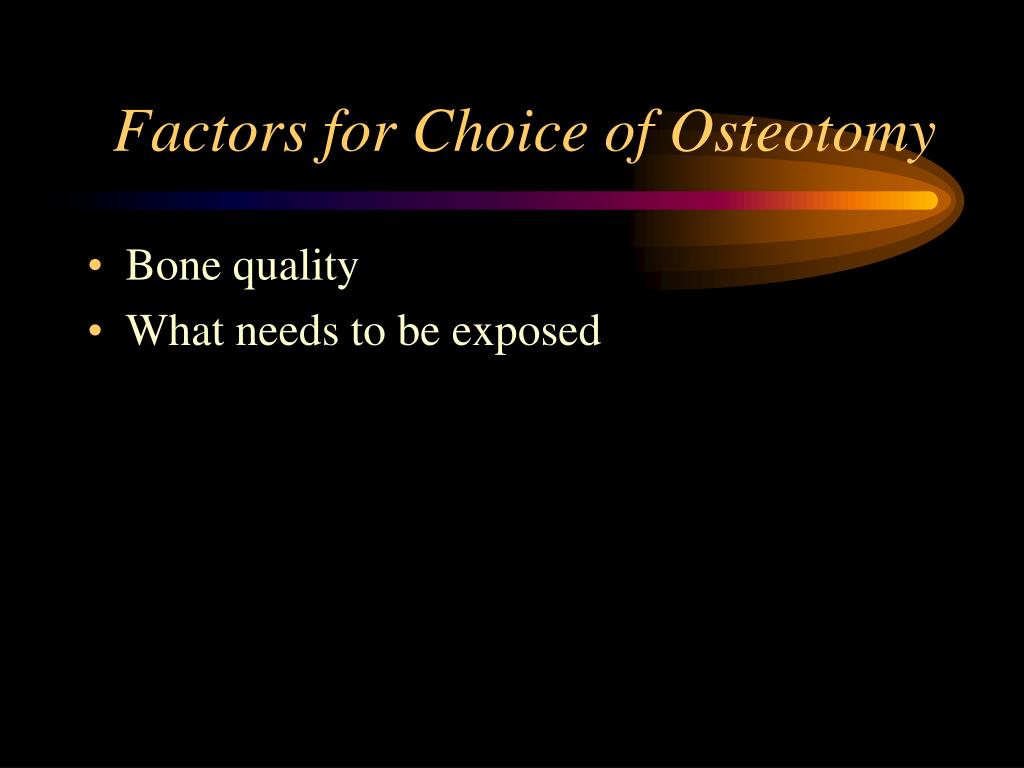

  4. Factors for Choice of Osteotomy • Bone quality • What needs to be exposed

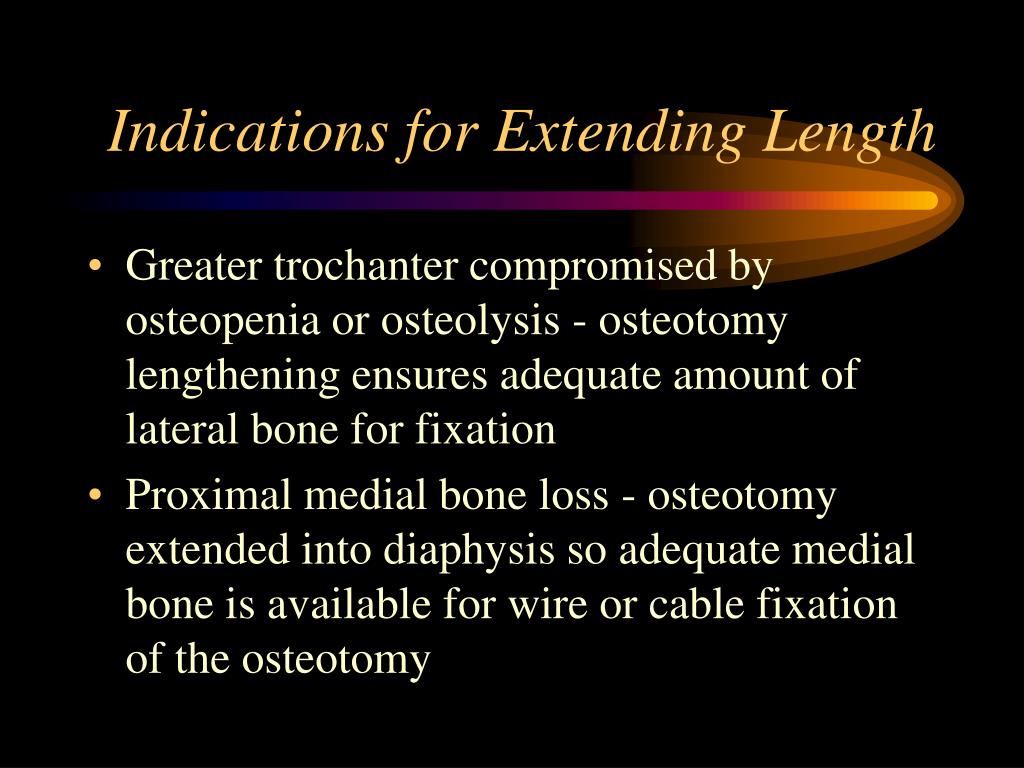

  5. Indications for Extending Length • Greater trochanter compromised by osteopenia or osteolysis - osteotomy lengthening ensures adequate amount of lateral bone for fixation • Proximal medial bone loss - osteotomy extended into diaphysis so adequate medial bone is available for wire or cable fixation of the osteotomy

  6. Need for Increased Exposure • Osteotomy choice is based on the required exposure • Anterior trochanteric slide - exposes metaphysis of femur to the level of the lesser trochanter • Conventional trochanteric - metaphysis of femur with improved acetabular, anterior wall, and ilium exposure

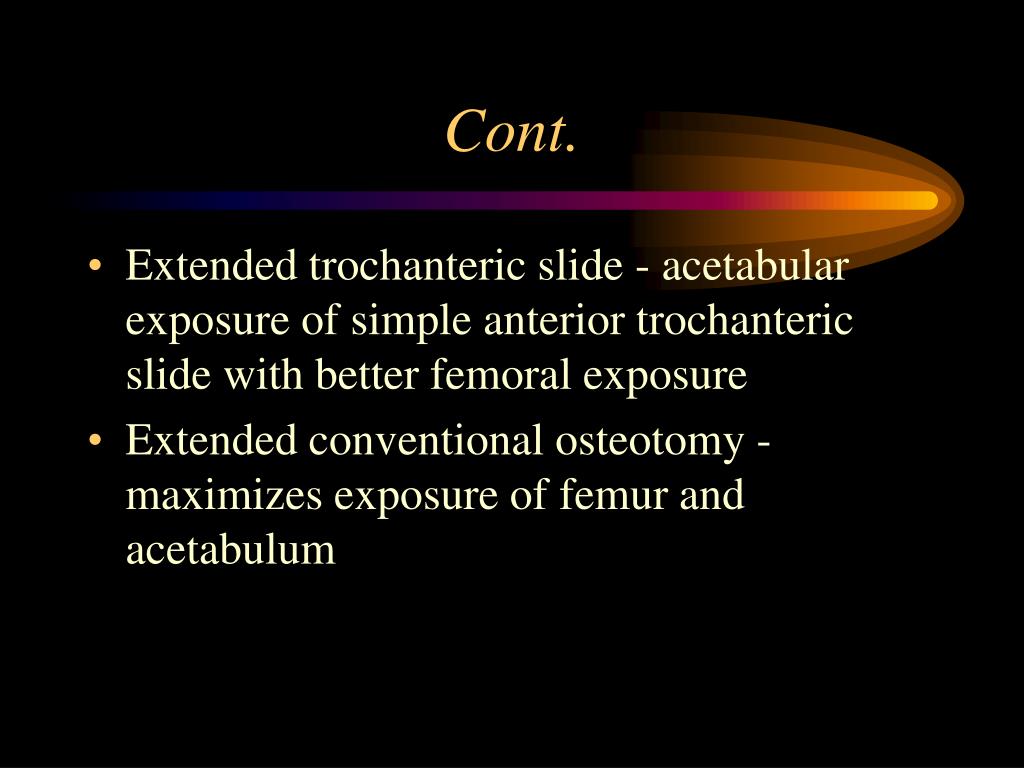

  7. Cont. • Extended trochanteric slide - acetabular exposure of simple anterior trochanteric slide with better femoral exposure • Extended conventional osteotomy - maximizes exposure of femur and acetabulum

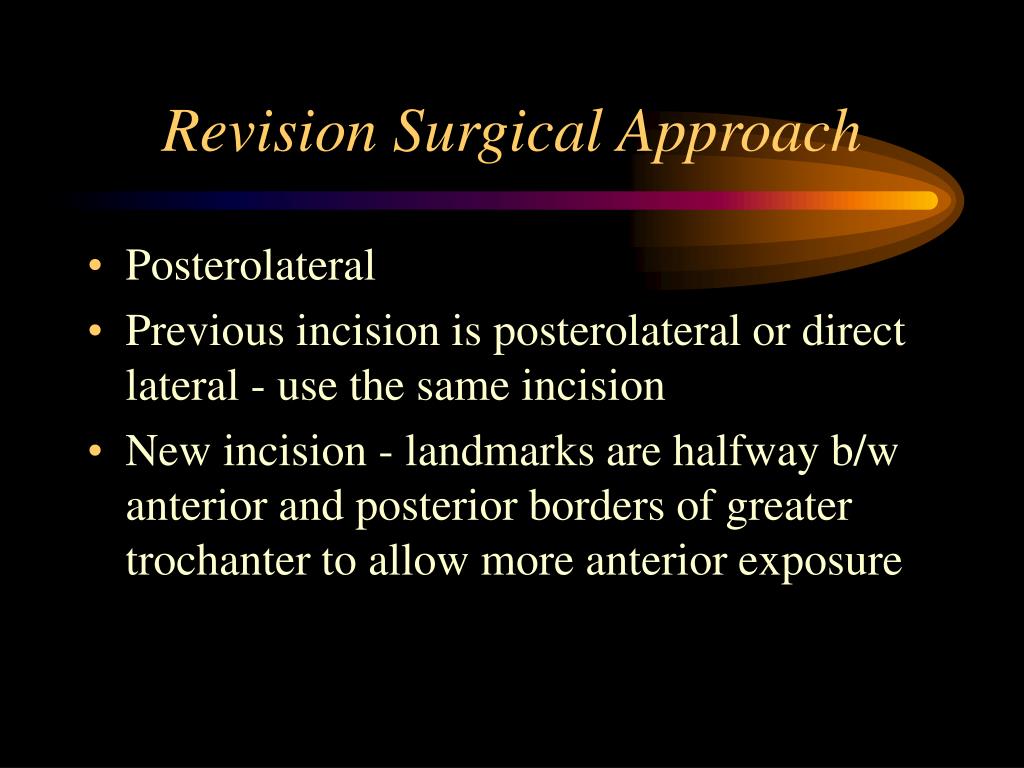

  8. Revision Surgical Approach • Posterolateral • Previous incision is posterolateral or direct lateral - use the same incision • New incision - landmarks are halfway b/w anterior and posterior borders of greater trochanter to allow more anterior exposure

  9. New Incision (cont.) • Upper half - parallel to fiber of gluteus maximus • Lower half - longitudinal extension toward the knee • Gluteus Maximus insertion to femur is released to expose sciatic nerve - failure to do so increases the risk of constriction of the nerve by retraction

  10. Revision Surgical Approach (cont.) • Retained femoral component - anterior capsule is divided to effect anterior displacement of the femur. • Iliopsoas tendon sheath is entered to define plane and the capsule is divided from the inside out, starting distally at the lesser trochanter > retractor placed over acetabulum to displace femur anteriorly

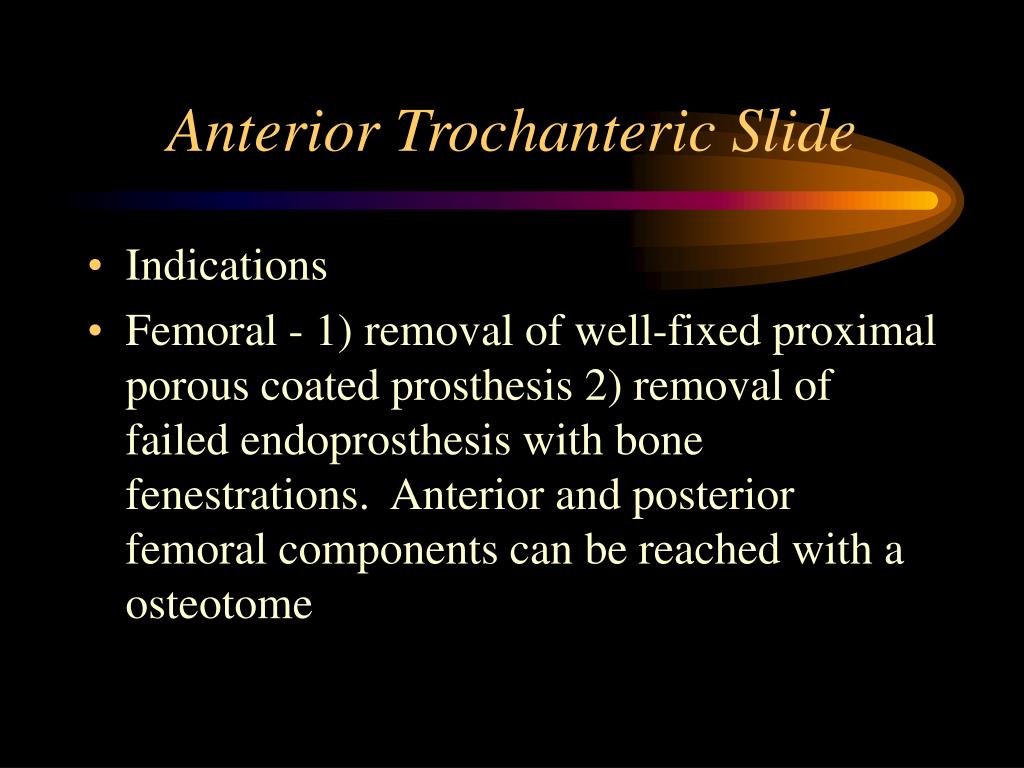

  11. Anterior Trochanteric Slide • Indications • Femoral - 1) removal of well-fixed proximal porous coated prosthesis 2) removal of failed endoprosthesis with bone fenestrations. Anterior and posterior femoral components can be reached with a osteotome

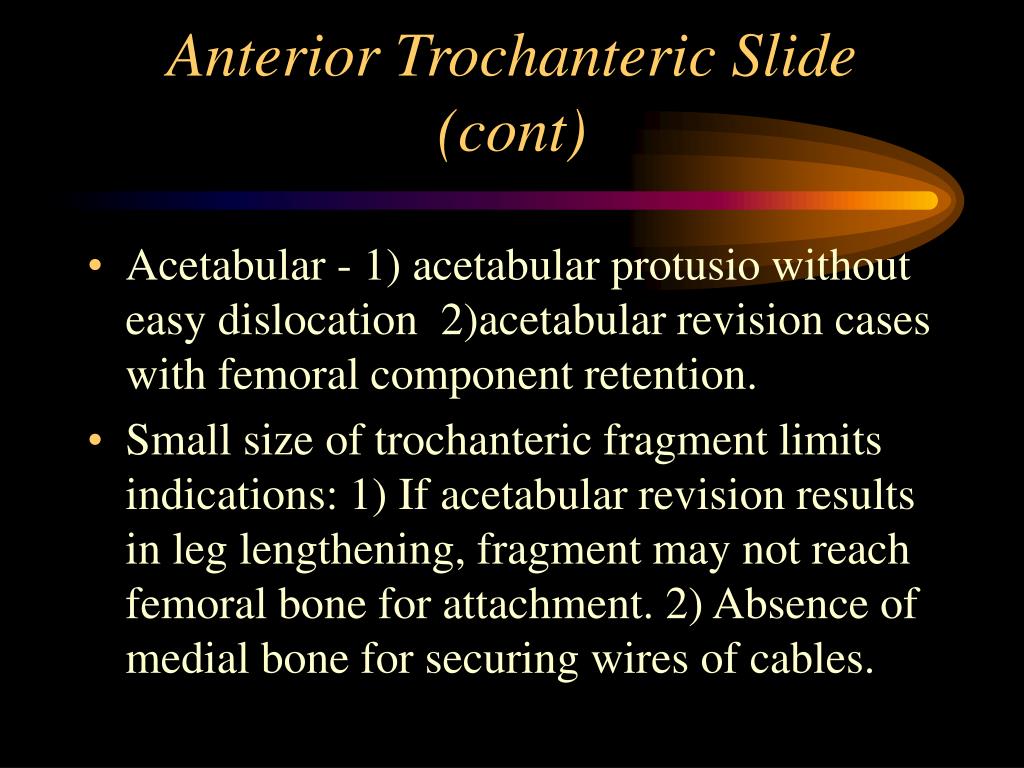

  12. Anterior Trochanteric Slide (cont) • Acetabular - 1) acetabular protusio without easy dislocation 2)acetabular revision cases with femoral component retention. • Small size of trochanteric fragment limits indications: 1) If acetabular revision results in leg lengthening, fragment may not reach femoral bone for attachment. 2) Absence of medial bone for securing wires of cables.

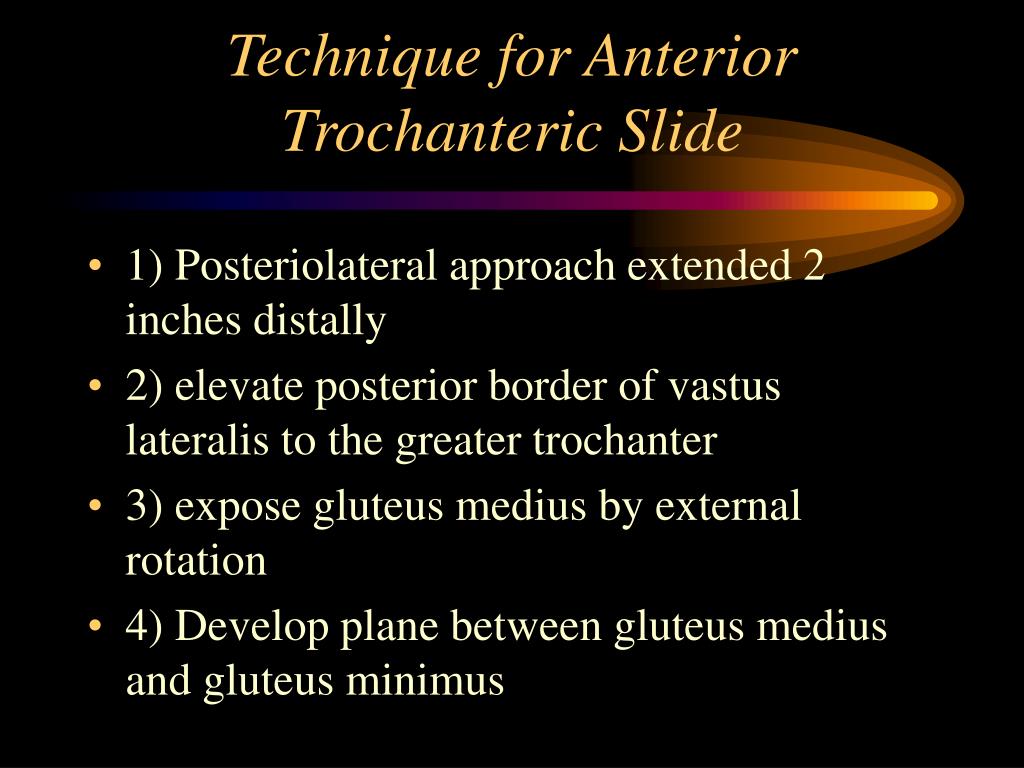

  13. Technique for Anterior Trochanteric Slide • 1) Posteriolateral approach extended 2 inches distally • 2) elevate posterior border of vastus lateralis to the greater trochanter • 3) expose gluteus medius by external rotation • 4) Develop plane between gluteus medius and gluteus minimus

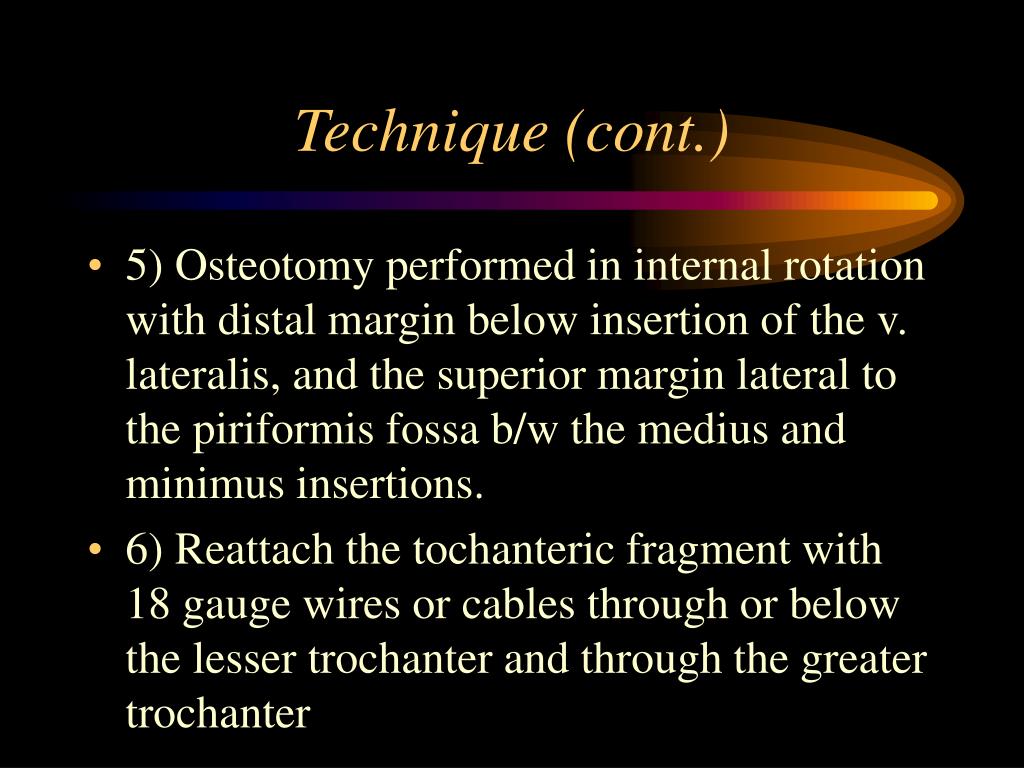

  14. Technique (cont.) • 5) Osteotomy performed in internal rotation with distal margin below insertion of the v. lateralis, and the superior margin lateral to the piriformis fossa b/w the medius and minimus insertions. • 6) Reattach the tochanteric fragment with 18 gauge wires or cables through or below the lesser trochanter and through the greater trochanter

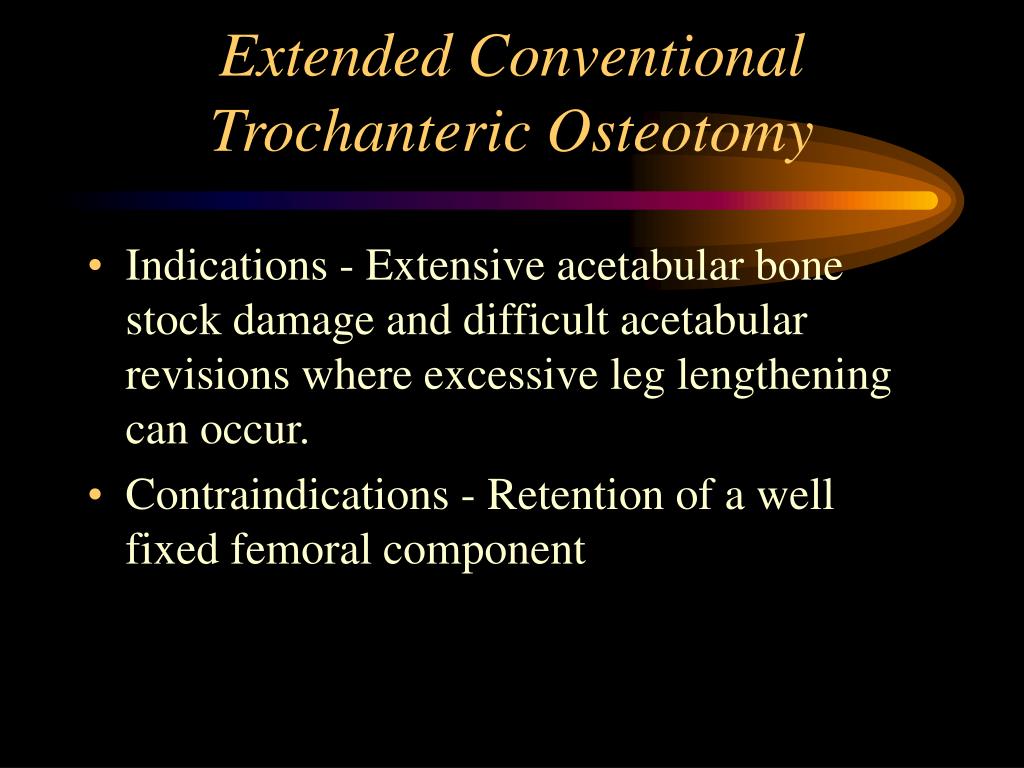

  15. Extended Conventional Trochanteric Osteotomy • Indications - Extensive acetabular bone stock damage and difficult acetabular revisions where excessive leg lengthening can occur. • Contraindications - Retention of a well fixed femoral component

  16. Technique • 1) Distal margin - 5 cm. Distal to the greater trochanter on the lateral femoral shaft • 2) Proximal margin - exits the greater trochanter between the gluteus medius and superior hip capsule • 3) Vastus lateralis is stripped • 4) Internal rotation - isolate posterior margin of gluteus medius

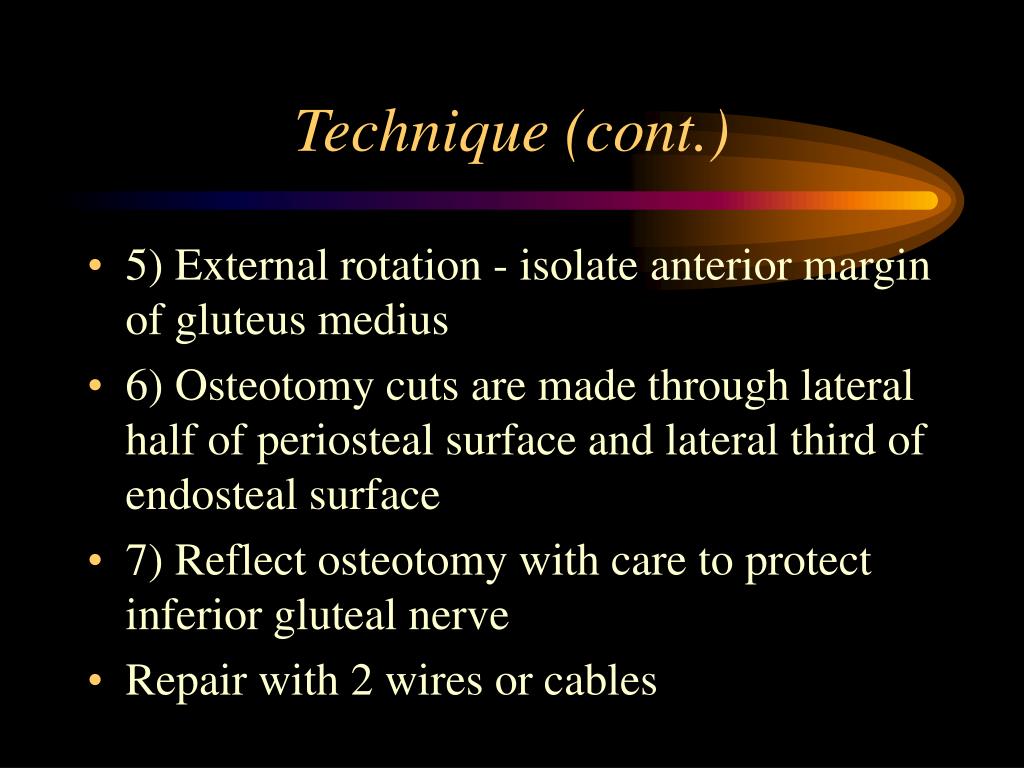

  17. Technique (cont.) • 5) External rotation - isolate anterior margin of gluteus medius • 6) Osteotomy cuts are made through lateral half of periosteal surface and lateral third of endosteal surface • 7) Reflect osteotomy with care to protect inferior gluteal nerve • Repair with 2 wires or cables

  18. Post-Operative Rehabilitation • Based on the stability of trochanteric attachment • ROM limitations determined intraoperatively • Fixation strength of trochanter is determined by stressing the trochanter with adduction and ROM • FWB @ 3 months

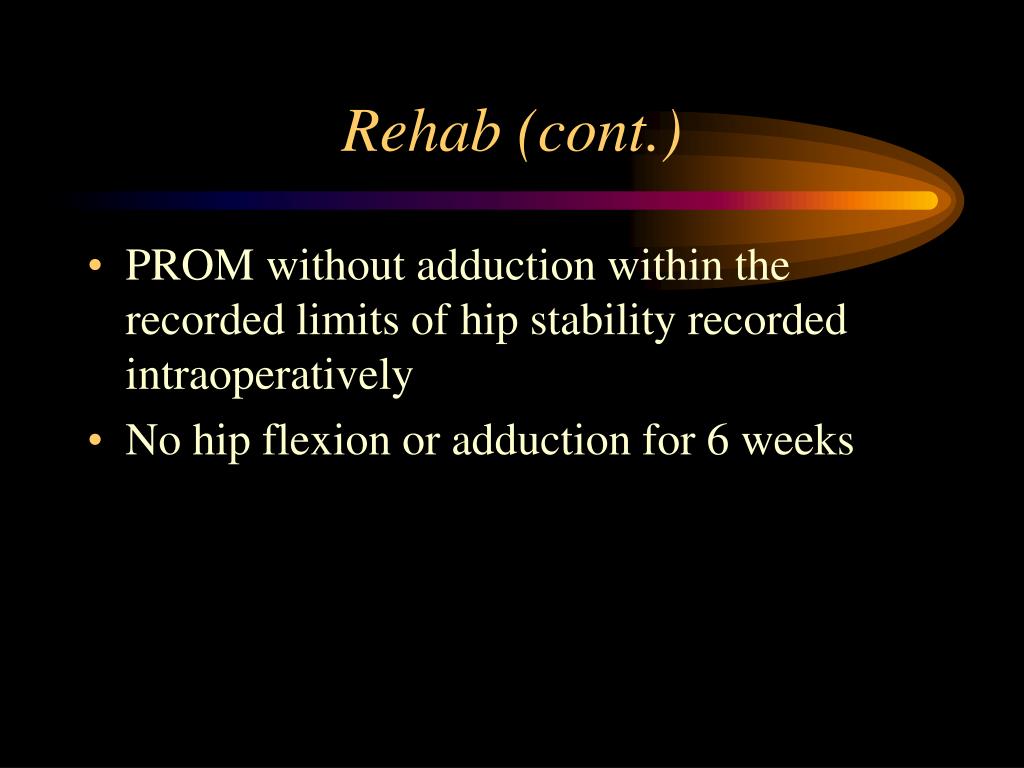

  19. Rehab (cont.) • PROM without adduction within the recorded limits of hip stability recorded intraoperatively • No hip flexion or adduction for 6 weeks

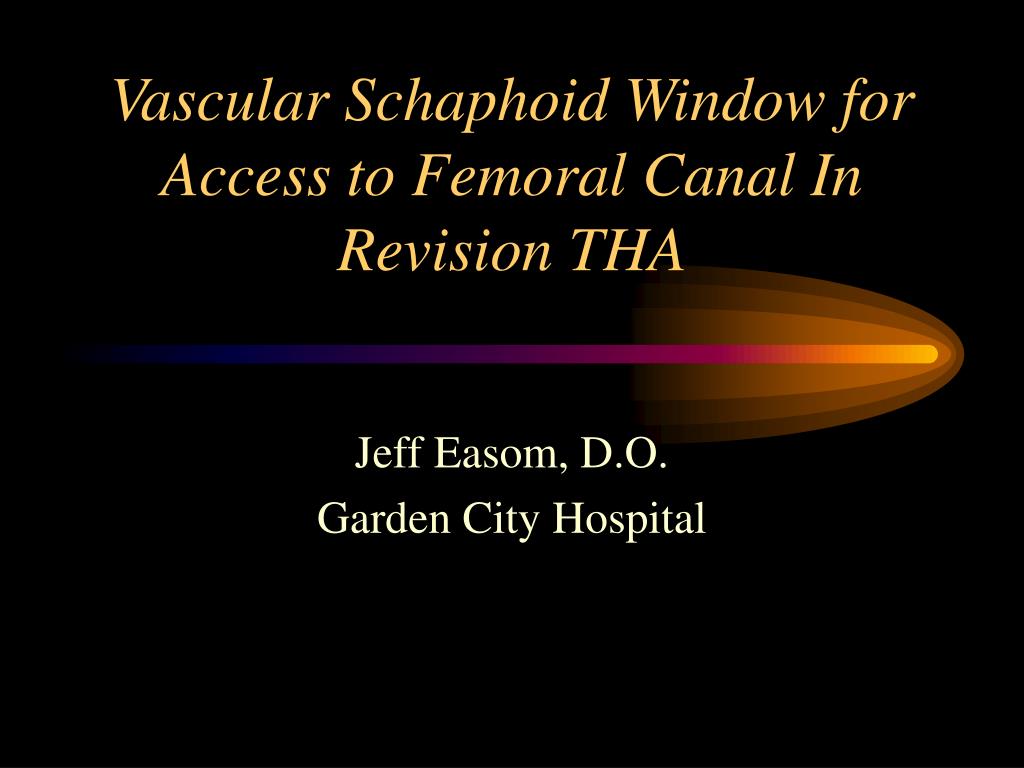

  20. Vascular Schaphoid Window for Access to Femoral Canal In Revision THA Jeff Easom, D.O. Garden City Hospital

  21. Introduction • Removal of distal cement from femoral canal involves substantial risks of canal perforation • Cement removal that extends beyond apex of anterior femoral bow may not be possible • cortical perforation increases the risk of later femoral fracture

  22. Measures taken are controlled windows and extended osteotomies.

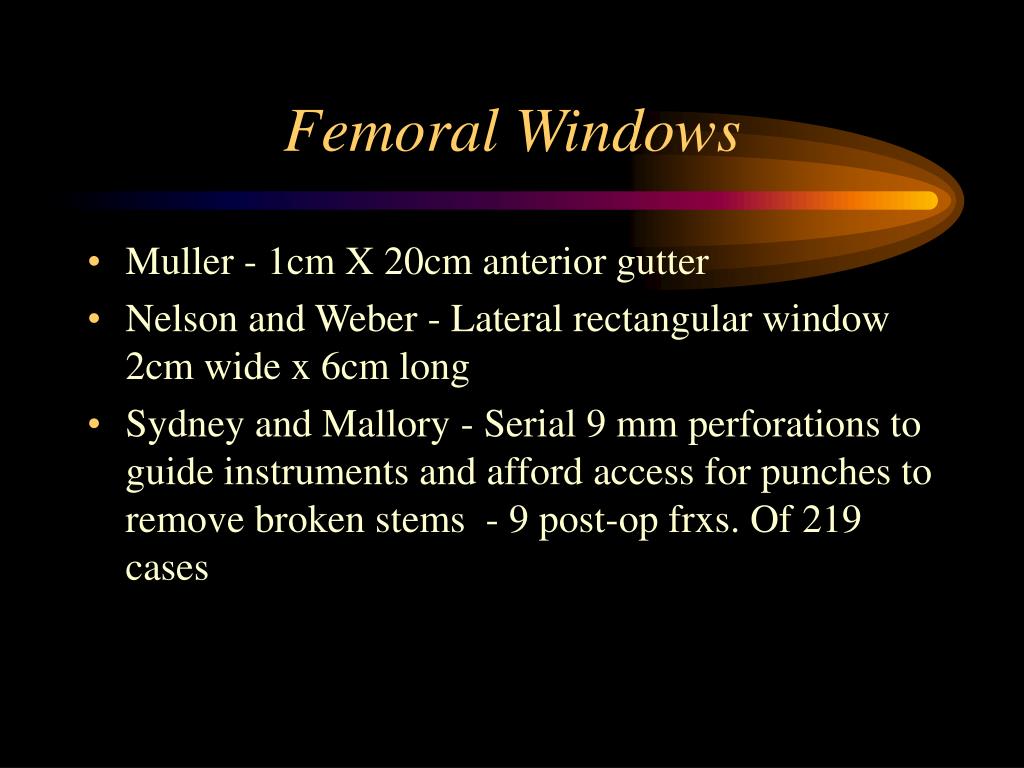

  23. Femoral Windows • Muller - 1cm X 20cm anterior gutter • Nelson and Weber - Lateral rectangular window 2cm wide x 6cm long • Sydney and Mallory - Serial 9 mm perforations to guide instruments and afford access for punches to remove broken stems - 9 post-op frxs. Of 219 cases

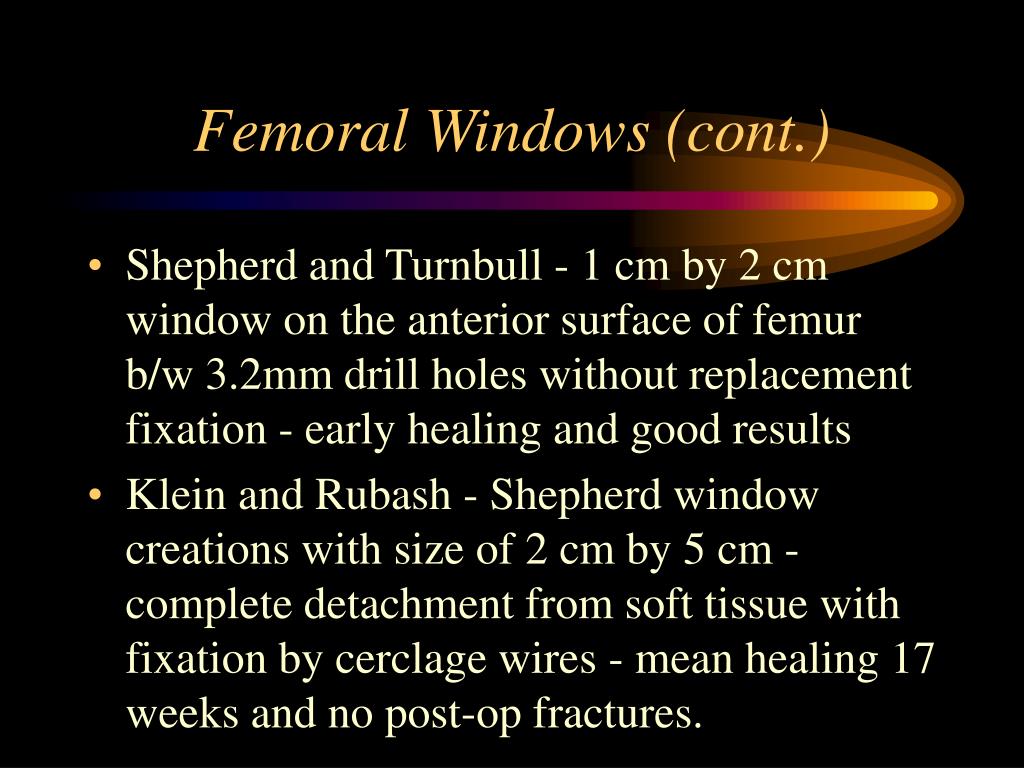

  24. Femoral Windows (cont.) • Shepherd and Turnbull - 1 cm by 2 cm window on the anterior surface of femur b/w 3.2mm drill holes without replacement fixation - early healing and good results • Klein and Rubash - Shepherd window creations with size of 2 cm by 5 cm - complete detachment from soft tissue with fixation by cerclage wires - mean healing 17 weeks and no post-op fractures.

  25. Extended Femoral Osteotomy • Extension of a trochanteric osteotomy distally along femoral shaft • Peters and Assoc. - good results • Younger and Assoc. - 20 cases with extended osteotomy of greater trochanter with 1/3 of cortical diameter of the femur hinged anteriorly with preservation of blood supply by soft-tissue attachments-healing @ 3 months

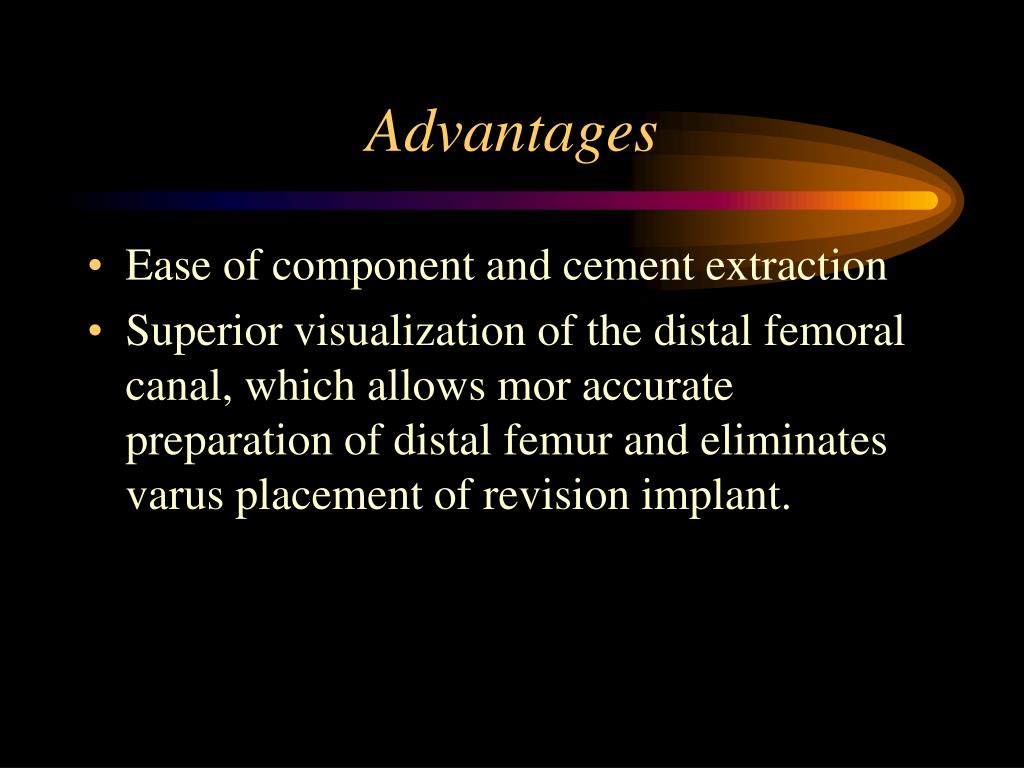

  26. Advantages • Ease of component and cement extraction • Superior visualization of the distal femoral canal, which allows mor accurate preparation of distal femur and eliminates varus placement of revision implant.

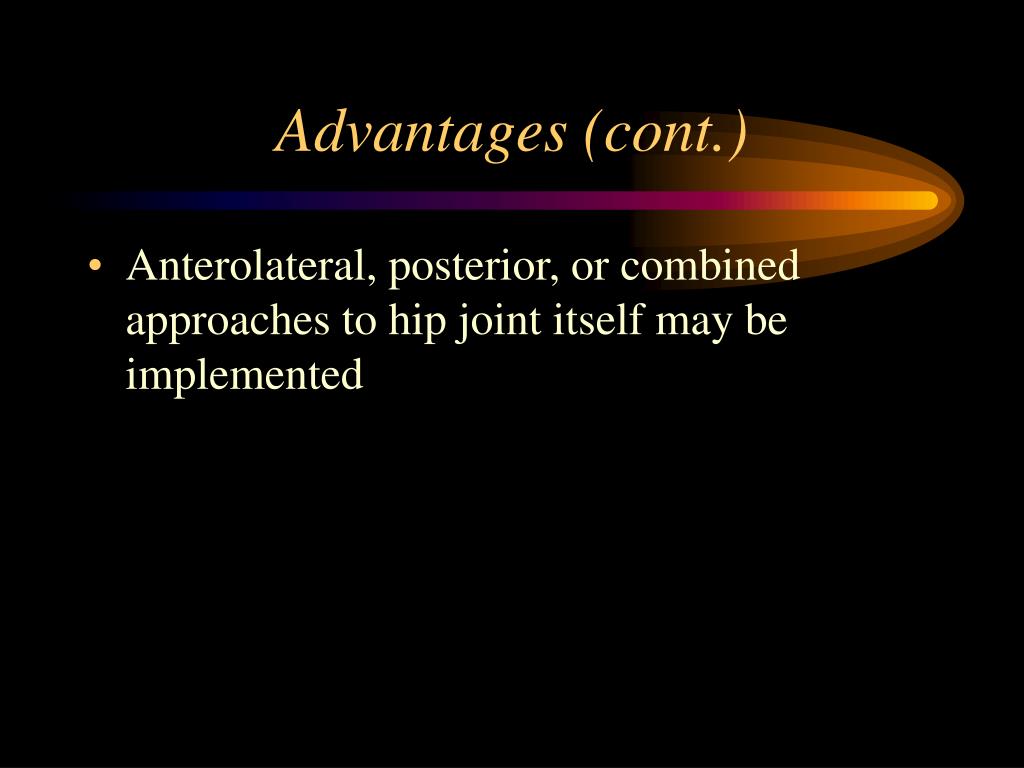

  27. Advantages (cont.) • Anterolateral, posterior, or combined approaches to hip joint itself may be implemented

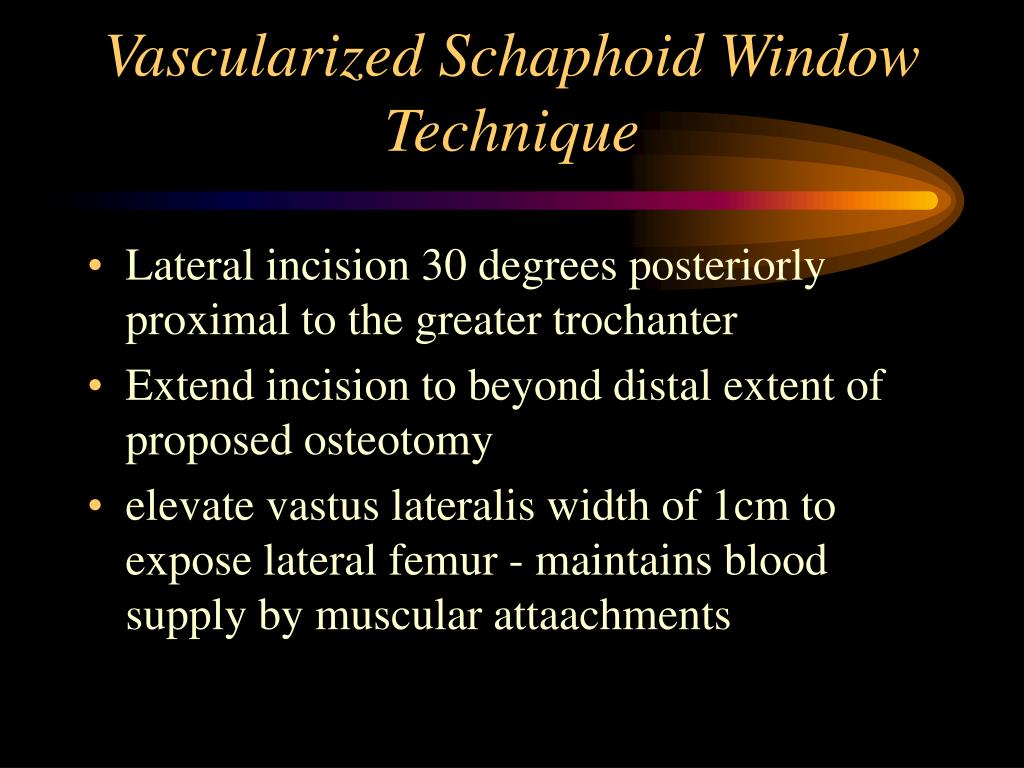

  28. Vascularized Schaphoid Window Technique • Lateral incision 30 degrees posteriorly proximal to the greater trochanter • Extend incision to beyond distal extent of proposed osteotomy • elevate vastus lateralis width of 1cm to expose lateral femur - maintains blood supply by muscular attaachments

  29. Technique (cont.) • Scaphoid osteotomy - Through both cortices of femur lateral to medial with incorporation of smooth rounded edges. • Avoid muscle stripping • Replace with 1 or more cerclage wires • Reimplantation devices should bypass the window by @ least 2 cortical diameters with protected weightbearing for 12 weeks.

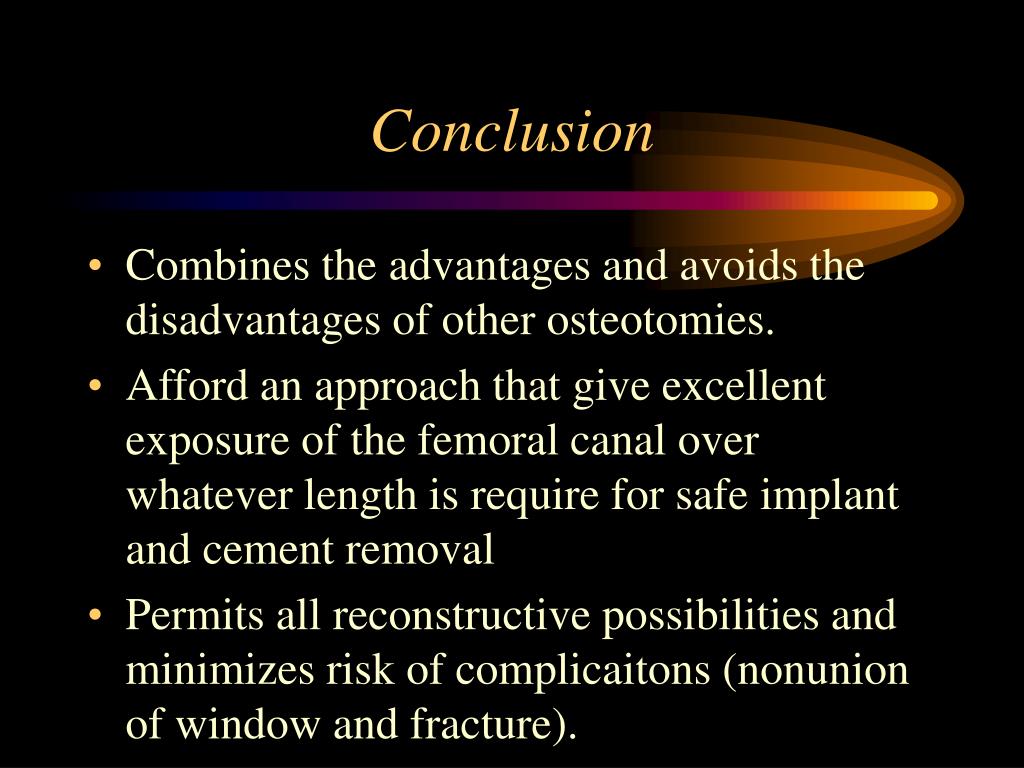

  30. Conclusion • Combines the advantages and avoids the disadvantages of other osteotomies. • Afford an approach that give excellent exposure of the femoral canal over whatever length is require for safe implant and cement removal • Permits all reconstructive possibilities and minimizes risk of complicaitons (nonunion of window and fracture).
