Uncertainty errors in measurement

Uncertainty & Errors in Measurement

Waterfall by m c escher

Waterfall by M.C. Escher



  • Uncertainty

  • Precision

  • Accuracy

  • Systematic errors

  • Random errors

  • Repeatable

  • Reproducible

  • Outliers

Measurements errors

Measurements = Errors

  • Measurements are done directly by humans or with the help of

  • Humans are behind the development of instruments, thus there will always be

    associated with all

    instrumentation, no matter how

    precise that instrument is.



When a physical quantity is taken, the uncertainty should be stated.


If the balance is accurate to +/- 0.001g, the measurement is 45.310g

If the balance is accurate to +/- 0.01g, the

measurement is 45.31g



A reward is given for a missing diamond, which has a reported mass of 9.92 +/- 0.05g. You find a diamond and measure its mass as 10.1 +/- 0.2g. Could this be the missing diamond?

Significant figures

Significant Figures

  • ____ significant figures in 62cm3

  • ____ significant figures in 100.00 g.

The 0s are significant in (2) What is the uncertainty range?



  • Express in scientific notation.

  • 0.04g

  • 222 cm3

  • 0.030g

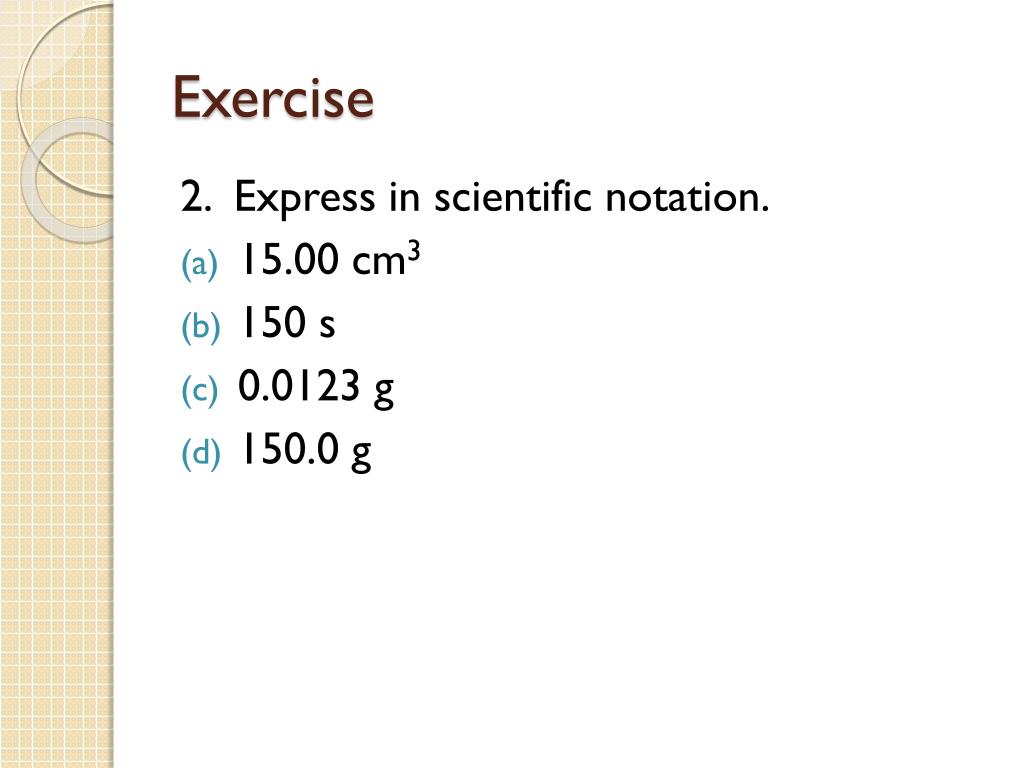

2. Express in scientific notation.

  • 15.00 cm3

  • 150 s

  • 0.0123 g

  • 150.0 g

Random precision errors

Random (Precision) Errors

  • An error that can based on

  • individual inter__________.

  • Often, the error is the result of

    mistakes or errors.

  • Random error is not ______ and can fluctuate up or down. The smaller your random error is, the greater your ___________ is.

Random errors are caused by

Random Errors are caused by

  • The readability of the measuring instrument.

  • The effects of changes in the surroundings such as temperature variations and air currents.

  • Insufficient data.

  • The observer misinterpreting the reading.

Minimizing random errors

Minimizing Random Errors

  • By repeating measurements.

  • If the same person duplicates the experiment with the same results, the results are repeatable.

  • If several persons duplicate the results, they are reproducible.

10 readings of room temperature

10 readings of room temperature

19.9 , 20.2 , 20.0, 20.0, 20.1, 19.9, 20.3, 19.9, 20.2, 22.3

  • What is the mean temperature?

    The temperature is reported as

    as it has a range of

    Read example in the notes.

Systematic errors

Systematic Errors

  • An error that has a fixed margin, thus producing a result that differs from the true value by a fixed amount.

  • These errors occur as a result of poor experimental design or procedure.

  • They cannot be reduced by repeating the experiment.

10 readings of room temperature1

10 readings of room temperature

20.0 , 20.3 , 20.1, 20.1, 20.2, 20.0, 20.4, 20.0, 20.3

All the values are ____________.

  • What is the mean temperature?

    The temperature is reported as

19.9 , 20.2 , 20.0, 20.0, 20.1, 19.9, 20.3, 19.9, 20.2

Examples of systematic errors

Examples of Systematic Errors

  • Measuring the volume of water from the top of the meniscus rather than the bottom will lead to volumes which are too ________.

  • Heat losses in an exothermic reaction will lead to ______temperature changes.

  • Overshooting the volume of a liquid delivered in a titration will lead to volumes which are too ______ .

Minimizing systematic errors

Minimizing Systematic Errors

  • Control the variables in your lab.

  • Design a “perfect” procedure ( not ever realistic)

How trustworthy is your reading

How trustworthy is your reading?

Uncertainty errors in measurement

If all the temperature reading is 200C but the true reading is 190C .

This means, is gives us a precise but inaccurate reading.

If you have consistently obtained a reading of 200C in five trials. This could mean that your thermometer has a large systematic error.

systematic error accuracy

random error precision

Uncertainty errors in measurement

systematic error accuracy

random error precision



Putting it together

Putting it together


The accurate pH for pure water is 7.00 at 250C.

Scenario I

You consistently obtain a pH reading of 6.45 +/- 0.05



Uncertainty errors in measurement

Scenario II

You consistently obtain a pH reading of

8 +/-2



What can be done realistically to improve the investigation

What can be done realistically to improve the investigation?

Scenario 2

Choose a better instrument or method of obtaining

the pH so that your random error is lower.

The more precise your reading , the more likely you can

reproduce the same results among your partners.

Scenario 1

Recalibrate pH prole. Do not use a better probe

because the instrument is very precise

Absolute percentage uncertainty

Absolute & Percentage Uncertainty

Consider measuring 25.0cm3 with a

pipette that measures to +/- 0.1 cm3.

We write

Absolute Uncertainty

Percentage Uncertainty

Percentage uncertainty percentage error

Percentage Uncertainty & Percentage Error

Presenting uncertainties in your reading

Presenting Uncertainties in your reading

When adding and subtracting, the number of decimal places is important.


Suppose we need to find the total mass of two pieces of zinc of mass 1.21g and 0,56g.

The total mass is

Uncertainty errors in measurement


Report the total mass of solution prepared by adding 50g of water to 1.00g of sugar.

Would the use of a more precise balance for the mass of sugar result in a more precise total mass?

The precision of the total is limited by the precision

of the mass of the water. Using a more precise

balance for the mass of sugar would not improve the


Uncertainty errors in measurement

  • When +/- measurement , add the absolute uncertainties


    (15.5 +/- 0.5 mL) + (12.2 +/- 0.2 mL)

Uncertainty errors in measurement


(13.5 +/- 0.2 g) + (14.55 +/- 0.05 g)

Uncertainty errors in measurement


When using a burette ( +/- 0.02 cm3) , you subtract the initial volume from the final volume. The volume delivered is

Final vol = 38.46 +/- 0.02 cm3

Initial vol = 12.15 +/- 0.02 cm3

Total volume delivered =

Multiplying dividing

Multiplying & Dividing

When multiplying or dividing, it is the number of significant figures that is important.

The number with the fewest significant figures used in the calculation determines how many significant figures should be used when quoting the answer.


When the temperature of 0.125kg of water is increased by 7.20C.

Heat required

= mass of water x specific heat capacity x temperature rise

= 0.125 kg x 4.18 kJ kg-1 0C-1 x 7.20C


Since the temperature recorded only has 2 sig fig,

the answer should be written as ____________

Uncertainty errors in measurement

With the absolute uncertainties included, the percentage uncertainties should be used and then convert it back to absolute uncertainties when the final results is presented.


Consider a sample of sodium chloride with a mass of 5.00+/- 0.01g and a volume of 2.3 +/-cm3.What is the density?

Uncertainty errors in measurement


Uncertainty errors in measurement


The concentration of a solution of hydrochloric acid = moldm3 and the volume = cm3 .

Calculate the number of moles and give the absolute uncertainty.

Factory made thermometers

Factory made thermometers

Assume that the liquid in the thermometer is calibrated by taking the melting point at 00C and boiling point at 1000C (1.01kPa).

If the factory made a mistake, the reading will be biased.

Uncertainty errors in measurement

Instrument s have measuring scale identified and also the tolerance.

Manufacturers claim that the thermometer reads from -100C to 1100C with uncertainty +/- 0.20C.

Upon trust, we can reasonably state the room temperature is

20.10C +/- 0.20C.

Graphical technique

Graphical technique

  • Graphs can be useful to us in predicting values.

  • Interpolation – determining an unknown value within the limits of the values already measured.

  • Extrapolation – requires extending the graph to determine an unknown value that lies outside the range of the values measured.

Plotting graphs

Plotting Graphs

  • Give the graph a title.

  • Label the axes with both quantities and units.

  • Use sensible linear scales – no uneven jumps.

  • Plot all the points correctly.

  • A line of best fit should be drawn clearly. It does not have to pass all the points but should show the general trend.

  • Identify the points which do not agree with the general trend.

Line of best equation

Line of Best Equation
