Jacqueline Greer. Team 21 Pop'em Drop'em Robots. TCSP #6 - Software Design Narrative. Abstract. Electronic version of "Rock'em Sock'em Robots" One or two players control movements of robots using a Microsoft Kinect Player punches and dodges translate into robot movements

bly
Download Presentation

Team 21 Pop'em Drop'em Robots

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Jacqueline Greer Team 21 Pop'em Drop'em Robots TCSP #6 - Software Design Narrative

  2. Abstract • Electronic version of "Rock'em Sock'em Robots" • One or two players control movements of robots using a Microsoft Kinect • Player punches and dodges translate into robot movements • Hits are recorded and deplete a health bar • Selectable battle music

  3. Software Flowchart

  4. Software Design Considerations

  5. Software Development Status

  6. Software Development Status - Micro • Main - Controls other modules • Motor and Actuator Control - Translate Pi's movement and punch signals into robot movement and punches • SPI Control - Control LCDs • UART Control - Communicate with Pi, using polling policy • Sensor Control - poll hall effect sensors to detect a hit, update health counts

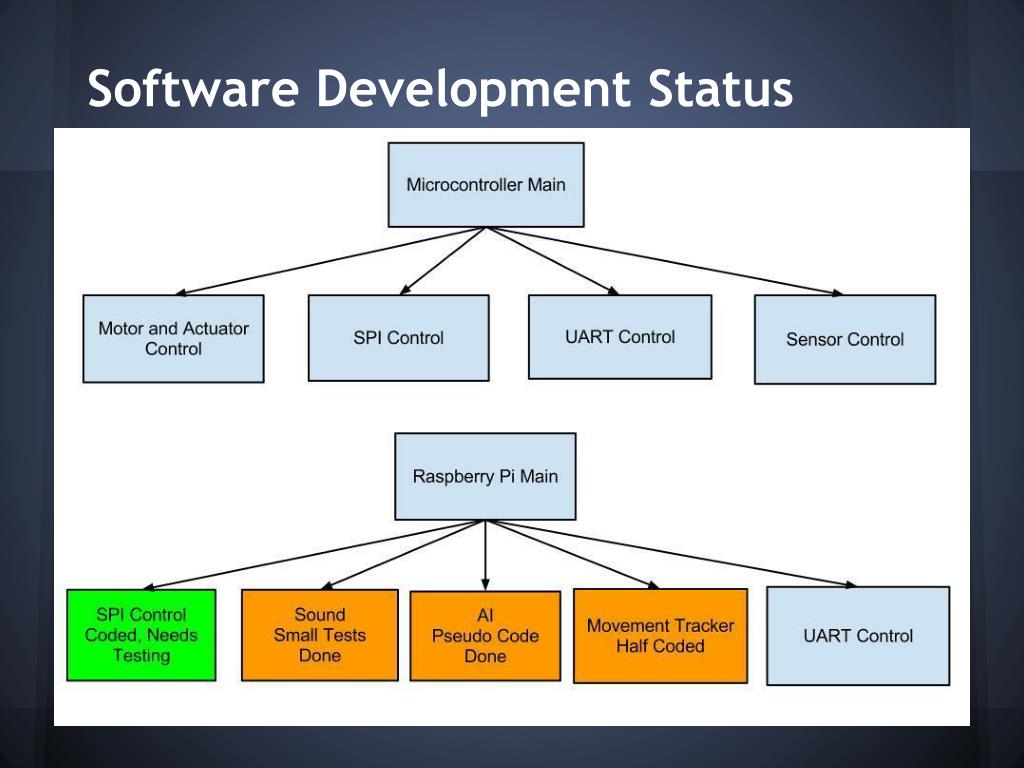

  7. Software Development Status

  8. Software Development Status - Pi Main - Controls other modules SPI Control - Controls tri-color LEDs Sound - Plays music AI - Used for 1 Player Practice Mode to generate movements for the other robot Movement Tracker - Uses modified OpenNI and PrimeSense NITE software for the Kinect to identify users, recognize dodges, punches, and gestures UART Control - Communication with micro

  9. Questions?
