802.1X and 802.11 key interactions

Tim Moore

Tim Moore, Microsoft


Topics

Topics

  • 802.1X key generation

  • 802.1X in small networks

  • 802.1X and VLANs

Tim Moore, Microsoft


802 1x

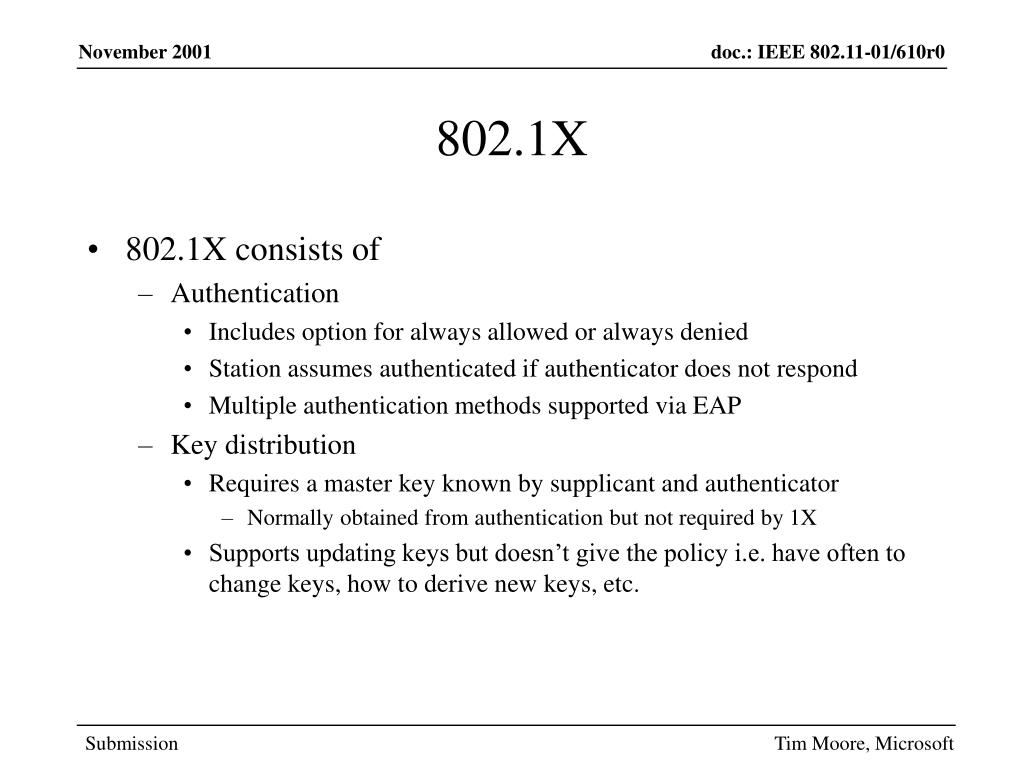

802.1X

  • 802.1X consists of

    • Authentication

      • Includes option for always allowed or always denied

      • Station assumes authenticated if authenticator does not respond

      • Multiple authentication methods supported via EAP

    • Key distribution

      • Requires a master key known by supplicant and authenticator

        • Normally obtained from authentication but not required by 1X

      • Supports updating keys but doesn’t give the policy i.e. have often to change keys, how to derive new keys, etc.

Tim Moore, Microsoft


802 1x key generation

802.1X Key generation

  • EAPOL-Key is used to send keys between authenticator and supplicant

    • Sent as 802.11 unicast data packets so message is acknowledged

  • Requires a master key known by authenticator and supplicant to sign and encrypt the keys being sent in the EAPOL-Key message

    • Normally master key generated by the authentication

  • Allows for the master key to be used as a key by sending no key in the EAPOL-Key message

Tim Moore, Microsoft


802 1x re keying

802.1X re-keying

  • EAPOL-Key message can be sent anytime after authentication (but may be before EAP-Success) and may be sent multiple times

    • I.E. authenticator can update keys whenever it wants.

  • 802.1X re-authenticates to generate a new master key

    • Recommend re-authentication at intervals e.g. once at hour

Tim Moore, Microsoft


Eapol key interval

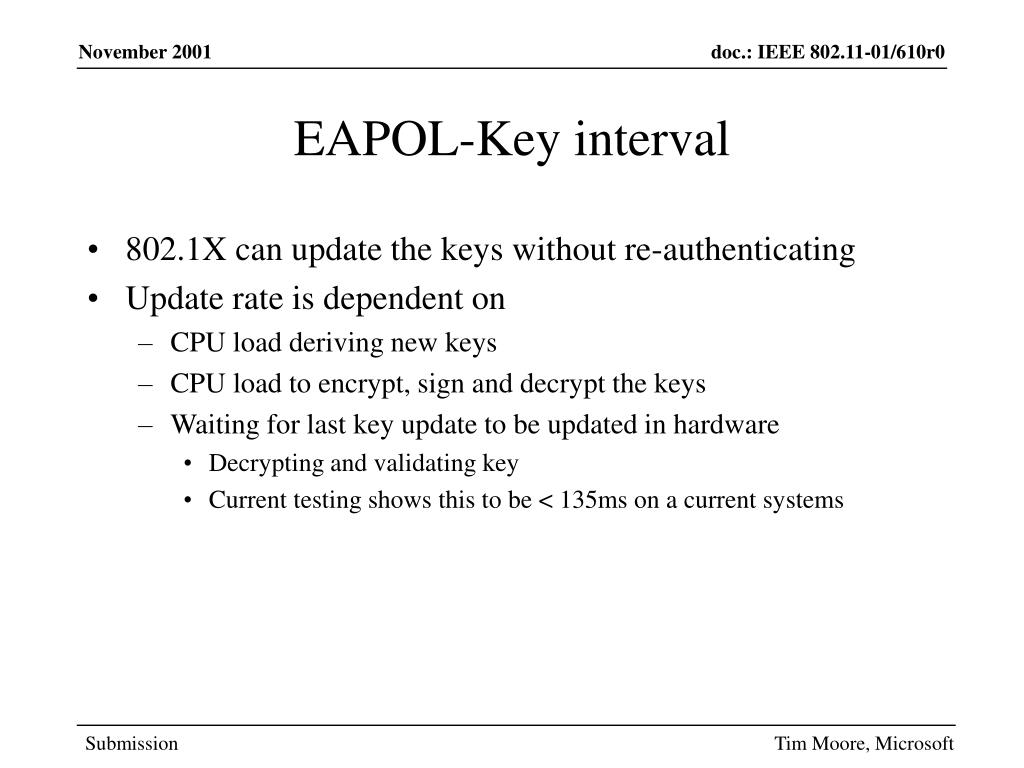

EAPOL-Key interval

  • 802.1X can update the keys without re-authenticating

  • Update rate is dependent on

    • CPU load deriving new keys

    • CPU load to encrypt, sign and decrypt the keys

    • Waiting for last key update to be updated in hardware

      • Decrypting and validating key

      • Current testing shows this to be < 135ms on a current systems

Tim Moore, Microsoft


Key synchronization during updates

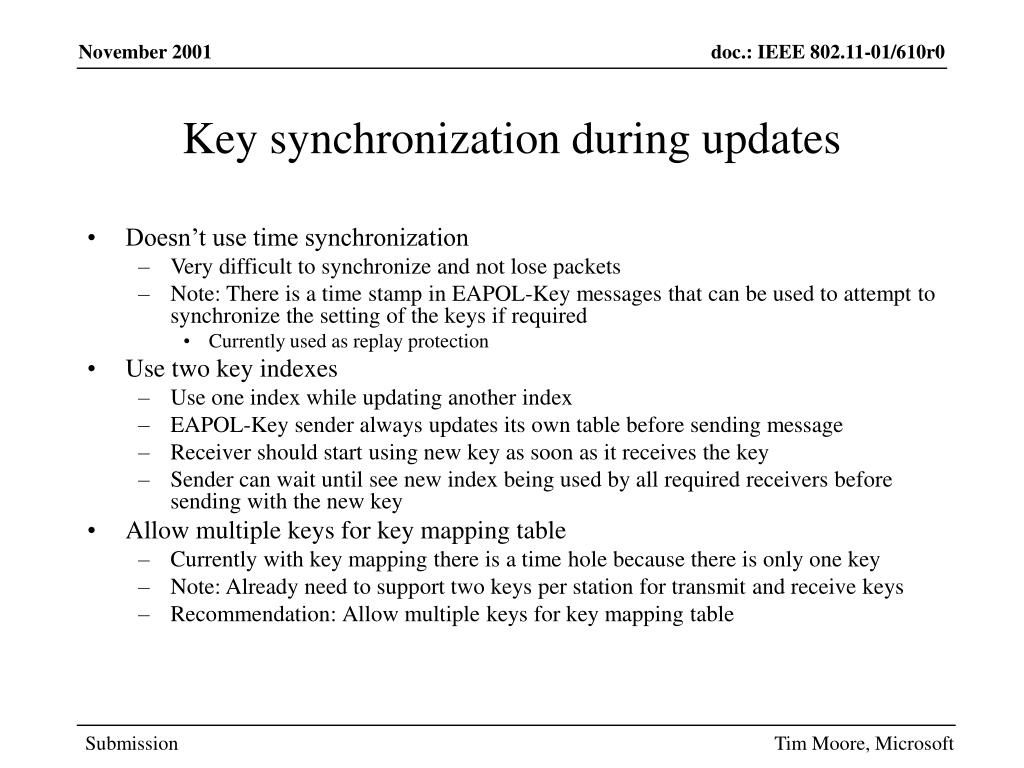

Key synchronization during updates

  • Doesn’t use time synchronization

    • Very difficult to synchronize and not lose packets

    • Note: There is a time stamp in EAPOL-Key messages that can be used to attempt to synchronize the setting of the keys if required

      • Currently used as replay protection

  • Use two key indexes

    • Use one index while updating another index

    • EAPOL-Key sender always updates its own table before sending message

    • Receiver should start using new key as soon as it receives the key

    • Sender can wait until see new index being used by all required receivers before sending with the new key

  • Allow multiple keys for key mapping table

    • Currently with key mapping there is a time hole because there is only one key

    • Note: Already need to support two keys per station for transmit and receive keys

    • Recommendation: Allow multiple keys for key mapping table

Tim Moore, Microsoft


802 1x setkey interaction

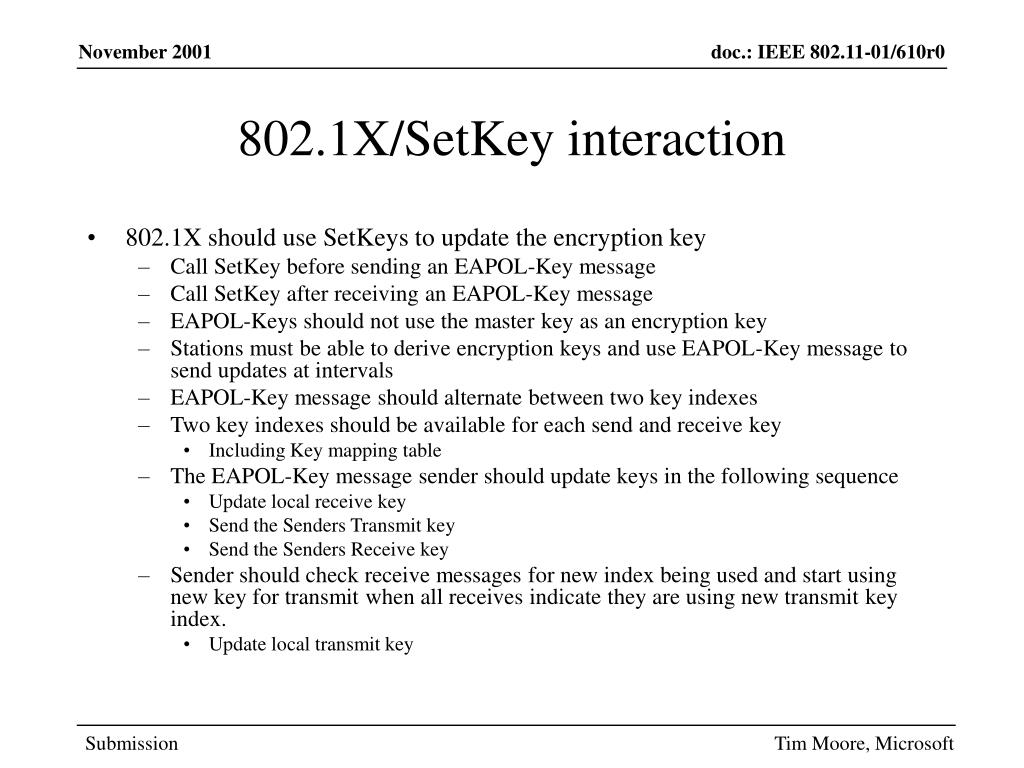

802.1X/SetKey interaction

  • 802.1X should use SetKeys to update the encryption key

    • Call SetKey before sending an EAPOL-Key message

    • Call SetKey after receiving an EAPOL-Key message

    • EAPOL-Keys should not use the master key as an encryption key

    • Stations must be able to derive encryption keys and use EAPOL-Key message to send updates at intervals

    • EAPOL-Key message should alternate between two key indexes

    • Two key indexes should be available for each send and receive key

      • Including Key mapping table

    • The EAPOL-Key message sender should update keys in the following sequence

      • Update local receive key

      • Send the Senders Transmit key

      • Send the Senders Receive key

    • Sender should check receive messages for new index being used and start using new key for transmit when all receives indicate they are using new transmit key index.

      • Update local transmit key

Tim Moore, Microsoft


Roaming between aps

Roaming between APs

  • No IAPP

    • 802.1X does re-authentication

      • Maybe NULL authentication or a fast re-auth (e.g. TLS resume)

      • Get new master key

      • EAPOL-Key messages to send new encryption keys to station

  • IAPP

    • Client authenticates to new AP via signature in re-associate message

    • Via IAPP, New AP sends signature to old AP for validation

    • Old AP validates signature, sends master key to new AP

    • If session-timeout attribute in IAPP RADIUS context is 0 and termination-action = RADIUS, then

      • Set 802.1X state to FORCE_AUTH

    • Else

      • Set 802.1X portStatus to Authorized

      • Set 802.1X state to AUTHENTICATED

    • EAPOL-Key messages used to send new encryption keys to station

Tim Moore, Microsoft


801 x and wep

801.X and WEP

  • 802.1X must be unencrypted

  • Otherwise on roaming 802.1X is encrypted and the new AP cannot decrypt unless IAPP is supported

  • Recommendation: Data frames of Ethertype 802.1X (888E) bypass encryption

Tim Moore, Microsoft


802 1x and ibss

802.1X and IBSS

  • 802.1X works with IBSS

    • Each station should authenticate who is allowed to communicate to it

    • Requires 802.1X supplicant and authenticator on each station, see later for simple way to do this

    • Stations need to learn whether another station needs 802.1X from probe

      • Need this to decide which encryption key to configure: the master key or a derived key

      • Need a way to decide who generates the keys

        • 802.1X doesn’t specify this

Tim Moore, Microsoft


Ibss and encryption keys

IBSS and encryption keys

  • If different receive/transmit keys are required

    • Authenticator sends transmit key

  • If single transmit/receive key is supported

    • If sending EAPOL-Key dest MAC address < own MAC address

      • Do not use key as encryption key and use key received in EAPOL-Key messages

    • Else

      • Do use in sending EAPOL-Key message and ignore EAPOL-Key messages received

Tim Moore, Microsoft


802 1x in small networks

802.1X in small networks

Tim Moore, Microsoft


802 1x in small networks1

802.1X in small networks

  • May want to use shared network password

    • How to do this with 802.1X?

  • May want to have individual user authentication but with simple UI

    • How to do this with 802.1X?

Tim Moore, Microsoft


Shared password

Shared Password

  • Use shared password as master key for EAPOL-Key message

  • Works with Infrastructure and IBSS

  • Access Point ignores all 802.1X messages from station

    • No authentication using EAP

    • Using key distribution and update support in 802.1X

    • Send EAPOL-Key messages with default and key-mapping encryption keys, the message is signed and encrypted using the shared password

    • Only supplicants with the shared password can get the encryption keys

Tim Moore, Microsoft


Shared password implementation

Shared Password implementation

  • Authenticator state machine, authentication server and Radius client not required

    • Access Point should ignore received 802.1X messages

  • Supplicant state machine

    • Need DISCONNECTED, CONNECTING and AUTHENTICATED states (3 out of 7 states)

Tim Moore, Microsoft


Supplicant state machine

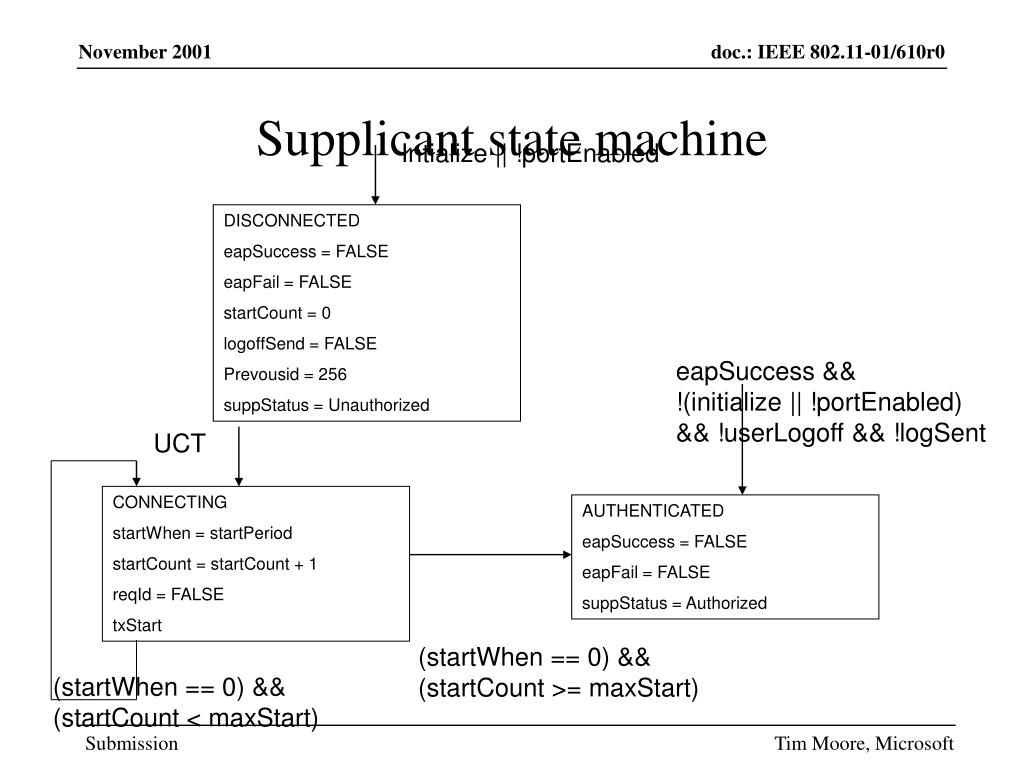

Supplicant state machine

Intialize || !portEnabled

DISCONNECTED

eapSuccess = FALSE

eapFail = FALSE

startCount = 0

logoffSend = FALSE

Prevousid = 256

suppStatus = Unauthorized

eapSuccess &&

!(initialize || !portEnabled)

&& !userLogoff && !logSent

UCT

CONNECTING

startWhen = startPeriod

startCount = startCount + 1

reqId = FALSE

txStart

AUTHENTICATED

eapSuccess = FALSE

eapFail = FALSE

suppStatus = Authorized

(startWhen == 0) &&

(startCount >= maxStart)

(startWhen == 0) &&

(startCount < maxStart)

Tim Moore, Microsoft


Individual user authentication an example

Individual user authenticationAn example

  • Requires full implementation of 802.1X for supplicant, authenticator and authentication server

    • Doesn’t require RADIUS

  • Each station has a self-signed certificate .

  • Access Point has authenticator and authentication server built in

    • No radius implementation since both on the same machine

  • Authentication server and supplicant implements EAP-TLS

Tim Moore, Microsoft


Supplicant

Supplicant

  • Standard EAP-TLS

    • No difference from talking to an AP that uses RADIUS to the authentication server

Tim Moore, Microsoft


Authentication server authenticating user

Authentication server authenticating user

  • Check internal table for username

    • If not allowed, send EAP-failure

    • Else validate certificate

      • If valid

        • If user allowed then

          • If certificate matches certificate in table then send EAP-success

          • Else send EAP-Failure

        • Else display message to admin with username

        • If admin allows user

          • Add user and certificate to table with allowed

        • Else

          • Add user to table with disallowed

        • Endif

      • Else

        • Send EAP-failure

      • Endif

  • Display could be a web page with a list of users requesting for access

    • Admin can select users to allow/disallow access

Tim Moore, Microsoft


802 1x and vlans

802.1X and VLANs

Tim Moore, Microsoft


802 1x and vlans1

802.1X and VLANs

  • 802.1X suggests the use of VLANs or VPNs to isolate different user groups

    • Access Point is a level 2 device so VLANs are the obvious way to do this

  • Need to be able to separate broadcast traffic in 802.11

    • Broadcast messages from different ‘networks’ so not duplicating traffic

    • Use different broadcast keys for each VLAN

    • Need 2 keys per VLAN to allow the keys to be changed

Tim Moore, Microsoft


802 1x and default key table

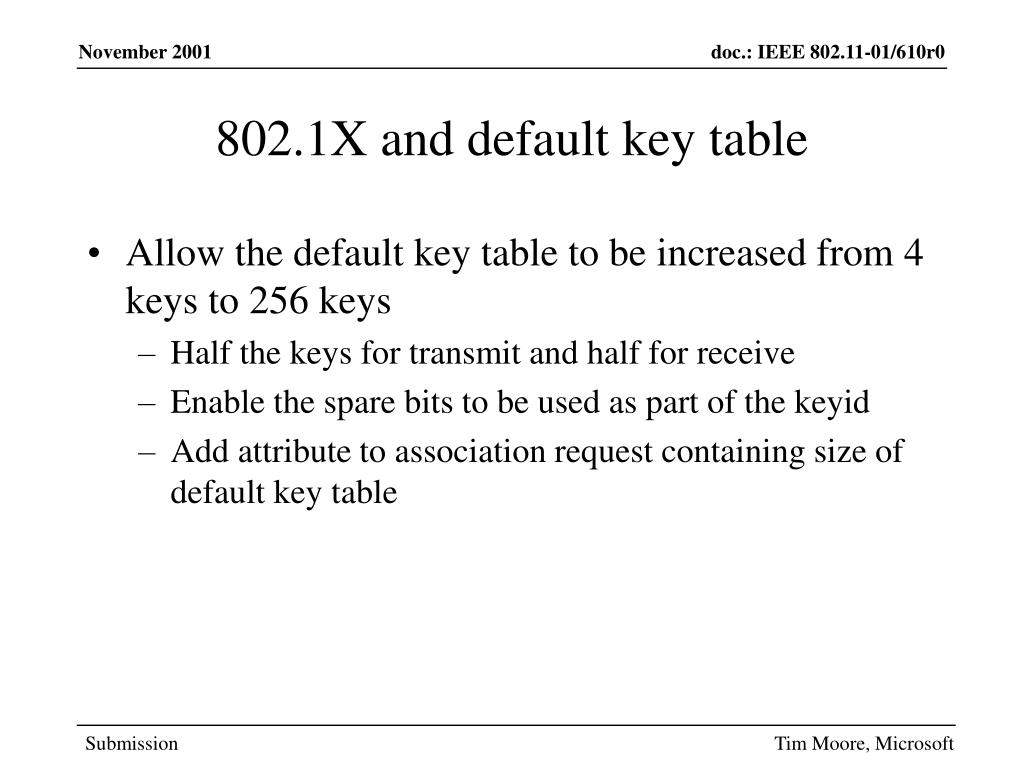

802.1X and default key table

  • Allow the default key table to be increased from 4 keys to 256 keys

    • Half the keys for transmit and half for receive

    • Enable the spare bits to be used as part of the keyid

    • Add attribute to association request containing size of default key table

Tim Moore, Microsoft


Motion

Motion

  • To instruct editor to modify the key mapping table to allow 2 keys per station for ESNs and to use the KeyID to select which key is used

Tim Moore, Microsoft


Motion1

Motion

  • To instruct editor to add text to 8.2.4 so 802.1X data packets are not encrypted

Tim Moore, Microsoft


Motion2

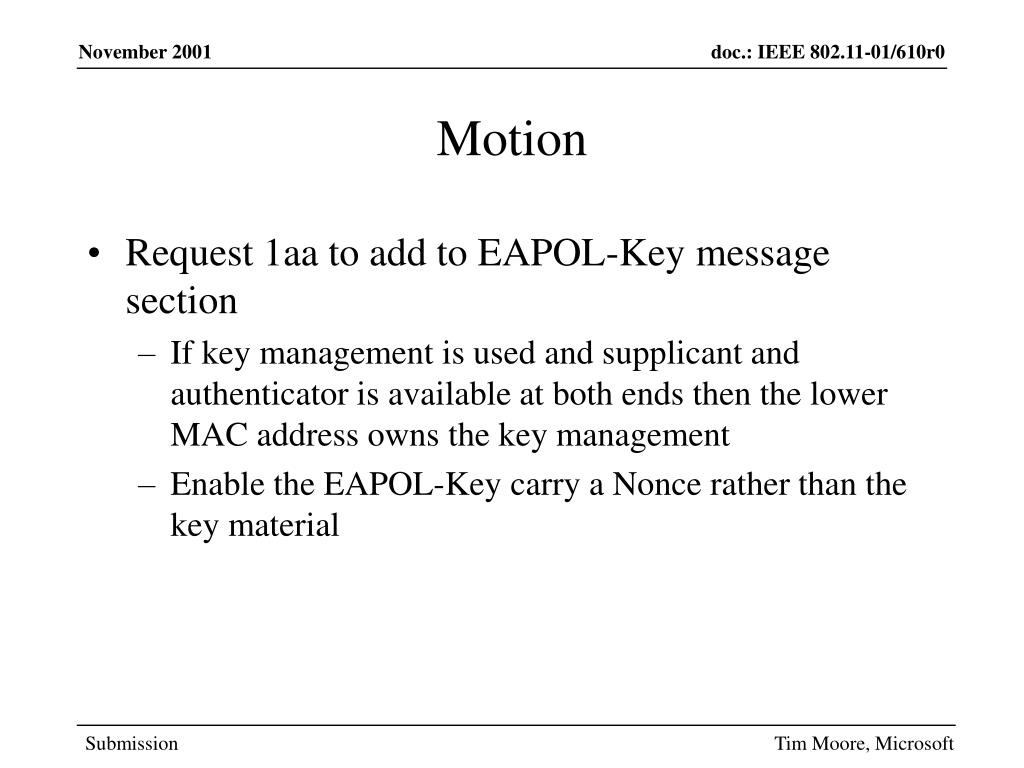

Motion

  • Request 1aa to add to EAPOL-Key message section

    • If key management is used and supplicant and authenticator is available at both ends then the lower MAC address owns the key management

    • Enable the EAPOL-Key carry a Nonce rather than the key material

Tim Moore, Microsoft
